jcb JCB-MS-254SB-L Planning guide

POWER TOOL
INSTRUCTION & USER MANUAL
EN
JCB-MS-254SB-L
Original Instructions
IM-MS-254SB-L-EN
Iss: 09/2019

2JCB-MS-254SB-L
Instruction & User Manual
GENERAL WARNINGS & DISPOSAL
To reduce the risk of injury, the user must read the instruction manual.
The device must not be exposed to rain or immersed in water.
Do not allow any part of the device to come into contact with flames, or to
catch fire.
Protection rating II (double insulated)
This symbol is used throughout this manual to warn the user about potential
risks. Please read & understand these sections before using the device.
Personal Protective Equipment (P.P.E.), such as ear defenders, eye protection,
safety gloves and a dust mask, must be worn during the operation of the
device.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood
dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or
use a dust mask or other safeguards for personal protection. For more information go to www.
P65Warnings.ca.gov/wood.
The month and year of manufacture can be found within the product serial number e.g.
MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included.
JCB-MS-254SB Designation of the tool (MS – Mitre Saw, 254SB – 254mm single bevel sliding)
Warning! Risk of injury! Do not touch the moving saw blade!
This mitre saw is equipped with a class 2 laser.
Do not look into the laser beam
EN 60825-1:2014
P ≤1mW
y= 650nm

3
JCB-MS-254SB-L
Instruction & User Manual
Contents
GENERAL SAFETY INSTRUCTIONS 4
Save all warnings and instructions for future reference 4
SAFETY INSTRUCTIONS FOR MITRE SAWS 6
Safety instructions for the handling of saw blades 8
COMPONENT LIST 10
TECHNICAL DATA 12
VIBRATION AND NOISE INFORMATION 13
OPERATING INSTRUCTIONS 14
Intended Use 14
Before starting the equipment 15
Assembly and operation 16
Assembling the saw 16
Precision adjustment of the stop for crosscut 90° 17
Cross cut 90° and turntable 0° 18
Cross cut 90° and turntable 0° - 45° 19
Precision adjustment of the stop for mitre cut 45° 19
Bevel cut 0°- 45° and turntable 0° 20
Mitre cut 0°- 45° and turntable 0°- 45° 21
Limiting the cutting depth 21
Sawdust bag 21
Changing the saw blade 22
MAINTENANCE AND ELECTRICAL CONNECTION 23
Maintenance 23
Electrical connection 23
Transport 24
Storage 25
DISPOSAL AND RECYCLING 25
WARRANTY STATEMENT 26
GENERAL CERTIFICATE OF CONFORMITY 28

4JCB-MS-254SB-L
Instruction & User Manual
GENERAL SAFETY INSTRUCTIONS
Save all warnings and instructions
for future reference.
1 Work area safety
a Keep work area clean and well lit
–Cluttered and dark areas invite accidents.
bDo not operate power tools in
explosive atmospheres, such as in the
presence of flammable liquids, gases
or dust.
–Power tools create sparks which may ignite
the dust or fumes.
cKeep children and bystanders away
while operating a power tool.
–Distractions can cause you to lose control.
2Electrical safety
aPower tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs
with earthed (grounded) power tools
–Unmodified plugs and matching outlets will
reduce risk of electric shock.
b Avoid body contact with earthed
or grounded surfaces such as pipes,
radiators,ranges and refrigerators.
– There is an increased risk of electric shock if
your body is earthed or grounded.
c Do not expose power tools to rain or
wet conditions.
–Water entering a power tool will increase the
risk of electric shock.
d Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep cord
away from heat, oil, sharp edges or
moving parts.
–Damaged or entangled cords increase the
risk of electric shock.
e When operating a power tool
outdoors, use an extension cord
suitable for outdoor use.
–Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f If operating a power tool in a damp
location is unavoidable, use a residual
current device(RCD) protected supply
–Use of an RCD reduces the risk of electric
shock.
3 Personal safety
a Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the influence of drugs, alcohol or
medication.
–A moment of inattention while operating
power tools may result in serious personal
injury.
bUse safety equipment. Always wear
eye protection.
–Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce
personal injuries.
Read all safety warnings instructions,
illustrations and specifications provided
with this power tool.
Failure to follow the warnings and instruc-
tions may result in electric shock, fire and/
or serious injury. The term “power tool” in
the warnings refers to your mains-operated
(corded) power tool or battery-operated
(cordless) power tool.
WARNING!

5
JCB-MS-254SB-L
Instruction & User Manual
cPrevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool.
–Carrying power tools with your finger on the
switch or energizing power tools that have
the switch on invites accidents.
dRemove any adjusting key or wrench
before turning the power tool on.
–A wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
eDo not overreach. Keep proper
footing and balance at all times.
–This enables better control of the power tool
in unexpected situations.
fDress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts.
–Loose clothes, jewellery or long hair can be
caught in moving parts.
gIf devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used.
–Use of these devices can reduce dust related
hazards.
hDo not let familiarity gained from
frequent use of tools allow you to
become complacent and ignore tool
safety principles.
–A careless action can cause severe injury
within a fraction of a second.
4 Power tool use and care
aDo not force the power tool. Use
the correct power tool for your
application.
–The correct power tool will do the job
better and safer at the rate for which it was
designed.
bDo not use the power tool if the
switch does not turn it on and off.
–Any power tool that cannot be controlled
with the switch is dangerous and must be
repaired.
cDisconnect the plug from the
power source before making any
adjustments, changing accessories, or
storing power tools.
–Such preventive safety measures reduce the
risk of starting the power tool accidentally.
dStore idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool.
–Power tools are dangerous in the hands of
untrained users.
eMaintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tools operation. If damaged, have the
power tool repaired before use.
–Many accidents are caused by poorly
maintained power tools.
fKeep cutting tools sharp and clean.
–Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
gUse the power tool, accessories and
tool bits etc., in accordance with
these instructions and in the manner
intended for the particular type of
power tool, taking into account the
working conditions and the work to be
performed.

6JCB-MS-254SB-L
Instruction & User Manual
– Use of the power tool for operations
different from intended could result in a
hazardous situation.
hKeep handles and grasping surfaces
dry, clean and free from oil and grease.
–Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool
in unexpected situations.
5Service
aHave your power tool serviced by
a qualified repair person using only
identical replacement parts.
–This will ensure that the safety of the power
tool is maintained.
SAFETY INSTRUCTIONS FOR MITRE
SAWS
1Mitre saws are intended to cut wood
or wood-like products, they cannot be
used with abrasive cut-off wheels for
cutting ferrous material such as bars,
rods, studs, etc.
–Abrasive dust causes moving parts such as
the lower guard to jam. Sparks from abrasive
cutting will burn the lower guard, the kerf
insert and other plastic parts.
2Use clamps to support the workpiece
whenever possible. If supporting the
workpiece by hand, you must always
keep your hand at least 100 mm from
either side of the saw blade. Do not use
this saw to cut pieces that are too small
to be securely clamped or held by hand.
–If your hand is placed too close to the saw
blade, there is an increased risk of injury from
blade contact.
3The workpiece must be stationary
and clamped or held against both
the fence and the table. Do not feed
the workpiece into the blade or cut
“freehand” in any way.
– Unrestrained or moving workpieces could be
thrown at high speeds, causing injury.
4Push the saw through the workpiece.
Do not pull the saw through the
workpiece. To make a cut, raise the
saw head and pull it out over the
workpiece without cutting, start the
motor, press the saw head down and
push the saw through the workpiece.
–Cutting on the pull stroke is likely to cause the
saw blade to climb on top of the workpiece
and violently throw the blade assembly
towards the operator.
5Never cross your hand over the
intended line of cutting either in front
or behind the saw blade.
–Supporting the workpiece“cross handed” i.e.
holding the workpiece to the right of the saw
blade with your left hand or vice versa is very
dang erous.
6Do not reach behind the fence with
either hand closer than 100 mm
from either side of the saw blade, to
remove wood scraps, or for any other
reason while the blade is spinning.
–The proximity of the spinning saw blade to
your hand may not be obvious and you may
be seriously injured.
7Inspect your workpiece before cutting.
If the workpiece is bowed or warped,
clamp it with the outside bowed
face toward the fence. Always make
certain that there is no gap between
the workpiece, fence and table along
the line of the cut
–Bent or warped workpieces can twist or shift
and may cause binding on the spinning saw
blade while cutting. There should be no nails
or foreign objects in the workpiece.

7
JCB-MS-254SB-L
Instruction & User Manual
8 Do not use the saw until the table is
clear of all tools, wood scraps, etc.,
except for the workpiece.
– Small debris or loose pieces of wood or
other objects that contact the revolving blade
can be thrown with high speed.
9Cut only one workpiece at a time.
–Stacked multiple workpieces cannot be
adequately clamped or braced and may bind
on the blade or shift during cutting.
10 Ensure the mitre saw is mounted or
placed on a level, firm work surface
before use.
–A level and firm work surface reduces the risk
of the mitre saw becoming unstable.
11 Plan your work. Every time you
change the bevel or mitre angle
setting, make sure the adjustable
fence is set correctly to support the
workpiece and will not interfere with
the blade or the guarding system.
–Without turning the tool “ON” and with no
workpiece on the table, move the saw blade
through a complete simulated cut to assure
there will be no interference or danger of
cutting the fence.
12 Provide adequate support such as
table extensions, saw horses, etc. for
a workpiece that is wider or longer
than the table top.
–Workpieces longer or wider than the mitre
saw table can tip if not securely supported. If
the cut-off piece or workpiece tips, it can lift
the lower guard or be thrown by the spinning
blade.
13 Do not use another person as a
substitute for a table extension or as
additional support.
– Unstable support for the workpiece can
cause the blade to bind or the workpiece to
shift during the cutting operation pulling you
and the helper into the spinning blade.
14 The cut-off piece must not be
jammed or pressed by any means
against the spinning saw blade.
–If confined, i.e. using length stops, the cut-off
piece could get wedged against the blade and
thrown violently.
15 Always use a clamp or a fixture
designed to properly support round
material such as rods or tubing.
–Rods have a tendency to roll while being cut,
causing the blade to “bite” and pull the work
with your hand into the blade.
16 Let the blade reach full speed before
contacting the workpiece.
–This will reduce the risk of the workpiece
being thrown.
17 If the workpiece or blade becomes
jammed, turn the mitre saw off.
Wait for all moving parts to stop and
disconnect the plug from the power
source and/or remove the battery
pack. Then work to free the jammed
material.
–Continued sawing with a jammed workpiece
could cause loss of control or damage to the
mitre saw.
18 After finishing the cut, release the
switch, hold the saw head down and
wait for the blade to stop before
removing the cut-off piece.
– Reaching with your hand near the coasting
blade is dangerous.

8JCB-MS-254SB-L
Instruction & User Manual
19 Hold the handle firmly when making
an incomplete cut or when releasing
the switch before the saw head is
completely in the down position.
–The braking action of the saw may cause the
saw head to be suddenly pulled downward,
causing a risk of injury.
Safety instructions for the
handling of saw blades
1 Only use saw blades if you have mastered
their use.
2 Observe the maximum speed. The
maximum speed specified on the saw blade
may not be exceeded. If specified, observe
the speed range.
3 Observe the motor / saw blade direction
of rotation.
4 Do not use any saw blades with cracks.
Dispose of cracked saw blades. Repairs are
not permitted.
5 Clean grease, oil and water off of the
clamping surfaces.
6 Do not use any loose reducing rings or
bushes for the reducing of holes on saw
blades.
7 Make sure that fixed reducer rings for
securing the saw blade have the same
diameter and are at least 1/3 of the cutting
blade width.
8 Make sure that fixed reducer rings are parallel
to each other.
9 Handle the saw blade with caution. They
are ideally stored in the originally package or
special containers. Wear protective gloves in
order to improve grip and to further re-duce
the risk of injury.
10 Prior to the use of saw blades, make sure
that all protective devices are properly
fastened.
11 Prior to use, make sure that the saw blades
meets the technical requirements of this
electric tool and is properly fastened.
12 Only use the supplied saw blade for cutting
wood and plastic, never for the processing
of metals.
This electric tool generates an
electromagnetic field during operation. This
field can impair active or passive medical
implants under certain conditions. In order to
prevent the risk of serious or deadly injuries,
we recommend that persons with medical
implants consult with their physician and the
manufacturer of the medical implant prior to
operating the electric tool.
WARNING!

9
JCB-MS-254SB-L
Instruction & User Manual
Protect yourself and your environment
from accidents using suitable
precautionary measures!
•Do not look directly into the laser beam with
unprotected eyes.
•Never look into the path of the beam.
•Never point the laser beam towards
reflecting surfaces and persons or animals.
Even a laser beam with a low output can
cause damage to the eyes.
•Caution - methods other than those specified
here can result in dangerous radiation
exposure.
•Never open the laser module. Unexpected
exposure to the beam can occur.
•If the mitre saw is not used for an extended
period of time, the batteries should be
removed.
•The laser may not be replaced with a
different type of laser.
•Repairs of the laser may only be carried out
by the laser manufacturer or an authorised
representative.
Attention: Laser radiation
Do not stare into the beam
Class 2 laser
EN 60825-1:2014
P ≤1mW
y= 650nm

10 JCB-MS-254SB-L
Instruction & User Manual

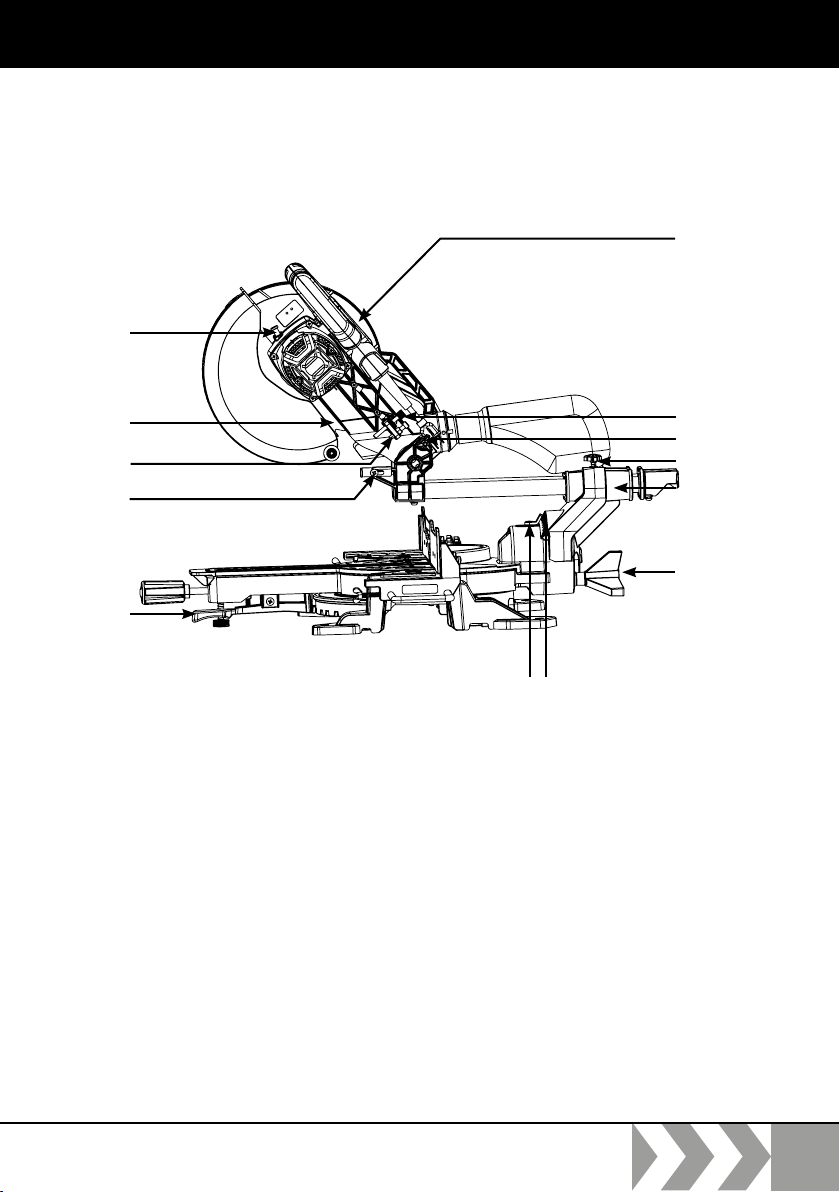

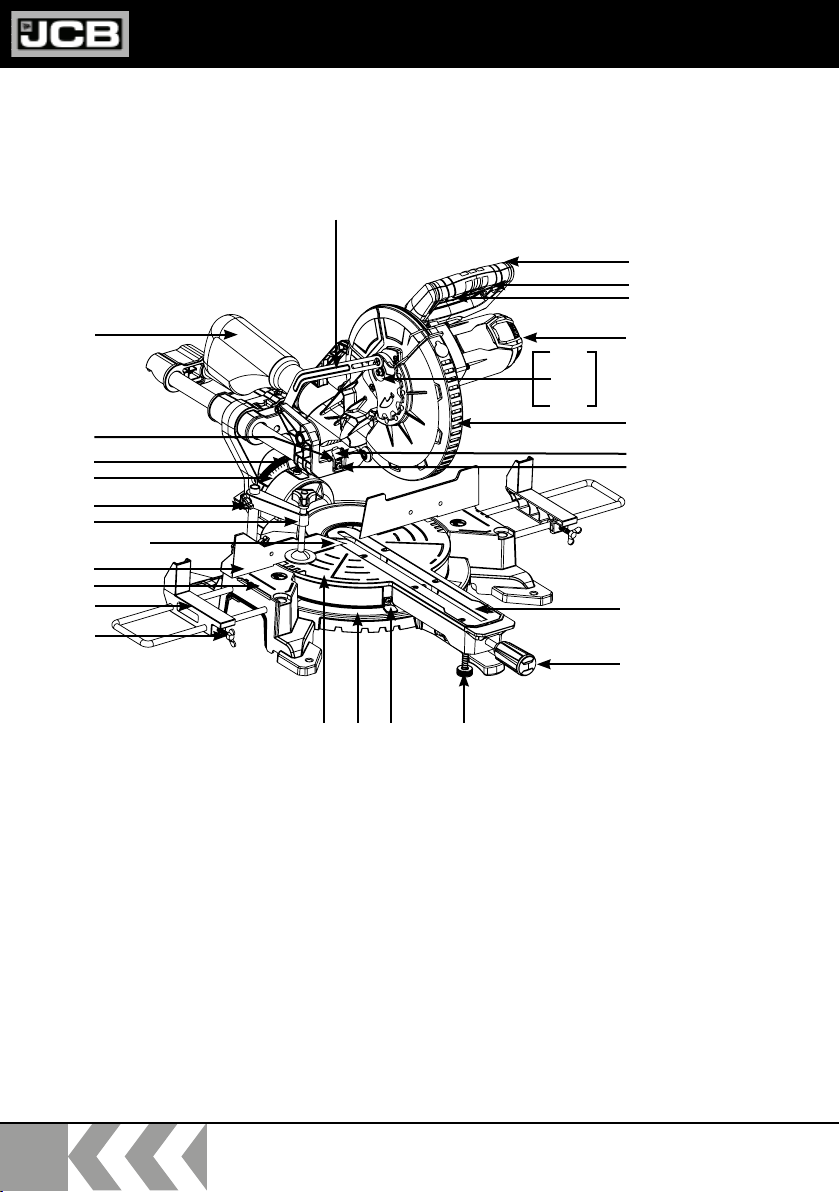

COMPONENT LIST
1. Handle
2. ON/OFF switch
3. Lock-off lever
4. Machine head
5. Moving blade guard
6. Saw blade
7. Clamping device
8. Workpiece support
9. Locking screw for workpiece support
10. Table insert
11. Turn table locking handle
12. Pointer
13. Mitre scale
14. Turn table
15. Fixed saw table
16. Stop rail
16a Extension block
16b Set screw
17. Sawdust bag
33
36
9
8
11
10
1
4
5
7a
7
18
19
17
35
13 12 2714
16
15
37
16a/16b
2
3
behind the
Movable
blade guard
29
30
32

11
JCB-MS-254SB-L
Instruction & User Manual
COMPONENT LIST
18. Bevel scale
19. Bevel pointer
20. Locking screw for drag guide
21. Drag guide
22. Locking screw knob
23. Fastening bolt
24. Screw for cutting depth limiter
25. Stop for cutting depth limiter
26. Locking bolt
27. Support foot
28. Turn table release lever
29. Flange bolt
30. Outer flange
31. Spindle lock button
32. Inner flange
33. Laser
34. ON/OFF switch for laser
35. Laser compartment
36. Laser holder
37. Guide bar
34
23
26
22
18 19
20
21
6
31
24
25
28

12 JCB-MS-254SB-L
Instruction & User Manual
TECHNICAL DATA
AC motor 120 V ~ 60Hz
Power 2000W
Idle speed n 5000/min
Carbide saw blade 10” x 1-1/8” x 1/8” (254 x 30 x 3.0 mm)”
Number of teeth 60
Mitre range -45º / 0º / +45º
Bevel cut 0º to 45º to the left
Saw width at 90º 12.5” x 3.5” (315 x 90 mm)
Saw width at 45º 8.5” x 3.5” (215 x 90 mm)
Saw width at 2 x 45º (double mitre cut) 8.5” x 1.6” (215 x 40 mm)
Protection class 11 /
Weight net / gross 36/44 lbs (16.4/20.0 kg)
Laser class 2
Wave/length of laser 650nm
laser output ≤1mW
Technical changes reserved!
The workpiece must have a minimum height
of 1/8” (3 mm) and a minimum width of 0.4”
(10 mm).
Maake sure that the workpiece is always
secured with the clamping device.
WARNING!

13
JCB-MS-254SB-L
Instruction & User Manual
VIBRATION AND NOISE INFORMATION
Total noise values determined in accordance with IEC 62841
A-Weighted Sound Pressure (LpA)94.3 dB(A)
Uncertainty KpA 3 dB
A-Weighted Sound Level (LwA)107.3 dB(A)
Uncertainty KwA 3 dB
Wear ear protection when sound pressure is over 80 dB(A)
Wear hearing protection.
The effects of noise can cause a loss of
hearing. The above-mentioned noise emission
values were measured in accordance with a
standardised test procedure and can be used to
compare one power tool with another.
The above-mentioned noise emission values
can also be used for the preliminary assessment
of exposure.
Warning:
The noise emissions during the actual use of
the power tool may differ from the above-
mentioned values depending on the power
tool being used, in particular on the type
of workpiece being processed. Try to keep
emissions as low as possible, for example by
limiting your working time. In this regard, all
the operational cycle phases must be taken into
consideration (such as the times when the tool
is switched off or running idle).
WARNING!

14 JCB-MS-254SB-L
Instruction & User Manual
OPERATING INSTRUCTIONS
Intended Use
The drag, crosscut and mitre saw is designed
to crosscut wood and plastic respective of the
machine’s size. The saw is not designed for
cutting firewood.
The equipment is to be used only for its
prescribed purpose. Any other use is deemed
to be a case of misuse. The user / operator
and not the manufacturer will be liable for any
damage or injuries of any kind caused as a
result of this.
The equipment is to be operated only with
suitable saw blades. It is prohibited to use any
type of cutting-off wheel.
To use the equipment properly you must also
observe the safety information, the assembly
instructions and the operating instructions to be
found in this manual.
All persons who use and service the equipment
have to be acquainted with this manual and
must be informed about the equipment’s
potential hazards. It is also imperative to
observe the accident prevention regulations in
force in your area. The same applies for the
general rules of health and safety at work.
The manufacturer will not be liable for any
changes made to the equipment nor for any
damage resulting from such changes. Even
when the equipment is used as prescribed it
is still impossible to eliminate certain residual
risk factors. The following hazards may arise
in connection with the machine’s construction
and design:
• Contact with the saw blade in the uncovered
saw zone.
• Reaching into the running saw blade (cut
injuries).
• Kick-back of workpieces and parts of
workpieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the
saw blade.
• Damage to hearing if ear-defenders are not
used as necessary.
• Harmful emissions of wood or plastic dust
when used in closed rooms.
Do not use the saw to cut materials other
than those specified described in manual.
WARNING!
The supplied saw blade is only intended for
the sawing of wood! Do not use this blade
for the sawing of plastic!
WARNING!

15
JCB-MS-254SB-L
Instruction & User Manual
Before starting the equipment
• The equipment must be set up where it can
stand securely. Secure the machine on a
workbench or a stand with 4 screws through
the holes in the fixed saw table (15).
• All covers and safety devices have to be
properly fitted before the equipment is
switched on.
• It must be possible for the blade to run
freely.
• When working with wood that has been
processed before, watch out for foreign
bodies such as nails or screws, etc.
• Before you press the ON/OFF switch check
that the saw blade is fitted correctly. Moving
parts must run smoothly.
• Before you connect the equipment to the
power supply make sure the data on the
rating plate are identical to the mains data.
Do not use the tool if the switch does
not allow you to switch from the ON
state to the OFF state.

16 JCB-MS-254SB-L
Instruction & User Manual
Assembling the saw (Fig1/2/3/4)
• In order to adjust the turn table (14) loosen
the locking handle (11) approx. 2 turns and
lift up the release lever (28).
• Turn the turn table (14) and pointer (12) to
the desired angle measurement on the scale
(13) and secure with the locking handle (11).
• Pressing the machine head (4) lightly
downwards and removing the fastening bolt
(23) from the motor bracket at the same
time disengages the saw from the lowest
position.
• Swing the machine head (4) up.
• It is possible to secure the clamping device
(7) to the left or right on the fixed saw table
(15). Insert the clamping device (7) in the
hole on the rear side of the stop rail (16) and
secure it with the star grip screw (7a).
• Attach the workpiece supports (8) to the
fixed saw table (15) as shown in Figure 4 and
fasten with the screw (9).
• It is possible to tilt the machine head (4) a
max. 45° to the left by loosening the locking
screw (22).
For your own safety, only insert the mains plug
in an outlet when all assembly steps have been
completed and you have read and understood
the safety and operating instructions.
Lift the saw out of the packaging and place it on
your work bench. (Positioning of the saw on
the work bench - see the previous page under
“Before starting the equipment”)
WARNING!
ASSEMBLY AND
OPERATION

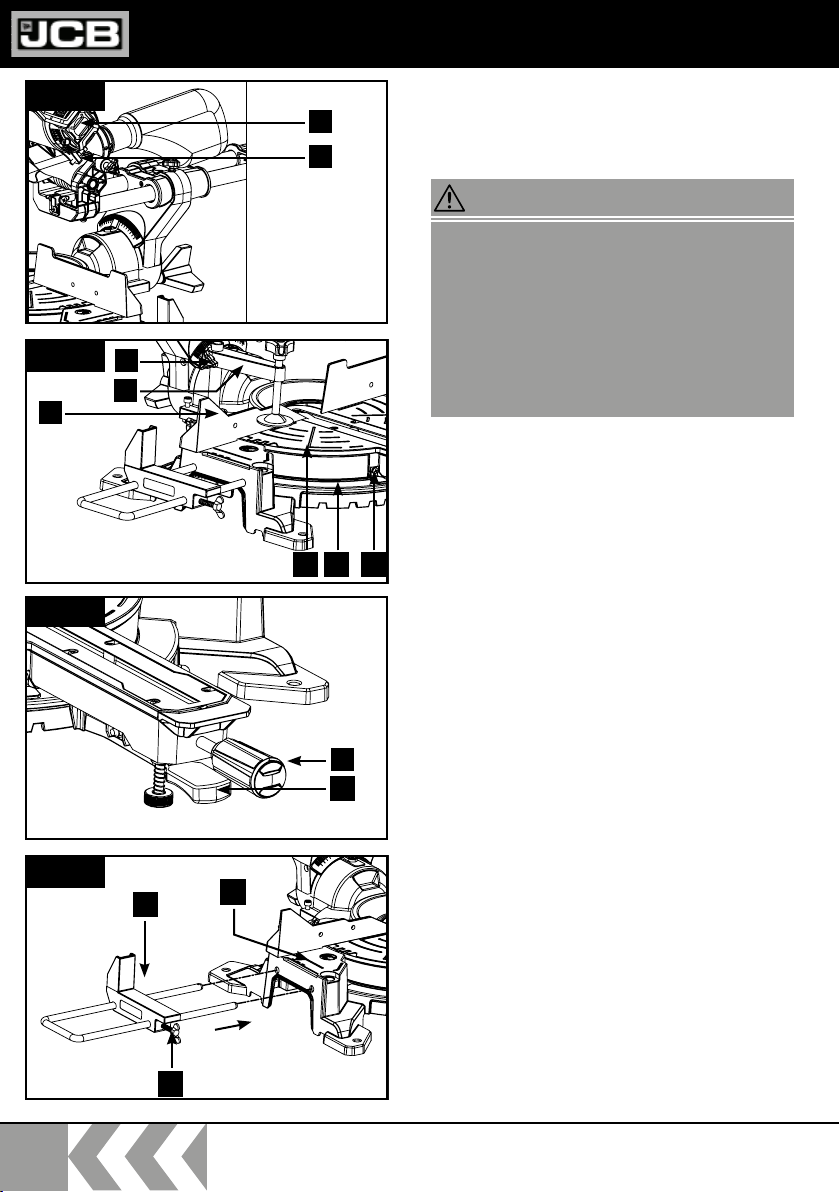

Fig.1
Fig.2
Fig.3
Fig.4
11
28
8
9
15
4
26
16
7a
7
121314

17
JCB-MS-254SB-L
Instruction & User Manual
Precision adjustment of the stop for
crosscut 90° (Fig. 1/5/6)
• Lower the machine head (4) and secure
using the fastening bolt (23).
• Loosen the locking screw (22).
• Position the angle stop between the saw
blade (6) and the turn table (14).
• Adjust the adjusting screw (27) until the angle
between the saw blade (6) and turn table
(14) is 90°.
• Subsequently check the position of the angle
indicator. If necessary loosen the pointer (19)
using a Philips screwdriver, set to position 0°
on the bevel scale (18) and re-tighten the
retaining screw
Turning on and off (Fig. 7)
• To turn the saw on, moving the Lock-off
Lever(3) to the left and depress and hold
the on/off trigger switch (2).
• To turn the saw off release the on/off trigger
switch (2).
To use the laser, operate laser ON/OFF
switch (34) as required.
WARNING! Never place hands near the
cutting area. Proper positioning of your body
and hands when operating the mitre saw will
make cutting easier and safer. Keep
children away. Keep all visitors at a
safe distance from the mitre saw.
Make sure bystanders are clear of the
saw and workpiece. Don’t force the saw. It will
do the job better and safer at its designed rate.
Fig.5
Fig.6
22
a
23
18
19
14
6

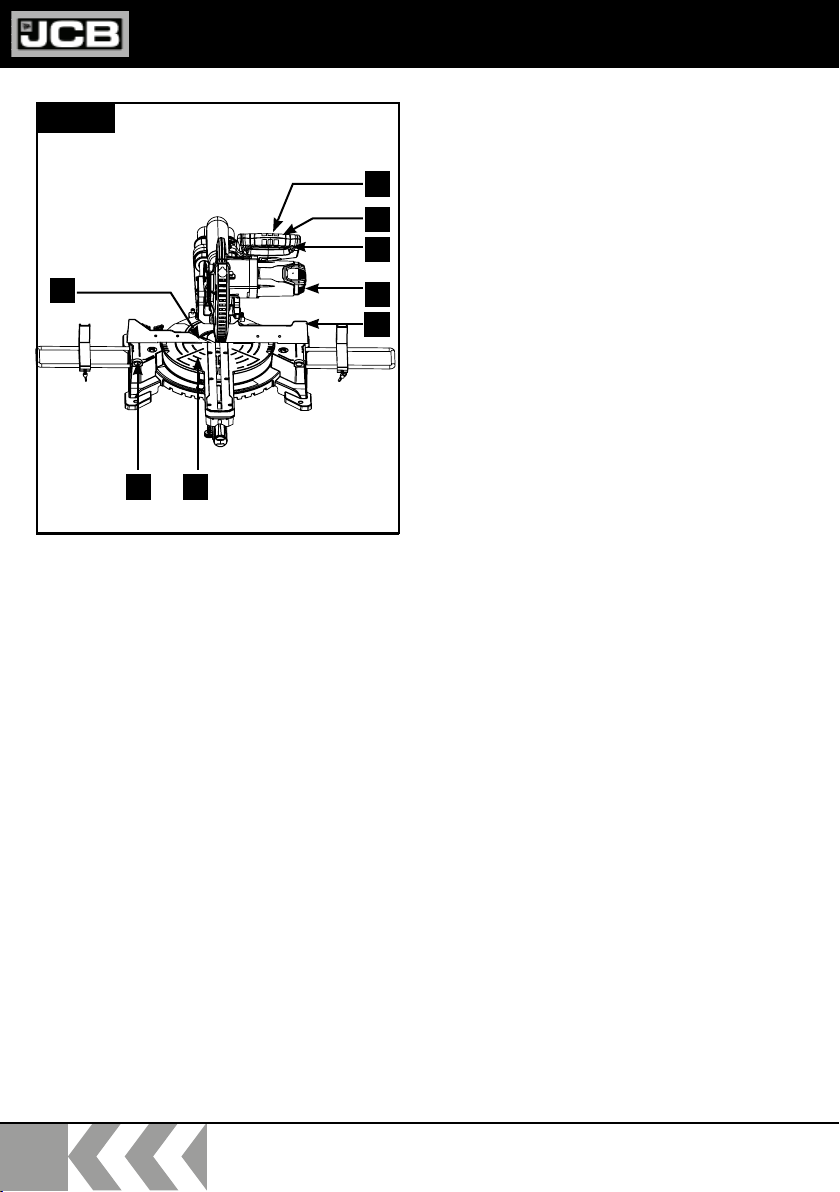

Fig.7
3234

18 JCB-MS-254SB-L
Instruction & User Manual
• Move the machine head (4) to its upper
position.
• Use the handle (1) to push back the machine
head (4) and fix it in this position if required
(dependent on the cutting width).
• Retract the fastening bolt (23) to release the
machine head (4).
• Place the piece of wood to be cut at the stop
rail (16) and on the turn table (14).
• Lock the material with the clamping device
(7) on the fixed saw table (15) to prevent
the material from moving during the cutting
operation.
• Move the Lock - off lever (3) to the left and
press the ON/OFF switch (2) to start the
motor.
With the drag guide (21) fixed in place:
• use the handle (1) to move the machine
head (4) steadily and with light pressure
downwards until the saw blade (6) has
completely cut through the work piece.
With the drag guide (21) not fixed in place:
• pull the machine head (4) all the way to
the front. Lower the handle (1) to the
very bottom by applying steady and light
downward pressure. Now push the machine
head (4) slowly and steadily to the very back
until the saw blade (6) has completely cut
through the work piece.
• When the cutting operation is completed,
move the machine head (4) back to its upper
(home) position and release the ON/ OFF
button (2).
ATTENTION! The machine executes an
upward stroke automatically due to the return
spring, i.e. do not release the handle (1) after
completing the cut; instead allow the machine
head to move upwards slowly whilst applying
light counter pressure.
Cross cut 90° and turn table 0° (Fig.7.1)
In the case of cutting widths up to approx.
4” (100mm) it is possible to fix the traction
function of the saw with the locking screw (20)
in the rear position. In this position the machine
can be operated in cross cutting mode. If the
cutting width is over 4” (100 mm) then it is
necessary to ensure that the locking screw (20)
is loose and the machine head (4) can move.
• Open the set screw (16b) on the moveable
extension block (16a) and push the extension
block (16a) inwards.
• The moveable extension block (16a) must
be locked in a position far enough from the
inner position that the distance between the
extension block (16a) and the saw blade (6)
is no more than 0.3” (8 mm).
• Before making the cut, check that no collision
could occur between the extension block
(16a) and the saw blade (6).
• Tighten the set screw (16b) again.
Fig.7.1
7
1415
1
3
2
16a
16b 4
16

19
JCB-MS-254SB-L
Instruction & User Manual
Important. To make 90° crosscuts, the
extension block (16a) must be fixed at the inner
position.
• Open the set screw (16b) for the adjustable
stop rail and push the adjustable stop rail
inwards.
• The extension block (16a) must be fixed far
enough in front of the innermost position
that the distance between the extension
block (16a) and the saw blade (6) amounts to
a maximum of 0.3” (8 mm).
• Before making a cut, check that the
extension block (16a) and the saw blade (6)
cannot collide.
• Secure the set screw (16b) again.
• Loosen locking handle (11) and lift up the
release lever (28).
• Use locking handle (11) to adjust the turn
table (14) to the desired angle. The bevel
pointer (12) on the turn table must match
the desired angle on the scale (13) on the
fixed saw table (15).
• Re-tighten the locking handle (11) in order to
secure the turn table (14).
• Cut as described under section “Cross cut
90° and turn table 0°”.
Precision adjustment of the stop
formitre cut 45° (Fig. 1/9/10)
• Lower the machine head (4) and secure
using the fastening bolt (23).
• Fix the turn table (14) in the 0° position.
• Loosen the locking screw(22) and use the
handle(1) to angle the machine head (4) 45°
to the left.
• 45° - position angle stop between the saw
blade (6) and turn table (14).
Cross cut 90° and turn table 0° - 45°
(Fig. 8)
The crosscut saw can be used to make
crosscuts of 0° -45° to the left and 0° -45° to
the right in relation to the stop rail.

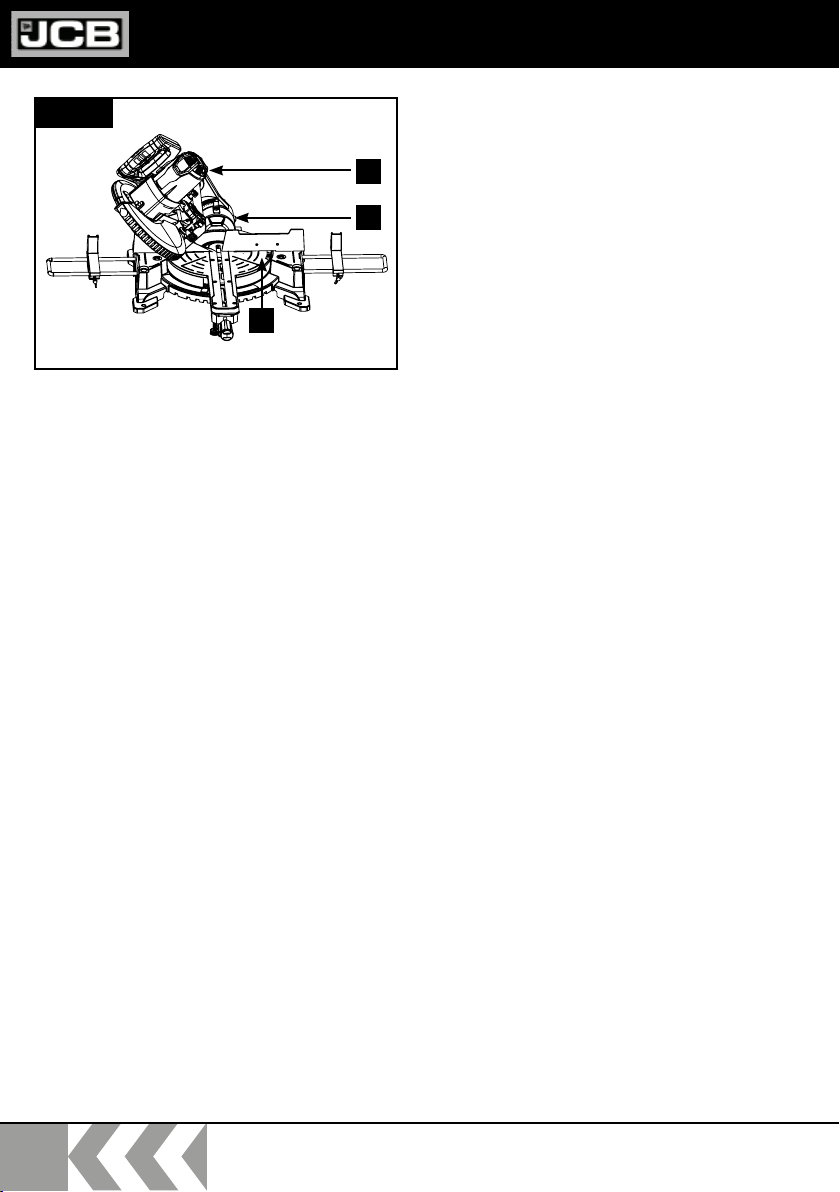

Fig.8
Fig.9
4
11
16a
16b
1312
23
38
6
14
Fig.10

20 JCB-MS-254SB-L
Instruction & User Manual
• Adjust the adjusting screw (38) until the angle
between the saw blade (6) and turn table
(14) is precisely 45°.
• Subsequently check the position of the angle
indicator. If necessary loosen the pointer (19)
using a Philips screwdriver, set to position
45° on the angle scale (18) and re-tighten the
retaining screw.
Bevel cut 0°- 45° and turn table 0°
(Fig. 11)
The crosscut saw can be used to make mitre
cuts of 0° - 45° in relation to the work face.
Important. To make mitre cuts (inclined saw
head), the extension block (16a) must be fixed
at the outer position.
• Open the set screw (16b) for the extension
block (16a) and push the adjustable stop rail
outwards.
• The extension block (16a) must be fixed far
enough in front of the innermost position
that the distance between the extension
block (16a) and the saw blade (6) amounts to
a maximum of 8 mm.
• Before making a cut, check that the exten-
sion block gap (16a) and the saw blade (6)
cannot collide.
• Secure the set screw (16b) again.
• Move the machine head (4) to the top
position.
• Fix the turn table (14) in the 0° position.
• Loosen the locking screw (22) and use the
handle (1) to angle the machine head (4) to
the left, until the pointer (19) indicates the
desired angle measurement on the scale
(18).
• Re-tighten the locking screw (22).
• Cut as described in section “Cross cut 90°
and turn table 0°”.
Fig.11
4
38
14
