jcb 70385 User manual

User guide
7.2V
Handheld
Vacuum Cleaner
70385

7.2V Handheld Vacuum Cleaner 70385
Thank you for purchasing this JCB product
JCB is a byword around the world for quality, innovation and success.
With the application of stringent design parameters and utilising high performance,
modern materials and manufacturing processes, your JCB product has been developed
for optimum functionality and practical application.
Used for the purposes for which it is intended, and with careful maintenance as outlined in
this user guide, your JCB product will give years of trouble-free service.
2
IMPORTANT
Please read all of the product safety and operating instructions carefully before using this product.
Please pay particular to all sections of this user guide that carry warning symbols and notices.
WARNING!
This is a Warning symbol. This symbol is used throughout the user guide
whenever there is a risk of personal injury. Ensure that these warnings are read
and understood at all times.
CAUTION!
This is a Caution symbol. This symbol is used throughout the user guide whenever there
is a risk of damaging your JCB product. Ensure that these warnings are read and
understood at all times.
NOTE:
Used throughout the user guide to provide additional information, hints and tips.
Our products are continually monitored to comply with changing technical standards and requirements.
The company reserves the right to alter design and specifications without prior notice. E. & O. E. errors
and omissions exempted.

3
SAFETY INSTRUCTIONS
Personal safety
• WARNING!: When using
this vacuum cleaner, basic safety
precautions, including the
following, should be followed
to reduce the risk of personal
injury and material damage.
Read all of this User Guide
before using this vacuum
cleaner.
• Never use in the presence of explosive
liquid or vapours.
• Never pick up inflammable or poisonous
liquids such as petrol, copier toner or
other volatile substances.
• Never pick up acids, asbestos or asbestos
dust.
• Never touch the adaptor or cable with
wet hands.
• Unprofessional repairs can be dangerous
for users.
• This appliance is intended for domestic
use only. Misuse or use for commercial
or any other purpose will render the
guarantee invalid.
• To protect against fire, electric shock and
personal injury, do not immerse cord,
adaptor or cleaner in water or other
liquid.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for
their safety.
Children
• Children do not understand the dangers
associated with operating electrical
appliances. Never allow children to use
this appliance.
• Children should be supervised to ensure
that they do not play with the appliance.
Product safety
• CAUTION!: Never use the
appliance without the filter being
installed.
• CAUTION!: Never use the
appliance to vacuum hot ashes,
broken glass, sharp objects or
liquids.
• Use only JCB approved spare parts and
accessories.
• Never modify the cleaner in any way.
• This appliance is not intended for liquid /
wet pick-up.
Location
• Do not use or keep this product outside.
• Do not store the appliance near hot
surfaces eg. ovens or heating appliances.
Electrical requirements
• Check that the voltage on the rating plate
of the charger corresponds with your
house electricity supply which must be
A.C. (Alternating Current).
• Use only the battery pack and chargers
supplied with the unit.
• Do not attempt to remove the battery
from the unit to charge it.
• Never throw the battery unit into fire.
• Do not remove or damage the battery
casing.

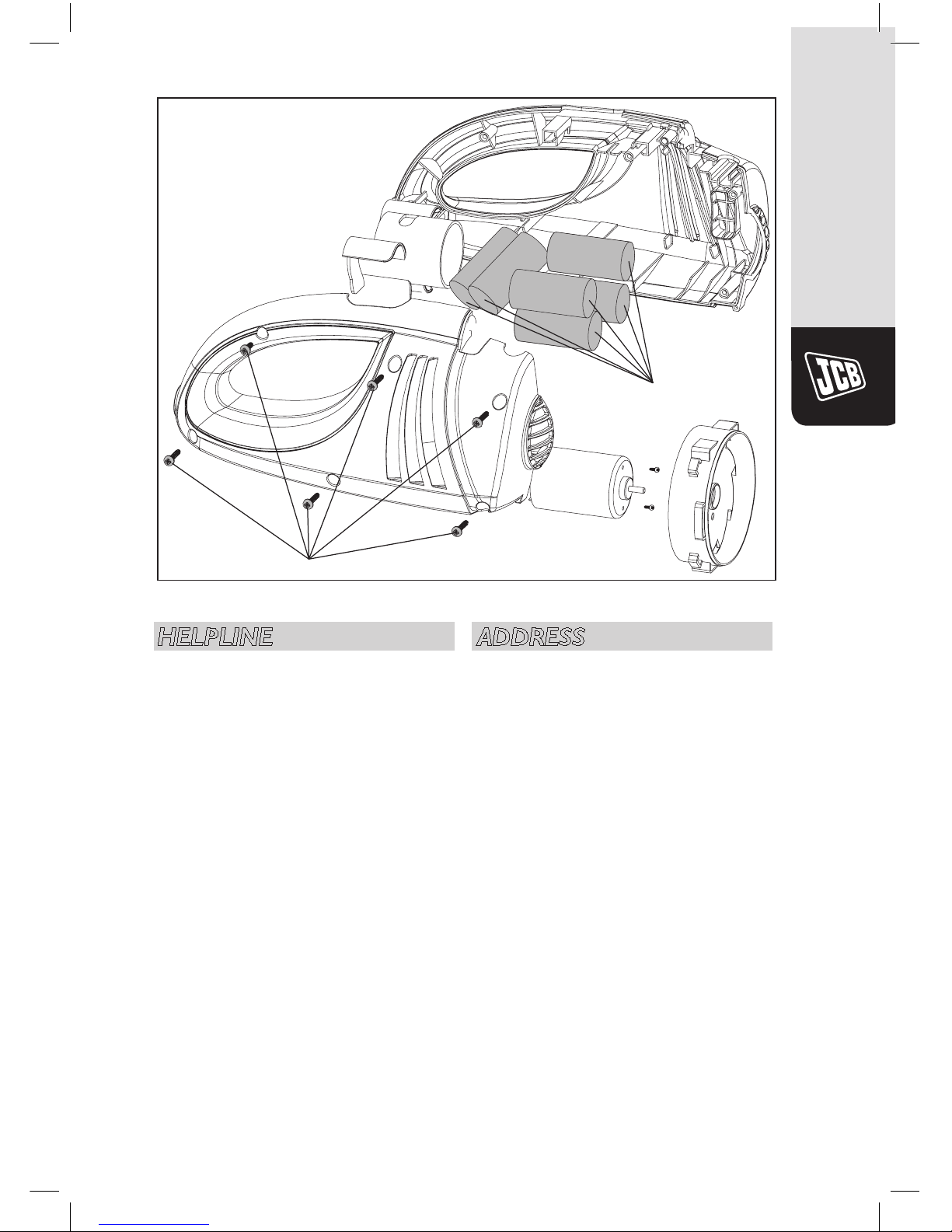

• The battery must be recycled or disposed
of correctly.

4
OVERVIEW OF THE APPLIANCE COMPONENTS
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
BEFORE USE
For transportation, the On/off switch fl is
taped in the OFF (O) position. Remove and
discard the tape before use.
The vacuum must be fully charged for at least
16 hours before first use. The product must be
in the OFF (O) position to charge. Turn off the
adaptor charger after 16 hours.
The on-board light fi will illuminate to indicate
charging. It will always remain on while the
charger adaptor is switched on.
NOTE: The vacuum is powered by
rechargeable nickel metal-hydride
batteries. Peak performance may
only be realised after the unit has
been charged and discharged two or
three times. Do not leave the
product in a discharged state for
an extended period. Do not
overcharge. Switch off the charger
adaptor after 16 hours. If unused,
the battery will remain charged for
several weeks, but we recommend
discharging the battery fully and then
recharging at least once per month.
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
1 Suction inlet 7 Body
2 Dust canister 8 Mains adaptor charger and base
3 Pleated canister filter 9 Dusting brush tool
4 Dust canister release button 10 Crevice tool
5 On-board light 11 Soft crevice tool
6 On/off switch 12 Extension hose

5
CHARGING
Ensure the switch is in the OFF (O) position.
Plug the adaptor into a mains outlet and place
the vacuum into the charger base A.
Turn off the adaptor after 16 hours.
The charger base can be wall mounted for
convenient storage.
WARNING!: Always ensure that
you are not drilling into the wall
adjacent to any electrical wires
or pipes such as water or gas.
1. Find a suitable position on the wall or
cupboard where the charger base is to be
positioned.
2. Mark the fixing points through the
bracket.
3. If you are fixing to a solid brick or block
wall, use a 6mm masonry drill and drill to
a depth of 25mm.
4. If fixing to a wood or cupboard surface,
drill a 2mm pilot hole or use a bradawl.
È
È
Ó

Ô
Ô
Ô
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
⁄ ¤ ‹ ›fi fl‡
·
„
‰
‚
Â
Standard accessories Application
Textiles and upholstery
(with nozzle)
Shelves and hard surfaces
(with brush)
TOOLS AND
ACCESSORIES
Extension hose
Attach the extension hose  to the suction
inlet ⁄. The various nozzles can be attached
the end of the extension hose B or directly to
the suction inlet.
Dusting brush ‚
This nozzle is for pelmets, delicate objects etc.
Crevice tool „
This nozzle is for awkward places, corners and
behind radiators etc.
Soft crevice tool ‰
This nozzle is for awkward but delicate places,
corners and behind radiators etc.
This nozzle is to be attached to the end of the
crevice tool C.
On board light
This illuminates when the vacuum cleaner is
switched on and when charging.
B
C
A
