Jeep GRAND WAGONEER 2022 User manual

QUICKQUICK
STARTSTART
GUIDEGUIDE

Driver Seat
Controls
Cruise Control
Buttons
ON/OFF &
Volume
Light Controls
Drive Mode
Selector
Instrument Cluster
Display Control Buttons
HomeLink® Buttons

Tune/Browse Passenger Seat
Controls
Air Suspension Control
Front Comfort &
Convenience Display
Climate Controls
Passenger Screen
Display
Overhead Console
VEHICLE OVERVIEW

Push and hold the two outside HomeLink® buttons for 20 seconds until the
orange indicator ashes. An individual channel cannot be erased.
TO ERASE ALL SET CHANNELS:
GARAGE DOOR OPENER
While the car is ON, hold the handheld garage door transmitter 1-3 inches
from the HomeLink® button you want to program in the vehicle.
11
Push and hold both the HomeLink® button being programmed and the
button on the garage door transmitter.
22

For Non-Rolling Code garage door openers, watch for the indicator light
to go constant.
For Rolling Code garage door openers, watch for the indicator light to go
from a slow blink to blinking rapidly.
33
For Rolling Code garage door openers only, rmly push and release the
“LEARN” or “TRAIN” button on your garage door opener motor in your
garage, then push the HomeLink
®
button in your vehicle for two long presses.
44
If the programming was successful, your garage door should open and close
with your chosen HomeLink
®
button.
55
ROLLING OR NON-ROLLING?
Check your garage door opener motor in your garage for a
“LEARN” or “TRAIN” button by the hanging antenna. If you
have one of these, you have a Rolling Code garage door opener.
??
NEED ASSISTANCE?
1-800-355-3515
LINK YOUR GARAGE DOOR

Pg 5/Le Pg Topic 2
CONNECTED SERVICES
HOW TO ACTIVATE YOUR
REMOTE SERVICES
Press "Apps" on the touchscreen
11
Press "Activate Services"
22
Press "Activate Now"
33
There are two ways to activate: via
email or via an agent. On the next
page, you can either enter your name
and email, or press "Call Care" to
directly speak with an agent.
44
WITH CONNECTED
SERVICES YOU CAN...
Lock Your Vehicle
Unlock Your Vehicle
Remote Start Your Vehicle
Cancel Remote Start
Activate Your Horn
If you previously were registered at
the dealership, enter your email and
PIN to activate services.
NOTE:

MOPAR®YOUR WAY
Get 24/7 Access To Everything You Need
Custom vehicle dashboard
Mobile vehicle commands**
** Requires an active Uconnect Connected Services subscription
*Canadian residents are not required to create
a prole, as one is created when a Uconnect
Connected Services account is activated.
Access to your vehicle's Owner's Information
Schedule dealership service with ease
View maintenance records**
Obtain special oers on Mopar® services
CREATE YOUR OWNER'S PROFILE TODAY! !!
Registration is
simple. Scan the
QR code below
and provide your
email address
to get started.
GET PERSONALIZED BY REGISTERING

HEAD UP DISPLAY (HUD)
CUSTOMIZE THE INSTRUMENT CLUSTER DISPLAY
Select from four available options:
Standard, Simple, Advanced, and Custom.
TIP:
Select "Settings" in the Instrument Cluster with the Up or Down Arrow button on the
steering wheel.
11
Select "HUD" with the Right or Left Arrow button on the steering wheel. Press "OK".
22
Adjust available Settings like Content & Layout, Display Height, and Brightness.
Press "OK" to change the setting.
33
HOW TO CUSTOMIZE HUD:
HUD will appear in your windshield
NOTE:
Instrument Cluster Display
Control Buttons

CRUISE CONTROL SYSTEMS
The Cruise Control system will hold
your vehicle's speed when you take
your foot o of the accelerator.
The Adaptive Cruise Control (ACC)
system will adjust the set speed in
order to maintain a set distance from
the vehicle in front of yours.
The ACC distance setting
appears in the instrument
cluster display
TIP:
Set Speed or
Increase Speed
ACC Distance
Increase
Set Speed or
Decrease Speed
ACC Distance
Decrease
Cruise Control
On/O
Resume
ACC
On/O
Cancel
HEAD UP DISPLAY & CRUISE CONTROL

PAIR A PHONE
CONNECT YOUR APPS
Connect your smartphone to the media USB port or pair your smartphone within Device Manager.
The Android AutoTM or Apple CarPlay® icon will replace the phone icon on the touchscreen.
If the Android AutoTM app was not previously downloaded, it will download the
rst time you plug in your device.
Apple CarPlay®is only compatible with iPhone5® or later and requires Siri being
enabled in Settings.
11Make sure Bluetooth® is enabled on your mobile device.
22
With the vehicle in the ACC or ON/RUN position, press
the Phone button in the vehicle’s touchscreen menu bar.
33
Press “Device Manager” and then "Add Device".
Follow the prompts on your phone and on the touchscreen.

Pg 10/Right Pg Topic 4
MULTICOLOR AMBIENT LIGHTS
The selected rectangles will be lled with
color, while the others have outlines only.
TIP:
Select a color for Zone 1 by choosing
one of the rectangles on the top row of
the screen. The second set of rectangles
adjust the color for Zone 2.
YOU CAN CHANGE THE COLOR
OF YOUR AMBIENT LIGHTS!
Navigate to the Ambient Color
Personalization setting within the
Uconnect system.
11
This setting redirects to a new menu.
Select one of ve colors for the ambient
lighting in the cabin.
22
Your key fob supports
Passive Entry, Keyless
Enter 'n Go™, and more!
KEY FOB
Lock
Power
Liftgate
Panic
LED Indicator
Unlock
Remote Start
Remote
Lowering
PHONE PAIRING, KEY FOB & AMBIENT LIGHTING

UCONNECT 5/5 NAV
Pair your Bluetooth®-enabled phone and
make hands-free calls
Customize your Home page by adding
shortcut widgets
Listen to radio stations or play music from
your USB or Bluetooth® device
Utilize your manual or automatic climate
controls through your comfort settings
Enter an address or search from multiple
points of interest to navigate
Access radio and vehicle settings
Access the available apps installed on your Uconnect system
Swipe down to customize Prole options
Press and drag an icon to rearrange

FRONT PASSENGER SCREEN
This screen provides the passenger access to Radio, Rear
Seat Entertainment, HDMI, and Navigation functions.
It is located on the passenger side of the vehicle, above
the glove compartment.
Push the Power button under the Front Passenger Screen
or under the Controls tab within the Uconnect system.
The Passenger Screen Permissions menu within "Settings"
will activate/deactivate features within the Passenger Screen.
FRONT PASSENGER SCREEN
HEADPHONE PAIRING
11In Device Manager, press "Add Device" or
"Pair Bluetooth® Headphones"
22Press "Search For Headphones"
33Select the Headphones you wish to pair and
follow the on-screen instructions
Unpair Headphones
Screen O
Mute Button
Power O
Brightness Headphone Volume
RADIO SET-UP AND PASSENGER SCREEN

SEAT CONTROLS

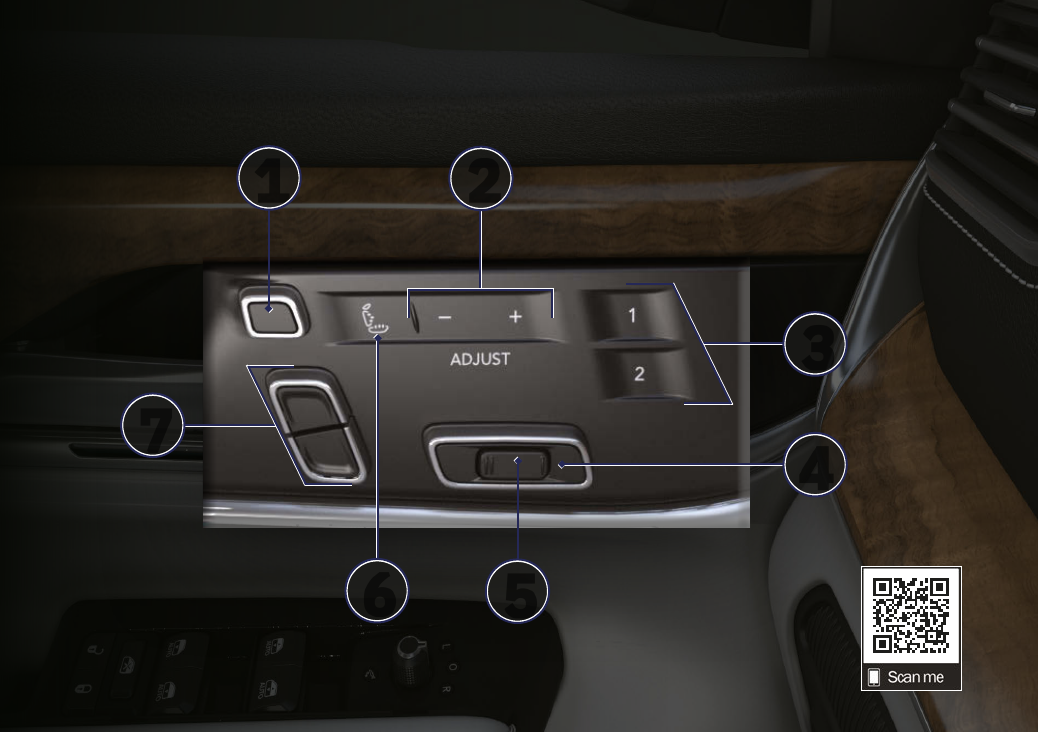

20-WAY POWER FRONT SEATS
22
33
44
55
66
77
11

FRONT HEAD RESTRAINT ADJUST
Adjust the head restraint up, down, forward or rearward
11
BACK/THIGH BOLSTER
Press the + or — switch to bring up the Seat menu. Extend or retract the seatback and seat cushion bolsters
22POWER LUMBAR
Press the + or — switch to bring up the Seat menu. Adjust the lumbar support in/out or up/down
33MEMORY SETTINGS PROFILE
Save your seat preferences and more to Memory Prole 1 or 2
44SEAT CUSHION
Adjust the seat cushion up, down, forward, or rearward, or tilt the angle of the cushion up or down
CUSHION EXTENDER
Extend or retract the seat cushion
55
66POWER MASSAGE
Turn on and adjust the power massage settings to high, medium, and low, and choose from ve massage types
77UPPER AND LOWER SEATBACK
Adjust the angle of the upper or lower seatback
ADJUST YOUR FRONT SEATS

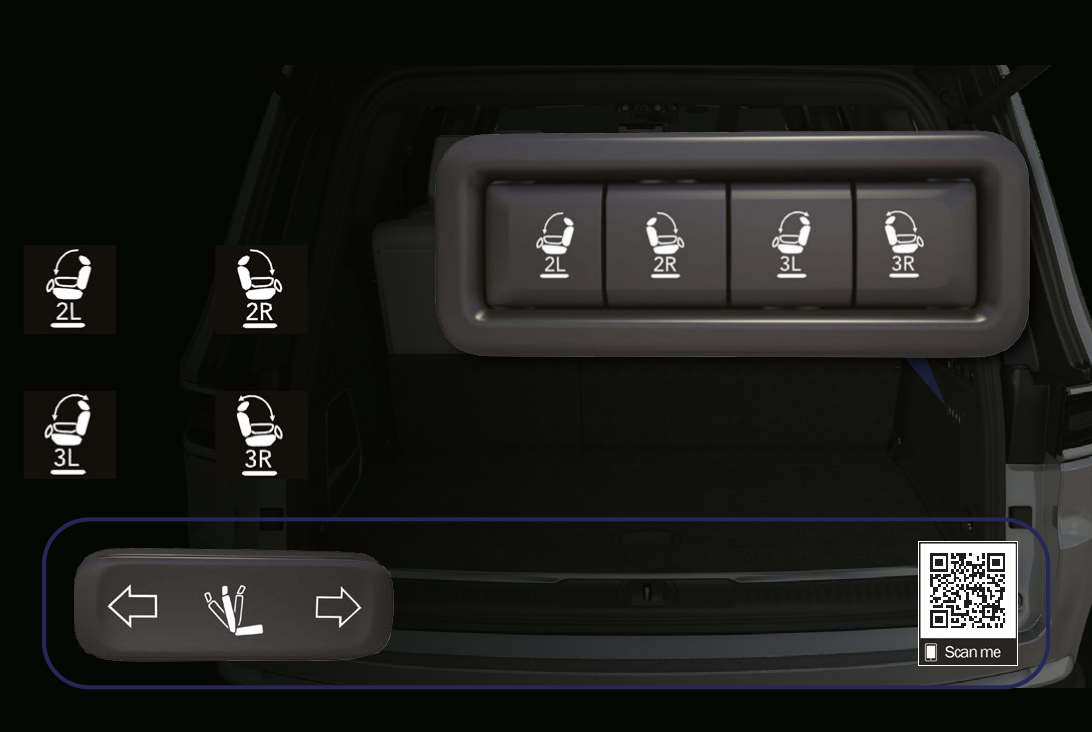

SECOND & THIRD ROW SEATS
A one-touch power folding seat switch is
located in the right rear trim panel inside
the cargo area.
Rear Seat Power Folding Switch
ADJUST, FOLD, AND UNFOLD YOUR REAR SEATS
Adjust the third row seatback angle forward/rearward
for occupant comfort. This switch is located on the
trim panel next to the seat.
Third Row Power Recline Switch
Second Row
Left Side Fold
Third Row
Left Side
Fold/Unfold
Third Row
Right Side
Fold/Unfold
Second Row
Right Side Fold

HANDS-FREE LIFTGATE
TO SET AN OPENING HEIGHT:
Push and hold the liftgate close button, located
on the left side trim panel inside the cargo area,
for three seconds. An audible chime will sound.
22
OPEN YOUR LIFTGATE WITHOUT
PRESSING A BUTTON
The Hands-Free Liftgate feature can be turned
on and o within the Uconnect system.
NOTE:
??
LIFTGATE NOT OPENING?
Use a straight in and out kicking motion
within the activation zone.
A sweeping motion under the activation zone
can also be used for hands-free activation.
Open the liftgate fully, then manually pull
down or push up to the desired height.
11
Activation Zone
HANDS-FREE LIFTGATE & FOLD YOUR REAR SEATS

REAR SEAT ENTERTAINMENT
You will be prompted to pair the remote, connect to a network, and
sign into an Amazon account. You can also enable parental controls.
GET STARTED:
Download the Know & Go* app to your smartphone
to discover more about the exciting features on your
new Wagoneer/Grand Wagoneer using augmented
reality, a features library, and push notications.
KNOW & GO
With Uconnect Rear Seat Entertainment, you can stream
movies and music and much more!
11Push the Power button on the remote or swipe on either
of the Rear Touchscreens to turn on the screen
22Select from one of the available apps or source inputs, like
HDMI or USB, through the Amazon Fire TV interface
AUX Port
USB C Charging Port
HDMI Port

GET TO KNOW YOUR REMOTE
You can download games from the Apps
menu to play on your rear touchscreens.
DID YOU KNOW?
REAR SEAT ENTERTAINMENT
HEADPHONE PAIRING
11Select "Settings" from the top menu on the Home screen
22Select "Controllers & Bluetooth® Devices"
33Select "Other Bluetooth® Devices"
44Follow the on-screen prompts to pair your headphones
Power Button
Alexa Button
Five Way Navigation
Control
Home Button
Playback Control
Buttons
Settings Button
Alexa Button
REAR SEAT ENTERTAINTMENT

©2021 FCA US LLC. All Rights Reserved. Tous droits réservés. Wagoneer is a registered trademark of FCA US LLC.
Wagoneer est une marque déposée de FCA US LLC. App Store is a registered trademark of Apple Inc. Google Play Store is a registered trademark of Google.

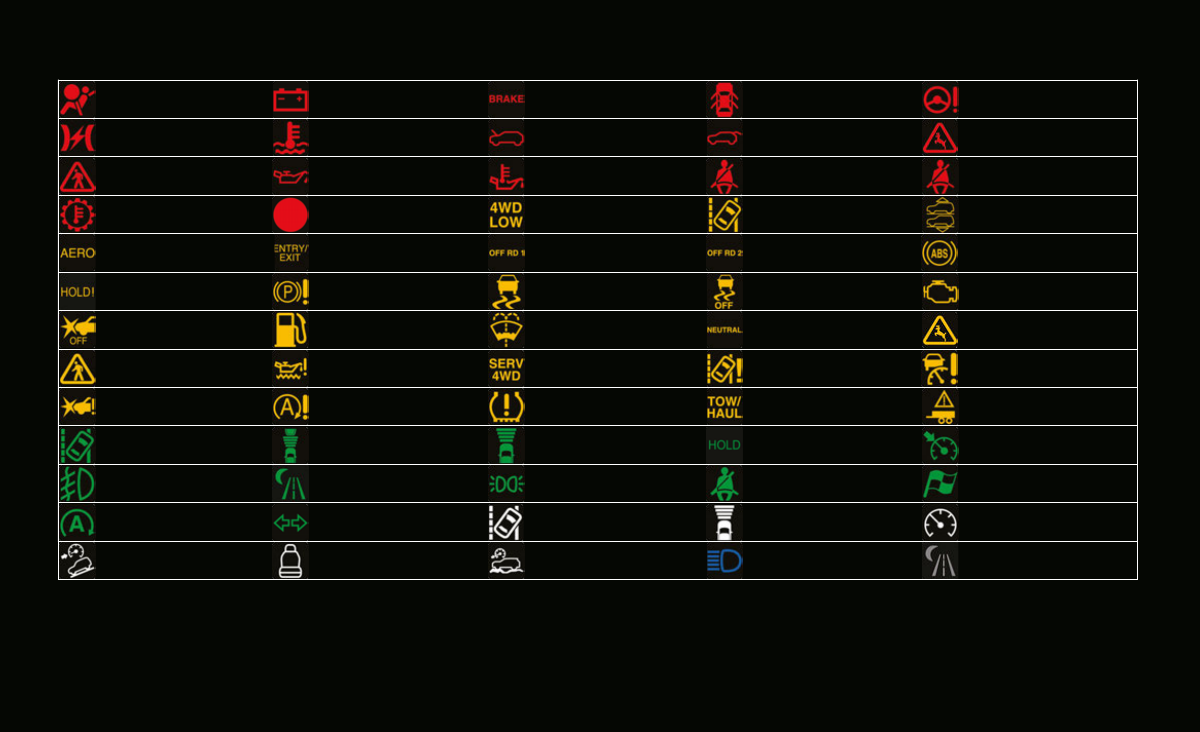

WARNING & INDICATOR LIGHTS
For additional information on any of the topics in this publication, please refer to your Owner’s Manual.
WS_QSG_EN_USC_BA
First Edition
Air Bag
Electronic Throttle
Control (ETC)
Vehicle Security
Air Suspension
Entry/Exit Indicator
Electronic Park Brake
Low Fuel
Service Active Lane
Management
TOW/HAUL
Battery Charge
Oil Temperature
Engine Temperature
4WD Low
Air Suspension
O-Road 1
Electronic Stability
Control (ESC) Active
Low Washer Fluid
Service Adaptive Cruise
Control (ACC)
Towing Hook Breakdown
Cruise Control SET
Rear Seat Belt Fastened
Adaptive Cruise Control
(ACC) Ready
Brake
Hood Open
Rear Seat Belt Reminder
Active Lane
Management
Air Suspension
O-Road 2
Electronic Stability
Control (ESC) OFF
NEUTRAL
Service Forward Collision
Warning (FCW)
Sport Mode
Door Open
Service Stop/Start System
Active Lane
Management Adaptive Cruise Control
(ACC) Set With Target
Adaptive Cruise Control
(ACC) Set Without Target
Anti-Lock Brake System
Engine Check/
Malfunction Indicator
Air Suspension Active
Seat Belt Reminder
Liftgate Open
Electric Power
Steering (EPS) Fault
Oil Pressure
Transmission
Temperature
Air Suspension
Aerodynamic Height
Auto HOLD! Fault
Forward Collision
Warning (FCW) O
Oil Level Sensor Fault Service 4WD
Tire Pressure
Monitoring System
Auto HOLD!
Parking /Headlights On
Front Fog Night Vision Active
Active Lane Management
Stop/Start Active Turn Signal Cruise Control Ready
High Beam Night Vision Suppressed
Rear Seat Unoccupied Selec-Speed Control
Hill Descent
Control (HDC)
Your vehicle may be equipped with dierent features than shown in this guide.
Night Vision
Animal Detect
Night Vision
Pedestrian Detect
Night Vision
Animal Detect
Night Vision
Pedestrian Detect
