Jenile CBM14 User manual

PACK DOORBELL
INSTRUCTION MANUAL
Specially designed for deaf and hearing impaired people.

All your products are already
connected to each other.
2

The contents of your package
Flash cube CBM14
Vibrator pocket VP15
Doorbell SP14
Summary :
3
4 :
5-10 :
11-16 :
17-18 :

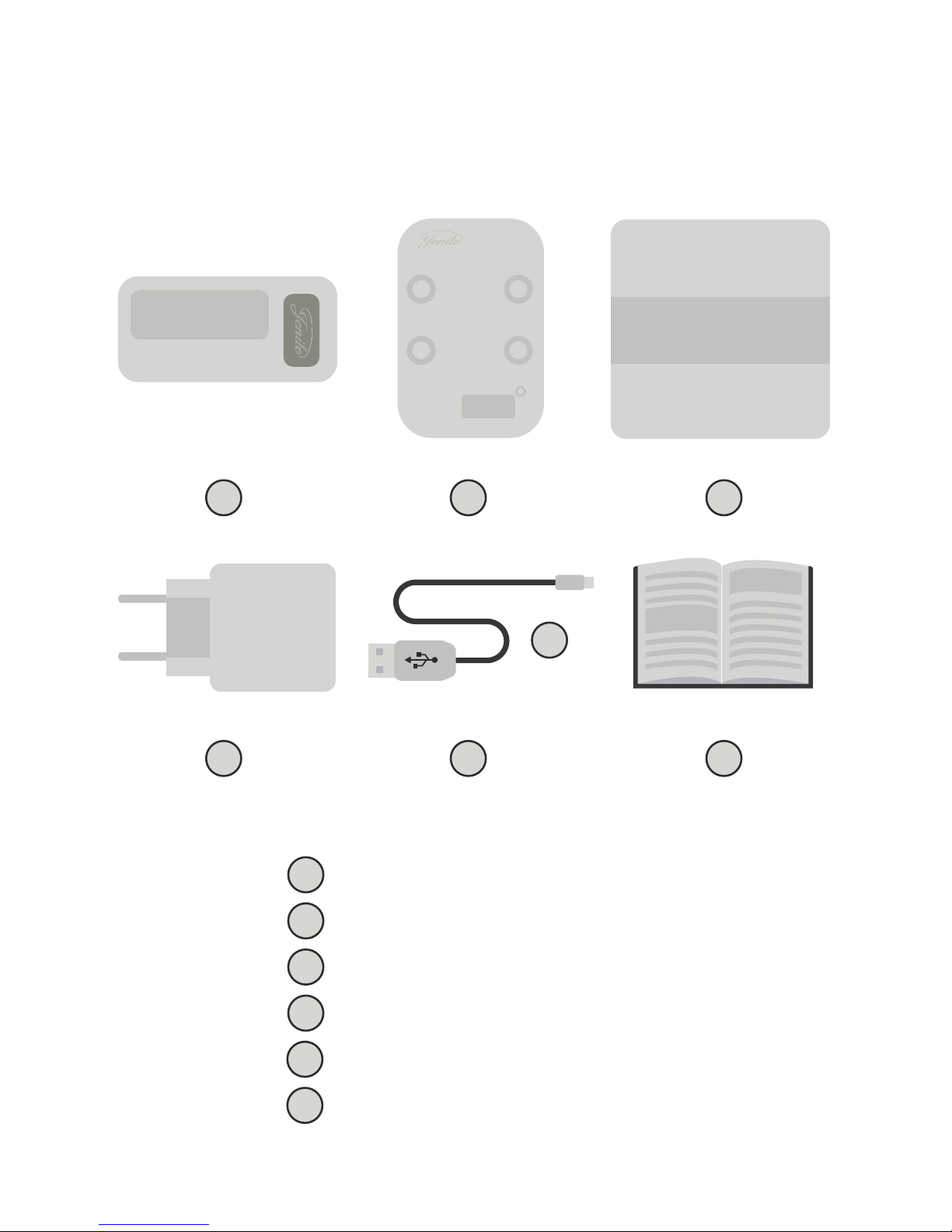

A- Doorbell
B- Vibrator Pocket
C- Flash Cube
E- 2 USB connection port
F- Manual instruction in english
D- Adaptaters for 3 USB port
A B C
D E F
The contents of your package
x2
4

BA C D E F G
A- Flashlight duration 30 / 60 / 90 second
B- Micro USB charger port
C- Vibrator connection port (optional)
E- Light / off / Light+Sound
F- USB connection port
G- Micro USBconnection port
D- Connection plug
Technical Specifications
Wireless
Rechargeable battery
Weight: 171,5g
Distance: 200 meter maximum in free fields
Quantity of connected products: 20 units max.
Power supply: 3,7V 2200mAh Lithium battery.
Charge voltage must be limited to 4,2V
Standby current: <4,5 mA
Operating current: <800 mA
Radio frequency: 433 Mhz
Decoding format: MCU
Dimensions (height x width x depth): 9,2 x 8,8 x 4,3 cm
Autonomy: 1 month (depending of the use)
2 years guarantee (battery 1 year)
Flash Cube CBM14
5

Red LED: low battery, you need
to recharge the cube
Green LED: battery is in charge
No LED lightened up:
the charge is complete
Warning: it is also possible that no LED is lightened up because
the battery is completely empty. Therefore, you need to charge it.
Use
Thanks to the cube, you receive the signal from the Jenile doorbell and also all the
other calls, safety signals and technology Jenile.The CBM14 Jenile Flash cube
includes a rechargeable battery. A LED at the bottom right of each device indicates
the charge status of the battery:
6

B
F
G
B
Test
The cube is easy to test. If the cube does not work in accordance with the
instruction below, we invite you to contact your seller. To test your cube press on
your Jenile doorbell.
If the cube does not light up, please check that the battery is not empty by putting
your cube in charge:
Insert the G port of your cable on a USB support
Insert the F port of your cable in the B plug of your device
If the green LED at the bottom right of your device does not light up, it means that
your device is fully charged.
7

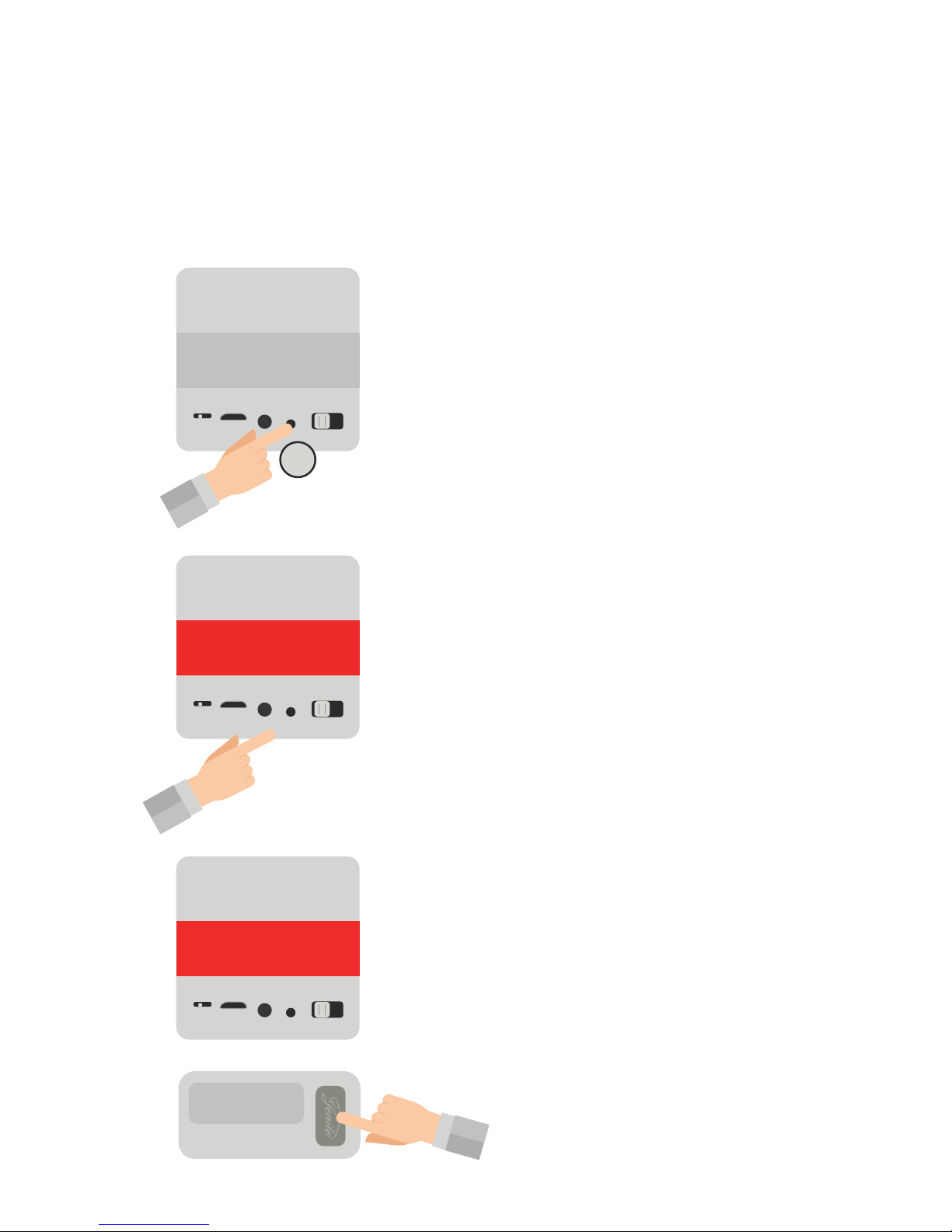

1. Press the plug button (D) on the cube.
D
Settings
if you want to complete this pack with other Jenile transmitters (see products on
page 16), then make adjustments to connect your devices between each other.
To connect all your products, please follow the instructions carefully.
2. Release it as soon as the cube lights up in
red (WARNING: do not hold down the button
after the color lights up, you are at risk of
deleting all previous connections)
3. Immediately actuate one transmitter while
the red light is on (ring the bell, press on the
remote control, shout on the baby crying
detector, …) Or refer to the instruction manual
of your transmitter.
8

D
To stop the flashes, press on the D button.
3 possibilities:
Your cube flashes in all colors: congratulations! The connection il success
ful! You can use all your Jenile products.
Your cube does not flash: the connection has failed, please try again the
instructions above.
Your cube flashes 2 time in red, it doesn’t flash when you put the button.
The connection has failed because you pressed too long on the plug
button. You erased the memory and have to restart all the connections.
The (A) button allows you to choose how long your cube flashes: 30 secondes, 1
minute or 1 minute 30.
9

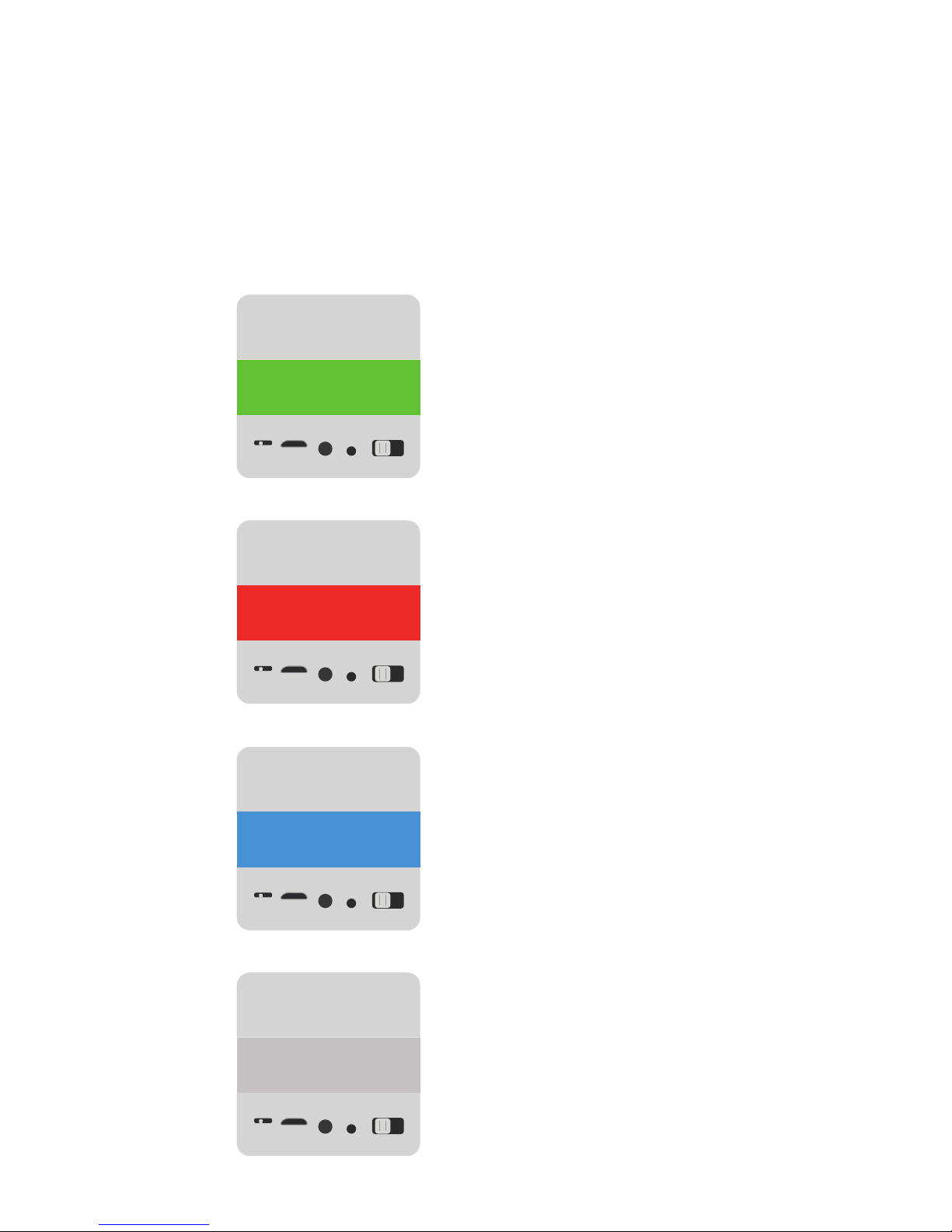

Signals and colors
The CBM14 Jenile cube can be used with all the transmitters from the Jenile range.
For all alerts, the top of the cube will flash in all colors. The color at the bottom of
the cube will indicate the alert type (more colors page…). For doorbell cube turns
green.
GREEN: Bells
-Door bells
-Video bells
-Video Gate
-Acoustic transmitter
-Call button, …
RED: Emergencies
-Smoke detector
-Gas detector,
-water flood detector, ..
BLUE: Calls
Text messages
Computer call (skype, oovoo, ..)
Phone, fax, …
WITHOUT COLOR: Presence alerts
Door/window opening detector
Motion detector
10

B
A
C
D
E
F
A- Micro USB charger port
B- connection plug
C- On / Off
E- USB connection port
F- Micro USBconnection port
D- Dimmer of vibration
Technical Specifications
Wireless device
Rechargeable battery
Vibrator’s weight: 60g
Distance between the transmitters and the vibrator: 200m in free fields
Quantity of connected products: 20 units max
Power supply: 3.7V 2200mAh Lithium battery.
Charge voltage must be limited to 4.2V
Standby current: <4,5mA
Operating current: <800mA
Radio frequency: 433Mhz
Decoding format: MCU
Vibrator’s dimensions (height x width x depth): 6x8x1,3cm
Autonomy: 1 month (depending of the use)
2 years guarantee (battery 1 year)
Pocket vibrator VP15
11

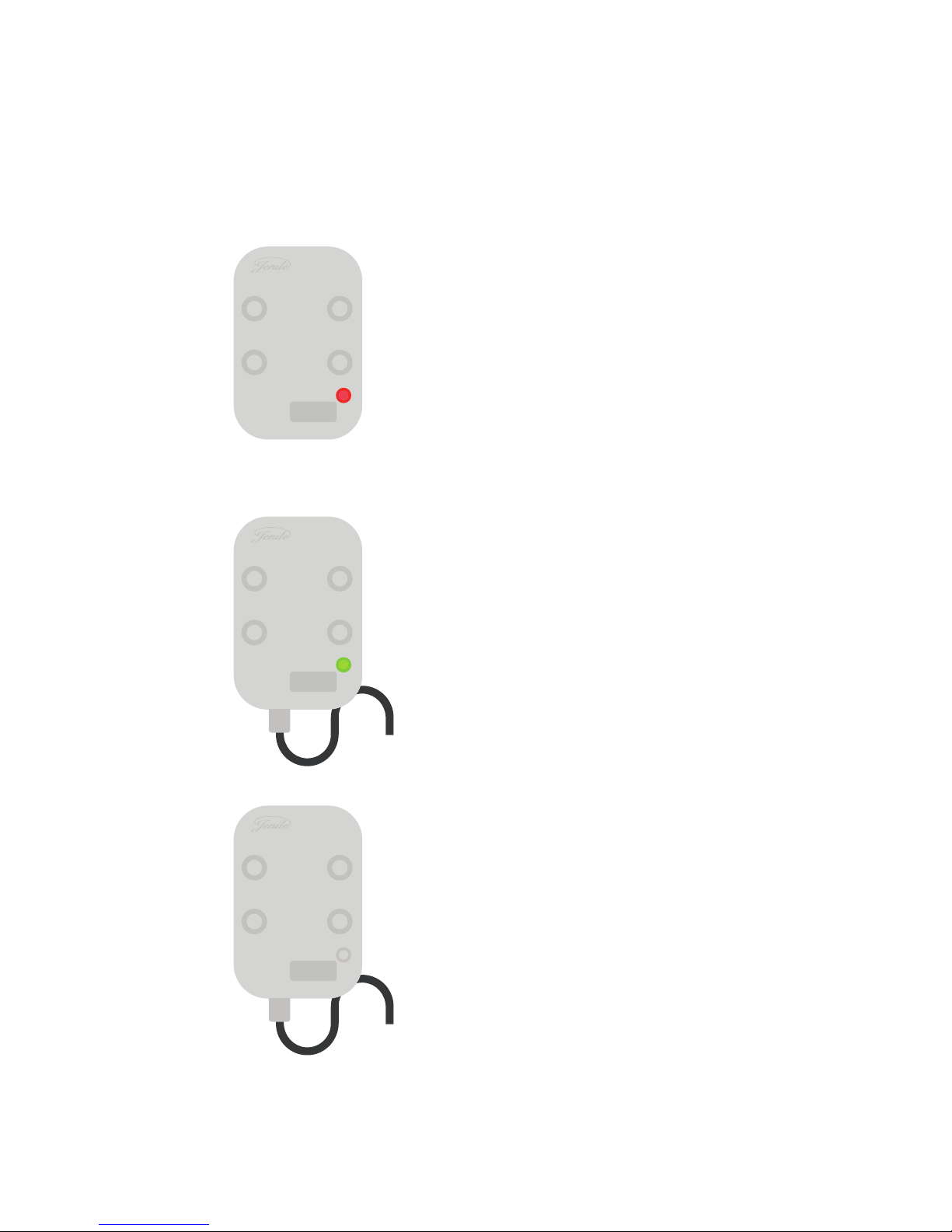

Red LED: low battery,
you need to recharge your vibrator
Green LED: battery is in charge
No LED lightened up:
the charge is complete
Warning: it is also possible that no LED is lightened up because
the battery is completely empty. Therefore, you need to charge it.
Use
Thanks to your Pocket vibrator VP15, you receive the signal from the Jenile doorbell
and also all the other calls, safety signals and technology Jenile. 4 rhythm of
vibration and 4 colors indicate the call sources or the alerts.
12

D
Test

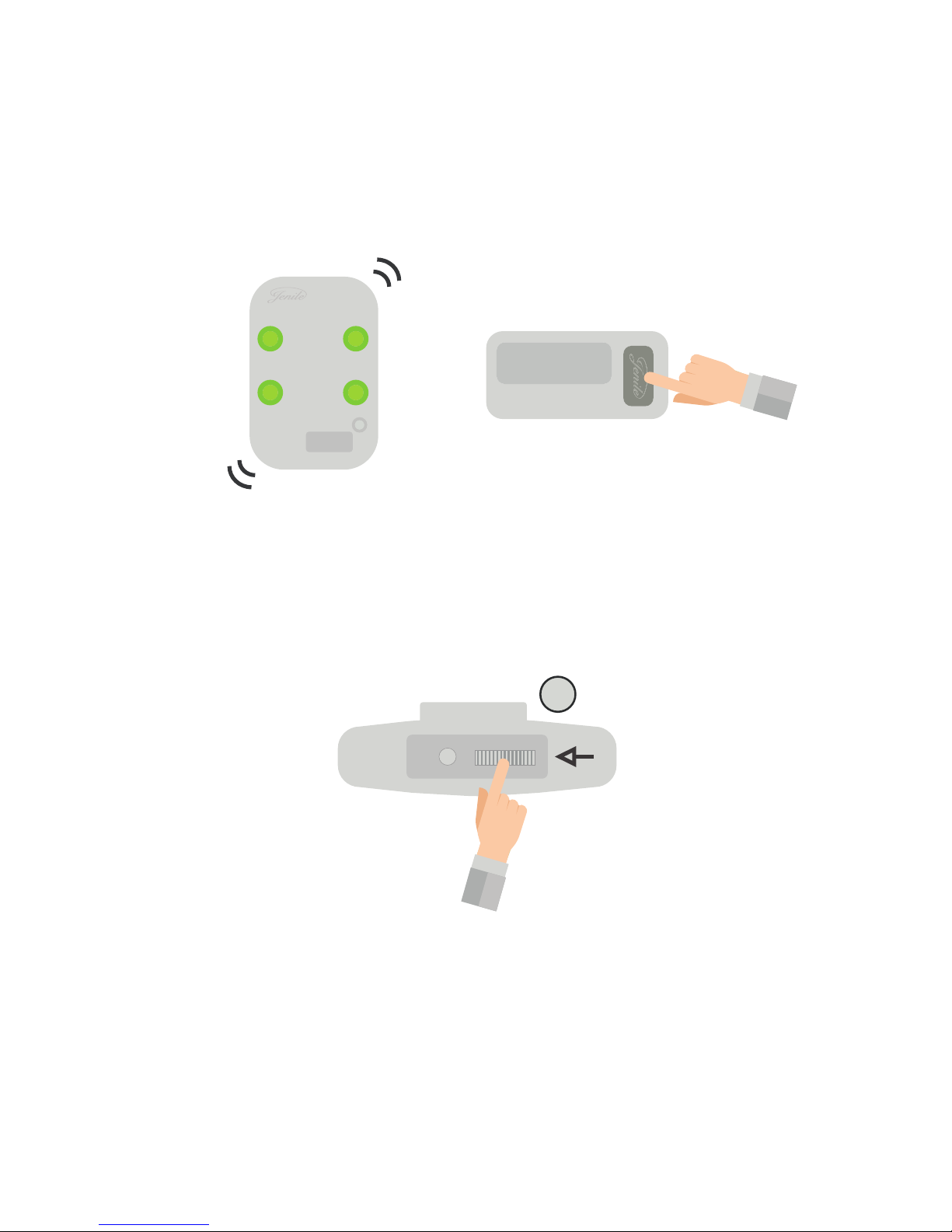

The Jenile Pocket vibrator VP15 is easy to test. If the Pocket vibrator does not work in
accordance with the instructions below, we invite you to contact your seller. To test
your Pocket vibrator press on your Jenile doorbell.
If the Vibrator light up, but no vibration please check (D) maybe it put on minimum.
If the green LED at the bottom right of your device does not light up, it means that
your device is fully charged.
13

1. Activate the vibrator by pushing
down the ON button.
Settings
if you want to complete this pack with other Jenile transmitters (see products on
page 16), then make adjustments to connect your devices between each other.
To connect all your products, please follow the instructions carefully.
2. Press the plug button (C) until the vibrator
turns red (WARNING: do not hold down the
button too long, you are at risk of deleting all
previous connections)
3. Immediately actuate the transmitter after
having pressed the plug (ring the bell, press
on the remote control, shout in the baby crying
detector, …)
14

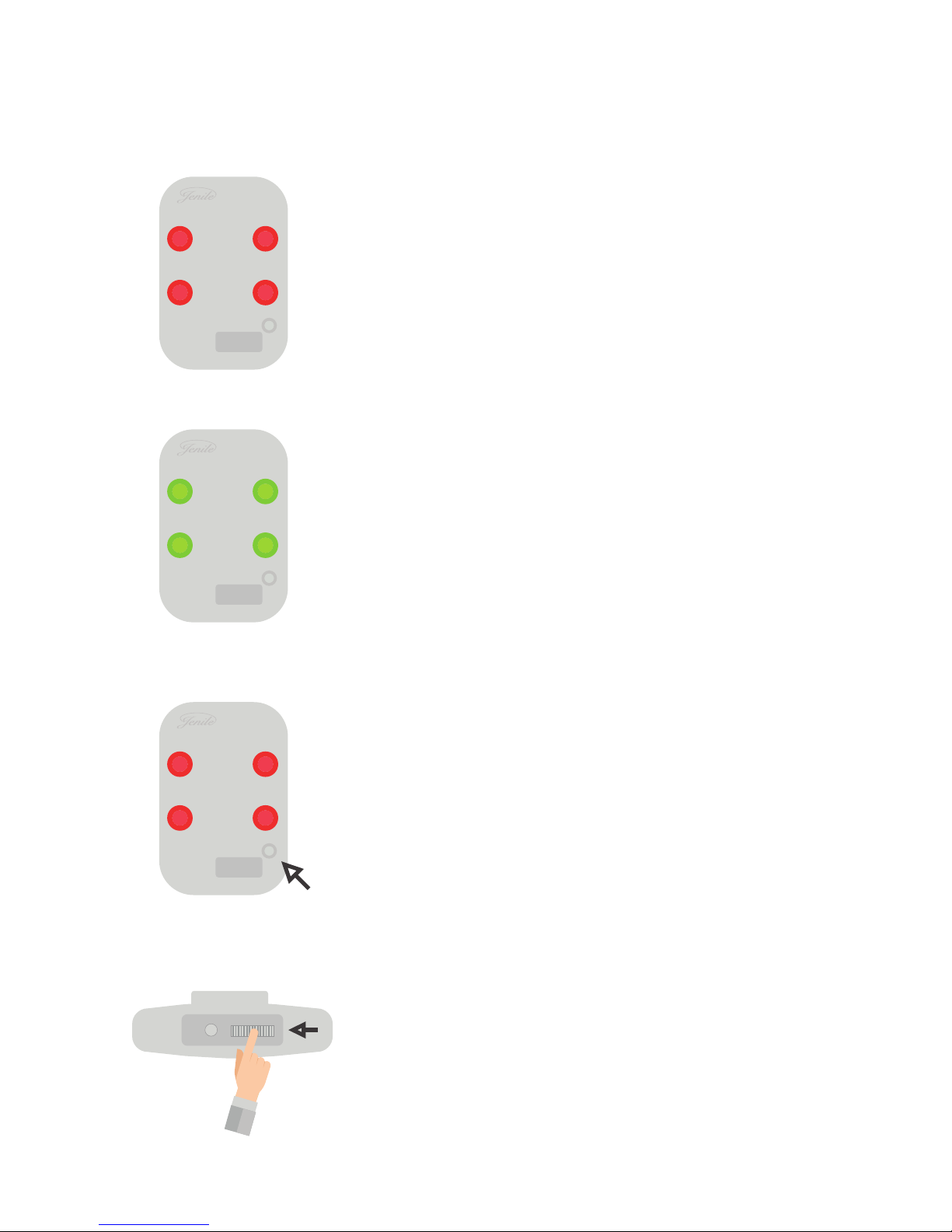

3 possibilities:
Vibrator turns red but doesn't vibrate.
The connection has ... it hasn’t received
the transmitter’s signal
The vibrator flashes in a color (green, blue, red
or white, depending on the alert) and vibrates.
The connection is successful
The red light flashes 3 times, it doesn’t vibrate.
The connection has failed because you
pressed too long on the plus button ©.
You erased the memory and have to restart
all the connections.
4. Choose the vibration level that suits you best
with the variator on the top of your vibrator
3 times
15

Signals and colors
The Pocket vibrator VP15 can be used with all the transmitters from the Jenile
range.
For all alerts, the Pocket vibrate and flash at the same time. The color at the of the
light as well as the vibration rhythm will indicate the alert type. For doorbell it’s in
green, 2 vibration with 5 repetitions (more colors page…).
GREENand medium vibrations
(x2 with 5 repetitions): Bells
-Door bells
-Video bells
-Video Gate
-Acoustic transmitter
-Call button, …
REDand quick vibrations
(x3 with 4 repetitions) Emergencies
-Smoke detector
-Gas detector,
-water flood detector, ..
BLUE and slow vibrations
(x1 with 5 repetitions)
Calls
Text messages
Phone, fax, …
WHITE and very quick vibrations
(x4 with 4 repetitions)
Door/window opening detector
Motion detector
Computer calls (skype, oovoo, ..)
16

A- Doorbell B- Bracket fixing C- Battery 23A 12V
Technical Specifications
Dimensions (height x width x depth): 53x34x20mm
Color: white
Weight: 20g
Power supply: battery included 23A 12V
Autonomy: 1 year
Transmission frequency: 433,33 Mhz
2 years guarantee
Doorbell SP14
AB
Installation
This button is fixed to the wall near the door, with screws and (B).
fixed
17
C

Working principle
A signal system is composed of at least one transmitter and one receiver. When a
person presses the bell button, the signal is converted into radio-frequency pulses.
Those radio-frequency pulses (433 Mhz) are transmitted wireless to the flash
receivers or to the Jenile vibrators. Then, they flash/vibrate in green.
Use
Whether your doorbell works correctly, you can see a red LED will light up when you
press the doorbell. If this is not the case, it means that no more battery, so you
must change (C)
Settings
Your products are already connected to each other. If this is not the case, the
connection is very simple, please look at the setting of the cube flash & Pocket
vibrator.
- Battery 23A 12V
18
C
