Jenlis WeedRazer Owner's manual

Owner’s / Operator’s Manual
WeedRazer®
Keep out of reach of children.
Do not use with children in immediate area.
Model # 580110 (LWE0014)
Instructions containing a warning within
this manual are marked with a symbol.
These concern critical points which
must be taken into consideration to pre-
vent serious bodily injury. For this reason
you are requested to read all such
instructions carefully and follow them
without fail.
SAFETY FIRST
!!
WARNING
!!
WARNING
The WeedRazer is designed for
cutting submerged, partially
emergent, or emergent aquatic
vegetation from underwater. Any
other use is strictly prohibited.
Before using the WeedRazer, please
read this manual carefully to
understand the proper use of the unit.
The WeedRazer blade(s) are razor
sharp. The blade covers should be on
while assembling the tool and when
tool is not in use. Failing to comply
can result in severe lacerations,
dismemberment, and even death.
Visit Weedrazers.com to view assembly and use videos
REVISED

Please refer to the Ref. Letter when assembling the tool and Part Number when placing an order for a replacement part.
i

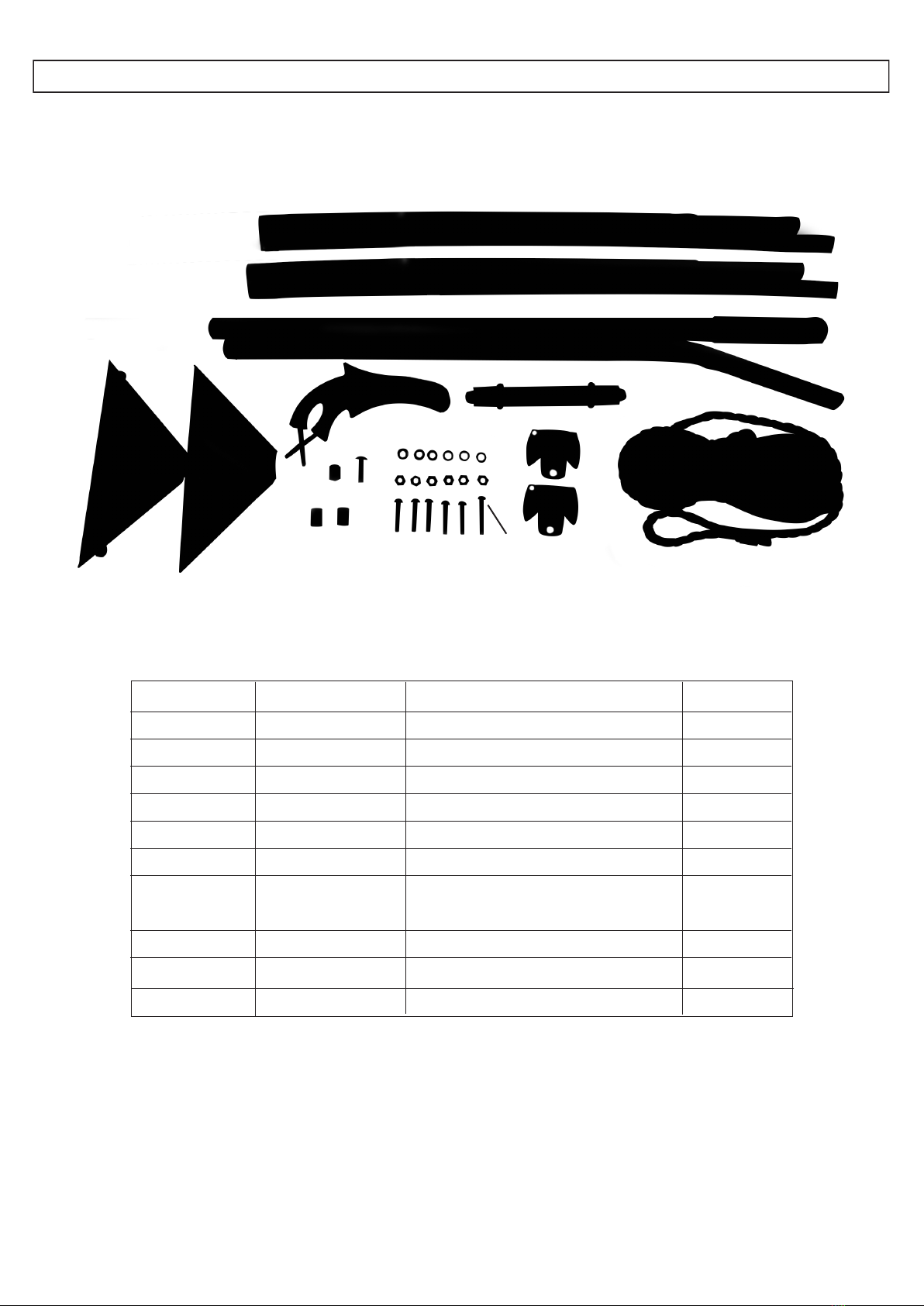

Parts List
Ref. Letter Part Number Description Quantity
A580143 (WRZHD09)1
B580139 (WRZHA09)1
C 580122 (WRZBL09)2
D580250 (WRZSB09)2
E580145 (WRZHC09)1
F580144 (WRZWD09)2
G 580149 (WRZNS09)
2
WRZRB18
H
K580146 (WRZRP09)1
L580127 (WRZSR09)
1
Handle Section w/ Black Grip
Curved Handle Section
Single Blade w/ Cover
Support Bracket
Handle connector w/ 2 Spring Clips
Weed Deflector
Hardware (1.5" Bolt, Nut, Washer 1ea.)
(1.2" Bolts, Nuts, Washers 5 ea.)
(Nylon Spacers 2 ea.)
1.5” Bolt and T Nut
25' Rope
Blade Sharpener, Black
A
B
C
D
H
K
FLE
GGF
G
1

Assembly Instructions
Read all instructions before assembly and use. Do not remove the blade cover when assembling.
Blade Sharpening Instructions
ii
1. Always wear cut resistant gloves when sharping the WeedRazer.
2. Rest the handle of the WeedRazer Express against a building or wall.
3. Kneel or sit in front of the WeedRazer Express in a stable position (Figure i). Do not sharpen
while standing or leaning over the cutting edge.
4. Hold the sharpener with your thumb resting on the flared ridge of the sharpener. Wear
cut resistant gloves to protect your hands if you slip while sharpening.
5. Run the sharpener down the cutting blade edge in four to six strokes using less pressure as
the edge gets sharper. Press one edge of the sharpener’s steel on the edge of the blade that
you want to sharpen, then switch to the other side of the sharpener’s steel for the other side
of the blade.
6. To sharpen the opposite blade, either switch hands or turn the WeedRazer Express around
so the opposite edge is in position for sharpening.
Figure i.
Step 2
Step 3
Step 4
Step 1
Insert all 5 bolts (J) into one of the triangular metal support brackets (d) with the bolt
heads on the domed side of the bracket. Insert bolt (i) into the domed side of one of
the red weed deflectors (f) pieces then slide bolt (i) into the hole at the apex of the
support bracket triangle so that the curved edges of both pieces match. Lay the
bracket (d) curved side down on a flat surface. Place the nylon spacers (g) onto the
bolts that are farthest apart on the un-curved edge of bracket (d).
Slide the blade cover off a few inches during this part of the assembly. Lay each
blade (c) into the bracket (d) with the angled end of the blade pointing toward the
weed deflector piece (f) and the bolt closest to the weed deflector through the hole
in the blade. (d) through the holes in the blades. Place the curved end of the handle
(b) into the bracket assembly lining up the bolts with the holes in the handle. The
handle should be projecting up from the flat surface. Place the other half of the
support bracket (d) over the assembly so that the bolts sticking up match up with
the holes in the bracket (d).
Thread a washer and nut over the nylon spacer bolts and handle bolt closet to these
nuts. Put the other half of the weed deflector (f) in place and snap the two halves
together with the pins molded into the weed deflector. Place the remaining washers
and nuts on the assembly. Hand tighten the nuts. Lift the assembly and use a flat
head screw driver and an adjustable wrench to tighten the nuts. Push the blade
covers back in place (Note:The blade cover will ride up over the weed deflector as
pictured.) If desired, the blade covers can be trimmed 1 1/8” on the end next to the
handle.
Insert the looped end of the rope (k) into the rubber handle end of handle (a). Twist
the rope until the open portion of the loop is lined up with the hole just below the
rubber handle. Insert bolt (H) into the hole securing the loop inside the handle.
Thread the flat-topped T nut to the bolt and tighten.
Handle Assembly – Press the spring loaded buttons on one end of the handled
connector (E) slide into the open end of the handle (B) turn until the buttons snap
into the holes in the handle. Repeat this process for the other half of the handle.

Operating Instructions
Safety Instructions

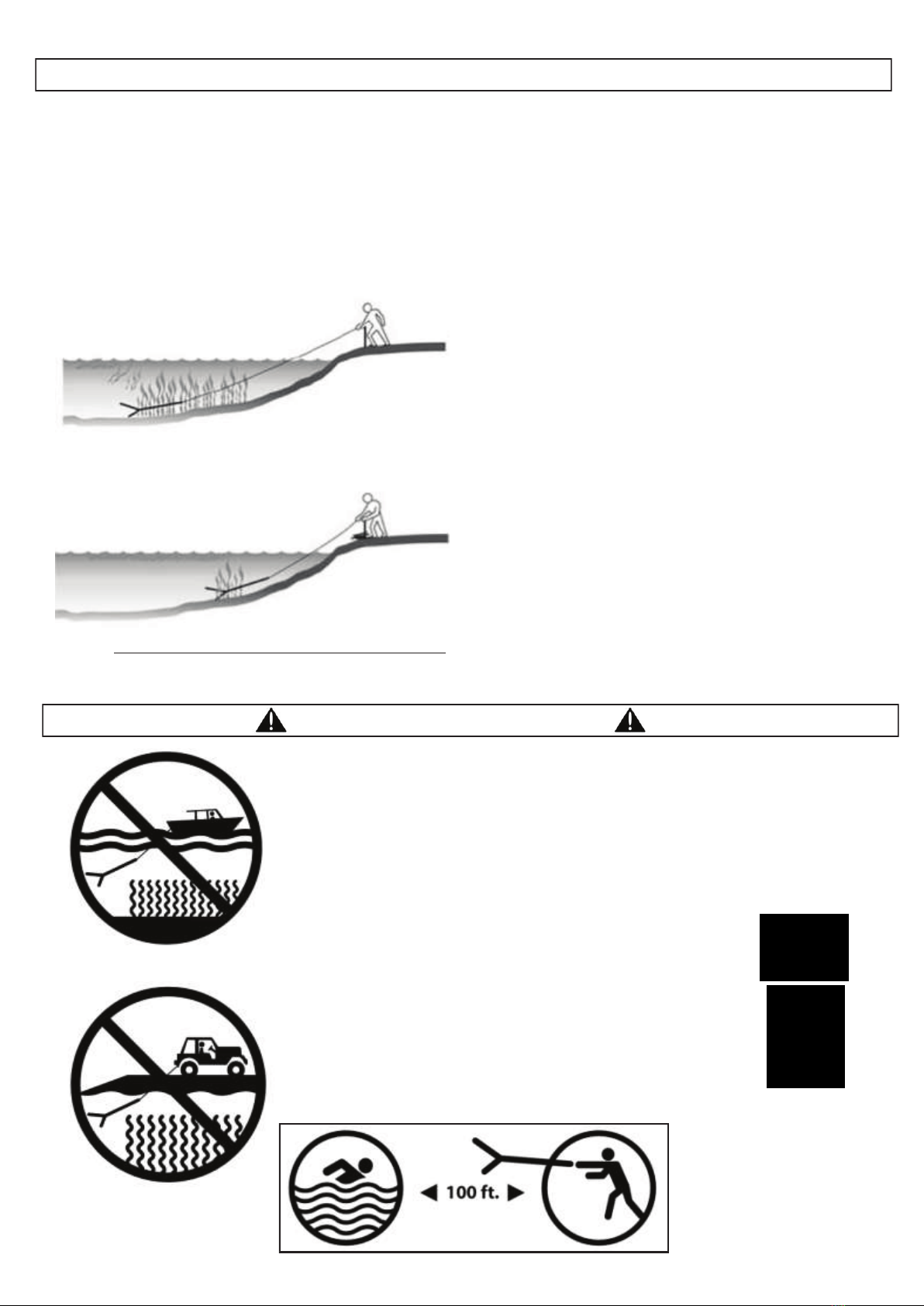

Do not pull behind the boat
NOTE: Failing to comply can result in severe lacerations, dismemberment, and even death.
iii
It is important to remove cut vegetation from the water. If not removed, the decaying vegetation will provide an additional food
source for re-growth. The WeedRaker is the perfect tool for this purpose. It is the longest and widest aquatic rake in the in-
dustry. Ask your retailer for details.
NOTE:
Do not pull behind the vehicle or
any mechanical device
Step 1
Always wear cut resistant gloves whenever you use the WeedRazer.
Step 2
Secure the rope (tie it around a post, or step on the rope). If you are on a
dock, tie the rope to a post so you don’t throw too far. The rope floats, so
if you lose control of the rope the tool can still be retrieved.
Step 3
Remove the blade covers by pressing the spring loaded buttons on the
ends of the blade cover furthest from the handle and sliding the cover
off.
Step 4
Toss the WeedRazer Express out over the area you want to cut. Use an
under hand motion and keep the blades parallel to the water as the tool
sails through the air. Let the cutter sink to the bottom.
The WeedRazer Express can be used while holding the handle, however
it is easier and safer if you toss it out and retrieve it with the rope.
Step 5
Retrieve the WeedRazer Express using a jerking motion.
Step 6
Repeat Step 3 to Step 5 as needed.
Step 7
Inspect. If it comes back with many weeds on it, it may be time to
sharpen the blades. Cutting weeds when the wind is blowing towards the
shore makes removal easier.
Always wear cut resistant gloves when handling the WeedRazer when removing or after the
blade covers are removed.
The WeedRazer Express is to be operated by hand only Do not pull the WeedRazer Express
behind a boat, or any other machine driven equipment. Doing so will void the warranty and
damage your WeedRazer.
Do not use with children in immediate area.
Do not use the WeedRazer Express when humans and/or animals are present within 100 feet
from the launch point.
Do not place or use near electrical wires or cords.
Never touch the sharp edges of the blades with bare hands at any time.
Leave blade covers on the cutting edges when not in use.
Check all bolts, connections, and rope before use.
Avoid areas with underwater structures.
When not in use, store in a safe location out of the reach of children.
