JDV8035 Quick Reference Guide
JDV8
Basic Operation
Power On/Of f:
Press and hold to turn
power ON or OFF.
MENU: Press and hold to access MENU FUNCTION LIST. With each con-
tinuous press of the button choose from the following menu items: ANGLE,
CONTRAST, BRIGHTNESS, COLOR, DATE SET, CLOCK, TIME FORM, AV
JACK, TUNER SET, TUNER AREA, BEEP TONE, PROGRAMMABLE TURN-
ON VOLUME, REAR SPEAKER ON/OFF, INTER AMPLIFIER ON/OFF.
Use ENCODER KNOB to adjust desired menu item.
MUTE: Press to
MUTE audio.
MODE: With each
press of the button the
radio will change through
the following modes:
TUNER, DVD, CARD
(SD/MMC CARD,AV IN-1).
PANEL RELEASE:
Press to remove
control panel.
AM/FM Tuner Controls
BAND: Press to select
FM BAND and AM BAND.
TUNE: Press > to tune
UP in frequency. Press
< to tune DOWN in
frequency. Press and
hold to fast search.
AS/PS: Press to SCAN through currently
stored presets. Press & hold to STORE
strongest broadcast stations in your area.
STATION STORE
BUTTONS: Press & hold
to store current channel
playing. Momentarily
press to recall stored
channel. NOTE: you can
store up to 30 channels
(6 channels per band FM1,
FM2, FM3, AM1, AM2).
Audio Controls
AUDIO MENU: Press to
access AUDIO MENU.
Continue to press until
desired menu item
appears. Adjust desired
menu item with
ENCODER KNOB.
iX BASS: Press to turn
iX BASS ON or OFF.
SUB-W: Press to turn
SUB-W ON or OFF.
2-ZONE: Press to turn
2-ZONE ON or OFF.
CD Player Controls
REPEAT: Press to REPEAT current playing
track. Press to release function.
OPEN/EJECT: Press to
OPEN faceplate and
insert CD. Faceplate will
automatically close after
CD is inserted. Press again
to EJECT CD. Faceplate will
automatically open when
CD is ejecting and close
when CD is taken out.
STOP: Press to
STOP current audio.
PAUSE: Press to
PAUSE current audio.
*Supports MP3 and WMA File Formats.
TUNE/TRK: Press to
tune to next track.
Press and hold to FAST
FORWARD or REWIND
current track playing.
ENCODER KNOB: Use
to adjust desired menu item.
All manuals and user guides at all-guides.com
all-guides.com

©Copyright 2007 ASA, LLC JDV8035 - 1107
©

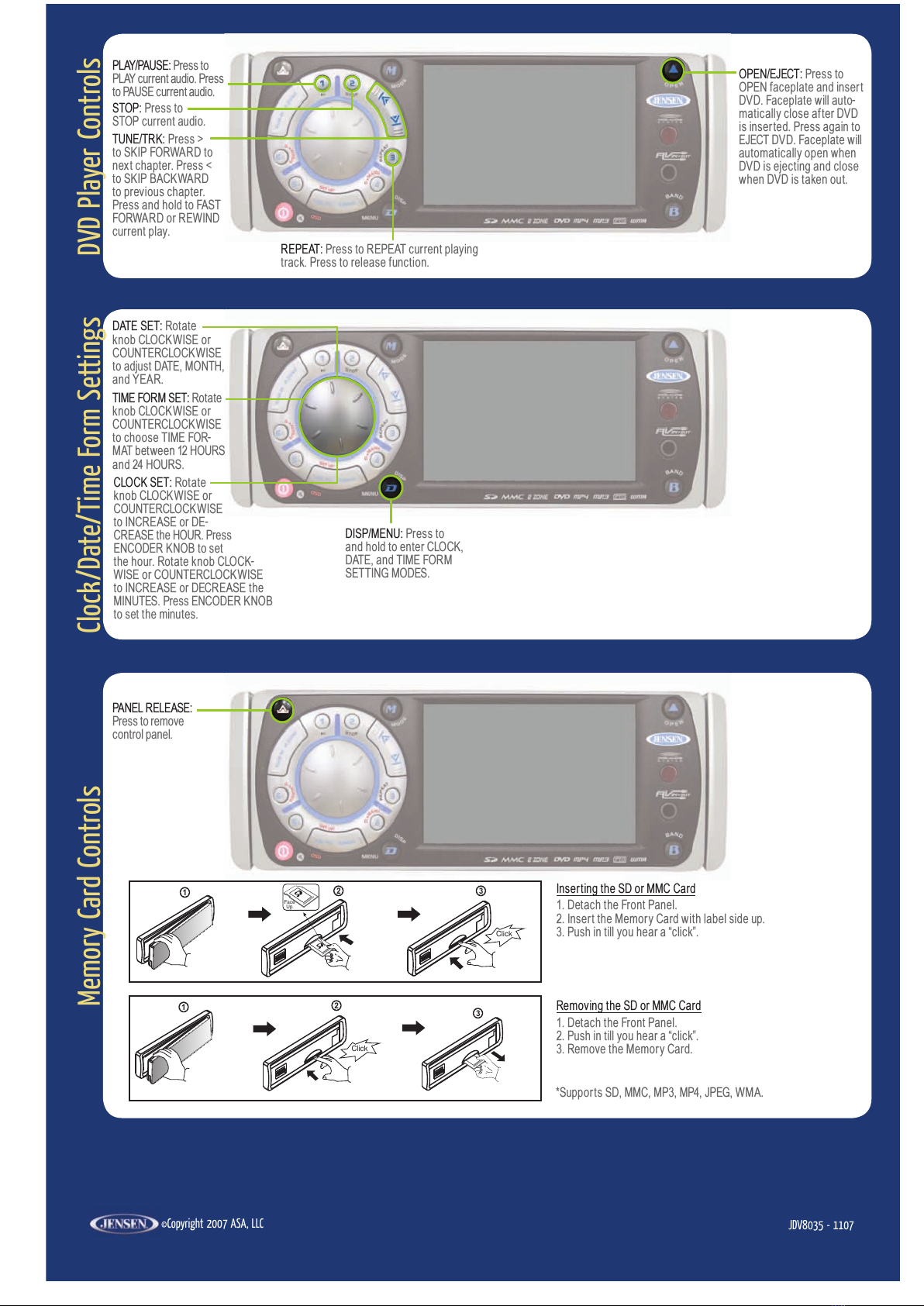

DVD Player Controls
REPEAT: Press to REPEAT current playing
track. Press to release function.
OPEN/EJECT: Press to
OPEN faceplate and insert
DVD. Faceplate will auto-
matically close after DVD
is inserted. Press again to
EJECT DVD. Faceplate will
automatically open when
DVD is ejecting and close
when DVD is taken out.
STOP: Press to
STOP current audio.
PLAY/PAUSE: Press to
PLAY current audio. Press
to PAUSE current audio.
TUNE/TRK: Press >
to SKIP FORWARD to
next chapter. Press <
to SKIP BACKWARD
to previous chapter.
Press and hold to FAST
FORWARD or REWIND
current play.
Memory Card Controls
*Supports SD, MMC, MP3, MP4, JPEG, WMA.
18. MEMORY CARD OPERATION
The unit can support playback MP3 / WMA / JPEG / MP4 and Divx format which are stored into SD
and MMC Memory Card . Pls read below before you start the operation of Memory Card
Inserting and Removing a SD or MMC card on the main unit
Mode change to MEMORY CARD
File Playback Operation
All the SD or MMC Memory Card playback operation function is same as the operation on
CD/MP3/WMA. Pls refer to 'CD/MP3/WMA Operation' for more details.
After a SD or MMC card was inserted into the main unit card slot. Press Mode button to select
card mode. The unit will starts playing the files contained on the Memory Card. Once
the unit read the Memory Card successfully, the first file on the Memory Card will automatically
start playback. Press Mode button repeatedly is allowing changing to other modes or swich back
to card mode.
If no any Memory Card is inserted into the main unit card slot. Press mode button will
Automatically skip card mode.
Click
Inserting the SD or MMC card
Removing the SD or MMC card
Click
Face
Up
Insert the Memory Card
with Label up side
12
Detach the
Front Panel
3
Push in till heard a “click”
1
Detach the
Front Panel
2
Push in till heard a “click” Remove the Memory Card
3
19
JDV8035
External Subtitle setting is used for choosing the language domain, (only for MPEG4). After
select one language domain (alphabet), when playback a MPEG4 with external subtitle, the
subtitle display will use this language alphabet. if you find the displaying subtitle “words” aren't
correctly, please ensure the external subtitle language and select the correct language. The
following language domains are available:
19. MPEG4 Operation
Western European = Include Albanian, Breton, Catalan, Danish, Dutch, English,
Faroese,Finnish, French, Gaelic, German, Icelandic, Irish,
Italian, Norwegian, Portuguese, Spanish and Swedish.
Turkish = Albanian, Danish, Dutch, English, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin), Norwegian, Portuguese,
Spanish, Swedish and Turkish
Slavoic Cyrillic = Include Bulgarian, Belorussian, English, Macedonian,
Moldavian, Russian, Serbian and Ukrainian.
The MPEG4 Subtiltle selection is appear in the ‘SET UP” menu > language > MPEG4
subtitle for the osd menu.
External Subtitle
The unit is support playback MPEG4 files , the details operation as same as CD/MP3/WMA
operation. The following are special function for palyback MPEG4 File:
OSD Menu English
Subtitle English
Audio English
DVD Menu English
OSD Menu On
MPEG4 Subtitle English
Language Video Audio Rating
PANEL RELEASE:
Press to remove
control panel.
Inserting the SD or MMC Card
1. Detach the Front Panel.
2. Insert the Memory Card with label side up.
3. Push in till you hear a “click”.
18. MEMORY CARD OPERATION
The unit can support playback MP3 / WMA / JPEG / MP4 and Divx format which are stored into SD
and MMC Memory Card . Pls read below before you start the operation of Memory Card
Inserting and Removing a SD or MMC card on the main unit
Mode change to MEMORY CARD
File Playback Operation
All the SD or MMC Memory Card playback operation function is same as the operation on
CD/MP3/WMA. Pls refer to 'CD/MP3/WMA Operation' for more details.
After a SD or MMC card was inserted into the main unit card slot. Press Mode button to select
card mode. The unit will starts playing the files contained on the Memory Card. Once
the unit read the Memory Card successfully, the first file on the Memory Card will automatically
start playback. Press Mode button repeatedly is allowing changing to other modes or swich back
to card mode.
If no any Memory Card is inserted into the main unit card slot. Press mode button will
Automatically skip card mode.
Click
Inserting the SD or MMC card
Removing the SD or MMC card
Click
Face
Up
Insert the Memory Card
with Label up side
12
Detach the
Front Panel
3
Push in till heard a “click”
1
Detach the
Front Panel
2
Push in till heard a “click” Remove the Memory Card
3
19
JDV8035
External Subtitle setting is used for choosing the language domain, (only for MPEG4). After
select one language domain (alphabet), when playback a MPEG4 with external subtitle, the
subtitle display will use this language alphabet. if you find the displaying subtitle “words” aren't
correctly, please ensure the external subtitle language and select the correct language. The
following language domains are available:
19. MPEG4 Operation
Western European = Include Albanian, Breton, Catalan, Danish, Dutch, English,
Faroese,Finnish, French, Gaelic, German, Icelandic, Irish,
Italian, Norwegian, Portuguese, Spanish and Swedish.
Turkish = Albanian, Danish, Dutch, English, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin), Norwegian, Portuguese,
Spanish, Swedish and Turkish
Slavoic Cyrillic = Include Bulgarian, Belorussian, English, Macedonian,
Moldavian, Russian, Serbian and Ukrainian.
The MPEG4 Subtiltle selection is appear in the ‘SET UP” menu > language > MPEG4
subtitle for the osd menu.
External Subtitle
The unit is support playback MPEG4 files , the details operation as same as CD/MP3/WMA
operation. The following are special function for palyback MPEG4 File:
OSD Menu English
Subtitle English
Audio English
DVD Menu English
OSD Menu On
MPEG4 Subtitle English
Language Video Audio Rating
Removing the SD or MMC Card
1. Detach the Front Panel.
2. Push in till you hear a “click”.
3. Remove the Memory Card.
Clock/Date/Time Form Settings
DISP/MENU: Press to
and hold to enter CLOCK,
DATE, and TIME FORM
SETTING MODES.
DATE SET: Rotate
knob CLOCKWISE or
COUNTERCLOCKWISE
to adjust DATE, MONTH,
and YEAR.
CLOCK SET: Rotate
knob CLOCKWISE or
COUNTERCLOCKWISE
to INCREASE or DE-
CREASE the HOUR. Press
ENCODER KNOB to set
the hour. Rotate knob CLOCK-
WISE or COUNTERCLOCKWISE
to INCREASE or DECREASE the
MINUTES. Press ENCODER KNOB
to set the minutes.
TIME FORM SET: Rotate
knob CLOCKWISE or
COUNTERCLOCKWISE
to choose TIME FOR-
MAT between 12 HOURS
and 24 HOURS.
