Jesco BLML Series User manual

SAVE THESE INSTRUCTIONS
BLML SERIES
LED BACK-LIT MIRROR
Installation instructions
www.jescolighting.com
[email protected]
Tech Support: 855.592.0029
Instruction sheet subject to change without prior notice.
15 Harbor Park Drive
Port Washington, NY 11050
Main Line: 800.527.7796
Fax Line: 855.265.5768
219 South 6th Ave
City of Industry, CA 91746
Main Line: 855.654.0110
Fax Line: 626.333.2955
JW11092015
Page 1
IMPORTANT SAFETY INSTRUCTIONS
Please read and save these instructions. Read carefully before using product. Protect yourself and others by observing all
safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage
to product or property. Please retain instruction sheet for future reference.
Read completely before beginning. If you do not have adequate electrical wiring experience, have this installed by a
qualified licensed electrican.
All electrical connections must be in accordance with local codes, ordinances and the National Electric Code.
This product operates on 120 VAC; always confirm the maximum wattage of the socket set does not exceed the
maximum wattage of the circuit it is connected to.
If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified licensed electrician.
Suitable for DRY and DAMP Locations
Save these installation instructions and refer to them when modifications or lamp replacements are made.
1.
2.
3.
4.
5.
6.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION-RISK OF FIRE
MAXIMUM WATTAGE AS MARKED ON LUMINAIRE MUST NOT BE EXCEEDED
ELPOEP2SERIUQERYTICIRTCELEFFONRUT rorrimtil-kcabDELllatsniot)xobrekaerbtiucricro(xobesufniamta
before removing mirror and lamps
A B
HORIZONTAL / LANDSCAPE VERTICAL / PORTRAIT
MOUNTING OPTIONS
LED back-lit mirror can be mounted horizontally or vertically.
REMOVING SET SCREWS
1. Place LED back-lit mirror on a stable surface.
2. Use a phillips screwdriver to loosen and
remove set screws and washers.
3. Save the set screws and washers for later use.
SET SCREW
METAL WASHER
PHILLIPS SCREWDRIVER
Rated 24 Volts DC
INSTALLATION INSTRUCTIONS

BLML SERIES
LED BACK-LIT MIRROR
Installation instructions
www.jescolighting.com
[email protected]
Tech Support: 855.592.0029
Instruction sheet subject to change without prior notice.
15 Harbor Park Drive
Port Washington, NY 11050
Main Line: 800.527.7796
Fax Line: 855.265.5768
219 South 6th Ave
City of Industry, CA 91746
Main Line: 855.654.0110
Fax Line: 626.333.2955
JW11092015
Page 2

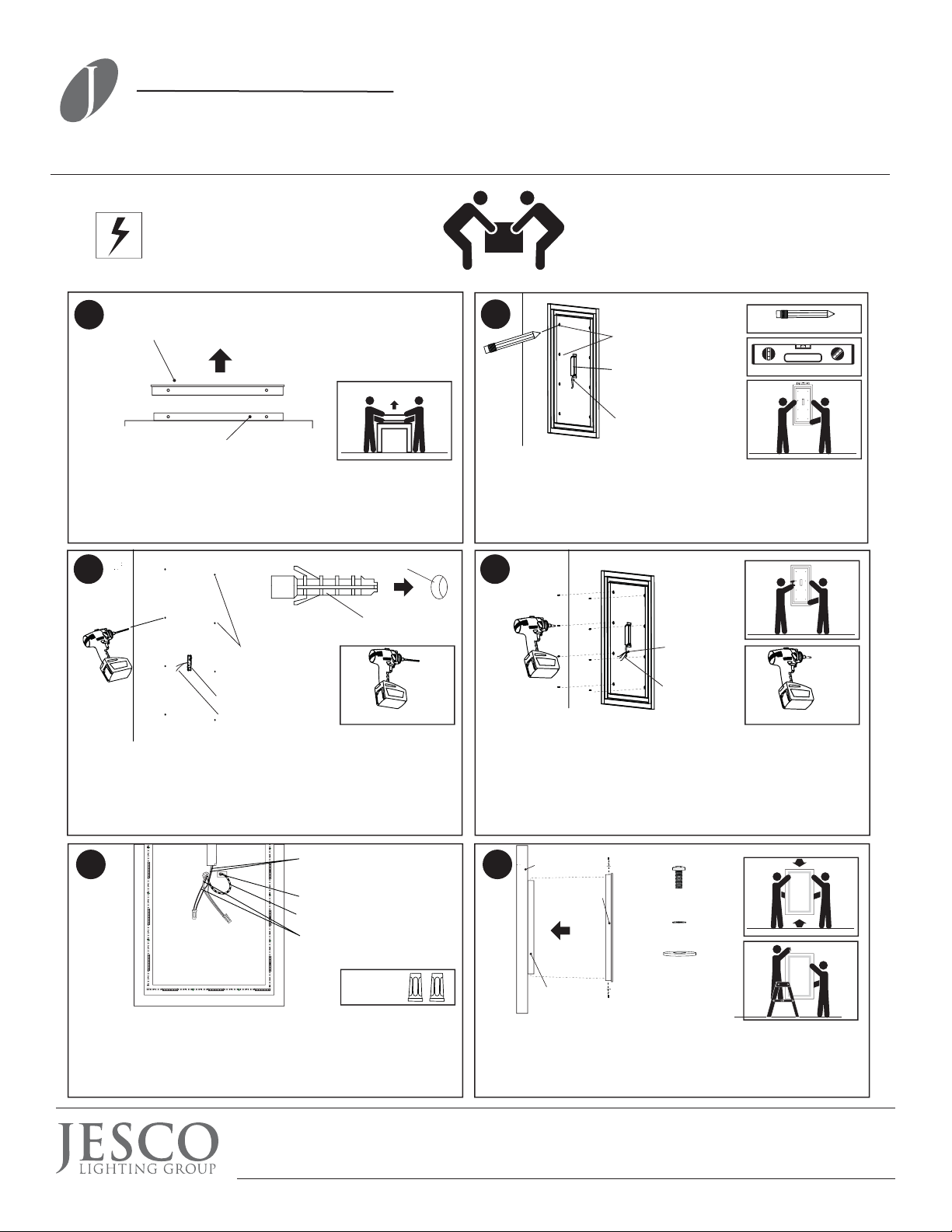

INSTALLATION INSTRUCTIONS
WALL
POWER SUPPLY INPUT WIRES (LOAD)
Brown (LIVE)
Green or Copper
Blue (NEUTRAL)
SUPPLY WIRES
GROUND SUPPLY WIRES
GROUNDING SCREW
Black (LIVE)
White (NEUTRAL)
BACK FRAME
MIRROR FRAME
C
E
BACK FRAME
PENCIL MARKS
JUNCTION BOX
SUPPLY WIRES
SUPPLY WIRES
WIRE EXIT HOLE
PLASTIC ANCHOR
1/4” HOLE IN DRYWALL
WIRE EXIT HOLE
MOUNTING HOLE
POWER SUPPLY
MIRROR FRAME
REQUIRES 2 PEOPLE to Remove Mirror Frame
1. 1st person holds onto one side of the mirror frame.
2. 2nd person holds onto the opposite side of the mirror frame.
3. Together, pull the mirror frame upward and off from the back
frame. Carefully place the mirror frame on a soft or padded surface.
INSTALL BACK FRAME TO WALL
1. Pull supply wires through back frame’s wire exit hole.
2. 1st person holds back frame against the wall and matches up
mounting holes to the plastic anchors.
3. 2nd person secure back frame to wall with provided self-
tapping mounting screws, screwing them into the plastic anchors.
IF MARKED SPOTS LANDED ON STUD, DRILL SELF TAPPING SCREWS
DIRECTLY INTO MARKED SPOTS.
REQUIRES 2 PEOPLE to Mark Mounting Holes
1. 1st person holds back frame in desired position on the
wall and uses a level to make sure LED back-lit mirror frame is
straight.(Make sure wire exit hole is in front of junction box)
2. 2nd person to mark 8 mounting holes on wall.
INSTALLING PLASTIC ANCHOR IN DRYWALL
1. Use a drill with 1/4” drill bit to drill through marked hole locations
on dry wall. Push the supplied plastic anchors into the 1/4” drilled
holes.
2. Pull out supply wires from junction box.
IF MARKED HOLE LOCATIONS LANDED ON A STUD, SKIP THIS STEP.
D
F
SET SCREW
METAL WASHER
SILICONE WASHER
WIRE NUTS
(not included)
LEVEL
DRILL W/ 1/4” DRILL BIT DRILL W/ PHILLIPS BIT
PENCIL
Shown in portrait mounting orientation
ELPOEP2SERIUQERYTICIRTCELEFFONRUT rorrimtil-kcabDELllatsniot)xobrekaerbtiucricro(xobesufniamta
before removing mirror and lamps
H
REQUIRES 2 PEOPLE to Install Mirror Frame
1st person holds the mirror frame onto the back
frame while the other person secures 4 set screws with washers
to the mirror frame with a Phillips screwdriver from above and below.
G
WIRING POWER SUPPLY WIRES TO SUPPLY WIRES
1. Connect brown wire (LIVE) from power supply to black
supply wire (LIVE), secure connection with a wire nut.
2. Connect blue wire (NEUTRAL) from power supply to white
3. Connect ground supply wire, green or copper, to ground screw.
supply wire (NEUTRAL), secure connection with a wire nut.
