JETWAY G03-NF791-F User manual

NF791 Series
User’s Manual
G03-NF791-F
Revision: 1.0
Release date: September 28, 2017
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE .................................................................................................................. v
MANUAL REVISION INFORMATION................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 9
2-2 CONNECTORS AND HEADERS ............................................................................ 15
2-2-1 CONNECTORS ......................................................................................... 15
2-2-2 HEADERS................................................................................................. 20
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 29
3-2 BIOS MENU SCREEN ............................................................................................ 30
3-3 FUNCTION KEYS................................................................................................... 30
3-4 GETTING HELP...................................................................................................... 31
3-5 MEMU BARS.......................................................................................................... 31
3-6 MAIN MENU ........................................................................................................... 32
3-7 ADVANCED MENU ................................................................................................ 33
3-8 CHIPSET MENU..................................................................................................... 46
3-9 SECURITY MENU .................................................................................................. 49
3-10 BOOT MENU.......................................................................................................... 50
3-11 SAVE & EXIT MENU .............................................................................................. 51
TABLE OF CONTENT

iv
Environmental Safety Instruction
 Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
 Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
 The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
 Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition September 28, 2017
Item Checklist
 Motherboard
 User’s Manual
 CD for motherboard utilities
 Cable(s)

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
 Onboard Intel® Skylake-U/Kabylake-U series processor, TDP 15 W, never denies
high performance
 Support 2* DDR-4 2133 MHz SO-DIMM, maximum capacity up to 8GB
 Integrated HD Audio CODEC
 Support 2*Realtek Gigabit LAN
 Support triple displays ( HDMI, VGA, LVDS or eDP)
 Support 1 * external RS232/422/485 and 9 * internal RS232
 Support 4 * external USB 3.0 & 5 * Internal USB1.1/2.0
 Support 1* RJ-11 & PS/2 connector
 Support 1* Mini-PCIe/mSATA slot & 1 * Mini-PCIe slot
 Support 1* PCI-E x1 expansion slot
 Compliance with ErP standard
 Support Watchdog function

2
1-2 Specification
Spec Description
Design  6-layers; Mini-ITX; PCB size: 17 x 17 cm
Embedded CPU
 Integrated with Intel® Skylake-U/Kabylake-U series CPU (TDP
15W)
*CPU model varies from different IPC options. Please consult your dealer
for more information of onboard CPU.
Memory Slot
 2*DDR4 SO-DIMM slot support 2* DDR4 2133 MHz SO-DIMM
up to 32GB
 Support dual channel function
*
Memory clock supporting range is decided by specific CPU of the model.
For more memory compatibility information please consults your local dealer.
Expansion Slot
 1* PCIE x1 slot
 1* Full-size Mini-PCIE slot (MPE)
 1* Full-size Mini-PCIE/MSATA slot (MMPE)
LAN Chip
 Integrated with 2* Realtek 8111H PCI-E Gigabit LAN chips
 Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip  Realtek ALC662VD HD Audio Codec integrated
 Audio driver and utility included
Storage  1* SATAIII 6Gb/s port
 1* Full-size Mini-SATA slot
BIOS  AMI Flash ROM
Rear I/O
 1* 12V DC-in power connector
 1* VGA port
 1* RJ-11 cash drawer port
 1* PS/2 keyboard & mouse combo port
 1* HDMI port
 1* RS 232/422/485 port (COM1)
 1* Parallel port

3
 2* RJ-45 LAN port
 4* USB 3.0 port
 1* Line-out port & 1* MIC port
Internal I/O
 1* ATX 12V internal power connector
 1* SATA Power-out connector
 2* System fan connector & 1* CPU fan connector
 1* Front panel header
 1* Power LED header & 1* Buzzer header
 1* Front panel audio header & 1* 3W audio amplifier header
 1* LAN activity LED header
 2*9-pin USB 2.0 header (Expansible to 4* USB 2.0 ports)
 1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 port)
 9* RS232 Serial port header (COM2/3/4/5/6/7/8/9/10)
 1* GPIO header & 1* SMBUS header
 1* LVDS header & 1* eDP Header
 1* Inverter Header
1-3 Layout Diagram

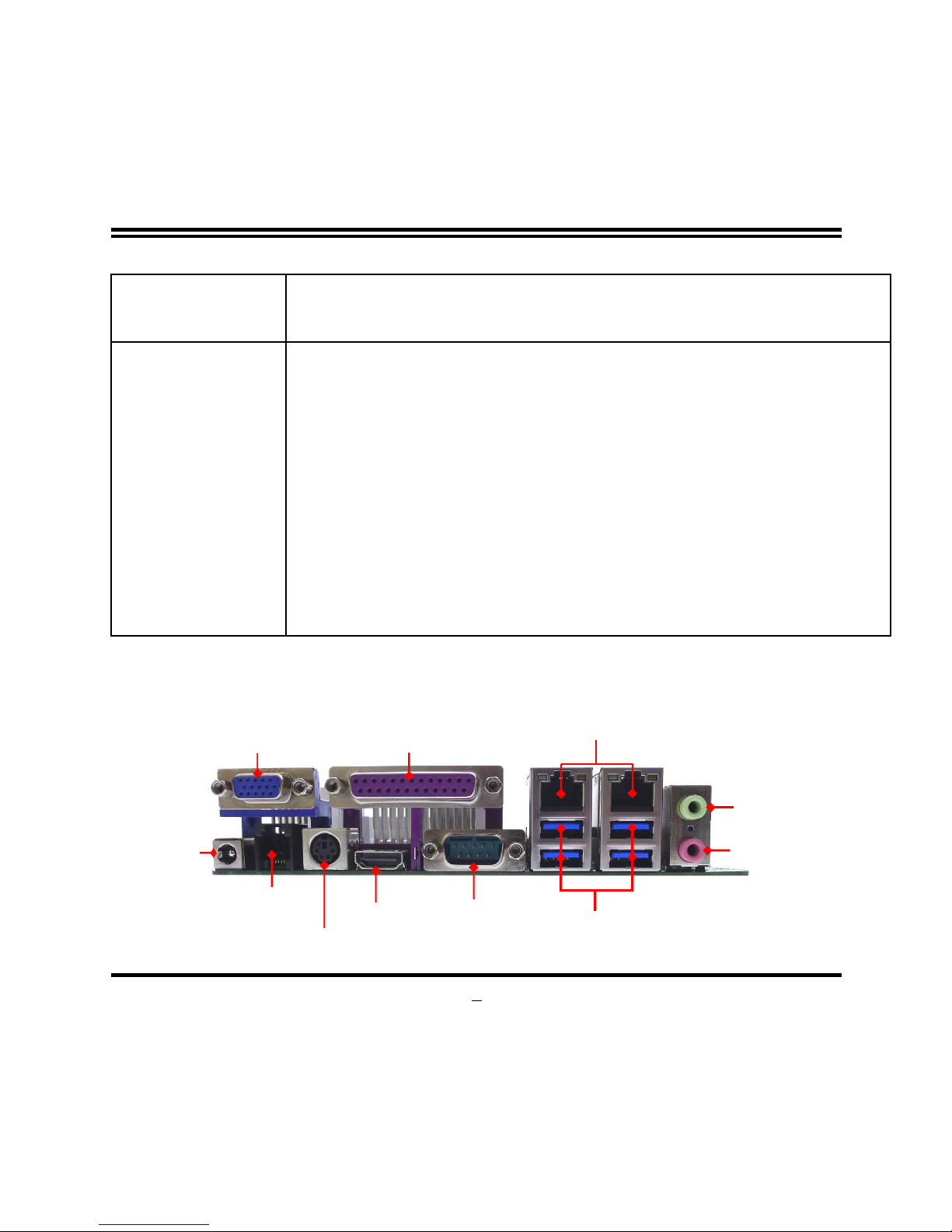

Rear IO Panel Diagram:
Line-out Port
MIC Port
2*RJ-45
LAN Port
VGA Port
Parallel
Port
RJ-11
Cash Drawer Port
4* USB 3
.0 Port
Serial Port
HDMI Port
PS/2 KB & MS Port
12V DC-in
Power Jack

4
Motherboard Internal Diagram
PCIE x1
COM
2
COM3
Serial Port Headers
(COM5/6/7//8/9/10)
SYSFAN1
CPUFAN
COM
4
GPIO
JW_FP
SMBUS
SYSFAN2
LVDS
FP_USB3
FP_AUDIO
FP_USB1
FP_USB2
AMP_SPK
Mini-PCIe/M-SATA
Slot
Mini-PCIe Slot
SATA
SATAPWR
EDP
INVERTER
DDR
4
SODIMM Slot
(SODIMM1/2)
JLAN_LED
*Rear IO
Connector
(Refer to Page-3)
PWRLED
JBUZZ

5
Jumper Positions:
JPCOM1
JPCOM2
JPCOM3
JPCOM4
JPCOM5
JPCOM6
JPCOM7
JPCOM8
JPCOM9
JPCOM10
JSYSFAN
JPLED
JRJ11_V
JBAT
JPLCD
JAT_COPEN

6
Jumper Name Description
JPCOM1 COM1 Port Pin9 Function Select 4-pin Block
JPCOM2 COM2 Header Pin9 Function Select 4-pin Block
JPCOM3 COM3 Header Pin9 Function Select 4-pin Block
JPCOM4 COM4 Header Pin9 Function Select 4-pin Block
JPCOM5 COM5 Header Pin9 Function Select 4-pin Block
JPCOM6 COM6 Header Pin9 Function Select 4-pin Block
JPCOM7 COM7 Header Pin9 Function Select 4-pin Block
JPCOM8 COM8 Header Pin9 Function Select 4-pin Block
JPCOM9 COM9 Header Pin9 Function Select 4-pin Block
JPCOM10 COM10 Header Pin9 Function Select 4-pin Block
JAT_COPEN
Pin1&2&3: ATX/AT Mode Select
Pin 4&5 ：
Case Open Message Display
Function Select
5-pin Block
JBAT Pin 1&2：Clear CMOS RAM
Pin 3&4：Flash Override
Pin 5&6：POK Override
6-pin Block
JPLCD LVDS/eDP VCC 3.3V/5V/12V Select 4-pin Block
JPLED LVDS INVERTER/EDP Pane
Backlight 5V/12V Select
3-pin Block
JRJ11_V RJ-11 Cash Drawer Port
VCC 12 V/24V Select
3-pin Block
JSYSFAN SYSFAN1/SYSFAN2 Fan Speed Detect 3-pin Block

7
Connectors
Connector Name
DC_IN1 12V DC–in Power Jack Connector
VGA CRT VGA Port Connector
RJ11 RJ-11 Port Connector
PS2 PS/2 Keyboard & Mouse Connector
HDMI High-Definition Multimedia Interface Connector
LPT Parallel Port Connector
COM1 Serial Port Connector
USB1_LAN1/
USB2_LAN2
Top: RJ-45 LAN Port Connector x2
Middle: USB 3.0 Port Connector x2
Bottom: USB 3.0 Port Connector x2
AUDIO Top: Audio Line Out Port Connector
Bottom: Audio MIC In Connector
ATXPWR Internal 12V DC-in Power Connector
SATA SATAIII Port Connector
STATPWR SATA Power out Connector
CPUFAN CPU Fan Connector
SYSFAN1/SYSFAN2
System Fan Connector X 2

8
Headers
Header Name Description
JW_FP Front Panel Header
(PWR LED/ HDD LED/
Power Button /Reset)
9-pin Block
PWRLED Power LED Header 3-pin Block
JBUZZ Buzzer Header 4-pin Block
FP_AUDIO Front Panel Audio Header 9-pin Block
AMP_SPK 3W Amplifier Header 4-pin Block
J_LAN_LED LAN Activity LED Header 4-pin Block
F_USB1/ F_USB2 USB 2.0 Header 9-pin Block
F_USB3 USB 2.0 Header 4-pin Block
COM2/3/4/5/67/8/9/10
Serial Port Header X9 9-pin Block
GPIO GPIO Header 10-pin Block
SMBUS SMBUS Header 5-pin Block
INVERTER LVDS INVERTER Header 8-pin Block
LVDS LVDS Header 30-pin Block
eDP eDP Header 29-pin Block

9
Chapter 2
Hardware Installation
2-1 Jumper Setting
JPCOM1 (4-pin): COM1 Port Pin9 Function Select
JPCOM1 → COM1 Port Pin9
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
JPCOM2/3/4(4-pin): COM2/3/4 Header Pin9 Function Select
6
4
5
3
1
JPCOM2 → COM2 Header Pin9
JPCOM3
→ COM3 Header Pin9
JPCOM4 → COM4 Header Pin9
1
3
5
2
1
3
5
2
4
6
2
4
6
2-4 Closed:
RI=RS232;
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
JPCOM1
JPCOM2
JPCOM4
JPCOM3

10
JPCOM5/6/7(4-pin): COM5/6/7 Header Pin9 Function Select
6
4
5
3
1
JCOMP5 → COM5 Header Pin9
JCOMP6
→ COM6 Header Pin9
JCOMP7
→ COM7 Header Pin9
1
3
5
2
1
3
5
2
4
6
2
4
6
2-4 Closed:
RI=RS232;
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
JPCOM8/9/10(4-pin): COM8/9/10 Header Pin9 Function Select
6
4
5
3
1
JCOMP8 → COM8 Header Pin9
JCOMP9 → COM9 Header Pin9
JCOMP10 → COM10 Header Pin9
1
3
5
2
1
3
5
2
4
6
2
4
6
2-4 Closed:
RI=RS232;
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
JPCOM5
JPCOM6
JPCOM7
JPCOM8
JPCOM9
J
PCOM10

11
Pin 1&2&3 of JAT_COPEN (5-pin): ATX/AT Mode Select
Pin 1&2&3 of JAT_COPEN
→ ATX/AT Mode Select
1-2 Close: ATX Mode Selected(default)；
1
3
2-3 Close: AT Mode Selected.
3
1
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin 4 & 5 of JAT_COPEN (5-pin): Case Open Message Display Function Select
Pin 4&5 of JAT_COPEN
→ Case Open Function Select
4-5 Open:Normal (Default);
4
5
5
4
4-5 Close: Case Open
Function Selected (One Touch).
JAT_COPEN
JAT_COPEN

12
Pin 1&2 of JBAT (6-pin): Clear CMOS RAM Setting
Pin 1&2 of JBAT
→ Clear CMOS Setting
Pin 1
1-2 Closed: Clear CMOS.
1-2 Open: Normal;
2
2
Pin 1
Pin 3&4 of JBAT (6-pin): Flash Override Function Slect
Pin 3
&
4 of JBAT
→
Flash Override
Pin 3
4
4
Pin 3
3-4 Open:Enable Security Measures
in the Flash Descriptor(Default);
3-4 Closed: Disable Security Measures
in the Flash Descriptor(Override).
JBAT
JBAT

13
Pin 5&6 of JBAT (6-pin): POK Override Function Slect
Pin 5&6 of JBAT
→ POK Override
Pin 5
6
6
Pin 5
5-6 Open:Normal;
5-6 Closed: POK Override.
JPLCD (4-pin): LVDS/eDP LCD VCC 3.3V/5V/12V Select
JPLCD
→ LVDS/eDP LCD VCC
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
VCC=3.3V
(Default);
3-4 Closed:
VCC= 5V;
4-6 Closed:
VCC= 12V.
JBAT
JPLCD

14
JPLED (3-pin): LVDS INVERTER/EDP Panel Backlight VCC Select
2-3 Close: LVDS INVERTER/EDP Panel
Backlight 12V Selected.
JPLED → LVDS INVERTER/EDP Panel Backlight VCC
1-2 Close: LVDS INVERTER/EDP Panel
Backlight 5V Selected(Default);
1
3
3
1
JRJ11_V (3-pin): RJ-11 Cash Drawer Port VCC 12V/24V Select
JRJ11_V
→ RJ-11 Cash Drawer Port VCC
3
1
1
3
1-2 Close: RJ-11 Cash Drawer Port
Voltage=12V(Default);
2-3 Close: RJ-11 Cash Drawer Port
Voltage=24V.
JPLED
JRJ11_V

15
JSYSFAN (3-pin): SYSFAN1/SYSFAN2 Speed Detect Select
1
3
3
1
JSYSFAN → SYSFAN1/2 Speed Detect Select
1-2 Close: SYSFAN1 Speed Detect Function Selected;
2-3 Closed: SYSFAN2 Speed Detect Function Selected.
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
Line-out Port
MIC Port
2*RJ-45
LAN Port
VGA Port
Parallel
Port
4* USB 3
.0 Port
Serial Port
HDMI Port
PS/2 KB & MS Port
12V DC-in
Power Jack
JSYSFAN
RJ-11
Cash Drawer Port
