JETWAY NF731V Series User manual

NF731V Series
User’s Manual
NO. G03-NF731V-F
Revision: 1.0
Release date: June, 14, 2022
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION .......................................................................iv
USER’S NOTICE .................................................................................................................. v
MANUAL REVISION INFORMATION...................................................................................v
ITEM CHECKLIST................................................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................1
1-2 SPECIFICATION ....................................................................................................2
1-3 LAYOUT DIAGRAM ...............................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 7
2-2 CONNECTORS AND HEADERS............................................................................10
2-2-1 CONNECTORS.........................................................................................10
2-2-2 HEADERS................................................................................................. 13
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 18
3-2 BIOS MENU SCREEN............................................................................................ 19
3-3 FUNCTION KEYS................................................................................................... 19
3-4 GETTING HELP......................................................................................................20
3-5 MEMU BARS.......................................................................................................... 20
3-6 MAIN MENU........................................................................................................... 21
3-7 ADVANCED MENU ................................................................................................ 22
3-8 CHIPSET MENU.....................................................................................................35
3-9 SECURITY MENU ..................................................................................................38
3-10 BOOT MENU..........................................................................................................39
3-11 SAVE & EXIT MENU ..............................................................................................40
TABLE OF CONTENT

iv
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition June 14, 2022
Item Checklist
Motherboard
Cable(s)

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel®Skylake-U/Kabylake-U series processor, TDP 15 W, never denies
high performance
Support 1* DDR4 2133 MHz SO-DIMM, maximum capacity up to 16GB
Support 1* SATAIII (6Gb/s) Device
Support 1* Full-size Mini -SATA
Support 1* Full-size Mini-PCIE connector
Support 1* Half-size Mini-PCIE connector
Support 1* SIM Card Holder
Support 4* RJ-45 LAN port
Support USB 3.0 data transport demand
Support CPU Over-Temperature protection
Support CPU Over-Current/Under Voltage protection
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function

2
1-2 Specification
Spec
Description
Design
8-layer; PCB size: 3.5’’,14.8 x 10.2 cm
Embedded CPU
Integrated with Intel®Skylake-U/Kabylake-U series CPU (TDP
15W)
*CPU model varies from different IPC options. Please consult your dealer
for more information of onboard CPU.
Memory Slot
1* DDR4 SO-DIMM slot for DDR4 2133 MHz SO-DIMM up to
16GB
*Memory clock supporting range is decided by specific CPU of the model.
For more memory compatibility information please consults your local dealer.
Expansion Slot
1* Full-size Mini-PCIE slot (MPE1)
1* Half-size Mini-PCIE slot (MPE2)
1* Full-size MSATA slot (MSATA)
1* SIM card slot
LAN Chip
Integrated with 1* Intel I219-LM 1.0Gigabit LAN chip & 3* Intel
I225V 2.5Gigabit LAN chip
Support Fast Ethernet LAN function of providing
10/100/1000/2500Mbps Ethernet data transfer rate
Storage
1* SATAIII 6G/s port
1* Full-size MSATA slot (MSATA)
BIOS
AMI Flash ROM
Rear I/O
1* 12V DC-in power Jack
2* USB 3.0 port
4* RJ-45 LAN port 1.0Gb
1* RS232 serial port (COM1)
Internal I/O
1* 2-Pin internal 12V DC-in power connector
1* SATA Power-out connector
1* CPU fan connector

3
1* Front panel header
1* Speaker & Power LED header
1* LAN LED activity header
1* RS232 serial port header (COM2, RS232/RS422/485)
1* GPIO_CON header
1* 9-pin USB 2.0 header (Expansible to 2* USB 2.0 ports)
1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 port)
1* SMBUS header
1* PS/2 keyboard & mouse header
1* HDMI header
1-3 Layout Diagram
Rear IO Panel Diagram:
Warning!!
The board has a 12V DC-in power connector (DCIN) in I/O back panel and an internal ATX12V
(ATX2P) power connector. User can only connect one type of compatible power supply to one
of them to power the system.
1.0Gbps RJ-45
LAN Port
RS232 Serial Port
USB 3.0 Ports
12V DC-in
Power Connector
2.5Gbps RJ-45
LAN Port

4
Motherboard Internal Diagram-Front Side
Note: SIM card slot only work when compatible SIM card installed & 3G LAN card installed in MPE1 Mini-PCIE slot.
*SIM Card Slot
DDR4
SO-DIMM Slot
(SODIMM1)
Full-size Mini-PCIE Slot
(MPE1)
Half-size Mini-PCIE Slot
(MPE2)
Full-size Mini-SATA
Slot (MSATA)
HDMI Header
PS/2 Keyboard
& Mouse Header
Internal 12V DC-in
Power Connector
Speaker & PWRLED
Header
LANLED
Header
Front Panel
Header
CPUFAN Header
SATAIII Port
SATA HDD
Power Connector
USB 2.0 Header
SMBUS Header
USB 3.0 Ports
12V DC-in
Power Connector
(Lockable)
LAN1
1.0Gbps RJ-45 LAN Port
RS232 Serial Port
GPIO Header
USB 2.0
Header
Serial Port
Header
LAN2
2.5Gbps RJ-45 LAN Port
LAN3
2.5Gbps RJ-45 LAN Port
LAN4
2.5Gbps RJ-45 LAN Port

5

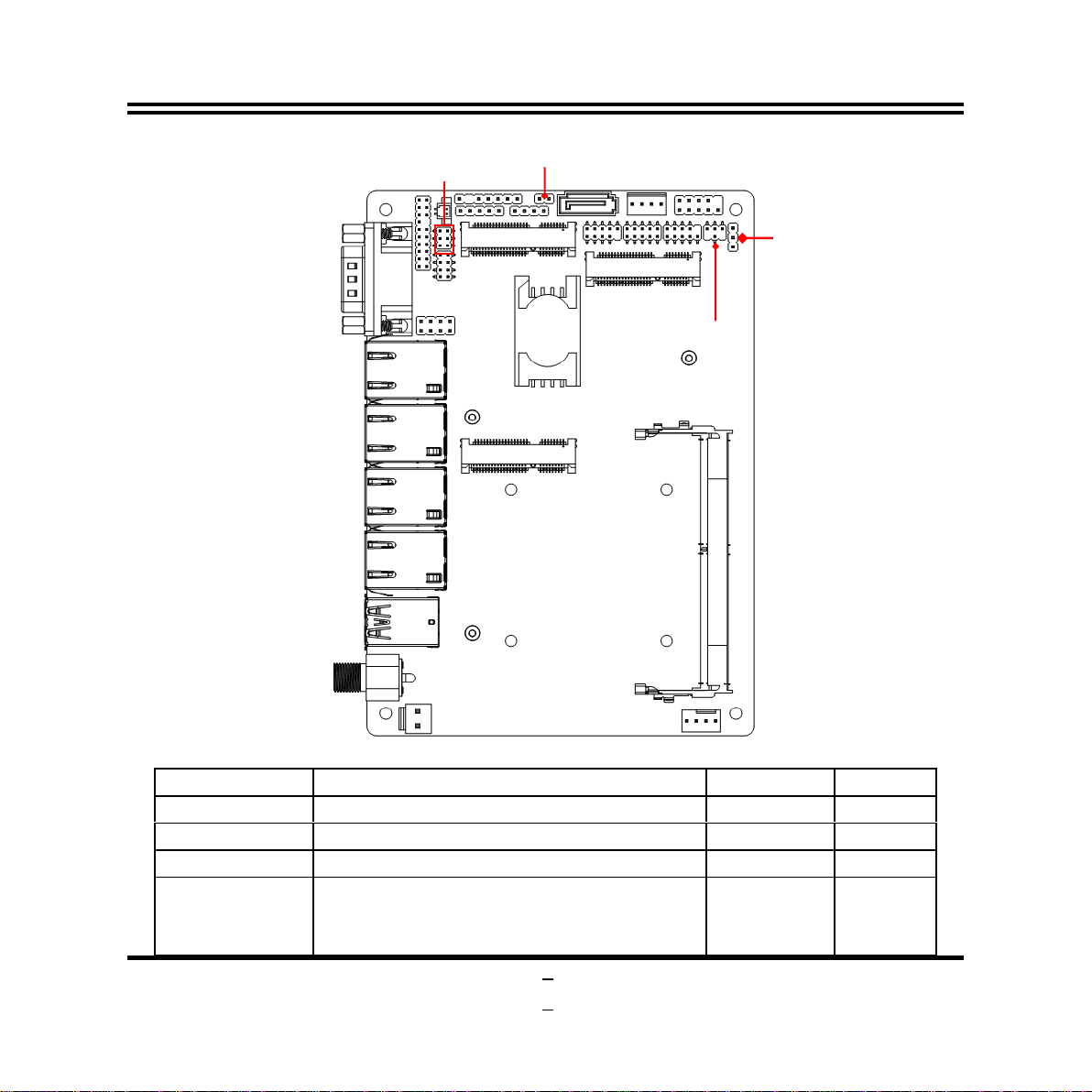

Jumper Position:
Jumper
Jumper
Name
Description
Pitch
JPCOM2
COM2 Header Pin9 Function Select
4-Pin Block
2.0mm
AT_MODE
ATX Mode / AT Mode Select
3-Pin Block
2.54mm
COPEN
Case Open Message Display Function
2-Pin Block
2.54mm
JBAT_MERTC
Pin 1&2: Clear CMOS
Pin 3&4: Flash Override
Pin 5&6: POK Override
6-Pin Block
2.0mm
JPCOM2
JBAT_ MERTC
AT_MODE
COPEN

6
Connectors
Connector
Name
DCIN
12V System DC–in Power Jack Connector
USB1
USB 3.0 Port Connector X2
LAN1/2/3/4
RJ-45 LAN Port Connector x 4
COM1
Serial Port Connector
ATX2P
Internal 12V System DC–in Power Connector
CPUFAN
CPU Fan Connector
SATA1
SATAIII Port Connector
STATPWR
SATA Power out Connector
Headers
Header
Name
Description
Pitch
JW_FP
Front Panel Header
(PWR LED/ HDD LED/Power Button /Reset)
9-pin Block
2.54mm
SPK-LED
Power LED & Speaker Header
8-pin Block
2.0mm
LAN_LED
LAN Activity LED Header
8-pin Block
2.0mm
COM2
Serial Port Header
9-pin Block
2.0mm
GPIO_CON
GPIO Header
10-pin Block
2.0mm
FP_USB1
USB 2.0 Header
9-pin Block
2.0mm
FP_USB2
USB 2.0 Header
4-pin Block
2.54mm
SMBUS
SMBUS Header
5-pin Block
2.54mm
PS2KBMS
PS/2 Keyboard & Mouse Header
6-pin Block
2.54mm
HDMI
HDMI Header
19-pin Block
2.0mm

7
Chapter 2
Hardware Installation
2-1 Jumper Setting

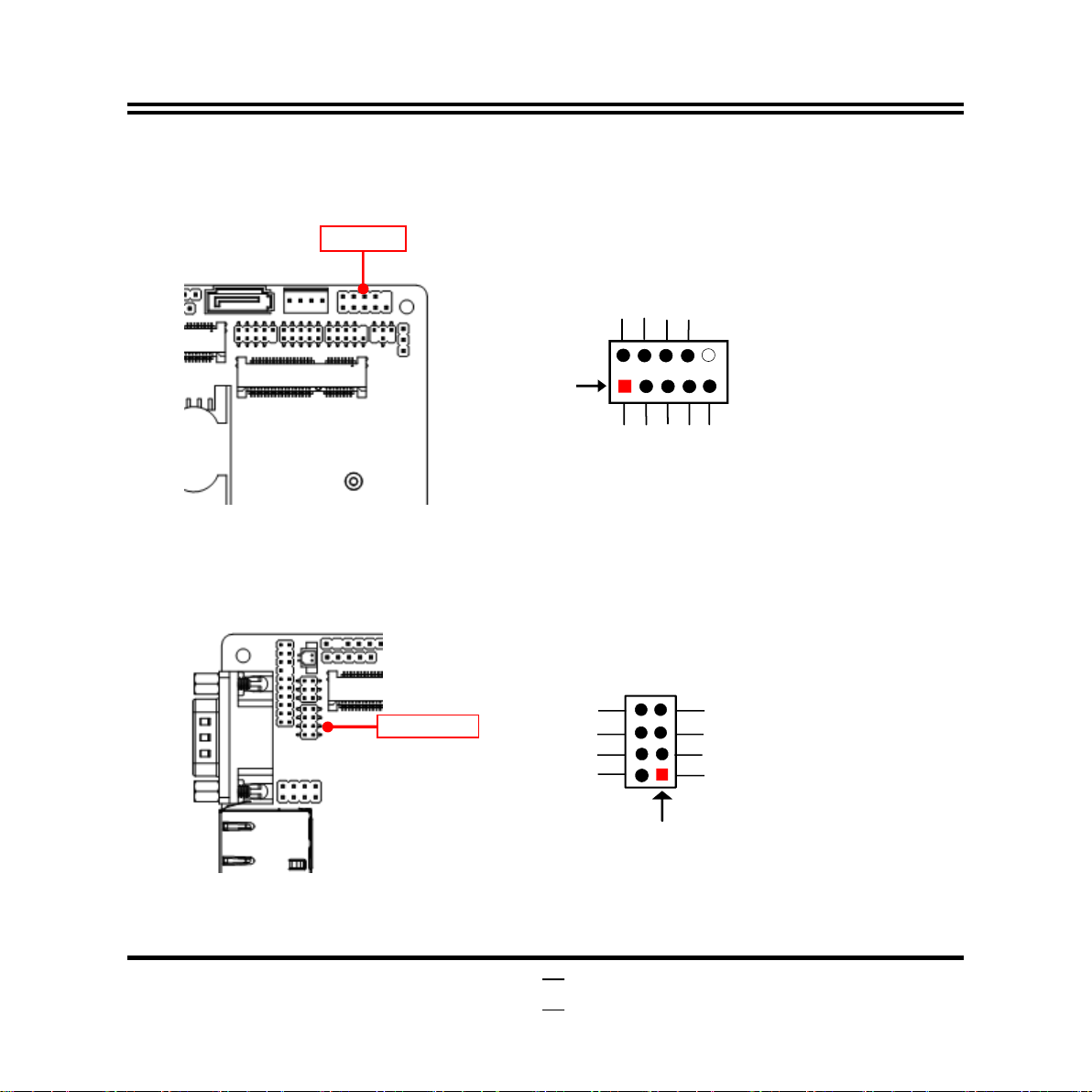

JPCOM2 (4-pin): COM2 Header Pin9 Function Select Pitch=2.0mm
JPCOM2
→
COM2 Header Pin-9
6
4
2
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
2-4 Closed:
RING( Default);
3-4 Closed:
5V;
4-6 Closed:
12V.
AT_MODE (3-pin): ATX Mode/AT Mode Select Pitch=2.54mm
AT_MODE
→ ATX/AT Mode Select
3
1
1
3
1-2 Close: ATX ModSelected(Default);
2-3 Close: AT ModSelected.
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
JPCOM2
AT_MODE

8

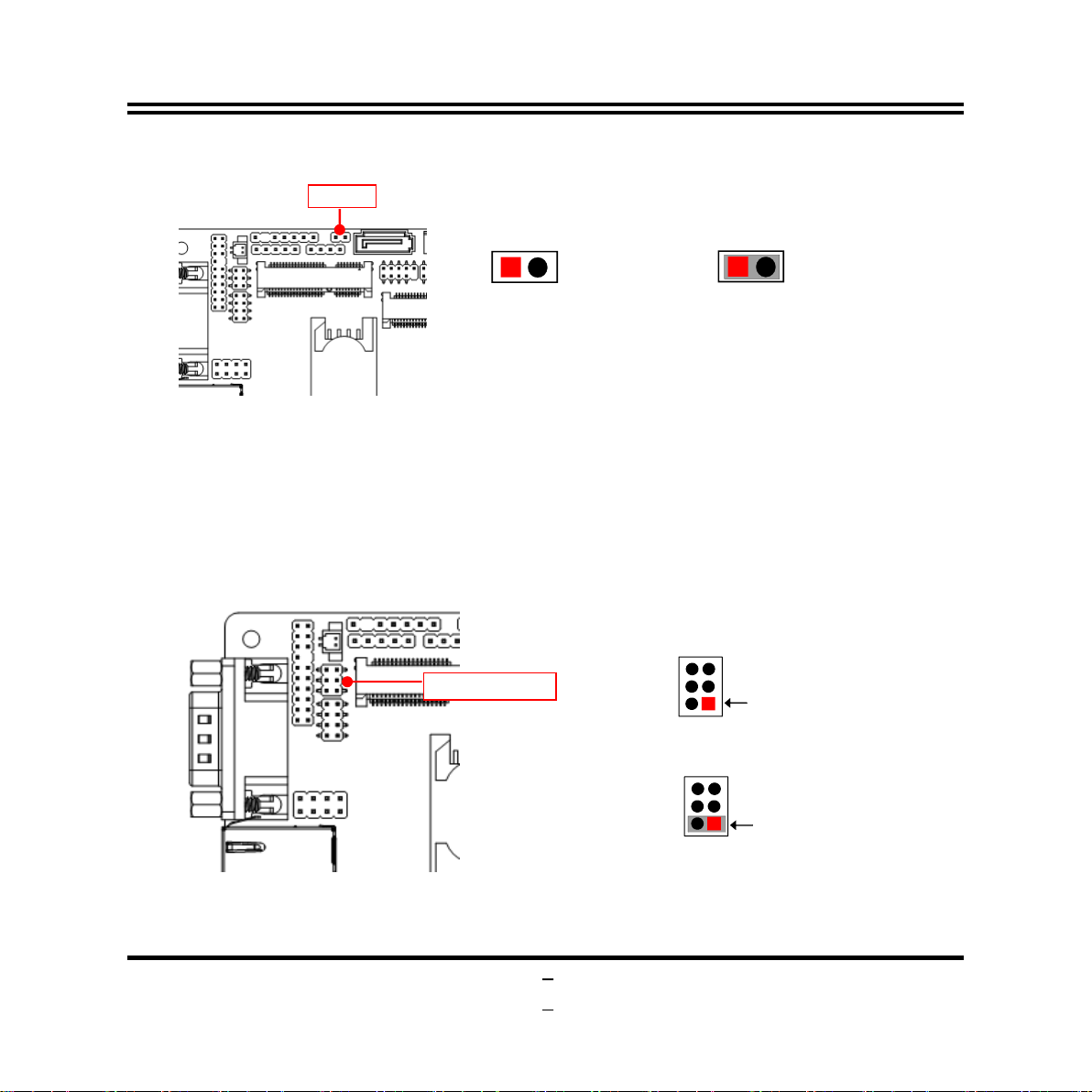

COPEN (2-pin): Case Open Message Display Function Select Pitch=2.54mm
1-2 Open:
Normal (Default);
1
1-2 Short:
Case Open.
1
Pin (1-2) Close: When Case Open function pin short to GND, the Case Open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your
computer, a message will be displayed on screen to inform you of this.
Pin 1&2 of JBAT_MERTC (6-pin): Clear CMOS Setting Pitch=2.0mm
Pin 1&2 of JBAT → Clear CMOS Setting
Pin 1
1-2 Closed: Clear CMOS.
1-2 Open: Normal;
2
2
Pin 1
JBAT_MERTC
COPEN

9
Pin 3&4 of JBAT_MERTC (6-pin): Flash Override Function Slect Pitch=2.0mm
Pin 3&4 of JBAT
→
Flash Override
Pin 3
4
4
Pin 3
3-4 Open:Enable Security Measures
in the Flash Descriptor(Default);
3-4 Closed: Disable Security Measures
in the Flash Descriptor(Override).
Pin 5&6 of JBAT_MERTC (6-pin): POK Override Function Slect Pitch=2.0mm
Pin 5&6 of JBAT
→ POK Override
Pin 5
6
6
Pin 5
5-6 Open:Normal;
5-6 Closed: POK Override.
JBAT_MERTC
JBAT_MERTC

10
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
Icon
Name
Function
12V DC-in Power
Connector
For user to connect compatible power
adapter to provide power supply for the
system.
USB 3.0 Ports
To connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 ports supports up to 5Gbps data
transfer rate.
RJ-45 LAN Ports
This connector is standard RJ-45 LAN jack
for Network connection.
RS232 Serial Port
Mainly for user to connect external MODEM
or other devices that supports Serial
Communications Interface.
RS232 Serial Port
USB 3.0 Ports
12V DC-in
Power Connector
1.0Gbps RJ-45
LAN Port
2.5Gbps RJ-45
LAN Port

11
(2) ATX2P (2-pin Block): Internal 12V DC-in Power Connector
Pin.
Definition
1
+12V DC_IN
2
GND
Pin 1
Warning!! The board has a 12V DC-in power connector (DC_IN) in I/O back panel and an
internal ATX2P (ATXPWR) power connector. User can only connect one type of compatible
power supply to one of them to power the system.
(3) SATA1 (7-pin Block): SATAIII Port connector
SATA1 port is a high-speed SATAIII port that supports 6GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
SATA1

12
(4) SATAPW (4-pin): SATA Power Out Connector
Pin 1
+5V
GND
+12V
GND
Warning: Make sure that Pin-1 of compatible SATA Power connector is inserted into corresponding
Pin-1 of SATAPW to avoid possible damage to the board and hard disk driver!
(5) CPUFAN (4-pin): CPUFAN Connector
Fan Speed
GND
Pin1
+12V Fan Power
Control
SATAPW
CPUFAN

13
2-2-2 Headers
(1) JW_FP (9-pin): Front Panel Header Pitch=2.54mm
HDDLED+
GND
PWRLED+
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
N
Pin 1
2
(2) SPK-LED (8-pin): Speaker & Power LED Header Pitch=2.0mm
SPK-
NC
Pin 1
2
SPK+
PWRLED-
NC-
PWRLED+
PWRLED-
NC
JW_FP
SPK-LED

14
(3) LAN_LED (8-pin): LAN Activity LED Header Pitch=2.0mm
LAN1LED+
LAN3LED+
LAN1LED-
LAN4LED-
LAN2LED-
LAN2LED+
LAN4LED+
LAN3LED-
Pin 1
2
(4) COM2 (9-pin): RS232/422/485 Serial Port Header Pitch=2.0mm
2
Pin 1
3
4
5
6
7
8
9
COM2
Pin NO.
RS232
RS422
RS485
Pin 1
DCD
TX-
DATA-
Pin 2
RXD
TX+
DATA+
Pin 3
TXD
RX+
NC
Pin 4
DTR
RX-
NC
Pin 5
GND
GND
GND
Pin 6
DSR
NC
NC
Pin 7
RTS
NC
NC
Pin 8
CTS
NC
NC
Pin 9
RI
NC
NC
*Notice: COM2 servers as RS232 serial port header in most cases.RS422 &
RS485 function is only optional to customized models. User also needs to go to BIOS
to set ‘Transmission Mode Select’for COM2 as [RS422] or [RS485] for boards that
LAN_LED

15
support RS422/485 function before connecting compatible COM cable to COM2
header.
(5) GPIO_CON (10-pin): GPIO Header Pitch=2.0mm
Pin 1
GPIO_30
GPIO_32
GPIO_34
GPIO_36
GND
GPIO_31
GPIO_33
GPIO_35
GPIO_37
VCC

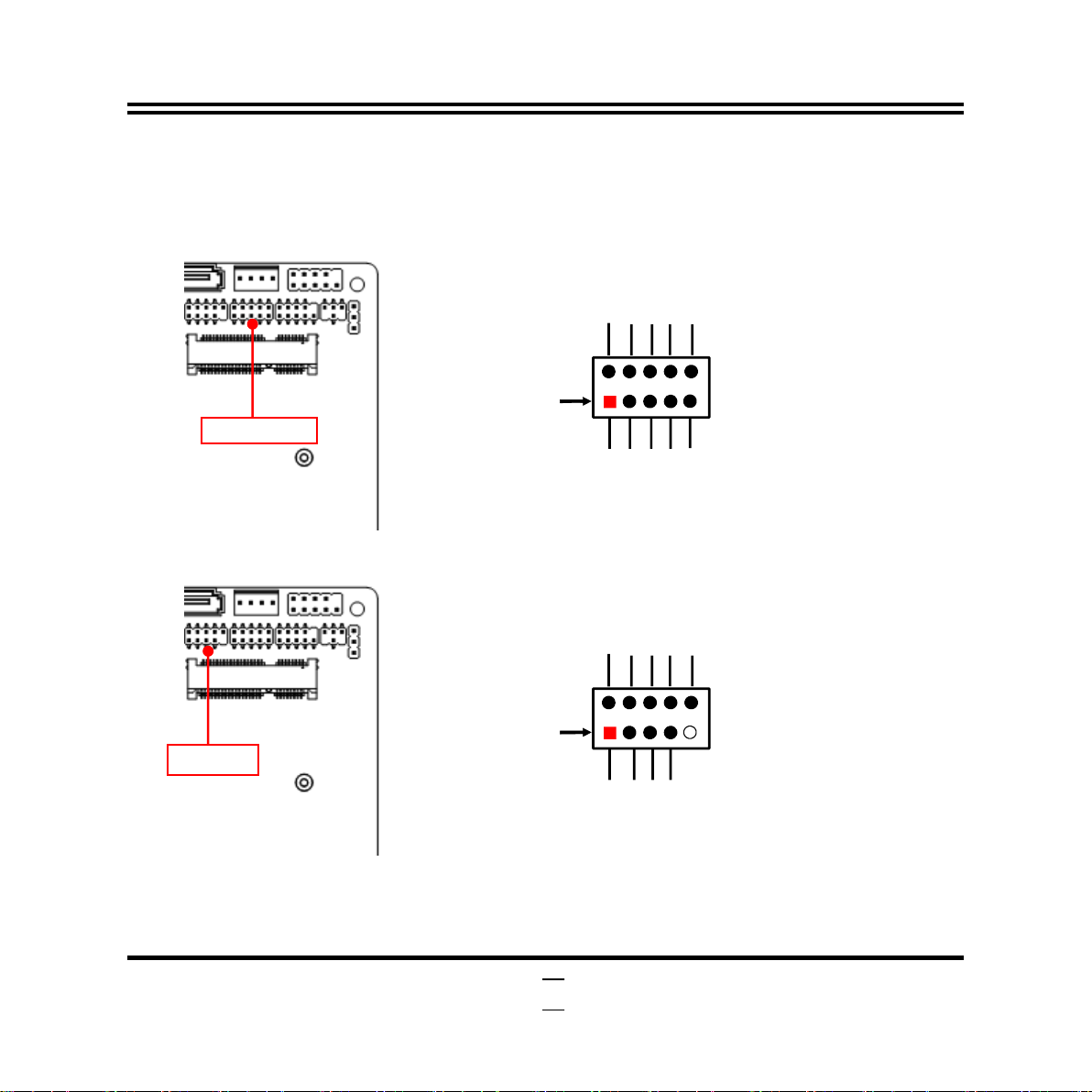

(6) FP_USB1 (9-pin): USB 2.0 Port Header Pitch=2.0mm
Pin 1
5VSB
-DATA
GND
+DATA
5VSB
NC
C
-DATA
GND
+DATA
GPIO_CON
FP_USB1
