AUDI S5
CHILDREN BATTERY POWERED RIDE-ON CAR
OWNER’S MANUAL WITH
ASSEMBLY INSTRUCTIONS
Styles and colors may vary.
Manufactured in China under Official License from AUDI AG.
The owner’s manual contains important safety information as well as assembly, use and maintenance
instructions.
The Battery-powered Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.

Thank you for the purchase of your new AUDI Licensed Ride-On.
This ride-on car will provide your child with many miles of
riding of enjoyment. To help assure you and your rider a
safe ride,we ask you to please read this manual carefully,
and keep it for future reference.
Follow the recommendations in this manual, they are
designed to improve the safety and operation of your
Battery-powered ride-on car and its rider.
Officially Licensed by AUDI AG
Audi S5 Cabriolet Ride On
Audi S5 Electric Ride-on manufactured by Jiaxing Xuma Ride On Co., Ltd.
(Address: Minzhu Village, Guangchen Town, Pinghu City, Zhejiang Province, P.R.China).
Jiaxing Xuma holds a license to use the logo and trademarks of
in connection with manufacturing, marketing and distribution of the Audi S5 Cabriolet Ride On prod-
ucts.
Trademarks, design patents and copyrights are used with the approval of the owner of AUDI AG.
Officially Licensed by AUDI AG
Audi S5 Cabriolet Ride On
Audi S5 Cabriolet Electric Ride-on manufactured by Jiaxing Xuma Ride On Co., Ltd.
(Address: Minzhu Village, Guangchen Town, Pinghu City, Zhejiang Province, P.R.China).
Trademarks, design patents and copyrights are used with the approval of the owner AUDI AG.

3
•
•
Charging Your Vehicle .................. .................................................................14
•General.................................................. .........................................................16
Operate the remote control............................................................................15
•Battery.................................................. ..........................................................16
•Warnings............................................... ............................................................4
•User Requirements............................... ............................................................5
•Installing the Front Wheels..................... ..........................................................9
•Installing Steering Wheel and Batteries...................... ....................................10
•Installing the Mirrors........................... ...........................................................11
•Operation and Features....................... ...........................................................13
•Parts View.............................................. ...........................................................6
•Parts List................................................ ...........................................................7
•Installing the Driving Wheels................... ..........................................................8
•Installing the Windshield...................... ...........................................................11

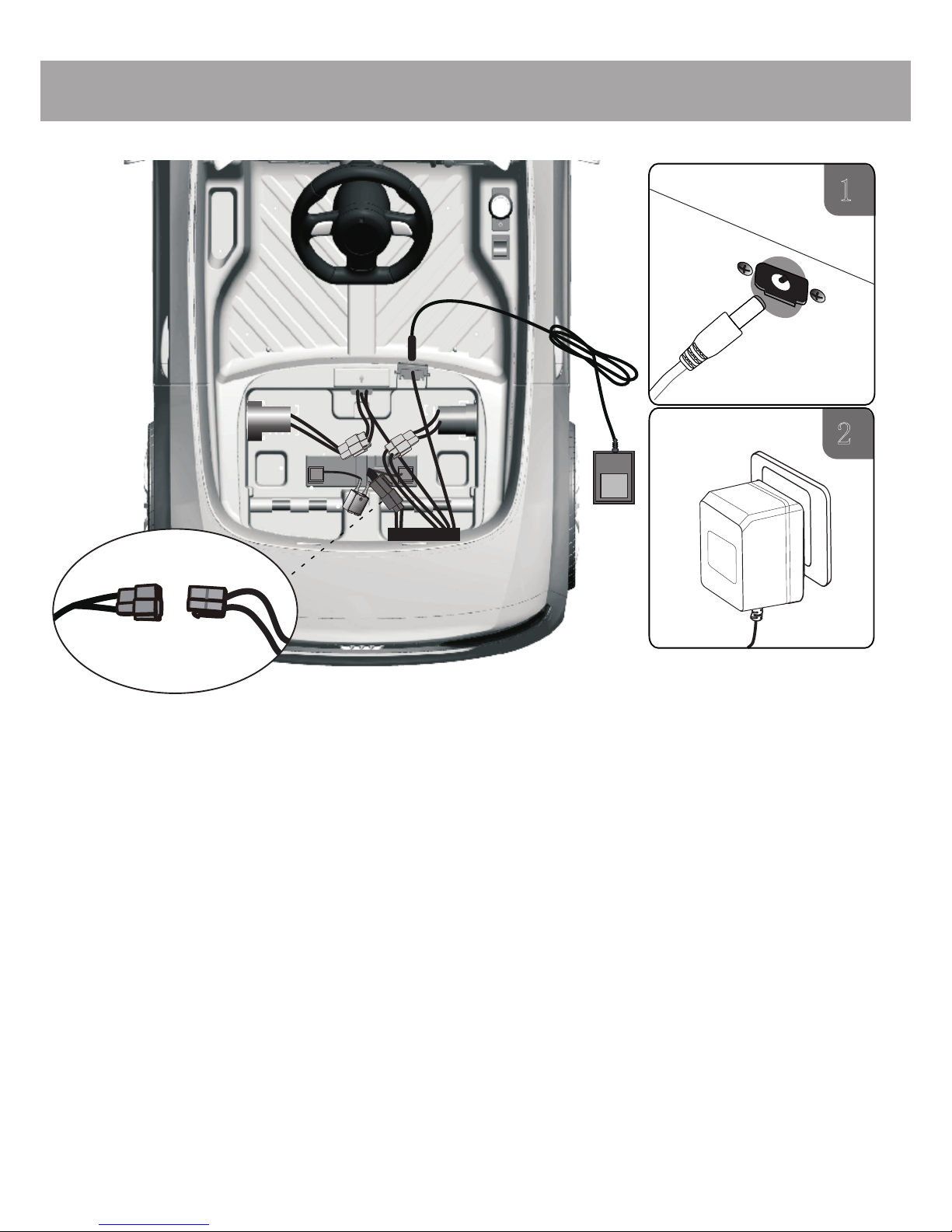

•Connecting the power supply............... ...........................................................12
•Installing the Seat................................ ...........................................................12
Safety
Assembly
Operation
Maintenance and Service
•
Battery Fuse....................................... ...........................................................17
•
Battery Storage.................................... ...........................................................16
•
Battery Replacement and Disposal....... ..........................................................17
•Troubleshooting Guide....................... ...........................................................18
•Re-charge Interval and Time.........................................................................16
Index
CONTENT

WARNING!
WARNING!
The user must follow all safety rules and guidelines below or serious injury or death may occur to the user.
● Always use common sense and safe practices when using the vehicle. The user must be three years old and up, and weight
no more than 66 lbs (30kgs).
● This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and
dispose of all protective material and polybags before assembly. Be sure to remove all packaging materials and parts from
underneath the car body.
● Body parts such as hands, legs, hair and clothing can get caught in moving parts. Never place a body part near a moving part
or wear loose clothing while using the vehicle. Always wear shoes when using vehicle.
● Using the vehicle near streets, motor vehicle, drop-offs such as: steps, water (swimming pools), sloped surfaces, hills, wet
areas, flammable vapors, in alleys, at night or in the dark could result in an unexpected accident. Always use the vehicle in a
safe, secure environment with continuous adult supervision.
● Do not use the vehicle in unsafe conditions such as snow, rain, loose dirt, mud sand or fine gravel. This may result in
unexpected action such as tip over and skidding.
● Do not use the vehicle in an unsafe manner. Examples include but are not limited to:
1. Pulling the vehicle with another vehicle or similar device.
2. Allowing more than one rider.
3. Pushing the user from the back.
4. Traveling at an unsafe speed.
● This toy is unsuitable for children under 3 years due to its maximum speed.
● There are additional hazards of using the toy in areas other than private grounds.
● Not to be used in traffic.
● The toy shall be used with caution since skill is required to avoid falls or collisions causing injury to the user and third parties.
● Not suitable for children under 36 months due to “small parts”.
The following safety hazards may result in serious injury or death to the user of the vehicle:
● Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire
or explosion. Only use the supplied rechargeable battery and charger with the vehicle.
● Using the rechargeable battery and charger for any other product may result in overheating, fire or
explosion. Never use the rechargeable battery and charger with another product.
●
● Contact between the positive and negative terminals may result in fire or explosion. Avoid direct contact
between the terminals. Picking up the battery by the wires or charger can cause damage to the battery
and may result in a fire. Always pick up the battery by it’s cause or handles.
● Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery
and keep the battery dry.
● Contact or exposure to battery leakage (lead acid) may cause serious injury. If contact or exposure
occurs immediately call your physician. If the chemical is on the skin or in the eyes, flush with cool
water for 15 minutes. If the chemical was swallowed, immediately give the person water or milk. Do not
give water or milk if the patient is vomiting or has a decreased level of alertness. Do not induce
vomiting.
Charging the Battery Warnings
4
Gases can be created during charging. Charge the battery in a well ventilated area. Do not charge
the battery near heat or flammable materials.
SAFETY

WARNING!
● Battery posts, terminals and related accessories contain chemicals known to the State of California
to cause cancer, reproductive harm and are toxic and corrosive. Never open the battery.
● Tampering or modifying the electric circuit system may cause a shock, fire or explosion and
permanently damage the system. Exposed wiring, circuitry in the charger may cause electric shock.
Always keep the charger housing closed.
Important! Befor using the BMW for the first time the battery needs to be charged for a full twelve hours, Only
an adult who has read and understands the following safety warnings should handle, charge or recharge of the
battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. However, if the adapter cord will
not safelt reach a 110V wall outlet, the battery can be removed for charging (see page 12 for instructions
concerning battery replacement).
The suitable age range for a child using the AUDI Ride-on Car is three years old and up. The maximum weight
of the child is 66 lbs (30 kg).
Before using the AUDI Ride-on Car the child must understand the vehicle controls and safety issues.
They must also demonstrate the capability to handle the vehicle and operate its controls.
It is the responsibility of the adult to educate the child, determine if they are fit to operate the vehicle,
and supervise the vehicle’s use.
Here are basic safe riding rules you should explain fully to your child and anyone who may ride the AUDI Ride-on
Car:
User Requirements
● An adult must always supervise a child who is riding the vehicle.
● Always sit in the seat when using the vehicle.
● Keep your hands, hair and clothes away from moving parts. Always wear shoes when riding in the vehicle.
● Do not drive the vehicle on streets or near cars.
● Children under three years old should not be allowed to use the vehicle.
● Only drive on level ground. Don’t go near water, drop-offs or up and down steep slopes.
● Don’t drive the vehicle into loose dirt, mud, sand or fine gravel. Driving the vehicle into loose dirt, mud, sand,
or fine gravel may damage the electronics and gear box inside the vehicle.
Important! Before using the AUDI for the first time, the battery needs to be charged for a full twelve hours. Only
an adult who has read and understands the following safety warnings should handle, charge or recharge of the
battery (see Maintenance).
Note: It is not necessary to remove the battery from the vehicle for charging. However, if the adapter cord will
not safely reach a 230-240V wall outlet, the battery can be removed for charging (see page 16 for instructions
concerning battery replacement).
5
SAFETY

6
24
23
Tools Needed for Assembly:
AUDI S5 - OFFICIAL LICENSED PRODUCT
BATTERY-POWERED RIDE-ON
Owner’s Manual
with Assembly Instructions
Stylesand colors may vary.
Madein China.
Theowner’s manual contains important safety information as well as assembly, use and maintenance
instructions.
TheBattery-powered Ride-on Car must be assembled by an adult who has read and undertstands the
instructions inthis manual.
Keepthe package away from children and dispose of properly before use.
Keepthis manual for future reference.

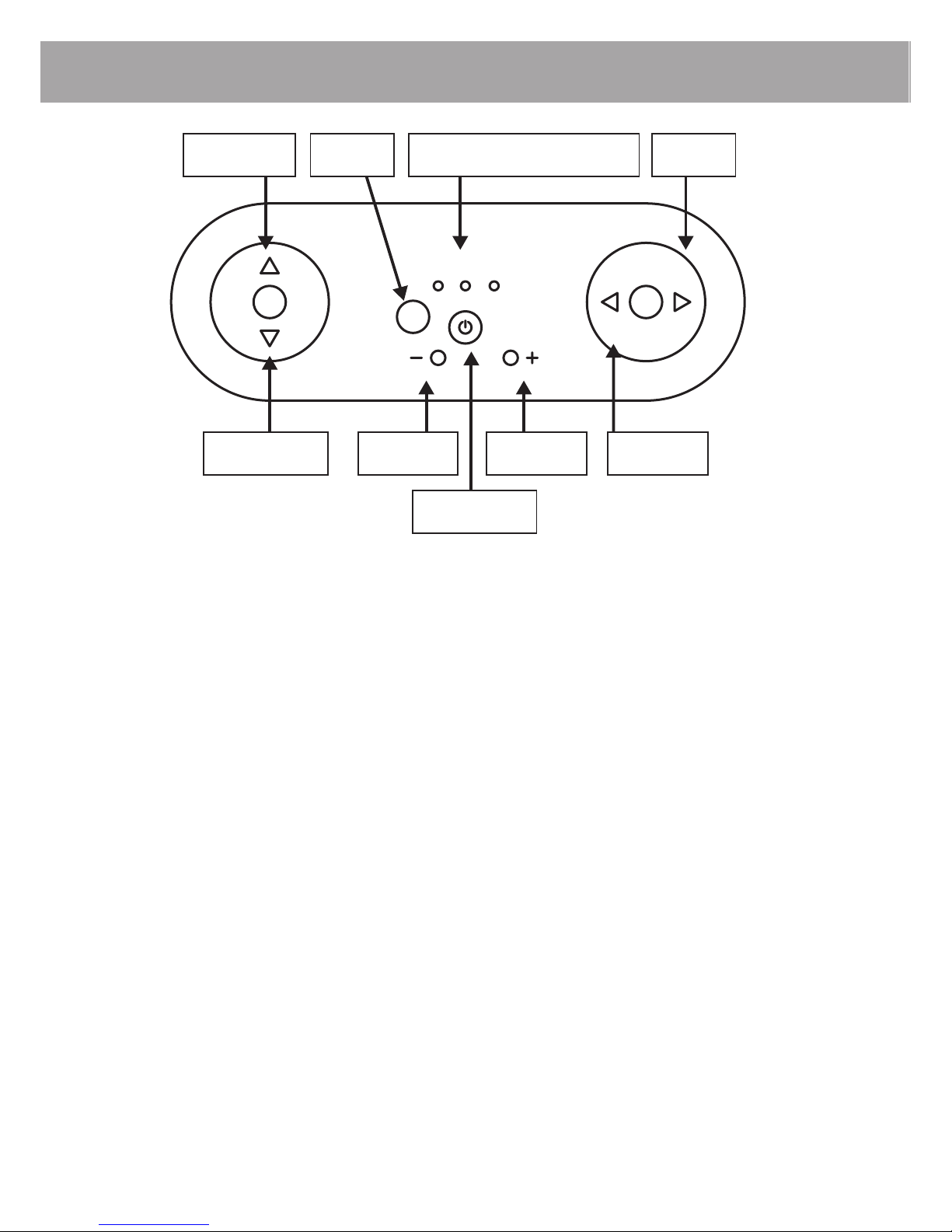

X2
FORWARD
BACKWARD
STOP
LEFT RIGHT
RESET
SPEED SELECT
PARTS DIAGRAM
Screwdriver (not provided) Wrench (supplied)

7
No. Descrip on
1 Body
2 12 washer (x2)
3 Normal Wheel (x2)
(x2)
4
Wheel Trim(x4)
5
10 washer (x4)
6
Locknut (x4)
7
Hubcaps (x4)
8
9
Nut(x3)
Windshield
10
11
M5*22 Screw Bolt(x2)
M5*52 Screw Bolt(x1)
Mirror, Right
Mirro
12
13
Motor Cover
Manual
Charger
3.5*12 Screw(x2)
Ba ery
14
15
16
Steering Wheel
17
18
Motor Gear
19
Mirror Bracket(1 pair)
20
21
22
23
Driving Wheel
Seat
NOTE:
Ø
Ø
24 Remote Control
(x2)
(x2)
PARTS LIST

1. Slide the driving wheel onto the rear axle(right side). And keep the driving wheel
match with the Motor Gear inserted.
3. Slide the wheel trim and Ø10 Washer onto the rear axle.
4. Tighten a Ø10 Locknut to the end of the rear axle with a spanner.
5. Align the two tabs of the hubcap with the slots of the wheel trim, and press the
hubcap into places.
Repeat the above steps for the other driving wheel.
8
12
345
Hint: An extra spanner has been provided to hold the locknut on the side of the
rear axle while tightening the locknut on the other side.
Rear axle
Wrench
ASSEMBLY - INSTALLING THE REAR WHEELS
Attach the Rear Driving Wheel

Repeat the above steps for the other front wheel.
9
1. Slide the Ø12 washer and Normal wheel onto the front axle (left side).
2. Slide the wheel trim and
Ø10 Washer onto the front axle.
3. Tighten a Ø10 Locknut to the end of the front axle with a spanner.
4. Align the two tabs of the hubcap with the slots of the wheel trim, and press the
hubcap into places.
123
45
6
ASSEMBLY - INSTALLING THE FRONT WHEELS
Wrench
Attach the Front Wheels

10

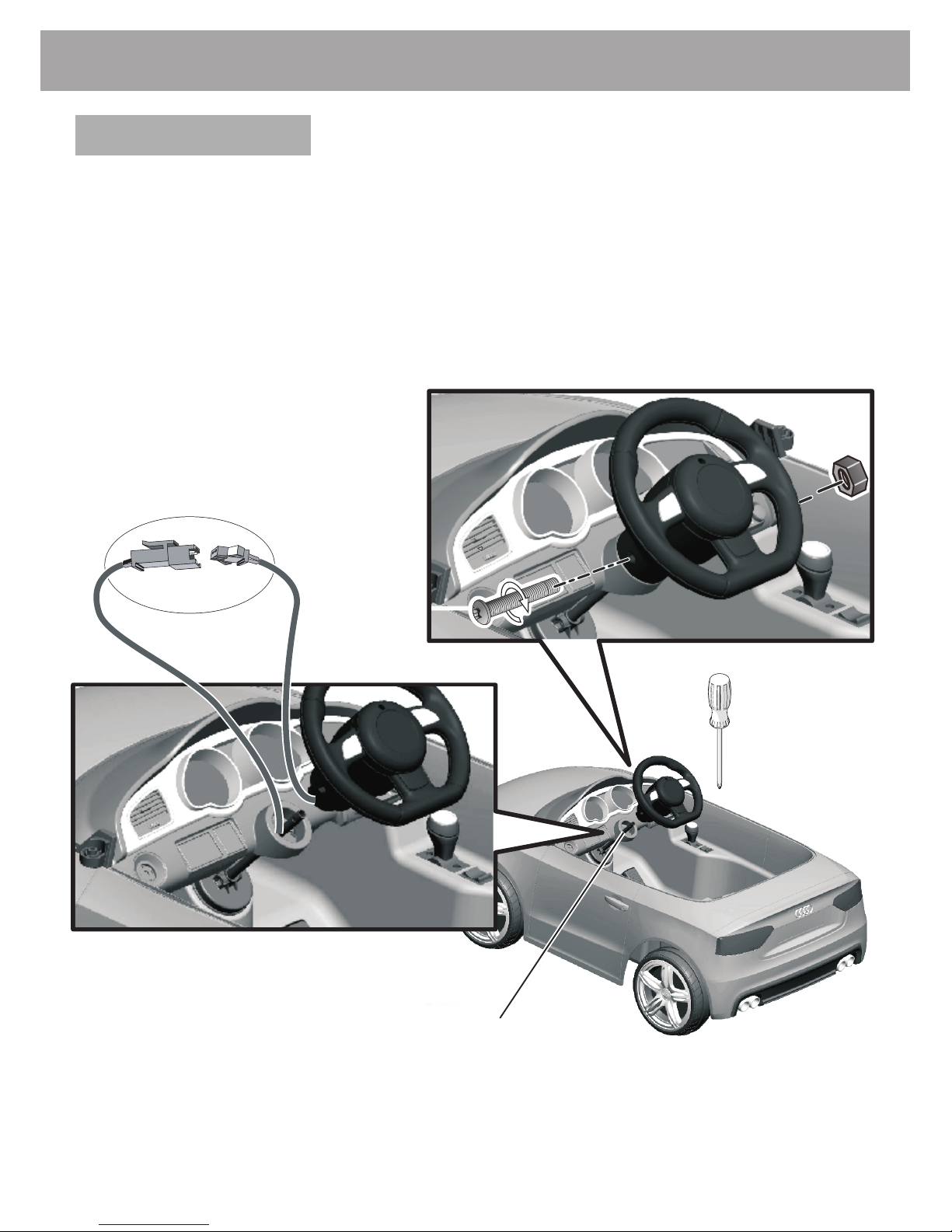

Installation
1. Remove the screw bolt and nut from the steering wheel.
3. Place the steering wheel over the steering column (A).
4. Align the holes on each side of steering wheel with the holes at the end
of the steering column (A).
5. Insert the screw through the steering wheel and steering column into the nut.
Tighten it securely.
A
(Screwdriver
Not provided)
B C
2. Plug the steering wheel connector (C) into the dashboard connector (B).
ASSEMBLY - INSTALLING STEERING WHEEL

11
(Screwdriver
Not provided)
11
10
12
9
Attach th irrors
A
Fit the tabs on each side of the windshield into the slots
in the vehicle body.
Push each tab in until the “snaps” into
place(hear a “click”).
windshield
Att a h the
PUSH
20
ror into the slots of the mirror bracket
rew bolt through the top of the hole in the
5.
6.
ASSEMBLY - INSTALLING SIDEVIEW MIRRORS
ASSEMBLY - INSTALLING WINDSHIELD

12

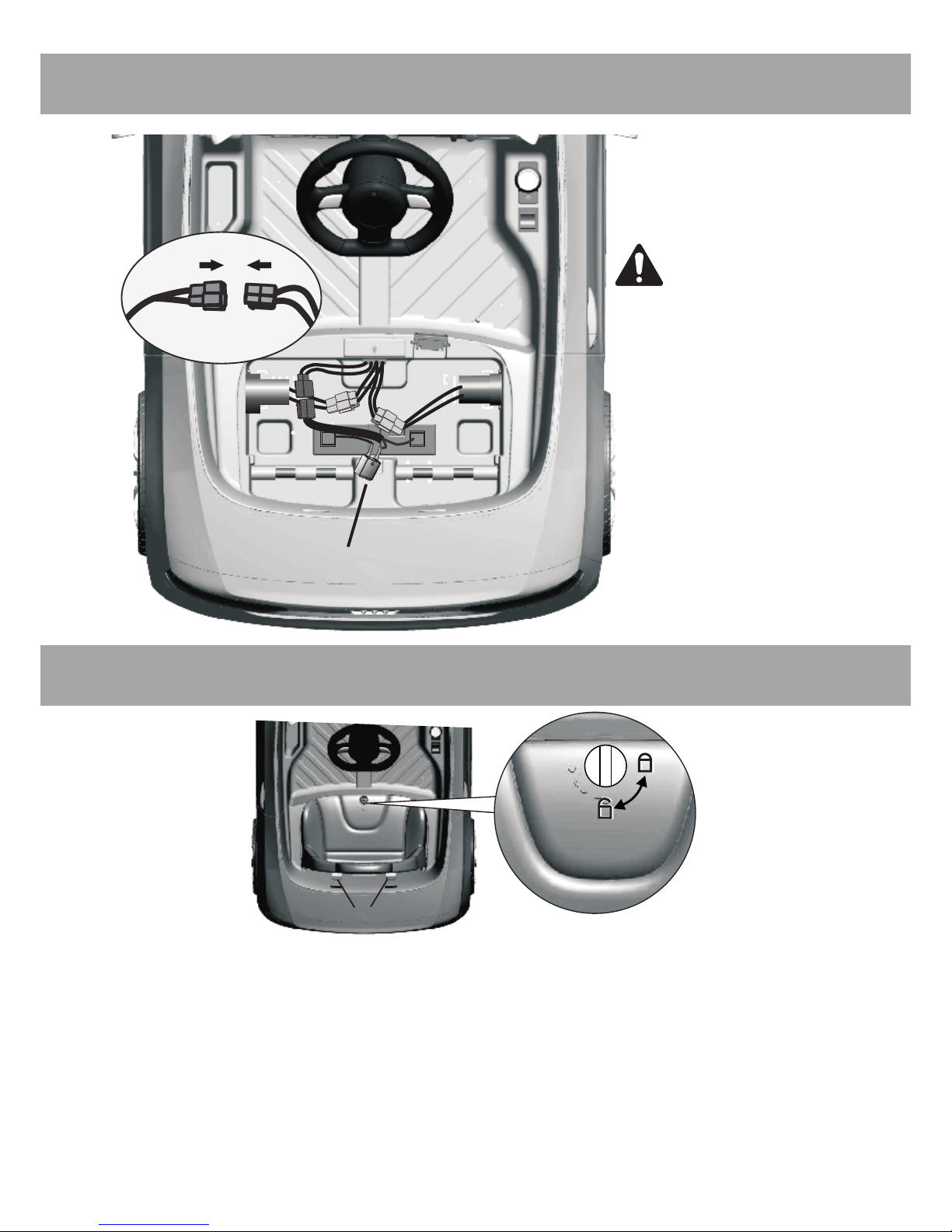

1. Align the Tabs on the back of the seat with the slots in the back of the main body.
2. Align the Lock on the front of the seat with the hole in the middle of the main
body hole. Be sure the lock is orientated so it will fit into the slot.
3. Rotate and lower the seat onto the main body. Ensure the seat tabs stay in the
slots and the Lock (B) into the main body hole.
4. Using a coin or large screwdriver turn the Lock on the front of the seat to secure
the seat to the main body.
CAUTION: Ensure no wires or connectors are pinched under the seat.
Lock
Unlock
Fuse box
(A)
(A)
(B)
Plug the red battery connector
into the red connector on body
as shown.
WARNING
Connect the red to red connectors,
and white to white connectors.
Connecting
incorrectly can
damage the battery and/or motor,
may cause other hazard problem.
Red battery
Connector
Red Connector
ASSEMBLY - INSTALLING SEAT
ASSEMBLY - CONNECTING BATTERY

13
Foot pedal
Forward /stop/reverse
switch
Switch the Music
Horn Sound
POWER SWITCH
Press "Power switch", the vehicle into working status.
FORWARD
1.Press the "Forward / switch" on the " Forward" position.
2.Press the "Foot pedal" , the vehicle drives forward..
stop/reverse
1. Press the "Forward / switch" on the " " position.
2. Press the "Foot Pedal",the vehicle will back up.
REVERSE
stop/reverse reverse
STOP
The vehicle will brake automatically, when your child's foot is lifted
from the "Foot pedal".
Note:Press the "Forward/stop/reverse switch" on the middle "stop"
position, the vehicle will not move.
Volume Control
MP3
Battery Indicator
Power Switch
OPERATION AND FEATURES

14
1
2
14
Red battery
Connector
Charger
Connector
input:
3. After charging is complete (at least 8 hours, but not more than 12 hours.)
4. Unplug the charger from the wall outlet.
5. Unplug the charger connector from the socket.
NOTE:1. The charger may feel warm during the charging. This is normal and not a cause
for concern. If excessively hot, unplug and replace.
2. Before you charge your vehicle, please open the seat to ensure the red
connector is plugged into the red battery connector.
If the red connectors are not connected, the battery can not be charged.
CAUTION:Ensure no wires or connectors are pinched under the seat when reinstalling.
MAINTENANCE - PLEASE CHARGE BATTERY
1. Ensure the power switch is off.
2. Plug the charger connector into the socket (only use the 12V charger included with the
AC 110V, 50/60 Hz, output: DC 12V). Plug the charger into a standardvehicle,
110V AC wall outlet.
NOTE: Before first use, fully charge the battery 8to 12hours.

15
PARENTAL REMOTE CONTROL
How to pair the parental remote control?
FORWARD STOP SPEED DISPLAY LED RIGHT
BACKWARD SPEED - SPEED + LEFT
POWER
1. First confirm that ride-on car power switch has been turned OFF. Open
remote controller battery cover, and install two AAA alkaline type batteries
(do not use lithium type batteries as they can damage remote controller).
4. Remote controller will stay connected with the ride-on car until it
requires battery replacement. If you replace the batteries, you need to
repeat pairing procedure again, by following steps 1-2.
5. When remote controller is not used for a while, it will automatically
enter a sleep mode, LED indicators will turn OFF. If you need to use
remote controller again, simply press POWER the button on the
remote.
2. When the 3 LED indicators on the remote controller start flashing,
turn the ride-on car ON using power switch on dashboard. The LED
indicators on the remote controller will stop flashing after 3 sec,
indicating the successfull pairing with the ride-on car. Close the battery
cover.
Note: The emergency stop function can only be enabled by using the remote controller.
The car can only be stopped within the effective remote control range. The remote control
range varies with different environments. Usually the control range will be 30 meters.
Please always keep your child in a safe and reachable area to avoid dangerous situations.

● Check the tightness of the fasteners before each use.
● Check the tightness of the wheel. Use a flat head screwdriver to gently pry off the hubcaps. Note: If the wheel is not tight,
the wheel will not engage the forward gears and the vehicle will not run.
● Ensure the battery bracket is securely in place before use.
● Occasionally use lightweight oil to lubricate moving parts such as wheels and steering linkage. Do not use oil on plastic or
nylon parts. No lubrication is required.
● Store the vehicle indoors. Keep it away from sources of heat, such as stoves and heaters.
● Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water will damage the motor, electrical system and battery.
● Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely.
● Check the battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if
damage has occurred. Only replace with a 6V rechargeable battery and charger supplied by the manufacturer.
● Only use the rechargeable battery (or equivalent replacement) and charger supplied with your vehicle.
● Before first use, charge battery 15 to 18 hours - never longer than 18 hours.
● Once battery is depleted, recharge for 8 to 12 hours - never longer than 12 hours.
● Do not short circuit the battery: DO NOT connect red and black wires together or connect positive and negative terminals
on the battery together.
● When battery is fully charged, un-plug charger from the wall outlet and disconnect from charger port.
Failure to charge the battery as directed will cause permanent damage to the battery and will void the warranty.
Do not leave the battery connected in the vehicle for long period of times while not being used. This may drain the battery
completely and cause permanent damage. Disconnect the battery connectors from the battery if the vehicle is not going to
be used for a long period of time. Follow these guidelines if the battery is removed:
● Store the battery where temperatures are between -15 ℃and 50 ℃
● Store the battery on a wood surface. Do not place the battery on cement floors for extended periods. This will result in battery
discharge.
● Wipe the battery clean with a dry cloth prior to storage.
General
Battery
The vehicle shoud be checked for damage, missing or badly worn parts before use.
Only an adult who has read and understands the safety warnings (see Assembly) should handle charge or
recharge of the battery. Failure to comply with the following safety warnings may result in serious injury or death.
Re-charge Interval and Time
Battery storage
Important!
16
13 MAINTENANCE

Battery Replacement and Disposal
Battery Fuse
The 6V battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying
conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery:
The 6V battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if
the motor, electric system or battery is overloaded. The fuse will reset and power will be resored after the unit is
turned OFF for five Minutes and then turned ON again. If the thermal fuse trips repeatedly during normal use, the
vehicle may need repair. Call local Consumer Relations.
1. Remove the car seat.
2. Disconnect the battery connectors.
3. Remove the metal battery bracket.
4. Carefully lift the battery.
● Depending on the condition of the battery (i.e.: leakage) you may want to wear protective gloves before
removal.
● Do not lift the battery by its connectors or cables.
5. Place the dead battery in a plastic bag.
Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and must be
disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries or dispose of them in
landfills. Take it to a approved lead acid battery recycler, such as local automotive battery retailer.
Do not throw the battery away with your regular household waste!
6. Replace the battery and reconnect the connectors.
7. Replace the metal battery bracket.
8. Replace the seat.
To avoid losing power, follow these guidelines:
● Do not overload the vehicle.
● Do not tow anything behind the vehicle.
● Do not drive up steep slopes.
● Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.
● Do not drive in very hot weather, components may overheat.
● Do not allow water or other liquids to come in contact with the battery or other electric components.
● Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.
17
MAINTENANCE (continued) 14

The following are examples of potential problems. Completely read through this manual and the troubleshooting guide
table before calling. If you still need help resolving the problem please call local Consumer Relations.
Vehicle does not run very
long
Vehicle runs sluggishly
Vehicle needs a push to
go forward
Loud grinding or clicking
noises coming from motor
or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overloaded
Vehicle is being used in harsh
conditions
Poor contact of wires or connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery (see Battery: Recharge interval and time)
Reset fuse (see Maintenance: General)
Check that the battery connectors are firmly plugged into
each other. If wires are loose around the motor call local
Consumer Relations.
Check that the battery connectors are firmly plugged into
each other. If wires are loose around the motor call local
Consumer Relations.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle needs
repair. Call local Consumer Relations.
Check that the battery connectors are firmly plugged into
each other when recharging (see Battery: Recharge
interval and Time)
Replace battery (see Battery: Replacement and Disposal)
Replace battery (see Battery: Replacement and Disposal)
Replace battery (see Battery: Replacement and Disposal)
Reduce weight on vehicle (see user requirements and
Safety Warnings)
Avoid using vehicle in harsh conditions (see User
Requirements and Safety Warnings)
Recharge battery (see Battery: Recharge inteval & time)
Call local Consumer Relations.
Call local Consumer Relations.
Call local Consumer Relations.
18
6V Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a cause for
concern. If excessively hot, unplug
and replace.
Check that the battery connectors are firmly plugged into
each other.
Check that the battery charger is plugged into a working
wall outlet.
Call local Consumer Relations.
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not run
15 TROUBLESHOOTING GUIDE
