Schumacher Racing Eclipse User manual

S1542 ISS1
Prototype model shown. Wheels & tyres not included.
1 / 1 2th PRO L MP CHASSIS
Instruction Manual

IMPORTANT SAFETY NOTES
We strongly recommend that anyone driving RC cars, or organising events, should obtain third
party liability insurance. In the UK this can be done by joining the BRCA. www.brca.org
This product is not suitable for children under the age of 14, without the direct
supervision of a responsible adult.
Select an area for assembly that is away from the reach of small children.
The parts in this kit are small and can be swallowed by children causing choking
and possible internal injuries.
Exercise care when using hand tools and sharp instruments during assembly.
Carefully read all manufacturers warnings and cautions for any additional items
used in the construction.
In line with our policy of continuous development the exact details of the kit may vary.
DO NOT use this car on public roads or in places where it can interfere with
traffic, people or animals.
Always check the operation of the radio with the wheels off the ground, before
using the car.
Make sure the radio and car batteries are fully charged before use.
Disconnect and remove the battery from the car when not in use.
Always store and charge LiPo batteries in a fireproof container.
DO NOT put fingers or any objects inside rotating or moving parts as this may
cause injury.
Make sure the charger is correctly set for the type of battery you are using.
Incorrect charging may cause a fire.
Insulate all exposed electrical wiring. Exposed or damaged wires can cause
short circuits and fire.
The motor and speed controller can become hot during use.
DO NOT touch them immediately after using your car as this may cause injury.
















AM701011 - Low Profile 4mm Connector 24K - pk2
AM701012 - Low Profile 5mm Connector 24K - pk2

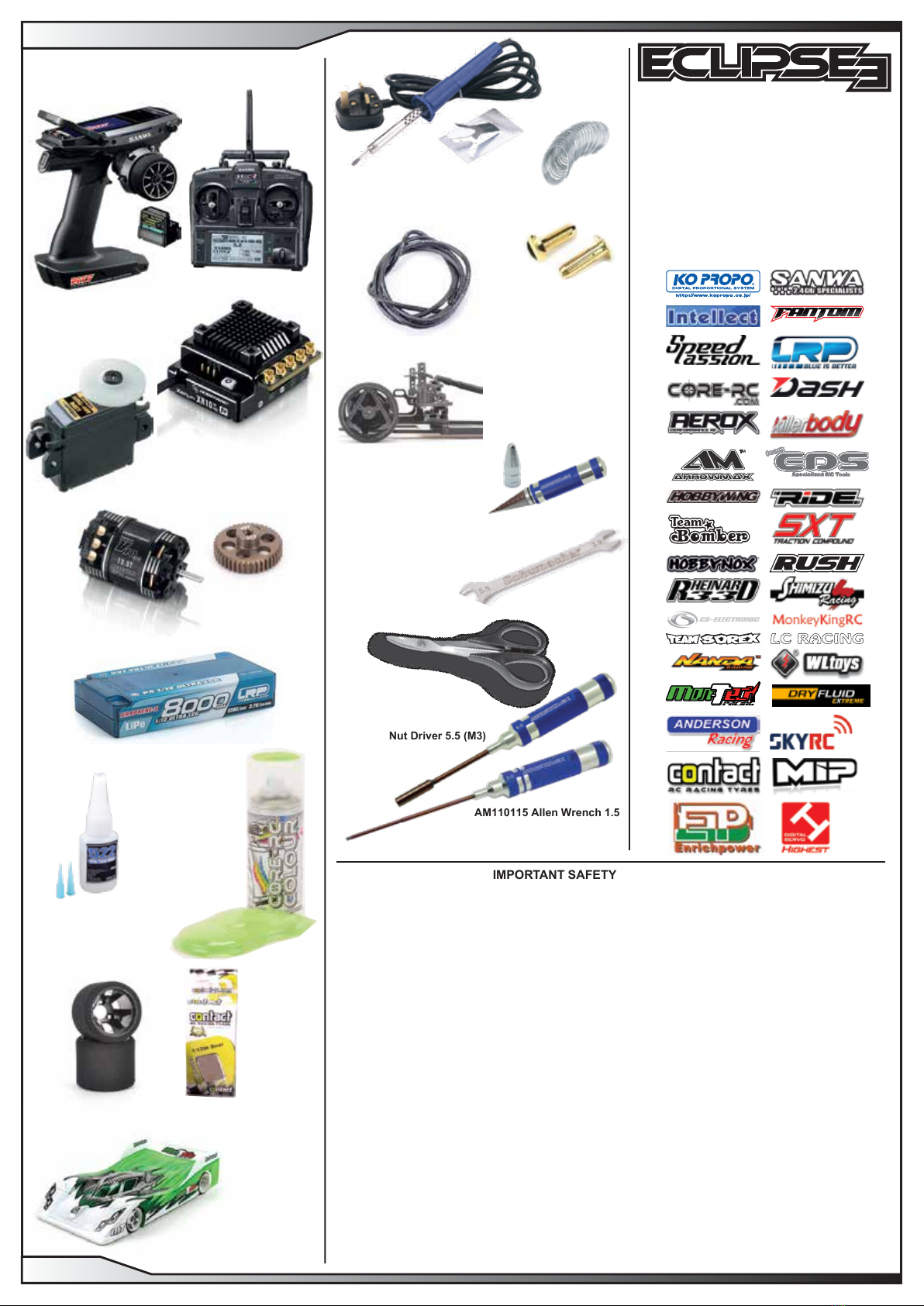

E.S.C
Wheels and Tyres
Motor
Servo
CR044 Curved Body Scissors
U3107 - Solder
Soldering Iron
CR266 40w
CR275 80w
U4229 Steel Spanner - 5.5mm/3.9mm
Li-Po Battery
J005 Contact LMP12
Bodyshell Rear Wheel
Centre Finder
AM110115 Allen Wrench 1.5
AM110120 Allen Wrench 2.0
AM110125 Allen Wrench 2.5
AM110130 Allen Wrench 3.0
AM150155 Nut Driver 5.5 (M3)
AM190003 Reamer With End Cap For Lexan Body
CR522 CORE RC
Pro Tyre Glue + 2 Nozzles
CORE RC Paint
CR600 to CR631
CR666 to CR672
CR287
Silicone Wire Black 14 AWG - 1Mtr
Pinion
Bodyshell
Transmitter and Receiver
Schumacher Racing stocks and
distributes the following
manufacturers products and full
product listings are
available on our website at
www.racing-cars.com
PLEASE NOTE THAT SOME OF THE
PRODUCT RANGES BELOW ARE ONLY
AVAILABLE IN THE UNITED KINGDOM.
LC RACING
ADDITIONAL ITEMS REQUIRED
PAGE 1
1 / 1 2th PRO L MP CHASSIS

Leave loose for now
(adjusted later).
M3 x 25 x 1
M3 x 8
x 2
M3 Nut
x 1
M3 x 8
x 2
M3 x 6
x 2
M2.5 x 8
x 1
x 1
Ball Stud Ultra Short
M3 x 6
x 4
M3 x 10
x 1
1 / 1 2th PRO L MP CHASSIS
STEP 1
PAGE 2

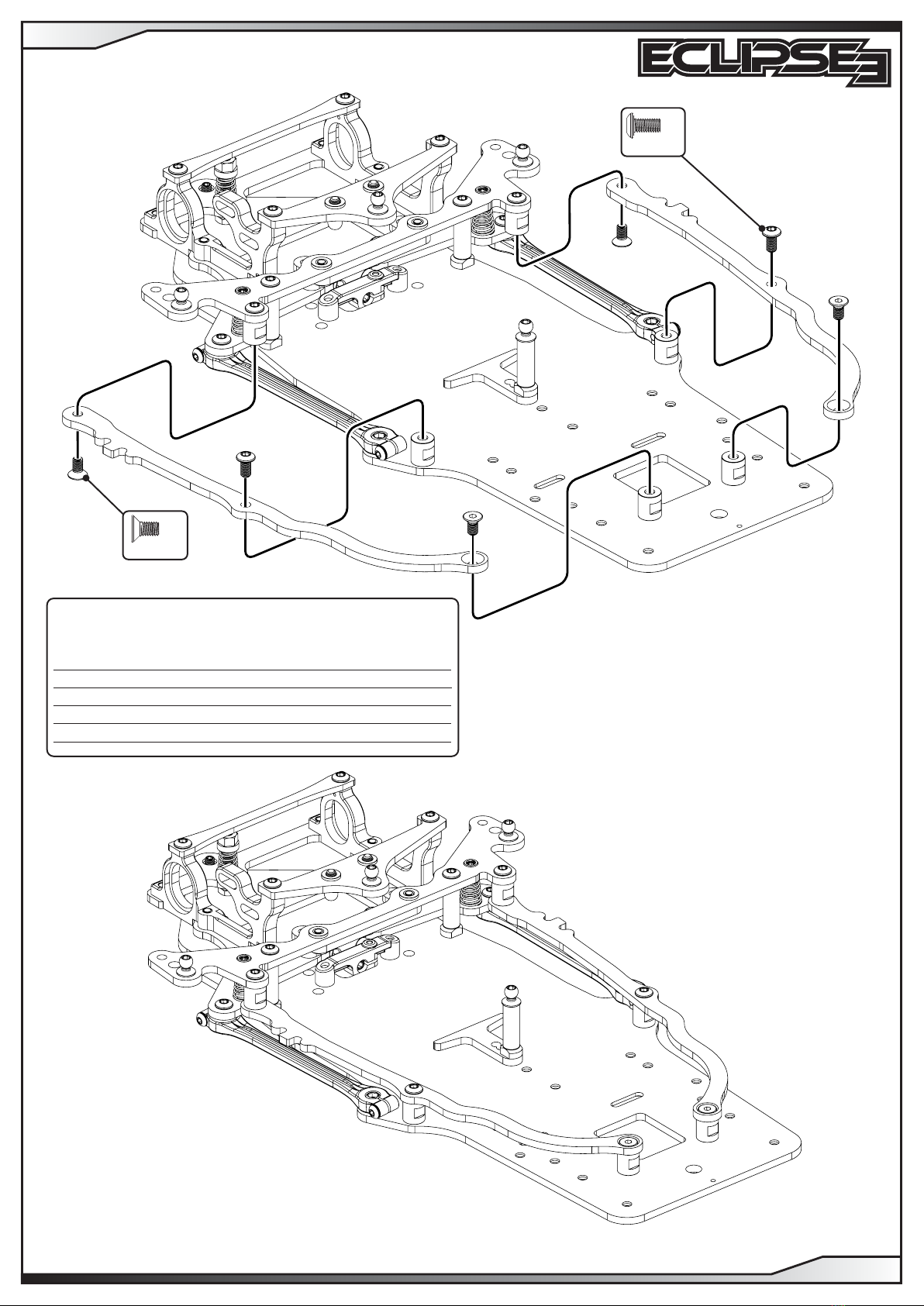

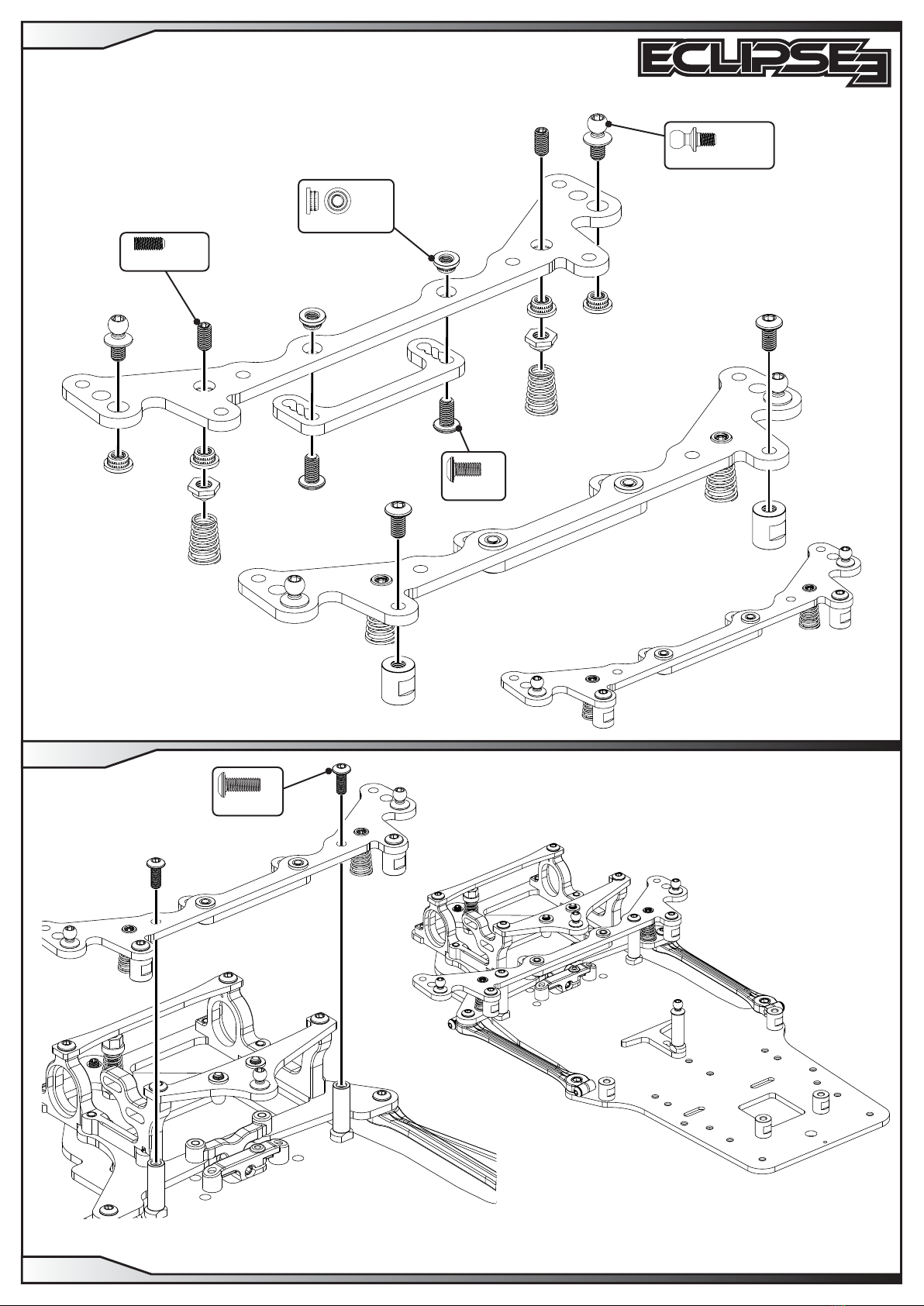

STEP 2

Use the M3x12 Cap head
screw and washers to fit the
inserts.
Tighten the screw until
the M3 thread insert is
pulled into the carbon fibre
part as shown.
Note the orientation
of the inserts.
Use the M3x12 Cap head
screw and washers to fit the
inserts.
Tighten the screw until
the M3 thread insert is
pulled into the carbon fibre
part as shown.
Note the orientation
of the inserts.
Use the M3x12 Cap head
screw and washers to fit the
inserts.
Tighten the screw until
the M3 thread insert is
pulled into the carbon fibre
part as shown.
Note the orientation
of the inserts.
x 3
Ball Stud Ultra Short
M3 Thread Insert
M3 x 4
x 2
M3 x 6
x 2
M3 x 6
x 2
M3 x 8
x 2
M3 x 12 x 1
M3 Thread Insert
x 4
M3 Washer
x 3
M3 x 6
x 2
1 / 1 2th PRO L MP CHASSIS
STEP 3B
STEP 3A
PAGE 3

3.5mm
Adjust all five M2.5
screws to give minimum
clearance with no drag.
Ensure the pod still
rotates freely. Do Not
overtighten!
3.00mm
M2.5 x 8
x 4
M3 x 8 Patched
x 1
Ball Stud Short
x 1
M3 x 8
x 2
M3 x 6
x 2
1 / 1 2th PRO L MP CHASSIS

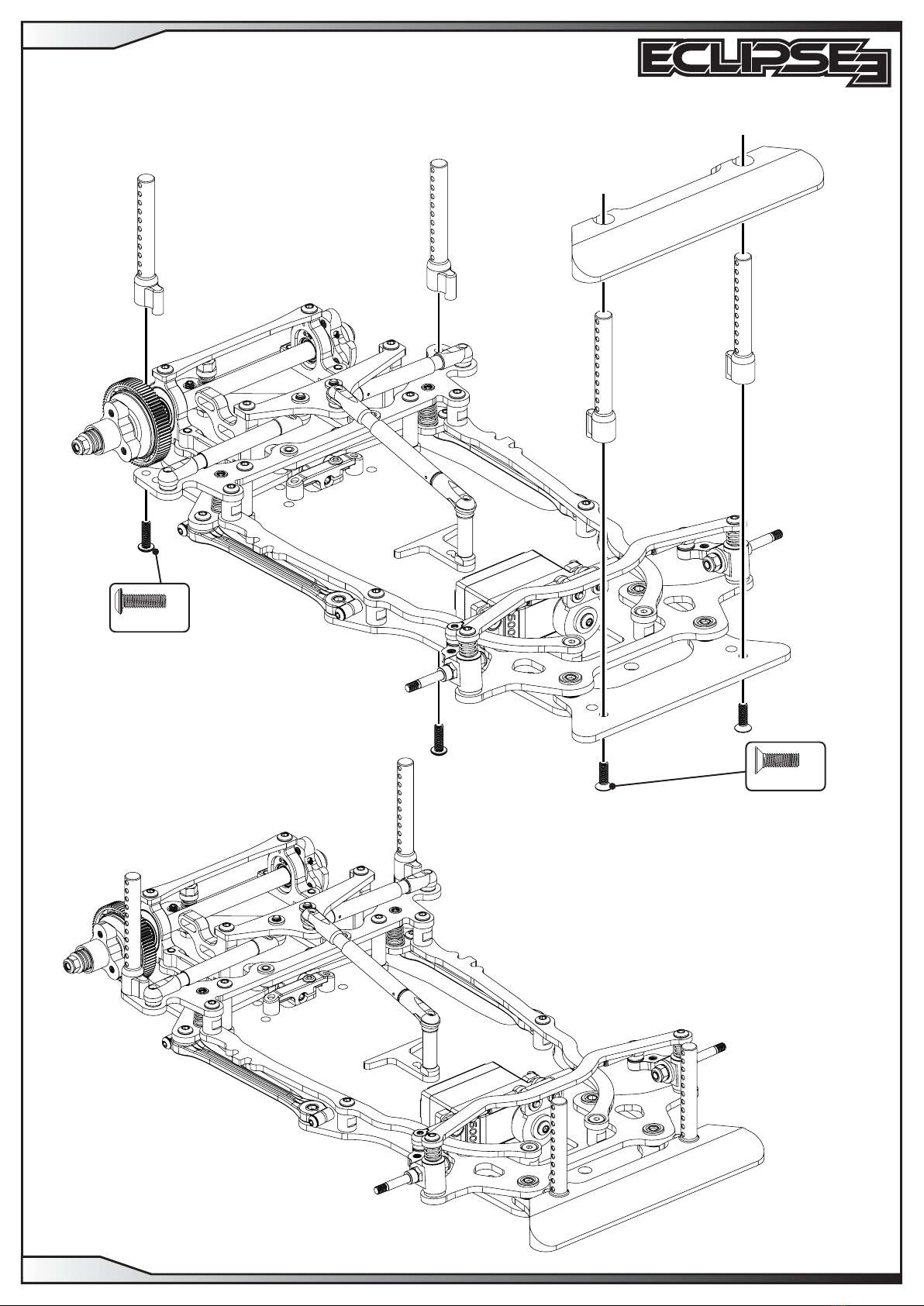

STEP 4
PAGE 4
STEP 5

M3 x 8
x 2
x 2
Ball Stud Ultra Short
M3 x 6 Patched
x 2
M3 Thread Insert
x 6
M3 x 6
x 4
1 / 1 2th PRO L MP CHASSIS

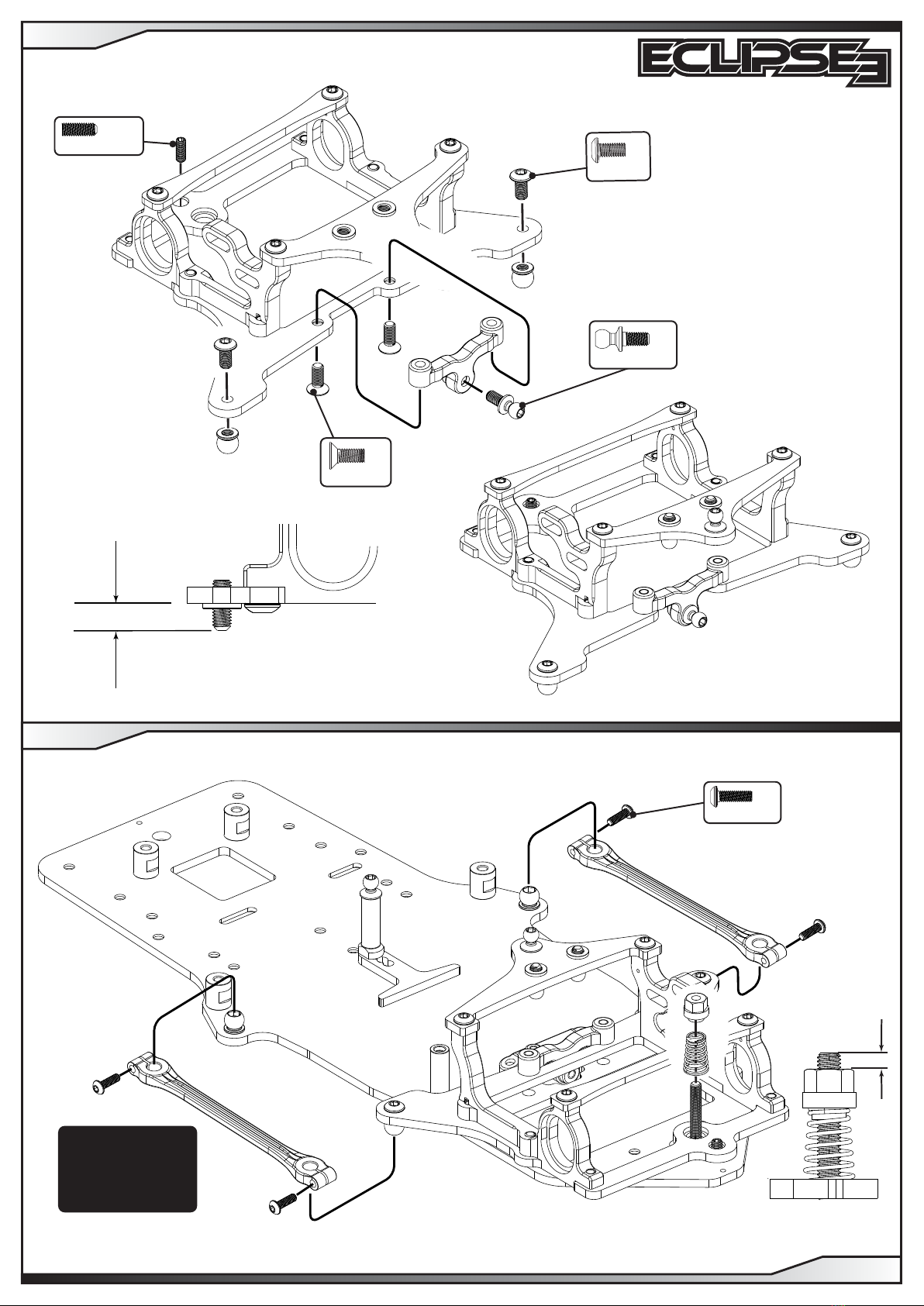

STEP 6B
STEP 6A
PAGE 5

M3 x 6
x 4
M3 x 6
x 2
Option A - Topdecks removed
Option B - Front screws removed only.
Option C - Middle screws removed only.
Option D - All screws in place. Very High Grip Conditions
Very Low Grip Conditions
Medium Grip Conditions
Low-Med Grip Conditions
These topdecks adjust the chassis flex characteristics.
For lower grip tracks, more flexibility is preferable.
For higer grip tracks, less flexibility is preferable.
1 / 1 2th PRO L MP CHASSIS
STEP 7
PAGE 6

1 / 1 2th PRO L MP CHASSIS
STEP 8B
STEP 8A
PAGE 7

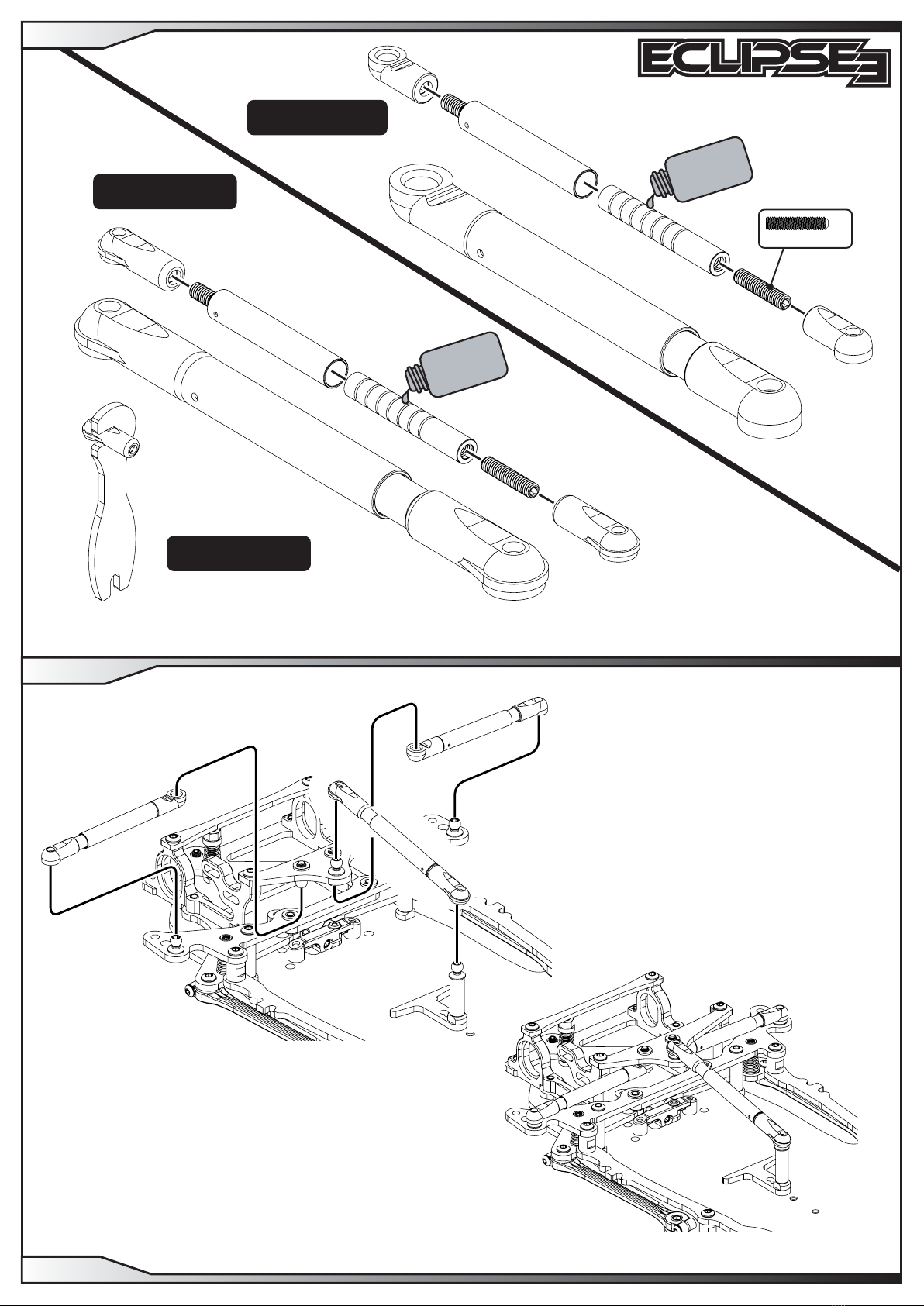

Make two side dampers
with the short sockets.
Make the centre damper
with the long sockets.
Use the included spanner
to tighten sockets.
SILICONE
OIL
30000 cst
M3 x 14
x 3
SILICONE
OIL
12000 cst

Oil can be lled inside the
kingpins to give a long
lasting damping eect.
After some oil pours out of
all the holes, spread evenly
around the kingpin surface.
Kit Setting is 12,000cst oil.
M3 x 6
x 2
Black Droop Spacers
(Kit Setting)
x 4
Black
0.5 mm
x 2
M3 x 6
x 2
DO NOT put anything into any of
these holes while assembling.
King Pin damage may be caused.
Alloy M3
Nyloc Black
x 1
Ball Stud Ultra
Short
x 1
SILICONE
OIL
12000 cst
1 / 1 2th PRO L MP CHASSIS
STEP 9
PAGE 8
STEP 10
STEP 11

Apply a thin layer of silicone
grease covering this face.
1/4”x 5/16” x 0.10mm
x 2
1/4”x3/8”
x 2
Tire Size (mm) Ride Height (mm) Caster Spacer A (mm) Spacer B (mm)
39.5 3.0 3° 0.0 0.0
41.5 3.0 3° 1.0 1.0
43.5 3.0 3° 2.0 2.0
39.5 3.0 4° 0.0 0.5
41.5 3.0 4° 1.0 1.5
43.5 3.0 4° 2.0 2.5
39.5 3.0 5° 0.0 1.0
41.5 3.0 5° 1.0 2.0
43.5 3.0 5° 2.0 3.0
Ride Height and Caster Chart
Adjusting the spacers under the
beam sets ride height and caster.
SPEED SECRETS
For quicker and easier adjustments see
U7943 Alloy Spacer Clip 0.50mm and
U7944 Alloy Spacer Clip 0.75mm
Spacer B
Spacer A
M3 x 8
x 2
M3 x 6
x 2
2mm Silver Ride
Height Spacer
x 4
1 / 1 2th PRO L MP CHASSIS
STEP 13
STEP 12
PAGE 9

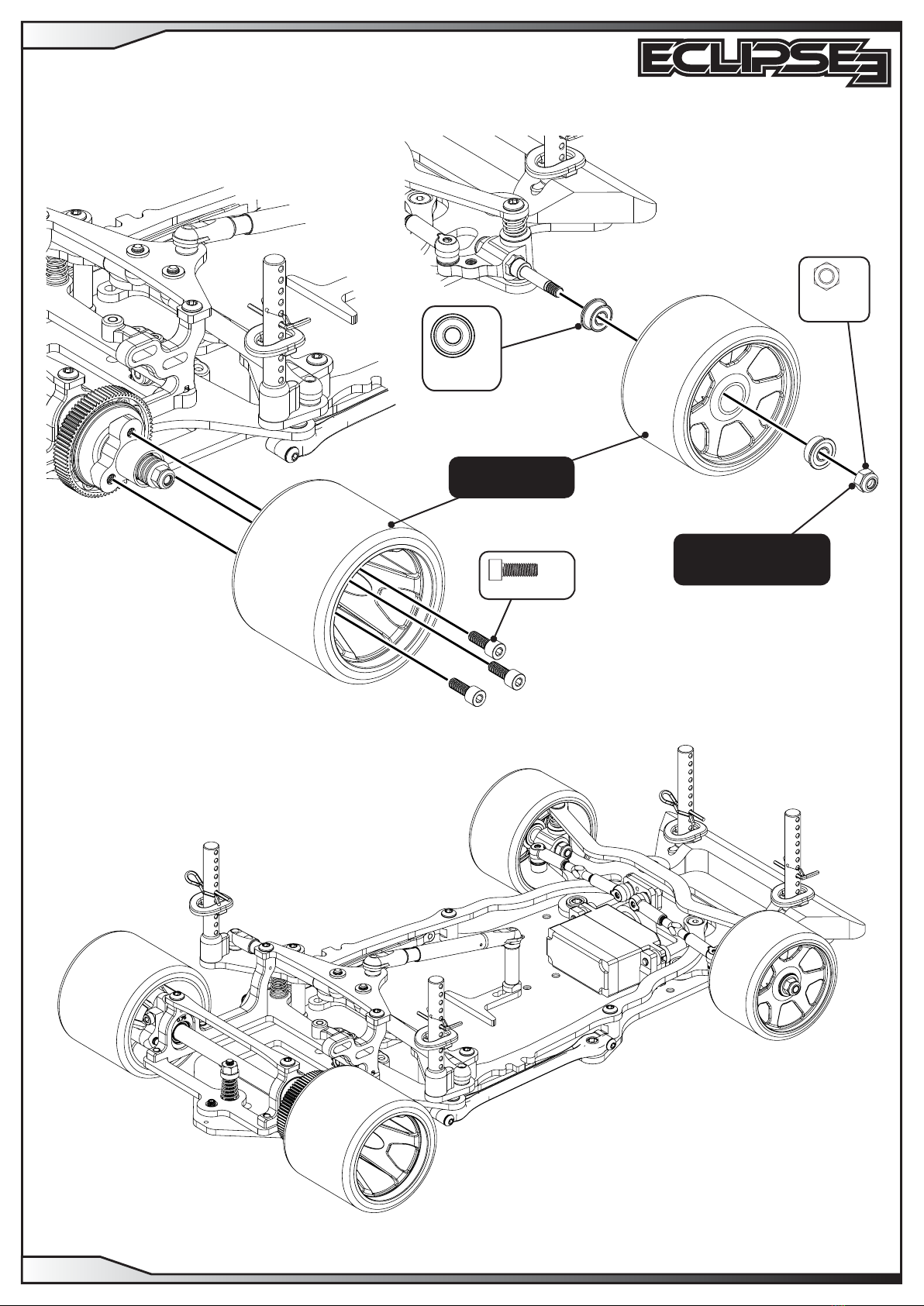

Grooved large washer
Thrust washer
Apply a thin layer of silicone
grease covering this face.
Grooved small washer
NOTE
Correct disk
spring assembly.
NOTE
Correct thrust
washer assembly.
DIFF SETTING
Very gradually tighten the nut
until di action begins.
Then tighten the nut 360° more.
This setting should be good
for most conditions.
x 5
Disc spring
3.25 x 7.9 x 0.5
1/4”x3/8”
x 1
M3 Nyloc
x 1
Using the 0.25 eccentric
is kit setting and designed
to be used with 43.0mm
rear tyres to give approximately
3.5mm ride height.
After tightening this screw
ensure the axle rotates freely
with a very small amount of
end oat.
Axle Spacer
1/4”x 0.5
x 2
M2.5 x 10
x 1
Axle Spacer
1/4”x 2.0
x 2
1/4” x 3/8”
Flanged
x 2
The axle spacers may
be used to adjust the
rear track width of the car.
Kit setting is illustrated.
x 12
ø1/8”
1 / 1 2th PRO L MP CHASSIS
STEP 14
PAGE 10
STEP 15

Use the included spanners
to tighten sockets.
Connect up your radio gear
and set the servo to neutral
before tting the servo saver
assembly as shown.
Then use trim to make the
servo saver vertical.
x 2
M3 x 7.5
Servo Screw
M3 x 10
x 2
M3 x 10
x 1
Csk Washer
x 2
Black 2.0 mm
x 2
15.9mm
Note the shape of
the turnbuckle.
This side of the
turnbuckle is the
left hand thread.
LH Thread
RH Thread
Carefully screw the sockets onto the turnbuckle
until no threads are visible.
Then undo them to the correct length.
This allows for easier adjustment on the car.
(Greasing the threads will also help.)
LH Thread
RH Thread
Longer link
Shorter link
Make two the same length.
1 / 1 2th PRO L MP CHASSIS
STEP 17A
STEP 16
PAGE 11

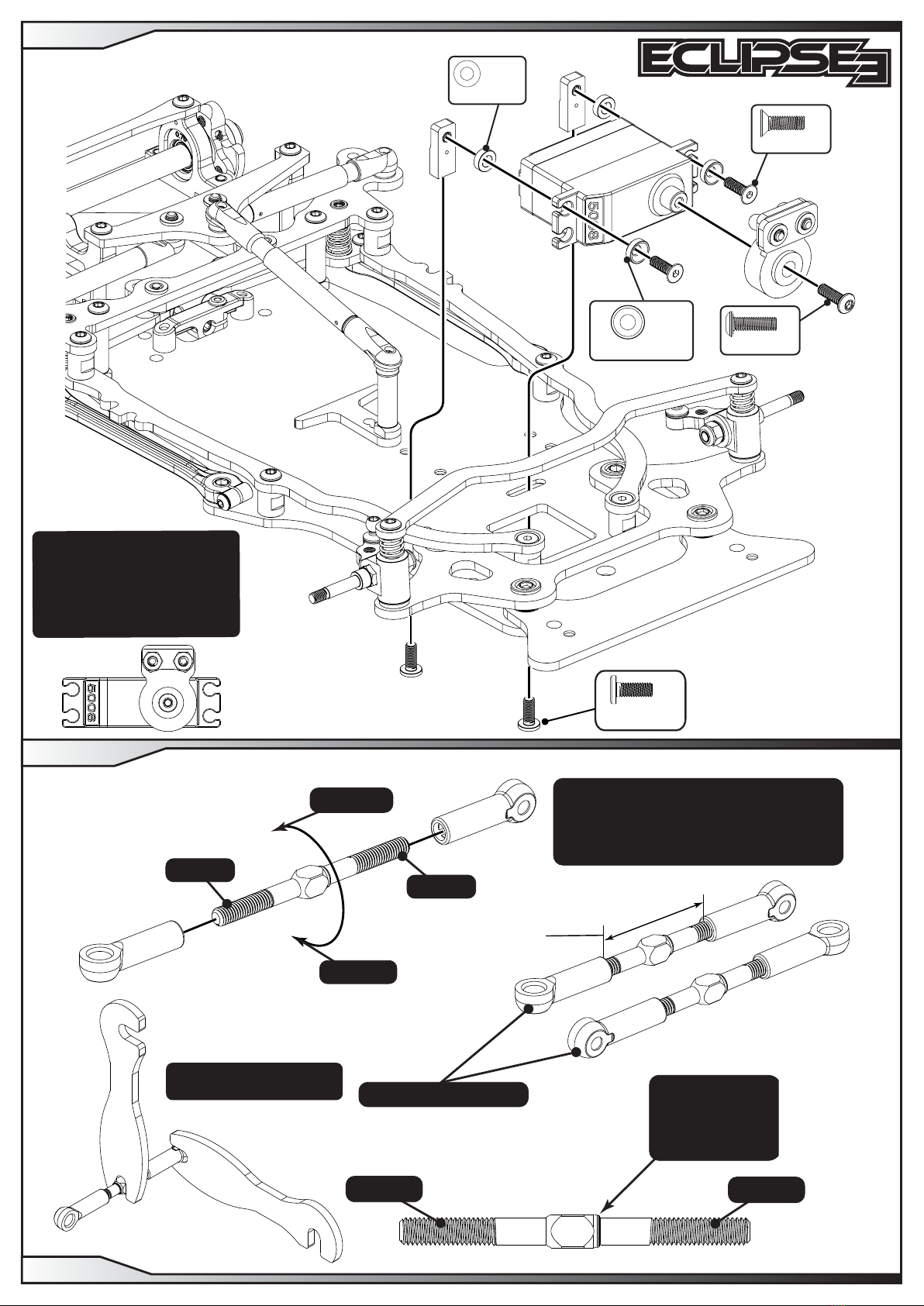

The Servo may now be secured
centrally. Look at the axles to check
alignment. (Wheels make this easier.)
For Sanwa SRG-HR and PGS-HR
we suggest the use of Speed Secret
U7680 - Sanwa Servo Spacer.
1 / 1 2th PRO L MP CHASSIS
STEP 17B
PAGE 12

M3 x 10
x 2
M3 x 10
x 2
1 / 1 2th PRO L MP CHASSIS
STEP 18A
PAGE 13

1 Dot
Low
Position
3 Dot
High
Position
2 Dot
Medium
Position

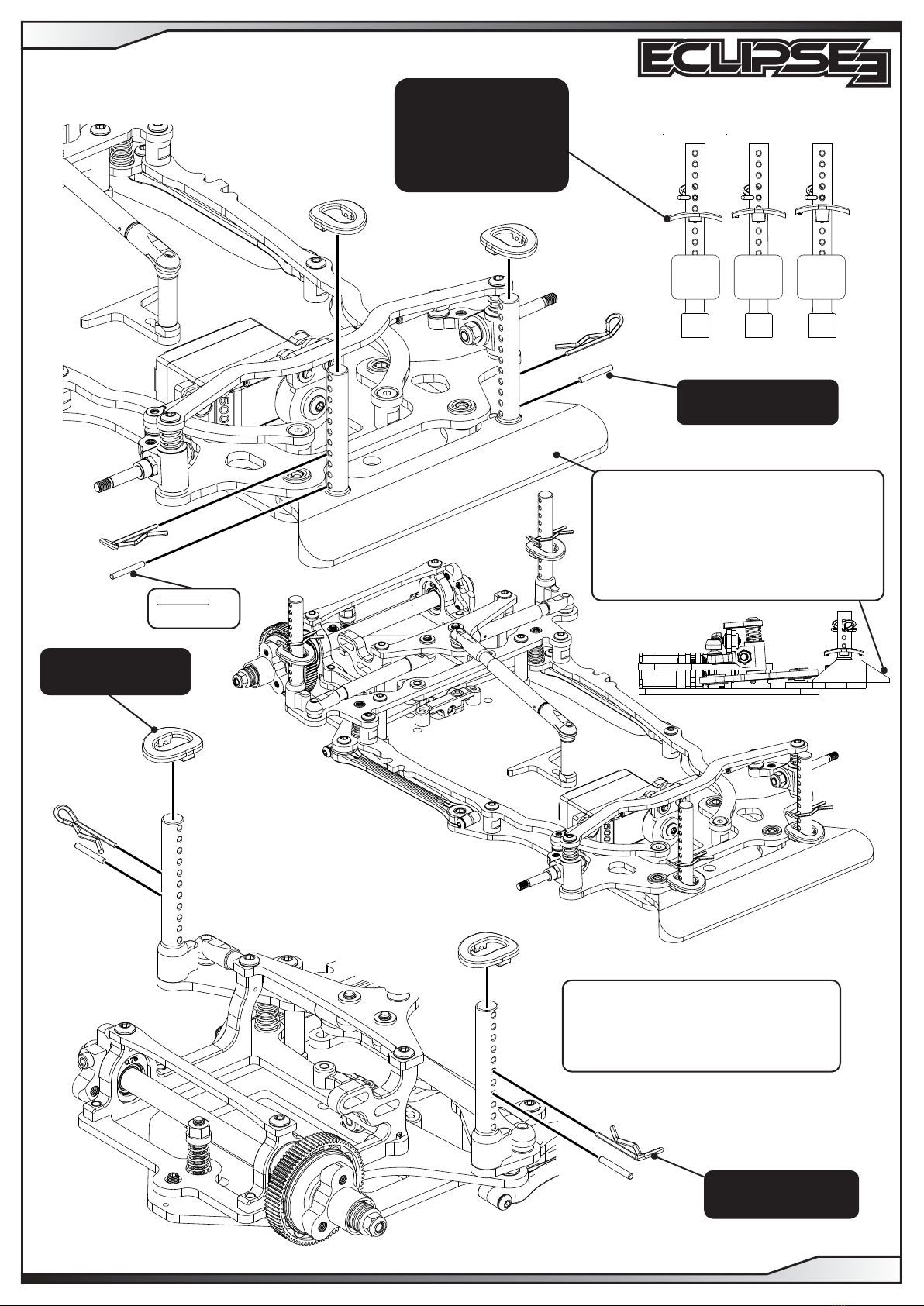

Body Washers
Select the correct body
washer to ne tune the
bodyshell height.
Each incremental change
is 1.2mm.
The bodyposts may be trimmed down
for looks and aerodynamics. A sharp knife
or side cutters may be used.
Alternatively use:
AM190041 - Arrowmax - Body Post Trimmer
Snap the body washers
onto the pins.
Attach Bodyclips on
after the body washers.
Press the pins centrally
into the post.
The foam bumper has a chamfered front edge.
This is the perfect height for most bodyshells
to sit against to set the front bodyshell height.
This option replaces the body washer and pin,
and drastically improves the durability of the
bodyshell!
Racers Tip
ø1.5 X 11.8
x 4
1 / 1 2th PRO L MP CHASSIS
STEP 18B
PAGE 14

CHASSIS PARTS
U4627 Chassis Post Long - SS GT/At/Ecl
U4950 Body Posts - Eclipse (4pcs)
U4964 C/F Pod Rear Brace - Eclipse
U7476 C/F Front Beam v2 - Eclipse 2
U7486 Alloy Servo Mounts - Eclipse 2
U7885 LiPo O'Ring - Atom 2 (pr)
U7895 25T Servo Saver Assembly
U7896 23T Servo Saver Assembly
U7911 C/F Front LiPo Stop - Atom 2
U7913 C/F Rear LiPo Stop - Atom 2
U7915 C/F Pod Base - Atom 2
U7917 C/F Rear Spring Hanger - Atom 2
U7930 C/F Bumper Mount - Eclipse 3
U7931 Foam Bumper - Eclipse 3
U7932 King Pin - Eclipse 3
U7934 C/F - Camber Strap 1.0 Deg (Kit) - Eclipse 3
U7938 Chassis Post 8mm - Eclipse 3
U7939 C/F Top Decks - Eclipse 3
U7940 C/F Chassis - Eclipse 3
U7941 C/F Multi Mount - Eclipse 3
U7942 C/F Damper Mount - Eclipse 3
U7945 Manual - Eclipse 3
Bodyshells And Decals
MT014001 Montech M12 Body 1/12th carpet
MT016014 Montech M16 Body 1/12th carpet
MT018013 Montech M18 Carpet Body
MT018013L Montech M18 Carpet Body Light Weight
TB60025 Bomber LMP Body Type Ketter - Light Weight
TB60027 Bomber LMP Body Type Ketter - Ultra Light
U3478 Decal sheet - Schumacher and racing-cars.com (pk3)
U7946 Decals (Pre-cut) - Eclipse3
Suspension
U4254 Ball Grippa Sockets Pro - Mi5 - pk8
U4274 Pro Ball Stud Short - pk4
U4302 Ball Socket Short (Black) - Mi5 - pk4
U4629 Damper Piston - SS GT/At/Ecl
U4630 Damper Unit - SS GT/At/Ecl
U4631 Damper Tube - SS GT/At/Ecl
U4814 Front Axle - Atom
U4851 Side Spring Seat (pr) - Atom/Eclipse
U4865 Kingpin Shim Set - Atom
U4968 Ball Sockets Low Profile -Eclipse - pk4
U7315 Titanium Turnbuckle - 35mm - Silver - pr
U7436 Pivot Ball and Socket (pr)
U7787 Shock Top Ball Dia 5.5mm - Mi7 (pk4)
U7832 Ball Stud Low (Ultra Short) (pk4)
U7833 Ball Stud Low (Short) (pk4)
U7871 Pivot Mouldings - Atom 2
U7872 Side Link - Atom 2 (pr)
U7933 Alloy Hub Carrier - Eclipse 3
Springs
U4838 Rear Springs Black - Soft - At/Ecl - pr
U4839 Rear Springs Silver - Med/Soft - At/Ecl - pr
U4840 Rear Springs Gold -Med/Hard - At/Ecl - pr
U4841 Rear Springs Nickel - Hard - At/Ecl - pr
U4842 Front Springs Black - Soft - Atom (pr)
U4843 Front Springs Silver - Medium - Atom (pr)
U4844 Front Springs Gold - Hard - Atom (pr)
U4845 Spring Tuning Set Front - Atom
U4846 Spring Tuning Set Rear - At/Ecl
U4847 Rear Spring Seat - At/Ecl
U7322 Rear Spring Red Dot-Hard/Ultra-Atom/Eclipse-pr
U7323 Rear Spring Black - Ultra - Atom/Eclipse - pr
U7489 Front Springs White - Ultra - Atom/Eclipse 2 (pr)
Transmission
CR509 Kimbrough - Thin Pro/Gear 88T - 64DP-#709
CR513 Kimbrough - Spur Gear 78T - 64DP - #202
CR515 Kimbrough - Spur Gear 76T - 64DP - #199 - Kit
CRW64072 Diff Spur 64DP 72T - For Diff or Spur Adapters
U4112 S/Steel Shims 1/4x5/16x0.004-SS/At/Ecl
U4855 Diff Washer - Atom/Eclipse - pr
U4861 Diff Rebuild Kit - Atom/Eclipse
U4970 C/F Rear Axle - Eclipse
U4971 Diff Spacer Set - Eclipse
KIT
K185 Eclipse 3 - 1/12th Circuit - Kit
TRANSMISSION Cont....
U4972 Ride Height Adjusters- 0.00, 0.50, 1.00, 1.50 4prs
U4973 Ride Height Adjusters- 0.25, 0.75, 1.25, 1.75 4prs
U4974 LH Wheel Clamp - Eclipse
U4975 RH Washer Carrier - Eclipse
U4976 Assembled Diff C/F - Eclipse
U7483 Trans Housing LH - Eclipse 2
U7484 Trans Housing RH - Eclipse 2
Pinions
CR6419 Pinion Gear 64DP 19T (7075 Hard)
CR6420 Pinion Gear 64DP 20T (7075 Hard)
CR6421 Pinion Gear 64DP 21T (7075 Hard)
CR6422 Pinion Gear 64DP 22T (7075 Hard)
CR6423 Pinion Gear 64DP 23T (7075 Hard)
CR6424 Pinion Gear 64DP 24T (7075 Hard)
CR6425 Pinion Gear 64DP 25T (7075 Hard)
CR6426 Pinion Gear 64DP 26T (7075 Hard)
CR6427 Pinion Gear 64DP 27T (7075 Hard)
CR6428 Pinion Gear 64DP 28T (7075 Hard)
CR6429 Pinion Gear 64DP 29T (7075 Hard)
CR6430 Pinion Gear 64DP 30T (7075 Hard)
CR6431 Pinion Gear 64DP 31T (7075 Hard)
CR6432 Pinion Gear 64DP 32T (7075 Hard)
CR6433 Pinion Gear 64DP 33T (7075 Hard)
CR6434 Pinion Gear 64DP 34T (7075 Hard)
CR6435 Pinion Gear 64DP 35T (7075 Hard)
CR6436 Pinion Gear 64DP 36T (7075 Hard)
CR6437 Pinion Gear 64DP 37T (7075 Hard)
CR6438 Pinion Gear 64DP 38T (7075 Hard)
CR6439 Pinion Gear 64DP 39T (7075 Hard)
CR6440 Pinion Gear 64DP 40T (7075 Hard)
CR6441 Pinion Gear 64DP 41T (7075 Hard)
CR6442 Pinion Gear 64DP 42T (7075 Hard)
CR6443 Pinion Gear 64DP 43T (7075 Hard)
CR6444 Pinion Gear 64DP 44T (7075 Hard)
CR6445 Pinion Gear 64DP 45T (7075 Hard)
CR6446 Pinion Gear 64DP 46T (7075 Hard)
CR6447 Pinion Gear 64DP 47T (7075 Hard)
CR6448 Pinion Gear 64DP 48T (7075 Hard)
CR6449 Pinion Gear 64DP 49T (7075 Hard)
CR6450 Pinion Gear 64DP 50T (7075 Hard)
CR6451 Pinion Gear 64DP 51T (7075 Hard)
CR6452 Pinion Gear 64DP 52T (7075 Hard)
CR6453 Pinion Gear 64DP 53T (7075 Hard)
CR6454 Pinion Gear 64DP 54T (7075 Hard)
U3619 Pinion; Hard Alloy 64dp - 19T
U3620 Pinion; Hard Alloy 64dp - 20T
U3621 Pinion; Hard Alloy 64dp - 21T
U3622 Pinion; Hard Alloy 64dp - 22T
U3623 Pinion; Hard Alloy 64dp - 23T
U3624 Pinion; Hard Alloy 64dp - 24T
U3625 Pinion; Hard Alloy 64dp - 25T
U3626 Pinion; Hard Alloy 64dp - 26T
U3627 Pinion; Hard Alloy 64dp - 27T
U3628 Pinion; Hard Alloy 64dp - 28T
U3629 Pinion; Hard Alloy 64dp - 29T
U3630 Pinion; Hard Alloy 64dp - 30T
U3631 Pinion; Hard Alloy 64dp - 31T
U3632 Pinion; Hard Alloy 64dp - 32T
U3633 Pinion; Hard Alloy 64dp - 33T
U3634 Pinion; Hard Alloy 64dp - 34T
U3635 Pinion; Hard Alloy 64dp - 35T
U3636 Pinion; Hard Alloy 64dp - 36T
U3637 Pinion; Hard Alloy 64dp - 37T
U3638 Pinion; Hard Alloy 64dp - 38T
U3639 Pinion; Hard Alloy 64dp - 39T
U3640 Pinion; Hard Alloy 64dp - 40T
U3641 Pinion; Hard Alloy 64dp - 41T
U3642 Pinion; Hard Alloy 64dp - 42T
U3643 Pinion; Hard Alloy 64dp - 43T
U3644 Pinion; Hard Alloy 64dp - 44T
U3645 Pinion; Hard Alloy 64dp - 45T
U3646 Pinion; Hard Alloy 64dp - 46T
U3647 Pinion; Hard Alloy 64dp - 47T
U3648 Pinion; Hard Alloy 64dp - 48T
U3649 Pinion; Hard Alloy 64dp - 49T
U3650 Pinion; Hard Alloy 64dp - 50T
1 / 1 2th PRO L MP CHASSIS
Spares 1
PAGE 15

Speed Packs
U1550 SPEED PK-Socket Wrenches-1.5/2.0/2.5/3.0mm
U1552 SPEED PACK - R Clips
U1606 SPEED PACK - Servo Tape - 30pk
U3021 SPEED PACK - M3x6 Csk Hd - (pk10)
U3022 SPEED PACK - M3x8 Csk Hd - (pk10)
U3023 SPEED PACK - M3x10 Csk Hd - (pk10)
U3131 SPEED PACK Alloy Spacers - M3x7mm 0.5;1;2mm (pk18)
U3572 SPEED PACK - M3x14 Grub Screw pk4
U4155 SPEED PACK - M3 Csk Washers - Black Alloy (pk10)
U4210 SPEED PACK - Pinion Grub Screw Set pk10
U4241 SPEED PACK - M3 Alloy Nyloc Nuts - Black - pk10
U4650 SPEED PACK - M3 Nyloc Nut Steel - Black (10pcs)
U4837 SPEED PACK M2.5x10 Cap Hd (pk8)
U4862 M3 Black Alloy Washers 0.50mm (pk12)
U4983 SPEED PACK Servo Screws (2pcs)
U4984 SPEED PACK M3 Alloy Nuts - Black - pk10
U4987 SPEED PACK Needle Roller 1.5x11.8 (pk8)
U7102 SPEED PACK - M3x4 Button Hd (pk10)
U7103 SPEED PACK - M3x6 Button Hd (pk10)
U7104 SPEED PACK - M3x8 Button Hd (pk10)
U7105 SPEED PACK - M3x10 Button Hd (pk10)
U7113 SPEED PACK - M3x10 Cap Hd (pk10)
U7125 SPEED PACK - M3x25 Csk Hd (pk10)
U7298 Alloy Rear Wheel Screws - Atom/Eclipse (pk6)
U7689 M3 Brass Inserts (pk10)
U7710 M3 Black Alloy Washers 1.00mm (pk10)
U7711 M3 Black Alloy Washers 2.00mm (pk10)
U7743 SPEED PACK - M2.5x8 Button Screws (pk10)
U7884 M3x6 Grub Screw Dome End (pk4)
Speed Secret - Option Parts
CR280 Ti Pro Ball Studs - Short (pr)
CR310 Alloy Csk Hex Screws M3 x 6 pk10
CR311 Alloy Csk Hex Screws M3 x 8 pk10
CR312 Alloy Csk Hex Screws M3 x 10 pk10
CR314 Alloy Button Head Hex Screws M3 x 6 pk10
CR315 Alloy Button Head Hex Screws M3 x 8 pk10
CR316 Alloy Button Head Hex Screws M3 x 10 pk10
CR320 Titanium Csk Hex Screws M3 x 6 pk10
CR321 Titanium Csk Hex Screws M3 x 8 pk10
CR322 Titanium Csk Hex Screws M3 x 10 pk10
CR327 Titanium Button Hex Screws M3 x 6 pk10
CR328 Titanium Button Hex Screws M3 x 8 pk10
CR329 Titanium Button Hex Screws M3 x 10 pk10
CR664 Alloy Motor Spacer - 1mm - pk2
CR721 1/12 Carbon Spool Axle + Clamp
U1954 Pro - Thrust Bearing
U3582 Precision Balance Pivot Set
U7453 30/40mm Fan Mount Kit - ATOM
U7680 Sanwa Servo Spacer - Eclipse 2 (pr)
U7709 M3 Black Alloy Washers 0.75mm (pk10)
U7710 M3 Black Alloy Washers 1.00mm (pk10)
U7711 M3 Black Alloy Washers 2.00mm (pk10)
U7712 M3 Black Alloy Washers 3.00mm (pk10)
U7774 M3 Black Alloy Washers 1.50mm (pk10)
U7825 Titanium Pivot Ball 5.5mm Low (pr)
U7828 Titanium Ball Stud Low (Ultra Short) (pk4)
U7829 Titanium Ball Stud Low (Short) (pk4)
U7883 Steel Diff Axle - Atom 2
U7897 Alloy Pivot Spacer 1mm - Atom 2 (pr)
U7918 Alloy Pivot Mount - Atom 2
U7919 Alloy Pivot Block - Atom 2
U7935 C/F - Camber Strap 1.5 Deg - Eclipse 3
U7936 Titanium King Pin - Eclipse 3 (pr)
U7937 Titanium Front Axle - Eclipse 3 (pr)
U7943 Alloy Spacer Clip 0.5mm (pk4)
U7944 Alloy Spacer Clip 0.75mm (pk4)
Tyre Additive
C6400 CS High Grip Additive
C6460 CS Speed Grip Carpet
LRP65011 Top Grip Carpet 2
LRP65012 Top Grip Carpet 3 Tyre Traction
MR33-0002 MR33 No 1 Black Indoor/Outdoor Tyre Additive
SXT00030 SXT 3.0 Traction Compound Additive
Servos
CR194 CORE RC -5008- Servo 5Kg .08 Sec 12th
KO30126 KO RSx3-12 Servo
KO30127 KO RSx3-12 World Spec Version Servo
KO30128 KO RSx3-12 GT Version Servo
KO30129 KO RSx3-12 HC Servo
KO92392 KO RS Set w/RSx3-12
SA107A53811A Sanwa SRG-HR Mini Digital Servo
SA107A54573A Sanwa PGS-HR Servo
Team Merchandise
CR298 CORE RC Hauler Bag
G338 2 Tone Beanie Knitted Hat
G339L Jacket - 3 Layer Softshell; Black - L 44inch
G339M Jacket - 3 Layer Softshell; Black - M 41inch
G339S Jacket - 3 Layer Softshell; Black - S - 38inch
G339XL Jacket - 3 Layer Softshell; Black - XL 46inch
G339XS Jacket - 3 Layer Softshell; Black - XS - 34inch
G339XXL Jacket - 3 Layer Softshell; Black - XXL 48inch
G339XXXL Jacket - 3 Layer Softshell; Black - XXXL 50inch
G346L Schumacher Gilet - Frost Grey - Large
G346M Schumacher Gilet - Frost Grey - Medium
G346S Schumacher Gilet - Frost Grey - Small
G346XL Schumacher Gilet - Frost Grey - X-Large
G346XXL Schumacher Gilet - Frost Grey - XX-Large
G347L Schumacher Arrows" T-Shirt - Large"
G347M Schumacher Arrows" T-Shirt - Medium"
G347S Schumacher Arrows" T-Shirt - Small"
G347XL Schumacher Arrows" T-Shirt - X-Large"
G347XS Schumacher Arrows" T-Shirt - X-Small"
G347XXL Schumacher Arrows" T-Shirt - XXL"
G347XXS Schumacher Arrows" T-Shirt - XX-Small"
G347XXXL Schumacher Arrows" T-Shirt - XXXL"
G347XXXXL Schumacher Arrows" T-Shirt - XXXXL"
G347XXXXXL Schumacher Arrows" T-Shirt - XXXXXL"
G347XXXXXXL Schumacher Arrows" T-Shirt - XXXXXXL"
G348L Schumacher Arrows" Hoody - Large"
G348M Schumacher Arrows" Hoody - Medium"
G348S Schumacher Arrows" Hoody - Small"
G348XL Schumacher Arrows" Hoody - XL"
G348XS Schumacher Arrows" Hoody - XS"
G348XXL Schumacher Arrows" Hoody - XXL"
G348XXXL Schumacher Arrows" Hoody - XXXL"
G349L Schumacher Arrows" Zipped Hoody - Large"
G349M Schumacher Arrows" Zipped Hoody - Medium"
G349S Schumacher Arrows" Zipped Hoody - Small"
G349XL Schumacher Arrows" Zipped Hoody - XL"
G349XXL Schumacher Arrows" Zipped Hoody - XXL"
G350L Schumacher Arrows" Polo Shirt-Large"
G350M Schumacher Arrows" Polo Shirt-Medium"
G350S Schumacher Arrows" Polo Shirt-Small"
G350XL Schumacher Arrows" Polo Shirt-XL"
G350XXL Schumacher Arrows" Polo Shirt-XXL"
G350XXXL Schumacher Arrows" Polo Shirt-XXXL"
G350XXXXL Schumacher Arrows" Polo Shirt-XXXXL"
G350XXXXXL Schumacher Arrows" Polo Shirt-XXXXXL"
G355 Schumacher Hauler Bag
G356 Handle for Hauler Bag
G357 Small Drawer for Hauler Bag
G358 Medium Drawer for Hauler Bag
G359 Large Drawer for Hauler Bag
G360 Schumacher Snapback Flatbill Cap-Heather
G361 Schumacher Flexfit Cap S/M - Grey
G362 Schumacher Flexfit Cap L/XL - Grey
Electronics
CR175 GT12 Power Plant-PACE ESC/SP 13.5/1S Lipo
CR249 Futaba Servo Wires Black
CR250 JR Servo Wires Black
CR251 Freeze Cooling Fan 40 x 40mm
CR264 Freeze 30 x 30mm Cooling Fan with JST Plug
CR665 LiPo Voltage Checker
MR33-CF40 MR33 Cooling Fan 40mm
SK-500015 Corner Weight System
SK-600114-01 DC Power Distributor
Bearings and Balls
H1031 Bearing Blaster Aerosol 500ml
U1300 Axle Grease - Pot
U1301 Silicone Diff Lube - Pot
U1957 Moly Grease - Pot 5ml
U4808 1/8 Chrome Steel Ball -At/Ecl - pk12"
U4809 Ball Bearing - 1/4x3/8x1/8 Shield - (pr)
U4811 1/8 Silicone Nitride Ball (pk12)"
U4812 Ceramic Bearing 1/8x5/16x9/64 Flanged (pr)
U4979 Ceramic Bearing 1/4 x 3/8 x 1/8 Flanged (pr)
U4980 Ball Bearing - 1/4x3/8x1/8 Flanged Yellow - (pr)
U4981 Ball Bearing-1/8x5/16 Flanged Yellow -(pr)
U7690 Pro Ball Bearings 1/4 x 3/8 x 1/8 Fl Shielded
U7691 Pro Ball Bearings 1/8 x 5/16 x 9/64 Fl Shielded
1 / 1 2th PRO L MP CHASSIS
Spares 2
PAGE 16

Transmitters and Receivers
CR277 CODE 2.4G FHSS Steerwheel Radio TxRx
CR278 CODE 2.4G FHSS - Rx Only
KO21005 KO KR-211FH 2.4GHz FHSS Receiver
KO21008 KO KR-241FH 2.4GHz FHSS
KO21009 KO KR-415FHD
KO21010 KO KR-415FHD (Short Antenna)
KO21011 KO KR-418FH 4 Channels Receiver - 2.4GHz
KO80576 KO EX-RR w/KR-415FHD
KO80700 KO Esprit IV - Stick Radio Combo
SA101A31971A Sanwa MT-S Radio Set with RX482
SA101A32071A Sanwa EXZES ZZ Radio Set with RX472
SA101A32171A Sanwa MT-44 Radio Set with RX-482
SA101A32371A Sanwa M12S-RS Radio Set with RX482
SA101A32471A Sanwa M17 Radio Set with RX491
SA101A32571A Sanwa MX-6 Radio Set with RX-391W
SA107A40843A Sanwa RX-371FS FHSS-2 Receiver
SA107A41044A Sanwa RX-461 Receiver for MT-4
SA107A41074A Sanwa RX-380 FHSS-3 Receiver
SA107A41111A Sanwa RX-471 Receiver
SA107A41117A Sanwa RX-472 Telemetry/SSL Receiver
SA107A41131A Sanwa RX-471WP FH4 Waterproof Receiver
SA107A41144A Sanwa RX-371WP FHSS-2 Waterproof Receiver
SA107A41151A Sanwa RX-471 Dual ID Receiver
SA107A41251A Sanwa RX-481 Receiver
SA107A41257A Sanwa RX-482 Telemetry/SSL Receiver
SA107A41341A Sanwa RX-391W Receiver
SA107A41353A Sanwa RX-491 Receiver
Chargers and Dischargers
AM701000 AM Auto Balance Charger&Discharger
CR031 CORE RC Charger Connector Set - 8pcs (10Amps max)
SK-100084 Imax B6 Mini Charger 6A 60W DC
SK-100104 Q200 Quattro Charger
SK-100122 e450 Charger 50W - 4A -AC
SK-100123 D400 Charger
SK-100124 PC1080 Dual Charger
SK-100129 Ultimate Duo D250 Charger
SK-100131 D100 v2 AC/DC Dual Balance Charger
SK-100134 B6 nano Charger
SK-100146 SKY RC B6 Nano Duo AC Charger
SK-100149 SKY RC e680 AC/DC 80W Charger
SK-100151 SKY RC B6 Lite DC Charger
SK-100152-04 S65 Charger AC 65W
SK-100155-04 SKY RC T200 AC/DC 12A Charger
SK-200013-01 eFuel 30A 540W Power Supply
SK-200015 eFuel 50A 1200W Power Supply
SK-600123-01 BD200 Battery Discharger & Analyzer
Brushless Motors
DA740175 DASH R-Tune 540 Sensored BL Motor 17.5T
DA741135 DASH 540 Sensored BL Motor 13.5T for AM Cup
FAN19213S Fantom 13.5T ICON Torque Spec
FAN19217S Fantom 17.5T ICON Torque Spec
FAN19313S Fantom 13.5 ICON Pro Spec Motor
FAN19336E Fantom 6.5 ICON Euro Pro Spec Motor
HW30401104 XERUN-V10-17.5T-Black-G3-BL-Motor
HW30401106 XERUN-V10-3.5T-Black-G3-BL-Motor
HW30401109 XERUN-V10-6.5T-Black-G3-BL-Motor
HW30401112 XERUN-V10-10.5T-Black-G3-BL-Motor
HW30401123 XERUN-V10-6.5T Motor - G3 - Onroad Spec
HW30401130 XERUN-V10-13.5T-Black-G3R-BL-Motor
HW30401131 XERUN-V10-17.5T-Black-G3R-BL-Motor
HW30404310 QUICRUN - 3650 - G2 - Motor - 13.5T
HW30408005 XERUN - Justock - G2 - Motor - 13.5T -Fixed Timing
HW30408010 XERUN Justock G2.1 Motor 13.5T Fixed Timing
HW90040120 XERUN - 1/10 - Sensored - BL - Motor - 13.5T
LRP520006 X22 Modified Motor 6.5T
LRP520200 X22 Stock Spec Motor - 10.5T
LRP520201 X22 Stock Spec Motor - 13.5T
LRP520202 X22 Stock Spec Motor - 17.5T
LRP520305 X22 N.B. Modified Motor - 6.5T
SK-400003-56 ARES Pro V2.1 Modified Motor 6.5T
SK-400003-57 ARES V2.1 Spec Motor 10.5T
SK-400003-58 ARES V2.1 Spec Motor 13.5T
SK-400003-59 ARES V2.1 Spec Motor 17.5T
SK-400003-61 ARES Pro V2.1 Modified Motor 3.5T
Brushless Accessories
CR134 Core Sensor Lead; 180mm
CR254 150mm Flat Bonded Flex Sensor Wire
CR651 150mm Super Flex 26GA Silicone sensor Wire
CR652 125mm Super Flex 26GA Silicone Sensor Wire
LRP819315 Sensor Wire Highflex 150mm
MR33-CF30 MR33 Cooling Fan 30mm
Brushless Speed Controls
CR173 PACE 45R Brushless ESC 1s/2s
CR174 PACE 45R/60R Programming Card
CR199 PACE 60R Brushless ESC 1S/2S
HW30112121051 XERUN - V3.1 - 1S - BL - ESC - 120A - Black
HW30112603 XERUN - XR10 - Pro - 1S - 120A - ESC
HW30112609 XERUN - XR10 - Pro-1S Heavy Duty-V4.1 Black
HW30112751 XERUN - XR10 - Pro - Stock Spec - 1S - V4 - Black
Batteries
AM700301 AM Lipo 6200mAh 1s 3.7V - 65/130C
AM700302 AM Lipo 8000mAh 1s 3.7V - 55/110C
AM700303 Lipo 8000mAh 1/12 -3.7V-60/120C Si-Graphene
CR007 CORE RC Silicone Wire 12g - Red/Black 2x50cm
CR009 CORE RC RED Connector with 2x4mm Males
CR050 CORE RC Silicone Wire 12AWG - Red 1 Metre
CR051 CORE RC Silicone Wire 12AWG - Black 1 Metre
CR052 CORE RC Silicone Wire 12AWG - Blue 1 Metre
CR115 CORE RC Silicone Wire 12g - Red/Black/Blue 3x50cm
CR279 1S Lipo 8000mAh 100C Pro Series - 3.7V
CR287 Silicone Wire Black 14 AWG - 1Mtr
CR288 Silicone Wire Black 16 AWG - 1Mtr
CR292 CORE RC-3200mAHr 3.7V 30/60C 1S Lipo
CR653 Core RC Silicone Wire 13AWG- Black-1 Mtr
DA771003 DASH 12AWG Wire Black
DA771004 DASH 13AWG Wire Black
DA771005 DASH 14AWG Wire Black
FAN26187 Fantom 1S 7800mAh Lipo - 4mm
FAN26187-5 Fantom 1S 7800mAh Lipo - 5mm
IPCC1S6600HV4 Intellect Lipo LiHV 120C 1S 6600mAh 3.8V
IPCC1S8200HV4 Intellect Lipo LiHV 120C 1S 8200mAh 3.8V
LRP430268 Lipo 8000mAh - P4 1/12 Ultra LCG - 3.7V
LRP430270 Lipo 6200mAh - P4 1/12 Ultra LCG Stock Spec - 3.7V
MR33-SB2 MR33 Lipo Battery Safety Bag - V2
General Accessories
CR005 CORE RC Battery Tape - Black 50m
CR043 CORE RC - Silver X-Weights 16pcs
CR058 CORE RC - Black X-Weights 16pcs
CR060 Small Body Clip 1/10 - Gloss Black (8)
CR061 Small Body Clip 1/10 - Silver (8)
CR062 Small Body Clip 1/10 - Gold (8)
CR063 Small Body Clip 1/10 - Fluorescent Yellow (8)
CR064 Small Body Clip 1/10 - Fluorescent Green (8)
CR065 Small Body Clip 1/10 - Fluorescent Red (8)
CR066 Small Body Clip 1/10 - Metallic Green (8)
CR067 Small Body Clip 1/10 - Metallic Red (8)
CR068 Small Body Clip 1/10 - Metallic Blue (8)
CR069 Small Body Clip 1/10 - Metallic Purple (8)
CR159 CORE RC Battery Tape - Orange 50m
CR197 CORE RC - Glass Setup Board
CR297 CORE RC - Neoprene Bag
CR518 Super Glue Nozzles - pk10
CR519 Under LiPo Weight 35g brass 1S/Shorty
CR522 CORE RC - 522 Pro Tyre Glue + 2 Nozzles
CR548 CORE RC - Tool Bag
CR549 CORE RC - Oil Bag
CR663 Slim Battery Tape - Black - 12mm x 25M
CR725 Double Sided Tape - Clear/Rubber - 25mm x 1m
CR726 Double Sided Tape - Grey/Foam - 25mm x 1m
DF4260269080410 Dry-Fluid Extreme RC Car - 20ml
DF4260269080731 Dry-Fluid Extreme Gear Lube - 10ml
G353 Schumacher Glass Setup Board
G354 Schumacher - Neoprene Bag
J003 Contact RC - Glass Setup Board
J005 Contact LMP12 Rear Wheel Centre Finder pr
SXT00080 SXT Ice Tyre Glue
SXT00085 SXT Silk Anti Wear Grease
U4831 Aerial Tube Cap - Black - 6pk
1 / 1 2th PRO L MP CHASSIS
Spares 3
PAGE 17

Tools
CR044 CORE RC - Curved Body Scissors
CR045 CORE RC - Straight Body Scissors
CR103 Magnetic Parts Tray - Black
CR148 CORE RC - Polybutler Pit Box; Black
CR248 Hobby Bench Vice
CR271 4 Way Wrench Small - 4.0,4.5,5.5,7.0mm
J005 Contact LMP12 Rear Wheel Centre Finder pr
U2789 Schumacher Hex Driver - 1.5mm
U2790 Schumacher Hex Driver - 2.0mm
U2791 Schumacher Hex Driver - 2.5mm
U2792 Schumacher Hex Driver - 3.0mm
U2795 Schumacher M3 Nut Driver
U2818 Schumacher Body Reamer
U4229 Steel Spanner - 5.5mm/3.9mm
1/12 Foam Tyres - LMP12 - Circuit
JT2-28RA 1/12 Rear Soft Pink 28Sh A Foam - 46mm
JT2-30FA 1/12 Front Pink 30Sh A Foam - 44mm
JT2-30FJ GT12-1/12 Front Pink 30Sh J Foam - 44mm
JT2-30RA 1/12 Rear Pink 30Sh A Foam - 46mm
JT2-30RJ 1/12 Rear Pink 30Sh J Foam - 46mm
JT2-30RT 1/12 Rear 30Sh T Foam - 46mm
JT2-32FA 1/12 Front Magenta 32Sh A Foam - 44mm
JT2-32FJ GT12-1/12 Front Magenta 32Sh J Foam
JT2-32RA 1/12 Rear Magenta 32Sh A Foam - 46mm
JT2-32RJ 1/12 Rear Magenta 32Sh J Foam
JT2-35FA 1/12 Front Double Pink 35Sh A Foam - 44mm
JT2-35FJ GT12-1/12 Front Double Pink 35Sh J Foam
JT2-35FT GT12-1/12 Front T Foam 35Sh - 44mm
JT2-35RT 1/12 Rear 35Sh T Foam - 46mm
JT2-40FT GT12-1/12 Front T Foam 40Sh - 44mm
JTCF 1/12 Front 32Sh Control Tyre 44mm
JTCR 1/12 Rear 30Sh Control Tyre 46mm
U4828 Tyre Truer Rear Wheel Insert - Atom
Paint
CR599 Spraygun Pro for Core paint
CR600 Aerosol Paint - White Knight
CR601 Aerosol Paint - Yellow Taxi
CR602 Aerosol Paint - Fire Red
CR603 Aerosol Paint - French Blue
CR604 Aerosol Paint - Petrol Blue
CR605 Aerosol Paint - Racing Green
CR606 Aerosol Paint - Jet Black
CR607 Aerosol Paint - Lime Green
CR608 Aerosol Paint - Tangerine
CR609 Aerosol Paint - Hot Pink
CR610 Aerosol Paint - Berry Purple
CR611 Aerosol Paint - Neon Yellow
CR612 Aerosol Paint - Neon Orange
CR613 Aerosol Paint - Neon Red
CR614 Aerosol Paint - Neon Green
CR615 Aerosol Paint - Neon Fire
CR616 Aerosol Paint - Neon Carrot
CR617 Aerosol Paint - Neon Pink
CR618 Aerosol Paint - Neon Blue
CR619 Aerosol Paint - Metallic Blue
CR620 Aerosol Paint - Metallic Graphite
CR621 Aerosol Paint - Metallic Silver
CR622 Aerosol Paint - Metallic Purple
CR623 Aerosol Paint - Metallic Green
CR624 Aerosol Paint - Metallic Red
CR625 Aerosol Paint - Metallic White
CR626 Aerosol Paint - Clear Sparkle
CR627 Aerosol Paint - True Chrome
CR628 Aerosol Paint - Clear Backing
CR629 Aerosol Paint - Window Tint
CR631 Aerosol Paint - Spearmint
CR666 Aerosol Paint - Flat Matt Finish
CR667 Aerosol Paint - Glacier Sapphire
CR668 Aerosol Paint - Glacier Raspberry
CR669 Aerosol Paint - Glacier Gold
CR670 Aerosol Paint - Glacier Plum
CR671 Aerosol Paint - Shark Grey
CR672 Aerosol Paint - Bullion Gold
HN20000 Airbrush Bottle Adapter for 60ml/120ml
HN20010 Airbrush Paint Clear Coat - 60ml
HN20020 Airbrush Paint SP Reducer/Cleaner 60ml
HN20021 Airbrush Paint SP Reducer/Cleaner 120ml
HN21000 Airbrush Paint Chrome 60ml
HN22000 Airbrush Paint Solid White 60ml
HN22001 Airbrush Paint Solid White 120ml
HN22020 Airbrush Paint Solid Grey 60ml
HN22030 Airbrush Paint Solid Black 60ml
HN22031 Airbrush Paint Solid Black 120ml
HN22040 Airbrush Paint Solid Yellow 60ml
Paint Cont....
HN22050 Airbrush Paint Solid Orange 60ml
HN22060 Airbrush Paint Solid Red 60ml
HN22080 Airbrush Paint Solid Aqua Blue 60ml
HN22090 Airbrush Paint Solid Sky Blue 60ml
HN22100 Airbrush Paint Solid Blue 60ml
HN22110 Airbrush Paint Solid Green 60ml
HN22130 Airbrush Paint Solid Brown 60ml
HN23000 Airbrush Paint Transparent Yellow 60ml
HN23010 Airbrush Paint Transparent Orange 60ml
HN23020 Airbrush Paint Transparent Pink 60ml
HN23030 Airbrush Paint Transparent Red 60ml
HN23040 Airbrush Paint Transparent Purple 60ml
HN23050 Airbrush Paint Transparent Blue 60ml
HN23060 Airbrush Paint Transparent Green 60ml
HN23070 Airbrush Paint Transparent Grey Tint 60ml
HN24000 Airbrush Paint Pearl White 60ml
HN24010 Airbrush Paint Pearl Silver 60ml
HN24020 Airbrush Paint Pearl Gold 60ml
HN24030 Airbrush Paint Pearl Orange 60ml
HN24050 Airbrush Paint Pearl Red 60ml
HN24060 Airbrush Paint Pearl Copper 60ml
HN24070 Airbrush Paint Pearl Blue 60ml
HN24080 Airbrush Paint Pearl Key-Lime Green 60ml
HN24090 Airbrush Paint Pearl Green 60ml
HN24100 Airbrush Paint Pearl Charcoal Grey 60ml
HN24110 Airbrush Paint Pearl Black 60ml
HN25000 Airbrush Paint Neon Yellow 60ml
HN25010 Airbrush Paint Neon Flame Orange 60ml
HN25020 Airbrush Paint Neon Orange 60ml
HN25030 Airbrush Paint Neon Pink 60ml
HN25040 Airbrush Paint Neon Razberry 60ml
HN25050 Airbrush Paint Neon Red 60ml
HN25060 Airbrush Paint Neon Purple 60ml
HN25070 Airbrush Paint Neon Blue 60ml
HN25080 Airbrush Paint Neon Green 60ml
HN26000 Airbrush Paint Iridescent Yellow 60ml
HN26010 Airbrush Paint Iridescent Candy Red 60ml
HN26020 Airbrush Paint Iridescent Red 60ml
HN26030 Airbrush Paint Iridescent Purple 60ml
HN26050 Airbrush Paint Iridescent Teal Green 60ml
HN26060 Airbrush Paint Iridescent Turquoise 60ml
HN27000 Airbrush Paint Change Gold 60ml
HN27010 Airbrush Paint Change Red 60ml
HN27020 Airbrush Paint Change Purple 60ml
HN27030 Airbrush Paint Change Blue 60ml
HN27040 Airbrush Paint Change Green 60ml
1 / 1 2th PRO L MP CHASSIS
Spares 4
PAGE 18

Adjust the nut for minimum
endoat. Ensure the wheel
rotates freely.
Wheels and Tyres not
included in the kit.
M3 Nyloc
Black Alloy
x 2
Alloy M3 x 8
x 6
1/8”x 5/16”
Flanged
x 4
1 / 1 2th PRO L MP CHASSIS
STEP 19
PAGE 19
