Jieguan DL(JGGC) Series User manual

ADD:NO.1-2,Qigan RD,south area of the economic development in ZhangJiagang
T EL:+86-512-
FAX:[phone]
E-mail:[email protected]
Website:
58269626 58269326 58269316
www.tpypumps.com
ZHANGJIAGANG PACIFIC PUMP MFG.,LTD
TPY
R
Vertical multistagecentrifugal pump operatingmanual
Manufacturer Zhangjiagang Pacific Pump MFG Co., LTD
Version No V-2011-8-A
V-2011-8-A 2011-8-18
Date 2011-8-18
INDUSTRIAL PUMP
CHEMICAL PUMP
MARINE PUMP
LIQUID PUMP
FIRE PUMP
R

TPY
R
TPY
R
Table of Contents Table of Contents

TPY
R
TPY
R
12
1Manual Introduction
1.1 Preface
This manual contains important information for reliable proper and
efficient operation .Compliance with the operating instructions is of
vital importance to ensure reliability and a long service life of the
product and to avoid any risks.The first chapters contain information
about this manual and safety in general.The following chapters
provide information about normal use,installation,maintenance and
repairs of the product.The annexes contain the technical data,the
parts drawings and the declaration(s) of conformity.
Make yourself familiar with the content
Accurately follow the directions and instructions
Never change the sequence of the operations to be carried out
Keep this manual or a copy of it together with the logbook in a fixed
place near the product which can be accessed by all personnel
1.2 Icon and symbols
In this manual in all accompanying documentation the following
icons and symbols are used
GB 3805-83
WARNING
Danger of electricvoltage.safety sign according to
GB 3805-83
GB/T 5465.2 1996
WARNING
Operations or procedures,if carried out without caution,
may cause personalinjury or damage to the product.
General hazard sign according to GB/T 5465.2 1996
ATTENTION
Is used to introduce safety instructions whose non-observance
may lead to damage to the product and its functions
ENVIRONMENT INSTRUCTION
Remarks with respectto the environment
2
Identification,service and technical support
2.1 Obtaining data andinformation
The name plate indicates the type/size,main operating data and
identification number. Please quotethis information in allqueries,
repeat orders and particularly when ordering spare parts. If you
need any additional or instructions exceeding the scope of this
manual or in case of damage please contact TPY's nearest cus
tomer service centre.

TPY
R
TPY
R
34
1:
Figure 1:Pump withmotor
1:
Table1:Description sticker
DL(JGGC)7-100
4KW
60HZ
Q3
7m /h
H100 m
n 3480 r/min
Motor power
Frequency
Capacity
Head
Rotation speed
2:
Figure 2:Pump without motor
3:
Figure 3:Duty point
2.2 Seal codes
2:
Table2:Material code shaftseal
Tseat-ring
YG8
Tacting-ring
Tungsten cobalt alloy
Fspring
Fspring seat
Nickel chrome steel
0Cr18Ni9
V0
O-rings Viton
Viton
GB/T6556-94
Code acc.to GB/T6556-94
Description
Meterial
Nickel chrome steel
0Cr18Ni9
YG8
Tungsten cobalt alloy
2.3 Norminal current
The nominal allowable current of themotor is stated onthe motor
plate.This shows the nominal workong range ofthe motor and can
be used to protectthe motor
Measuring the actual current of the pump during operation can be
used to pre-set the motor protection switch to protect the pump/motor
combination
This current value can also be used determine
the proper electrical equipment such as variable
frequency drive, main switch, wiring diameter etc.
WARNING
Not only the motor,but
alsothe pump has to be
protectedin its application

TPY
R
TPY
R
56
3 Warranty
3.1 Terms of warranty
The warranty period is settled by the terms of your contract or at
least by the general terms and conditions of sales.
ATTENTION
Modification or alterations of the product supplied are only
permitted after consultation with the manufacturer.Original
spare parts and accessories authorized by the manufacturer
ensure safety.The use of other parts can invalidate any liability
of the manufacturerfor consequential damage
ATTENTION
The warranty relating to the opeating reliability and safety
of the product supplied is only valid if theproduct is used in
accordance with its designated use as described in the
following sections of this manual.The limits stated in the
data sheet mustnot be exceeded under any circumstances
The warranty becomes invalid if one or more of the points below occur
The buyer makes modifications himself
1/3
The buyer carries out pepairs himself or has these carried out by a third party.
The product has been handled or maintained improperly.
The product has non original TPY spare parts fitted
remedies defects under warrantyTPY
if the points blow are observed
Defects are caused by flaws in the design,the material or the production.
The defect has been reported withinthe warranty period
Other terms of warranty have been included in the general terms
of delivery,which are available upon request.
4
Safety and environmnt
4.1 General
This TPY product has been developed using state-of-the-art technology;it is
manufactured with utmost care and subject to continuous quality control.TPY
does not accept any liability for damage and injure caused by not observing
the directions and instructions in this manual.This also applies in cases of
carelessness during the installation procedure, use and maintenance of the
product.Non-compliance with safety instructions can jeopardize the safety of
personnel,the environment and the product itsself.Non-compliance with these
safety instructions will also lead to forfeiture of any and all rights to claims for
damages.
For exanple,in particular non-compliance can result in:
failure of important pump/system functions
failure of prescribed maintenance and servicing practices
injure to persons by electrical,mechanical and
chemical effects
hazard of the environment due to leakage
of hazardous substances
explosions

TPY
R
TPY
R
78
Depending on specific activities,extra safety measures may be
requires.Contact TPY if a potential danger arises during use.
ATTENTION
Make sure that the product operates within its working range.
Only then the product performance is guaranteed
ATTENTION
Not only must the general safety instructions laid down in
this chapter on "Safety" be complied with,but also the safety
instruction outlined under specific headings
4.2 Users
All personnel in volves in the operation, maintenance,inspection
and installation of the product must be fully qualified to carry out
the work involved.
Personal responsibilities,competence and supervision must be
clearly defines by the operator.if the personnel in question is not
already in possession of the requires know-how,appropriate
training and instruction must be provided.if required,the operator
may commission the manufacturer/supplier to take care of such
training.In addition,the operator is responsible for ensuring that
the contents of the operating instructions are fully understood by
the responsible personnel.
4.3 Safety provisions
The product has been designed with the greatest possible care.
Original parts and accessories meet the safety regulations.
Modifications in the construction or the use of non-original parts
may lead to a safety risk.
ATTENTION
Make sure that the product operates within its working
range.only then the product performance is guaranteed
4.3.1 Lable on theproduct
The icons,warnings and instructions applied to the product are
part of the safety provisions.The lables may not be removed or
covered.Lables must remain legible during the entire life of the
product.Replace damaged lables immediately.
power supply.
Cover the parts that can become hot,so direct contact is impossiple.
When applicable,always placeundeformed coupling protection
plates to protect the coupling,before putting thepump into use.
Make sure that the coupling protection plates are never in contact
with the runningcoupling.
.
Always closethe terminal box on the pump.
4.4 Safety precautions
Contact the localelectricity company forquestions about the
4.4.1 During normal use

TPY
R
TPY
R
910

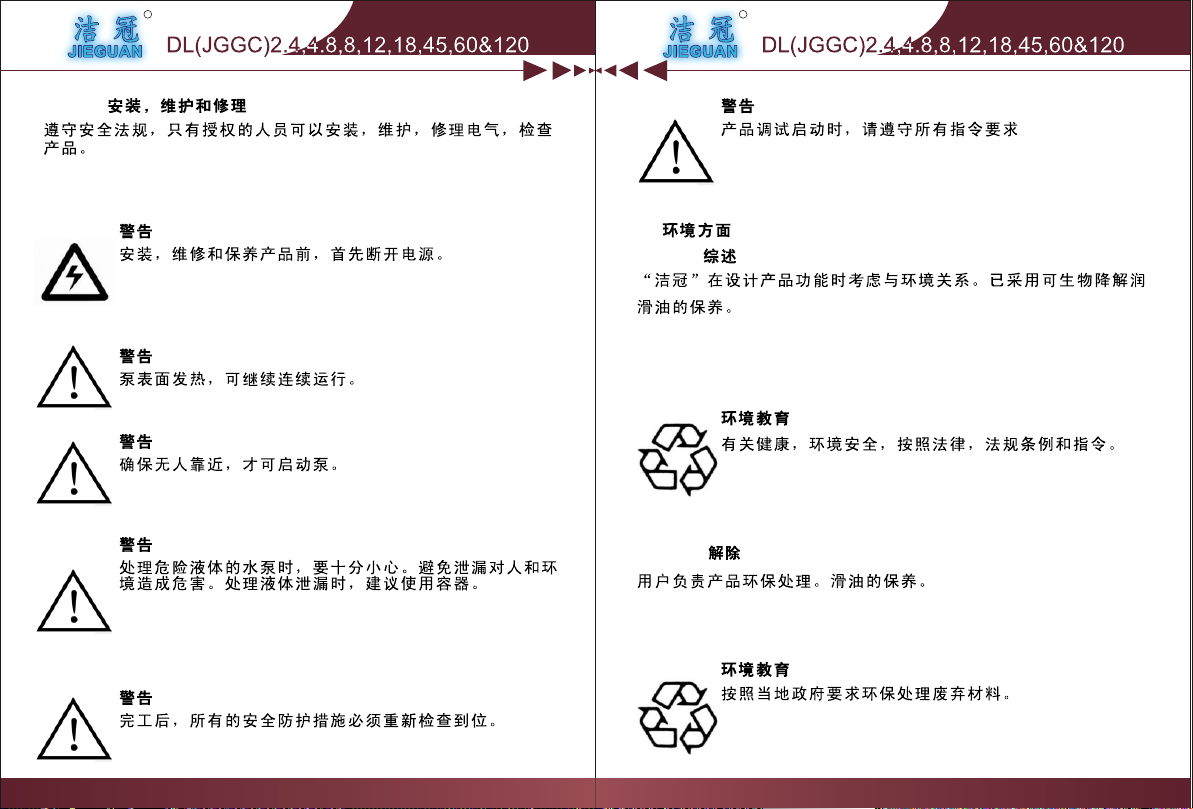

Only authorised personnel may install,maintain and inspect the
product and repair electrical components.Oberve the local safety
regulations.
4.4.2
During installation,maintenance and repair
WARNING
Always disconnect the energysupply to theproduct first,
before installation,maintenance and repairs,Secure this
disconnection
WARNING
Surfaces of a pump can be hot, after continuous operation.
WARNING
Make sure that noone can be nearrotating components
when starting a pump.
WARNING
Handle a pump with dangerous liquids with the ut most
care. Avoiddanger for persons or the environmentwhen
repairing leakages,draining liquids and venting.It is strongly
recommended to place a relief barge under the pump.
WARNING
Immediately following completion of the work,all safety-relevant
and protective devices must be re-installed and/or re-activated.
WARNING
Please observe all instructions set out in the chapter "
Commissioning/start-up"before returning the product to
service
4.5 Environmental aspects
The products of TPY are designed to function in an environmentally
friendly way during their entire life.Therefore,when applicable,always
use biodegradable lubricants for maintenance.
4.5.1 General
ENVIRONMENTAL INSTRUCTION
Always act according to the laws,by-laws regulations
and instructions with respect to health,safety and the
environment.
ENVIRONMENTAL INSTRUCTION
Ask at the local government about the resue or the
environmentally friendly processing of discarded
materials.
4.5.2 Dismantling
Dismantle the product and dispose of it in an environmentally friendly
way.The owner is responsible for this

TPY
R
TPY
R
11 12
5
Pump Introduction
5.1 Model key
4: DL(JGGC)7-100
Table 4:Model key example DL JGGC 7-100
Product Lable
100 Head m
Capacity m /h
3
100
5.2 Description of theproduct
The vertical,single or multi stage centrifugal pump series are designed
for pumping clean,or lightly aggressive,watery mediums.Suction and
discharge of the pump are in-line, making the pump easy to install.The
hydraulic assembly is driven by an electric motor.
All hydraulic parts of the pump are made of stainless steel.
5.3 Modular selection
To suit almost every application the pump is assembled out of modules
which can be selected depending on the required working range.Basic
module are:
Basic pump model:which defines the capacity pressure and basic material
Connections:which define the suction and discharge connection as well
as the base plate
7
Type DL JGGC
Data 7
DL(JGGC)
Sealings:which define the elastomers,the mechanical seal and the shaft seal type.
Electric motor:which defines all requirements of the motor such as motor
size,power,voltage, frequency and all possible motor accessories.
5.4 Operation
4 DL(JGGC)7-100
A
B
During centrifugal operation of the pump an negative pressure is created
at the inlet of the impeller.This underpressure enables the medium to enter
the pump at the suction connection(A).
Every stage(B)consists of an impeller and diffuser.The passage of this
stage determines the capacity of thepump.The diameter of the stages is
related to the centrifugalforces and its"stage pressure":the more stages,
the more pressure.
C
D
This total capacity and raised pressure will be guided to the outside
of the pump,between the pump stages and the outer sleeve and the
medium will leave the pump at the discharge connection(D).
5.5 Measuring,draining and venting
EF
The pump isprovided with plugs for measuring, draining E and
venting(F).
A
(A)The suction pressuremouth
D
(D)The outlet pressuremouth

TPY
R
13
TPY
R
14
5.6 Working range
5.3
5
The working range depends on the application and a combination of
pressure and temperature. For specific and detailed limits advice the
working ranges aredescribed in the chapter 5.3: Modular selection.
The overall working range of the pumps can be summarised as follows:
5:
Table5: Specification ofthe working range
DL(JGGC)
[]Tem +40 (upto40) 1
NPSH NPSH +2m
(seaorwater) 2
Cooling (aircooling) 3
[Hz] Min frequency 50
[Hz] Max frequency 60 4
5 m-1mm
Allowable solids pumped
[kg/m ] Density
3
1. 1000
If the environment temperature more than the value or motor, located 1000
meters above, motor cooling efficiency, can choose the right lower motor.
Motor load level to adjust, please contact"TPY" customer service centre
for more support.
2.
Deviation in viscosity and/or density could require an adapted motor
power.Please contact your supplier for more detailed advice
3.
The cooling fanin order to have a sufficient flow of (cooling) air
4. 50Hz 60Hz
5.7 Explosion safety
This chapter contains fundamental information which has to
be taken inconsideration when installingthe pump withEX
permission in ahazardous environment.
ATTENTION
Stickers or indicatorson the pumpsleeve and the motor indicates
whether the pumpis suitable foruse in an environment with risk of
explosion.
GB 3836
It is allowed to install the pump in a zone which is classified in
directive Gb3836
When in doubtit is compulsoryto check the above directive.
5.7.2 Indication
Ex(ia) C 2G T4-T5
GB 3836
TPY JIEGUAN
Pumps that are intended for 50 Hz operation,may not be connected 60
Hz power supply.

TPY
R
15 16
7: Explosion safety
II
Product group for use above ground ,with the exception of
mineworking where there can be danger of explosion due
to mine gas and/or flammable substances.
2
Category 2:Equipment in this category is intended for use in areas
in which explosive atmospheres caused by mixtures of air and gases,
vapours or mists or by air/dusts mixtures are likely to occur.
GSuitable for an environment that is explosive due to gas,vapour
or fumes;not suitable for an environment that is explosive due to
dust.
T4/T5
:Temperature class:
T4 135
T4 for medium temperatures up to135
T5 100
T5 for medium temperatures above100
ATTENTION
When the pump is placed in an explosion hazardous
environment no pump should be opened or disassembled
on site.Due to the probable creation of sparks during
loosening and tighteningof nuts and blots.
5.7.3 ( )check list
It is compulsory to check these points prior to put the pump in operation.
Check if the EX-data on the motor and the in line with the specified
category.
When the categoriesof the motorand the pump are different,the
lowest category isleading.
2
For category 2:make sure that the pump is protected against
damage from outside.
Check that the motor cable is suitable for the current drawn by the
motor.See:motor typeplate.
Check that the pumpis fully filled withthe liquid(de-airated). Do
not run the pumpdry.
Check the rotational direction of the motor.The motor has to run
clockwise (seen from the non driven side).This direction is
indicated with an arrow on the pumptop bracket.
T5/T4 7
Make sure that the liquid temperature never exceeds the temperature
mentioned in the explosion safety code T5 or T4. See table 7:Explosion
safety.
56
Avoid overheating of the pump to ensure a minimum flow in the pump
according with the description in chapter 5.6:Working range
:
The pump hasto be de-airatedagain when:
The pump istaken out ofoperation
TPY
R
16

TPY
R
TPY
R
17 18
Make sure thatthe pump isconnected to ground
Some air isgathered in the pump
Make sure that the pump and the motor shaft are running smoothly
and without excessive noise(e.g.no parts are running against each
other).
note
EX
ia
IIC
2G
T4
T5
Ex Type
statement
Gas Type
Gas Type
Temlevel
C
ia 0
GB3836
Meet explosion-proof standard of China GB3836
use ia essentialsafety explosion-proof
Be allowed toinvolve IIC explosivegas
2G G
2G says surface gas high protective category
T5 100
T5 100 Cs2
T4 135 6
T4 135 C2H40,C2H4,etc.
Llsts
8 Gas temperature intogroups
Tem Surface tem Gas explosion
T1
T2
T3
T4
T5
T6
450
100
85
135
200
300
46
H2,C3H3N etc.
47
C2H2,C2H4etc.
6
C2H40,C2H4,etc.
C
S2
C2H5NO3,C2H5NO2
36
gasoline,C4H6O,etc.
For the dangeroussites explosion-proof method:
number
1
2
EX Type code
national standard EX protection Applicable areas
flame proof
d
e
ia
GB3836.2
Isolated existence of ignition
Zone1,Zone2
3
ib
Type increasing safety
GB3836.3
Produce ignition
Zone1,Zone2
The Ann model
GB3836.4
Limit the ene-rgy of ignition
Zone0-2
Zone1,Zone2
4
5
6
7
8
9
p
o
q
n
m
h
Is pressed
GB3836.5
Isolated from dangerous
mater-ial and ignition
Zone1,Zone2
Filling oil type
Mold filling
No spark type
Encapsulation type
Airtight type
GB3836.6
GB3836.7
GB3836.8
GB3836.9
GB3836.10
Isolated from dangerous
mater-ial and ignition
Produce ignition
Produce ignition
Zone1,Zone2
Zone2
Zone1,Zone2Zone1,Zone2
Zone1,Zone2
Zone1,Zone2
Isolated from dangerous
mater-ial and ignition
Produce ignition

TPY
R
TPY
R
19 20
Gas explosion ofthe four dangerouslevel
Working class Gas Type Representative gas Min energy spark detonated
0.280mJ
mine methane
A 0.180mJ
propane
B 0.060mJ
Mine out of the factory
ethylene
C 0.019mJ
hydrogen
6 Tansport
6.1 Tansport
1.
Transport the pump in the position as indicated on the pallet or
packaging.
2. .
Make sure the pump is stable.
3. .
If present,observe the instructions on the packaging.
ATTENTION
Lift the pump,if necessary using a hoist and suitable
slings.Attach the slings to the transport lugs on the
packaging, where present.
The pump must be lifted according to the current hoist
guidelines.Only qualified personnelis allowed tolift the
pump
ATTENTION
ATTENTION
()
Do not liftthe pump by using the frequency converter(if
placed),electrical parts orthe motor cover.Be sure that
the pump isalways in balance.
9 Transport positions
6.2 Storage
()
Fill the pump with glycol in order to protect it against the risk of frost.
10 Storage
Storage
[]
t[ ] ambient
+40
up to 40
Max.rel.humidity
80% 20
80%at20 not condensing

TPY
R
TPY
R
21 22
6.2.1 Inspection during storage
1.
Turn the shaft every three months and just before putting into operation
7
Installation instructions
7.1 Setting up the pump
ATTENTION
Make sure that the pump conne-ctions are not over-stressed
at the inlet and outlet connectio-ns.Please see the table below.
11 Allowable forceDL
DL2.4 25 9400 3200 3200 10400
DL4.8 25 9400 3200
DL8 40 9400 3200
DL12 65 11000 2000 6500 12900
DL18 65 11000 2000 6500 12900
DL120 100 60000 40000 40000 82500
3200
3200
10400
10400
type DN[mm] Force[N]
Fx Fy Fz F
12 Table 12:Allowable torque DL
DL2.4
DL4.8
DL8
DL12
DL18
Dl120
25 600
600
600
460
460
3600
25
40
65
65
100
type DN[mm] Force[N]
Fx Fy Fz F
300
300
300
460
460
6100
360
360
360
1000
1000
4800
800
800
800
1200
1200
8600
ATTENTION
For the values mentioned in the tables above,it is assumed
that they occur simultaneously
ATTENTION
Pumps which do not stand steady or stable on their own,
should be mounted on a rigid and stable base.
ATTENTION
Locate the pump at the place with the lowest risk for noise
nuisance.
1. , ,
Place and install the pump on a level, stable surface in a dry and
frost-free room.
2.
1/ 4
Make sure thst sufficient air can reach the cooling fan of the motor.
For this purpose the free space above the cooling fan should be at
least 1/4 of the diameter of the fan cover air intake.
6
Figure 6:Allowable forces

3.
Install the pump with counter flanges. For pumps with non-standardised
connections, counter flanges are deliveres separately.
TPY
R
TPY
R
23 24
4.
It is advised to install a valve on the supply and on the delivered
separately.
5.
To avoid medium flowing back through the pump,when idle,make
sure a non-return valve is installed.
6.
Make sure that the inlet of the pump is never clogged.
7 Pump indicators
(A) (B)
The arrow (A)on the pump foot indicates the flow direction of the
liquid.The arrow (B) on the top bracket indicates the rotatingdirection
of the motor
7.2
Mounting a motor on the pump
ATTENTION
It is advised to use a specially designed TPY motor.Before
installing an other brand/standard JYD motor,TPY has to be
consulted to verify the applicability.
7.3 Electrical install
WARNING
Only authorised personnel is allowed to make electrical
connections to the motor.This is in accordance with the
local regulations

TPY
R
TPY
R
25 26
ATTENTION
Connect the motor according to table and always check the
rotation direction.
:
Electrical connections:
Make sure that the motor specifications correspond with the power
Supply to which the pump motor is connected.Consult"Electrical diagrams"
In the annexes for the correct connection diagram.
Connect the motor using a motor safety switch.
7.4 Commissioning
The pump must not be switched on when it is not completely
filled up.
WARNING
ATTENTION
Seen from the top of the motor the pump should rotate
clockwise .See 7.1.1 Indicators 17(B). In case of a 3phase
motor the rotating direction can be changed by exchanging
two of the three phase wires.
7.4.1
In an open or closed circuit with sufficient supply pressure.
1. (A) (B)
Open the suction shut-off valve(A)and the outlet shut-off valve(B).
2. (C).
Open the fill plug(C).
3. (C).
Grandually open the suction shut-off valve until the liquid flows from the
fill plug(C).
4. .
Close the fill plug.
5. .
Fully open the suction shut-off valve.
6. .
Check the rotational direction of the pump.
7. .
Fully open the outlet shut-off valve.

TPY
R
TPY
R
27 28
7.4.2
In an open circuit with a liquid level lower than the pump
1. (C).
Remove the fill plug(C)from the top bracket.
2. .
Close the outlet shut-off valve.
3.
Fill the pump housing to the maximum through the fill plug with the liquid
that is to be pumped.
4.
Insert the fill plug in the top bracket.
5.
Check the rotational direction of the pump.
6. .
Open the outlet shut-off valve.
7.4.3 .
After an extended period of non-operation or storage.
During first start-up,check the mechanical seals for leakage due to seizure
or dehydration of the lubricating film.If so ,Please proceed as following:
1.
Turn shaft manually or
2.
Start up the pump,then open and close the outlet shut-off valve quickly
during operation.
Check if the mechanical seal is still leaking.
3.
:
If the shaft is still leaking:
1. .
Disassemble the mechanicalseal.
2. .
Thoroughly clean and decrease therunning surfaces.
3. .
Assemble mechanicalseal and start-up.
.
If doesn't solve, replace themechanical seal
8
8.1 Operation
The pump is controlled externally and therefore does not need
any operation guidance.

TPY
R
TPY
R
29 30
9 Maintenance
9.1 Introduction
WARNING
Observe the generalsafety precautions for installation
maintenance and repair.
Regular maintenance is necessary for the correct operation of a pump.For
maintenance of the pump, please contact your supplier"TPY".
9.2 Lubrication
2000 ,
Motors with lubricating nipples must be lubricated after 2000 hours. If the
pump works under extreme conditions, such as vibrations and high
temperatures, the motors must be lubricated more often.
-30 /160 .
Use a lithium based -30 /160 bearing lubricant(about 15 grams).
When the pump is delivered without a motor and fitted with an other brand
or the standard motor is replaced by an other brand than TPY, please consult
the maintenance instructions of themotor supplier.
ATTENTION
Also follow the instructions in 7.2:Mounting a motor on the
pump.
9.3
Maintaining the pump foran extended period of non-operation
Turn the shaft every three months.This protects the seals from seizure.
Protect the pump against if there is a risk of frost.Proceed as follows:
1. . Close all pump valves.
2. . Drain each pump and/or thesystem.
3. .
Open the shut-off and fill/air vent plug,if present.
10 Failures
Observe the generalsafety
precautions before install,
maintenance and repair.
10.1 Failure table
Problem Possible cause Possible solution Checkpoints
Leakage
along the
shaft
Running surfaces
of the mechanical
seal worn or
damaged
Replace the
mechanical
seal
Check the pump
for dir-abrasive
parts
New pump:seal
stuck due to
assembly
Open and close
the outlet shut-
off vavle quickly
during operation

TPY
R
TPY
R
31 32
Problem Possible cause Possible solution Checkpoints
Mechanical
seal mounted
incorrectly
Install the mechanical
seal correctly.Use water
and soap as a lubricant
Leakage
along the
shaft
Elastomers
affected by
medium
Use the rightrubber
com-pound for the
mechanical seal
Pressure
too high Use the right type
of mechanical seal
Shaft worn Replace shaft and
mechanical seal
Pump has been
operating without
water
Replace the
mechanical
seal
O
O-ring worn
Leakage
along the
shroud at
the top
bracket
or at the
pump foot
O
Replace the O-ring
O
O-ring not resistant
to the medium to be
pumped
O
Replace O-ring
by an O-ringwith
better resistance
Problem Possible cause Possible solution Checkpoints
Too much tension
on the pump foot;
it becomes oval
O
Decrease tension
on piping Mount
the pump foot
O-ring's tensionless
Support the connections
Leakage
along the
shroud at
the top
bracket
or at the
pump foot
Coupling mounted
incor-rectly
Install the coupling
in parallel
There is no water
in the pump
Fill and ventthe
pump
No supply
Make sure there is
sufficient supply .
Check for blockages
in the supply line
Bearing of pump
and/or motor worn
Have the bearings
replaced by a certified
company
Available NPSH
too low (cavitation)
Improve suction
condition
Pump does not work
in its working range
Select another pump
or adjust the system to
work within its working
range
Pump is
vibrating
or noisy

TPY
R
TPY
R
33 34

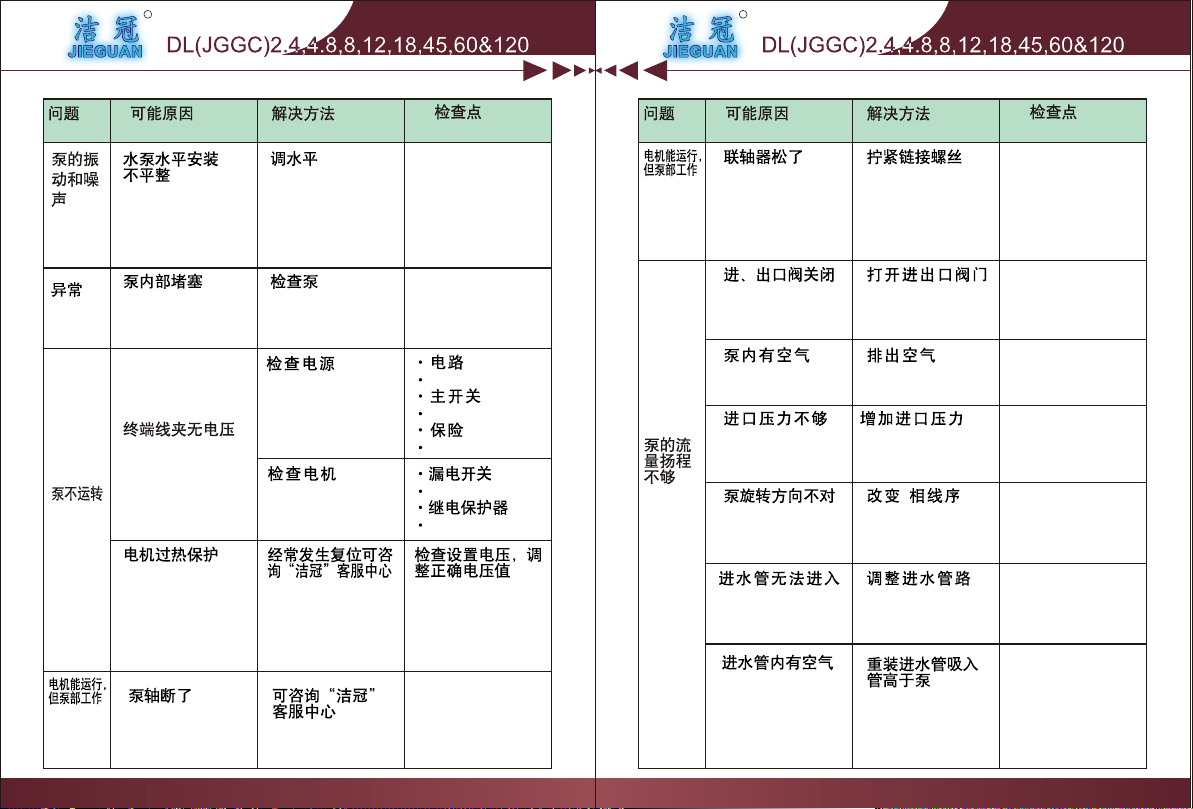

Problem Possible cause Possible solution Checkpoints
Pump is
vibrating
or noisy
Pump is standing
on an uneven
surface
Level the surface
Malfunction
Have the pump
inspected by a
certified company
Internal blockage
in the pump
Pump does
not start
No voltage on the
terminal clamps
Check the power
supply
Circuit
Main switch
Fuses
Earth leakage swith
Protective relay
Check the motor
safety relay
Thermal motor
safety switch
triggered
Reset the thermal
motor safety.Contact
TPY call centers,if
this problem occurs
more often.
Check if thecorrect
value is set.Find the
correct value(Inom)on
the motor type plate
The motor is
runnung, but
the pump does
not work
The pump shaft
has broken Contact TPY call
centers
Problem Possible cause Possible solution Checkpoints
The motor is
runnung, but
the pump does
not work
The coupling
between pump
and motor shaft
is loose
Tighten the
connecting
screws to the
recommended
torque
Pump
supplies
insufficient
capacity
and/or
pressure
Outlet and/or inlet
shut-off valve is
closed
Open both
shut-off
valves
There is airin
the pump
Vent thepump
The suction
pressure is
insufficient
Increase the suct
on pressure
Pump rotates in
the wrong direction
3
Change over L1
and L2 of the three
phase supply.
The suction line
has not been
vented
Vent thesuction
line
Air bubble in the
suction line Install the suction
line with pump end
higher than the
other end

TPY
R
35
Problem Possible cause Possible solution Checkpoints
Pump
supplies
insufficient
capacity
and/or
pressure
Pump sucks air
because of leakage
in the suction line
Repair the leakage
Too little water
consumption so
air bubbles clog
up in the pump
Make sure the
consumption
increases or use
a smaller pump
The diameter of
the suction line is
too small
Increase the
diameter of the
suction line
Capacity of water
meter in the supply
line is too small
Increase the capacity
of the water meter
Foot valve
blocked
Clean the foot
valve
The impeller or
the diffuser is
blocked
Clean the inside
of the pump
O
O-ring between
impeller and
diffuser is gone
O
Replace the
O-rings
TPY
R
36
Problem Possible cause Possible solution Checkpoints
Pump
supplies
insufficient
capacity
and/or
pressure
O
O-ring not
resistant to
the medium
to be pumped
O
Replace the
O-rings
