Jindara Kimberley Mk3 Freestanding User manual

Operation & Installation Instructions
Kimberley Mk3 Freestanding
Please keep these instructions for future reference.Rev* 231537
Kimberley Mk3 Freestanding 12
WARRANTY
Heating
A division of A.F. Gason Pty. Ltd.
1. Subject to clauses 2 & 3 of this Warranty, A.F. Gason Pty LtdACN 004 667 556 (Gason warrants the follow components of its heaters against defects in workmanship
and/or materials for the following periods from the date of purchase:
a) the rebox for ten years;
b) the paint nish for a period of twelve months if the Purchaser has followed the instructions provided by Gason in the Operation and Installation Instructions manual; and
c) all other components for twelve months execpt the glass, re brick lining or ba e plate if, in the opinion of Gason, these items have been damaged by impact.
2. This extended warranty does not apply;
a) if the heater is purchased from a person who has not been authorised by Gason to sell its products;
b) if, in the opinion of Gason, the heater or any other component has been subject to abuse, misuse, alteration, modi cation or has not been installed, operated or maintained in
accordance with the instructions provided by Gason; or,
c) to owners other then the original Purchaser.
3. If you believe that the heater you purchased contains a manufacturing defect and you wish to make a claim under this Warranty, please contact an authorised Gason service
centre to arrange for an assessment.
4. If, after assessing the heater, Gason determines that the heater contains a manufacturing fault, Gason may at its discretion:
a) replace the heater;
b) repair or replace speci c components of the heater; or
c) provide a full refund.
5. Parts replaced under warranty are warranted for the balance of their original warranty period.
6. If, at the discretion of Gason, the heater or any part needs to be replaced, serviced or repaired at an authorised Gason service centre, then the person claiming under this
Warranty must pay all costs associated with:
a) returning the heater; and
b) the delivery or collection of any new or repaired heater.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Any bene ts you receive under these warranties are in addition to other rights and remedies that you may have as a consumer under a law in relation to the heater to which
these warranties relate.
These warranties are given by:
A.F. Gason Pty. Ltd.
Blake Street
Ararat VIC 3377
Please contact us if you have any queries on:
Phone: [phone]
or email us via the “Contact Us” section of our website: www.gason.com.au

Kimberley Mk3 Freestanding 2 Kimberley Mk3 Freestanding 11
PAGE INTENTIONALLY BLANK
Troubleshooting (Continued)
Read and follow these instructions carefully before installing and
u
sing this appliance
S
AVE THESE INSTRUCTIONS
WARNING
!
WARNING
!
Safety Warnings
•
A ue re with resulting damage may occur if the appliance is not installed,
operated and maintained as per this booklet.
•Never place combustible materials such as wood, paper or furniture near the
appliance.
•This appliance is designed to burn dry hardwood. Do not burn rubbish,
driftwood, ammable liquids or any substance containing salts or corrosives.
•This appliance must not be installed and operated in an area where kerosene,
petrol, paint thinner or other ammable liquid is used or stored.
•The ue system must be inspected and cleaned annually or sooner if required.
Failure to do so could result in an excessive build up of creosote which may
result in a ue re which may damage the ue or cause damage to your home.
•The surface of the appliance becomes hot during operation. Do not touch the
surface of this appliance. Keep children away from this appliance during
operation. Do not allow anyone to operate this appliance who is not familiar
with this instruction booklet.
WARNING
!
Paint Curing and Care
Your heater is coated with the best available heat resistant paint. Even though
t
he paint has been baked after application, it may require further temperature
c
uring. It may, if you over re the heater on its rst re, discolour. For your rst
t
wo or three rings, never exceed the medium air setting and always have the fan
o
n when above low burn. Do not wipe the heater while the paint is curing. After
t
he paint has cured the only maintenance required to maintain the heater’s nish
i
s to wipe it with a soft cloth. Do not use any commercial cleaners or solvents on
t
he paint nish.
W
e are proud of the presentation of our products. If at any time you need to
f
reshen up the paint, your local dealer has touch up paint available for purchase.
Y
ou may even change the colour of your heater if you wish.
If you have any enquiries, please contact the dealer from whom you purchased your heater:
P
LEASE COMPLETE:
D
ealer Name
D
ealer Address
Phone:
P
lease attach your original purchase dockets to this booklet for future reference.

Kimberley Mk3 Freestanding 10 Kimberley Mk3 Freestanding 3
Installation
WARNING
!
Installation
THE INSTALLATION OF THIS APPLIANCE MUST BE CARRIED OUT AS PER THIS
MANUAL AND THE FLUE MANUFACTURER’S SPECIFICATIONS.
WE RECOMMEND THAT YOU USE A QUALIFIED INSTALLER TO CARRY OUT
THE INSTALLATION.
If you have any other enquiries, please contact the dealer from whom you
purchased your heater.
THIS APPLIANCE WEIGHS IN EXCESS OF 150 KILOGRAMS. EXTREME CARE
SHOULD BE TAKEN WHEN HANDLING THE APPLIANCE.
Troubleshooting (continued)
•Smoke entering the room from the rebox when the door is open may be caused by
•Insu cient length of ue ( ue to be 4500mm minimum underneath the base of heater to
underside of cowl)
Increase height of ue
•Flue downdraught
Consult dealer or increase height of ue.
•Creosote buildup in ue
Remove cowl and clean ue as per cleaning instructions. Check moisture content of wood.
•Excessive ash build up
Some woods will give large amounts of ash despite how yourun the heater. Others will give you very little.
Use the wood which is most convenient for you as long as it is dry. After a period of time you will get to
know when to empty your unit. Bark will give you excessive ash. Try not to burn it.
If you are burning wood that gives you charcoal, you may nd that after running the heater say for 8 hours
at maximum burn rate, the charcoal builds up excessively. Overnight burn will reduce this charcoal back to
a ne ash. If you are not ready to shut down for overnight burn when you next fuel the stove, load the
stove with only one piece of wood and lay it across the rebox on top of the charcoal. Open the air control
wide open and you will nd the charcoal will burn down with the one piece of wood. Repeat the process
until the ash level is signi cantly reduced.
A.F. Gason Pty. Ltd. accepts no liability whatsoever for any interpretation of AS/NZS 2918:2001
I
t is important you understand these installation instructions and minimum clearances to combustible material
s
b
efore selecting a position for your Jindara Kimberley to ensure safe and correct installation is achieved.
I
nstallation Permit
D
epending on your local authority requirements, a permit may be required for the installation of your heater. It i
s
y
our responsibility to arrange the same.
C
learances
A
ll dimensions used in this document are in millimetres and are minimum unless otherwise stated. Thes
e
d
imensions state the minimum distance the Jindara Kimberley can be placed in relation to any combustibl
e
m
aterials – plaster, wallpaper, timber, MDF etc.
I
n the instance your Jindara Kimberley is surrounded by non-combustible materials – brick, stone, concrete
,
c
ement sheet, villaboard or similar, wall clearances can be reduced to 100mm. A 100mm clearance is required t
o
e
nsure room air can circulate around the wood heater during operation.
T
he Jindara Kimberley freestanding heater conforms to AS/NZS 2918:2001 when positioned in relation to
c
ombustible surfaces as shown in the graphic on the following page.
F
or additional clearance details, or to access the Jinidara Kimberely Freestanding thermal clearance test report –
H
CMG-15-066- please contact the Jindara dealer from whom you purchased your heater.
H
earth Requirements
I
f the Jindara Kimberley will be installed onto a non-combustible oor such as a brick, stone or a concrete slab with
t
iles etc. which are at least 9mm thick, and extends at least 300mm in front of the appliance base, a hearth or oor
p
rotector may not be required.
I
f the Jindara Kimberley is to be installed onto a combustible oor, a minimum 9mm cement sheet or similar non-
c
ombustible hearth or oor protector must be placed on top of the combustible oor. At a minimum, the oor
p
rotector must extend 300mm in front of the appliance base. The protector must be at least 940mm wide and
8
40mm deep. If desirable, the oor protector can extend to 940mm deep to meet skirting boards or walls at the
r
ear of the appliance when installed as per the rear wall clearances.
F
or details please see the pictorial on the next page.

Kimberley Mk3 Freestanding 4 Kimberley Mk3 Freestanding 9
Installation
Corner Installation
Standard Installation
(continued)
• Noisy Fan
Turn the power and remove the three pin plug from the power point.
Remove the two screws that hold the front fan access panel. Remove the panel.
Disconnect the wiring loom via the plastic joiner. Unscrew the two nuts which hold the fan in position and remove the fan.
Clean any dust with a dry paint brush and vacuum the fan blades. Clean around the motor. After completion place two
or three drops of sewing machine oil on the shafts at the bearings. Replace the fan in reverse to the removal.
•Fan not working
Check the power connection with another appliance. If the power point is okay assume the fan or the switch is
defective. Isolate the power as above. Check that the terminals on the loom and the switch are connected. If the
fan then fails to function, remove the fan and switch by removing the knob the fan switch by pulling it away
from the heater. Undo the holding nut and pull the switch out. Disconnect the wiring from the power lead and remove
the fan andswitch. Convey the same to the authorised Jindara dealer from whom you purchased your unit for service.
Replace in the reverse order.
• Air Control Jamming
Lift up and remove the top plate.
Remove the air control knob by turning anti-clockwise. Lift the air control panel out of the way.
There are three bolts holding the air slide in place. Undo them and remove the air slide.Wipe any ash or dust that may
have accumulated on the back of the air slide or on the face of the heater. If any burrs have developed on the back of the
air slide or on the face of the heater, rub them o with wet and dry sand paper till you have a smooth surface and
edges. Replace the air slide and make sure the washers, spacers and springs are on the bolts when you screw the bolts back
into the face of the heater. Do notapply any type of lubricant to the air slide whatsoever as this will attract dust and make the
slide stick.
• No Overnight Burn
Remove the air slide as per air control jamming and check that the air slide is hard against the face of the heater. If it is
loose, tighten up the bolts holding the air slide to the face of the heater. Do not overtighten.
Check that the door rope has an even indentation from the sealing strip, which is on the face of the . If it is uneven
and it appears as though air could leak through the seal, adjust the thickness of the door rope to suit. Stretch the rope to
make it thinner where the indentation is the heaviest and bunch up the excess where the indentation is smaller.
The door may become loose through the door seal shrinking. Refer “Door handle adjustment” instructions on page 8.
WARNING
!
NEVER OPERATE THE HEATER WITH THE DOOR LOOSE OR NOT AIR TIGHT.
OVERFIRING COULD RESULTIN DETRIMENTAL WEAR AND TEAR ON THE FIREBOX.
Troubleshooting

Kimberley Mk3 Freestanding 8 Kimberley Mk3 Freestanding 5
Installation (continued)
Rear liner
Side liner
Fire Bricks
Cast Iron Liner Plate
Fan
Operating your Eureka
Operating your Jindara wood heater (continued)
Cleaning your e
Carefully remove the ba and put them to one side. Close the heater door.
Slowly push the brush down the chimney until it stops.
Pull the brush back out and repeat the process. Each time you do this you will notice that the brush will go further
down the chimney till it reaches the bottom.The soot and creosote will fall down the chimney and into the . Clean
residue from the x. Replace allparts. Make sure you do the job well.The cleaner the the less chance there
will be of the creosote sticking again.After you have replaced the cowl, inspect the roof for any damage that
may have been incurred whilst you were cleaning the e. Reseal the seal on the roof with roof and gutter silicone if
required.
The fan
It is recommended to run the fan while the heater is operating above Low burn on Low speed. For extended periods when
the heater is running above medium e, High or Boost is recommended. Boost is recommended for short bursts where a
quick temperature rise is desired in conjunction with a high setting.The fan should be cleaned on a regular basis.
(Refer Troubleshooting for fan removal and cleaning.)
WARNING
!
Operation of the fan
If failure is reported and it is found that the has been abused
through improper use of the fan, Jindara reserves the right to disallow any
warranty claims in relation to failure.
WARNING
!
The Door
Leaving Door Open
As stated previously in relation to leaving the door open 25mm to encourage the e
to pick up at a faster rate, your heater has been tested to ensure that no
structural damage can take place if the door is inadvertently left open. However
your paint can be damaged if the door is left open for a long period with a
full of fuel with the fan o . Closely supervise your heater while the door is
left open.
Closing the Door
Always ensure that before you close your door there is no wood protruding
beyond the front of the opening. Do not use the door glass as a ’battering
ram’ to push the wood back into the . Damage to the glass by such
impact is not covered by your Warranty.
Obtain a 150mm brush from your local Jindara dealer and proceed up onto the roof. Remove the cowl.
D
oor handle adjustment
W
hen the door gasket become loose and leaking occurs it is necessary to adjust the door handle.
•Ensure heater is cold – open door.
•Undo M20 locknut, note that roll pin may need to be o set.
•Unscrew hex head screw in door handle shaft.
•Rotate handle shaft anti-clockwise – 1 turn = 1 millimetre of adjustment.
•Replace M20 locknut.
•Centralize roll pin.
•Close door, engaging handle to check for seal .
•Trying to rip a small piece of paper inbetween door rope and rebox will help determine if sealing is
paper is removed without resistance, repeat adjustment process until resistance is achieved..
•Replace hex head screw when adjustment process in complete.
Flue Installation
T
he ue system must comply with Australian and New Zealand installation standards AS/NZS 2918:2001, and be
i
nstalled to the ue manufacturer’s instructions.
T
he performance of your Jindara Kimberley is highly reliant on an e ective ue system. In many cases poor start-
u
p, dirty glass, down draft which causes smoking when door is open, and a reduction in heat output can all be
r
elated to the ue being too short, or incorrect installation. Too tall a ue can result in excess draft and short burn
t
imes along with excessive heat output.
T
he rear wall clearances mentioned above have been achieved with the following ue speci cations.
1. 100mm – rear wall clearance with an AS/NZS 2918:2001 approved ue kit, which incorporates a
decorative surround which is unperforated for 180 degrees of its circumference, also known as a
“Default Flue Kit”
F
itting the Ba e Plate
1. Feed the ba e plate through the door opening with front edge folded up,
feeding plate all the way to the rear of the heater.
2. Lift front over Pin A and slide towards front of heater.
3. Lift rear so the ba le plate is horizontal and move towards back
of the heater.
4. Lower over Pin B.
5. Ba e plate must be sitting on Pins A & B.
P
lacement of Cast Iron Liners into rebox
T
he rear cast iron liner is to be positioned to the rear with rib and logos facing into the rebox. Side cast liner are to
b
e positioned on the appropriate side and interlock into the rear cast liner. Fire bricks can then be installed.
P
lacement of Fire Bricks into rebox
F
ire bricks must be sitting at on the bottom of the rebox, covering base.
P
lacement of Ash De ector into rebox
A
fter cast iron liners and re bricks are tted correctly
i
nto position, slide ash de ector inbetween the
cast plates and down in front of the re bricks. The
d
e ector should be positioned such that the 100mm leg
i
s placed within the rebox, and the 50mm leg faces
t
owards the door to prevent ash build up on the door.
F
inal inspection prior to use
•Ensure the ba e plate is rmly located.
•Ensure cast iron liners – side and back – are positioned correctly.
•Ensure re bricks are sitting at and covering entire base.
•Ensure ash de ector is positioned correctly
•Check fan cord has not been damaged during transit.
•Plug in fan cord and ensure cord does not touch stove surface.
•Check all door seals are tting correctly.

Kimberley Mk3 Freestanding 6 Kimberley Mk3 Freestanding 7
WARNING
!
DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITHOUT READING AND
UNDERSTANDING THESE OPERATING INSTRUCTIONS THOROUGHLY. FAILURE TO
OPERATE THIS APPLIANCE PROPERLY MAY CAUSE UNDUE DAMAGE TO THE
APPLIANCE OR RESULT IN A FLUE FIRE.
Read these instructions
Operating your Jindara woodheater
Starting your re
Place a or paper in the bottom of the and place a large amount of small kindling on top. Ignite the
paper or the r. Set the air control to high and leave the main door open approximately 25mm.When the kindling
is burning, place about four pieces of small wood on top of the burning kindling. Once the wood is alight, close the main
door.After approximately 20 minutes, turn the air control down to medium and turn the fan on to Low speed.
On the initial -up you may detect smoke coming from the paint and from any oils that may be on the steel on
the outside of the .This is normal. It is suggested to well ventilate your home on the initial up. Please refer to
our section ‘Paint Curing and Care’.
The glass door
Always operate your heater with the door closed and locked. The only time you can leave the door open is on initial
lighting, or when reloadingthe heater.
Care of your glass
If you are burning good dry hardwood, you will have very little discolouration of your glass in a normal burning cycle.
If you aim for an overnight burn, you should not get much discolouration.You can control this by adjusting the air
control, moving from the left and slowly creeping the control to the right. After a number of days you will the right
position to suit your requirements and the fuel that you are using.
Cleaning the glass
Generally the only time you will possibly need to clean your glass is after a long overnight burn. If you that you have
a wet sticky black on your glass (creosote), it is better to burn the heater as normal for one load of wood.When the
wood has burnt down to a hot bed of embers, open the door and leave it wide open until the glass cools ntly to
be wiped with a damp cloth.This should clean all the white smoky the glass. Creosote on the glass is normally a
sign that you have tried to get too long an overnight burn or you have burnt excessively wet or green wood. If the on
the glass won’t come o with a wet cloth, you can use wet ash from the ash bed as a cleaner or commercial products
such as Crystal Clear, Johnson Foam Clean or Windex.
Normal Operations
When you get up in the morning, open up the air control of the heater to high position to start the embers glowing. Place
some wood on top of the embers and leave the door open 25mm. Once the fuel starts to close the
door.As the heater starts to heat up turn the fan on to low, (approx 20 minutes) and begin reducing the air control
towards a lower setting.
You will with the fan on low you will only need to run the heater between low and medium to maintain the
temperature you desire in your home.To obtain the maximum heat dissipation from the heater it is necessary to run the
fan at any time the heater is running above the low position.
For best results it is best to burn 300mm long wood and load your wood straight into the front to rear. This will
give optimum and recoverable heat, and minimise creosote formation and smoke emissions.
Overnight burn
Approximately 30 minutes before turning the heater down to overnight burn it is recommended to load the heater with
fuel for the overnight burn. Leave the air control in the medium to high position. Let the heater run for about thirty
minutes.This will reduce the moisture content in the fuel before shut down. (This will help reduce the creosote formation
in the and e.) Set the air control to the setting you have found best for your requirements.Turn the fanand
retire. The aim when overnight burning is to have only a few hot embers left in the bottom of the in the morning,
not huge lumps of wood.
3000mm 3000mm
3000mm 1000mm
min if clear
within
3000mm of
top
Increase from
1000mm min
until clear
within 3000mm
of top
600mm min
More than 3000mm
600mm min
More than 3000mm
or less
3000mm
or less
Increase as
necessary
until
nothing
within
3000mm of
top
Any nearby
structure
3000mm
The pipe shall extend not less than 4.6m above the top of the protector. Note: Installation must be
carried out by a licensed installer in accordance with AS/NZS 2918:2001.
Flue pipe casing
Flashing
3 x diameter
from active to
heat sensitive
surface
Batten
Flue
pipe
Flashing
Flue pipe casings
Heat sensitive roof
25mm
25mm
25mm
Flue pipe
Gap 25mm
Gap 25mm
Batten
Ceiling
Ceiling Plate
See clause 4.6.3(b) of AS/NZS 2918:2001
25mm
12mm
25mm
150mm dia

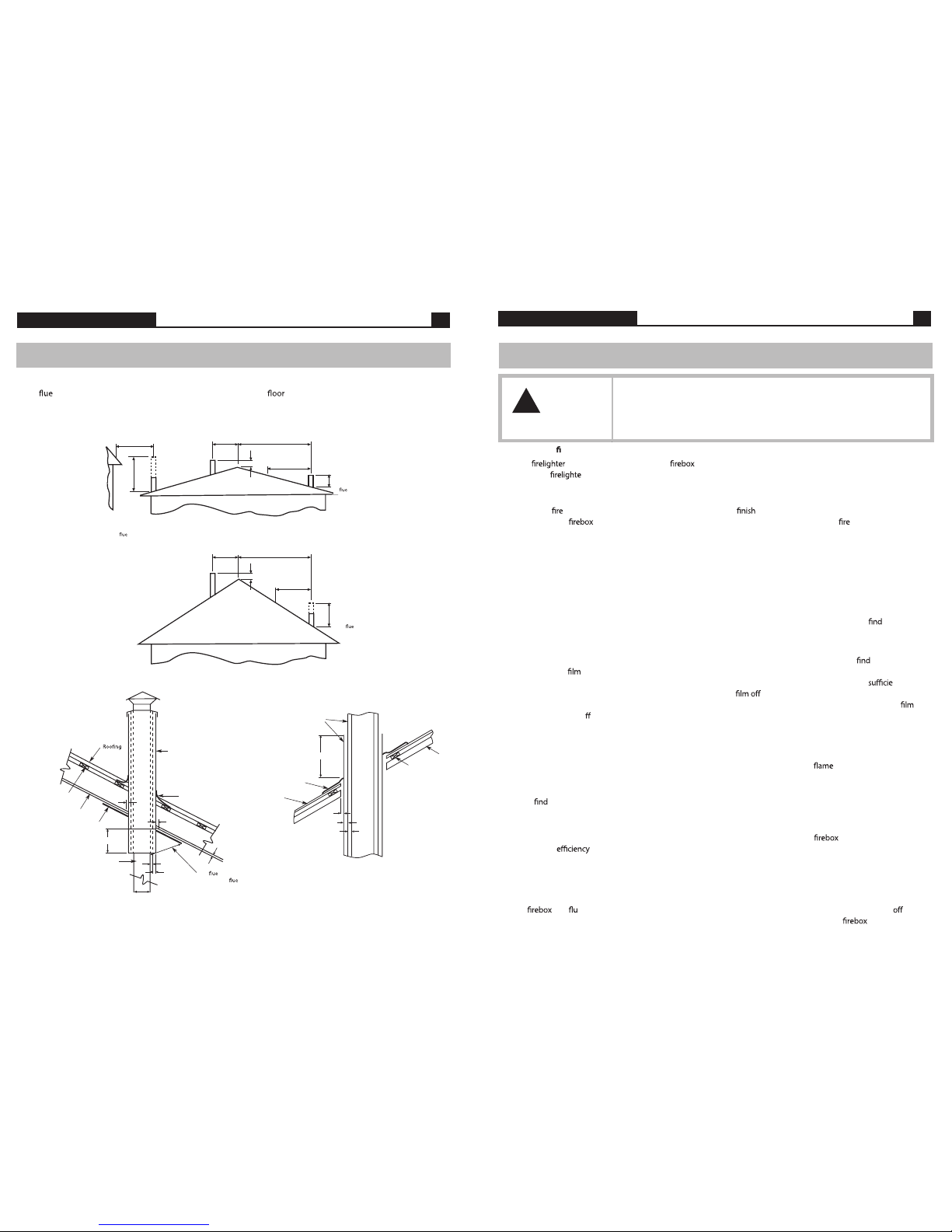

Figure 5. Example of sloped ceiling penetration
Figure 6. Example of roof penetration
Rafter
See clause 4.8 of AS/NZS 2918:2001
Flue and chimney requirements
Installation (continued)
