USER MANUAL
VISION FRESNEL 50CW
●Be sure to read the USER MANUAL carefully before using this product
●Be sure to keep the USER MANUAL properly for future needs
●Use this product correctly when you can fully understand the user manual

Caution! .................................................................................................................. 3
Introduction............................................................................................................. 3
Safety instructions .................................................................................................. 3
Overview................................................................................................................. 4
Installation .............................................................................................................. 4
Read ‘Safety information’ before installing the xture........................................................................... 4
Fastening the xture to a at surface.................................................................................................... 5
Mounting the xture on a truss ............................................................................................................. 5
Securing with a safety cable ................................................................................................................. 5
DMX-512 connection/connection between xtures............................................................................... 5
Power connection ................................................................................................................................. 6
Operation................................................................................................................ 6
Addressing............................................................................................................................................ 7
Universal DMX Control ......................................................................................................................... 7
Rotary control ....................................................................................................................................... 7
Zoom..................................................................................................................................................... 8
Control Menu Map.................................................................................................. 8
DMX Protocol ......................................................................................................... 9
Fixture Cleaning ..................................................................................................... 9
Fuse Replacement ................................................................................................. 9
Troubleshooting.................................................................................................... 10
The xture does not work, no light......................................................................................................10
Technical specications........................................................................................ 10
Table of contents

3
VISION FRESNEL 50CW Product Datasheet
3Ver 1.0jmazlighting.com
Caution!
Be careful with your operations. With a dangerous voltage you can su󰀨er a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or near
the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equipment
on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture. IP
20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specications in this manual or on the product’s specication label.Make sure it is grounded when
using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during
operation. After use, wait for a cool-down period of at least 10 minutes before handling or trans-
porting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen VISION FRESNEL 50CW. You will see you acquired a powerful and versa-
tile device.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans-
portation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warn-
ing notes written in this user manual. Always disconnect from the mains, when the device is not in use

4
VISION FRESNEL 50CW Product Datasheet
4Ver 1.0jmazlighting.com
or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts
inside the device. Maintenance and service operations are only to be carried out by authorized dealers.
Overview
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the xture in a location where it may cause injury or damage if it falls,
secure it as directed in this user manual using a securely anchored safety cable that will hold the xture if
the primary fastening method fails.

5
VISION FRESNEL 50CW Product Datasheet
5Ver 1.0jmazlighting.com
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the sur-
face and all fasteners used can support at least 10 times the weight of all xtures and equipment to be
installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If
you install the xture in a location where it may cause injury or damage if it falls, secure it as directed be-
low with a securely anchored safety cable that will hold the xture if the primary fastening method fails.
Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of all xtures and equipment
to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting
bracket. The bolt used must be M10, grade 8.8 steel minimum. It must pass through both mounting
bracket legs and be fastened with a self-locking nut.
4. Working from a stable platform, hang the xture with its clamp on the truss and fasten the clamp se-
curely.
5. Secure the xture with a safety cable as directed below.
Securing with a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight of
the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the xture and around a secure anchoring point.
Do not loop the safety cable around the xture’s mounting bracket only, as this will leave the xture unse-
cured if it separates from the bracket.
DMX-512 connection/connection between xtures

6
VISION FRESNEL 50CW Product Datasheet
6Ver 1.0jmazlighting.com
Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with
a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the
last xture in the chain.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω re-
sistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last
xture.
Power connection
Power Requirements
The VISION FRESNEL 50CW luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The
luminaire contains an auto-ranging power supply.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)
Operation
The VISION FRESNEL 50CW can operate in three di󰀨erent modes. In each mode you can run the xture
as a stand alone xture or in a master/slave conugration. This next section will detail the di󰀨erences in
the operating modes.

7
VISION FRESNEL 50CW Product Datasheet
7Ver 1.0jmazlighting.com
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The allocation
of this starting address is achieved by setting the correct number on the display located on the base of
the device.
You can set the same starting address for all xtures or a group of xtures, or make di󰀨erent address for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will a󰀨ect all the xtures simulta-
neously.
If you set a di󰀨erent address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will a󰀨ect
only the selected xture.
In the case of the VISION FRESNEL 50CW, which is 1/2/3/5 channels xture. If you set, for example, the
address in the 1 channel mode to channel 2, the device will use the channel 2 for control.
Note: After switching on, the device will automatically detect whether DMX 512 data is received or
not. If there is data received at the DMX input, the dot in the display will ash.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A DMX
controller allows you to create unique programs tailored to your individual needs.
Rotary control
This function allows you to control the dimmer of the VISION FRESNEL 50CW with the knob in the rear
panel.
1. Press the MENU button and select “UOL”.
2. Press the ENTER button.
3. Adjust the dimmer through the knob on the panel. CW=cool white, WW=warm white (right stop =
maximum output, left stop = zero output)

8
VISION FRESNEL 50CW Product Datasheet
8Ver 1.0jmazlighting.com

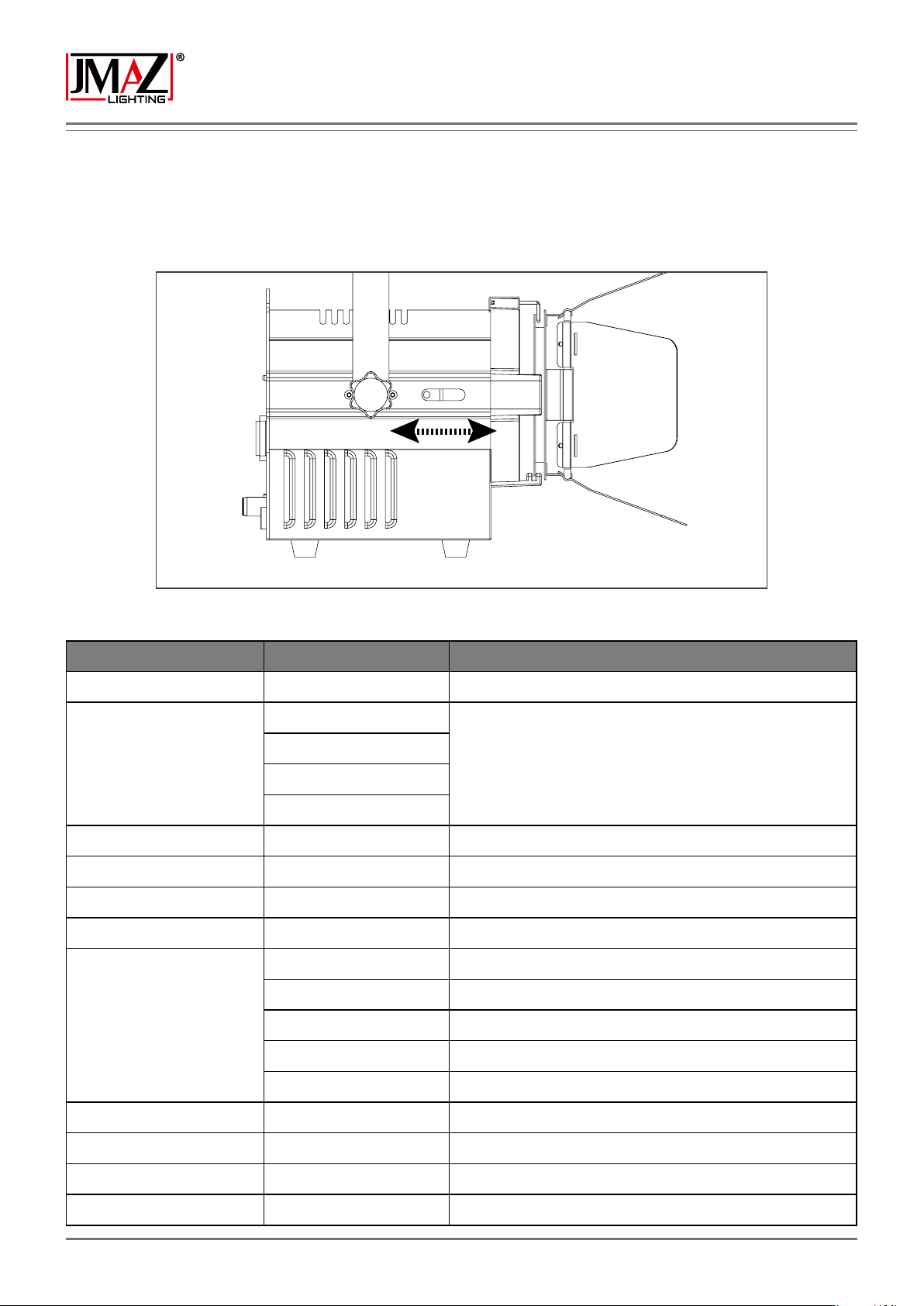

Zoom
This function allows you to adjust the beam width of the xture.
Step 1: Loosen the zoom buttons on the side of the device.
Step 2: Adjust the zoom by sliding the back lenshousing forward or backward.
Step 3: Tighten the zoom buttons.
Control Menu Map
MENU SUB MENU OPERATION
Addr d001-d512 RDM/DMX address
CHnL
1CH
Channel mode
2CH
3CH
5CH
Strb S.01-s.20 Strobe with spead increasing
uL-- u.000-u.255 WW dimmer
CL-- C.000-C.255 CW dimmer
UOL 000-255 Rotary control of dimmer
nodE
nod.0 Dimmer speed 0 (no delay)
nod.1 Dimmer speed 1
nod.2 Dimmer speed 2
nod.3 Dimmer speed 3
nod.4 Dimmer speed 4 (slowest speed)
tEnP -25~100 Fixture temperature
UErn Firmware version
rSEt Reset
pnnF (1.2~24.0)F PWM frequency adjustment(KHz)

9
VISION FRESNEL 50CW Product Datasheet
9Ver 1.0jmazlighting.com
DMX Protocol
1 Channel Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
2 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-255: Strobe with speed increasing
3 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Warm white 000-255: WW 0-100% dimmer
CH3 Cold white 000-255: CW 0-100% dimmer
5 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Color temperature 000-010: No func.
011-255: 2700K~6500K color temperature
CH3 Warm white 000-255: WW 0-100% dimmer
CH4 Cold white 000-255: CW 0-100% dimmer
CH5 Strobe 000-255: Strobe with speed increasing
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend clean-
ing on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pressure
compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent
solution. Do not rub glass surfaces hard: lift particles o󰀨 with a soft repeated press. Dry with a soft,
clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tis-
sue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.

10
VISION FRESNEL 50CW Product Datasheet
10 Ver 1.0jmazlighting.com
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.
Technical specications
Model VISION FRESNEL 50CW
Power supply: AC100-240V, 50/60Hz
Light source: 50W WW+50W CW tunable LED
Color temperature: 2700K ~ 6500K
Color Rendition: CRI 95, R9≥90, TLCI 98, CQS 96
Zoom range: 25° ~ 80° manually
Power connection: PowerCON in
Fuse: F1A, 250V
Signal connection: 3-pin XLR in & out (5-pin optional)
DMX channels: 1/2/3/5
Control mode: RDM, DMX, Rotary, Master-slave
Housing: Colour black, Aluminum
Size(barn door excluded): 230 x 156 x 279mm(21.6 x 6.1 x 10.9in)
Package(carton): 270 x 210 x 210mm(10.6 x 8.3 x 8.3in)
N.W.: 1.7kg(3.7lb), including barn door
G.W.: 2.8kg(6.2lb)
Enviroment: IP20
Please note: All information is subject to change without prior notice. 20.06.2018
156MM 211MM
306MM
230MM
279MM
185MM

11
VISION FRESNEL 50CW Product Datasheet
11 Ver 1.0jmazlighting.com
