JMC JTOTEM ADV Series User manual
ADV & J2S Series
USE AND MAINTENANCE MANUAL
Release: 03/2021
The updated release of the user and maintenance
manual and the sanitising gel safety data sheet can
be consulted and downloaded at
www.jmcgroup.it
2 3
INDEX
1. Introduction
1.1 JTotem
1.2 Manufacturer
1.3 Marking
2. Warnings
2.1 Ground fixing
2.2 Proper and safe use
2.3 Power supply
2.4 Inner components integrity
2.5 Components not included
2.6 Sanitizing gel
2.7 Fans
2.8 Recommended environmental conditions
2.9 Warranty
2.10 Where to find information
3. Models
3.1 ADV series
3.2 J2S series

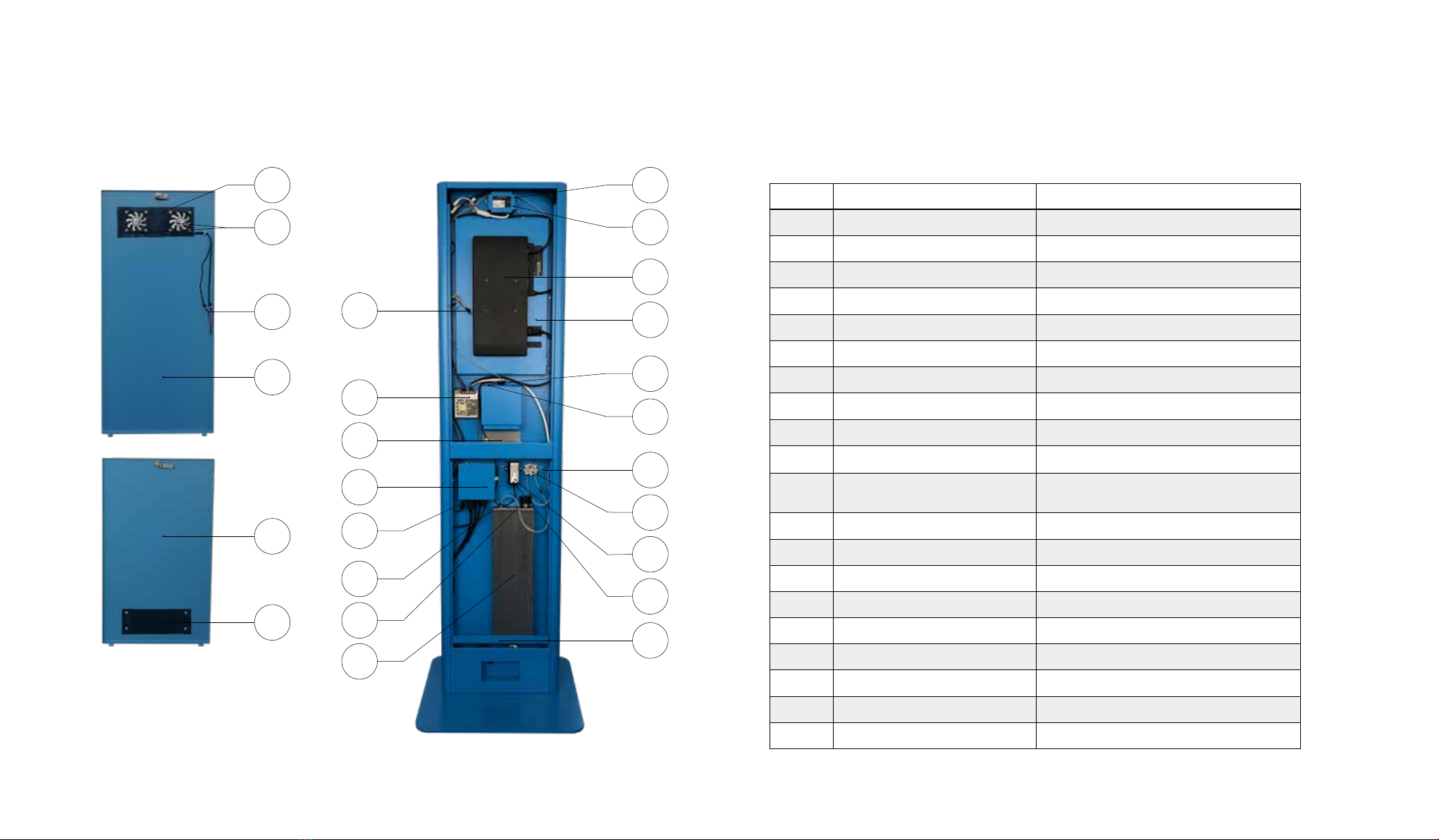

4. Components
04.
04.
05.
06.
08.
08.
08.
0 9.
0 9.
0 9.
10.
16.
16.
1 7.
1 7.
18.
18.
1 9.
20.
20.
24.
28.
32.
36.
40.
40.
42.
44.
45.
4 7.
50.
54.
58.
58.
59.
60.
61.
61.
4.1. J2S Venice
4.2 J2S Milan
4.3 J2S Agrigento
4.4 JS 32
4.5 JS 55
5. Installation
5.1 Totem positioning
5.2 Tank filling
5.3 Batteries positioning
5.4 Gel dispenser configuration
5.5 Electrical activation and network connection
6. Functioning
7. Cleaning
8. Maintenance
8.1 Failure
8.2 Switch fuse replacement
9. Disposal
10. Technical data
10.1 Gel dispenser
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
4 5
JMC Group thanks you for choosing JTotem.
Before starting to use the totem, read this manual carefully and keep it in a
safe place so that it can also be consulted in the future.
The instructions for use contain the information necessary for switching on,
appropriate use, maintenance and proper cleaning of the product. This
knowledge, together with the observation of the relevant instructions and
safety provisions are the prerequisites for a safe use during the installation, use
and cleaning of the totem and its internal components.
This manual must be used for ADV series (J900, JS 32, JS 43, JS 49, JS 55, JS
65) and J2S (J2S Venice, J2S Rome, J2S Florence, J2S Milan, J2S Agrigento, J2S
Naples). Thanks to the names of the models highlighted at the bottom of the
page, it is possible to understand which totems the information contained on
the page can be attributed to.
1. INTRODUCTION
COPYRIGHT
All the information contained in this manual, the drawings and technical
descriptions written, remain the property of JMC Group and cannot be
reproduced without permission.
JMC Group owns the intellectual property of the JTotem line, the design of
which is registered with the European Union oce for intellectual property
(EUIPO).
1.1 JTOTEM 1.2 MANUFACTURER
JMC Group is specialized in the design of advanced, highly flexible and
reliable hardware solutions, designed on the specific needs of your business.
The company is the transversal, versatile and visionary partner, able to identify
your goals and make them real.
Today, communication is increasingly a combination of interaction, which
is why we also design unique interactive systems around the customer’s
needs. The versatility of our totems allows the company to adapt them-
self to multiple purposes (advertising, digital signage, corporate resource
management, safety and hygiene) and markets (retail, betting, hospitality ...),
thanks to the possibility of integrating digital content, through platforms and
software of our customers or partners.
Via Leonardo da Vinci, 155 – 20062 Cassano d’Adda (MI)
Tel. 02 83591103
info@jtotem.com
www.jmcgroup.it
www.jtotem.com
PLEASE NOTE
The manufacturer reserves the right to modify the product and its relative
technical documentation without incurring into any obligation towards
third parties and assumes no responsibility for any errors or inaccuracies
in the contents of this booklet. This draft of the user manual describes the
characteristics of the totems on the date this document is released.
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
76
The totems are produced in compliance with the relevant and applicable at
the time of its placing on the market Community directives.
The label located on the device is similar to the one shown in followed and
duly compiled one.
1.3 MARKING
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
98
2. WARNINGS
RISK OF OVERTURNING
The totem must be suitably fixed to the ground to exclude the possibility of
overturning and consequent injuries to people or objects. For more information
on installing the totem, see chapter 5.
RULES FOR EFFICIENT AND SAFE USE OF TOTEMS
Do not push, pull, lift or climb the totem, the company declines all responsibility
for any injuries caused by overturning the product or collision. Do not drop
the totem and be careful not to scratch it with sharp objects, the totem could
be damaged and the company is not liable for this type of damage. In the
totems in which the shelf (3.) is present one must not cling to, sit down, place
very heavy objects or leverage on it, it could flex.
MAINTENANCE SAFETY
To carry out any action on the totem it is necessary to wear gloves, to avoid
getting injured, dirty or damaged.
CLEANING
Please note that the totem requires periodic cleaning.
2.1 GROUND FIXING
2.2 PROPER AND SAFE USE
RULES FOR EFFICIENT AND SAFE POWER SUPPLY OF TOTEMS
Connect the totem only to standard electrical systems. The company declines
all responsibility for electrical damage.
ELECTRICAL AND ELECTRONIC COMPONENTS
The totem contains electrical and electronic devices that must absolutely not
come into contact with liquids. Therefore it is necessary to place the totem in a
place covered from bad weather.
Likewise, do not throw dust on the totem pole as they could enter through the
ventilation holes.
2.3 POWER SUPPLY
2.4 INNER COMPONENTS INTEGRITY
2.5 COMPONENTS NOT INCLUDED
BATTERIES
The four 1.5V AA size Lithium primary batteries required for proper functioning
of the totems are not included.
PRINTERS PAPER ROLLS
The printers paper rolls are not included.
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
10 11
TYPOLOGIES OF SANITIZING GEL
For the correct functioning of the totems equipped with gel dispensers, we
strongly recommend the use of “J-Gel”, the high-performance liquid sanitizer
developed and produced specifically for JTotems and distributed by JMC
Group. Otherwise, the use of a spray sanitizing gel is recommended.
SAFETY
The sanitizing gel must never be swallowed or come into contact with the
nose and eyes. J-Gel is produced by Neula (Via Brancaleone Doria, 1 - 07100
Sassari (SS) - Italy). In case of emergency, contact the manufacturer Neula.
SANITIZING GEL REFILL
Totems with gel dispensers (5.) need to be refilled with gel whenever they run
out.
COMPOSITION/INFORMATION ON MIXTURES
J-GEL sanitising gel does not contain substances classified as harmful to
human health or the environment according to the terms of Regulation
(EU) 1272/2008 (CLP) ( and subsequent amendments and supplements) in
quantities that would require a declaration.
RISKS IDENTIFICATION
J-GEL sanitising gel is an alcohol-based liquid and highly flammable. Even
explosive vapours can be released.
2.6 SANITIZING GEL
FLAMMABILITY RISK
The sanitising gel is alcohol-based and therefore at risk of flammability. The
totems, and in particular the tank (15.) and gel dispenser (5.), must be kept
away from heat, hot surfaces, sparks, open flames or other sources of ignition.
Prevent any electrostatic charge accumulation. Smoking is not allowed in the
proximity of the totems, in particular the gel dispenser (5.) and the tank (15.).
FIRE-FIGHTING MEASURES
Fire extinguishing methods
Appropriate: Carbon dioxide, foam, chemical powder.
Not appropriate: Water jets. Water is not eective in extinguishing fire but can
be used to cool closed containers exposed to flame, preventing bursts and
explosions.
Risks related to the sanitizing gel
In case of explosion or fire, avoid inhaling the products of combustion.
Recommendations for personnel in charge of fire fighting
It is highly recommended to cool gel containers with water jets and to always
wear full fire protection equipment.
Environmental protection measures
Extinguishing water must not be discharged into drains. Contaminated fire
extinguishing water and fire residues must be disposed of in accordance with
current regulations.
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
12 13
IN CASE OF ACCIDENTAL GEL SPILLAGE
Technical solutions
Two types of solutions have been designed. The first is a safety tank and is
provided in the J2S Agrigento totems. The spilled gel is collected in a safety
container with a capacity of 6 L. The second solution is a controlled system
of excess gel spillage outside the totem through a silicone tube and a spacer
stud insert fixed by pressure in the safety tank (8.2.A.). This option is applied to
J2S Venice, Rome and Florence totems.
The following figures 1a. and 1b. show the two technical solutions implemented.
1a. Safety tank 1b. Controlled gel
gel spillage system
Rules to avoid improper use
The safety tank must not contain any objects other than the gel dispenser
tank.
Do not place a safety tank with a capacity greater than 5 L in the J2S
Agrigento.
In the J2S Venice, Rome and Florence it is compulsory to use only the tanks
provided.
Safety equipment
Appropriate protective equipment must be worn for safe cleaning and
maintenance.
Maintenance of the controlled gel spillage system (1b.)
Regular maintenance of the silicone tube is recommended to ensure correct
positioning and integrity. Check the tube periodically (every 2 months) to verify
its eciency, i.e. that there are no leaks or encrustations. In case of cleaning or
replacement, it is necessary to loosen the mechanism for fixing the tube to the
spacer stud insert and then remove the tube.
Containment and clean-up procedures
For safe cleaning and maintenance in the event of a gel spill, it is mandatory
to turn o the power switch (8.1.A.) and unplug the power supply cable (8.2.A.)
from the outlet.
Remove all sources of ignition (cigarettes, flames, sparks, etc.) or heat from the
leakage area.
Afterwards, vacuum the spilled product into a appropriate container and
absorb the residues with inert absorbent material.
Sucient ventilation of the area where the leak occurred must be ensured.
For leaks and product spills that have not ignited, water spray can be used to
disperse flammable vapours and protect personnel involved in preventing the
leak.
14 15
Requirements for safe storage
Store only in the original container. Keep containers closed, in a well-ventilated
place, away from direct sunlight. Store in a cool, well-ventilated place, away
from heat, open flames, sparks and other sources of ignition.
HANDLING AND STORAGE
Precautions for safe handling
Keep away from heat, sparks and open flame.
Vapours may ignite with explosion, therefore avoid accumulation by keeping
doors and windows open and ensuring cross ventilation.
Avoid accumulation of electrostatic charges. In the case of large packaging,
connect the totem to a grounding socket during filling operations and wear
antistatic shoes.
Pay attention to handling and transport, because strong agitation and
forceful flow of the liquid in pipes and equipment can lead to the formation
and accumulation of electrostatic charges.
Avoid eating, drinking and smoking during use.
Environmental precautions
Do not allow sanitizing gel to enter drains, surface or ground water.
FIRST AID MEASURES
There are no known cases of injury to personnel involved in the use of the
product. If necessary, take the following general measures:
Inhalation: Transfer the person to fresh air. If breathing ceases, carry out
artificial respiration. Call a doctor immediately.
Ingestion: Seek medical help immediately. Induce vomiting only as directed by
a doctor. Do not give anything by mouth if the person is unconscious.
Eyes and skin: Wash with plenty of water. In case of persistent irritation, seek
medical assistance.
DISPOSAL CONDITIONS
Reuse if possible. Product residues are to be considered as special dangerous
waste. The risk of waste containing some of this substance must be assessed
in accordance with current legislation.
Disposal must be carried out by an authorised waste management company
in accordance with national and, where appropriate, local regulations.
REGULAR CHECKS
It is necessary to periodically check the integrity of the tank (15.) to ensure safe
and ecient use.
It is necessary to periodically check the integrity of the safety tank (see image
1a on page 12) to ensure safe and ecient use.
It is necessary to periodically check the integrity of the grounding of the safety
tank to ensure safe and ecient use.
It is necessary to periodically check the integrity of the gel safety system.
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
16 17
RECOMMENDED TEMPERATURE AND HUMIDITY
The following temperature and humidity ranges are recommended for the safe
and ecient use of JTotems:
Temperature: 0°C to 40°C
Humidity: 20% to 80% (non-condensing)
2.8 RECOMMENDED ENVIRONMENTAL CONDITIONS
FANS MAINTENANCE
In totems equipped with fans (all except J2S Venice), if the upper door (6.) has
to be opened, take care to disconnect the cable connecting the fan(s) to the
power supply before removing the door. This operation should be carried out
by two people. To open the door correctly, open the lock and tilt the door
about 20° from vertical (approximately 10 cm). While one person holds the
door, disconnect the fan connection cable, taking care not to insert fingers or
hair between the fan blades to prevent injury.
2.7 FANS
DURATION
JTotems and their inner components are guaranteed for 1 year from the day of
purchase.
WEB SITE
The updated release of the user and maintenance manual and the sanitising
gel safety data sheet can be consulted and downloaded at www.jmcgroup.it.
CONDITIONS
The warranty is only valid if a sanitising gel with specific characteristics and
compositions such as those of the J-Gel of the JTotem series is used.
2.9 WARRANTY
2.10 WHERE TO FIND INFORMATION
J900
JS 55|65
JS 32 JS 43|49
3.1 ADV SERIES
ITJ932P100-3Y ITJS32P100-3Y ITJS43P100-3Y
ITJS49P100-3Y
ITJS55P100-3Y
ITJS65P100-3Y
J2S Venice J2S Rome J2S Florence
J2S Milan J2S Agrigento J2S Naples
3.2 J2S SERIES
J2S-1D28 J2S-2D28F07 J2S-2D28F10
J2S-3D50F22 J2S-2D50PB10 J2S-00F32D
18 19
3. MODELS
JTotem
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
20 21
1.
2.
5.
3.
7.
6.
6.1
7. 1
5.45.3
5.25.1
4. COMPONENTS
Bill of materials
4.1.1 J2S VENICE - External view
N° Name Product number
1. Totem chassis J2SVenice_cab
2. Basis J2SVenice_base
3. Shelf J2SVenice_shelf
5.1 Noozle M5_noozle
5.2 Sensor of the dispenser ET107H00000H000_sensor
5.3 Drainage grid 13H_grid
5.4 Collection tray 120X35MM_tray
6. Upper door J2SVenice_door_up
6.1 Upper lock 103CP-16KA.DX_kit_up
7. Lower door J2SVenice_door_down
7. 1 Lower lock 103CP-16KA.DX_kit_down
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
22 23
7.
6.
7. 3
6.3 13.1
15.1
5.75.8
5.9
5.5
15.2
5.6
15.
16.
4.1.2 J2S VENICE - Internal view
N° Name Product number
5.5 Grounding of the dispenser M3_grounding
5.6 Pump and battery support J2S-PUMP-107H-KIT_support
5.7 Pump J2S-PUMP-107H-KIT_pump
5.8 Housing batteries J2S-PUMP-107H-KIT_battery
5.9 Lithium battery 49.025_battery
6.3 Top dust protection filter B07H323WQ5_filter_up
7. 3 Lower dust protection filter B07H323WQ5_filter_down
13. Plexiglass of logo 4785B_plexiglass
15. Tank 3L_tank
15.1 Cap 32MM_cap
15.2 Pipe 5MM_gel_pipe
16 Multifunctional support J2SVeRoFl_multifunctional_support
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
24 25
1.
2.
3.
4.
5.
7.
6.
7. 1
6.1
8.2.A
9. 1
8.1.A
9. 2
10.
5.45.3
5.25.1
2525
4.2.1 J2S Milan - External view
N° Name Product number
1. Totem chassis J2SMilan_cab
2. Basis J2SMilan_base
3. Shelf J2SMilan_shelf
4. Screen T2236MSC-B2_IIYAMA
5.1 Noozle M5_noozle
5.2 Sensor of the dispenser ET107H00000H000_sensor
5.3 Drainage grid 13H_grid
5.4 Collection tray 120X35MM_tray
6. Upper door J2SMilan_door_up
6.1 Upper lock 103CP-16KA.DX_kit_up
7. Lower door J2SMilan_door_down
7. 1 Lower lock 103CP-16KA.DX_kit_down
8.1.A Power switch JR-101-1-FRSG-02_power
8.2.A Power supply cable ICOC 01-NC-B_power
9. 1 LAN socket IWP-MD C6/PK_lan
9. 2 LAN cable 1M_CCA6U-010BK_lan
10.A Pro thermal camera TPC-KF2221B_DAHUA
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
14.1
14.
15.2
15.1
15.
11.3
12.
13.
5.6
7.
6.
7. 3
6.3
11.1
11.2
4.
16.
5.2
4.1
5.5
5.8
5.9
10.1
5.7
10.
4.2.2 J2S MILAN - Internal view
N° Name Product number
4.1 Display support J2SMilan_display_support
5.5 Grounding of the dispenser M3_grounding
5.6 Pump and battery support J2S-PUMP-107H-KIT_support
5.7 Pump J2S-PUMP-107H-KIT_pump
5.8 Housing batteries J2S-PUMP-107H-KIT_battery
5.9 Lithium battery 49.025_battery
6.3 Top dust protection filter B07H323WQ5_filter_up
7. 3 Lower dust protection filter B07H323WQ5_filter_down
10.1 Camera support TPC-KF2221B_cam_support
11.1 Ventilation fans ICPU-GE-SIL7_fan
11.2 Female connection of the
fans
ICOC 049-NC-Y_female
11.3 Male connection of the fans ICOOL-AIR8025-CAB_male
12. Power supply LRS-35-12_power
13. Plexiglass of logo 4785B_plexiglass
14. PC NANO-6061-N3710_PORTWELL
14.1 PC support J2SMilan_PC_support
15. Tank 3L_tank
15.1 Cap 32MM_cap
15.2 Pipe 5MM_gel_pipe
16 Multifunctional support J2SMilan_multifunctional_support
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
28 29
5.
7.
6.
7. 1
6.1
8.2.A
8.1.A
9. 1
9. 2
2.
1.
4.
1 9.
10.
5.4
5.3
5.2
18.
5.1
1 7.
4.3.1 J2S AGRIGENTO - CONFIGURATION A - External view
N° Name Product number
1. Totem chassis J2SAgrigento_cab
2. Basis J2SAgrigento_base
4. Screen TF2738MSC-B1_IIYAMA
5.1 Noozle M5_noozle
5.2 Sensor of the dispenser ET107H00000H000_sensor
5.3 Drainage grid 13H_grid
5.4 Collection tray 120X35MM_tray
6. Upper door J2SAgrigento_door_up
6.1 Upper lock 103CP-16KA.DX_kit_up
7. Lower door J2SAgrigento_door_down
7. 1 Lower lock 103CP-16KA.DX_kit_down
8.1.A Power switch JR-101-1-FRSG-02_power
8.2.A Power supply cable ICOC 01-NC-B_power
9. 1 LAN socket IWP-MD C6/PK_lan
9. 2 LAN cable 1M_CCA6U-010BK_lan
10.A Pro thermal camera TPC-KF2221B_dahua
17.1 NFC Plexiglass 4785B_plexiglass
18. QR/Barcode reader FM3051-20_NEWLAND
1 9. Printer VKP80III_CUSTOM
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
14.1
14.
11.3
13.
19.1
4.
20.
4.1
20.1
15.
17.2
15.1
5.2
18.1
15.2
5.5
10.
5.7
5.8
5.8
10.1
12.1
1 7.
12
16.
7.
6.
7. 3
6.3
11.1
11.2
30 31
4.3.2 J2S AGRIGENTO - CONFIGURATION A - Internal view
N° Name Product number
4.1 Display support J2SAgrigento_display_support
5.5 Grounding of the dispenser M3_grounding
5.6 Pump and battery support J2S-PUMP-107H-KIT_support
5.7 Pump J2S-PUMP-107H-KIT_pump
5.8 Housing batteries J2S-PUMP-107H-KIT_battery
5.9 Lithium battery 49.025_battery
6.3 Top dust protection filter B07H323WQ5_filter_up
7. 3 Lower dust protection filter B07H323WQ5_filter_down
10.1 Camera support TPC-KF2221B_cam_support
11.1 Ventilation fans ICPU-GE-SIL7_fan
11.2 Female connection of the fans ICOC 049-NC-Y_female
11.3 Male connection of the fans ICOOL-AIR8025-CAB_male
12. Power supply LRS-35-12_power
12.1 Power supply support LRS-35-12_support
13. Plexiglass of logo 4785B_plexiglass
14. PC NANO-6061-N3710_PORTWELL
14.1 PC support J2SAgrigento_PC_support
15. Tank 3L_tank
15.1 Cap 32MM_cap
15.2 Pipe 5MM_gel_pipe
16 Multifunctional support J2SAgrigento_multifunctional_support
1 7. NFC ACR122U_ACS
17.2 NFC support 4785B_support
18.1 QR/Barcode reader support FM3051-20_support
19.1 Printer support VKP80III_support
20. USB Hub IUSB3-HUB4-BKP_MANHATTAN
20.1 USB Hub support IUSB3-HUB4-BKP_support
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
7.
6.
7. 1
6.1
2.
1.
4.
10.
32 33
4.4.1 JS 32 - External view
N° Nome Codice prodotto
1. Totem chassis JS32_cab
2. Basis JS32_base
4. Screen TF3238MSC-B2AG IIYAMA
6. Upper door JS32_door_up
6.1 Upper lock 103CP-16KA.DX_kit_up
7. Lower door JS32_door_down
7. 1 Lower lock 103CP-16KA.DX_kit_down
10. Pinhole Cam WDR 2 MP IPC-HUM4231
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
14.1
14.
11.3
9. 1
4.1
4.
10.
10.1
12
16
22
9. 2
7.
6.
7. 3
6.3
11.1
11.2
21.
8.1.A
8.2.A
34 35
4.4.2 JS 32 - Internal view N° Nome Codice prodotto
4.1 Display support JS32_display_support
6.3 Top dust protection filter B07H323WQ5_filter_up
7. 3 Lower dust protection filter B07H323WQ5_filter_down
8.1.A Power switch JR-101-1-FRSG-02_power
8.2.A Power supply cable ICOC 01-NC-B_power
9. 1 LAN socket IWP-MD C6/PK_lan
9. 2 LAN cable 1M_CCA6U-010BK_lan
10.1 Camera support IPC-HUM4231_cam_support
11.1 Ventilation fans ICPU-GE-SIL12TC_fan
11.2 Female connection of the fans ICOC 049-NC-Y_female
11.3 Male connection of the fans ICOOL-AIR8025-CAB_male
12. Power supply LRS-35-12_power
14. PC OPT3070MFF_Dell
14.1 PC support JS32_PC_support
16 Multifunctional support JS32_multifunctional_support
21 Multiplug 4 sockets and
switch
1221090_multiplug
22 Switch GO-SW-5G_switch DLINK
J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65 J2S Venice | J2S Rome | J2S Florence | J2S Milan | J2S Agrigento | J2S Naples | J900 | JS 32 | JS 43 | JS 49 | JS 55 | JS 65
7.
2.
6.
7. 1
6.1
1.
4.
36 37
4.5.1 JS 55 - External view
N° Nome Codice prodotto
1. Totem chassis JS55_cab
2. Basis JS55_base
4. Screen COT550-CFK03-VJM-ASM-D02_
CJTOUCH
6. Upper door JS55_door_up
6.1 Upper lock 103CP-16KA.DX_kit_up
7. Lower door JS55_door_down
7. 1 Lower lock 103CP-16KA.DX_kit_down
12.
13.
14.
14.1
16.
21.
11.3
6.3
7. 3
11.1
11.2
4
4.1
8.2.A
8.1.A
9. 2
9. 1
11.3
6.
7. 3
38 39
4.5.2 JS 55 - Internal view
N° Nome Codice prodotto
4Screen COT550-CFK03-VJM-ASM-D02_
CJTOUCH
4.1 Display support JS55_display_support
6.3 Top dust protection filter B07H323WQ5_filter_up
7. 3 Lower dust protection filter B07H323WQ5_filter_down
8.1.A Power switch JR-101-1-FRSG-02_power
8.2.A Power supply cable ICOC 01-NC-B_power
9. 1 LAN socket IWP-MD C6/PK_lan
9. 2 LAN cable 1M_CCA6U-010BK_lan
11.1 Ventilation fans ICPU-GE-SIL12TC_fan
11.2 Female connection of the
fans
ICOC 049-NC-Y_female
11.3 Male connection of the fans ICOOL-AIR8025-CAB_male
12. Power supply LRS-35-12_power
13. Plexiglass of logo 4785B_plexiglass
14. PC OPT3070MFF_Dell
14.1 PC support JS55_PC_support
16. Multifunctional support JS55_multifunctional_support
21. Multiplug 4 sockets and
switch
1221090_multiplug
This manual suits for next models
25
