Thank you for purchasing Phoenix Gold® FreeFlight from JML. To get the
best crease-free results from this iron, please read these instructions in full
and keep them safe for future reference.
Contents
Safety Warnings & Advice 2
Your Phoenix Gold® FreeFlight 6
Using Phoenix Gold® FreeFlight 7
Using Phoenix Gold® FreeFlight for the
first time 7
Basic instructions 7
Anti-calc system 8
Anti-drip system 8
Automatic shut-off 8
Preparation 8
Steam ironing 9
Dry ironing 11
Cleaning 11
Self-Cleaning 11
How to put it away 12
Advice For Good Ironing 13
Cleaning & Care 13
Guarantee 14
Technical Information 14
Technical specifications 14
Fuse & mains plug replacement 14
Disposal and the environment 14
Only use Phoenix Gold® FreeFlight for its intended
purpose as described in this manual.
Keep Phoenix Gold® FreeFlight and its cord out of the
reach of children at all times.
Burns can occur from touching hot parts, hot water or
steam. The Ceramic Plate will become extremely hot
during use. Do not touch the Ceramic Plate during or
soon after use.
Never point the steam jet towards people or animals.Take
care to ensure it never comes into contact with your skin.
To avoid leaking and possible scalding, NEVER use the
Phoenix Gold® FreeFlight in an upside-down position.
Intended for indoor household use only. Not intended
for industrial or commercial use.
Do not use on a surface which could be damaged by
heat or steam such as a worktop or polished wood.
Do not use attachments that are not specifically
recommended to be used with this iron.
Never leave unattended when plugged in.
Always unplug Phoenix Gold® FreeFlight immediately
after use.
Do not use any part that has become damaged.
Never operate Phoenix Gold® FreeFlight if it has a
damaged cord or plug, if it is not working properly, or if
it has been dropped, damaged or dropped into water.
Safety Warnings & Advice

3 4
Do not attempt to repair Phoenix Gold® FreeFlight, the
power cord, or plug if they become damaged. Repairs
must only be made by a qualified service engineer.
Always unplug Phoenix Gold® FreeFlight before filling the
water tank. Do not overfill with water.
Fill the Water Tank with distilled water (suitable for use
with irons) or boiled water to prevent calc/limescale
build-up.
Never touch the Ceramic Plate when the iron is
switched on or immediately after switching off.
The Power Cable should never touch the Ceramic Plate
during or soon after use.
Ensure the Water Tank Cap is closed firmly before use.
Do not allow the Water Tank to run dry during use.
Allow the Ceramic Plate to cool completely before cleaning.
Check that the voltage on the rating plate of Phoenix
Gold® FreeFlight corresponds with your house electricity
supply, which must be A.C. (alternating current).
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Keep children
away from the iron during use.
Safety Warnings & Advice continued Safety Warnings & Advice continued
Cleaning and user maintenance shall not be made by
children without supervision.
This appliance is intended to be used in household and
similar applications such as:
- Staff kitchen areas in shops, offices and others working
environments.
- Farm houses; by clients in hotels, motels and other
residential type environments.
- Bed and breakfast type environments.
The iron must not be left unattended while it is connected
to the supply mains.
The plug must be removed from the socket-outlet before
the water tank is filled with water.
When ironing on a board or other surface, always make
sure it is stable.
When placing the iron on its stand, ensure that the
surface on which the stand is placed is stable.
This iron must only be used with the stand provided.
Please remove the iron clear of the the base to avoid
water dripping on the connections and turn the steam
function to the off position during refilling to avoid any
spitting water from the soleplate.
Take care when vertical steaming to avoid the steam
coming in contact with skin by observing the direction
of the steam flow.

150
200 ml
100
50
MAX
A
N
T
I
-
C
A
L
C
V
E
R
T
I
C
A
L
S
T
E
A
M
I
N
G
A
N
T
I
-
D
R
I
P
A
U
T
O
S
H
U
T
-
O
F
F
N
O
N
-
S
T
I
C
K
C
E
R
A
M
I
C
5 6

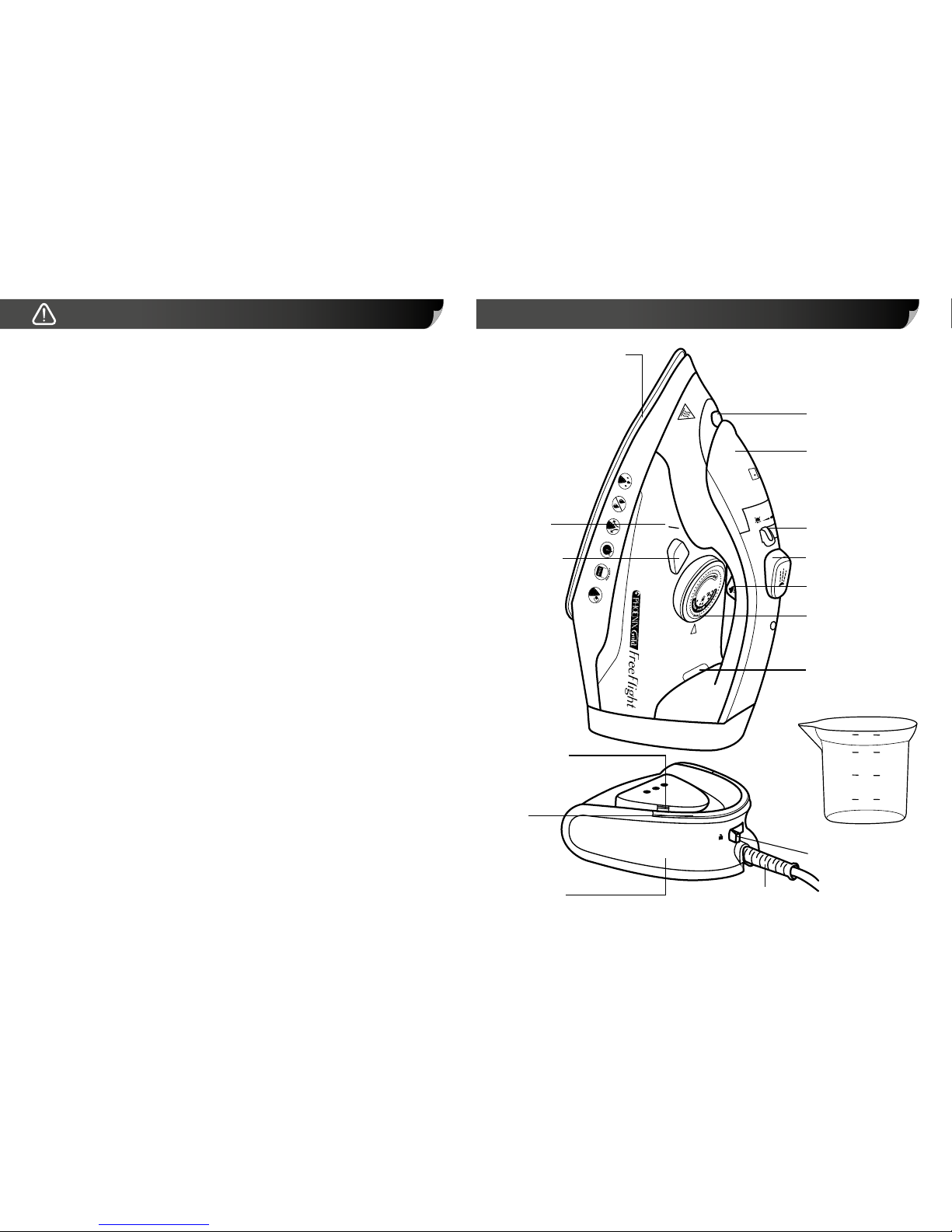

Your Phoenix Gold® FreeFlight
Ceramic Plate (A)
Spray Nozzle (B)
Water Tank Cap (C)
Steam Selector (D)
Maximum
Fill Level (O)
Self-Cleaning
Button (N)
Base Lock (J)
Base Unit (I)
Base
Automatic
Shut-off
Light (K)
Temperature
(thermostat)
Indicator Light (H)
Base Lock Switch (L)
Water Jug
Flexi Cord (M)
Spray Button (E)
Steam Blast Trigger (F)
Temperature
Control Dial (G)
Only use clean, pure water that contains no contaminants
or additional chemicals.
The iron is not to be used if it has been dropped, if there
are visible signs of damage or if it is leaking.
Do not use the iron if the cord becomes worn or there
are signs of damage to the cord.
Always take care that the power cord does not cause
an obstruction that may resent a trip hazard.
Please read the technical data from the rating plate
information supplied at the end of this document.
When filling with water, the steam function should be in
"off" position, if in "on" position, water may flow out from
soleplate holes.
Also, when filling the water tank, it is better to take the
iron away from the base to avoid the risk of spilling water
onto live parts.
To avoid discoloration and staining from dyes, we
recommend ironing brightly-coloured, or heavily-dyed
items through a protective piece of fabric.
Please ensure that the iron is correctly fitted into
the base unit when recharging your Phoenix Gold®
FreeFlight.
Safety Warnings & Advice continued

c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
7 8
Using Phoenix Gold® FreeFlight
for the first time
Before ironing your clothing or fabrics for the
first time, it is recommended that you use
Phoenix Gold® FreeFlight on a damp piece of
cloth for a few minutes. This will ensure that
any residue left over from the manufacturing
process is burnt off the Ceramic Plate and
won’t transfer to your clothes.
You may notice a slight odour and a small
amount of smoke during this time, but this
is perfectly normal and should disappear
quickly.
In hard water areas, we recommend a
mix of 50% tap water and 50% distilled or
‘demineralised’ water.
Only use clean, pure water that contains
no contaminants or additional chemicals.
Important - Each iron is checked at the
factory so some water may remain in the tank.
Please flush the system by filling the
tank and setting the iron on the highest
temperature and press the steam trigger
to release steam.
Do this at least once before first use and
also if you haven’t used your Phoenix Gold®
FreeFlight for a long period.
Basic instructions
1. Lift the Water Tank Cap (C) and fill with
water. When filling the tank from empty,
hold nearly vertical and, using the jug
provided, fill to the ‘Max’ line on the
Phoenix Gold® FreeFlight. When topping
up, remove the iron clear of the base,
open the Water Tank Cap, and tilt the iron
upwards. Slowly fill below the ‘Max’ line,
and close the cap again.
Using Phoenix Gold® FreeFlight Using Phoenix Gold® FreeFlight continued
Note: Some water can get trapped inside
the cap and come out of the small air hole
when the iron is held vertically. This is not a
leak, simply open the cap and empty out
any residual water.
Also, there can sometimes be a noise
created by air being vented through the air
hole in the cap. If this occurs, simply open
the cap to stop it happening.
2. Plug Phoenix Gold®FreeFlight into the mains
and switch on. Make sure the steam is set
to off while the iron is heating (indicated by
the thermostat light on the iron).
When used with the cord the light will go
on and off as the temperature regulates.
When used cordless the iron should be
placed back on the base unit to maintain
heat. When the thermostat light is off
the iron is ready.
PLEASE MAKE SURE THE STEAM
SELECTOR IS CLOSED WHEN USING
THE STEAM TRIGGER IN QUICK
SUCCESSION TO AVOID WATER
SPITTING. Do not open the selector
immediately after using the Steam Blast as
the pressure can cause water to come out
of the soleplate. Always check to make sure
the 'Auto-Off' feature has not activated when
using the Steam Blast as this can cause the
iron to cool quickly and water to spit from
the soleplate.
Anti-calc system
A special resin filter inside the water tank
prevents scale build-up in the plate. The
resin filter is permanent and does not need
replacing.
Do not use chemical additives, scented
substances or decalcifiers.
Anti-drip system
With the anti-drip system, you can iron even
the most delicate fabrics.
Always iron these fabrics at low temperatures.
The plate may cool down to the point where
no more steam comes out, but rather drops
of boiling water that can leave marks or stains.
Turn the steam selector to the off position so
the Anti-drip activates to prevent vaporization,
to help avoid the risk of staining.
Preparation
Sort the laundry to be ironed according to
the international symbols on the garment
label or, if this is missing, according to the
type of fabric.
Garment label Fabric type Thermostat regulation
Synthetic Low temperature
Silk - Wool Medium temperature
Cotton - Linen High temperature
Fabric not to be ironed
Start ironing the garments requiring a low
temperature.
This reduces the waiting times (the iron takes
less time to heat up than to cool down) and
eliminates the risk of scorching the fabric.
Automatic shut-off
If the iron (connected to the base with
the power on) has been left idle for approx.
30 seconds in the horizontal position,
heating will shut-off. When this happens,
the automatic shut-off indicator light (K) will
blink. Lift the iron to the vertical position to
deactivate this safety feature and allow the
iron to heat before commencing with ironing
again.
If the iron (connected to the base with
the power on) is in use over 30 minutes
(approx) a safety feature will activate and the
heating will shut-off. When this happens,
the Automatic Shut-off Indicator Light (K)
will blink. Lift the iron to the horizontal and
back to the vertical position to deactivate
this safety feature, (which will be indicated
by a constant blue light) and allow the iron
to heat to the required temperature before
commencing with ironing again.

c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
9 10
the appropriate temperature for best
performance.
5. When the Temperature Indicator Light (H)
goes out, you can start to iron.
• If the iron is connected to the base, you
can continue ironing.
• If the iron is being used separately,
you can use for about 30 seconds
after the Temperature Indicator Light
(H) goes out (this will vary depending
on various factors), then you need to
replace the iron on the base for heating,
you can continue to use again after the
Temperature Indicator Light (H) goes out.
6. Set the Steam Selector (D) to a required
position. [Fig. 1]
Using the Steam Blast Trigger (F) and
steam when ironing vertically.
IMPORTANT: Place the steam selector
to the CLOSED position to maintain the
pressure for the steam blast function
and to avoid water spitting when the
steam trigger is pressed.
After the iron has fully heated press the
Steam Blast Trigger (F) to generate a
powerful burst of steam that can penetrate
fabrics and smooth difficult creases.
Wait for at least 2 seconds before pressing
again. [Fig. 6]
By pressing the Steam Blast Trigger (F) at
intervals you can also iron vertically (curtains,
hung garments, etc.). [Fig. 7]
Warning: the Steam Blast Trigger (F)
function can only be used at high
temperatures. Remember to replace the
iron on the base when using in cordless
mode. Once the temperature light has
gone out remove from the base and
continue to steam. Always read the care
label.
Steam Ironing
Filling the tank
1. Check that the plug is disconnected from
the socket.
2. Detach and move the iron clear of the
base before filling.
3. Move the Steam Selector (D) to
[Fig. 1]
4. Open the Water Tank Cap (C).
5. Raise the tip of the iron to help the water
enter the opening without overflowing.
6. Slowly pour the water into the tank using
the jug (supplied) and take care not to go
over the maximum level (about 370ml)
indicated by “MAX” on the tank (O). [Fig.
2]
7. Close the Water Tank Cap (C).
Selecting the steam
1. Use the higher temperature setting from
dot positon two to dot position three to
generate even steam flow and to avoid
the possibility of water spitting.
2. Ensure there’s enough water in the water
tank, put the iron in the vertical position.
Wipe away any water that may be around
the cap.
3. Select the required temperature on the
Temperature Control Dial (G) (must be
within the steam range as shown on the
dial). [Fig. 3]
4. Connect the iron to the base and insert
the plug into the socket:
• When using the iron connected to its
base [Fig. 4], make sure that the Base
Lock Switch (L) is in the locked position.
• When using the iron separately from
the base [Fig. 5], put the iron vertically
on the base, and wait for it to reach
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Using Phoenix Gold® FreeFlight continued Using Phoenix Gold® FreeFlight continued
C
D
L
F
H

11 12
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
c
o
t
t
o
n
/
l
i
n
e
n
s
i
l
k
/
w
o
o
l
s
y
n
t
h
e
t
i
c
s
M
I
N
The plastic parts can be cleaned with a
damp cloth then wiped over with a dry cloth.
Self-Cleaning
The Self-Cleaning (N) feature cleans inside the
plate, removing impurities. We recommend
using it every 10-15 days. Directions:
1. Fill the tank up to the Maximum Level (O)
and set the Steam Selector (D) to “0FF”.
2. Place the iron in the vertical position.
3. Turn the Temperature Control Dial (G) to
the Max position.
4. Plug the iron into the mains power and
allow to heat for 2 mintues.
5. Unplug the iron, remove from the base
and place it horizontal over a sink or
basin.
6. Press the Self-Cleaning Button (N)
repeatedly for around one minute to
activate the cleaning function. This will
release both steam and water through
the soleplate to clear any deposits.
Repeat above steps again if needed,
particulary in hard water areas. [Fig. 9]
Caution: When using the Self-Clean
function hot water and steam will rush
through the solepate.
Dry ironing
To iron without steam, simply turn the Steam
Selector (D) to the ‘OFF’ position.
Spray Function
Make sure that there is water in the tank.
Press the Spray Button (E) slowly (for a
dense spray) or quickly (for a vaporized
spray). [Fig. 8]
Warning: for delicate fabrics, we
recommend moistening the fabric
beforehand using the Spray Button (E),
or putting a damp cloth between the
iron and the fabric. To avoid staining,
do not use the spray on silk or synthetic
fabrics.
Fig. 8
Fig. 9
Fig. 10
Using Phoenix Gold® FreeFlight continued Using Phoenix Gold® FreeFlight continued
E
D
Cleaning
Note: before cleaning the iron in any
way, make sure that it is unplugged
from the electrical supply.
Any deposits left on the plate can be
removed using a damp cloth or a non-
abrasive liquid detergent.
Avoid scratching the plate with steel wool or
metallic objects.
7. Place the iron in the vertical position
and allow to cool. This will enable any
residual water to dry.
8. After completing the Self-Cleaning
cycle, turn the iron on again at the
mains and allow to heat for two minutes
to dry out any residual water inside the
steam chamber.
9. Run the soleplate over an old piece of
cloth to clean it of any impurities.
10. When the soleplate has cooled down,
you can clean it with a damp cloth.
When using again, allow the iron to
heat fully and activate the steam setting
again, ironing on a old piece of cloth to
get any remaining impurities that may
have settled around the steam vents.
How to put it away
1. Disconnect the plug of the iron from the
socket.
2. Empty the tank by turning the iron
upside down and gently shaking it.
3. Leave the iron to cool down completely.
4. Wind the power cord around the base.
Do not overpull the cord as this may
weaken the anchor point. [Fig. 10]
5. Always put the iron away in a vertical
position.
N

13 14
Fuse & mains plug replacement
(UK & Ireland only)
This appliance is fitted with a BS 1363 13 Amp
plug. If you have to replace the fuse, only use
those that are ASTA or BSI approved to BS
1362 and have a rated current of 13 Amps.
To change the fuse
1. Use a flat-head screwdriver to prise the
cover off the fuse compartment.
2. Carefully remove the existing fuse.
3. Clip the new 13 Amp fuse into place.
4. Clip the cover back firmly into place.
If the power cord is damaged in any way
please contact JML Customer Services.
This product is unconditionally guaranteed for
one year against all defects of workmanship
and materials. This guarantee does not
Guarantee
affect your statutory rights. If you have any
problems or queries about this product
please contact JML customer services.
Technical Specifications
Cord length 1.9m approx.
Tank size 370ml approx.
Power consumption 2000-2400W
Power supply 220-240V ~ 50/60Hz
Model ES2416S_02
Technical Information
Disposal and the environment
This product is covered by the waste electrical and electronic equipment
(WEEE) regulations. It should not be discarded with normal household waste,
but taken to your local collection centre for recycling. For further information,
please contact your local authority or approved disposal agency.
Advice For Good Ironing
We recommend using the lowest
temperatures with fabrics that have unusual
finishes (sequins, embroidery, transfers etc.).
If the fabric is mixed (e.g. 40% cotton
60% synthetics), set the thermostat to the
temperature of the fibre requiring the lower
temperature.
If you don’t know the composition of the
fabric, determine the suitable temperature
by testing on a hidden corner of the
garment. Start with a low temperature and
increase it gradually until it reaches the ideal
temperature.
Never iron areas with traces of perspiration
or other marks: the heat of the plate fixes the
stains on the fabric, making them irremovable.
To avoid making silk, woolen or synthetic
garments shiny, iron them inside out.
To avoid making velvet garments shiny, iron
in one direction (following the fibre) and do
not press down on the iron.
The heavier the washing machine is loaded,
the more garments come out creased.
This also happens when the spin drying
revolutions are very high.
Many fabrics are easier to iron if they are not
completely dry.
For example, silk should always be ironed
damp.
Cleaning & Care
General care
Ensure Phoenix Gold® FreeFlight is
unplugged and has completely cooled down
before cleaning.
Clean the Ceramic Plate and the body of the
iron using a lightly-damp cloth. Do not use
abrasive scourers or brushes to clean any
part of the iron.
If any man-made fibres fuse to the soleplate, set
the iron on MAX and pass it over a clean piece
of cotton to draw the deposits off the surface.
To clean the exterior, allow the unit to cool
and wipe over with a damp cloth and mild
detergent, then wipe dry.

Distributed by JML
JML, Unit 1 Eastside, Port of Tyne, South Shields, NE33 5SP
Customer Services: UK: 0800 781 7831 (Freephone) • ROI: 041-978 0003 (Local rate)
Email: [email protected] • Web: www.JMLdirect.com
©JohnMillsLtd/MB/01.18/CUR/C •Made in China
