I. Product Introduction
Thank you for purchasing this product, HT-782 is an intelligent DC electric
pump with the preset pressure LCD screen, which can be used for inflatable
tent, SUP, etc. Thanks tothe intelligent pressure system, for example, if a
pressure value is preset, when the pressure reaches the preset pressure
value, the pump will automatically stop inflating.
This product also can deflation, and when the inflatable product is not used,
you can use the air pump to empty the air inside for folding and storage.
II. List of Accessories
Please make sure that the following accessories are in the box before using
it, if any missing, please contact with the local service agents
Air pump Hose Instruction Book
Inflation inlet
Deflation outlet
DC plug
Pressure value LCD screen
Pressure unit toggle button
Pressurizing button
Decompressing button
On/off button
Hose
Air tap
Flexible conduit adaptor
III. Detailsof Accessories
4
1
5
6
7
81
2
3
4
5
6
7
8
9
10
11
1
3
2
11
10
9
20.00
I. Product Introduction.......................................1
II. List of Accessories........................................1
III. Details of Accessories..................................1
IV. Safety Instructions........................................2
V. Inflation Operation......................................3-4
VI. Deflation Operation......................................4
VII. Precautions..............................................4-5
VIII. Fault Handling............................................5
IX. Maintenance and Storage...........................5
X. Suggestions..................................................5
CATALOGUE
PORTABLE ELECTRIC AIR PUMPPORTABLE ELECTRIC AIR PUMP

2 3
IV. Safety Instructions
Warning In order to reduce the risk of injury, please keep children away
from it. Always supervise children and incapacitated person contacting or
using this air pump.
Warning: Children shall be kept far away from this product and wire.
Warning: This product is not applicable for the person with declining
physical strength, sensory ability or mental capacity, the person lack of
skill and the mentally retarded person, unless they are under the
protection of their guardians, supervised and directed at the same time.
Warning: Before moving, maintaining, repairing or adjusting this
product, please first pull out the DC plug from the socket.
Warning: Please do not bury the wire in the soil, and it shall be place in
the safe zone where it won't be damaged by mower or other equipment.
Warning: If the power wire is damaged, the power wire must be
changed by the manufacturer or its service agent or the similar
authorized personnel, in case of any risk.
Warning: If you are standing in a place with water or your hands are
wet, please don't plug or pull the DC plug.
Warning: Before inflating, please pay attention to check the maximum
Press and hold the On/Off button for 3 seconds to directly start the high
pressure pump.
bearable pressure of the inflatable product, because the air bag may be
damaged upon exceeding the maximum bearable pressure.
Warning: Before using, please check the cigarette lighter socket to
make sure that there is no rust or residue inside. The cigarette lighter
socket with poor electric conduction may cause overheating of the
product or power source, which will damage the product.
Warning: The purpose of using this product is limited to the description
in the instruction book.
When the pressure reaches the set value, the air pump will stop working
automatically.
After completing the inflation, pull out the DC plug from the 12V DC
socket.
After pulling out the DC plug, please take down the hose from the air
pump and air bag and store it.
*
*
*
*
V. Inflation Operation
Connect the end with flexible conduit adaptor （11）of the hose with the
air pump inflation inlet (1), and twist clockwise to tighten it, as Figure 1.
Install the other end of the hose into the supporting air tap of the air
bag (step①in Figure 2), and twist clockwise to tighten it, and then
insert the inflation valve of the air bag and twist clockwise to fix it (step
②in Figure 2).
*
*
Plug the DC plug into the 12V DC socket.
Press the pressure unit toggle button to select the unit you need.
Press the pressurizing button or decompressing button to
set the pressure value you need, with the range of the pressure value
from 0 to 20PSI, (1PSI=0.0689BAR)
After finishing the above steps, press the power switch button to
start to inflate.
During the inflating process, you can press the pressurizing button or
decompressing button to increase or reduce the pressure value, press
the pressure unit toggle button to switch the unit, and press the On/Off
button to stop.
*
*
*
*
*
PORTABLE ELECTRIC AIR PUMP PORTABLE ELECTRIC AIR PUMP
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
(FIGURE 1) (FIGURE 2)

5
VIII. Fault Handling
Fault Inspection Solution
The air pump
cannot be
started
normally.
1. The power source is
not plugged properly.
2. The fuse in DC plug
(7) is burnt out.
3. Overheating or
overload causes motor
stop.
1. Check whether the
hose is blocked or
cracked.
2. The joint between
the hose and air pump
or air bag is not
installed properly.
1. Make sure that the power wire is
plugged in the 12V DC socket.
2. Change the fuse.
3. Cool the motor and restart it.
4. If the problem cannot be solved,
please contact local service agents or
similar authorized personnel to change
the product.
1. Change the hose or make it
unblocked, and check whether the hose
is cracked.
2. Reinstall the hose.
3. If the problem cannot be solved,
please contact local service agents or
similar authorized personnel to change
the product.
Slow
The machine
displays HOT
Check if the air pump is
working too long and its
inside is overheated.
30-minute cooling
or
abnormal
inflation or
deflation.
IX. Maintenance and Storage
After using, or if you want to move, maintain or adjust the product,
please first pull out the DC plug from the socket.
when it is idle, it shall be properly stored after being fully cooled.
It shall not be exposed to the rain or immersed in water.
Please store it in the dry and ventilated place.
X. Suggestions
The warranty period of this product is one year, and it is suggested to
use the original accessories. For any fault not caused by using the
original accessories, it shall be out of the warranty scope.
*
*
*
*
4
The applied power source must be the 12V DC power source (as Figure 4).
Do not block the inflation inlet (1) and Deflation outlet (2), and ensure that the
inflation inlet (1) and Deflation outlet (2) shall remain smooth at all times.
Observe the local waste treatment provisions, and it is not allowed to throw
the air pump away randomly.
Don't use this product when the hose is damaged, and please change the
hose immediately.
Don't pull out the hose when inflating, because that
the high pressure may hurt the physical body.
Don't make the air pump work for more than 20
minutes, because that motor overheating may
cause internal damage; and the air pump shall
be fully cooled for 30 minutes after continuously
working up to 20 minutes.
VII. Precautions
*
*
*
*
*
*
*
*
VI. Deflation operation
Remove the hose from the inflation inlet, Connect the end with
flexible conduit adaptor （11）of the hose with the air pump
deflation outlet (2), and twist clockwise to tighten it, as Figure 3,and
the other end shall still be to the airbag.
Press the button of the power switch of air pump, and start the
deflation until all the gas is discharged, then the power can be
turned off to stop the deflation.
*
*
Notice: The factory set pressure value of the air pump is 10PSI
(10PSI=0.689BAR), and at the time of the secondary use, the set
pressure value for the last time use will be displayed by default.
Notice: After powered on, if there is no operation within 2 minutes, the
air pump will enter standby mode, and the machine can be initiated
by pressing the power switch button .
Please don't use this air pump if any part is damaged, and please contact
with the professional personnel to repair it.
This product shall not be exposed to the rain or immersed in water.
In order to prevent risk, the inflation inlet shall not be forward to face or body.
Please don't not leave while inflating.
Please start the car when using the product, in case of
unnecessary damage.
*
*
*
*

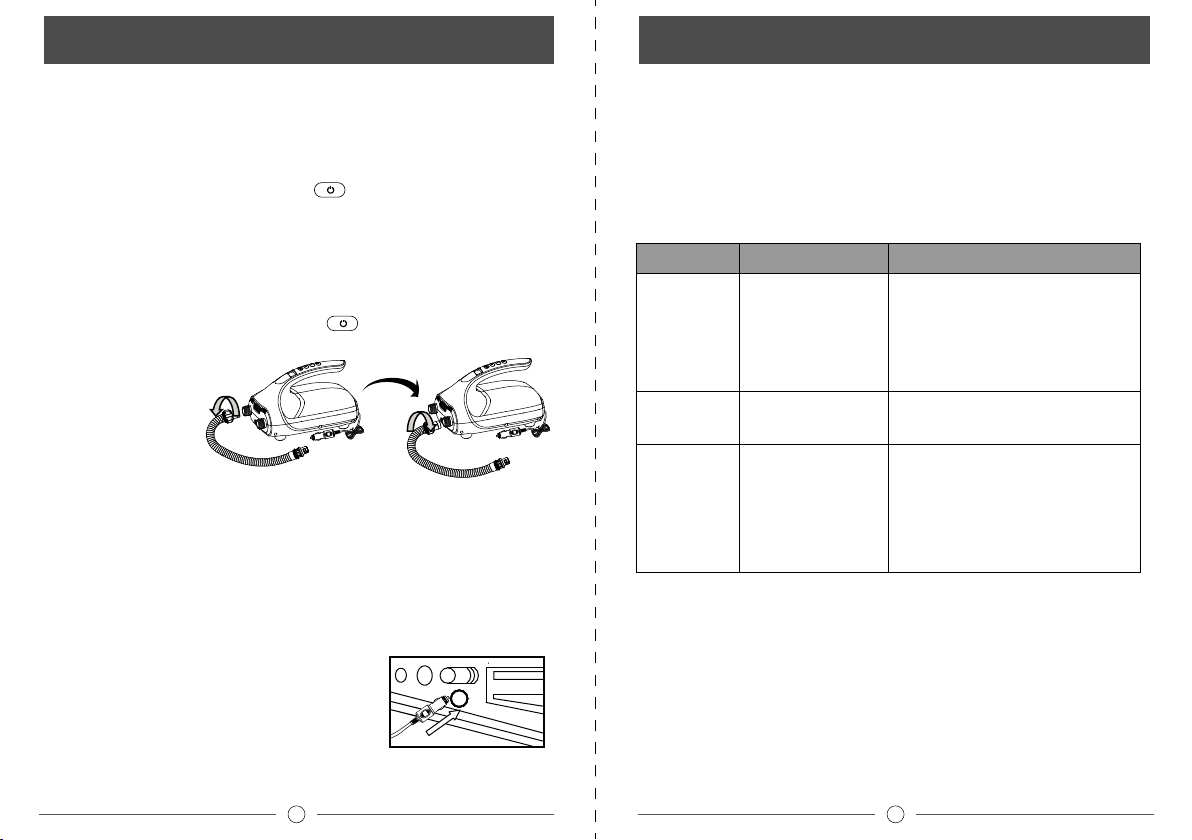

(FIGURE 3)
(FIGURE 4)
PORTABLE ELECTRIC AIR PUMP PORTABLE ELECTRIC AIR PUMP

USER MANUAL
EXTERNAL POWER SUPPLY
MANUFACTURED BY:
Jobe Sports International
Heerewaardensestraat 30,
6624 KK Heerewaarden
The Netherlands
tel. +31
(0) 487 573090
e-mail: [e-mail]
url: www.jobesports.com

*
*
*
*
*
*
Do not attempt to dry this product with a hairdryer, microwave oven
or other heat sources.
Do not use this product while it's being charged.
It's prohibited to make the product get wet in the rain, become damp
or soak in the water because it's not waterproof.
Observe the local waste disposal regulations. Never discard the
product randomly.
The USB cable is only used for charging. It is recommended that
this product should not be used during charging.
Do not allow this product to work for more than 30 consecutive
minutes, because motor overheating might cause internal damage.
Please allow the product to cool for 30 minutes after 30-minute
continuous operation.
*
*
*
*
After using, or if you want to move, maintain or adjust the product,
please first pull out the DC plug from the socket.
when it is idle, it shall be properly stored after being fully cooled.
It shall not be exposed to the rain or immersed in water.
Please store it in the dry and ventilated place.
The warranty period of this product is one year, and it is suggested to
use the original accessories. For any fault not caused by using the
original accessories, it shall be out of the warranty scope.
...........................................1
4
4
.......................................
.........................................
I. Product Diagram
......................................................
.......................
1-3
5...............................................
3
4
.........................................
5.......................
5................................................
II.
III.
VII.
VIII.
IX.
Charging Diagram
Basic Parameters
Precautions
Maintenance and Storage
Suggestions
Purpose
Battery Power Level Display
Safety Instructions
IV.
V.
VI.
VII. Precautions
VIII. Maintenance and Storage
IX. Suggestions
EXTERNAL POWER SUPPLY EXTERNAL POWER SUPPLY
CATALOGUE
5

25% 50% 75% 100%
Notes:When the battery power level is “25%”, please charge
the battery.This product is available with battery overcharge and
over-discharge circuit protection, which can effectively protect
the service life of the battery.
Charging input: DC5V/1000mA
Dimensions:15.5cm×9.52cm×4.8cm
Charging time: About 9 hours
Cigarette lighter output: DC12 15A
Power:140W
Lithium battery capacity: 4000mAh
The display shows the battery power level at the time of
battery charging and discharging (as shown in the following
diagram).
Remaining
battery
power level
Please use compatible USB charging cable to charge the product.
It isrecommended that this product should not be used during
charging (figure 3).
Input
1
2
3
1.On/Off battery indicator
3.Cigarette lighter socket
2.Battery indicator
In order to reduce the risk of injury, do not allow children
to use it. Keep children and those who are incapacitated off it.
Children shall be kept far away from this product and wire.
Please do not bury the wire in the soil, and it shall be
place in the safe zone where it won't be damaged by mower or other
equipment.
If the power wire is damaged, the power wire must be
This product is not applicable for the person with declining
physical strength, sensory ability or mental capacity, the person lack of
skill and the mentally retarded person, unless they are under the
protection of their guardians, supervised and directed at the same time.

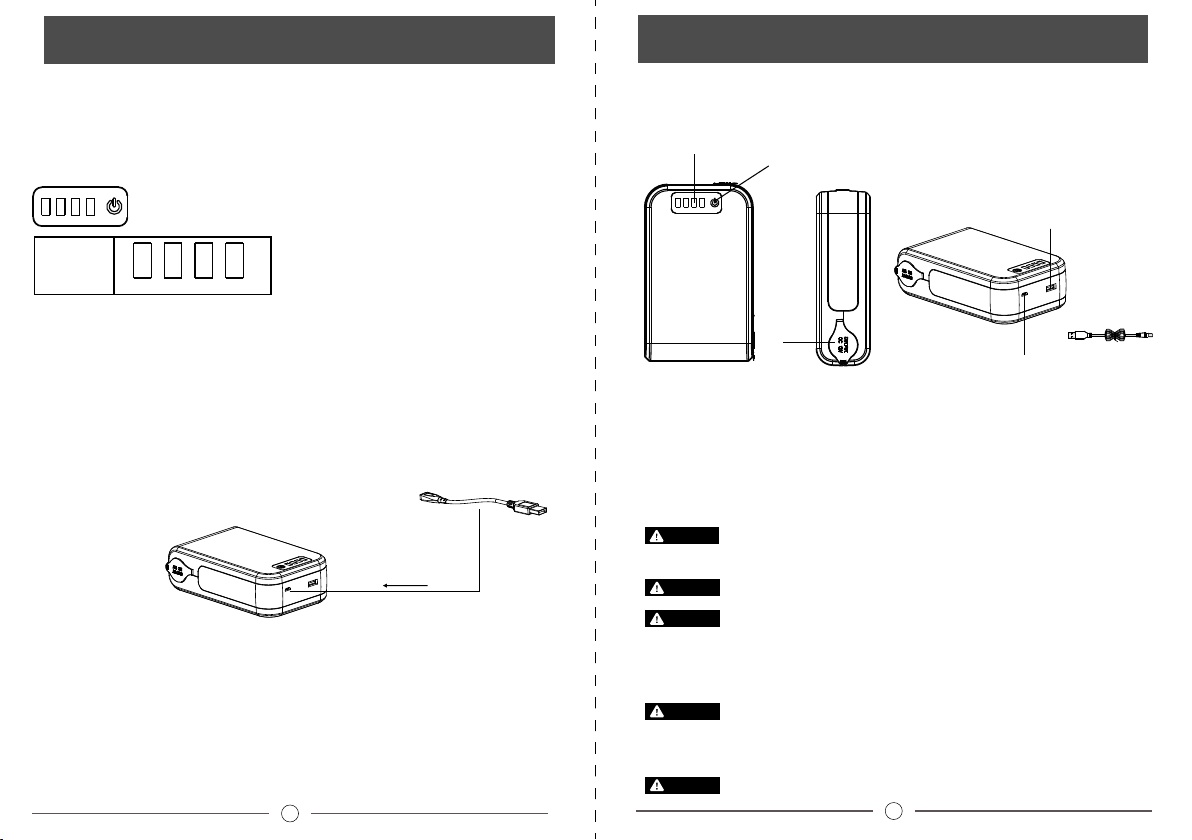

I. Product Diagram
II. Safety Instructions
IV. Battery Power level Display
VI. Basic parameters
V.Charging Diagram
4
56
4.USB outlet
5.USB Charging inlet
6.USB charging line
EXTERNAL POWER SUPPLY EXTERNAL POWER SUPPLY
WARNING
WARNING
WARNING
WARNING
WARNING
1
4
(FIGURE 3)

WARNING If you are standing in a place with water or your hands
are wet, please don't plug or pull the DC plug.
Do not throw this product into fire for fear of explosion,
battery leakage or other dangers.
Do not disassemble or break the product randomly for
fear of damaging the product.
Avoid keeping or using this product under strong sunlight.
Prolonged sun exposure will damage the performance of the product,
resulting in overheat and line problems.
Do not use or store this product in an environment where
the temperature is too low or too high, which might trigger automatic
protection of the product and cut off the charging of the digital product.
Please use this product in a relatively safe environment,
and keep it away from flammable/explosive liquids, gases or explosives.
Before charging this product, please verify that the
specifications of the adapter match the product. Incompatible adapters
might cause damage to the product or cause risky overload.
When the product is not in use, please put it in a dry and
ventilated place, and prevent it from colliding with metal objects for fear
of short circuit. Please pay attention to heat dissipation and ventilation
during use, so as to avoid danger due to excessive temperature.
If product swelling or leakage is found, please stop using
this product.
Before using, please check the cigarette lighter socket to
make sure that there is no rust or residue inside. The cigarette lighter
socket with poor electric conduction may cause overheating of the
It is strictly forbidden to place the product in a high-humidity
environment, otherwise the internal circuit of the product might be
short-circuited, causing serious damage to the product.
changed by the manufacturer or its service agent or the similar
authorized personnel, in case of any risk.

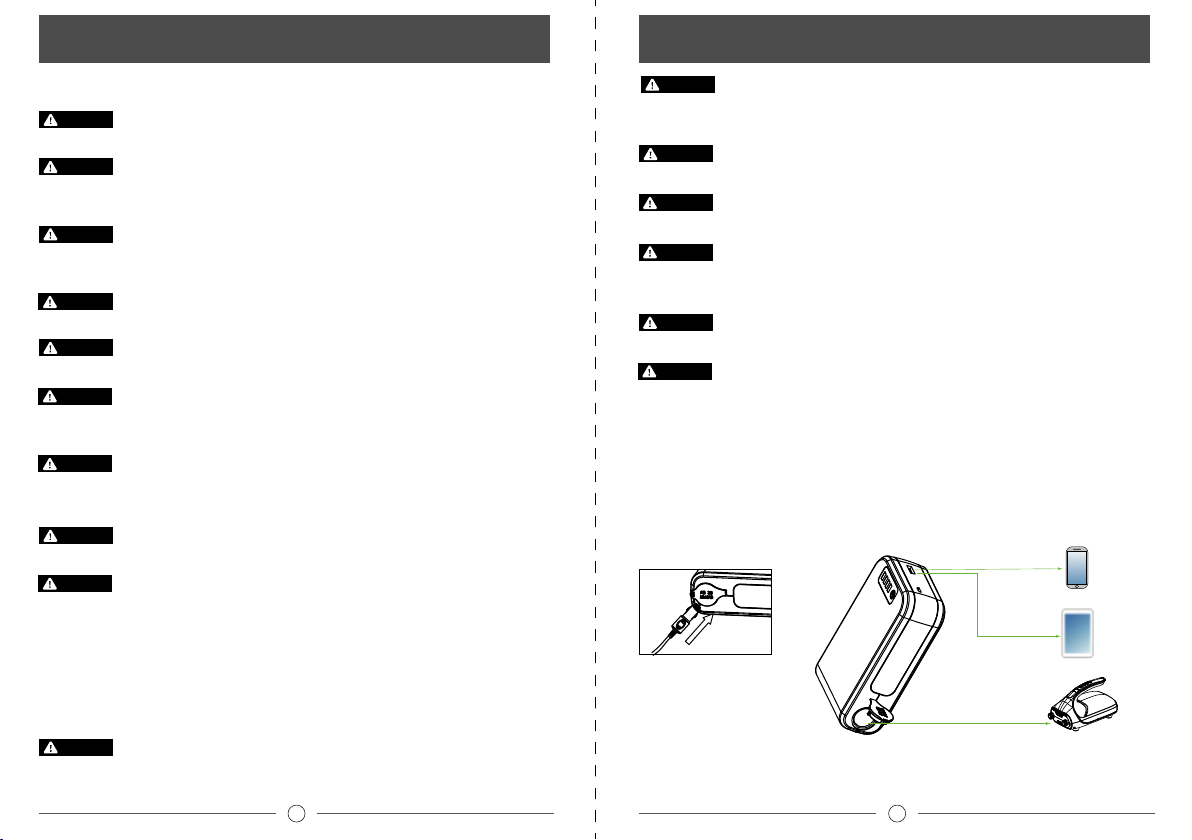

1.This product supplies power to air pumps,mobile phones,
tablet computers and other devices (Figure 2).
2.Power the product with a cigarette lighter plug less than 15A
(Figure 1/2).
Do not disassemble the device without authorization.
This product does not contain spare parts that can be
disassembled/maintained by the user.
Do not cover or obstruct the product with paper or other
objects for fear of affecting heat dissipation and cooling of the product.
In order to avoid injury or property damage, unplug the
power cord when not using the product.
If leakage occurs and the liquid splashes into the eyes
accidentally, do not rub your eyes but rinse your eyes with clean water
immediately instead. If the symptom is serious, please go to hospital.
Product or power source, which will damage the product.
Power the product with a cigarette lighter plug less than 15A
The purpose of using this product is limited to the
description in the instruction book.
III. Purpose
(FIGURE 1)
(FIGURE 2)
OUTPUT
OUTPUT
OUTPUT
Cell phones
tablet PC
Air pump
EXTERNAL POWER SUPPLY EXTERNAL POWER SUPPLY
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
2 3
