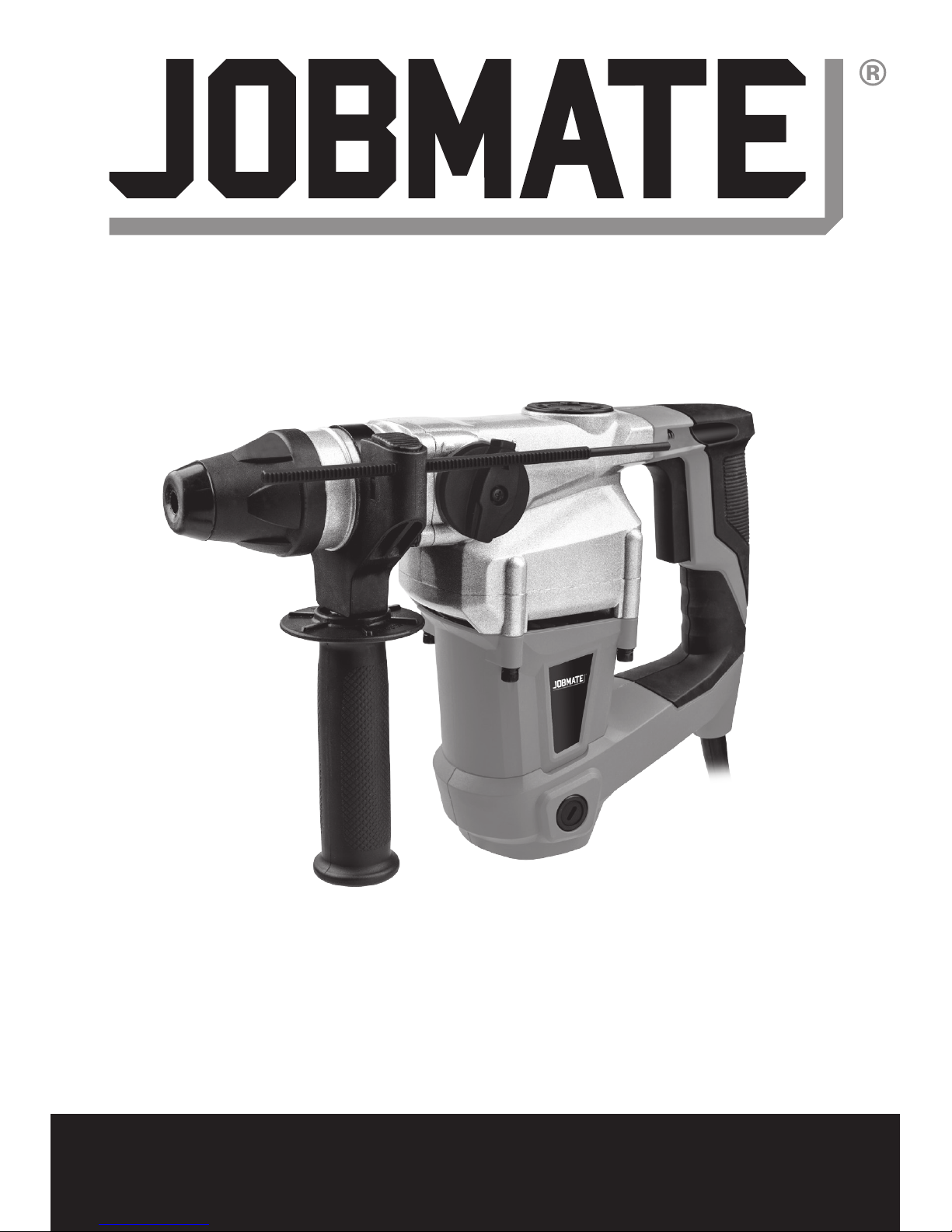

jobmate JM1000RHD Installation manual

SAFETY AND OPERATING MANUAL
1000W
ROTARY HAMMER DRILL
JM1000RHD

2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk
of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of

3
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
ADDITIONAL SAFETY POINTS
FOR YOUR HAMMER
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces,
when performing an operation where the
cutting accessory may contact hidden wiring
or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the
power tool “live” and could give the operator an
electric shock.
4. Recommendation that the tool always be
supplied via a residual current device with a
rated residual current of 30 mA or less.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
RCM marking
ABN: Australian Business Number.
By this number, business information
such as entity type, status, business
location etc. can be found at website
http://abr.business.gov.au.
ABN of Positec Australia Pty Limited
is 14 101 682 357

4
1 2 3
4
5
7
6
8
9
10
11

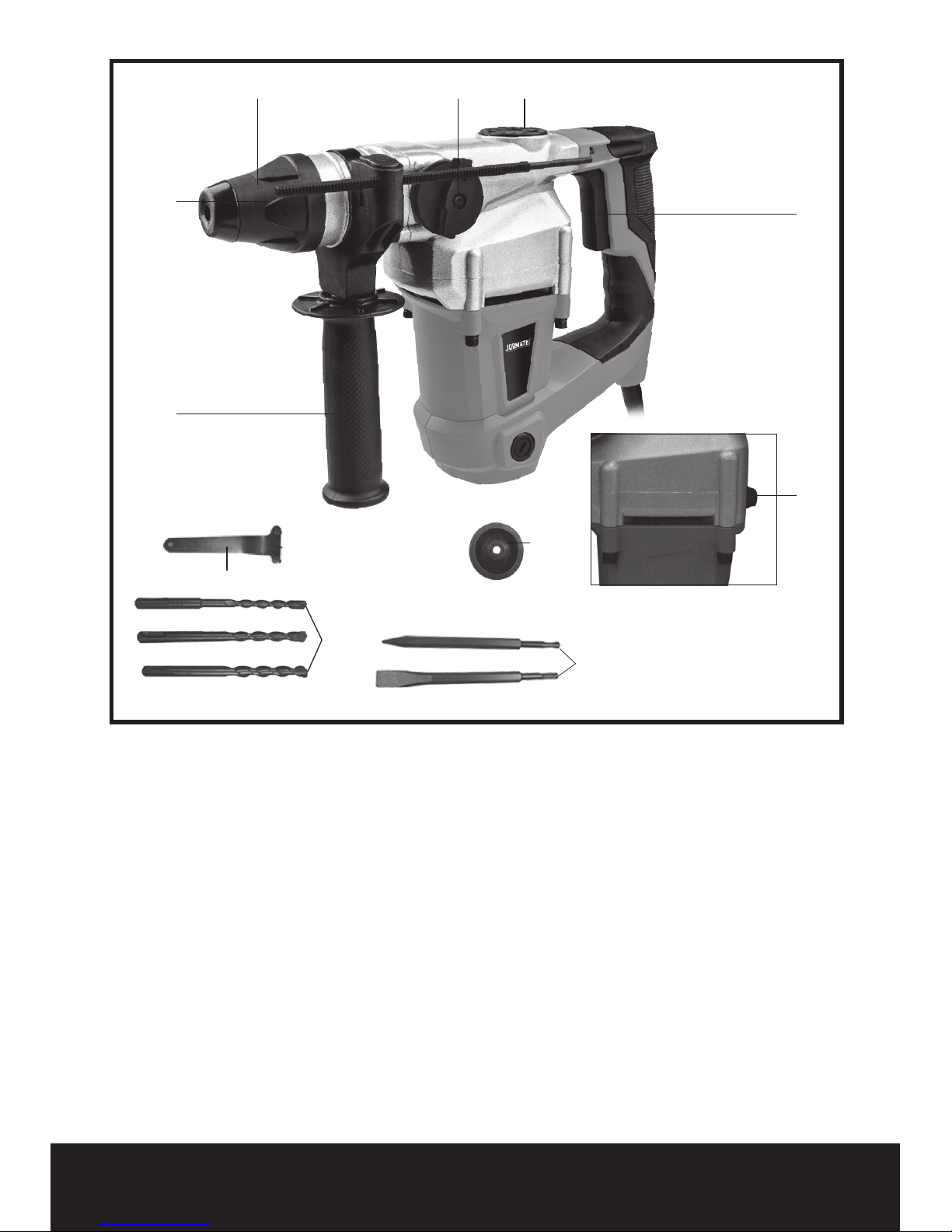

COMPONENT LIST
1. Locking sleeve
2. Hammer and chisel action selector
3. Grease box cover
4. On/off Switch
5. Hammer and drilling action selector
6. Auxiliary Handle
7. Depth gauge
8. Grease box cover spanner
9. Dust cover
10. SDS Chisel bit x 2* (1 Flat chisel, 1 point chisel)
11. SDS drill bits (8/10/12X150mm)
* Not all the accessories illustrated or described are included in standard delivery.

5
ACCESSORIES
Auxiliary handle 1
Depth gauge 1
Dust cover 1
Spanner 1
Plastic container grease 1
SDS drill bits (8/10/12X150mm) 3
SDS Chisel (flat & pointed 250mm) 2
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.
TECHNICAL DATA
Voltage 230-240V~50Hz
Power input 1000W
No load speed 1050 /min
Impact rate 5000 /min
Impact energy 4J
Max drilling capacity in
Steel 13mm
Masonry 26mm
Wood 40mm
Machine weight 3.4 kg
Protection class /II

6
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book
carefully.
INTENDED USE
The machine is intended for planing of firmly supported
wooden materials, such as beams and boards. It is also
suitable for beveling edges and rebating.
1. ADJUSTING THE AUXILIARY HANDLE (SEE FIG. A)
For your personal safety we recommend using the auxiliary
handle at all times.
To adjust the handle, loosen the bottom of the handle anti-
clockwise and rotate the handle around the handle collar until
the handle is in the desired position. Tighten fully.
2. FITTING SDS TOOLS (SEE FIG.B)
Clean the bit shank and apply grease before installing the bit.
Hold the rotary grip, pull back the locking sleeve and insert the
SDS tool into the bit holder. Turn the bit and push it in until a
resistance is felt, the shaft drops completely into bit holder.
Once you are satisfied it has seated, release the black locking
sleeve. This should lock the SDS tool into position.
After installing always make sure that the tool is securely held
in bit holder by trying to pull it out.
If the SDS tool is not located well, repeat the installation
operation again.
3. REMOVE SDS TOOL
To remove the tool, pull back the locking sleeve, hold and pull
the tool out.
4. OPERATING THE SAFETY ON/OFF SWITCH
Press the on/off switch in for operation, release the
switch to stop. (See Fig. C)
5. HAMMER DRILL FUNCTION
1. Adjust the hammer and chisel action selector to
position “
“ . (See Fig. D)
Dial selector lock
Dial selector lock
bit holder
Fig.A
Fig.B
Fig.C
Fig.D
Fig.H
Fig.G2
Fig.G1
Fig.F2
Fig.F1
Fig.E
Fig.I
Fig.J
Fig.K1
Fig.K2

7

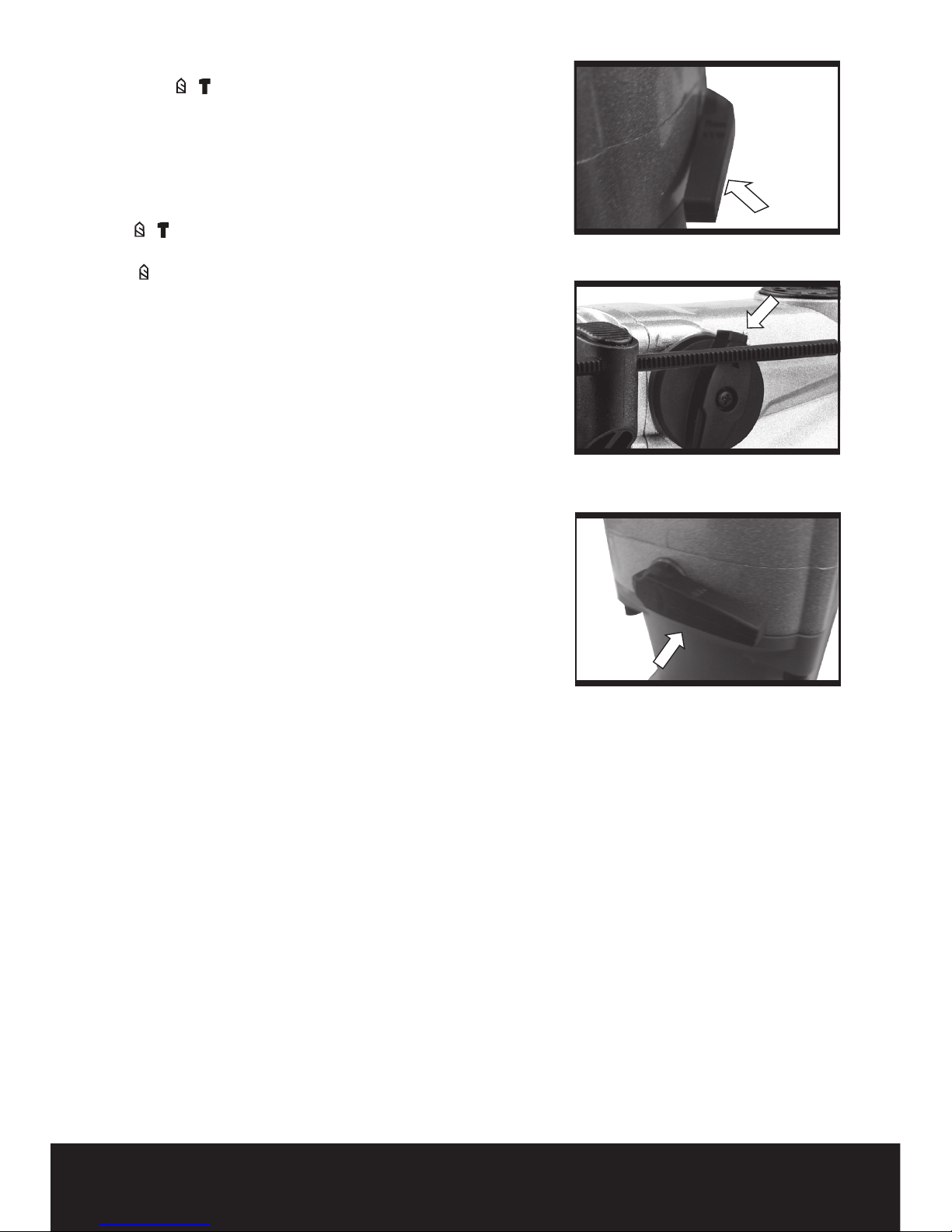

2. Adjust the hammer and drilling action selector to
position “
“. (See Fig. E)
3. You are now set up for hammer drilling into masonry.
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
6. DRILLING FUNCTION
1. Adjust the hammer and chisel action selector to position “
“ to provide rotation of the chuck (See Fig. F1)
2. Adjust the hammer and drilling action selector to position
“
“ to stop the hammer action (See Fig. F2)
3. You are now set up for drilling function.
NOTE: Press the selector switch lock button before adjusting
the dial selector everytime.
Dial selector lock
Dial selector lock
bit holder
Fig.A
Fig.B
Fig.C
Fig.D
Fig.H
Fig.G2
Fig.G1
Fig.F2
Fig.F1
Fig.E
Fig.I
Fig.J
Fig.K1
Fig.K2

8

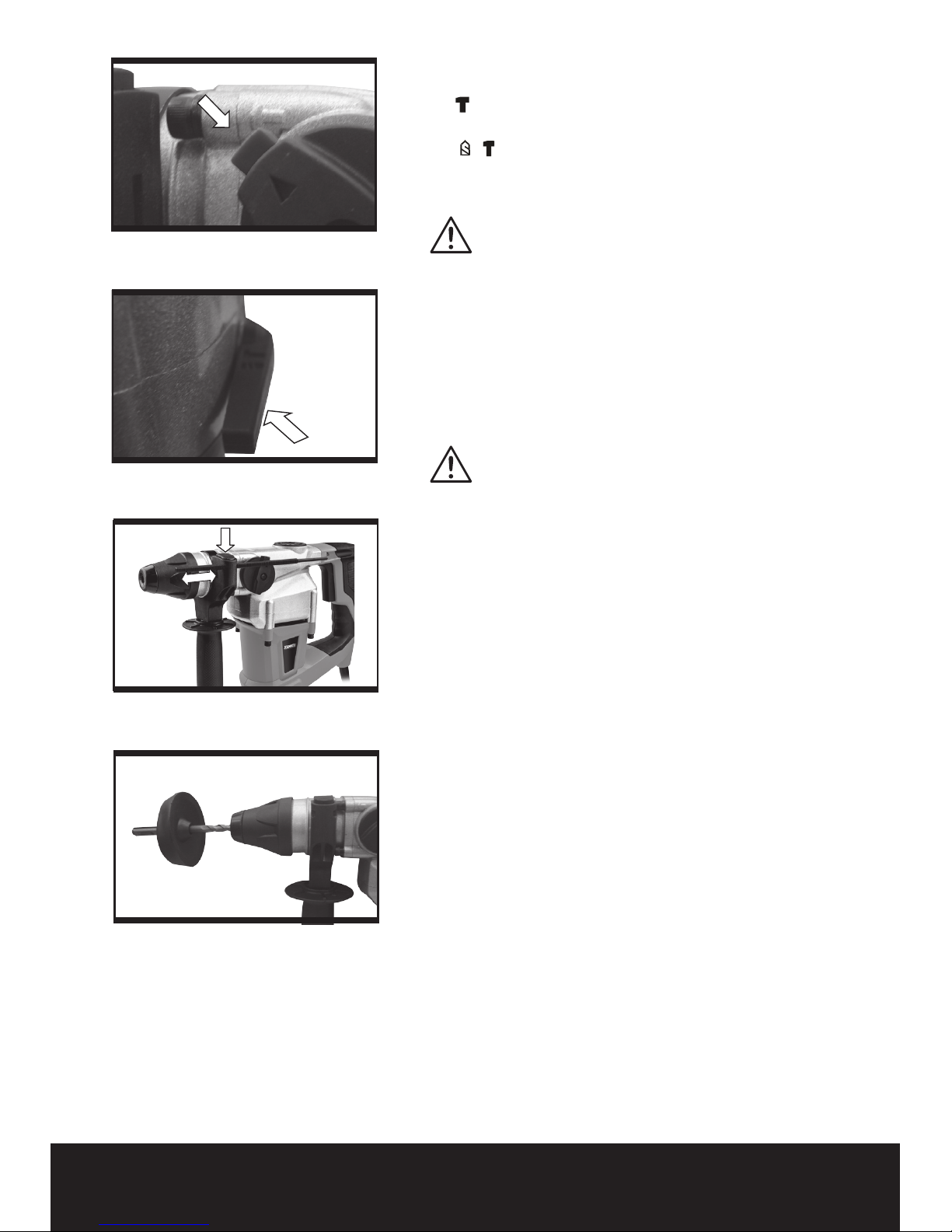

7. CHISEL FUNCTION
1. Adjust the hammer and chisel action selector to position “
“. (See Fig. G1)
2. Adjust the hammer and drilling action selector to position
“
“. (See Fig. G2)
3. You are now set up for chisel work using chisel action.
NOTE: Press the selector switch lock button before adjusting
the dial selector everytime.
WARNING: You must make sure that the selector
switch is positively locked in chisel mode position. If not,
it could cause a hazard.
8. USING THE DEPTH GAUGE(SEE FIG. H)
1. Depress the button, insert depth gauge into the handle.
2. Adjust the depth gauge to desired depth.
3. Loosen the button to tighten the depth gauge.
9. DUST COVER(SEE FIG. I)
Before drilling, fit the dust cover over the drill bit.
CAUTION: Always wear eye protection with this tool.
Dial selector lock
Dial selector lock
bit holder
Fig.A
Fig.B
Fig.C
Fig.D
Fig.H
Fig.G2
Fig.G1
Fig.F2
Fig.F1
Fig.E
Fig.I
Fig.J
Fig.K1
Fig.K2

9
10. LUBRICATION MACHINE (SEE FIG. J)
The machine is grease-lubricated. A grease refill is only
required during hammer work efficiency is low. Open the
grease box lid at the top of the hammer using the pin spanner
provided. Then refill approx 30g grease provided with your
tool. The grease specification is general purpose lithium
based.
CAUTION: Keep the container of grease away from
children.
11. CHANGE THE CARBON BRUSH (SEE FIG. K1 & K2)
Disconnect the plug from the power supply.
Unscrew the carbon brush cap with screwdriver.
Remove the carbon brush. Check the length of the brush
and replace if under 6mm. When brushes need replacement
always renew both brushes, even if one is still more than
6mm long.
Completely screw down the carbon brush cap. Check that the
tool is working. Before use, allow it run for a few minutes to
enable the brushes to settle.
Dial selector lock
Dial selector lock
bit holder
Fig.A
Fig.B
Fig.C
Fig.D
Fig.H
Fig.G2
Fig.G1
Fig.F2
Fig.F1
Fig.E
Fig.I
Fig.J
Fig.K1
Fig.K2

10
WORKING HINTS FOR YOUR TOOL
1. Reduce the pressure on the drill bit when it is about to
break through. This will prevent the drill from jamming.
2. When drilling a large hole, first drill a pilot hole using a
smaller drill bit.
3. Always apply pressure to your drill bit in a straight line,
and if possible at right angles to the workpiece.
4. Never change the operating mode whilst the drill is
running.
5. Do not apply excessive pressure to the tool when
chiseling. Expressive force does not speed up the work.
MAINTENANCE
Remove the plug from the socket before carrying out any
adjustment, servicing or maintenance.
There are no user serviceable parts in your power tool. Never
use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool
in a dry place. Keep the motor ventilation slots clean. Keep
all working controls free of dust. Occasionally you may see
sparks through the ventilation slots. This is normal and will
not damage your power tool.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
TROUBLESHOOTING
1. If your power tool does not start, check the plug on the
power supply first.
2. If your hammer becomes too hot in use, set the hammer
switch to the drill mode and allow your drill to operate at
maximum speed without load for 2 minutes.
3. If your hammer work efficiency is too low, please add
sufficient grease in the grease box.
4. If work efficiency is too low please check drill bit or chisel
and make sure it is not blunt or worn.
5. If a fault can not be rectified, return the tool to an
authorized dealer for repair.

11
WARRANTY
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit only made available
by returning the tool to the place of purchase with a
confirmed register receipt.
Proof of purchase is essential.
We reserve the right to reject any claim where
the purchase cannot be verified.
This warranty does not include damage or defects
to the tool caused by or resulting from abuse,
accidents, alterations or commercial or business
use.
