SIX ZONE IR CONNECTING BLOCK EXPANDER IR-CBE6
DATA SHEET

IR-CBE6
SIX ZONE IR CONNECTING BLOCK EXPANDER
FEATURES
• Expands the inputs of an IR connecting block by six
• Reduces wiring clutter
• Talkback LED indicates system status
•12V DC input for system expansion when using multiple IR-CBE6
INSTALLATION FRIENDLY DESIGN:
• Snap and lock connector secures wire in place without the use of a
screwdriver
• Mounts in 6" center structured wiring cabinets with the provided Christmas
tree snap-in plugs
• Wings allow for either vertical of horizontal mounting
SPECIFICATIONS
• Wall or Flat Surface: Use drywall screws
WIRING REQUIREMENTS:
• Individual runs of category 5 or better from each receiver and a single run to
the IR connecting block
MOUNTING:
• In a structured wiring Cabinet using Christmas tree snap-in plugs (included)
DIMENSIONS:
• 6-7/8" wide x 1-1/4" high x 1-1/4" deep
WARRANTY:
• 2 year limited
SIX ZONE IR CONNECTING BLOCK EXPANDER IR-CBE6
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM

SIX ZONE IR CONNECTING BLOCK EXPANDER IR-CBE6
PREPARING FOR INSTALLATION:
Make sure that all the IR Receiver cables and the Connecting Block cable will
reach the proposed location of the IR-CBE6 expansion hub. Mark the cables
with Wire labels, describing where the cables originate from, rather than where
they will terminate.
INSTALLATION:
1. Select an appropriate location for the IR-CBE6.
2. Run all the necessary wiring to the IR-CBE6. Label the wires for future
reference.
3. Strip 1/4" of insulation from the end of each CAT5 wire.
4. Locate the Snap and lock connectors and remove them if they are
plugged in.
5. Use a small flathead screwdriver or your thumb to raise the locking tabs,
exposing the holes on the connectors.
6. Insert each wire into the appropriate hole and snap down the locking tabs.
7. Insert the smooth side of the connector plug into the smooth side of the
IR-CBE6 socket.
8. Connect the IR Connecting Block to the connector terminal labeled:
OUTPUT TO CONNECTING BLOCK.
9. Connect the IR Receivers to the terminals labeled: IR INPUT.
10. Locate the pre-printed Room Labels. Affix the appropriate label to the
recessed area over each on/off selector button.

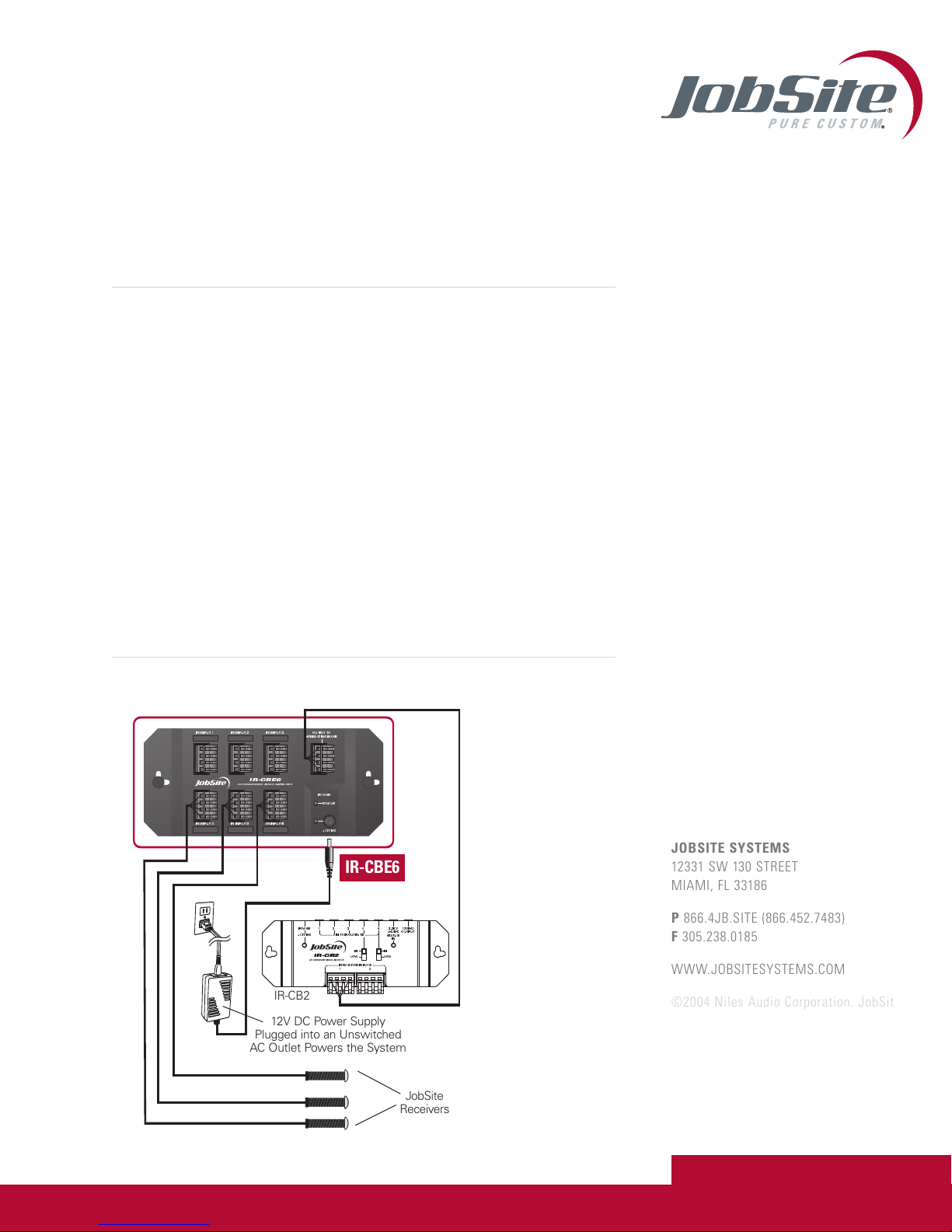

IR-CBE6 INSTALLATION DIAGRAM
OUTPUT TO
CONNECTING BLOCK
POWER
STATUS
+12V DC
IR INPUT 1
IR INPUT 4 IR INPUT 5 IR INPUT 6
IR INPUT 2 IR INPUT 3
IR-CBE6
IR CONNECTING BLOCK EXPANDER
12VDC/
OUTPUT
HI
LOW
HI
LOW
1
12
2 3 54
EMITTER OUTPUTS
POWER
+12V DC
IR RECEIVER INPUTS
3-30V
AC/DC
STATUS
IN
IR-CB2
IR CONNECTING BLOCK
IR-CBE6
JobSite
Receivers
12V DC Power Supply
Plugged into an Unswitched
AC Outlet Powers the System
IR-CB2
