Joe Due Z10 User manual

1 / 37
OperatingManualZ10/Z20/Z30
Joe Due Blades & Equipment
N5437 US Hwy 12 & 16
Mauston, WI 53948
www.joedue.com
[e-mail]
Operating Manual
Dust ExtractorZ10/Z20/Z30
Read all instructions carefully before use

2 / 37
OperatingManualZ10/Z20/Z30
Introductions
Dear Valued Customer,
Thank you foryour trust in Joe Due Blades & Equipment, Inc. and for choosing the single phase, 2 stage
HEPA dust extractor!
We hope the machine will be to your satisfaction and meet your expectations.
Joe Due Blades & Equipment, Inc is a professional manufacturer of dust extractors, industrial vacuums,
air scrubbers, and etc.Our engineers and management teamhave honed more than a decade of
experience in the industry, and are committed to making continuously improvements to supply the
market with quality products via technical innovation and professional services.
This manual provides all the information and instructions needed to use and to service the
machine.Please keep thismanual with care and make sure that users readit prior to operating the
vacuum. In case of loss of or damage to the manual, please don’t hesitate to contact us for a new
copy.
We would be very glad to receive any notice or suggestion in order to improve our products and
service. For any question please contact the closest Customer Service or directly Joe Due Blades &
Equipment, Inc.. Industries Inc.
Notice!
These instructions are for single phase, 2-stage HEPA dust ExtractorsZ10/Z20/Z30only.
The machines are designed to clean construction area and can be connected to powered hand
tools, small/medium size grinders, and etc.
Please pay particular attention to the safety regulations.
Read the complete operating manual prior to using the machines.
All repairs must be performed by a qualified service person. Use only the replacement parts
supplied or specified by Joe Due Blades & Equipment, Inc...
Joe Due Blades & Equipment, Inc..shall, under no circumstances, be deemed liable for any
accidents or damage caused if the machine is used for other applications or been used in a way
other than those required in the operating manual.
2018.03
Joe Due Blades & Equipment, Inc..

3 / 37
OperatingManualZ10/Z20/Z30
Table of Contents
1 Unpacking………………………………….……….......... 4
2 Intended use……………………………………………… 4
3 Identification of main parts……………………………. 5
4 Technical data…………………………………………… 6
5 Declaration of conformity……………………………… 7
6 Warranty…………………………………………………… 7
7 Safety precautions………………………………………. 8
8 Electric safety…………………………………………….. 8
9 Thermal protection………………………………………. 9
10 Grounding instructions………………………………….. 9
11 Service……………………………………….…………….. 9
12 Operating instructions……………………..……………. 10
13 Filter change……………………………………………… 11
14 Problem solving…………………………………………... 12
15 Exploded view –Z10……………………………………. 13
16 Exploded view- ZBD00313…………………………….. 15
17 Exploded view- ZBD00312…………………………….. 16
18 Exploded view- ZBD00323…………………………….. 18
19 Accessories-Z10…..…………………………………….. 20
20 Exploded view-Z20…………………………………..… 21
21 Exploded view- ZBD00327…………………………….. 23
22 Exploded view- ZBD00326 &ZBD00411……………. 24
23 Accessories- Z20………………………………………… 27
24 Exploded view- Z30…………………………………….. 28
25 Exploded view- ZBD00332…………………………….. 30
26 Exploded view- ZBD00412 &ZBD00414…………… 31
27 Exploded view- ZBD00413…………………………….. 34
28 Accessories-Z30………………………………………… 36
29 Accessories-Z30 230v/63A…….……………………… 37

4 / 37
OperatingManualZ10/Z20/Z30
1. Unpacking
When unpacking the machine, make sure that the following accessories are included:
A hose with end fittings
Metal wands
Floor tools and its spare parts
If any of the abovementioned parts are missing, please contact your local distributor or our sales
representative.
Please dispose of packaging materials and used machine components in accordance with the
local environmentaldisposal law or regulations. Always remember to recycle.
2. Intended use
The machine is designed for vacuuming and separating dry, non-combustible dust with an
explosion limit value of 0.1mg/m3.
Notice!
Do not use the machine outdoors or on wet surface, this machine is designed forindoor and
dry use only.
Do not expose machine to rain or moisture, store indoors only.
Do not use to pick up any type of liquids.
Do not use to pick up any flammable or combustible substances, or the substances which
could cause explosions (fuels, solvents, etc.), don’t use in an area where they may be
present.
Do not use to pick up any substances that is burning or smoking substances, such as
cigarettes and matches, or hot ashes.
Joe Due Blades & Equipment, Inc..shall, under no circumstances, be deemed liable for any
accidents or damage caused if the machine is used for other applications.

5 / 37
OperatingManualZ10/Z20/Z30
3. Identification of main parts
1 filter purgehandle
2 die-casting inlet unit
3 continuous fold bag assy.
4 4” front swivel casters, lockable
5 8” wheels
6 rating label
7 hour meter
8 power switch
9 vacuum meter
10 HEPA chamber
11 main filter chamber
12 ergonomic handle
8
12
1
3
10
9
7
6
5
4
2
11

6 / 37
OperatingManualZ10/Z20/Z30
4. Technical data
data unit Z10 Z20 Z30
voltage
(single phase)
v 120 120 240
max. power
w 1200 2400 3600
hp 1.6 3.2 4.8
current A 8 16 16
max. air flow
m3/h 200 400 600
cfm 118 236 354
max. vacuum
mbar 240 240 220
inch 100 100 90
main hose
mm D38x5m D51x7.5m D51x7.5m
inch D1.5”x16.5’ D2.0”x24’ D2.0”x24’
inlet
mm 63 63 63
inch 2.5” 2.5” 2.5”
pre-filter
(EN779-F8)
% >99.5%@1.0 um >99.5%@1.0 um >99.5%@1.0 um
pre-filter
surface area
m2 1.5 3.2 4.5
ft2 16 34 49
HEPA filter
(EN1822-H13)
% >99.99%@0.3 um >99.99%@0.3 um >99.99%@0.3 um
HEPA filter
surface area
m2 1.2x1 1.2x2 1.2x3
ft2 13x1 13x2 13x3
noise level dB(a) 70 70 70
dimensions
with carton
mm 650x420x1070 650x575x1260 780x590x1460
inch 25.6x16.5x42.0 25.6x22.6x49.6 30.7x23.2x57.5
weight
kg 35 54 67.5
lbs 77 119 149

7 / 37
OperatingManualZ10/Z20/Z30
5. Declaration of conformity
Joe Due Blades & Equipment, Inc..
N5437 US Hwy 12 & 16
Mauston, WI 53948
declares under its sole responsibility that the following machine
Z10 / Z20 / Z30
included in this declaration, follows the provisions of the:
EN ISO 12100:2010
EN 60204-1:2006/AC:2010
EN 61000-6-2:2005/AC:2005
EN 61000-6-4:2007/A1:2011
according to
Machine Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
EMC Directive 2014/30/EU
2018.05
Joe Due Blades & Equipment, Inc..
6. Warranty
Joe Due Blades & Equipment, Inc.. offers to its customer the vacuums and accessories a
12-month factory warranty for material and manufacturing defects.
In the event of any complaint, the machine or agreed part must be returned to us or our
authorized representative for a warranty examination and for any warranty repair or
replacement. And the machine or parts must be sent to us carriage free unless otherwise
agreed.
A warranty repair shall be conducted in aJoe Due Blades & Equipment, Inc.. facility only or in an
authorized Technical Support Centre. If the repair claims appear warranty invalid, the costs
relating to repair and/or replacement of parts shall be charged to the buyer.
The warranty does not cover defects which are the result of normal wear and tear, negligence,
defective use, unauthorized repair or the vacuums being connected to the incorrect voltage.
The warranty shall be invalidated in the event of the machine having been repaired by
unauthorized person or its serial number has been removed or altered.

8 / 37
OperatingManualZ10/Z20/Z30
7. Safety precautions
The employer must inform and train the user according to the provisions of applicable
laws.Use of the machine by untrained and unauthorized persons is strictly forbidden.
Read the complete instruction manual before operating your dust extractor.Pay particular
attention to the safety regulations.Failure to observe the safety regulations could cause
serious accidents and injuries.
This machine is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
Make sure the assembly area is firm, so the machine does not tip over. Risk of personal and
material injury.
Pay extra attentions when cleaning on slopes, ramps, or stairs.
Make sure the parked machine remains stable by operating the braked wheel.
Risk of pinching when handling the toggle fasteners.
Keep children and unauthorized persons away from machine when in use. Close attention
is necessary when operated closed to children.
Keep hair, loose clothing, fingers and all parts of body away from openings and moving
parts(accept during a filter cleaning procedure).
Make sure all the guards and protection devices are in place and that all the safety
devices are in place and working properly.
Do not open the vacuum container with the machine running.
Do not wear loose or hanging clothing such as ties, scarves or torn garments that could
become trapped and be sucked up by the cleaner.
Do not use without dust bag and/or filters in place. Replace collection system and/or filters
as described in manual.
Do not modify machine from its original design.
All repairs must be performed by a qualified service person. Use only manufacturersupplied
or specified replacement parts.
Joe Due Blades & Equipment, Inc..shall, under no circumstances, be deemed liable for any
accidents or damage caused if the machine is used for other applications or in a way other
than those required in the operating manual.
8. Electric safety
Improper connection of the equipment-grounding conductor can result in a risk of
electrical shock. Check with a qualified electrician or service person if you are in doubt as
to whether the outlet is properly grounded.
Do not modify the plug provided with the machine. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Before using the machine, make sure that the power & voltage corresponds with the
voltage shown on the machines rating plate.
Do not leave machine when plugged in. Unplug cord from outlet when not in use and
before cleaning or servicing machine.
Cables damaged through crushing or splitting can be dangerous if used and should be
replaced immediately. Risk of personal injury.

9 / 37
OperatingManualZ10/Z20/Z30
Do not use with damaged cord or plug. If the machine is not working as it should, has been
dropped, damaged, left outdoors or dropped in water. Make sure it is repaired by a
qualified person.
Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run the machine over cord. Keep cord away from heated
surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug. Not the cord.
Do not handle plug or machine with wet hands.
Regularly inspect cord and plug for damage. If cord is damaged, it must be replaced by a
qualified person in order to avoid hazard.
Turn off all controls before unplugging.
If using an extension cord make sure the cord rating is suitable for this machine.
Connect to a properly grounded outlet only. See grounding instructions.
9. Thermal protection
The dust extractor is equipped with a safety thermal protector to prevent motor from
overheating. Should thermal protector activate, turn off machine, unplug power cord and
check for full dust bag, vacuum hose clog or filter blockage. It may take up to 45 minutes for the
thermal protector to reset.
10. Grounding instructions
The dust extractor must be grounded. If a dust extractor malfunctions or breakdowns, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. The
dust extractor is equipped with a cord having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
11. Service
When cleaning and servicing the machine, you must switch off the machine and remove
the plug from the outlet.
Don’t clean the machine with a high pressure cleaner. If necessary, do not direct at the
openings on the machine, especially the opening for cooling air.
Before moving the machine from the work area, the machine must be cleaned.
Proper personnel protective equipment must be used while replacing the pre-filter or the
HEPA filter. If possible, use a special suitable room.
All parts which are contaminated after service must be properly disposed of in plastic bags
according to all regulations.
If the machine has to be used for other purposes, it is extremely important that the machine
is cleaned, to avoid the spread of hazardous dust.
Do not puncture the HEPA filter. Risk of dust dispersion.

10 / 37
OperatingManualZ10/Z20/Z30
12. Operating Instructions
1) Vacuuming process
Before starting a vacuuming process,
make sure the machine is properly connected to a grinder or a floor tool via the provided
hose and fittings.
chek the power cable and theplugsare in a good condition.
make sure the power voltage corresponds to that on the rating plateand connect correctly
the power plug to a power socket
Turn on the power switch to start a vacuuming process.
During the vacuuming process, dust-laden air is sucked through the flexible hose and inlet valve
at a high speed. The air is then slowed down by the cyclone, and coarse dust particles are
separated out partly by centrifugal force and partly by gravity. Air and finer particles pass
through the pre-filter at the first and the HEPA filter at the final stage where separation is made.
2) Filter cleaning process
The machine is designed for filter cleaning by reverse air“jet-pulse”.
The filter must be cleaned from time to time. This must be done before changing the bag
collection system and should also be done when work is completed or whenever there is a poor
suction.
Filtercleaning procedure:
1) Cover the inletby lifting up the inlet valve and let the machine build up vacuum for 4 to 5
seconds,
2) Quickly push down the filter cleaning handle and release it. Repeat the procedure five
times. It is important to let the machine rebuild the vacuum in between every repetition,
3) Open the inlet again by pushing down the invlet vavle.
If suction remains poor, the conical pre-filter needs to be replaced. If suction still remains poor
afterwards, the HEPA filters needs to be replaced. See instructions in chapter 13Filter change.
3) Dust storage and release
The separated dust accumulates in the conic bottomduring the vacuuming process, and it
drops through the bottom flap into the plastic bag when the machine is switched off. In some
extreme cases the adhesive ability of the dust must be broken manually. This can be done by
hitting the dust through the bag or tapping the tank using i.e. a rubber hammer.

11 / 37
OperatingManualZ10/Z20/Z30
4) Dust collecting and bagging
The machineis equipped with a continuous fold bag system for an effective dust collecting and
bagging. The supplied fold bag is a 22 m long plastic tube that will be divided into individual
bags using the zip ties attached with the machine.
To assemble a new fold bag:
1) Release the beltholding the last bag and take off the bag holder.
2) Put in a new fold bag & pull out the inner end upwards.
3) Assemble the holder onto the machine and strap the opening facing upwards with the
belt.
4) Pull down the outside end and close it using a zip tie.
Before changing a fold bag or a regular bag, make sure the filter cleaning cycle has been
completed.
13. Filter change
Unhealthy dust can be spread during filter change. Accordingly, the user should wear
protective glasses, protective gloves, and a breathing mask conforming to protection class
FFP3.
WARNING!Remember to switch off the machine and pull the plug out of the outlet before
servicing.
Change of pre-filter
1) Loosen the 3 hooks and remove the top cover. Take out a new filter from its bag. Lift out the
used filter from its chamber and place it gently into the filter bag. This bag must be closed
and diposed properly.
2) Insert a new filter.
3) Put back the top head and close the 3 hooks properly.
IMPORTANT!If you are removing the pre-filter in order to clean it. Hitting the filter with force or use
of compressed air will destroy the filter. It can handle water, but high pressure water cleaning
will destroy it.
Change of HEPAfilter
1) Loosen the 2 nuts on each filter cover. Take out a new filter from its bag.Lift out the used
HEPA filter from its chamber and place it gently into the filter bag. This bag must be closed
and diposed properly.
2) Insert a new filter to the filter chamber.
3) Put back the filter coverand close the 2 nuts properly.
IMPORTANT!HEPA filters can’t be cleaned, trying this might destroy it. When installing the
replacement filter, make sure not touch the inside of the filter. Any kind of force/damage on the
inside of filter media will destroy the new filter.

12 / 37
OperatingManualZ10/Z20/Z30
14. Problem solving
The machine is designed and manufactured for a specificsevere environments and tasks. Its
filter, seals, attachments, and fittings are customized or selected specifically for the applications.
Please note that the machine must be protected from knocks and blows. The operator and
service personnel must treat the machine with care in order for it to work correctly for an
expected life span.
problem cause solution
Motor fails to start No power
Check power supply.
Make sure power cable and
plugs are in a good condition
and properly connected,
Check the power switch is in a
good condition and properly
connected.
Motor stops shortly after
start
Wrong fuse Connect to a correct fuse
Shortcut in cable/machine Order service
Motor runs but with no
suction
Hose not connected Connect hose
Hose clogged or blocked Clean hose
No dust collection bag Fit dust collection system
Motor runs but with a poor
suction
Hole in hose Replace hose
Filter clogged Clean filter or replacefilter
Loose top cover Make an adjustment of hooks
or top cover
Defective seals or gaskets Replace defectiveseals or
gaskets
Dust leaks out
Hole in hose Replace the defective hose
Damaged filter Replace the damaged filter
Poor assembled filters Make an adjustment of the
poorly assembled filters
Machine works noisyor
works abnormal various causes Consult thetechnical support
agent or order a service

13 / 37
OperatingManualZ10/Z20/Z30

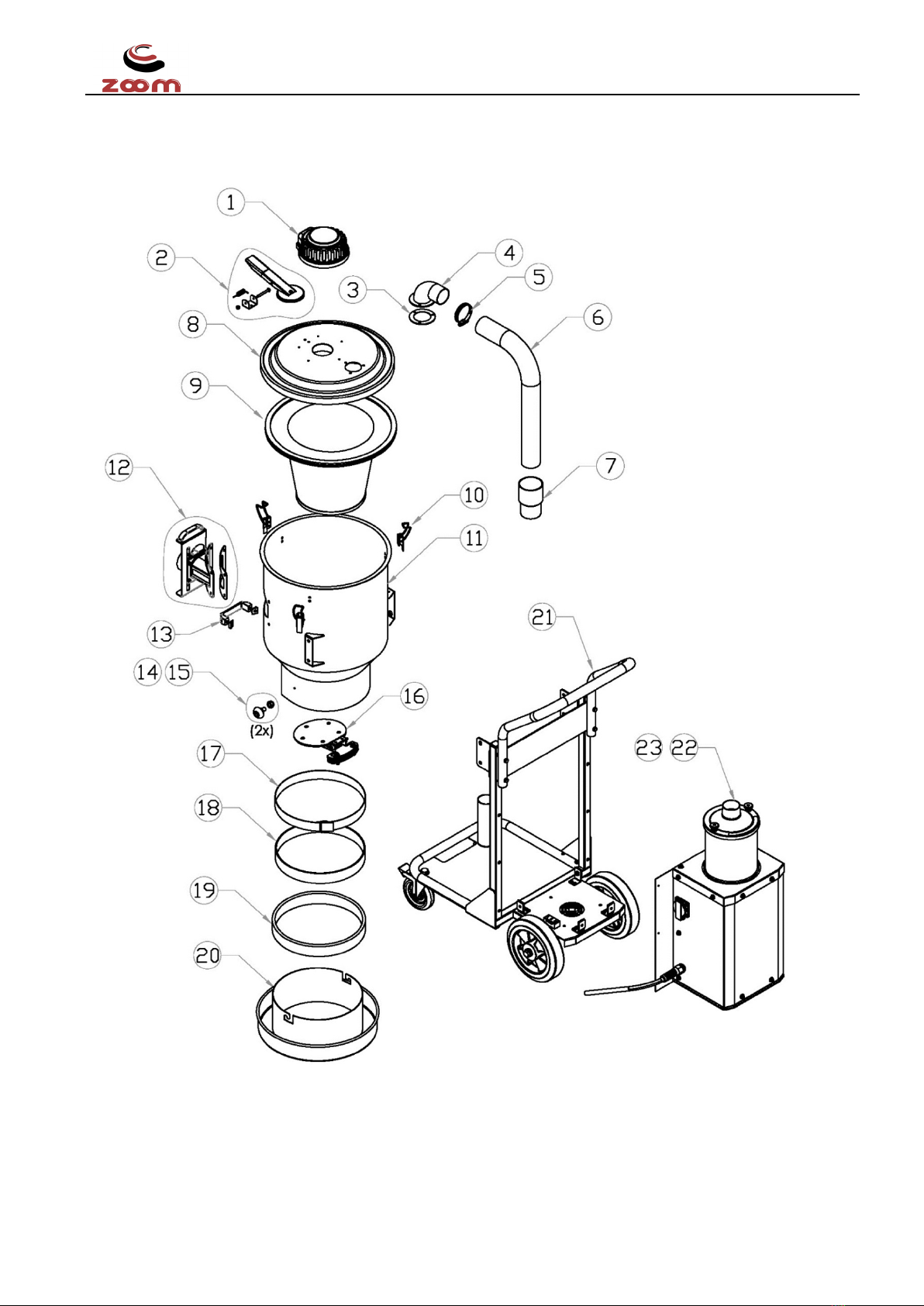

15. Exploded view - Z10

14 / 37
OperatingManualZ10/Z20/Z30
POS. Part Number Description Qty
1 ZBD00387 Purge handle cover kit 1
2 ZBD00283 Purge handle kit 1
3 ZBH00043 Bend connector seal 1
4 ZBC00188 D50 bend connector 1
5 ZBM00222 D50 hose clamp s.s. 1
6 ZBH00104 D50 flexible hose L.350 1
7 ZBH00058 D50 hose cuff 1
8 ZBC00379 Top cover 1
9 ZBM00284 Pre-filter 1
10 ZBD00336 Hook 105 kit 3
11 ZBC00380 Pre-filter chamber 1
12 ZBD00351 D70 inlet assy 1
13 ZBD00376 Hand holder kit 1
14 ZBM00341 Key M5 2
15 ZBK00086 Anti-skid nut M5 2
16 ZBD00321 Flap assy 1
17 ZBM00397 Packing belt 1
18 ZBH00099 Anti-skit ring 1
19 ZBM00241 Fold bag 1
20 ZBC00225 Fold bag holder 1
21 ZBD00313 Z10 wagon frameassy ** 1
22 ZBD00312 Motorcomplete assy(Z10 230v) ** 1
22 ZBD00323 Motorcomplete assy(Z10 120v) ** 1
** refer to the followings for a breakdown of part list

15 / 37
OperatingManualZ10/Z20/Z30
16. Exploded view- ZBD00313
Z10 wagon frame assy
POS. Part Number Description Qty
1 ZBC00381 Wagon frame base 1
2 ZBD00530 Front wheel kit 2
3 ZBD00385 Real wheel kit 2
4 ZBH00076 Plastic insert 25x25 8
5 ZBD00382 L bracket kit 4
6 ZBD00341 Mainstay right kit 1
7 ZBD00344 Mainstay left kit 1
8 ZBD00391 Tank holder kit 2
9 ZBC00404 Back plate 1
10 ZBD00345 Handle kit 1
11 ZBD00343 Cable tie holder 1
12 ZBD00280 Cable tie pack 1

16 / 37
OperatingManualZ10/Z20/Z30
17. Exploded view- ZBD00312
Motorcomplete assy (Z10 230v )

17 / 37
OperatingManualZ10/Z20/Z30
POS. Part Number Description Qty
1 ZBK00111 Nut M8 2
2 ZBH00082 Seal washer M8 2
3 ZBC00387 Filter cover 1
4 ZBM00287 HEPA filter 1
5 ZBH00110 Top cover rubber seal 1
6 ZBD00348 Top cover kit 1
7 ZBC00388 HEPA chamber 1
8 ZBM00344 Motor seal 1
9 ZBM00160 Motor 230V 1200W 1
10 ZBH00023 Rubber ring 1
11 ZBK00035 Bolt M6x12 3
12 ZBM00071 Female spacer L76.5 3
13 ZBC00389 Motor support 1
14 ZBM00302 Male spacer L101.5 3
15 ZBK00036 Nut M6 3
16 ZBM00368 Foam disc adhesive 1
17 ZBD00346 Cover plate kit 1
18 ZBD00347 Chassis kit 1
19 ZBH00111 Chassis rubber seal 1
20 ZBD00571 Electricity outlet kit 1
21 ZBD00425 Electricity cord set 1
22 ZBM00217 Cable fix (PG11) 1
23 ZBD00572 Terminal block TB1503 kit 1
24 ZBD00570 Hour counter kit 1
25 ZBD00349 Manometer kit 1
26 ZBD00568 Power switch kit 1

18 / 37
OperatingManualZ10/Z20/Z30
18. Exploded view- ZBD00323
Motorcomplete assy (Z10 120v)

19 / 37
OperatingManualZ10/Z20/Z30
POS. Part Number Description Qty
1 ZBK00111 Nut M8 2
2 ZBH00082 Seal washer M8 2
3 ZBC00387 Filter cover 1
4 ZBM00287 HEPA filter 1
5 ZBH00110 Top cover rubber seal 1
6 ZBD00348 Top cover kit 1
7 ZBC00388 HEPA chamber 1
8 ZBM00344 Motor seal 1
9 ZBM00362 Motor110V 1200W 1
10 ZBH00023 Rubber ring 1
11 ZBK00035 Bolt M6x12 3
12 ZBM00071 Female spacer L76.5 3
13 ZBC00389 Motor support 1
14 ZBM00302 Male spacer L101.5 3
15 ZBK00036 Nut M6 3
16 ZBM00368 Foam disc adhesive 1
17 ZBD00346 Cover plate kit 1
18 ZBD00347 Chassis kit 1
19 ZBH00111 Chassis rubber seal 1
20 ZBD00571 Electricity outlet kit 1
21 ZBD00420 Electricity cord set 1
22 ZBM00080 Cable fix (PG13.5) 1
23 ZBD00572 Terminal block TB1503 kit 1
24 ZBD00570 Hour counter kit 1
25 ZBD00349 Manometer kit 1
26 ZBD00568 Power switch kit 1

20 / 37
OperatingManualZ10/Z20/Z30
19. Accessories–Z10
POS. Part Number Description Qty
1 ZBD00558 Hose kit D40x5.0m 1
2 ZBC00033 D40 lower wand 1
3 ZBC00034 D40 upper wand 1
4 ZBD00030 Floor brush D40x400 1
5 ZBM00004 Spare brush 1
