John Lewis JLRCBK105 User manual

JLRCSS104
JLRCBK105
Range cooker
Instruction manual

2
Important safety information
Thank you for purchasing this appliance.
This manual is an integral part of the
appliance and therefore must be kept in its
entirety and in an accessible place for the
whole working life of the cooker.
Please read the instructions and warnings
carefully before use to ensure safe and
satisfactory operation of this product.
Installation must be carried out by qualified
personnel in accordance with the
regulations in force. This appliance is
intended for domestic uses and conforms to
current regulations in force.
Retain this information for future reference.
The appliance has been built to carry out the
following functions: cooking and heating-up
of food. All other uses are considered
improper. The manufacturer declines all
responsibility for improper use.
All control knobs must be turned to the ‘Off’
position when the cooker is not in use. If the
cooker is not to be used for a period of time,
such as holidays, the electricity and gas
supplies should be switched off or
disconnected.
Never use this appliance for heating room.
Never obstruct the openings and slits
provided for ventilation and heat dispersal;
this may cause malfunctions.
Never lift or drag cooker by the oven
handles as damage may occur.
Before the appliance is put into operation, all
the labels and protective films applied inside
or outside must be removed.
The cooker is not suitable for use by
children. Keep children away from the
cooker when in use.
Never put inflammable objects in the oven:
they could be accindetaly lighted and cause
fires.
Do not use inflammable liquid (alcohol,
petrol etc) near the cooker when it is in use.
Do not use plastic kitchenware or
containers. The high temperatures inside the
oven could melt the plastic, damaging the
appliance.
Do not spray any spray products near the
electrical appliance while it is in operation.
Do not use spray products while the
appliance is still hot. The gases contained in
the spray may catch fire.
Do not use sealed tins or containers in the
appliance. Overpressure may occur inside
the containers during cooking, creating a
danger of explosion.
Do not cover the bottom of the oven with
aluminium or tinfoil sheets during cooking
and do not place pans or trays on it to avoid
damage to the enamelled surface.
In case of a crack being detected in the
glazed ceramic hob, immediately disconnect
from mains and contact the nearest servicing
centre.
Do not use the cooker if the electricity
supply cable is damaged. The cable must be

3
replaced by qualified personnel.
Never place saucepans with bases which are
not perfectly flat and smooth on the cooking
surface. Unstable cookware can lead to
scalding.
During use the appliance becomes very hot.
Take care not to touch the heating elements
inside the ovens.
Fat and oil can catch fire if they overheat.
You are therefore recommended not to
leave the appliance while preparing foods
containing oil or fat. If fat or oil catches fire,
never put water on it. Place the lid on
the saucepan and turn off the cooking zone.
This appliance may be used by children from
the age of 8 and by people of reduced
physical and mental ability or lacking in
experience and knowledge, provided they
are supervised or instructed on the safe use
of the appliance and if they understand the
associated risks. Do not allow children to
play with the appliance. Do not allow
unsupervised children to perform cleaning
or maintenance operations.
Be aware of how rapidly the cooking zones
heat up. Do not place empty saucepans on
the heat. Danger of overheating.
Do not rest any weight or sit on the open
door of the appliance. Excessive weight may
jeopardise its stability.
Never attempt to repair the appliance. All
repairs must be carried out by an authorised
engineer or at an
authorised service centre. The improper use
of tools can be source of danger.
This appliance must not be controlled using
an external timer or remote control system.
Take care that no objects are stuck in the
door of the oven.
As with all electrical appliances, you should
not:
• Touch the cooker with wet or damp
hands.
• Use the cooker in bare feet.
• Operate the cooker on an extension lead.
• Exposure the cooker to the elements
(rain, sun etc).
Do not open the storage compartment
(where present) when the oven is on and
still hot. The temperatures inside it may be
very high.
The appliance becomes very hot during use.
Suitable heat-proof gloves should be worn
for all operations.
Take care when using additional electrical
appliances in the kitchen (e.g. blender,
toaster etc.). Connection cables must not
come into contact with hot cooking zones.
All cooking operations must take place with
the door closed. The dissipation of heat may
cause a hazard.
Do not use steam jets for cleaning the
appliance. The steam could reach the
electronics, damaging them and causing
short-circuits.
If a fault occurs, switch off electricity to the
cooker, turn off the gas supply and contact
the John Lewis branch from which you
purchased your appliance. Always insist on
genuine spare parts.

4
Contents
For the user
Important safety information 2
Guide to using the instruction manual 4
Environmental information 5
Description of the appliance 6
The control panel 4
Using your appliance 8
Before the first use 8
Use of the Ovens 8
Oven functions 9
Using the grill 11
Storage compartment 11
Cooking advice 12
Cooking process information table 13
Automatic programmer 14
Use of the hob 16
Cleaning your appliance 18
Cleaning stainless steel 18
Ordinary daily cleaning 18
Food stains or residues 18
Cleaning the oven 18
Cleaning the door glazing 19
Cleaning the hob components 19
Extraordinary maintenance 21
Replacement of light bulb 21
Removing the door 22
Oven door seal 22
Removing the internal glass panels 22
Something not working 24
For the installer
Installation of the appliance 25
Distances 25
Electrical connection 25
Room ventilation and combustion
extraction 26
Gas connection 26
Adaptation to different types of gas 27
Levelling the appliance 29
Rear top skirtboard 29
Wall fixing 30
Installation checklist 31
Guide to using the
instruction manual
Safety instructions
Hints and tips
Environmental information

5
Environmental information
Your old appliance also needs to be disposed
of correctly.
Important: hand over your appliance to the
local agency authorised for the collection of
electrical appliances no longer in use.
Correct disposal enables intelligent recovery
of valuable materials.
Before disposing of your appliance it is
important to remove doors and leave
shelves in the same position as for use, to
ensure that children cannot accidentally
become trapped inside during play. It is also
necessary to cut the connecting cable to the
power grid, removing it along with the plug.
Our product's packing is made of
non-polluting materials, which are
therefore compatible with the
environment and recyclable.
Please help by disposing of the
packaging correctly. You can
obtain the addresses of collection,
recycling and disposal centres
from your retailer or from the
competent local organisations.
Warning! Do not discard the
packaging or any part of it, or
leave it unattended. It can
constitute a suffocation hazard
for children, especially the plastic
bags.
Pursuant to Directives 2002/95/
EC, 2002/96/EC and 2003/108/EC
relating to the reduction of the
use of hazardous substances in
electrical and electronic
appliances, as well as to the
disposal of refuse, the crossed out
bin symbol on the appliance
indicates that at the end of the
useful life of the product, it must
be collected separately from
other refuse. Therefore, at the
end of the product's working life,
the user must deliver it to the
appropriate differentiated
collection centres for electrical
and electronic waste, or deliver it
back to the retailer when
purchasing an equivalent product,
on a one-for-one basis. Adequate
differentiated collection for the
subsequent forwarding of the
decommissioned product to
recycling, processing and
ecologically compatible disposal
contributes to avoiding possible
negative effects on the
environment and on health, and
promotes recycling of the
appliance's constituent materials.
Illicit disposal of the product by
the user will lead to the
application of administrative
sanctions.

6
Description of the appliance
1 Front control panel
2 Oven light
3 Oven light (auxiliary oven)
4 Oven guide for shelf and pan
5 Oven fan
6 Oven door
7 Oven door (auxiliary oven)
8Drawer
9 Oven guide for shelf and pan (auxiliary
oven)

7
The control panel
1 Automatic programmer
2Oventhermostatknob
3 Oven function knob
4 Auxiliary oven function/thermostat knob
5 Front left cooking zone knob
6 Rear left cooking zone knob
7 Rear center cooking zone knob
8 Front center cooking zone knob
9 Rear right cooking zone knob
10Front right cooking zone knob

8
Using your appliance
Before the first use
• Remove all packaging and accessories
from inside the ovens.
• The inside of the appliance should be
cleaned to remove all manufacturing
residues.
• Using the oven for the first time, heat
them to the maximum temperature for as
long as it takes to burn off any production
oil residues which could give a nasty
flavour to the food.
Use of the Ovens
To use the main oven:
1 Turn the function selecor knob clockwise
to the desired function.
Warning! To prevent problems
caused by steam in the oven, open
the door in two stages: half open
(5 cm approx.) for 4-5 seconds
and then fully open.
Keep your face and head away
from the door when opening.
Caution! During cooking, do not
cover the bottom of the oven
with aluminium or tin foil and do
not place pans or oven trays on it
as this may damage the enamel
coating. If you wish to use
greaseproof paper, place it so that
it will not interfere with the hot
air circulation inside the oven.
Caution! Never cook on the
oven base. Always place dishes
and trays onto an oven shelf.
Do not leave the grill pan or
other dishes on the oven base as
damage to the oven may occur.
Before using the oven make sure
that the symbol ; appears on
the display.
The appliance is equipped with a
cooling system which comes into
operation as soon as a cooking
function starts (only for the main
oven).
Fans cause a steady outflow of air
from above the door which may
continue for a brief period of time
even after the oven has been
turned off.

9
2 Turn the temperature selector knob
clockwise to the desired temperature.
The orange light comes on to indicate that
the oven is warming up. When it goes out
it means that the required temperature
has been reached.
Intermittent going on and off of the light
means that the oven temperature is being
constantly maintained at the programmed
level.
3 To turn the oven off, turn the function
slector and temperature knobs,
anticlockwise back to “0”.
To use the auxiliary oven:
1 Turn the function selector knob clockwise
to the desired function.
2 The temperature can be selected only for
the static function.
The orange light comes on to indicate that
the oven is warming up. When it goes out
it means that the required temperature
has been reached.
Intermittent going on and off of the light
means that the oven temperature is being
constantly maintained at the programmed
level.
3 To turn the oven off, turn the function
slector and temperature knobs,
anticlockwise back to “0”.
Oven functions
When using any of the functions
in the main or auxiliary oven
(except grilling) it is always
recommended that you pre-heat
the oven.
Static (main - auxiliary)
As the heat comes from above and below at
the same time, this system is particularly
suitable for certain types of food.
Traditional cooking, also known as static or
thermal radiation cooking, is suitable for
cooking just one dish at a time. Perfect for all
types of roasts, bread and cakes and in any
case particularly suitable for fatty meats such
as goose and duck.

10
Grill (main - auxiliary)
The heat coming from the grill element gives
perfect grilling results, especially for thin and
medium thickness meat and, in combination
with the rotisserie (when present), it allows
the food to be browned evenly at the end of
cooking.
Perfect for sausages, ribs and bacon.
This function enables large quantities of
food, particularly meat, to be grilled evenly.
Small grill (auxiliary)
Using only the heat released from the
central element, this function enables small
portions of meat and fish to be grilled for
making kebabs, toasted sandwiches and all
types of grilled vegetable side dishes.
Fan-assisted grill (main)
The air produced by the fan softens the
strong heatwave generated by the grill, giving
perfect grilling even with very thick foods.
Perfect for large cuts of meat (e.g. shin of
pork).
Fan-assisted bottom
(main)
The combination of the fan with just the
lower heating element allows cooking to be
completed more rapidly. This system is
recommended for sterilising or for finishing
off the cooking of foods which are already
well-cooked on the surface, but not inside,
which therefore need a little more heat.
Perfect for any type of food.
Bottom (main - auxiliary)
The heat coming solely from the bottom
makes it possible to complete the cooking of
foods that require a greater basic
temperature, without affecting their
browning. Perfect for cakes, pies, tarts and
pizzas.
Circular (main)
The combination of the fan and the circular
element (incorporated in the rear of the
oven) enables different foods to be cooked
on several levels, as long as they need the
same temperature and cooking time. Hot air
circulation ensures instant and uniform
distribution of heat. It will be possible, for
instance, to cook fish, vegetables and biscuits
simultaneously (on different levels) without
mixing smells and flavours.

11
Using the grill
Once the grill is lit leave the oven to heat up
for five minutes before placing the food
inside.
Food should be flavoured and basted with oil
or melted butter before cooking. An oven
dish should be used to contain the sauces.
The food should be placed on the oven shelf
which is positioned on one of the guides
supplied with the different ovens, following
the instructions below:

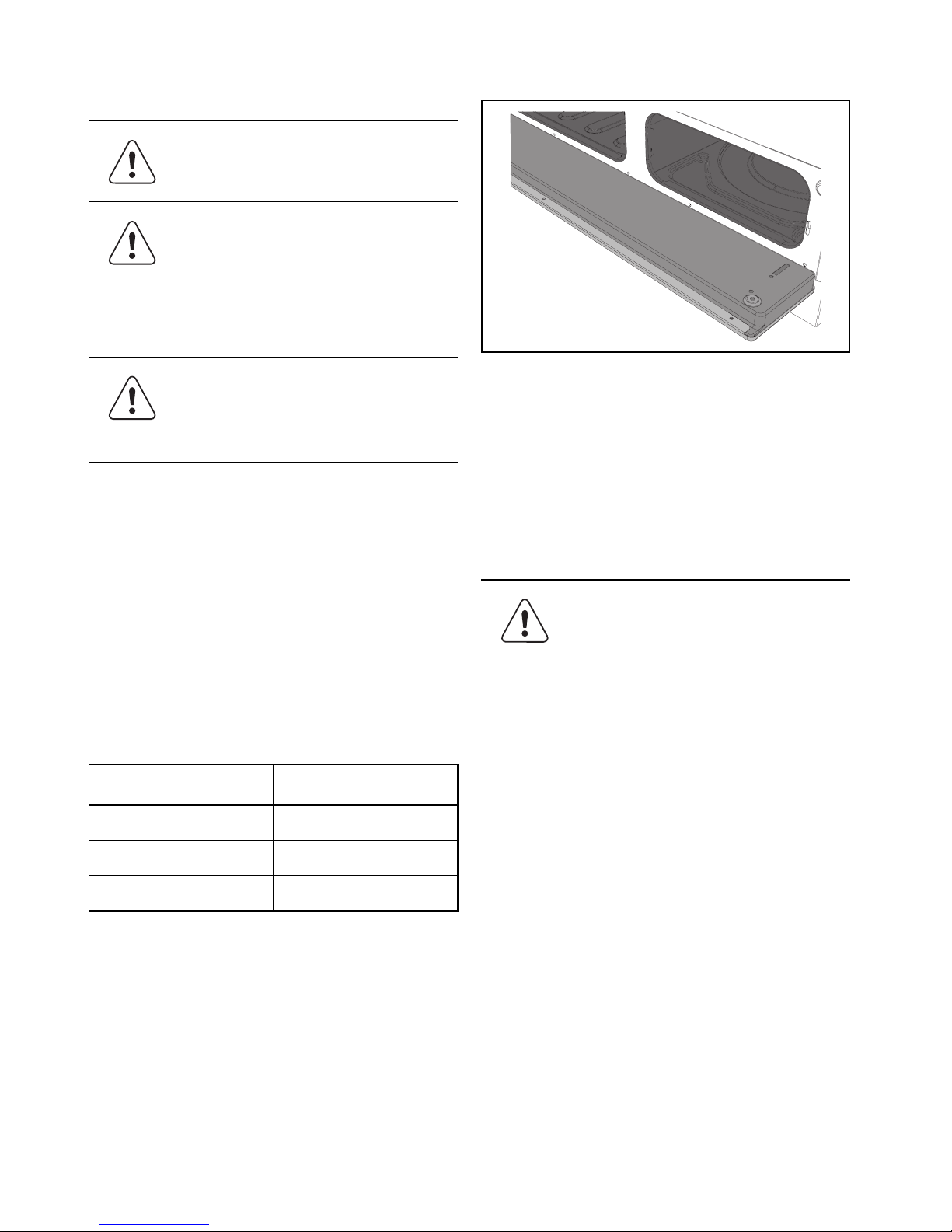

Storage compartment
A storage compartment, accessible by
pulling on the top edge of the door, is
located beneath the ovens.
Never store flammable materials such as
rags, paper or the like. The compartment is
intended only for holding the metal
accessories of the range.
Warning! Keep the oven door
closed during grilling.
Warning! During and after use
of the grill the accessible parts can
be very hot; it is therefore
necessary to keep children away
from the appliance.
Caution! The duration of
cooking should not last more than
30 minutes.
Food Grille on the shelf
Flat or thin meat 4
Rolled roast joints 3 - 4
Poultry 4
Warning! Never open the
storage compartment when the
oven is on and still hot. The
temperature inside may be
very high.

12
Cooking advice
General advice
• We recommend preheating the oven
before putting the food in. Place the food
in the oven only once the cooking light is
lit with a steady light.
• For cooking on several levels, we
recommend using a fan-assisted function
to achieve uniform cooking at all heights.
• While cooking desserts or vegetables,
excessive condensation may form on the
glass. In order to avoid this, open the door
very carefully a couple of times while
cooking.
• For rapid preheating use a fan-assisted
function, then select the required function.
Advice for cooking meat
• Cooking times, especially for meat, vary
according to the thickness and quality of
the food and to consumer taste.
• We recommend using a meat the
rmometer for meat when roasting it.
Alternatively, simply press on the roast
with a spoon: if it is hard it is ready, if not,
it needs another few minutes cooking.
Advice for cooking desserts and
biscuits
• Use dark metal moulds for desserts: they
help to absorb the heat better.
• The temperature and the cooking
duration depend on the quality and
consistency of the dough.
• Check whether the dessert is cooked
right through: at the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
Advice for cooking with the Grill
and the Fan-assisted grill
• Using the Grill function (where present),
meat can be grilled even when it is put into
the oven cold; preheating is recommended
if you wish to change the effect of the
cooking.
• With the Fan-assisted grill function,
however, we recommend that you
preheat the oven before grilling.

13
Cooking process
information table
The times indicated in the previous tables do not
include the preheating times and are provided as a guide
only.
Types of food Weight Function
Runner
position
from
bottom
Temperature
(°C)
Time
(minutes)
Lasagne 3 Kg Static 1 or 2 220 - 230 40 - 50
Oven-Baked
pasta Static 1 or 2 220 - 230 40
Roast veal 1 Kg Fan-assisted static 2 180 - 190 70 - 80
Pork Iron 1 Kg Static 2 190 - 200 70 - 80
Shoulder of pork 1 Kg Fan-assisted static 2 180 - 190 90 - 100
Roast rabbit 1 Kg Static 2 190 - 200 70 - 80
Turkey breast 1 Kg Fan-assisted static 2 180 - 190 110 - 120
Roast neck of
pork 1 Kg Static 2 190 - 200 190 - 210
Roast chicken 1 Kg Static 2 180 - 190 60 - 70
1st side
2nd side
Pork chops Fan-assisted grill 4 250 7 - 9 5 - 7
Fillet of pork Fan-assisted grill 3 250 9 - 11 5 - 9
Fillet of beef Fan-assisted grill 3 250 9 - 11 9 - 11
Liver Fan-assisted grill 4 250 2 - 3 2 - 3
Meat-balls Fan-assisted grill 3 250 7 - 9 5 - 6
Salmoun trout 0.7 Kg Circular 2 160 - 170 35 - 40
Pizza Fan-assisted static 1 250 6 - 10
Bread Fan-assisted static 1 190 - 200 25 - 30
Focaccia Fan-assisted static 1 180 - 190 15 - 20
Ring cake Static 2 170 55 - 60
Fruit tart Fan-assisted static 2 160 30 - 35
Short pastry Fan-assisted static 1 or 2 160 - 170 20 - 25
Jam tarts Static 2 170 20
Rice pudding Static 2 170 50 - 60

14
Automatic programmer
1 Minute-timer key
2 Cooking period key
3 End time key
4 Decrease time key
5 Increase time key
Set the clock:
When using the oven for the first time, or
after a power failure, the display flashes
regularly and indicates 00:00. Press the keys
“cooking period” key and “end time key” at
the same time the keys or : each
single press changes the time by 1 minute
either up or down.
Minute counter:
The programmer can be used as a simple
minute counter:
1 Keep pressed the “minute timer” key.
2 Use the or keys to select the
lenght of time required. The symbol
will appear on the display.
To set the oven to switch off
automatically after a set period:
(only for main oven)
Use this function if you have already started
cooking and want the oven to switch-off at
the end of cooking time.
(for example after 45 minutes)
1 Press the “cooking period” key, the
display lights up, showing 00:00.
2 Use the or keys to set the
desired cooking time. The ‘A’ simbol will
appear on the display, and the current
clock time will be shown.
Before setting the programmer
for semi/automatic cooking,
activate the desired function and
temperature.
After set-up, to see the remaining
time, press the “minute timer”
key.
Use as a minute counter does not
interrupt functioning of the oven
at the end of the programmed
time.
After set-up, to see the cooking
time remaining, press the
“cooking period” key; to see the
end of cooking time press the key
“end time key”.

15
To set the oven to switch off
automatically at a set time:
Use this function if you have already started
cooking and want the oven to switch-off at a
set time. (for example at 19.30).
1 Press the “end time” key, the display lights
up, showing the current time.
2 Use the or keys to set the
desired cooking end time. The ‘A’ simbol
will appear on the display, and the current
clock time will be shown.
To set the oven to start and
finish at preset times:
Use this function to start and finish cooking
automatically. For example, the recipe may
require 50 minutes cooking time and it will
be ready at 20:00. In this case the
programmer will calculate the start time to
be at 19:10 and will start and end
automatically.
1 Press the “cooking period” key, the
display lights up, showing 00:00.
2 Use the or keys to set the
desired cooking time. The ‘A’ simbol will
appear on the display, and the current
clock time will be shown.
3 Select the time that the oven has to be
switched off. Press the “end time” key, the
display lights up, showing the current time.
4 Use the or keys to set the
desired cooking end time. The ‘A’ simbol
will appear on the display, and the current
clock time will be shown.
5 Select the oven function and temperature
required for your dish.
At the end of automatic cooking
When cooking is over, the oven will
automatically switch off and, at the same
time, an intermittent alarm will sound.
Press the “minute timer” key to silence it.
Erase of set data
Once the programmer has been set, press
the key of the function to be cancelled.
Next press the key until the display
shown 00:00. Time cancellation will be
considered as end of cooking time by the
programmer.
Adjusting alarm volume
The acoustic alarm has three different
settings. These can be operated, while the
alarm is sounding , by pressing the key.
After set-up, to see the cooking
end time, press the “end time”
key.
After set-up, to see the cooking
time remaining, press the
“cooking period” key; to see the
end of cooking time press the
“end time” key.
The alarm mode switches off
automatically after seven minutes.
They can be manually deactivated
by pressing the “cooking period”
key and “end time” key together.
To switch off the appliance, rotate
all the knobs to ‘0’ position.

16
Use of the hob
This optional grid is for use with "woks"
(Chinese pans).
To prevent deterioration of the hob the
appliance is equipped with a raised pan stand
to be placed underneath pans more than 26
cm in diameter. The supplied reduction rest
is used also for small pans.
Lighting of the hob burners
The drawing next to each knob shows the
corresponding burner. The appliance has an
electronic lighting device. Simply press and
turn the knob anticlockwise to the minimum
flame symbol , until the flame is lit. Hold the
knob down for a few seconds to allow the
thermocouples to heat up. The burner may
go out when the knob is released: this is
because the thermocouple has not been
sufficiently heated. Repeat the operation
holding down the knob a little longer. This
operation is not necessary for burners
without thermocouples.
Caution! Before lighting the hob
burners check that the flame caps
are in the correct position and
that their burner caps are in place,
making sure that the holes A in
the flame caps correspond to the
spark plugs and thermocouples.

17
Practical advice for using the
hob burners
For better use of the burners and lower gas
consumption, use covered vessel that are
proportional in size to the burner to prevent
the flame from licking the sides. When water
reaches the boiling point, lower the flame so
that it doesn't overflow. To avoid burns or
damage to the hob, all vessels or griddle
plates must be placed within the perimeter
of the hob. All vessels must have a flat and
smooth bottom. When using fats or oils, be
extremely careful that they don’t overheat
and catch fire.
If the flame accidentally goes out, turn off the
control knob and wait at least 1 minute
before trying to re-light the burner.
Diameter of the vessels to be
used on each burner
In the event of a power failure the
burners can be lit with a match or
gas lighter.
The flame failure devices will
continue to function normally.
Burners ø min. (cm) ø max. (cm)
1 Auxiliary 12 14
2 Semi rapid 16 24
3 Rapid 18 26
4 Triple crown 18 26
When using for the first time, it is
advisable to heat up the cooking
hob to its maximum temperature
for enough time so as to burn off
any possible oily manufacturing
residues, the smell of which could
otherwise be absorbed by the
food.

18
Cleaning your appliance
Cleaning stainless steel
To keep stainless steel in good condition, it
must be cleaned regularly when you are
done using the cooker, after it has cooled.
Ordinary daily cleaning
To clean and preserve the stainless steel
surfaces, always use only specific products
that do not contain abrasives or chlorine-
based acids.
How to use: pour the product on a damp
cloth and wipe the surface, rinse thoroughly
and dry with a soft cloth or deerskin.
Food stains or residues
Do not use metallic sponges or sharp
scrapers: they will damage the surface.
Use normal non-abrasive products for steel,
and a wooden or plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or
deerskin.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Cleaning the oven
• Clean the oven grill with hot water and
non-abrasive detergent. Rinse and dry.
• Clean the internal walls of the oven with a
soft ammoniac-soaked cloth. Rinse and
dry. If there are still stains or drops, place
a damp ammoniac-soaked cloth on the
bottom of the oven, close the door and
after a few hours wash the oven with hot
water and liquid detergent. Rinse and dry.
• Do not allow residues of sugary foods
(such as jam) to set inside the oven. If left
to set for too long, they might damage the
enamel lining of the oven.
Warning! Before any
intervention, disconnect the
power supply of the device
Caution! Never use a steam jet
to clean the appliance.
For best oven upkeep clean
regularly after having allowed to
cool. Take out all removable
parts.
The oven should be operated at
the maximum heat setting for 15/
20 minutes after use of specific
products, to burn off the residues
left inside the oven.

19
Removing the guide frames
Removing the guide frames enables the sides
to cleaned more easily. To remove the guide
frames:
Cleaning the door glazing
The door glazing should always be kept
thoroughly clean. Use absorbent paper
towels, remove stubborn dirt with a damp
sponge and ordinary detergent.
Cleaning the hob
components
Grids
Remove the grids and clean them in warm
water with a non-abrasive detergent, taking
care to remove any encrustations. Replace
them on the hob.
Continuous contact of the grids with the
flame can cause the enamel near the hot
areas to be altered. This is completely
natural and does not compromise the
functionality of the component.
Burner caps and flame cap
crowns
The caps and flame-spreader crowns are
extractable to facilitate cleaning. Wash them
in hot water with non-abrasive detergent,
taking care to remove any encrustations, and
wait until they are perfectly dry.
Replace the flame-spreader crowns,
checking that they are positioned in their
housing with their respective caps, taking
care that flame-spreader holes A
correspond to the spark plugs and the
thermocouples.
The spark plugs and
thermocouples
To function properly the spark plugs and
thermocouples must always be clean. Check
them regularly and clean with a damp cloth if
necessary. Any dry residues can be removed
with a toothpick or a needle.
Caution! When cleaning, the
appliance must be dried
thoroughly since detergent and
water drips might damage its
operation and appearance.
Caution! do not wash these
components in the dishwasher.

20
The burners
The burners can be left to soak in hot water
and detergent.
Smudges from aluminium-bottom pans can
be easily cleaned off with a cloth dampened
in vinegar.
Remove any burnt residues after cooking
with the scraper provided; rinse with water
and wipe dry with a clean cloth. Regular use
of the scraper considerably reduces the
need for chemical detergents for the daily
cleaning of the hob. Never use abrasive or
corrosive detergents (e.g. cleaning powders,
oven sprays, spot-removers, wire sponges).
The cooking hob should be
regularly cleaned; best after every
use, once the residual heat signal
lamps have gone off.
