John Lewis JLBICH605 User manual

JLBICH605
Ceramic glass hob
Instruction manual

Important safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis branch
from which you purchased the appliance.
Installation
• This hob must be installed by qualified and
competent personnel to the relevant
National Standards.
• Refer to Installation Information in chapter
“Installation”.
• Remove all packaging, both inside and
outside the hob, before using the hob.
• The appliance must not be used as a work
surface or as a storage surface.
• Additions or modifications to the appliance
are not permitted. Repairs to the appliance
must only be carried out by trained
registered service engineers.
• Do not place or store flammable liquids,
highly inflammable materials or fusible
objects (e.g. plastic film, plastic, aluminium)
on or near the appliance.
• Built-in appliances may only be used after
they have been built in to suitable built-in
units and work surfaces that meet the
relevant National Standards.
• In the event of faults with the appliance or
damage to the glass ceramic (cracks,
scratches or splits), the appliance must be
switched off and disconnected from the
electrical supply to prevent the possibility
of an electric shock.
Child safety
• This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with the
product.
• Keep all packaging away from children.
Use
• This appliance is not intended for use by
children or other persons whose physical,
sensory or mental capabilities or lack of
experience and knowledge prevents them
from using the appliance safely without
supervision or instruction by a responsible
person to ensure that they can use the
appliance safely.
• Do not leave the appliance unattended
during operation. •
• This hob is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
• Remove stickers and film from the glass
ceramic.
2

• There is the risk of burns from the appliance
if used carelessly.
• Cables from electrical appliances must not
touch the hot surface of the appliance or
hot cookware.
• Overheated fat and oil can ignite quickly.
Warning! Fire hazard!
• Switch the cooking zones off after each use.
• The ceramic glass can be damaged by
objects falling onto it.
• The edge of the ceramic glass can be
damaged by being knocked by the
cookware.
• Cookware made of cast iron, cast
aluminium or with damaged bottoms can
scratch the ceramic glass if pushed across
the surface.
• Objects that melt and things that boil over
can burn onto the ceramic glass and should
be removed straightaway.
• Do not use the cooking zones with empty
cookware or without cookware.
Maintenance and cleaning
• Only clean this hob in accordance with the
instructions.
• For cleaning, the appliance must be
switched off and cooled down.
• For safety reasons, the cleaning of the
appliance with steam jet or high-pressure
cleaning equipment is not permitted.
• Always allow the hob to cool down and
switch off the electrical supply before
carrying out any cleaning or maintenance
work.
Service
• This hob should only be repaired or
serviced by an authorised Service Engineer
and only genuine approved spare parts
should be used.
Environmental information
• After installation, please dispose of the
packaging with due regard to safety and the
environment.
• When disposing of an old appliance, make
it unusable, by cutting off the cable. Remove
any door catches, to prevent small children
being trapped inside.
•The symbol on the product or on its
packaging indicates that this product should
not be treated as normal household waste.
Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
3

Contents
For the User
Important safety information 2
Installation 2
Child safety 2
Use 2
Maintenance and cleaning 3
Service 3
Description of the appliance 5
Cooking surface layout 5
The control panel 5
Touch control sensor fields 6
Switching the appliance on and off 6
When the hob is first installed 8
Hints and tips on cooking and
frying
9
Cookware 9
Cooking table 10
Cleaning the hob 11
Something is not working 12
Repairs - after sales service 13

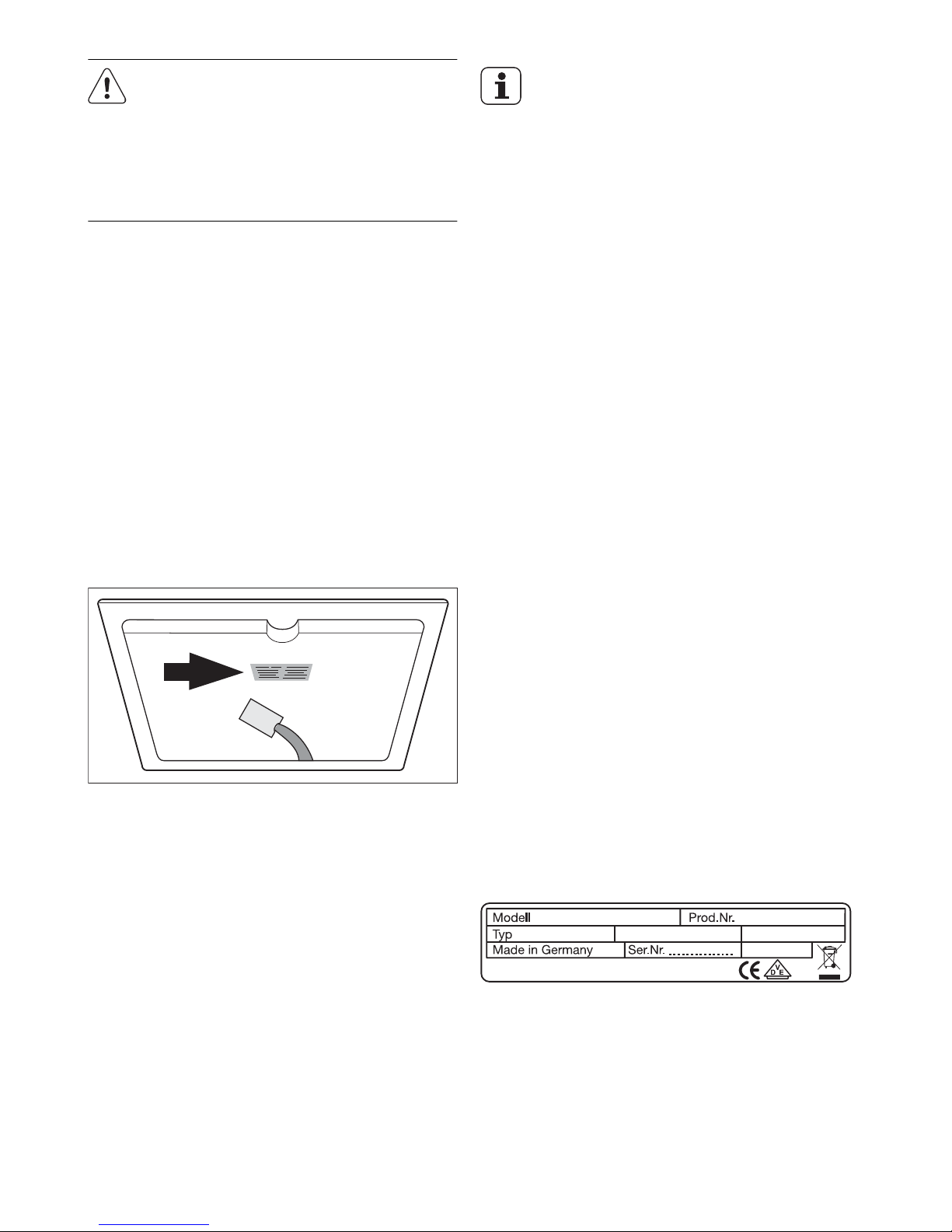

Rating plate 13
For the Installer
Installation 14
Technical data 14
Electrical connection 15
Electrical requirements 15
Building in 16
Guide to use the
instruction manual
The following symbols will be found in the text
to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
4

Description of the appliance
Cooking surface layout
145 mm
180 mm
145 mm
210 mm
1
4 35
2
1. Single cooking zone 1200W
2. Single cooking zone 1800W
3. Single cooking zone 1200W
4. Control panel
5. Single cooking zone 2300W
The control panel
123
1. On/Off
2. Cooking zones and heat setting selection
3. Display
5

Touch control sensor
fields
The appliance is operated using the Touch
Control sensor fields. Functions are
controlled by touching sensor fields and
confirmed by displays. Touch the sensor fields
from above, without covering other sensor
fields.
Sensor fields Function
On/Off Switches the appliance on and off
Increases settings Increases the heat setting
Reduces settings Reduces the heat setting
Display Description
The cooking zone is switched off
- Heat settings A heat setting is set
Fault Malfunction has occurred
Residual heat The cooking zone is still hot
Child safety device Lock/child safety device is set
Automatic switch off Switch is active
Residual heat indicator
Warning! Risk of burns from residual
heat. After being switched off, the
cooking zones need some time to cool
down. Look at the residual heat
indicator .
Residual heat can be used for melting
and keeping food warm.
Switching the appliance on and off
Control panel Display
Switch on Touch for 2 seconds /
Switch off Touch for 1 second / none
After switching on, within approx. 10
seconds a heat setting or a function
must be set, otherwise the appliance
automatically switches itself off.
6

Selecting the heat setting
Control panel Indicator
To increase Touch to
To decrease Touch to
To switch off Touch and at the same time
Using the child safety device
The child safety device prevents unintentional
use of the appliance.
The child safety device can only be
activated immediately after the
appliance has been switched on.
Switching on the child safety device
Step Control panel Display/Signal
1. Switch on the appliance. (Do not set a heat setting.)
2. Touch of both the cooking zones at the front simultaneously for 4
seconds.
3. Switch the appliance off.
The child safety device is switched on.
Switching off the child safety device
Step Control panel Display/Signal
1. Switch on the appliance. (Do not set a heat setting.)
2. Touch of both the cooking zones at the front simultaneously for
4 seconds.
3. Switch the appliance off.
The child safety device is switched off.
The child safety device can only be
switched on and off, if no heat setting
is set.
Overriding the child safety
device
The child safety device can be switched off in
this way for a single cooking session; it remains
activated afterwards.
7

Step Control panel Display/Signal
1. Switch the appliance on
2. Touch of both the cooking zones at the front simultaneously for 4
seconds.
Until the appliance is next switched off, it can used as normal. After switching off the appliance, the
child safety device is active again.
After overriding the child safety device, a heat setting or a function must be set within
approx. 10 seconds, otherwise the appliance automatically switches itself off.
Automatic switch off
Cooking surface
• If after switching on the cooking surface, a
heat setting is not set for a cooking zone
within approx. 10 seconds, the cooking
surface automatically switches itself off.
• If one or more sensor fields are covered by
objects (a pan, cloths, etc.) for longer than
approx. 10 seconds, a signal sounds and the
cooking surface switches off automatically.
• If all cooking zones are switched off, the
cooking surface automatically switches
itself off after approx. 10 seconds.
Cooking zones
• If one of the cooking zones is not switched
off after a certain time, or if the heat setting
is not modified, the relevant cooking zone
switches off automatically. is displayed.
Before being used again, the cooking zone
must be set to .
Heat setting Switches off after
- 6 hours
- 5 hours
4 hours
- 1.5 hours
When the hob is first installed
Warning! Remove all packaging,
both inside and outside the hob
including the advertising labels and any
protective film, before using the hob.
When a cooking zone is switched on,
it may hum briefly. This is a
characteristic of all ceramic glass
cooking zones and does not impair
either the function or the life of the
appliance.
8

Hints and tips on cooking and
frying
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products containing
starch, can constitute a health risk due
to acrylamides. Therefore we
recommend cooking at the lowest
possible temperatures and not
browning foods too much.
Cookware
• You can recognise good cookware from
the bottoms of the pans. The bottom
should be as thick and flat as possible.
• Cookware made of enamelled steel or with
aluminium or copper bottoms can leave
discolorations on the glass ceramic surface
which are difficult or impossible to remove.
Energy saving
Always place cookware on the
cooking zone before it is switched on.
If possible, always place lids on the
pans.
Switch cooking zones off before the
end of the cooking time, to take
advantage of residual heat.
Bottom of pans and cooking zones
should be the same size.
9

Cooking table
This table is intended as a guide only. It may be necessary to increase or decrease the
temperature to suit your individual requirements. Only experience will enable you to
determine the correct setting for your personal requirements.
Heat
setting
Cooking
processes Suitable for Cooking time Notes
0 Residual heat setting, Off
position
1Keep food
warm Keeping cooked foods warm as required Cover
1-2 Melting Hollandaise sauce, melting
butter, chocolate, gelatine 5-25 mins Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins Cook with a lid on
2-3 Simmering
Simmering rice and milk-based
dishes Heating up ready-
cooked meals
25-50 mins
Add at least twice as much
liquid as rice, stir milk
dishes part way through
cooking
3-4 Steaming
Braising
Steaming vegetables, fish
Braising meat 20-45 mins
With vegetables add only a
little liquid (a few
tablespoons)
4-5 Boiling
Steaming potatoes 20-60 mins
Use only a little liquid, e. g.:
max. ¼ ltr. water for 750 g
of potatoes
Cooking larger quantities of
food, stews and soups 60-150 mins. Up to 3 ltrs. liquid plus ingredients
6-7 Gentle frying
Frying escalope, veal cordon
bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
as required Turn halfway through
cooking
7-8 Heavy frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing Deep
frying
Boiling large quantities of water, cooking pasta, searing meat (goulash, pot
roast), deep frying chips
10

Cleaning the hob
Warning! Risk of burns from residual
heat.
Warning! Sharp objects and abrasive
cleaning materials will damage the
appliance. Clean with water and
washing up liquid.
Warning! Residues from cleaning
agents will damage the appliance.
Remove residues with water and
washing up liquid.
Cleaning the appliance after
each use
1. Wipe the appliance with a damp cloth and
a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic
surface at an angle.
2. Remove residues by sliding the blade over
the surface.
3. Wipe the appliance with a damp cloth and
a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
Remove
Type of dirt immediately when the appliance
has cooled down
using
sugar, food containing
sugar yes --- a scraper *
plastics, tin foil yes --- a scraper *
limescale and water
rings
--- yes cleaner for glass ceramic
or stainless steel *
fat splashes --- yes cleaner for glass ceramic
or stainless steel *
shiny metallic
discoloration
--- yes cleaner for glass ceramic
or stainless steel *
* Scrapers and cleaners for glass ceramic and
stainless steel can be purchased in specialist
shops
Remove stubborn residues with a
cleaner for glass ceramic or stainless
steel.
Scratches or dark stains on the glass
ceramic that cannot be removed do
not however affect the functioning of
the appliance.
11

Something is not working
Problem Possible cause Remedy
The cooking zones will not
switch on or are not
functioning.
More than 10 seconds have passed
since the appliance was switched on
Switch the appliance on again.
The child safety device is switched
on
Deactivate the child safety device
(See the section “Child safety
device”)
Several sensor fields were touched
at the same time
Only touch one sensor field
Automatic switch off has been
triggered
Remove any objects (pan, cloths,
etc.) that are lying on the control
panel. Switch the appliance on again
Acoustic signal sounds
when appliance is switched
off
The control panel is wholly or partly
covered by objects.
Remove objects.
The residual heat indicator
is not displaying anything
The cooking zone was only on for a
short time and is therefore not hot
If the cooking zone is supposed to
be hot, call the Customer Service
Department.
Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic
signal sounds
The On/Off sensor field has been
covered up, e.g. by a cloth
Do not place any objects on the
control panel
is lit Overheating protection for the
cooking zone has been triggered
Switch off the cooking zone. Switch
the cooking zone on again
Automatic switch off has been
triggered
Switch off the cooking zone. Switch
the cooking zone on again
and number are
displayed
Electronics fault Disconnect the appliance from the
electrical supply for a few minutes
(Take the fuse out of the house’s
wiring system) If after switching on
again, is displayed again, call the
customer service department
If you are unable to remedy the
problem by following the above
suggestions, please contact your dealer
or the Customer Care Department.
12

Warning! Repairs to the
appliance are only to be carried
out by qualified service
engineers. Considerable danger
to the user may result from
improper repairs.
If the appliance has been wrongly
operated, the visit from the
customer service technician or
dealer may not take place free of
charge, even during the
warranty period.
Repairs - after sales service
If your hob is not performing satisfactorily;
consult the fault finding guide within this
instruction book (Something not working). In
the event of a fault occurring which you
cannot resolve yourself from advice given
within this instruction manual your first step is
to contact our extended warranty
administrators on 0870 0107887 who will
give you details for your local Service Force.
When contacting Service Force, please quote
the model (Mod.) and serial number (S.N.),
both of which are shown on the rating plate
located underneath the hob.
So that you always have these numbers at
hand, we recommend you to make a note of
them here:
Mod.:
PNC:
S.N.:
Your hob is covered by a 3 year parts and
labour guarantee (see separate details given at
point of sale). Please retain your purchase
receipt safely for the service engineer to verify
the purchase details.
Spare parts
This product should be serviced by any
authorised service engineer; and only genuine
spare parts should be used. Under no
circumstances should you attempt to repair
the hob yourself. Repairs carried out by
inexperienced persons may cause injury or
serious malfunctioning. Contact our extended
warranty administrators on 0870 0107887
who will give you details for your Service
Force repair agent. Always insist on genuine
spare parts.
Rating plate
PEE2019
JLBICH605
6,5 kW
949 593 031
230 V 50 Hz
John Lewis
13

Installation
Technical data
Appliance
dimensions
Width 590 mm
Depth 520 mm
Height 47 mm
Worktop cut-out dimensions
Width 560 mm
Depth 490 mm
Cooking rings
Position Diameter Power
Front left 210 mm 2300W
Rear left 145 mm 1200W
Rear right 180 mm 1800W
Front right 145 mm 1200W
Connection
voltage
230 V ~ 50Hz
Maximum
connected
load power
6,5 kW
This appliance complies with the
following: E.E.C. Directives:
•73/23 - 90/683 (Low Voltage
Directive);
•93/68 (General Directives);
•89/336 (Electromagnetical
Compatibility Directive)
and subsequent modifications
14

Electrical connection
Warning! This hob must be earthed.
Electrical requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your
own safety this should be undertaken by a
qualified electrician, e.g. your local Electricity
Board, or a contractor who is on the roll of
the National Inspection Council for Electrical
Installation Contracting (NICEIC).
Electrical connection
The hob is designed to be connected to 230
V (50 Hz) electricity supply. Before
connecting to the mains supply ensure that the
mains voltage corresponds to the voltage on
the rating plate underneath the hob.
For UK only
It is necessary that you install a double pole
switch between the hob and the electricity
supply (mains), with a minimum gap of 3 mm
between the switch contacts and of a type
suitable for the required load in compliance
with the current rules.
Warning! The switch must not break
the yellow and green earth cable at any
point. It is necessary that the yellow /
green earth wire is about 2 cm longer
than the live and neutral ones.
Important! After installation and
connecting, the cable must be placed so that
it cannot at any point reach a temperature of
more than 60°C above the ambient
temperature.
Before the hob is connected, check that the
main fuse and the domestic installation can
support the load; and that the power supply
is properly earthed.
The manufacturer disclaims any responsibility
should these safety measures not be carried
out.
15

Building in
Warning! The hob must be installed
according to the instructions supplied
by qualified and competent personnel
to the relevant National Standards.
Building in
• The dimensions of the cut-out section and
recess required must be as shown in the
relevant diagrams.
• Proper arrangements must be made of a
continuous supply of air to the hob to
prevent overheating.
• Clean the worktop in the area of the cutout
section.
• Stick the one-sided self-adhesive sealing
tape supplied all the way round the lower
edge of the cooking surface along the outer
edge of the glass ceramic panel. Do not
stretch it. The cut ends should lie in the
middle of one side. When you have cut it
to length (add a few mm), press the two
ends flush up against one another.
• A protective floor must be installed under
the appliance.
min.
50mm
min. 500mm
12
560+1
490+1
600
R5
16

17

18

19

John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www. johnlewis.com
867201878 -A-042008
