John Lewis JLBILIC08 User manual

JLBILIC08
User Manual
Refrigerator

Contents
Safety information 3
Children and vulnerable people safety 3
General Safety 3
Safety instructions 5
Installation 5
Electrical connection 5
Use 5
Internal lighting 6
Care and cleaning 6
Service 6
Disposal 6
Operation 7
Control Panel 7
Display 7
Switching on 7
Switching off 7
Temperature regulation 8
IntensiveCooling function 8
Holiday mode 8
Door open alarm 8
ChildLock function 8
DrinksChill function 8
Fan function 9
Daily use 10
Cleaning the interior 10
Positioning the door shelves 10
Bottle rack 10
Movable shelves 10
Fan 11
Hints and tips 12
Normal operating sounds 12
Hints for energy saving 12
Hints for fresh food refrigeration 12
Hints for refrigeration 12
Care and cleaning 13
General warnings 13
Periodic cleaning 13
Defrosting of the refrigerator 13
Periods of non-operation 13
Troubleshooting 15
What to do if... 15
Replacing the lamp 17
Closing the door 17
Installation 18
Location 18
Positioning 18
Electrical Connection 18
Ventilation requirements 19
Technical data 20
Repairs - after sales service 21
Refrigerator User Manual
2

Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible location
for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•This appliance may be used by children between 3 and 8 years of
age and persons with very extensive and complex disabilities, if they
have been properly instructed.
•Children of less than 3 years of age should be kept away unless
continuously supervised.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and similar
applications such as:
–Farm houses; staff kitchen areas in shops, offices and other
working environments
Refrigerator User Manual 3

–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning pads,
solvents or metal objects.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified
persons in order to avoid a hazard.
Refrigerator User Manual
4

Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with
the appliance.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Make sure the air can circulate around the
appliance.
• At first installation or after reversing the door
wait at least 4 hours before connecting the
appliance to the power supply. This is to allow
the oil to flow back in the compressor.
• Before carrying out any operations on the
appliance (e.g. reversing the door), remove the
plug from the power socket.
• Do not install the appliance close to radiators
or cookers, ovens or hobs.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that are
too humid or too cold.
• When you move the appliance, lift it by the
front edge to avoid scratching the floor.
• The appliance contains a bag of desiccant. This
is not a toy. This is not food. Please dispose of
it immediately.
Electrical connection
Warning! Risk of fire and
electric shock.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the electrical
components (e.g. mains plug, mains cable,
compressor). Contact the Authorised Service
Centre or an electrician to change the electrical
components.
• The mains cable must stay below the level of
the mains plug.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after the
installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
Use
Warning! Risk of injury, burns,
electric shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice cream
makers) in the appliance unless they are stated
applicable by the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant circuit, make
sure that there are no flames and sources of
ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts
of the appliance.
Refrigerator User Manual 5

• Do not store flammable gas and liquid in the
appliance.
• Do not put flammable products or items that
are wet with flammable products in, near or on
the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Internal lighting
Warning! Risk of electric
shock.
• The type of lamp used for this appliance is for
household appliances only. Do not use it for
house lighting.
Care and cleaning
Warning! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the appliance
and disconnect the mains plug from the mains
socket.
• This appliance contains hydrocarbons in the
cooling unit. Only a qualified person must do
the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance
and if necessary, clean it. If the drain is blocked,
defrosted water collects in the bottom of the
appliance.
Service
• To repair the appliance contact an Authorised
Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets
to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas.
Contact your municipal authority for
information on how to discard the appliance
correctly.
• Do not cause damage to the part of the cooling
unit that is near the heat exchanger.
Refrigerator User Manual6

Operation
Control Panel
Functions
1
2
3456
1. Display
2. Temperature warmer button
3. Temperature colder button
4. OK
5. Functions
6. ON/OFF
It is possible to change predefined sound of
buttons by pressing together Functions and
temperature colder button for a few seconds.
Change is reversible.
Display
A DC
F E
B
H G
A. Timer indicator
B. IntensiveCooling function
C. Holiday mode
D. Temperature indicator
E. Alarm indicator
F. ChildLock function
G. DrinksChill function
H. Fan function
Switching on
1. Connect the mains plug to the power socket.
2. Press the appliance ON/OFF if the display is
off. The temperature indicators show the set
default temperature.
To select a different set temperature refer to
"Temperature regulation".
If "dEMo" appears on the display, refer to
"Troubleshooting" .
Switching off
1. Press the appliance ON/OFF for 5 seconds.
Refrigerator User Manual 7

The display switches off.
2. Disconnect the mains plug from the power
socket.
Temperature regulation
Set the temperature of the appliance by pressing
the temperature regulators.
Default set temperature:
• +5°C for the fridge
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
IntensiveCooling function
If you need to insert a large amount of warm
food, for example after doing the grocery
shopping, we suggest activating the
IntensiveCooling function to chill the products
more rapidly and to avoid warming the other
food which is already in the refrigerator.
1. Press the Functions until the corresponding
icon appears.
The IntensiveCooling indicator flashes.
2. Press the OK to confirm.
The IntensiveCooling indicator is shown.
The IntensiveCooling function shuts off
automatically after approximately 6 hours.
To switch off the function before its automatic
end, repeat the procedure.
The function switches off by
selecting a different fridge set
temperature.
Holiday mode
This mode allows you to keep the appliance
closed and empty during a long holiday period
without the formation of bad odours.
1. Press the Functions until the corresponding
icon appears.
The Holiday indicator flashes. The temperature
indicator shows the set temperature.
2. Press the OK to confirm.
The Holiday indicator is shown.
This mode switches off after
selecting a different temperature.
Door open alarm
An acoustic alarm will sound if the door is left
open for a few minutes. The door open alarm
conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored (door
closed), the alarm will stop. The buzzer can also
be switched off by pressing any button.
ChildLock function
Activate the ChildLock function to lock the
buttons from unintentional operation.
1. Press Functions until the corresponding icon
appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function, repeat the
procedure until the ChildLock indicator goes off.
DrinksChill function
The DrinksChill function is to be used to set an
acoustic alarm at the preferred time, useful for
example when a recipe requires to cool down
food products for a certain period of time.
1. Press Functions until the corresponding icon
appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30 minutes) for
a few seconds.
2. Press the Timer regulator to change the Timer
set value from 1 to 90 minutes.
3. Press OK to confirm.
TheDrinksChill indicator is shown.
The Timer start to flash (min).
Refrigerator User Manual
8

At the end of the countdown the DrinksChill
indicator flashes and an audible alarm sounds.
Press OK to switch off the sound and terminate
the function.
To switch off the function repeat the procedure
until the DrinksChill goes off.
It is possible to change the time at
any time during the countdown and
at the end by pressing the
Temperature colder button and
the Temperature warmer button.
Fan function
1. Press Functions until the corresponding icon
appears.
The Fan indicator flashes.
2. Press the OK to confirm.
The Fan indicator appears.
To switch off the function, repeat the procedure
until the Fan indicator goes off.
The activation of the Fan function
increases energy consumption.
If the function is activated
automatically the Fan indicator is
not shown (refer to "Daily use").
Refrigerator User Manual 9

Daily use
Warning! Refer to Safety
chapters.
Cleaning the interior
Before using the appliance for the first time, the
interior and all internal accessories should be
washed with lukewarm water and some neutral
soap to remove the typical smell of a brand-new
product, then dried thoroughly.
Caution! Do not use
detergents, abrasive powders,
chlorine or oil-based cleaners
as they will damage the finish.
Positioning the door shelves
To permit storage of food packages of various
sizes, the door shelves can be placed at different
heights.
1. Gradually pull the shelf in the direction of the
arrows until it comes free.
2. Reposition as required.
Bottle rack
The bottles should be placed (with the opening
facing front) in the pre-positioned shelf.
After pulling the shelf up so it can rotate
upwards and placing on the next higher level, his
bottle holder shelf can be used to store
previously opened bottles.
Caution! If the shelf is
positioned horizontally, place
only closed bottles.
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
Refrigerator User Manual
10

Do not move the glass shelf above
the vegetable drawer to ensure
correct air circulation.
Fan
The refrigerator compartment is equipped with
a device that allows rapid cooling of food and
keeps a more uniform temperature in the
compartment.
This device activates automatically when
needed, for example for a quick temperature
recovery after door opening or when the
ambient temperature is high.
It is possible to switch on the
device manually when needed
(refer to "Fan function").
The Fan device stops when the
door is open and restarts
immediately after the door closing.
Refrigerator User Manual 11

Hints and tips
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from coils
sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance
caused by thermic dilatation (a natural and not
dangerous physical phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches on or
off.
Hints for energy saving
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• If the ambient temperature is high and the
Temperature Regulator is set to low
temperature and the appliance is fully loaded,
the compressor may run continuously, causing
frost or ice on the evaporator. If this happens,
set the Temperature Regulator toward warmer
settings to allow automatic defrosting and so a
saving in electricity consumption.
Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids
in the refrigerator
• do cover or wrap the food, particularly if it has
a strong flavour
• position food so that air can circulate freely
around it
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable packaging
and place it on the glass shelf above the
vegetable drawer. Store meat for at most 1-2
days.
• Cooked foods, cold dishes: cover and place on
any shelf.
• Fruit and vegetables: clean thoroughly and place
in a special drawer. Bananas, potatoes, onions
and garlic must not be kept in the refrigerator if
not packed.
• Butter and cheese: place in a special airtight
container or wrap in an aluminium foil or a
polythene bag to exclude as much air as
possible.
• Bottles: close with a cap and place on the door
bottle shelf, or (if available) on the bottle rack.
Refrigerator User Manual
12

Care and cleaning
Warning! Refer to Safety
chapters.
General warnings
Caution! Unplug the appliance
before carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging must
therefore only be carried out by
authorized technicians.
The accessories and parts of the
appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
Caution! Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
Caution! Take care of not to
damage the cooling system.
Caution! When moving the
cabinet, lift it by the front
edge to avoid scratching the
floor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean
to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the
compressor at the back of the appliance with a
brush.
This operation will improve the performance
of the appliance and save electricity
consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, during
normal use. The defrost water drains out
through a trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.

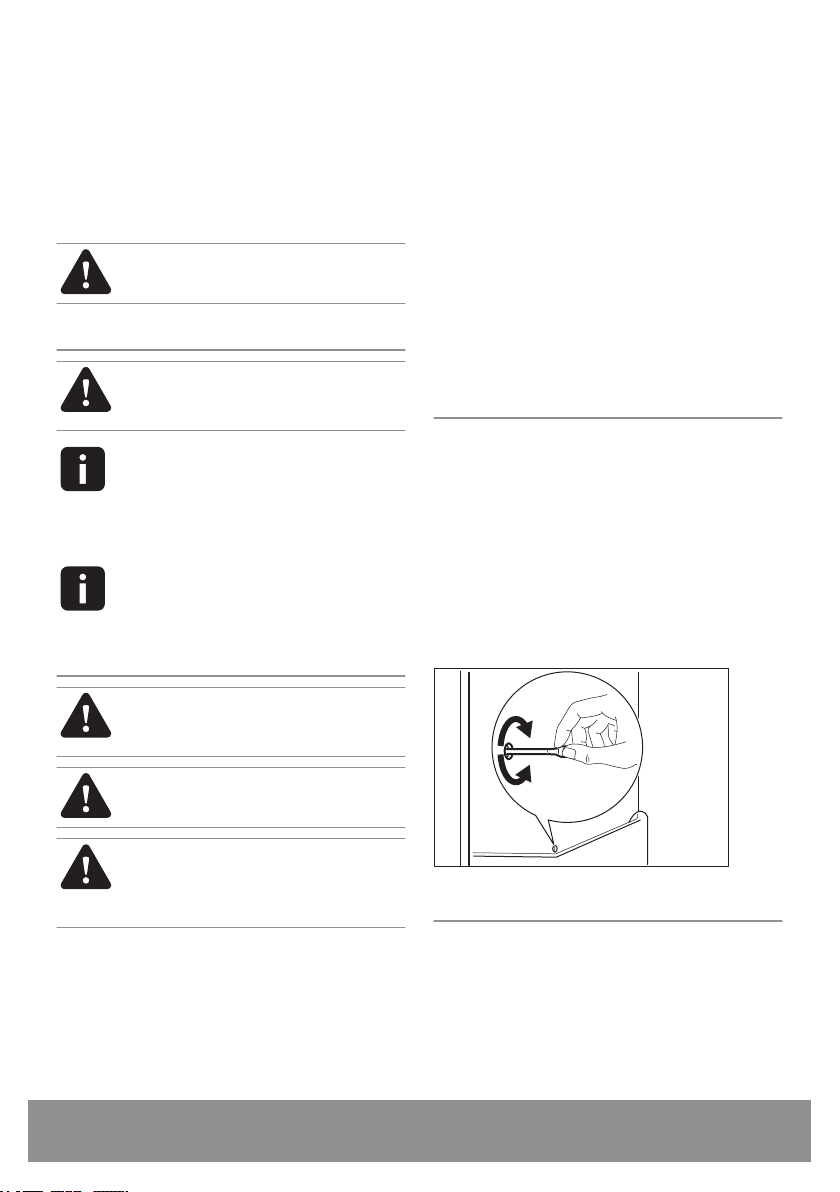

It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
Refrigerator User Manual 13

3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
Warning! If you want to keep
the appliance switched on, ask
somebody to check it once in
a while to prevent the food
inside from spoiling in case of
a power failure.
We recommend activating
Holiday mode.
Refrigerator User Manual14

Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly.
Connect the mains plug to the mains
socket correctly.
There is no voltage in the mains
socket.
Connect a different electrical appli-
ance to the mains socket. Contact a
qualified electrician.
The appliance is noisy. The appliance is not supported
properly.
Check if the appliance stands stable.
Audible or visual alarm is on. The cabinet has been recently
switched on or the temperature
is still too high.
Refer to "Door open alarm".
The door is left open. Close the door. Refer to "Door open
alarm"
The temperature in the appliance
is too high.
Contact a qualified electrician or con-
tact the nearest Authorised Service
Centre.
A or symbol is shown in-
stead of numbers on the Tempera-
ture Display.
Temperature sensor problem. Contact the nearest Authorised Serv-
ice Centre (the cooling system will
continue to keep food products cold,
but temperature adjustment will not
be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Contact the nearest Authorised Serv-
ice Centre.
Refrigerator User Manual 15

Problem Possible cause Solution
The compressor operates continu-
ally.
Temperature is set incorrectly. Refer to "Operation".
Many food products were put in
at the same time.
Wait some hours and then check the
temperature again.
The room temperature is too
high.
Refer to climate class chart on the rat-
ing plate.
Food products placed in the ap-
pliance were too warm.
Allow food products to cool to room
temperature before storing.
The door is not closed correctly. Refer to "Closing the door".
The "IntensiveCooling" is switch-
ed on.
Refer to "IntensiveCooling function".
There is too much frost and ice. The door is not closed correctly
or the gasket is deformed/dirty.
Refer to "Closing the door".
The water drainage plug is not
correctly positioned.
Position the water drainage plug in the
correct way.
Food products are not wrapped
properly.
Wrap the food products better.
Temperature is set incorrectly. Refer to "Operation" .
The compressor does not start im-
mediately after pressing the "Inten-
siveCooling", or after changing the
temperature.
This is normal, no error has oc-
curred.
The compressor starts after a period
of time.
Water flows on the rear plate of
the refrigerator.
During the automatic defrosting
process, frost melts on the rear
plate.
This is correct.
Water flows inside the refrigerator. Food products prevent the water
to flow into the water collector.
Make sure that food products do not
touch the rear plate.
The water outlet is clogged. Clean the water outlet.
Water flows on the floor. The melting water outlet is not
connected to the evaporative
tray above the compressor.
Attach the melting water outlet to the
evaporative tray.
Refrigerator User Manual16

Problem Possible cause Solution
Temperature cannot be set. The "IntensiveCooling function" is
switched on.
Switch off "IntensiveCooling function"
manually, or wait until the function re-
sets automatically to set the tempera-
ture. Refer to "IntensiveCooling func-
tion".
dEMo appears on the display. The appliance is in demonstration
mode.
Keep the OK pressed for approxi-
mately 10 seconds until a long sound
is heard and display shuts off for a
short time.
The temperature in the appliance is
too low/too high.
The temperature regulator is not
set correctly.
Set a higher/lower temperature.
The door is not closed correctly. Refer to "Closing the door".
The food products' temperature
is too high.
Let the food products temperature
decrease to room temperature be-
fore storage.
Many food products are stored at
the same time.
Store less food products at the same
time.
The door has been opened often. Open the door only if necessary.
The "IntensiveCooling function" is
switched on.
Refer to "IntensiveCooling function".
There is no cold air circulation in
the appliance.
Make sure that there is cold air circu-
lation in the appliance.
If the advice does not lead to the
desired result, contact the nearest
Authorised Service Centre.
Replacing the lamp
The appliance is equipped with a longlife LED
interior light.
Only service is allowed to replace the lighting
device. Contact your Authorised Service
Centre.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to assembly
instructions.
3. If necessary, replace the defective door
gaskets. Contact the Authorised Service
Centre.
Refrigerator User Manual 17

Installation
Location
Refer to the assembly instructions
for the installation.
To ensure best performance, install the
appliance well away from sources of heat such
as radiators, boilers, direct sunlight etc. Make
sure that air can circulate freely around the back
of the cabinet.
Positioning
Install the appliance in a dry, well ventilated
indoors where the ambient temperature
corresponds to the climate class indicated on
the rating plate of the appliance.
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation can
only be guaranteed within the
specified temperature range. If you
have any doubts regarding where
to install the appliance, please turn
to the vendor, to our customer
service or to the nearest
Authorised Service Centre.
Electrical Connection
Caution! Any electrical work
required to install this
appliance should be carried
out by a qualified electrician
or competent person.
Warning! This appliance must
be earthed.
The manufacturer declines
any liability should these
safety measures not be
observed.

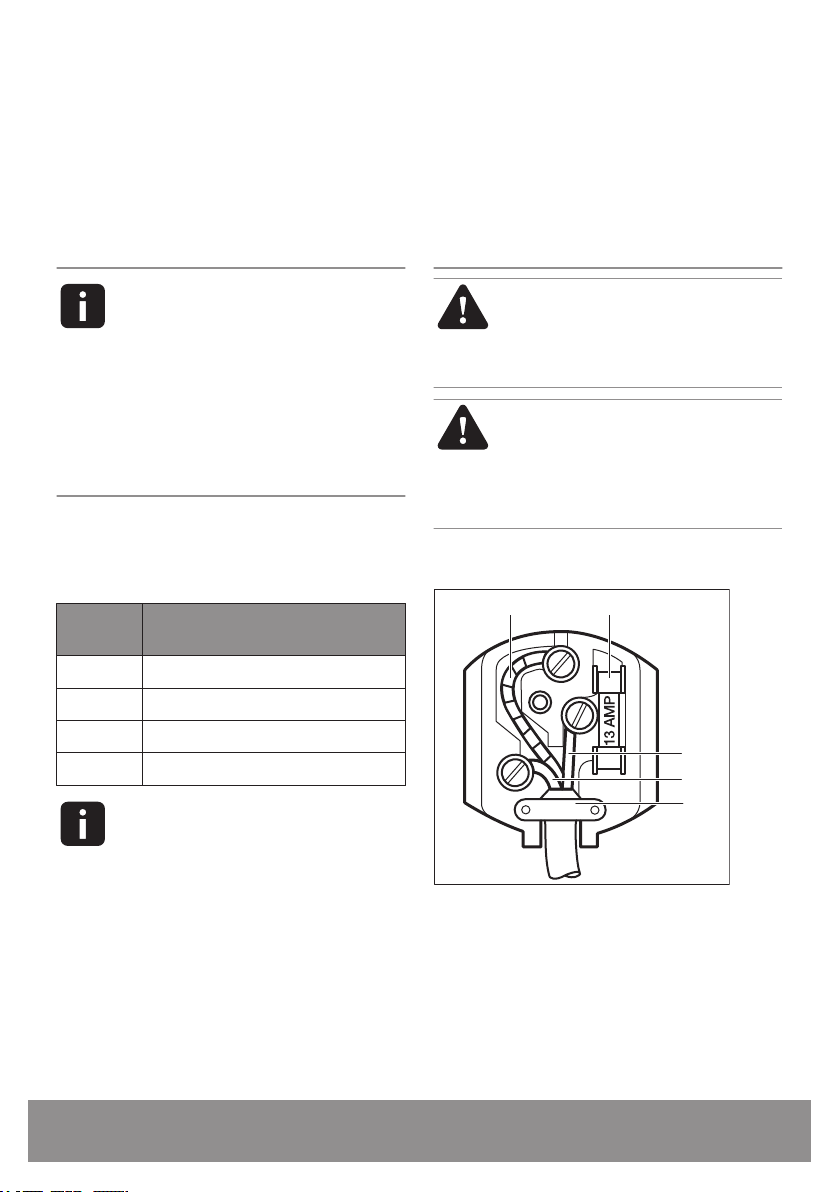

The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
•A - green and yellow: Earth
•C - brown: Live
•D - blue: Neutral
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
Refrigerator User Manual
18

1. Connect the wire coloured green and yellow
to the terminal marked either with the letter
“E“ or by the earth symbol or coloured
green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of wire is
present and the cord clamp (E) is secure over
the outer sheath.
Make sure the electricity supply voltage is the
same as that indicated on the appliance rating
plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp fuse
(B). In the event of having to change the fuse in
the plug supplied, a 13 amp ASTA approved (BS
1362) fuse must be used.
Warning! A cut off plug
inserted into a 13 amp socket
is a serious safety (shock)
hazard. Ensure that it is
disposed of safely.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
Caution! Refer to the
assembly instructions for the
installation.
Refrigerator User Manual 19

Technical data
Dimensions of the recess
Height mm 1780
Width mm 560
Depth mm 550
Voltage Volts 230 - 240
Frequency Hz 50
The technical information is situated in the rating
plate, on the external or internal side of the
appliance and in the energy label.
Refrigerator User Manual20
