John Lewis JLBIFF1809 User manual

JLBIFF1809
User Manual
Fridge Freezer

Contents
Safety information 3
Children and vulnerable people safety 3
General Safety 3
Safety instructions 5
Installation 5
Electrical connection 5
Use 5
Internal light 6
Care and cleaning 6
Disposal 6
Operation 7
Control panel 7
Display 7
Switching on 7
Switching off 7
Switching off the fridge compartment 8
Temperature Indication 8
Functions menu 8
Temperature regulation 8
IntensiveCooling function 8
Fan function 9
FastFreeze function 9
High temperature alarm 9
Daily use 10
Cleaning the interior 10
Positioning the door shelves 10
Bottle rack 10
Movable shelves 11
Fan 11
Freezing fresh food 11
Storage of frozen food 12
Thawing 12
Cold accumulators 12
Ice-cube production 12
Hints and tips 13
Normal operating sounds 13
Hints for energy saving 13
Hints for fresh food refrigeration 13
Hints for refrigeration 13
Hints for freezing 13
Hints for storage of frozen food 14
Care and cleaning 15
Periodic cleaning 15
Defrosting of the refrigerator 15
Defrosting the freezer 15
Periods of non-operation 15
Troubleshooting 16
What to do if... 16
Closing the door 18
Replacing the lamp 18
Installation 19
Positioning 19
Electrical Connection 19
Ventilation requirements 20
Technical data 21
Technical data 21
Repairs - after sales service 22
Fridge Freezer User Manual
2

Safety information
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible location
for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and similar
applications such as:
–Farm houses; staff kitchen areas in shops, offices and other
working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
Fridge Freezer User Manual 3

•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning pads,
solvents or metal objects.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified
persons in order to avoid a hazard.
Fridge Freezer User Manual
4

Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with
the appliance.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Make sure the air can circulate around the
appliance.
• At first installation or after reversing the door
wait at least 4 hours before connecting the
appliance to the power supply. This is to allow
the oil to flow back in the compressor.
• Before carrying out any operations on the
appliance (e.g. reversing the door), remove the
plug from the power socket.
• Do not install the appliance close to radiators
or cookers, ovens or hobs.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that are
too humid or too cold, such as the construction
appendices, garages or wine cellars.
• When you move the appliance, lift it by the
front edge to avoid scratching the floor.
• The appliance contains a bag of desiccant. This
is not a toy. This is not food. Please dispose of
it immediately.
Electrical connection
Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the electrical
components (e.g. mains plug, mains cable,
compressor). Contact the Authorised Service
Centre or an electrician to change the electrical
components.
• The mains cable must stay below the level of
the mains plug.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after the
installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
Use
Warning! Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice cream
makers) in the appliance unless they are stated
applicable by the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant circuit, make
sure that there are no flames and sources of
ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts
of the appliance.
Fridge Freezer User Manual 5

• Do not put soft drinks in the freezer
compartment. This will create pressure on the
drink container.
• Do not store flammable gas and liquid in the
appliance.
• Do not put flammable products or items that
are wet with flammable products in, near or on
the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the freezer
compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging
of frozen food.
Internal light
• The type of lamp used for this appliance is not
suitable for household room illumination
Care and cleaning
Warning! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the appliance
and disconnect the mains plug from the mains
socket.
• This appliance contains hydrocarbons in the
cooling unit. Only a qualified person must do
the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance
and if necessary, clean it. If the drain is blocked,
defrosted water collects in the bottom of the
appliance.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets
to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas.
Contact your municipal authority for
information on how to discard the appliance
correctly.
• Do not cause damage to the part of the cooling
unit that is near the heat exchanger.
Fridge Freezer User Manual6

Operation

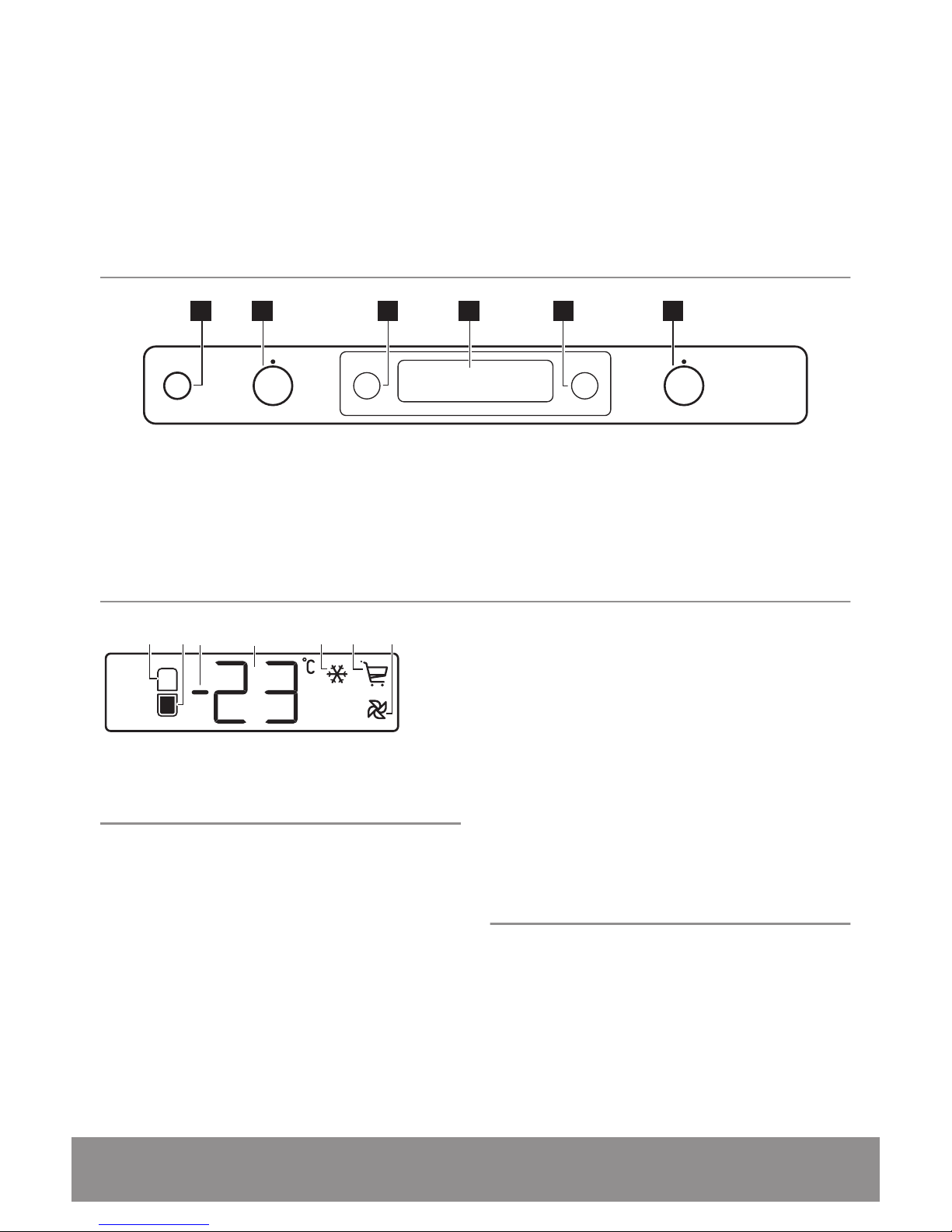

Control panel
Mode Fridge
1
2
34
5
1
2
34
5
FreezerOn/Off C
1 2 3 4 5 6
1. ON/OFF switch
2. Freezer temperature regulator
3. Fridge-Freezer temperature indicator button
4. Display
5. MODE and Alarm reset switch
6. Fridge temperature regulator
Display
A B C D E F G
A. Fridge compartment indicator
B. Freezer compartment indicator
C. Positive or negative temperature indicator
D. Temperature indicator
E. FastFreeze function
F. IntensiveCooling function
G. Fan function
Switching on
After plugging the plug into the power outlet, if
the display is not illuminated, press ON/OFF
switch.
As soon as the appliance is turned on, the
following signals will appear on the control
panel:
• Positive or negative temperature indicator will
be positive, indicating that the temperature is
positive.
• The temperature flashes, the background of the
display is red and will hear a buzzer.
Press MODE and the buzzer will go off (also
refer to "High temperature alarm"). Set the
desired temperature (refer to "Temperature
regulation").
Switching off
The appliance is switched off by pressing
ON/OFF switch for more than 1 second. After
this a countdown of the temperature from -3 -2
-1 will be shown.
When the appliance is switched off. Display also
goes off.
Fridge Freezer User Manual 7

Switching off the fridge
compartment
To switch off the refrigerator compartment, rotate
the Fridge temperature setting regulator counter-
clockwise till position "O".
Once the refrigerator compartment is shut off, the
only temperature which is indicated is the one of
the freezer compartment.
In this condition, the lighting in the refrigerator
compartment will be switched off.
The freezer compartment will keep on working.
Temperature Indication
Each time the Fridge-Freezer temperature
indication button is pressed, the display indicates
in sequence:
1. • The Fridge compartment indicator is on.
• The display indicates the latest set
temperature for the fridge.
2. • The Freezer compartment indicator is on
(In normal conditions).
• The display indicates the latest set
temperature for the freezer.
Functions menu
Each time MODE is pressed, the following
functions are activated in a clockwise direction:
• FastFreeze function
• IntensiveCooling function
• Fan function
• no symbol: normal operation.
You can set one function ON at
any time and set the function OFF
by pressing MODE several times
until no icon appears.
Temperature regulation
The temperature within the appliance is
controlled by the Temperature regulator.
The temperature of the fridge compartment
may be regulated by rotating the Fridge
temperature regulator, and may vary between
more or less +2°C and +8°C.
The temperature of the freezer compartment
may be regulated by rotating the Freezer
temperature regulator, and may vary between
more or less -15°C and -24°C.
For a correct storage of the food the following
temperatures should be set:
• fridge: +5°C
• freezer: -18°C
During normal operating the Temperature
indicator shows the temperature currently set.
To operate the appliance proceed as follows:
1. turn the Temperature regulator clockwise to
obtain the maximum coldness.
2. turn the Temperature regulator counter -
clockwise to obtain the minimum coldness.
The intermediate position is usually
the most suitable.
However, the exact setting should
be chosen keeping in mind that the
temperature inside the appliance
depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
IntensiveCooling function
If you need to insert a large amount of warm
food, for example after doing the grocery
shopping, we suggest to activate the
IntensiveCooling function to chill the products
more rapidly and to avoid warming the other
food which is already in the refrigerator.
Press MODE (several times if necessary) until the
corresponding icon appears .
The IntensiveCooling function shuts off
automatically after approximately 6 hours.
During the IntensiveCooling function also the fan
inside the refrigerator compartment is
automatically activated.
Fridge Freezer User Manual
8

The fan inside the refrigerator
compartment is automatically
activated also when the room
temperature is high (over 32°C) or
for a quick temperature recovering
after door opening, even though
the IntensiveCooling function is not
activated.
It is possible to de-activate the
function at any time by pressing
MODE (refer to "Functions
Menu").
Fan function
The function is activated by pressing the MODE
(several times if necessary) until the
corresponding icon appears .
In this condition the fan works continuously.
It is possible to deactivate the function at any
time by pressing the MODE until the icon
goes out of view.
If the function is activated automatically the Fan
icon is not shown (refer to "Daily use").
The activation of the Fan function increases the
energy consumption.
FastFreeze function
To freeze fresh food, you will need to activate
the FastFreeze function.
Press MODE (several times if necessary) until the
corresponding icon appears.
This function stops automatically after 52 hours.
It is possible to deactivate the function at any
time by pressing MODE (refer to "Functions
menu").
High temperature alarm
An increase in the temperature in the freezer
compartment (for example due to a power
failure) is indicated by:
• flashing temperature
• freezer compartment flashing (Freezer
compartment indicator/Door open alarm
indicator)
• sounding of buzzer
• red illumination of display
When normal conditions are restored:
• the acoustic signal shuts off
• the temperature value continues to flash
• the display illumination remains red.
When you press MODE/Alarm reset switch to
deactivate the alarm, the highest temperature
reached in the compartment appears on
indicator for some seconds.
At this point the flashing stops and the display
illumination changes over from red to white.
During the alarm, the buzzer can be switched off
by pressing MODE/Alarm reset switch.
The illumination of the display remains red until
normal storage conditions are restored.
Fridge Freezer User Manual 9

Daily use
Warning! Refer to Safety
chapters.
Cleaning the interior
Before using the appliance for the first time, the
interior and all internal accessories should be
washed with lukewarm water and some neutral
soap to remove the typical smell of a brand-new
product, then dried thoroughly.
Caution! Do not use
detergents, abrasive powders,
chlorine or oil-based cleaners
as they will damage the finish.

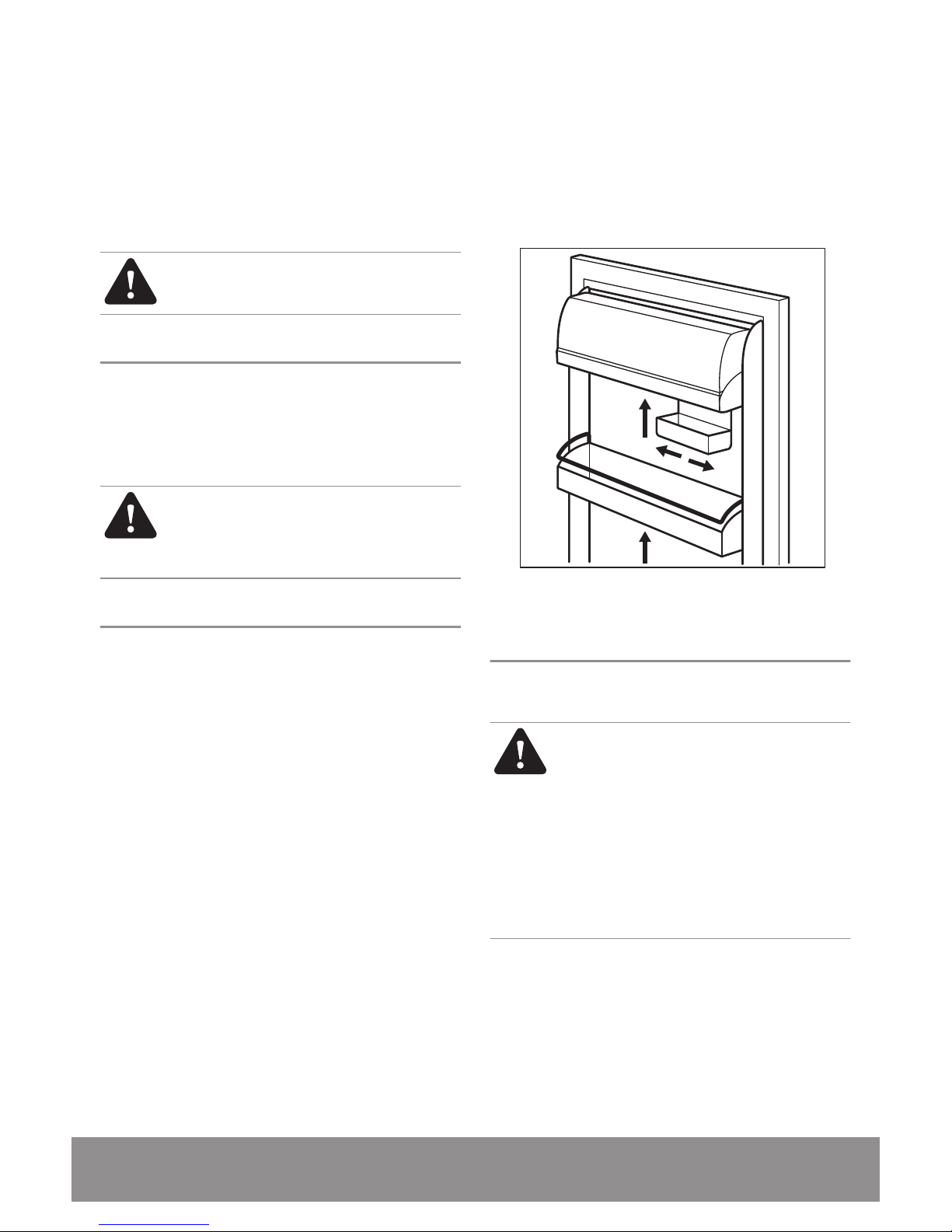

Positioning the door shelves
To permit storage of food packages of various
sizes, the door shelves can be placed at different
heights.
1. Gradually pull the shelf in the direction of the
arrows until it comes free.
2. Reposition as required.
This model is equipped with a variable storage
box which can be moved sideways.

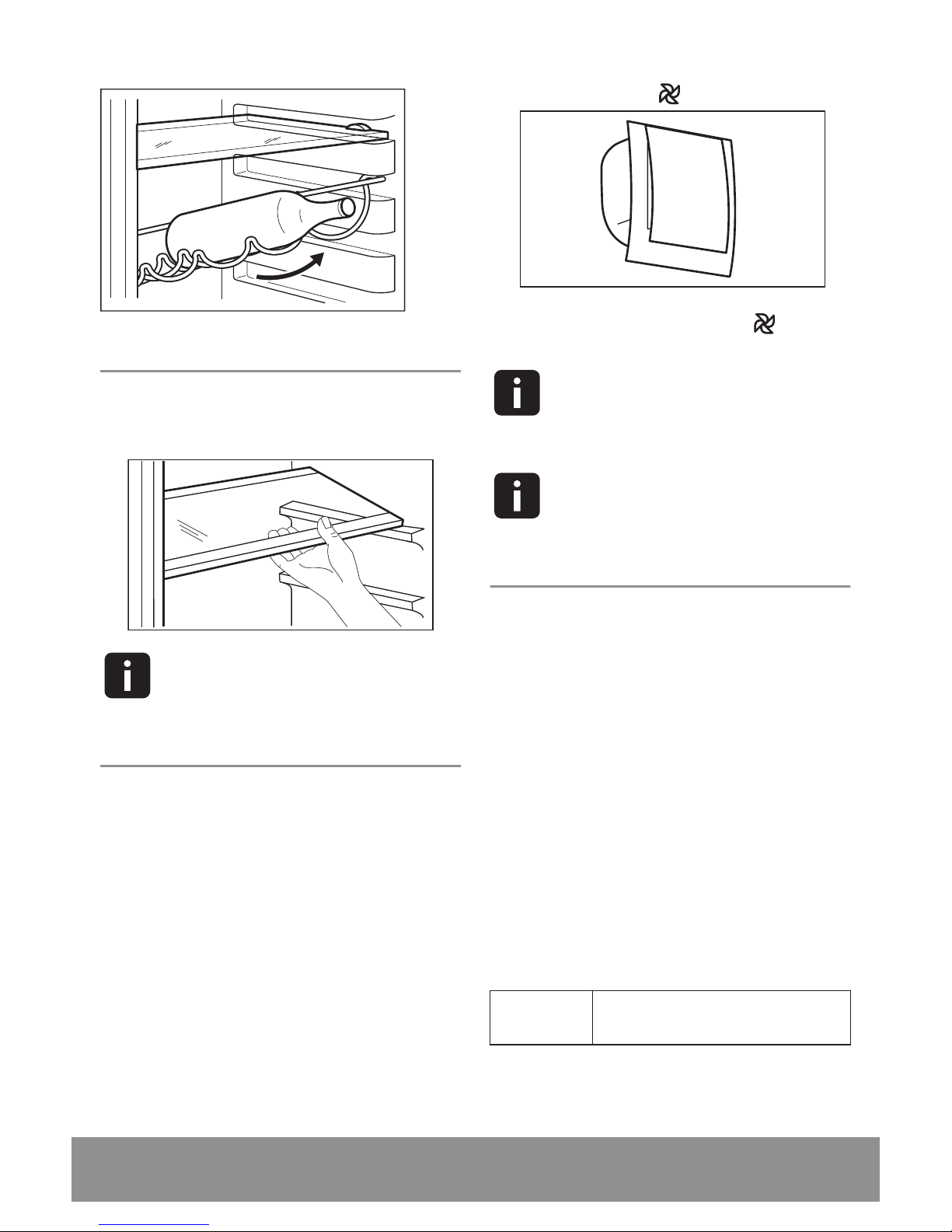

Bottle rack
Place the bottles (with the opening facing front)
in the pre-positioned shelf.
Caution! If the shelf is
positioned horizontally, place
only closed bottles.
This bottle holder shelf can be
tilted in order to store
previously opened bottles. To
obtain this result, pull the
shelf up so it can rotate
upwards and be placed on the
next higher level.
Fridge Freezer User Manual10

Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
Do not move the glass shelf above
the vegetable drawer to ensure
correct air circulation.
Fan
The refrigerator compartment is equipped with
a Fan device that allows rapid cooling of food
and keeps a more uniform temperature in the
compartment.
This device can be activated automatically when
the ambient temperature is high or when the
IntensiveCooling function is switched on.
1. To activate the function manually press the
MODE (several times if necessary) until the
corresponding icon appears.
2. To deactivate the function, repeat the
procedure until the until the icon
disappears.
The Fan device stops when the
door is open and restarts
immediately after the door
closing.
Activate the Fan function when
the ambient temperature
exceeds 25°C.
Freezing fresh food
The freezer compartment is suitable for freezing
fresh food and storing frozen and deep-frozen
food for a long time.
To freeze fresh food activate the FastFreeze
function at least 24 hours before placing the
food to be frozen in the freezer compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during this
period do not add other food to be frozen.
When the freezing process is completed, return
to the required temperature (see "FastFreeze
function").
When use the FastFreeze function:
about 6
hours before
Introducing small quantities of fresh
food (about 5 kg)
Fridge Freezer User Manual 11

about 24
hours before
Introducing the maximum quantity of
food (see rating plate)
not needed Introducing frozen food
not needed Introducing small quantities of fresh
food daily 2 kg maximum
Storage of frozen food
When first starting-up or after a period out of
use, before putting the products in the
compartment let the appliance run at least 2
hours on the higher settings.
Warning! In the event of
accidental defrosting, for
example due to a power
failure, if the power has been
off for longer than the value
shown in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then re-
frozen (after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking
will take longer.
Cold accumulators
The freezer contains at least one cold
accumulator which increases storage time in the
event of a power cut or breakdown.
Ice-cube production
This appliance is equipped with one or more
trays for the production of ice-cubes. Fill these
trays with water, then put them in the freezer
compartment.
Do not use metallic instruments to
remove the trays from the freezer.
Fridge Freezer User Manual12

Hints and tips
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from coils
sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance
caused by thermic dilatation (a natural and not
dangerous physical phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches on or
off.
Hints for energy saving
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• If the ambient temperature is high and the
Temperature Regulator is set to low
temperature and the appliance is fully loaded,
the compressor may run continuously, causing
frost or ice on the evaporator. If this happens,
set the Temperature Regulator toward warmer
settings to allow automatic defrosting and so a
saving in electricity consumption.
• If foreseen, do not remove the cold
accumulators from the freezer basket.
Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids
in the refrigerator
• do cover or wrap the food, particularly if it has
a strong flavour
• position food so that air can circulate freely
around it
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable packaging
and place it on the glass shelf above the
vegetable drawer. Store meat for at most 1-2
days.
• Cooked foods, cold dishes: cover and place on
any shelf.
• Fruit and vegetables: clean thoroughly and place
in a special drawer. Bananas, potatoes, onions
and garlic must not be kept in the refrigerator if
not packed.
• Butter and cheese: place in a special airtight
container or wrap in an aluminium foil or a
polythene bag to exclude as much air as
possible.
• Bottles: close with a cap and place on the door
bottle shelf, or (if available) on the bottle rack.
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can be
frozen in 24 hours is shown on the rating plate;
• the freezing process takes 24 hours no further
food to be frozen should be added during this
period;
• freeze only top quality, fresh and thoroughly
cleaned, foodstuffs;
• prepare food in small portions to enable it to be
rapidly and completely frozen and to make it
possible subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or polythene
and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter;
• lean foods store better and longer than fatty
ones; salt reduces the storage life of food;
Fridge Freezer User Manual 13

• water ices, if consumed immediately after
removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on
each individual pack to enable you to keep tab
of the storage time.
Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred
from the foodstore to the freezer in the
shortest possible time;
• not open the door frequently or leave it open
longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and
cannot be refrozen;
• do not exceed the storage period indicated by
the food manufacturer.
Fridge Freezer User Manual
14

Care and cleaning
Warning! Refer to Safety
chapters.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm
water and some neutral soap.
• regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the
cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning
products or wax polishes to clean
the interior as this will damage the
surface and leave a strong odour.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, during
normal use. The defrost water drains out
through a trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel to prevent the water
overflowing and dripping onto the food inside.
Defrosting the freezer
The freezer compartment is frost free. This
means that there is no build up of frost when it
is in operation, neither on the internal walls nor
on the foods.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
Warning! If you want to keep
the appliance switched on, ask
somebody to check it once in
a while to prevent the food
inside from spoiling in case of
a power failure.
Fridge Freezer User Manual 15

Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not operate. The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly.
Connect the mains plug to the mains
socket correctly.
There is no voltage in the mains
socket.
Connect a different electrical appli-
ance to the mains socket. Contact a
qualified electrician.
The appliance is noisy. The appliance is not supported
properly.
Check if the appliance stands stable.
Audible or visual alarm is on. The cabinet has been recently
switched on or the temperature
is still too high.
Refer to "Door open alarm"or "High
temperature alarm".
The temperature in the appliance
is too high.
Refer to "Door open alarm"or "High
temperature alarm".
Power indicator light is flashing. An error has occurred in measur-
ing the temperature.
Contact a qualified electrician or con-
tact the nearest Authorised Service
Centre.
The appliance is not working
properly.
Contact a qualified electrician or con-
tact the nearest Authorised Service
Centre.
The temperature in the appliance
is too high.
Contact a qualified electrician or con-
tact the nearest Authorised Service
Centre.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Authorised Serv-
ice Centre.
Fridge Freezer User Manual16

Problem Possible cause Solution
The compressor operates continu-
ally.
Temperature is set incorrectly. Refer to "Operation".
Many food products were put in
at the same time.
Wait some hours and then check the
temperature again.
The room temperature is too
high.
Refer to climate class chart on the rat-
ing plate.
Food products placed in the ap-
pliance were too warm.
Allow food products to cool to room
temperature before storing.
The door is not closed correctly. Refer to "Closing the door".
The FastFreeze is switched on. Refer to "FastFreeze function".
There is too much frost and ice. The door is not closed correctly
or the gasket is deformed/dirty.
Refer to "Closing the door".
The water drainage plug is not
correctly positioned.
Position the water drainage plug in the
correct way.
Food products are not wrapped
properly.
Wrap the food products better.
Temperature is set incorrectly. Refer to "Operation" .
The compressor does not start im-
mediately after pressing the Fast-
Freeze, or after changing the tem-
perature.
This is normal, no error has oc-
curred.
The compressor starts after a period
of time.
Water flows on the rear plate of
the refrigerator.
During the automatic defrosting
process, frost melts on the rear
plate.
This is correct.
Water flows inside the refrigerator. The water outlet is clogged. Clean the water outlet.
Food products prevent that wa-
ter flows into the water collector.
Make sure that food products do not
touch the rear plate.
Water flows on the floor. The melting water outlet is not
connected to the evaporative
tray above the compressor.
Attach the melting water outlet to the
evaporative tray.
Temperature cannot be set. The FastFreeze or IntensiveCool-
ing function is switched on.
Switch off FastFreeze or Intensive-
Cooling manually, or wait until the
function resets automatically to set
the temperature. Refer to "FastFreeze
or IntensiveCooling function".
Fridge Freezer User Manual 17

Problem Possible cause Solution
The temperature in the appliance is
too low/too high.
The temperature regulator is not
set correctly.
Set a higher/lower temperature.
The door is not closed correctly. Refer to "Closing the door".
The food products' temperature
is too high.
Let the food products temperature
decrease to room temperature be-
fore storage.
Many food products are stored at
the same time.
Store less food products at the same
time.
The door has been opened often. Open the door only if necessary.
There is no cold air circulation in
the appliance.
Make sure that there is cold air circu-
lation in the appliance.
If the advice does not lead to the
desired result, contact the nearest
Authorised Service Centre.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to assembly
instructions.
3. If necessary, replace the defective door
gaskets. Contact the Authorised Service
Centre.
Replacing the lamp
The appliance is equipped with a longlife LED
interior light.
Only service is allowed to replace the lighting
device. Contact your Authorised Service
Centre.
Fridge Freezer User Manual
18

Installation
Warning! Refer to Safety
chapters.
Positioning
Install the appliance in a dry, well ventilated
indoors where the ambient temperature
corresponds to the climate class indicated on
the rating plate of the appliance.
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation can
only be guaranteed within the
specified temperature range. If you
have any doubts regarding where
to install the appliance, please turn
to the vendor, to our customer
service or to the nearest
Authorised Service Centre.
Electrical Connection
Caution! Any electrical work
required to install this
appliance should be carried
out by a qualified electrician
or competent person.
Warning! This appliance must
be earthed.
The manufacturer declines
any liability should these
safety measures not be
observed.
The wires in the mains lead are coloured in
accordance with the following code:
A B
C
D
E
•A - green and yellow: Earth
•C - brown: Live
•D - blue: Neutral
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
Fridge Freezer User Manual 19

1. Connect the wire coloured green and yellow
to the terminal marked either with the letter
“E“ or by the earth symbol or coloured
green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of wire is
present and the cord clamp (E) is secure over
the outer sheath.
Make sure the electricity supply voltage is the
same as that indicated on the appliance rating
plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp fuse
(B). In the event of having to change the fuse in
the plug supplied, a 13 amp ASTA approved (BS
1362) fuse must be used.
Warning! A cut off plug
inserted into a 13 amp socket
is a serious safety (shock)
hazard. Ensure that it is
disposed of safely.

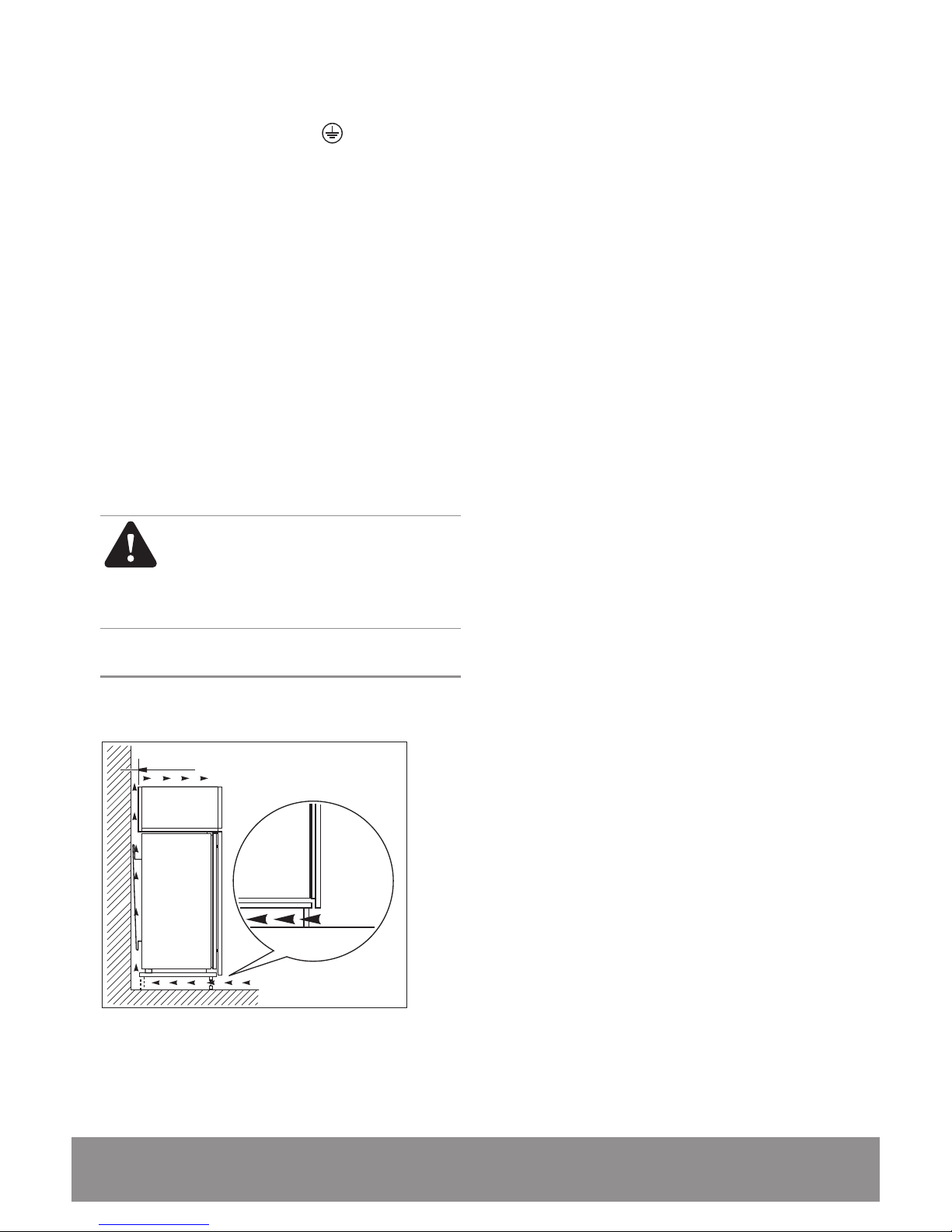

Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
Fridge Freezer User Manual
20
