JohnDow Industries JDI-FP1 User manual

™
FOOT PUMP KIT USER’S MANUAL
General Purpose Evacuation Pump
Part No. JDI-FP1
151 Snyder Ave.
Barberton, OH 44203
Rev 8/2021
READ AND SAVE THIS MANUAL
FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM
FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708
DATE OF PURCHASE:

2FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM

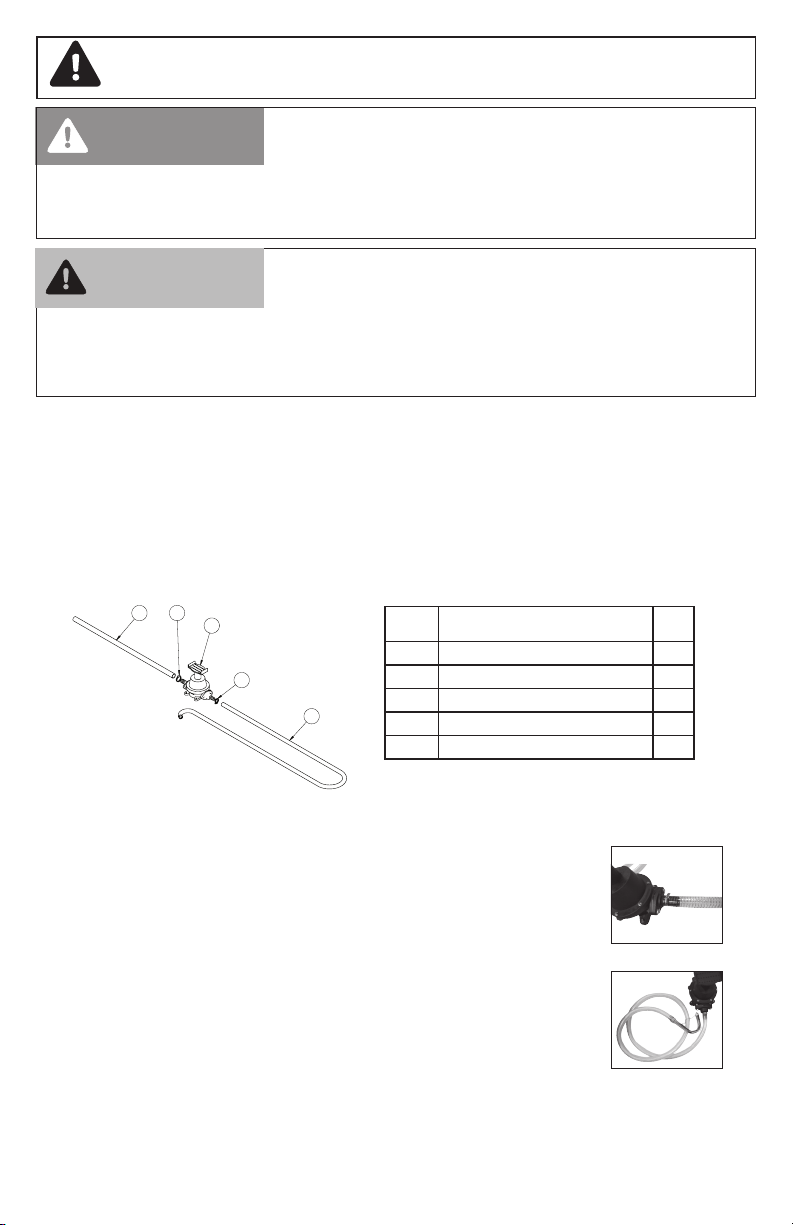

CONTENTS
GETTING STARTED
CAPACITY AND DIMENSIONS
Item No. Description Qty.
1 3/4” Hose Clamp 1
2 1” Hose Clamp 1
3 3/4” ID x 8’ Hose w/J-Hook 1
4 25mm ID x 1.8m Hose 1
5 Foot Pump, 25 x 19mm Hose Barbs 1
Product Specication JDI-FP1
Flow Rate: 4.4 gpm (16.7 L/min)
Before assembly, ensure you have all parts according to the contents list. If any parts are missing or damaged,
contact us for replacement.
DANGER
WARNING
CAUTION
NOTICE
DANGER
WARNING
CAUTION
NOTICE
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
• Do not overll - maximum capacity is 17 gallons.
• Do not use for ammable liquids.
• Wear proper personal protection equipment and clothing.
• Keep the drain port clear of grease and dirt.
• Monitor the uid level when lling the drain to prevent overow or spillage.
• Use care when rolling the oil drain when it is full to prevent splashing or spillage.
• Periodically inspect the screen for debris that may prevent the ow of oil.
Important Safety Information
Read this manual and safety information before using this pump. The following
safety information relates to the use of the JDI-17PLP Low-profile oil drain.
42
5
1
3
OPERATION
1. Hook the drain hose to a used uid container.
2. Connect the 25mm hose to the JDI-17PLP low-prole oil drain to evacuate.
3. Press on the foot pump until the drain is empty.
ASSEMBLY INSTRUCTIONS
1. Attach 25mm hose [4] to inlet side of the pump [5] using 1” hose clamp [2] and
at head screwdriver (Figure 1).
2. Attach drain hose [3] to outlet side of pump using 3/4” hose clamp [1] and at
head screwdrivers (Figure 2).
Flat head screwdriver
TOOLS & SUPPLIES NEEDED
Figure 1
Figure 2
