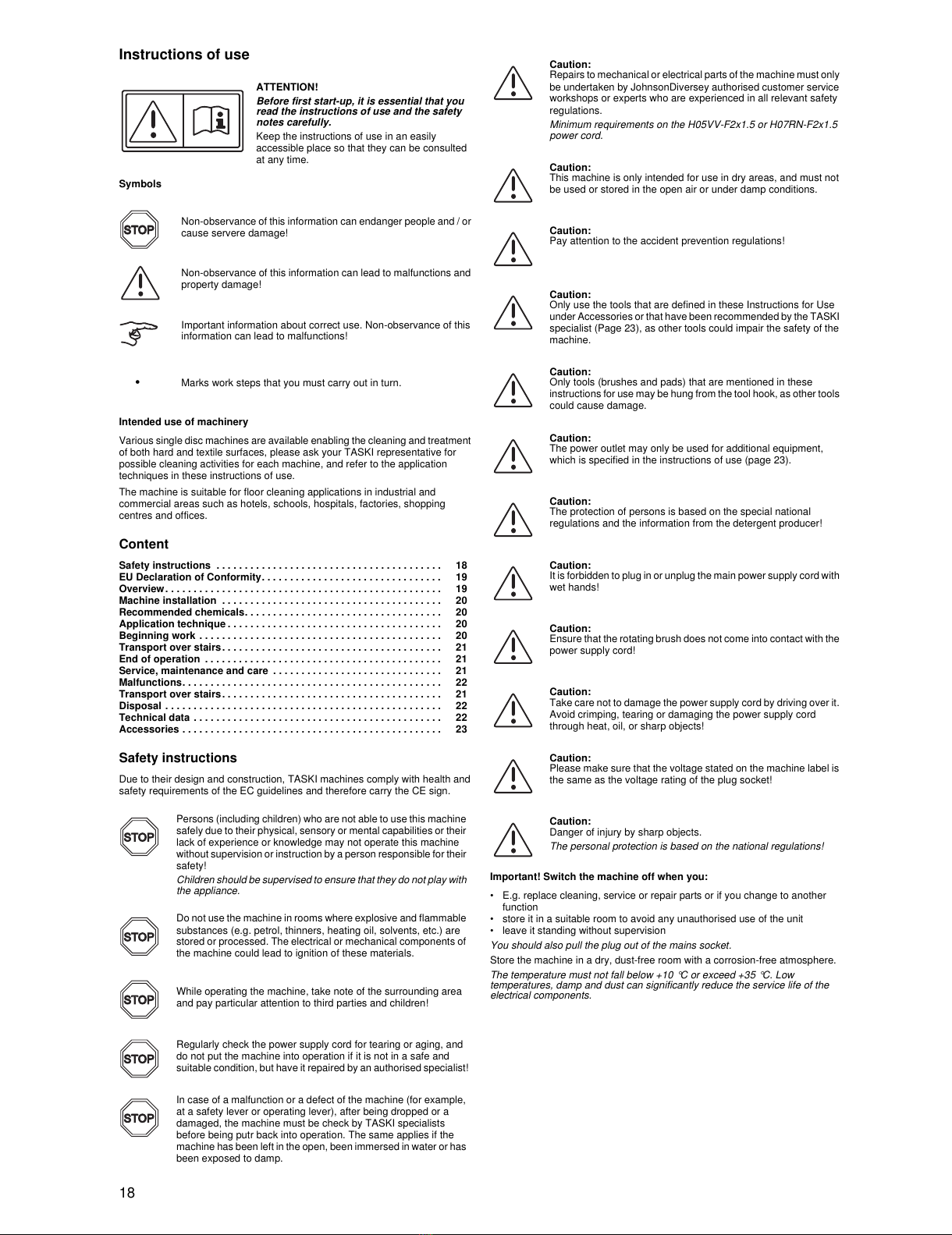

Instructions of use
Symbols
Intended use of machinery
Various single disc machines are available enabling the cleaning and treatment
of both hard and textile surfaces, please ask your TASKI representative for
possible cleaning activities for each machine, and refer to the application
techniques in these instructions of use.
The machine is suitable for floor cleaning applications in industrial and
commercial areas such as hotels, schools, hospitals, factories, shopping
centres and offices.
Content
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
EU Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Machine installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Recommended chemicals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Application technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Beginning work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Transport over stairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
End of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Service, maintenance and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Malfunctions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Transport over stairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Safety instructions
Due to their design and construction, TASKI machines comply with health and
safety requirements of the EC guidelines and therefore carry the CE sign.
Important! Switch the machine off when you:
• E.g. replace cleaning, service or repair parts or if you change to another
function
• store it in a suitable room to avoid any unauthorised use of the unit
• leave it standing without supervision
You should also pull the plug out of the mains socket.
Store the machine in a dry, dust-free room with a corrosion-free atmosphere.
The temperature must not fall below +10 °C or exceed +35 °C. Low
temperatures, damp and dust can significantly reduce the service life of the
electrical components.
ATTENTION!
Before first start-up, it is essential that you
read the instructions of use and the safety
notes carefully.
Keep the instructions of use in an easily
accessible place so that they can be consulted
at any time.
Non-observance of this information can endanger people and / or
cause servere damage!
Non-observance of this information can lead to malfunctions and
property damage!
Important information about correct use. Non-observance of this
information can lead to malfunctions!
Marks work steps that you must carry out in turn.
Persons (including children) who are not able to use this machine
safely due to their physical, sensory or mental capabilities or their
lack of experience or knowledge may not operate this machine
without supervision or instruction by a person responsible for their
safety!
Children should be supervised to ensure that they do not play with
the appliance.
Do not use the machine in rooms where explosive and flammable
substances (e.g. petrol, thinners, heating oil, solvents, etc.) are
stored or processed. The electrical or mechanical components of
the machine could lead to ignition of these materials.
While operating the machine, take note of the surrounding area
and pay particular attention to third parties and children!
Regularly check the power supply cord for tearing or aging, and
do not put the machine into operation if it is not in a safe and
suitable condition, but have it repaired by an authorised specialist!
In case of a malfunction or a defect of the machine (for example,
at a safety lever or operating lever), after being dropped or a
damaged, the machine must be check by TASKI specialists
before being putr back into operation. The same applies if the
machine has been left in the open, been immersed in water or has
been exposed to damp.
STOP
•
STOP
STOP
STOP
STOP
STOP
Caution:
Repairs to mechanical or electrical parts of the machine must only
be undertaken by JohnsonDiversey authorised customer service
workshops or experts who are experienced in all relevant safety
regulations.
Minimum requirements on the H05VV-F2x1.5 or H07RN-F2x1.5
power cord.
Caution:
This machine is only intended for use in dry areas, and must not
be used or stored in the open air or under damp conditions.
Caution:
Pay attention to the accident prevention regulations!
Caution:
Only use the tools that are defined in these Instructions for Use
under Accessories or that have been recommended by the TASKI
specialist (Page 23), as other tools could impair the safety of the
machine.
Caution:
Only tools (brushes and pads) that are mentioned in these
instructions for use may be hung from the tool hook, as other tools
could cause damage.
Caution:
The power outlet may only be used for additional equipment,
which is specified in the instructions of use (page 23).
Caution:
The protection of persons is based on the special national
regulations and the information from the detergent producer!
Caution:
It is forbidden to plug in or unplug the main power supply cord with
wet hands!
Caution:
Ensure that the rotating brush does not come into contact with the
power supply cord!
Caution:
Take care not to damage the power supply cord by driving over it.
Avoid crimping, tearing or damaging the power supply cord
through heat, oil, or sharp objects!
Caution:
Please make sure that the voltage stated on the machine label is
the same as the voltage rating of the plug socket!
Caution:
Danger of injury by sharp objects.
The personal protection is based on the national regulations!
All manuals and user guides at all-guides.com

19
I25 I24 I23 I22 I21 I20 I19 I18 I17 tr sl se pt no nl it hu hr fr fi es en el de da
EU Declaration of Conformity
We
JohnsonDiversey Switzerland
CH-9542 Münchwilen
hereby declare that the product described below both in this basic design and
construction and in the version marketed by us conforms to the relevant safety-
and health-related requirements of the appropriate EU Directive.
This declaration shall cease to be valid if modifications are made to the product
without our approval.
Applicable EU Directives:
Machinery Directive (98/37/EEC) in version 98/79/EEC
Low-Voltage Directive (73/23/EEC)
EMC (Electro Magnetic Compatibility) (89/336/EEC) in version
98/13/EEC
Harmonised standards applied:
EN 60 335-1/EN 60 335-1-A1/EN 60 335-1-A11/EN 60 335-2-67/ EN 50366/
EN 55014-1/ EN 55014-1-A1/ EN 55014-1-A2/ EN 55014-2/ EN 55014-2-A1/
EN 61 000-3-2/ EN 61 00-3-2-A2/ EN 61 000-3-3/ EN 6100-3-3-A1
Internal measures have been taken to ensure that the products always
correspond to the requirements of the latest EU Regulations and the standards
that are currently in use
The signatories act on behalf of company management and with full power of
attorney.

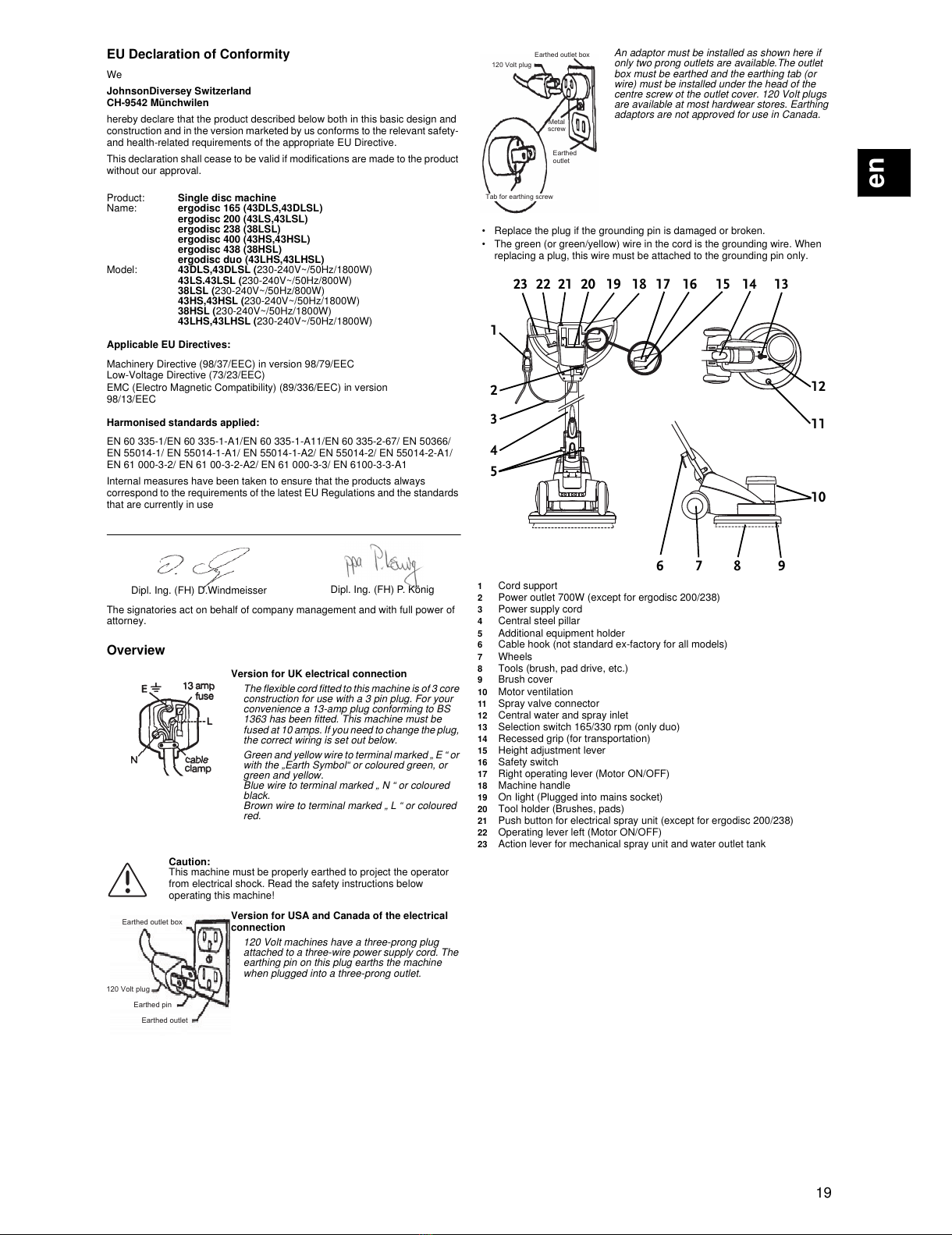

Overview
1 Cord support
2 Power outlet 700W (except for ergodisc 200/238)
3 Power supply cord
4 Central steel pillar
5 Additional equipment holder
6 Cable hook (not standard ex-factory for all models)
7 Wheels
8 Tools (brush, pad drive, etc.)
9 Brush cover
10 Motor ventilation
11 Spray valve connector
12 Central water and spray inlet
13 Selection switch 165/330 rpm (only duo)
14 Recessed grip (for transportation)
15 Height adjustment lever
16 Safety switch
17 Right operating lever (Motor ON/OFF)
18 Machine handle
19 On Iight (Plugged into mains socket)
20 Tool holder (Brushes, pads)
21 Push button for electrical spray unit (except for ergodisc 200/238)
22 Operating lever left (Motor ON/OFF)
23 Action lever for mechanical spray unit and water outlet tank
Product: Single disc machine
Name: ergodisc 165 (43DLS,43DLSL)
ergodisc 200 (43LS,43LSL)
ergodisc 238 (38LSL)
ergodisc 400 (43HS,43HSL)
ergodisc 438 (38HSL)
ergodisc duo (43LHS,43LHSL)
Model: 43DLS,43DLSL (230-240V~/50Hz/1800W)
43LS.43LSL (230-240V~/50Hz/800W)
38LSL (230-240V~/50Hz/800W)
43HS,43HSL (230-240V~/50Hz/1800W)
38HSL (230-240V~/50Hz/1800W)
43LHS,43LHSL (230-240V~/50Hz/1800W)
Version for UK electrical connection
The flexible cord fitted to this machine is of 3 core
construction for use with a 3 pin plug. For your
convenience a 13-amp plug conforming to BS
1363 has been fitted. This machine must be
fused at 10 amps. If you need to change the plug,
the correct wiring is set out below.
Green and yellow wire to terminal marked „ E “ or
with the „Earth Symbol“ or coloured green, or
green and yellow.
Blue wire to terminal marked „ N “ or coloured
black.
Brown wire to terminal marked „ L “ or coloured
red.
Caution:
This machine must be properly earthed to project the operator
from electrical shock. Read the safety instructions below
operating this machine!
Version for USA and Canada of the electrical
connection
120 Volt machines have a three-prong plug
attached to a three-wire power supply cord. The
earthing pin on this plug earths the machine
when plugged into a three-prong outlet.
Dipl. Ing. (FH) D.Windmeisser
Dipl. Ing. (FH) P. König
Earthed outlet box
120 Volt plug
Earthed pin
Earthed outlet
An adaptor must be installed as shown here if
only two prong outlets are available.The outlet
box must be earthed and the earthing tab (or
wire) must be installed under the head of the
centre screw ot the outlet cover. 120 Volt plugs
are available at most hardwear stores. Earthing
adaptors are not approved for use in Canada.
• Replace the plug if the grounding pin is damaged or broken.
• The green (or green/yellow) wire in the cord is the grounding wire. When
replacing a plug, this wire must be attached to the grounding pin only.
120 Volt plug
Earthed outlet box
Metal
screw
Earthed
outlet
Tab for earthing screw
14151618 1317
1
2
3
4
5
6 7 8 9
10
11
12
1920212223
All manuals and user guides at all-guides.com

20
Machine installation
Attaching tools
Check:
• that the brush has not fallen below the red mark or a brush length of 1 cm.
• the pad for wear and foreign bodies (e.g. grains of sans) before use.
• that the tool is mounted.
Could cause damage to floor surface by negligence!
Recommended chemicals
Only use the chemical products recommended by the manufacturer.
The correct dosage is recommended on the product's packaging and on the "
TASKI Product Information Sheet".
Application technique
• 1 = Electr. spray device is not possible
• 2 = Machine performance is limited; for this reason not recommended
• 3 = Only when the additional weight from the front is taken away
• 4 = Machine weight only conditionally sufficient
• 5 = This application is only recommended when the power selection switch
is set to level 2 (high number of revolutions)
Beginning work
• Lay the tool on the floor in front of the machine.
• Stand behind the machine.
• Pull the height adjustment lever on the machine
handle and slowly lower the guide pillar into a
comfortable working position, making sure your
arms are almost straight.
• Let go of the height adjustment lever, the guide
pillar will locate into place and stay at that angle.
• Tilt the machine back slightly and position it
over the tool until it touches the back of the tool
unit.
• Return the machine to its upright position.
• Move the machine from left to right until the tool
locates into place.
Now the machine is ready for use.
Caution:
Using other chemicals (e.g. chemicals containing solvents,
chlorine, hydrochloric acid and hydrofluoric acid) can damage or
destroy the machine.
Machine 165 200 238
type 43DLS/
43DLSL 43LS/ 43LSL 38LSL
Wet cleaning & prime cleaning yes yes yes
Spray cleaning yes yes 1
Shampoo wet yes yes 2
Shampoo dry yes yes 2
Polish yes yes yes
Burnish 4 4 no
Crystallize 4 4 no
Machine 400 438 duo
type 43HS/
43HSL 38HSL 43LHS/ 43LHSL
Wet cleaning & prime cleaning no no yes
Spray cleaning yes yes yes
Shampoo wet no no 3
Shampoo dry no no 3
Polish yes yes 5
Burnish no no yes
Crystallize no no yes
Caution:
It is recommended that inexperienced users should first practice
operating the machine on a smooth surface with free areas until
they have mastered the handling of the machine.
• Connect the power supply cord to the mains
socket.
The display lights up.
• Lead the power supply cord with your hand.
Make sure that the power supply cord does not touch the tool.
• Hold on to the machine.
• Push the safety switch and press the operating
levers at the same time.
By doing this the tool is activated.
By slightly lifting the guide pillar the machine moves to the right
and by lowering it the machine moves to the left.
All manuals and user guides at all-guides.com

21
I25 I24 I23 I22 I21 I20 I19 I18 I17 tr sl se pt no nl it hu hr fr fi es en el de da

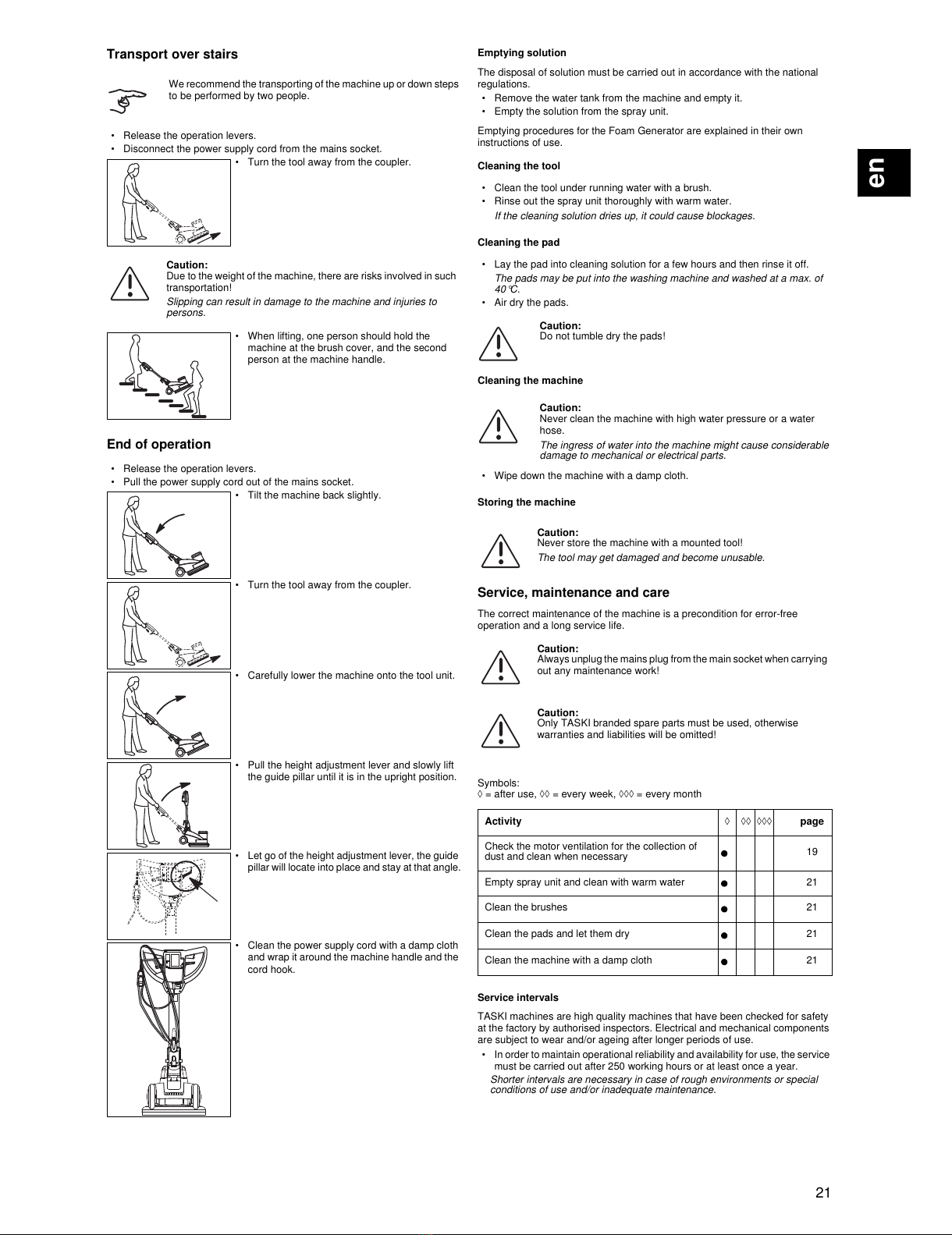

Transport over stairs
End of operation
Emptying solution
The disposal of solution must be carried out in accordance with the national
regulations.
Emptying procedures for the Foam Generator are explained in their own
instructions of use.
Cleaning the tool
Cleaning the pad
Cleaning the machine
Storing the machine
Service, maintenance and care
The correct maintenance of the machine is a precondition for error-free
operation and a long service life.
Service intervals
TASKI machines are high quality machines that have been checked for safety
at the factory by authorised inspectors. Electrical and mechanical components
are subject to wear and/or ageing after longer periods of use.
We recommend the transporting of the machine up or down steps
to be performed by two people.
• Release the operation levers.
• Disconnect the power supply cord from the mains socket.
• Turn the tool away from the coupler.
Caution:
Due to the weight of the machine, there are risks involved in such
transportation!
Slipping can result in damage to the machine and injuries to
persons.
• When lifting, one person should hold the
machine at the brush cover, and the second
person at the machine handle.
• Release the operation levers.
• Pull the power supply cord out of the mains socket.
• Tilt the machine back slightly.
• Turn the tool away from the coupler.
• Carefully lower the machine onto the tool unit.
• Pull the height adjustment lever and slowly lift
the guide pillar until it is in the upright position.
• Let go of the height adjustment lever, the guide
pillar will locate into place and stay at that angle.
• Clean the power supply cord with a damp cloth
and wrap it around the machine handle and the
cord hook.
• Remove the water tank from the machine and empty it.
• Empty the solution from the spray unit.
• Clean the tool under running water with a brush.
• Rinse out the spray unit thoroughly with warm water.
If the cleaning solution dries up, it could cause blockages.
• Lay the pad into cleaning solution for a few hours and then rinse it off.
The pads may be put into the washing machine and washed at a max. of
40°C.
• Air dry the pads.
Caution:
Do not tumble dry the pads!
Caution:
Never clean the machine with high water pressure or a water
hose.
The ingress of water into the machine might cause considerable
damage to mechanical or electrical parts.
• Wipe down the machine with a damp cloth.
Caution:
Never store the machine with a mounted tool!
The tool may get damaged and become unusable.
Caution:
Always unplug the mains plug from the main socket when carrying
out any maintenance work!
Caution:
Only TASKI branded spare parts must be used, otherwise
warranties and liabilities will be omitted!
Symbols:
◊= after use, ◊◊ = every week, ◊◊◊ = every month
Activity ◊ ◊◊ ◊◊◊ page
Check the motor ventilation for the collection of
dust and clean when necessary 19
Empty spray unit and clean with warm water 21
Clean the brushes 21
Clean the pads and let them dry 21
Clean the machine with a damp cloth 21
• In order to maintain operational reliability and availability for use, the service
must be carried out after 250 working hours or at least once a year.
Shorter intervals are necessary in case of rough environments or special
conditions of use and/or inadequate maintenance.
All manuals and user guides at all-guides.com

22
Service centre
Should you contact us due to a malfunction or for placing an order, please
always state the type, description and the serial number of your machine.
You can find this information on the name plate of your machine, and the
address of your nearest TASKI partner can be found on the last page of this
manual.

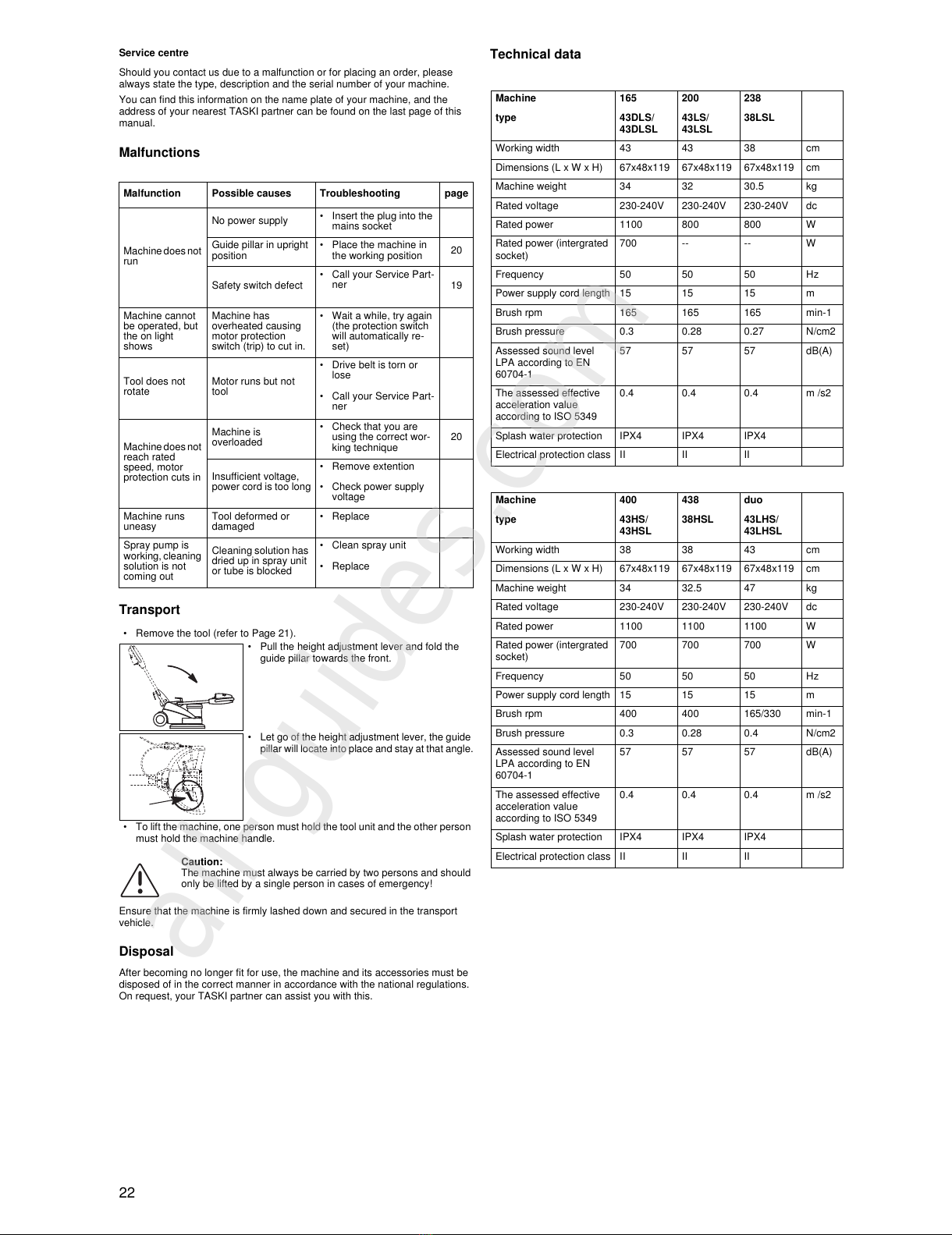

Malfunctions
Transport
Ensure that the machine is firmly lashed down and secured in the transport
vehicle.
Disposal
After becoming no longer fit for use, the machine and its accessories must be
disposed of in the correct manner in accordance with the national regulations.
On request, your TASKI partner can assist you with this.
Technical data
Malfunction Possible causes Troubleshooting page
Machine does not
run
No power supply • Insert the plug into the
mains socket
Guide pillar in upright
position • Place the machine in the working position 20
Safety switch defect • Call your Service Part-
ner 19
Machine cannot
be operated, but
the on light
shows
Machine has
overheated causing
motor protection
switch (trip) to cut in.
• Wait a while, try again
(the protection switch
will automatically re-
set)
Tool does not
rotate Motor runs but not tool
• Drive belt is torn or
lose
• Call your Service Part-
ner
Machine does not
reach rated
speed, motor
protection cuts in
Machine is
overloaded
• Check that you are
using the correct wor-
king technique 20
Insufficient voltage,
power cord is too long
• Remove extention
• Check power supply
voltage
Machine runs
uneasy Tool deformed or damaged • Replace
Spray pump is
working, cleaning
solution is not
coming out
Cleaning solution has
dried up in spray unit
or tube is blocked
• Clean spray unit
• Replace
• Remove the tool (refer to Page 21).
• Pull the height adjustment lever and fold the
guide pillar towards the front.
• Let go of the height adjustment lever, the guide
pillar will locate into place and stay at that angle.
• To lift the machine, one person must hold the tool unit and the other person
must hold the machine handle.
Caution:
The machine must always be carried by two persons and should
only be lifted by a single person in cases of emergency!
Machine 165 200 238
type 43DLS/
43DLSL 43LS/ 43LSL 38LSL
Working width 43 43 38 cm
Dimensions (L x W x H) 67x48x119 67x48x119 67x48x119 cm
Machine weight 34 32 30.5 kg
Rated voltage 230-240V 230-240V 230-240V dc
Rated power 1100 800 800 W
Rated power (intergrated
socket) 700 -- -- W
Frequency 50 50 50 Hz
Power supply cord length 15 15 15 m
Brush rpm 165 165 165 min-1
Brush pressure 0.3 0.28 0.27 N/cm2
Assessed sound level
LPA according to EN
60704-1
57 57 57 dB(A)
The assessed effective
acceleration value
according to ISO 5349
0.4 0.4 0.4 m /s2
Splash water protection IPX4 IPX4 IPX4
Electrical protection class II II II
Machine 400 438 duo
type 43HS/
43HSL 38HSL 43LHS/ 43LHSL
Working width 38 38 43 cm
Dimensions (L x W x H) 67x48x119 67x48x119 67x48x119 cm
Machine weight 34 32.5 47 kg
Rated voltage 230-240V 230-240V 230-240V dc
Rated power 1100 1100 1100 W
Rated power (intergrated
socket) 700 700 700 W
Frequency 50 50 50 Hz
Power supply cord length 15 15 15 m
Brush rpm 400 400 165/330 min-1
Brush pressure 0.3 0.28 0.4 N/cm2
Assessed sound level
LPA according to EN
60704-1
57 57 57 dB(A)
The assessed effective
acceleration value
according to ISO 5349
0.4 0.4 0.4 m /s2
Splash water protection IPX4 IPX4 IPX4
Electrical protection class II II II
All manuals and user guides at all-guides.com
all-guides.com

23
I25 I24 I23 I22 I21 I20 I19 I18 I17 tr sl se pt no nl it hu hr fr fi es en el de da

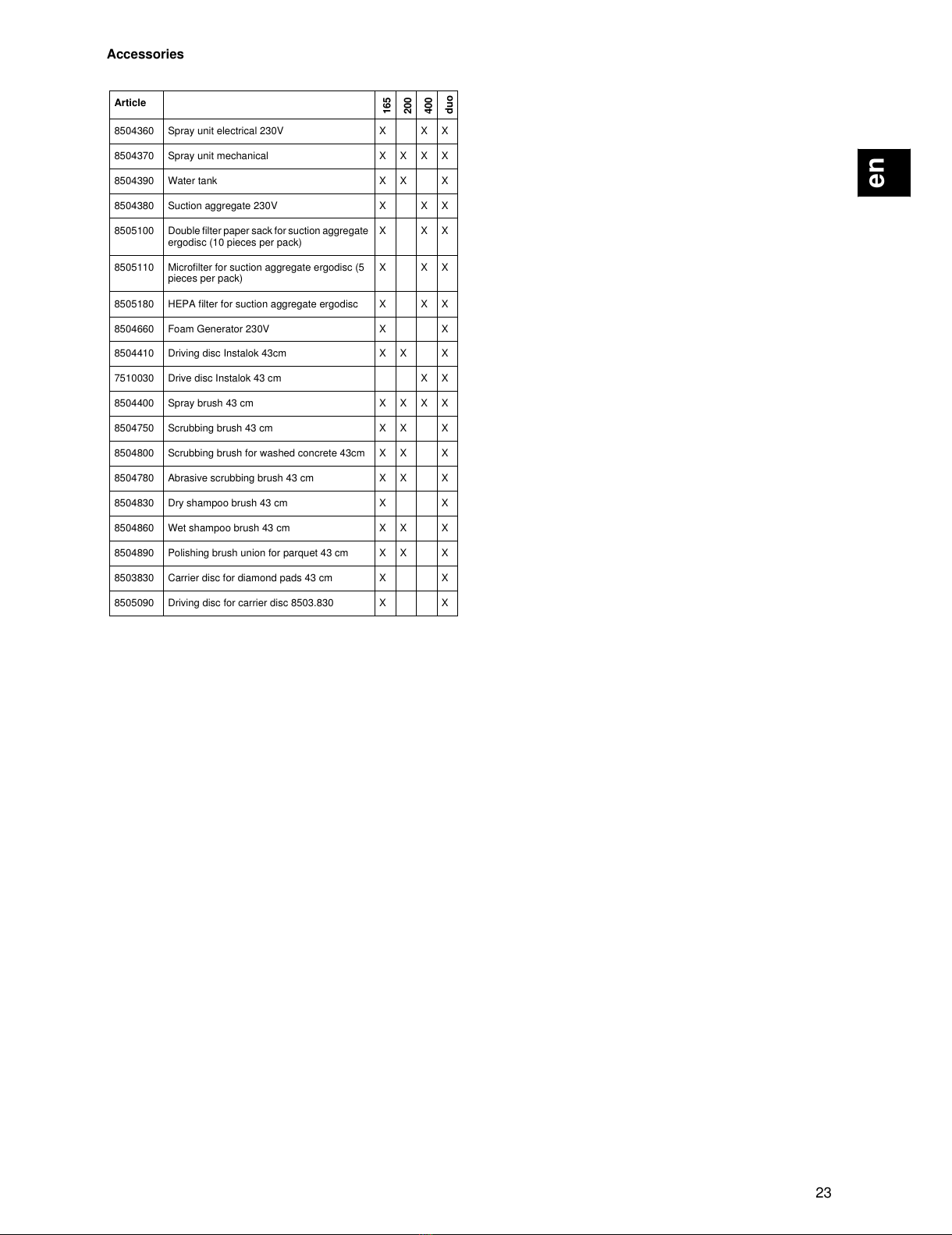

Accessories
Article
165 200 400 duo
8504360 Spray unit electrical 230V X X X
8504370 Spray unit mechanical X X X X
8504390 Water tank X X X
8504380 Suction aggregate 230V X X X
8505100 Double filter paper sack for suction aggregate
ergodisc (10 pieces per pack) X X X
8505110 Microfilter for suction aggregate ergodisc (5
pieces per pack) X X X
8505180 HEPA filter for suction aggregate ergodisc X X X
8504660 Foam Generator 230V X X
8504410 Driving disc Instalok 43cm X X X
7510030 Drive disc Instalok 43 cm X X
8504400 Spray brush 43 cm X X X X
8504750 Scrubbing brush 43 cm X X X
8504800 Scrubbing brush for washed concrete 43cm X X X
8504780 Abrasive scrubbing brush 43 cm X X X
8504830 Dry shampoo brush 43 cm X X
8504860 Wet shampoo brush 43 cm X X X
8504890 Polishing brush union for parquet 43 cm X X X
8503830 Carrier disc for diamond pads 43 cm X X
8505090 Driving disc for carrier disc 8503.830 X X
All manuals and user guides at all-guides.com

TASKI ergodisc Serie
8003840 165 SEV 43 DLS 230V/50Hz 04
8003800 200 SEV 43 LS 230V/50Hz 04
8003880 400 SEV 43 HS 230V/50Hz 04
8003850 165 EURO 43 DLS 230V/50Hz 04
8003810 200 EURO 43 LS 230V/50Hz 04
8003890 400 EURO 43 HS 230V/50Hz 04
7521877 165 EURO 43 DLSM 220V/60Hz 04
8003820 165 UK 43 DLSL 240V/50Hz 04
8003780 200 UK 43 LSL 240V/50Hz 04
8004030 238 UK 38 LSL 240V/50Hz 03
8003860 400 UK 43 HSL 240V/50Hz 04
8004040 438 UK 38 HSL 240V/50Hz 03
8003790 175 CSA 50 LSC 120V/60Hz 03
7510804 200 CSA 43 LSC 120V/60Hz 04
8003830 300 CSA 43 MSC 120V/60Hz 04
7517949 165 CN 43 DLS 230V/50Hz 04
7517950 200 CN 43 LS 230V/50Hz 04
8004410 165 KSA 43 DLSM 220V/60Hz 04
8004760 165 43 DLSO 100,110/60 04
8005000 165 43 DLSN 110/50z 04
8004010 DUO SEV 43 LHS 230V/50Hz 05
8004020 DUO EURO 43 LHS 230V/50Hz 05
8003990 DUO UK 43 LHSL 240V/50Hz 05
7517951 DUO CN 43 LHS 230V/50Hz 05
Postfach CH 9542 Münchwilen
Telefon [phone] Fax [phone]
Ersatzteilliste
Liste des pièces de rechange
Spare parts list
TASKI ergodisc
Ausführung/Execution; List(e) /3.1
25.08.2010 SPS
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

1TASKI ergodisc 165-438 & duo
S006015 TASKI ergodisc 165-438 &
duo
TASKI ergodisc 165-438 &
duo
TASKI ergodisc 165-438 &
duo
Pos.
No.
Artikelnr.
Article No.
Item No.
Bestellnr.
No. de com
Order No.
Model
Stck.
Piè.
Qty.
Bezeichnung Designation Description
1 S000010 1.00 Netzkabel & Anschlussbox Cable d'alimentation & boite de jonction Main cord & cable inlet box
2 S000011 1.00 Führungsstange Timon Guide bar
3 S000012 1.00 Antrieb part/1 Entrainement part/1 Drive part/1
4 S000013 1.00 Antrieb part/2 Entrainement part/2 Drive part/2
5 S000017 1.00 Spraygerät mechanisch Vaporisateur mécanique Dispensing unit mechnical
6 S000018 1.00 Spraygerät elektrisch Vaporisateur électrique Dispensing unit electrical
7 S000015 1.00 Elektroschema 230V/50Hz Schéma électrique 230V/50Hz Electrical diagram 230V/50Hz
8 S000016 1.00 Elektroschema 120V/60Hz Schéma électrique 120V/60Hz Electrical diagram 120V/60Hz
All manuals and user guides at all-guides.com

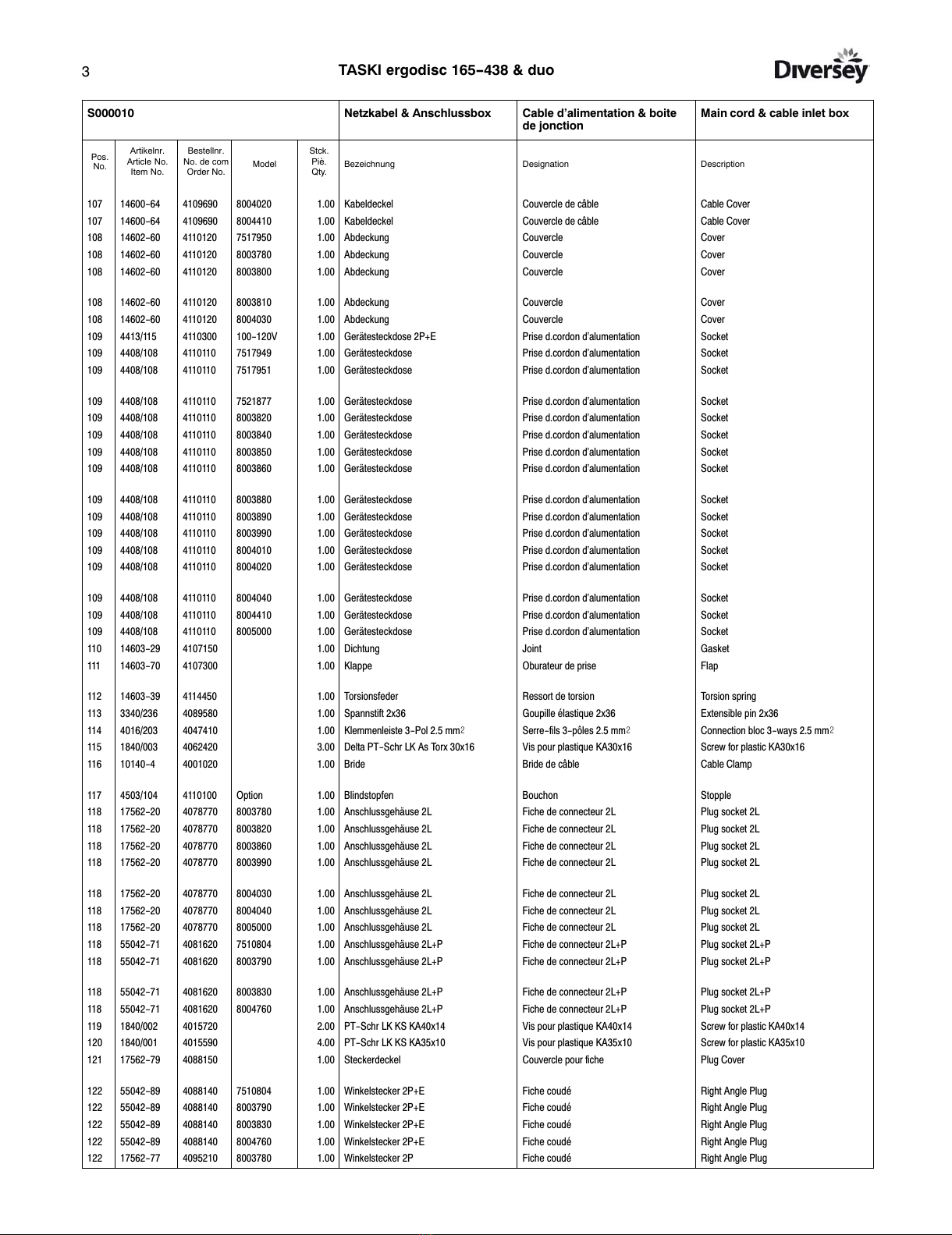

2TASKI ergodisc 165-438 & duo

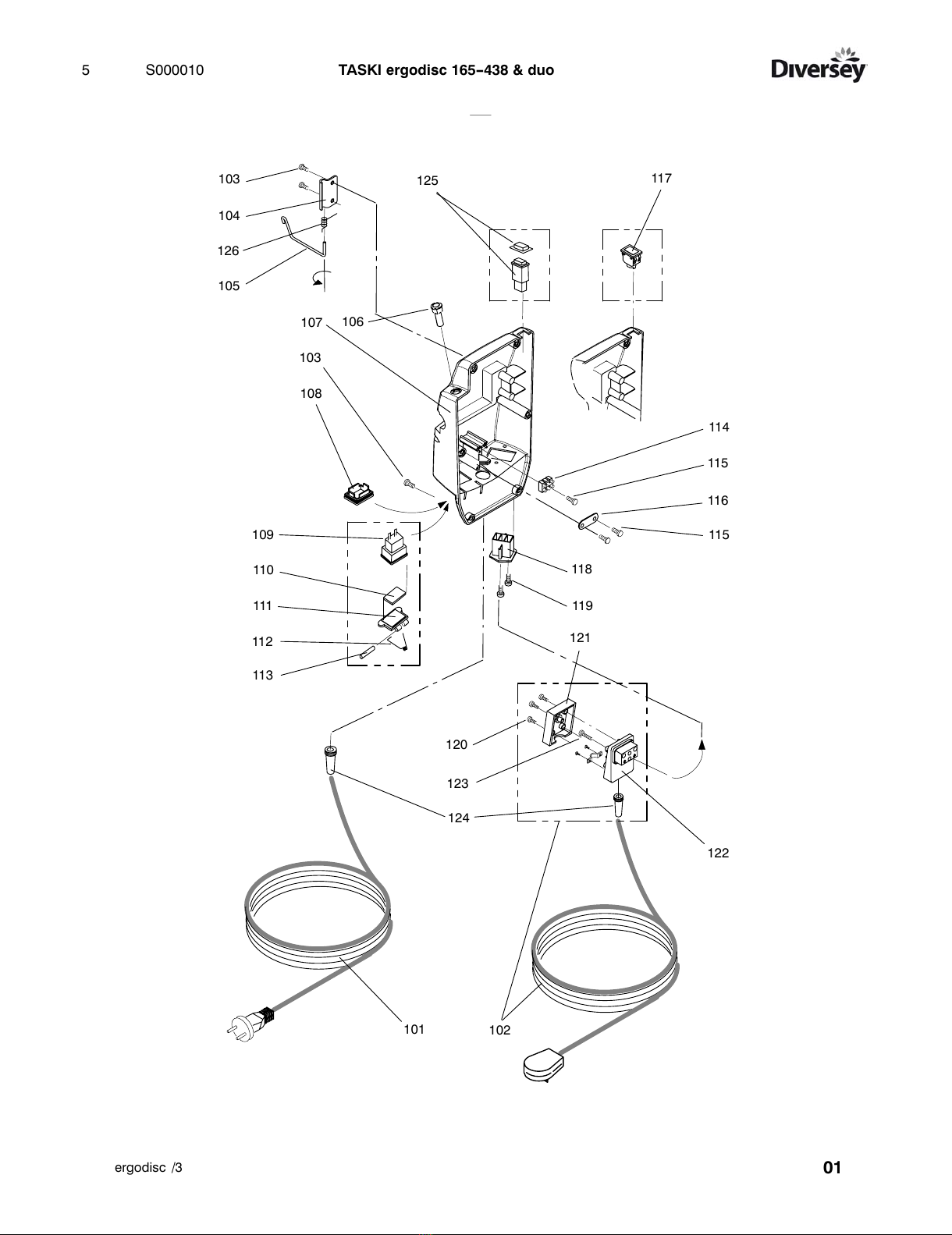

S000010 Netzkabel & Anschlussbox Cable d'alimentation & boite
de jonction
Main cord & cable inlet box
Pos.
No.
Artikelnr.
Article No.
Item No.
Bestellnr.
No. de com
Order No.
Model
Stck.
Piè.
Qty.
Bezeichnung Designation Description
101 14602-34 4108320 8003800 1.00 Netzkabel 2L SEV Câble d'alimentation 2L ASE Main cord 2L SEA
101 14602-34 4108320 8003840 1.00 Netzkabel 2L SEV Câble d'alimentation 2L ASE Main cord 2L SEA
101 14602-34 4108320 8003880 1.00 Netzkabel 2L SEV Câble d'alimentation 2L ASE Main cord 2L SEA
101 14602-34 4108320 8004010 1.00 Netzkabel 2L SEV Câble d'alimentation 2L ASE Main cord 2L SEA
101 14602-35 4108310 8003810 1.00 Netzkabel 2L EURO Câble d'alimentation 2L EURO Main cord 2L EURO
101 14602-35 4108310 8003850 1.00 Netzkabel 2L EURO Câble d'alimentation 2L EURO Main cord 2L EURO
101 14602-35 4108310 8003890 1.00 Netzkabel 2L EURO Câble d'alimentation 2L EURO Main cord 2L EURO
101 14602-35 4108310 8004020 1.00 Netzkabel 2L EURO Câble d'alimentation 2L EURO Main cord 2L EURO
101 14602-35 4108310 7521877 1.00 Netzkabel 2L EURO Câble d'alimentation 2L EURO Main cord 2L EURO
101 14602-36 4123192 8004410 1.00 Netzkabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
101 14604-65 7517949 1.00 Netzkabel 2L CN Câble d'alimentation 2P CN Main Cord 2P CN
101 14604-65 7517950 1.00 Netzkabel 2L CN Câble d'alimentation 2P CN Main Cord 2P CN
101 14604-65 7517951 1.00 Netzkabel 2L CN Câble d'alimentation 2P CN Main Cord 2P CN
102 14603-68 4108300 8003780 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8003820 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8003860 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8003990 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8004030 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8004040 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-68 4108300 8005000 1.00 Anschlusskabel 2L UK Câble d'alimentation 2L UK Main cord 2L UK
102 14603-69 4108290 7510804 1.00 Anschlusskabel 2L+P CSA Câble d'alimentation 2L+P CSA Main cord 2L+P CSA
102 14603-69 4108290 8003790 1.00 Anschlusskabel 2L+P CSA Câble d'alimentation 2L+P CSA Main cord 2L+P CSA
102 14603-69 4108290 8003830 1.00 Anschlusskabel 2L+P CSA Câble d'alimentation 2L+P CSA Main cord 2L+P CSA
102 14603-69 4108290 8004760 1.00 Anschlusskabel 2L+P CSA Câble d'alimentation 2L+P CSA Main cord 2L+P CSA
103 1840/017 4101980 8.00 PT-Schr LK KS KA50x20 Vis pour plastique KA50x20 Screw for plastic KA50x20
104 14604-50 4126845 Option 1.00 Platte Plaque Plate
105 14604-41 4126557 Option 1.00 Riegel rochet Hook
106 4106/180 4108280 220-240V 1.00 Signalleuchte 230V Lampe temoin 230 V Signal Lamp 230 V
106 4106/181 4108270 100-120V 1.00 Signalleuchte 120V Lampe temoin 120 V Signal Lamp 120 V
107 14603-40 4109680 7510804 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003780 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003790 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003820 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003830 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003860 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8003990 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8004030 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8004040 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8004760 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14603-40 4109680 8005000 1.00 Kabeldeckel,UK Couvercle de câble Cable Cover
107 14600-64 4109690 7517949 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 7517950 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 7517951 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003800 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003810 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003840 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003850 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003880 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8003890 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8004010 1.00 Kabeldeckel Couvercle de câble Cable Cover
All manuals and user guides at all-guides.com
all-guides.com

3TASKI ergodisc 165-438 & duo
S000010 Main cord & cable inlet boxCable d'alimentation & boite
de jonction
Netzkabel & Anschlussbox
Pos.
No. DescriptionDesignationBezeichnung
Stck.
Piè.
Qty.
Model
Bestellnr.
No. de com
Order No.
Artikelnr.
Article No.
Item No.
107 14600-64 4109690 8004020 1.00 Kabeldeckel Couvercle de câble Cable Cover
107 14600-64 4109690 8004410 1.00 Kabeldeckel Couvercle de câble Cable Cover
108 14602-60 4110120 7517950 1.00 Abdeckung Couvercle Cover
108 14602-60 4110120 8003780 1.00 Abdeckung Couvercle Cover
108 14602-60 4110120 8003800 1.00 Abdeckung Couvercle Cover
108 14602-60 4110120 8003810 1.00 Abdeckung Couvercle Cover
108 14602-60 4110120 8004030 1.00 Abdeckung Couvercle Cover
109 4413/115 4110300 100-120V 1.00 Gerätesteckdose 2P+E Prise d.cordon d'alumentation Socket
109 4408/108 4110110 7517949 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 7517951 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 7521877 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003820 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003840 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003850 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003860 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003880 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003890 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8003990 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8004010 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8004020 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8004040 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8004410 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
109 4408/108 4110110 8005000 1.00 Gerätesteckdose Prise d.cordon d'alumentation Socket
110 14603-29 4107150 1.00 Dichtung Joint Gasket
111 14603-70 4107300 1.00 Klappe Oburateur de prise Flap
112 14603-39 4114450 1.00 Torsionsfeder Ressort de torsion Torsion spring
113 3340/236 4089580 1.00 Spannstift 2x36 Goupille élastique 2x36 Extensible pin 2x36
114 4016/203 4047410 1.00 Klemmenleiste 3-Pol 2.5 mm@Serre-fils 3-pôles 2.5 mm@Connection bloc 3-ways 2.5 mm@
115 1840/003 4062420 3.00 Delta PT-Schr LK As Torx 30x16 Vis pour plastique KA30x16 Screw for plastic KA30x16
116 10140-4 4001020 1.00 Bride Bride de câble Cable Clamp
117 4503/104 4110100 Option 1.00 Blindstopfen Bouchon Stopple
118 17562-20 4078770 8003780 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8003820 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8003860 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8003990 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8004030 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8004040 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 17562-20 4078770 8005000 1.00 Anschlussgehäuse 2L Fiche de connecteur 2L Plug socket 2L
118 55042-71 4081620 7510804 1.00 Anschlussgehäuse 2L+P Fiche de connecteur 2L+P Plug socket 2L+P
118 55042-71 4081620 8003790 1.00 Anschlussgehäuse 2L+P Fiche de connecteur 2L+P Plug socket 2L+P
118 55042-71 4081620 8003830 1.00 Anschlussgehäuse 2L+P Fiche de connecteur 2L+P Plug socket 2L+P
118 55042-71 4081620 8004760 1.00 Anschlussgehäuse 2L+P Fiche de connecteur 2L+P Plug socket 2L+P
119 1840/002 4015720 2.00 PT-Schr LK KS KA40x14 Vis pour plastique KA40x14 Screw for plastic KA40x14
120 1840/001 4015590 4.00 PT-Schr LK KS KA35x10 Vis pour plastique KA35x10 Screw for plastic KA35x10
121 17562-79 4088150 1.00 Steckerdeckel Couvercle pour fiche Plug Cover
122 55042-89 4088140 7510804 1.00 Winkelstecker 2P+E Fiche coudé Right Angle Plug
122 55042-89 4088140 8003790 1.00 Winkelstecker 2P+E Fiche coudé Right Angle Plug
122 55042-89 4088140 8003830 1.00 Winkelstecker 2P+E Fiche coudé Right Angle Plug
122 55042-89 4088140 8004760 1.00 Winkelstecker 2P+E Fiche coudé Right Angle Plug
122 17562-77 4095210 8003780 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
All manuals and user guides at all-guides.com

4TASKI ergodisc 165-438 & duo
S000010 Main cord & cable inlet boxCable d'alimentation & boite
de jonction
Netzkabel & Anschlussbox
Pos.
No. DescriptionDesignationBezeichnung
Stck.
Piè.
Qty.
Model
Bestellnr.
No. de com
Order No.
Artikelnr.
Article No.
Item No.
122 17562-77 4095210 8003820 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
122 17562-77 4095210 8003860 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
122 17562-77 4095210 8003990 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
122 17562-77 4095210 8004030 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
122 17562-77 4095210 8004040 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
122 17562-77 4095210 8005000 1.00 Winkelstecker 2P Fiche coudé Right Angle Plug
123 1840/011 4079480 1.00 PT-Schr LK KS KA35x20 Vis pour plastique KA35x20 Screw for plastic KA35x20
124 17562-42 4081460 8003780 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8003820 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8003860 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8003990 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8004030 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8004040 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 17562-42 4081460 8005000 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 7510804 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 7517949 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 7517950 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 7517951 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 7521877 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003790 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003800 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003810 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003830 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003840 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003850 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003880 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8003890 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8004010 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8004020 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8004410 1.00 Knickschutztülle Douille anti-flambage Cable grommet
124 55042-82 4089210 8004760 1.00 Knickschutztülle Douille anti-flambage Cable grommet
125 4503/101 4108260 7510804 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 7517949 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 7517951 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 7521877 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003790 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003830 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003840 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003850 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003880 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8003890 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8004010 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8004020 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8004410 1.00 Drucktaster Interrupteur Switch
125 4503/101 4108260 8004760 1.00 Drucktaster Interrupteur Switch
126 14604-42 4126558 Option 1.00 Torsionsfeder Ressort de torsion Torsion spring
14603-94 4116440 1.00 Schild Ergonomie Plaquette ergonomie Label ergonomics
All manuals and user guides at all-guides.com

S0000105 TASKI ergodisc 165-438 & duo
01
106
118
119
110
107
111
112
114
115
116
115
120
121
122
123
125
113
103
103
104
126
124
101
109
117
108
102
ergodisc /3
105
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

6TASKI ergodisc 165-438 & duo

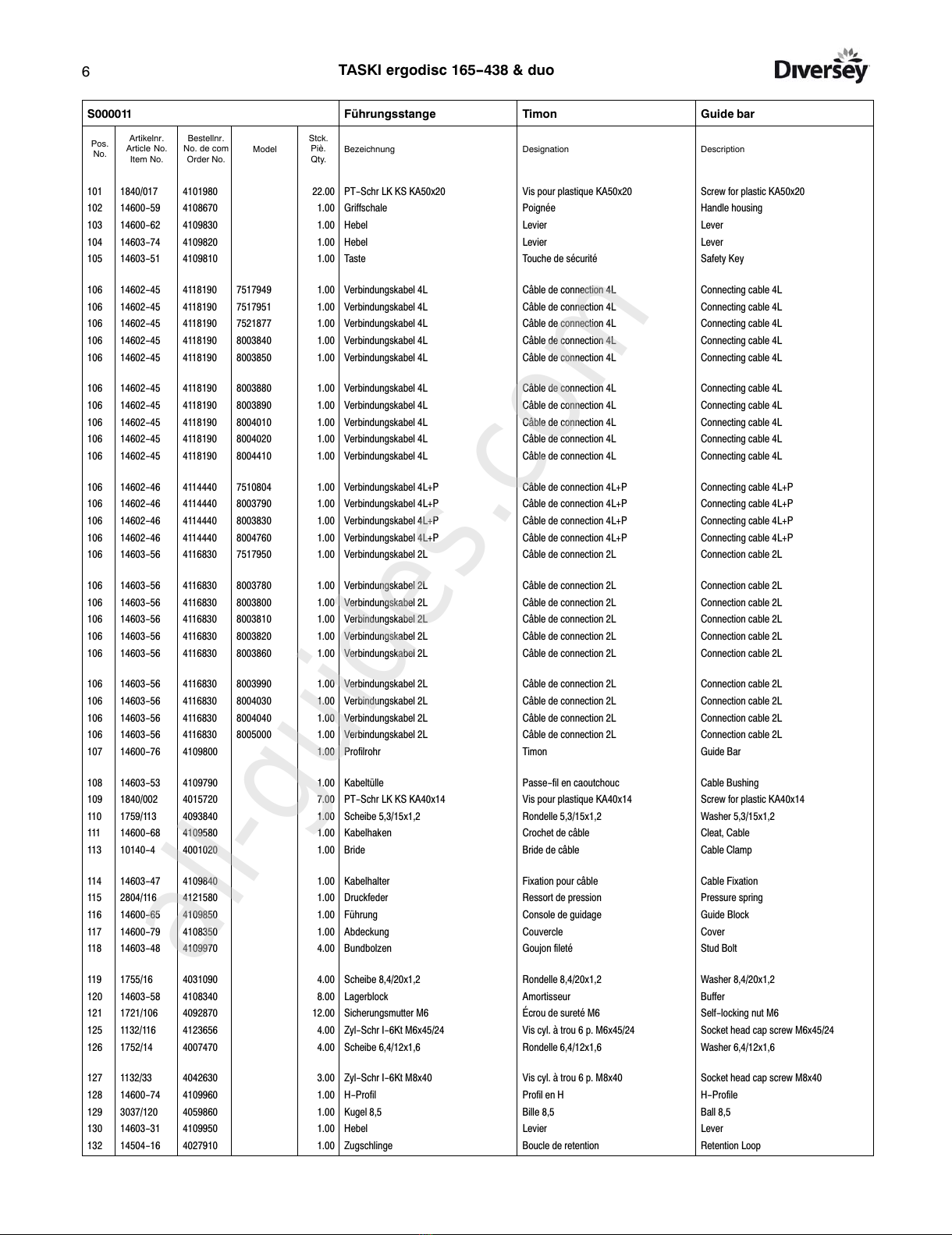

S000011 Führungsstange Timon Guide bar
Pos.
No.
Artikelnr.
Article No.
Item No.
Bestellnr.
No. de com
Order No.
Model
Stck.
Piè.
Qty.
Bezeichnung Designation Description
101 1840/017 4101980 22.00 PT-Schr LK KS KA50x20 Vis pour plastique KA50x20 Screw for plastic KA50x20
102 14600-59 4108670 1.00 Griffschale Poignée Handle housing
103 14600-62 4109830 1.00 Hebel Levier Lever
104 14603-74 4109820 1.00 Hebel Levier Lever
105 14603-51 4109810 1.00 Taste Touche de sécurité Safety Key
106 14602-45 4118190 7517949 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 7517951 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 7521877 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8003840 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8003850 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8003880 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8003890 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8004010 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8004020 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-45 4118190 8004410 1.00 Verbindungskabel 4L Câble de connection 4L Connecting cable 4L
106 14602-46 4114440 7510804 1.00 Verbindungskabel 4L+P Câble de connection 4L+P Connecting cable 4L+P
106 14602-46 4114440 8003790 1.00 Verbindungskabel 4L+P Câble de connection 4L+P Connecting cable 4L+P
106 14602-46 4114440 8003830 1.00 Verbindungskabel 4L+P Câble de connection 4L+P Connecting cable 4L+P
106 14602-46 4114440 8004760 1.00 Verbindungskabel 4L+P Câble de connection 4L+P Connecting cable 4L+P
106 14603-56 4116830 7517950 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003780 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003800 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003810 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003820 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003860 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8003990 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8004030 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8004040 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
106 14603-56 4116830 8005000 1.00 Verbindungskabel 2L Câble de connection 2L Connection cable 2L
107 14600-76 4109800 1.00 Profilrohr Timon Guide Bar
108 14603-53 4109790 1.00 Kabeltülle Passe-fil en caoutchouc Cable Bushing
109 1840/002 4015720 7.00 PT-Schr LK KS KA40x14 Vis pour plastique KA40x14 Screw for plastic KA40x14
110 1759/113 4093840 1.00 Scheibe 5,3/15x1,2 Rondelle 5,3/15x1,2 Washer 5,3/15x1,2
111 14600-68 4109580 1.00 Kabelhaken Crochet de câble Cleat, Cable
113 10140-4 4001020 1.00 Bride Bride de câble Cable Clamp
114 14603-47 4109840 1.00 Kabelhalter Fixation pour câble Cable Fixation
115 2804/116 4121580 1.00 Druckfeder Ressort de pression Pressure spring
116 14600-65 4109850 1.00 Führung Console de guidage Guide Block
117 14600-79 4108350 1.00 Abdeckung Couvercle Cover
118 14603-48 4109970 4.00 Bundbolzen Goujon fileté Stud Bolt
119 1755/16 4031090 4.00 Scheibe 8,4/20x1,2 Rondelle 8,4/20x1,2 Washer 8,4/20x1,2
120 14603-58 4108340 8.00 Lagerblock Amortisseur Buffer
121 1721/106 4092870 12.00 Sicherungsmutter M6 Écrou de sureté M6 Self-locking nut M6
125 1132/116 4123656 4.00 Zyl-Schr I-6Kt M6x45/24 Vis cyl. à trou 6 p. M6x45/24 Socket head cap screw M6x45/24
126 1752/14 4007470 4.00 Scheibe 6,4/12x1,6 Rondelle 6,4/12x1,6 Washer 6,4/12x1,6
127 1132/33 4042630 3.00 Zyl-Schr I-6Kt M8x40 Vis cyl. à trou 6 p. M8x40 Socket head cap screw M8x40
128 14600-74 4109960 1.00 H-Profil Profil en H H-Profile
129 3037/120 4059860 1.00 Kugel 8,5 Bille 8,5 Ball 8,5
130 14603-31 4109950 1.00 Hebel Levier Lever
132 14504-16 4027910 1.00 Zugschlinge Boucle de retention Retention Loop
All manuals and user guides at all-guides.com
all-guides.com

7TASKI ergodisc 165-438 & duo
S000011 Guide barTimonFührungsstange
Pos.
No. DescriptionDesignationBezeichnung
Stck.
Piè.
Qty.
Model
Bestellnr.
No. de com
Order No.
Artikelnr.
Article No.
Item No.
133 4425/021 4025940 1.00 Kabelzugentlastung Etrangloir Strain Relief
134 14603-65 4109940 1.00 Hebel Levier Lever
135 14600-58 4108680 1.00 Griffschale Poignée Handle housing
136 14602-08 4109930 1.00 Rolle Rouleau Roller
137 4502/009 4108230 220-240V 1.00 Motorschutzschalter 12A Disjoncteur moteur 12A Protective motor switch 12A
137 4502/010 4108240 100-120V 1.00 Motorschutzschalter 16A isjoncteur moteur 16A Protective motor switch 16A
138 14600-56 4109920 1.00 Bowdenzug Câble bowden Bowden cable
139 2803/108 4109860 1.00 Druckfeder Ressort de pression Pressure spring
142 14602-27 4109570 1.00 Bolzen Goujon Bolt
143 14602-28 4109560 1.00 Einlage Plaque de guidage Sliding Block
144 14600-80 4109730 1.00 Rasterbolzen Doigt verrouilleur denté Locking Bolt With Teeth
145 1752/15 4019790 4.00 Scheibe 6,4/20x1,5 Rondelle 6,4/20x1,5 Washer 6,4/20x1,5
146 14600-81 4109720 1.00 Zahnblock Bloc dentée Gear
149 1721/6 4007340 3.00 Sicherungsmutter M8 Écrou de sureté M8 Self-locking nut M8
150 14602-13 4109760 1.00 Support Support Support
151 14602-32 4109780 2.00 Lagerring Coussinet Bearing Bush
152 3002/110 4109910 2.00 O-Ring 55x3 Joint-O 55x3 O-ring 55x3
153 14600-78 4109740 1.00 Gelenk Articulation Articulation
154 14600-66 4108380 1.00 Abdeckung Couvercle Cover
155 14602-12 4109770 1.00 Support Support Support
156 14603-93 4122268 2.00 Ring Anneau Ring
157 10140-4 4001020 1.00 Bride Bride de câble Cable Clamp
158 1840/003 4062420 2.00 Delta PT-Schr LK As Torx 30x16 Vis pour plastique KA30x16 Screw for plastic KA30x16
8907/1 4118240 Mehrzweckfett OKS 265 1000gr Graisse OKS 265 1000gr Lubricant OKS 265 1000gr
All manuals and user guides at all-guides.com

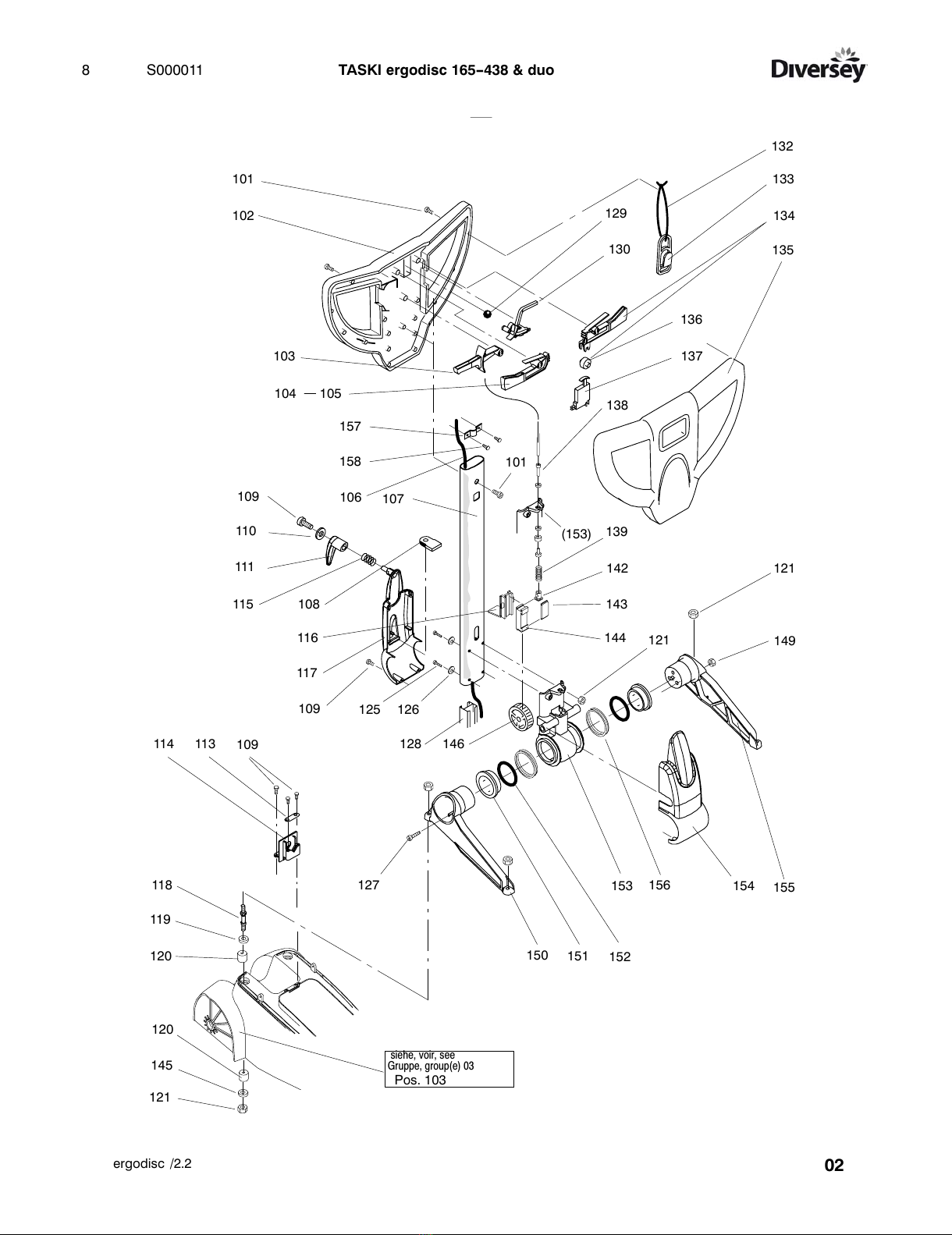

S0000118 TASKI ergodisc 165-438 & duo
02
ergodisc /2.2
132
133
134
129
103
135
107
111
117
143
144 121
155
154
146
150
142
130
105
116
109
153
151 152
149
126
125
127
139
136
137
101
102
101
128
109
110
115
121
138
121
120
145
109
113
114
108
(153)
118
119
120
156
104
106
siehe, voir, see
Gruppe, group(e) 03
Pos. 103
157
158
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

9TASKI ergodisc 165-438 & duo
S000012 Antrieb part/1 Entrainement part/1 Drive part/1
Pos.
No.
Artikelnr.
Article No.
Item No.
Bestellnr.
No. de com
Order No.
Model
Stck.
Piè.
Qty.
Bezeichnung Designation Description
101 14600-46 4109590 1.00 Abdeckung Couvercle Cover
101 14602-91 4109600 Duo Speed 1.00 Abdeckung Couvercle Cover
102 1840/012 4082610 4.00 PT-Schr LK KS KA50x16 Vis pour plastique KA50x16 Screw for plastic KA50x16
103 14600-43 4109490 1.00 Getriebegehäuse Bâti d'engrenage ergodisc Gear Housing Ergodisc
104 3061/220 4110030 2.00 Schutzstopfen 15 Bouchon 15 Plug 15
105 14604-17 4117100 1.00 Schlauchnippel Raccord avec joint-O Hose Nipple With O-Ring
106 3002/13 4008950 2.00 O-Ring 10x2 Joint-O 10x2 O-ring 10x2
107 8662/008 4116970 0,25m 1.00 Dichtprofil Joint profile Sealing profile
108 1840/002 4015720 4.00 PT-Schr LK KS KA40x14 Vis pour plastique KA40x14 Screw for plastic KA40x14
109 14604-25 4122439 1.00 Nippel Raccord Nipple
110 1840/019 4109370 6.00 PT-Schr LK KS KA50x25 Vis pour plastique KA50x25 Screw for plastic KA50x25
111 14600-22 4109900 1.00 Support Support Support
112 1840/004 4109990 10.00 Delta PT-Schr LK As Torx 60x25 Vis Delta PT Torx 60x25 Screw delta PT Torx 60x25
112 1840/004 4109990 D43 6.00 Delta PT-Schr LK As Torx 60x25 Vis Delta PT Torx 60x25 Screw delta PT Torx 60x25
114 1747/15 4007400 3.00 Scheibe 8,4/16x1,6 Rondelle 8,4/16x1,6 Washer 8,4/16x1,6
115 1132/30 4042650 3.00 Zyl-Schr I-6Kt M8x25 Vis cyl. à trou 6 p. M8x25 Socket head cap screw M8x25
116 2157/005 4108250 1.00 Keilrippenriemen 23 PH 820 Courroie poly-V 23 PH 820 Poly-V-belt 23 PH 820
117 14602-22 4108450 1.00 Riemenscheibe 192 Poulie D 192 Pulley D 192
117 14600-23 4108440 8003830 1.00 Riemenscheibe Poulie D 158,4 Pulley D 158,4
117 14600-23 4108440 8003860 1.00 Riemenscheibe Poulie D 158,4 Pulley D 158,4
117 14600-23 4108440 8003880 1.00 Riemenscheibe Poulie D 158,4 Pulley D 158,4
117 14600-23 4108440 8003890 1.00 Riemenscheibe Poulie D 158,4 Pulley D 158,4
117 14600-23 4108440 8004040 1.00 Riemenscheibe Poulie D 158,4 Pulley D 158,4
118 2911/23 4008690 1.00 Sicherungsring 25 A Anneau de retenue 25 A Retaining ring 25 A
119 14604-26 4122440 1.00 Dichtung Joint d'étanchéité Gasket
120 1840/113 4130053 3.00 PT-Schr LK KS KA50x30 Vis pour plastique KA50x30 Screw for plastic KA50x30
121 14603-46 4110060 4.00 Dämpfungstülle Anneau de protection Absorbing Ring
122 14603-60 4110080 8004030 1.00 Klemmscheibe Boîte de serrage Clamp Bush
122 14603-60 4110080 8004040 1.00 Klemmscheibe Boîte de serrage Clamp Bush
123 14604-27 4122441 1.00 Zapfen Pivot a crapaudine Centre Plug
124 14603-43 4109630 7510804 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 7517949 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 7517951 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 7521877 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8003790 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8003820 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8003840 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8003850 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8003990 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8004010 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8004020 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8004410 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8004760 1.00 Zusatzgewicht Poids Weight
124 14603-43 4109630 8005000 1.00 Zusatzgewicht Poids Weight
125 1755/16 4031090 1.00 Scheibe 8,4/20x1,2 Rondelle 8,4/20x1,2 Washer 8,4/20x1,2
126 2433/101 4088430 1.00 Sterngriff M6 Bouton étoile M6 Star knob M6
127 14603-44 4109650 1.00 Bundbolzen Goujon Flange bolt
128 14603-64 4109670 1.00 Platte Plaque Plate
129 1840/012 4082610 3.00 PT-Schr LK KS KA50x16 Vis pour plastique KA50x16 Screw for plastic KA50x16
130 14603-63 4109660 1.00 Flansch Flasque Flange
All manuals and user guides at all-guides.com
