Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
2
TABLE OF CONTENTS
1. ABOUT YOUR BLENDER ...................................................................................... 3
2. SYMBOLS USED .................................................................................................... 3
3. FIELD OF USE ........................................................................................................ 3
3.1 Application Sector ............................................................................................... 3
4. INTRODUCTION TO THE MANUAL ...................................................................... 4
5. RULES FOR SAFE OPERATION ........................................................................... 5
6. SAFETY MEASURES AND GENERAL INSTRUCTIONS ...................................... 6
7. TRANSPORTATION, INSTALLATION AND CONNECTION ................................. 6
7.1 Transportation .................................................................................................... 6
7.2 Installation .......................................................................................................... 6
7.3 Connection ......................................................................................................... 7
7.4 Maximum Dimensions ........................................................................................ 9
8. MARKING ............................................................................................................. 1
8.1 Manu acturer Label & Technical In ormation o the Blender ............................. 10
8.2 Marking Signs ................................................................................................... 11
8.3 Warnings .......................................................................................................... 11
9. TECHNICAL CHARACTERISTICS ....................................................................... 11
1 . DESCRIPTION .................................................................................................... 12
10.1 Blender Parts .................................................................................................. 12
10.2 Control Panel .................................................................................................. 13
11. OPERATION ....................................................................................................... 15
11.1 Steps be ore irst use ...................................................................................... 15
12. CLEANING – MAINTENANCE ........................................................................... 16
12.1 Cleaning Instructions ...................................................................................... 16
13. WHEN NOT IN USE ............................................................................................ 18
13.1 Package – Storage – Recycling ...................................................................... 18
14. MALFUNCTIONS AND TROUBLESHOOTING .................................................. 19
15. SPARE PARTS ................................................................................................... 2
15.1 Exploded View ................................................................................................ 20
15.2 Spare Parts Index ........................................................................................... 21
16. ELECTRICAL DRAWING ................................................................................... 23
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
3
1. ABOUT YOUR BLENDER
Thank you for selecting the ΑΚ/12 John blender. You can use the
blender to prepare milkshakes, cocktails, cold soups etc. The blender is
a laborious, robust and long-lasting heavy duty appliance.
2. SYMBOLS USED
This safety symbol is followed by a message relative to dangers
that should be taken into consideration for the avoidance of an accident.
This symbol is followed by a message relative to information, re-
ported in the present manual or in an accompanying handbook and
should be taken into consideration.
This symbol is followed by a suggestion.
When you see one of the above, pay attention to any warnings or points
important for the operation and read carefully the message that follows.
3. FIELD OF USE
3.1 Application Sector
This blender is made for professional and catering use in places such
as coffee shops, hotels and restaurants.
ATTENTION! The appliance should be operate only by authorized
staff.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
4
4. INTRODUCTION TO THE MANUAL
We recommend you to read this manual carefully before the first use.
We prepared it in order for you to use it right and receive the best per-
formance. The present manual refers to the use and maintenance of the
electric blender ΑΚ/12 John , and aims to help the blender’s best opera-
tion. Guarantee is also included with the terms and conditions that make
it valid.
«KIOSIDIS PRIVATE COMPANY P.C.» does not have any responsi-
bility for accidents or damages caused by carelessness or nonob-
servance of the instructions of the specific manual. The company does
not have any responsibility for damages caused by inappropriate use of
the blender.
ATTENTION! The present manual is an integral part of the blend-
er ΑΚ/12 John and should always accompany it in every transfer or re-
sale. The staff should always keep it in safe place. The staff is also re-
sponsible for manual’s storage and to keep it in good condition, so that
they can consult it during the blender’s lifetime. In case of loss or de-
struction of the manual, a new copy has to be asked immediately from
your supplier.
Retain the present manual meticulously in an ideal place close to
anyone related to the appliance.
Never neglect to read the manual, no matter your previous experi-
ence. Few minutes of study might save you time and/or money.
Read carefully before you start up procedure, operation, mainte-
nance or any other interruptions to the appliance and follow the below
mentioned directions and warnings precisely.
Only authorized personnel, properly trained for its operation,
should work on this appliance. With trained and well-informed personnel
you shall avoid dangers that the operation could create.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
5
5. RULES FOR SAFE OPERATION
ATTENTION! Disobedience of the following rules may cause ac-
cident and possible injure.
♦ The authorized operator should read this instruction manual thorough-
ly and follow the instructions as they are referred in the present hand-
book.
♦ During operation make sure that there is no unauthorized personnel
on site. Children or handicapped people are not allowed to use the
blender.
♦ Do not remove the bowl unless the blender is completely stopped.
♦ Always wait for the blender to stop before you open the bowl’s cover.
♦ Do not try to reach the interior of the bowl during operating.
♦ Do not leave the blender connected to the mains power supply and
unattended at the end of your work, or during cleaning and in case of
malfunction or damage.
♦ Do not stretch the power cord.
♦ Do not use the blender if you notice any malfunction or any operation
problem or if the cord and /or the plug have any problem. Contact
your supplier for more information.
♦ Do not trust the repair and maintenance of your blender to people who
are not authorized by the manufacturer. Contact your supplier for
more information.
♦ Do not proceed to changes related to the blender whatsoever.
♦ Use only spare parts supplied by the manufacturer.
♦ Do not wet the blender parts with water or any other liquid, except for
the bowl.
♦ Never fill the bowl with very hot liquids or with solid ingredients without
a liquid base.
♦ Do not use the blender with empty bowl.
♦ Do not replace the cord by yourselves.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
6
6. SAFETY MEASURES AND GENERAL INSTRUCTIONS
The electric blender ΑΚ/12 John is designed, manufactured and as-
sembled according to the directions:
(LVD) Low Voltage 2014/35/EU
(EMC) Electromagnetic Compatibilit 2014/30/EU
(RoHS) Restriction of Hazardous Substances 2015/863/EU amend-
ing 2011/65/EU
7. TRANSPORTATION, INSTALLATION AND CONNECTION
7.1 Transportation
The blender ΑΚ/12 John is transported packed until its initial place-
ment. After the blender is unpacked it is carried by a person since the
appliance is portable. Total weight of the appliance is 5.050 gr.
Use transportation vehicle to transport the appliance when
packed.
When you receive the blender, check for any damages caused
during transport.
7.2 Installation
♦ The blender should be placed on a flat, smooth and steady sur-
face, so that there will be no risk for the blender to lose its stability after
installation.
♦ Always place it indoors at a room temperature of around 25
o
C
(maximum operation temperature 35
o
C). The place must be adequately
ventilated and well lit. Good ventilation is a basic requirement for the in-
stallation place.
♦ The place should be clean, free from water and oil residues.
♦ It should be connected to the mains power supply using only a
socket (“Deep Hole” type) connected to a stable current supplier. It is
recommended not to use extensions for the power supply cord.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
7
♦ The appropriate installation of current supply should be provided
for the appliance’s operation.
♦ The installation place should have the appropriate dimensions.
Around the appliance free space should exist, so that filling, supply, op-
eration, control and maintenance of the appliance is not prevented.
ATTENTION! Grounding is required at the socket.
ATTENTION! The voltage of the main electric circuit should be
compatible with the voltage referred at the technical information label of
the appliance.
ATTENTION! During the installation or moving of the blender, the
appliance must be unplugged and disconnected from the current.
Before installation the following information must be taken into con-
sideration:
♦ Initially check voltages and power requirements for the mains
connection.
♦ Fuse 7 Α.
On the site of operation the following should exist:
♦ Power supply 220-240 V, frequency 50/60 Hz.
♦ Fire extinguishing installation (as required by the local fire de-
partment for the safety of the premises).
ATTENTION! Protect the power supply cord from possible dam-
ages.
7.3 Connection
The appliance has to be connected to the mains socket. The end of
the electric cord has a plug that should be connected to a socket with the
same characteristics.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
8
ATTENTION! For your own safety before connecting the blender
to the mains check if:
♦ The connection of the phases and the grounding are accom-
plished. Earthed cord is yellow – green with wrapped insulation.
♦ The suitability of the supply wire is certified.
♦ Operation voltage and frequency are compatible with the charac-
teristics of the socket.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
9
7.4 Maximum Dimensions

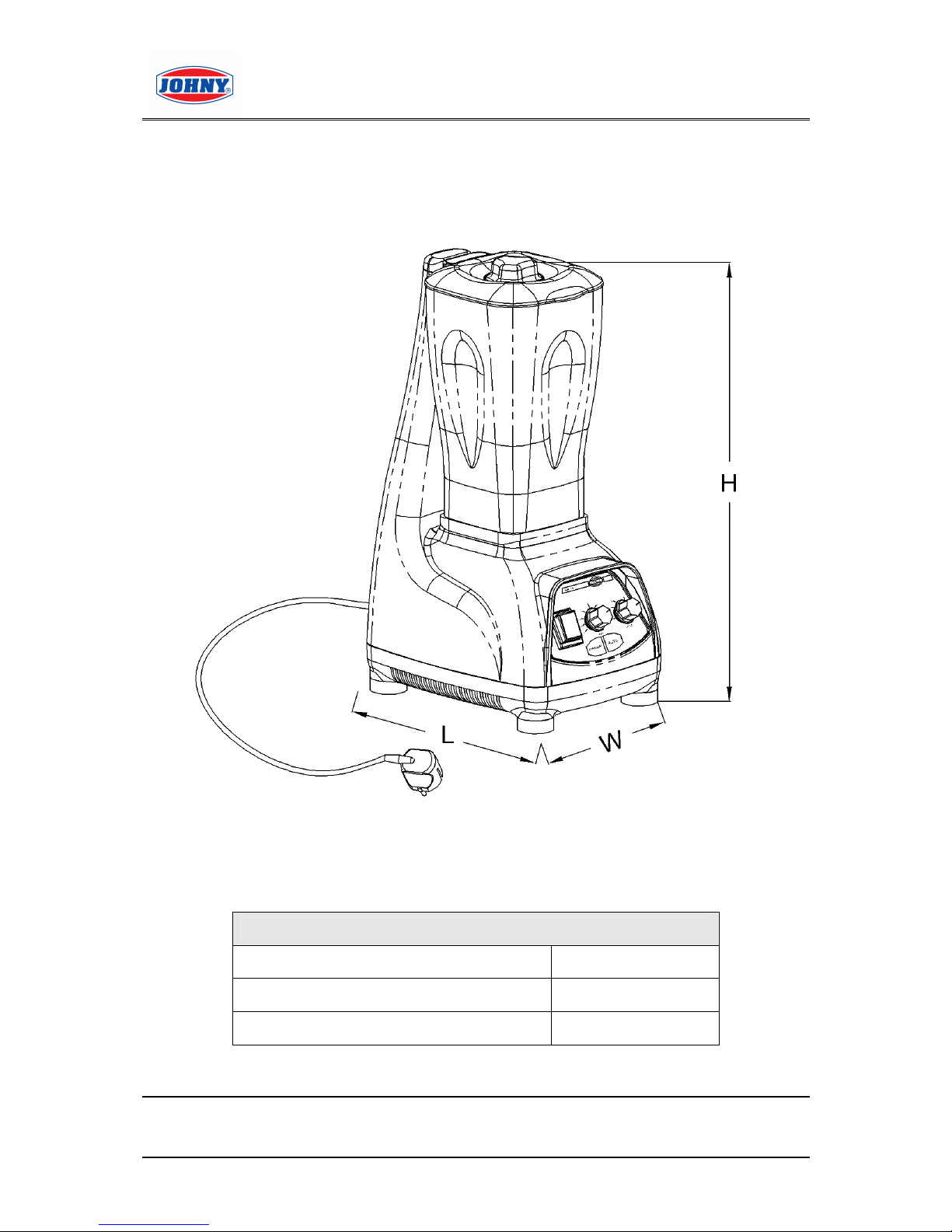

Picture 1: Maximum dimensions
Maximum dimensions (mm)
Length (L) 245 mm
Height (H) 450 mm
Width (W) 180 mm
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
10
8. MARKING
By the term marking we define all the indications or signs for the
identification of the appliance or one of its parts placed by the manufac-
turer.
Each blender has been manufactured with all the safety measures for
the operator’s protection.
8.1 Manufacturer Label & Technical Information of the Blender
Manufacturer label and technical information of the appliance are
shown at a visible and readable point on the appliance and contains
phone numbers of the manufacturing company (Trade name, address,
postal code, phone & Fax), year of manufacture, type and model of the
appliance, serial number, power, voltage and electricity frequency as well
as CE marking.
Picture 2: Label with technical characteristics
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
11
8.2 Marking Signs
These signs are placed at points that make them visible and reada-
ble. It is recommended to put them on places that present dangers that
cannot logically be eliminated or significantly reduced at the designing
stage, like moving parts or parts under voltage.
In case of loss or destruction the labels should be immediately replaced.

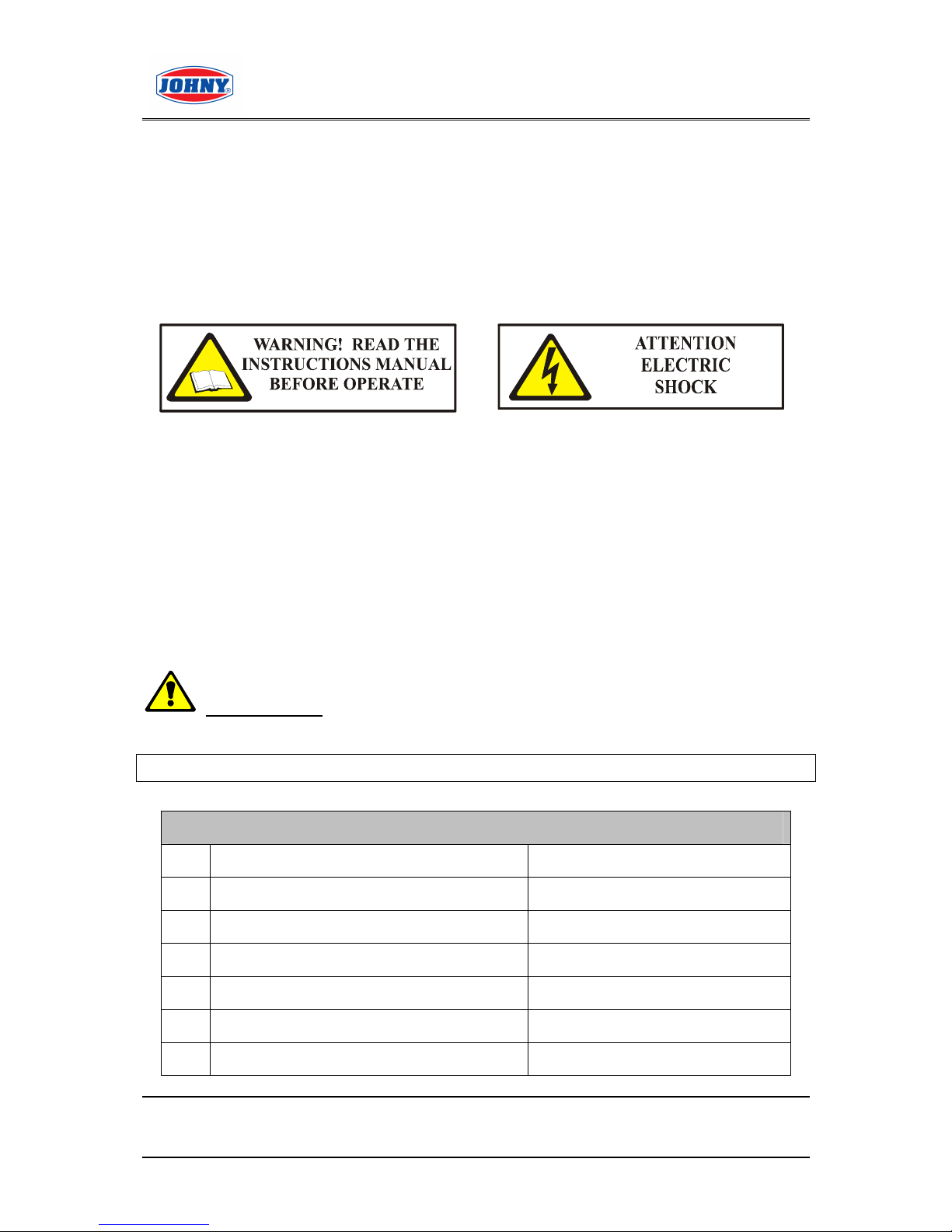

This sign is placed on the package
and warns the operator to read the op-
eration instructions be ore turning on the
appliance.
It is placed on the cord’s connection
point on the appliance and warns the
operator or dangers caused rom elec-
tric power.
Picture 3: Marking signs
8.3 Warnings
The blender is equipped with a magnetic safety switch on the cover
that doesn’t allow the blender to turn on when the cover is not in place.
Above the cover there is a warning signal:
ATTENTION! The blender cannot function if the cover is not in
place.
9. TECHNICAL CHARACTERISTICS
Technical Characteristics of blender ΑΚ/12
1.
Operation voltage 220-240 V
2.
Operation frequency 50/60 Hz
3.
Weight 5.050 g
4.
Power 1.200 W
5.
Rotation speed 30.000 sp/min
6.
Nominal bowl volume Vn 1,5 lt
7.
Total bowl volume Vt 2,5 lt
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
12
10. DESCRIPTION
10.1 Blender Parts
Electrical blender ΑΚ/12 John consists of the following parts:
♦ Housing (1 pic.4),
♦ Control panel (2 pic.4),
♦ Bowl (3 pic.4),
♦ Bowl cover (4 pic.4),
♦ Cover (5 pic.4),
♦ Magnetic switch (6 pic.4),
♦ Cord with plug (7 pic.4).

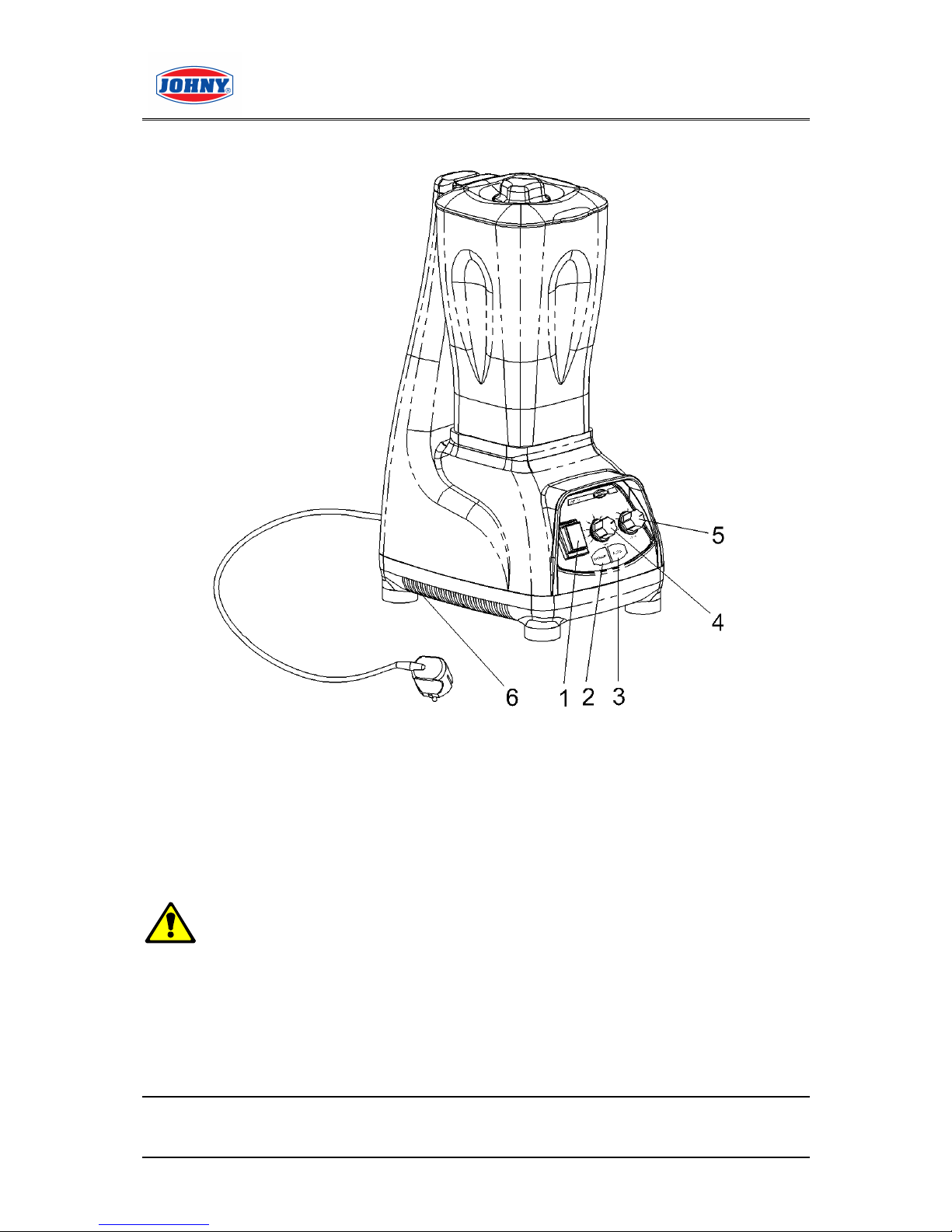

Picture 4: Parts o the blender
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
13
10.2 Control Panel
The John ΑΚ/12 blender has:
♦ A 2-position main switch (Ο, Ι) with indicative lamp, for the activation
or deactivation of the blender (1, pic.5).
When the switch is set at position Ι and the indicative lamp turns on,
the blender is power supplied and can normally function. When the
switch is set at position Ο and the indicative lamp turns off power supply
is interrupted and none of the functions is possible.
♦ A press-to-start switch (MANUAL) for instant function at maximum
speed, for manual use (2, pic.5).
When the switch is pressed the blender operates instantly at maxi-
mum speed but when the switch is released function is interrupted.
♦ A press-to-start switch (AUTO) for automatic use (3 pic.5).
When the switch is pressed the blender operates for the time period
set by the timer switch and at the speed set by the rotation speed control
switch. Time and speed regulation must be effected activating the auto-
matic function.
♦ 9-position time switch for automatic function (4, pic.5).
This switch sets the automatic functioning time at a scale ranging from
five (5) to sixty (60) seconds) every five (5) seconds up to thirty (30) se-
conds and, every ten seconds, thereafter. Time increases in a clockwise
directions.
♦ 6-position speed switch (5, pic.5).
This switch regulates the speed at a scale ranging from one (1) to six
(6) . Speed increases in a clockwise direction.
♦ Safety thermo-switch (RESET), for the blender protection (6 pic.5).
The blender is supplied with a thermo-switch for the protection
against overloading. In case it is activated, press it so that the blender
starts functioning again.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
14
Picture 5: Control Panel
ATTENTION! In case of a power failure during operation, reactiva-
tion of the main switch is required.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
15
11. OPERATION
11.1 Steps before first use
Before using the blender for the first time the operator should follow
the instructions bellow:
♦ Get familiarized with the assembling / disassembling of the blender.
♦ Before the first use remove the bowl and put it back in its correct
place making sure it fits correctly in the housing.
ATTENTION! Remember that the magnetic switch on the bowl
cover should always be aligned with the one on the body of the blender.
♦ Check for the proper function of the control buttons.
♦ Fill the bowl with a small quantity of water and some ice-cubes and try
to use all the available functions.
♦ Check the stability of the blender.
♦ Wash the bowl, the bowl’s cover and the lid provided for the filling dur-
ing operation. Fill with hot water and washing up detergent and oper-
ate.
11.2 Operating instructions
ATTENTION! Make sure that the bowl’s cover and the cover’s lid
have been placed correctly before you turn on the blender.
In order to turn on the blender you should follow the instructions be-
low:
♦ Place the bowl on to its drive mechanism within the special housing.
♦ Put the ingredients inside the bowl without exceeding the maximum
net operating volume of 1,5 lt.
♦ Place the bowl’s cover. Remember that the magnetic switch on the
bowl’s cover should be aligned with the one on the body of the blend-
er.
♦ Place the lid provided for the filling during operation and secure it in
place at all three fastening points.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
16
♦ Connect the blender to the mains power supply and set the main
switch to position I.
♦ Select between manual and automatic operation.
♦ Fill while functioning over the cover for the filling on the top of the bowl
cover. During operation you may add ingredients through the hole of
the cover removing it’s transparent lid.
♦ To deactivate the blender put the main switch at “O” position.
ATTENTION! Never fill the bowl with very hot liquids or with solid
ingredients without a liquid base.
ATTENTION! Never use the blender when the bowl is empty.
ATTENTION! During operation take extra care if you have long
hair, or wear a tie, scarf, etc. or any other objects that could tangled.
Only authorized and adequately trained personnel who are not
under influence of alcohol or drug should operate the blender.
12. CLEANING – MAINTENANCE
ATTENTION! Cleaning and maintenance should be performed
when the blender is deactivated and unplugged from the power supply
socket.
ATTENTION! Pay the proper attention when touching the moving
parts because they are very sharp and the risk of injury is high.
12.1 Cleaning Instructions
♦ Set the main switch at Ο position.
♦ Remove the plug from the power supply socket.
♦ Remove (the bowl, the cover and the cover’s lid) and wash them up
with plenty of hot water and detergent.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
17
♦ Rinse well and dry the removed parts (bowl, cover lid).
♦ Clean the rest of the body (casing) with a damp cloth.
♦ Dry the body (casing) with a cloth that does not leave floss.
ATTENTION! The cleaning inside the bowl should be effected af-
ter each usage by filling it with water and operating the appliance for a
few seconds.
ATTENTION! Do not try to dry the removed parts in the oven.
Always remember: A clean and well maintained blender lives
longer
ATTENTION! Maintenance and cleaning of the blender should
be performed by authorized and trained personnel (operator and/or tech-
nician).
ATTENTION! Do not wet the blender and its parts with water or
any other liquid, except for the bowl.
Cleaning and maintenance must be performed after each day of
use.
ATTENTION! Never try to repair the blender yourselves. Contact
an authorized technician or your dealer.
ATTENTION! In case of cord damage, the manufacturer or an au-
thorized technician must replace it in order to avoid the danger of an
electric shock.
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
18
13. WHEN NOT IN USE
13.1 Package – Storage – Rec cling
If the appliance is not in use for a long time it should be:
♦ Properly maintained according to maintenance instructions.
♦ Properly packed to avoid dust and moisture attack
♦ Checked and cleaned before re-operating
♦ For any question or doubt please contact with the supplier com-
pany. Even after the end of warranty period we are always willing to help
you and provide you with information on your appliance. Never trust the
maintenance or the service of your appliance to unauthorized personnel.
Above all, never try to do it by yourselves, if you do not have the appro-
priate knowledge.
When the appliance is withdrawn, it is recommended to contact
a company that deals with material recycling. The specific company will
disassemble the appliance and convert it to dimensions appropriate for
recycling or storage.
RECYCLING!!!
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
19
14. MALFUNCTIONS AND TROUBLESHOOTING
This paragraph contains possible malfunctions and their troubleshoot-
ing. In case a malfunction is not reported below, contact the supplier
company.
Aiming at the continuous improvement of our services and continuous
collaboration with our customers, we kindly request you to contact us in
case of a malfunction not reported in the following table.
No
Malfunction
Possible cause Troubleshooting
1
The blender
does not func-
tion
The plug is not connected
to the socket
Connect the plug to the
socket (main power
supply)
The bowl hasn’t been
placed correctly in the
housing and/or the mag-
netic switch is not in place
Check the bowl posi-
tion and re-position if
necessary.
The bowl cover isn’t placed
in its proper position
Place the cover on to
the bowl
The thermo-switch has
been activated
Deactivate the thermo-
switch and restart the
blender
2 Excess vibra-
tions
The blender was not in-
stalled on a flat surface
Place the blender on a
flat surface
The bowl is not placed cor-
rectly on its base
Place the bowl correct-
ly on its base
3 Leaks from
the bowl
Large amount of ingredi-
ents
Remove some ingredi-
ents from the bowl and
never exceed its net
operating volume of
1,5 lt
The bowl’s cover or the lid
are not firmly closed
Close the bowl cover
or the lid firmly
4
Moving tools
(blades) do
not rotate eas-
ily
Ingredients are too big or
too hard
Decrease the solids’
quantity and add liq-
uids
Operation and maintenance manual
Blender AK/12 AUT Johny
KIOSIDIS PRI ATE COMPANY P.C. Commercial Bar Equipment
20
15. SPARE PARTS

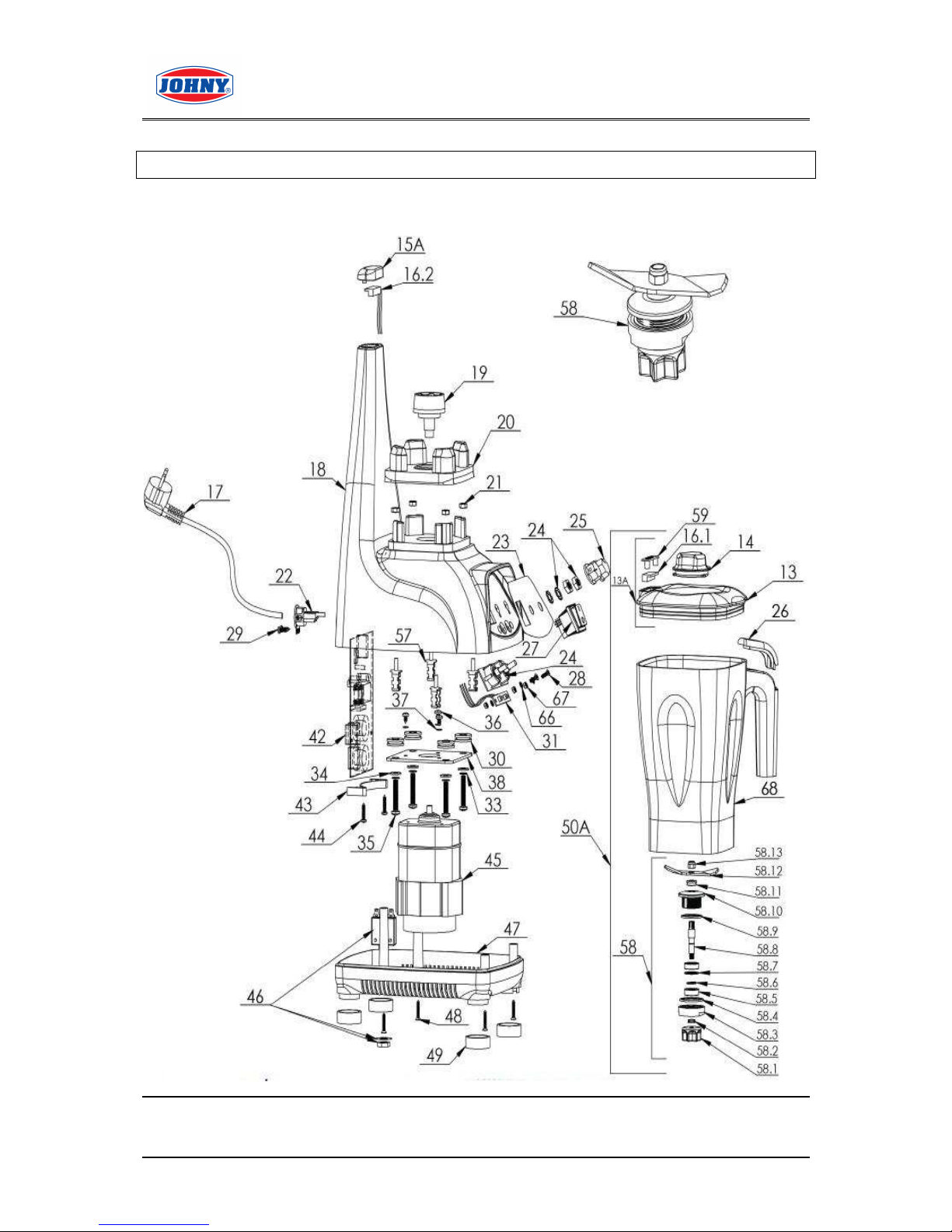

15.1 Exploded View
Table of contents
