Jomlabs Dsh4 User manual

Dsh4 – User Manual

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
2
Content
1.!Features ............................................................................................................................................................................................. 3!
2.!Pedal elements .................................................................................................................................................................................. 4!
3.!Connections ....................................................................................................................................................................................... 5!
4.!Function Modes.................................................................................................................................................................................. 7!
!Bank Mode.................................................................................................................................................................................. 8!4.1.
!Edit Mode.................................................................................................................................................................................... 9!4.2.
4.2.1.!Loops Activation / Deactivation ......................................................................................................................................... 10!
4.2.2.!Midi Commands ................................................................................................................................................................ 11!
4.2.3.!Edit names ........................................................................................................................................................................ 13!
4.2.4.!Control Change Toggle Commands.................................................................................................................................. 14!
4.2.5.!Setting Volume levels........................................................................................................................................................ 15!
4.2.6.!General Settings................................................................................................................................................................ 16!
4.2.7.!Switches function settings ................................................................................................................................................. 17!
!Jam Mode ................................................................................................................................................................................. 23!4.3.
!Tuner Mode .............................................................................................................................................................................. 24!4.4.
5.!Bluetooth Connection....................................................................................................................................................................... 25!

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
3
1. Features
•8 switches
•Connect up to 8 stomp boxes or effects (8 loops)
•Attenuator and Booster integrated (In loop 1)
•256 banks
•8 Midi messages for bank
•16 Continius Control Change Toggle Command for bank (Values 0 and 127)
•Song Names
•Bank Names
•Loops Names
•Control Change Toggle Names
•Midi Input and Output
•You can configure the functions of each switch
•Expression pedal Input
•Input power supply: 12V DC 2A
•2 Output power supply at 12V DC (600mA) and 9V DC (600mA)
•Dimensions (LxAxH in mm): 454x86x50
•Programming over Bluetooth using app JomLabs Control

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
4

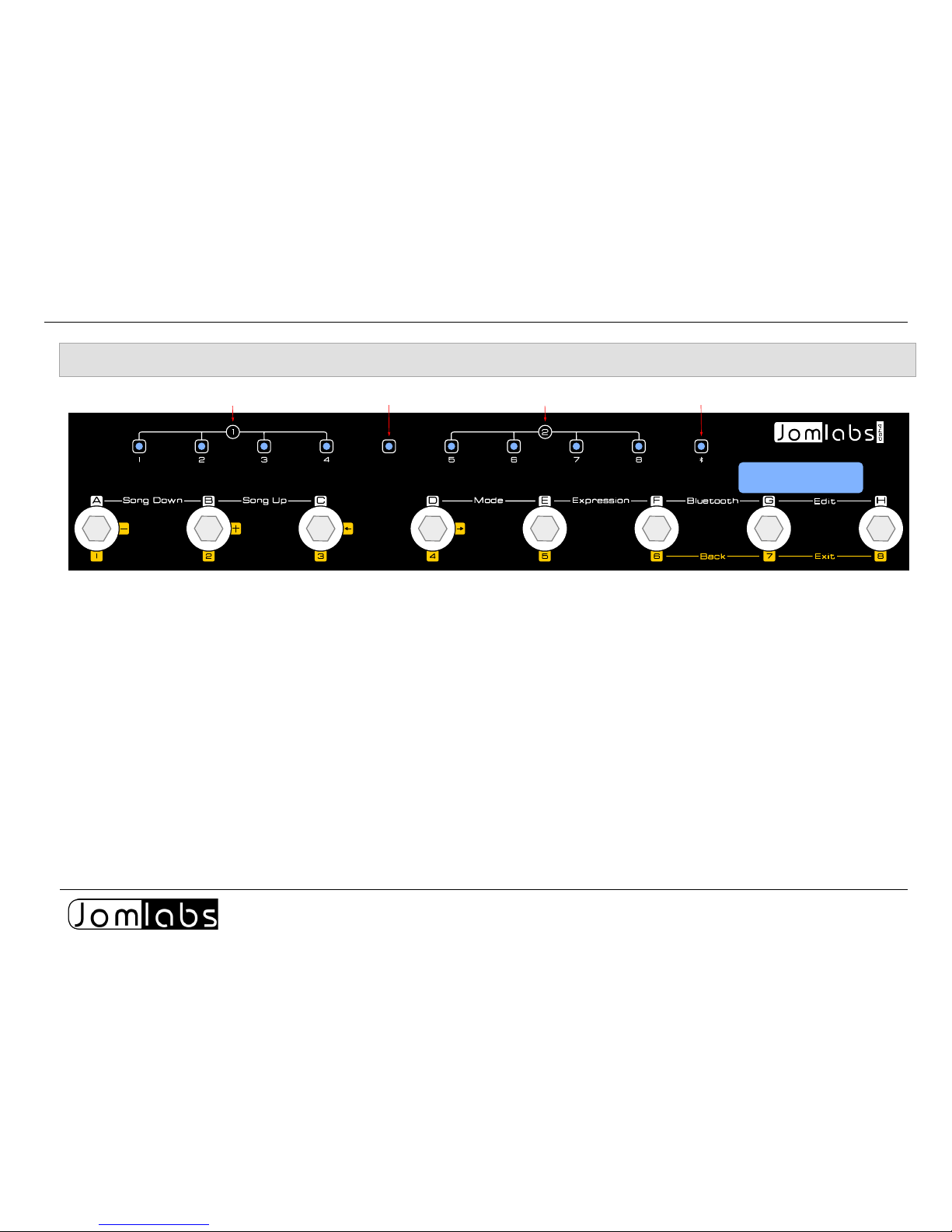

2. Pedal elements
A) Switches:
The Dsh4 pedal has 8 backlit switches labelled A to H. Each of the functions assigned to the switches are configurable (see section
4.2.6. - General Settings).
B) Loops Indicator
It shows which loops are activated in each module.
C) Power On Indicator
This Led is lit when the pedal is on.
D) Bluetooth State Indicator
It shows Bluetooth connection state (On / Off).
4
HGFEDC
BA
2
1234
5 6 7 8 123
dsh4
Mode Expression
SongUpSongDown Edit
B uetooth
Exit
5 6 7
Back
B. Loops indicators B. Loops Indicator
A. Switchs
C. Power On Indicator D. Bluetooth Indicator

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
5

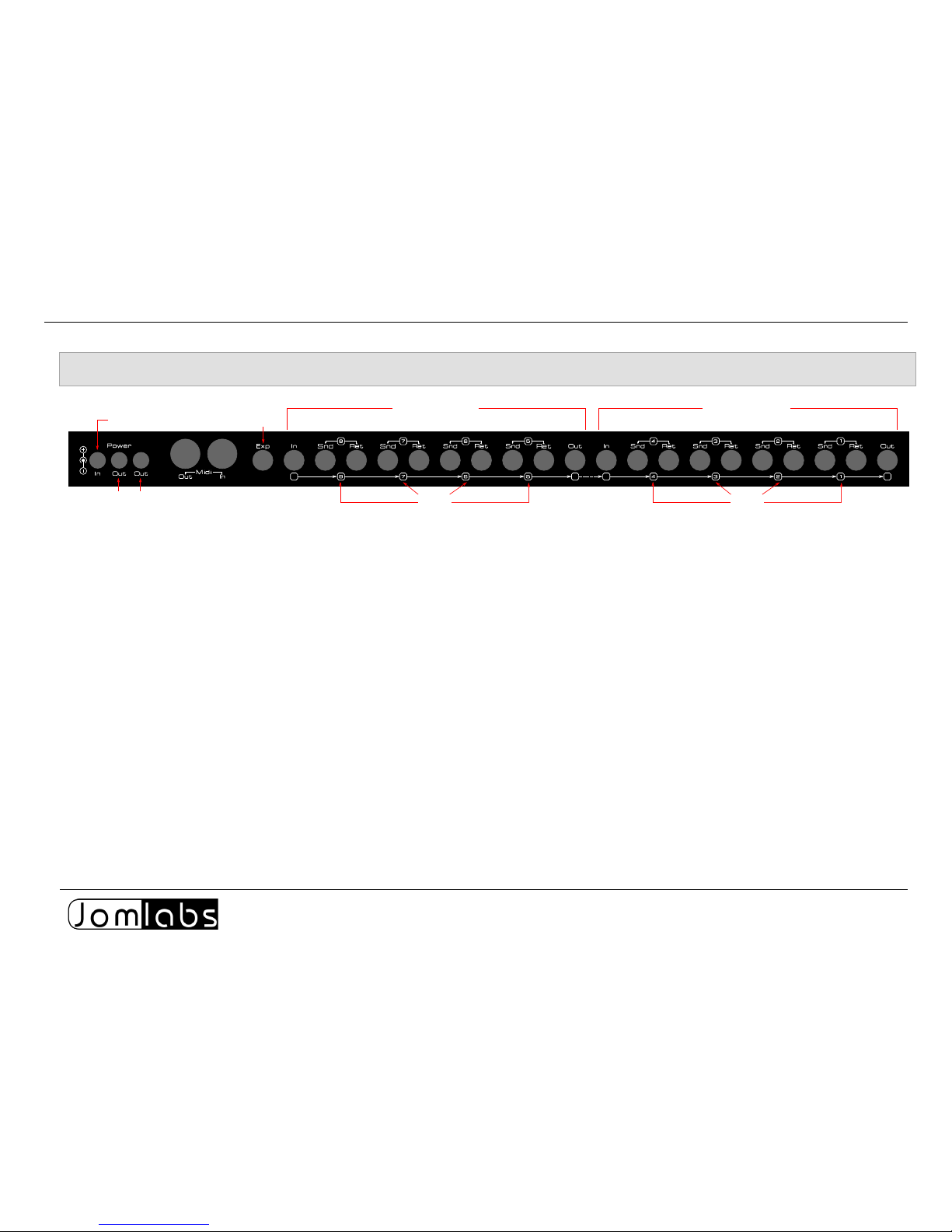

3. Connections
A) Power Supply Input
Connect included power supply to this input to use the pedal.
B) Power Outputs
Dsh4 pedalboard can supply 12V DC and 9V DC power. See polarity schema indicated. These outputs may provide up to 600mA.
C) Midi Connections
Connect Midi Ouput to the device to control Midi Input. If you have a compatible device that can send tuner info over Midi, connect
device's Midi output to the Dsh4's Midi input.
D) Expression Pedal
You can connect a passive expression pedal to this port using a jack stereo cable. It is not necessary calibrate the pedal to use it.
Exp In
In
Out
In Out Out
Out
Power Snd Ret
4
Snd Ret
3
3
Snd Ret
2
21
Snd Ret
1
Out In
4
Snd Ret
8
Snd Ret
7
7
Snd Ret
6
65
Snd Ret
5
8
Midi
a. Input Power 12VDC
b. Output power
12V 600mA 9V 600mA
c. Midi Connections d. Expression
Pedal
f. Input
e. Module 2 Connections e. Module 1 Connections
g. Output f. Input g. Output
i. Booster / Loop 1
h. Effects
Loops
h. Effects
Loops

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
6
E) Loops modules
Dsh4 has to separate loops modules. They have 4 connections for effect pedals and an Input and Output. If you do not connect the
module 2 output, this is connected directly to the module 1 input.
F) Module Input
Connect Module 2 input to guitar output using a mono jack cable.
You can use module 1 with your amp loop connecting amp send to module 1 input.
G) Module Output
To use all 8 loops before the amplifier only connect module 1 ourput to amplifier input. In the case of wanting to use pedals before
and after pre-amplifier, connect the module 2 output to the amplifier input and module 1 output to return of the amplifier.
H) Effect Loops
Connect effect pedal input into desired loop send, and its output into loop return. The connection between the loops within Dsh4
pedal is performed serially (from the loop 8 to 1 ).
I) Booster / Loop 1
The loop 1 is internally connected to an analog booster, whose volume can be controlled in each bank. If you do not want to use it,
connect an effect or stomp box into the loop 1 to bypass it.

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
7
4. Function Modes
There are 3 function modes in Dsh4 pedal board:
•Bank Mode: This mode allows activate stomp boxes connected into the loops inputs, sending Midi commands and setting
volume and booster level.
•Edit Mode: You can edit bank parameters or general pedal settings.
•Jam Mode: It allows direct access to the activation of the stomp boxes connected into the loops.
•Tuner Mode: It allows get tuner information sent by compatible Midi Devices.
Dsh4 pedal board contains 8 switches labelled A to H. These switches provide four different functions depending on current mode
selected:
•In Bank Mode: You can change current bank or send functions configured in the switches
•In Edit Mode: You can modify parameters or settings
•In Jam Mode: Toggle On / Off stomp boxes connected
•In Tuner Mode: You can configure values to set tuner mode in your Midi Device

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
8
Bank Mode4.1.
After pressing change bank switch, this one lights on and the screen will show song and bank names.
After selected the bank, next actions are made:
•Toggle On loops configured
•Setting bank attenuator level
•Setting bank booster level
•Sending Midi messages configured
Additional Functions:
Following table shows the actions performed when pressing two buttons simultaneously. These functions are provided with factory
setting, but they can be altered (see section 4.2.6.1 - Setting Button Functions):
Switches combination
A y B
Increments current song
B y C
Decrements current song
D y E
Toggle Jam Mode / Bank Mode
E y F
Toggle function of expression pedal connected
F y G
Toggle On / Off Bluetooth
G y H
Change to Edit Mode for modify parameters and settings

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
9
Edit Mode4.2.
In the Edit Mode you can configure bank parameters and general settings. There are 256 banks available for each of the pedals,
depending switches they will be arranged in more or less songs. The default setting is 32 songs, 8 banks each one.
To edit the currently selected bank, you must press the buttons G & H simultaneously. In each editing mode screen there is
information of actions that can be performed for pressing each of the switches shown.
In any screen edit mode pressing F & G returns to the previous screen and pressing switches G & H leaves edit mode (if you have
changed any parameters Dsh4 will ask the user whether to save the bank).
The following diagram shows the menus and screens available in Edit mode:
Edit Mode
Loops
(SWH) Midi (MID)
Midi to
Control
Moment
(When) Type Midi Channel Value1 Vaue 2
Name
(NAM)
Song
(SNG)
Bank
(BNK)
Loop
(SWH)
Control
Change
(CC)
CCH
Group of
CCH
CCH
Command
Vols(VOL)
General
Settings
(SET)
Switchs
(BOT)
C. Change
Commands
(CCH)
Options
(OPT)

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
10
The next table shows functions associated to each switch:
Edit Mode
A
Configure loops activation
B
Configure Midi Commands
C
Set bank name, song name, effects names and Control Change Toggle names
D
Configure Control Change Commands
E
Setting attenuator and booster level for the bank
F
General Settings
4.2.1. Loops Activation / Deactivation
After selecting this option, pressing on the switches activates or deactivates the pedals connected into the loops. Once pressed, it
turns on / off the switch and effect name is shown in the screen. You can change effect name in Edit Mode (see section 4.2.3 – Set
Names).

Vlt1 – User Manual
Ver 2.0 (Vlt1_Eagles.hex)
11
4.2.2. Midi Commands
You can configure up to 8 Midi Commands in each Bank. Available commands are:
Midi Commands
Continius Control Change
Start
Stop
Note Off
Program Change
Continue
Note On
Clock
You can associate Midi commands to events in the bank. Next table shows available events:
Events
DISABLED
Midi command disabled
LONG PRESS
Long press, more than one second
BANK 1ST
After loading the bank
AFTER LONG
After long press
BANK 2ND
2nd pressing
EXPRESSION
Moving expression pedal
The parameters necessary to set up a MIDI command are as follows:
1. Midi Command to Edit (1 to 8)
2. Moment when the command is launched (see table
above)
3. Command Type (see table above)
4. Midi channel (only for some commands)
5. Command number (only for some commands)
6. Command value (only for some commands)

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
12
Next table shows functions associated to each switch:
Midi Commands
A
Decrement parameter value
B
Increment parameter value
C
Select previous parameter
D
Select next parameter
It is very important to establish the event in which the Midi will be sent, otherwise it will not be sent once made the push command
is launched.

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
13
4.2.3. Edit names
In this section you can set song, bank, effects and control change toggle names.
Next table shows functions associated to each switch:
Select name to edit
A
Edit current song
B
Edit current bank
C
Edit loops names
D
Edit Control Change Toggle Names
After selected name to edit, using switches you can change each letter of the name and cursor position. Next table shows functions
associated to each switch:
Edit Name
A
Previous letter
B
Next letter
C
Move cursor to the left
D
Move cursor to the right
E
Select previous loop / CC (Only when editing loop or cc toggle names)
F
Select next loop / CC (Only when editing loop or cc toggle names)

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
14
4.2.4. Control Change Toggle Commands
Continius Control Change Toggle Commands o Control Change Toggle Commands is a simplification of the Change Control to
enable or disable features of the Midi modules. They used to bypass effects or functions in the devices. For more information
please read your Midi device carefully.
Using these commands you can control state (on / off) up to 16 functions.
Next table shows functions associated to each switch:
Control Change Toggle Commands
A (Long Press)
CC1: Select switches 1 – 8
B (Long Press)
CC2: Select switches 9 – 16
A, B, C, D, E, F, G, H
Toggle Control Change Command (1- 8 or 9-16)
After selecting the group of commands, pressing each of the switches activate or deactivate the command and lighting on the
switch if the command is activated. When the command is activated, Dsh4 sends value 127 to the Midi Channel and Midi
Command configured (see section 4.2.7.1 Midi Values on Control Change Toggle Commands). When the command is disabled,
Vlt1 sends value 0.
Pressing the switch shows the name configured in the command. (see section 4.2.6.2 – Midi Values on Control Change Toggle
Commands).

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
15
4.2.5. Setting Volume levels
Using this option you can set attenuator level and Booster level for the selected bank. A level of 100 for the attenuator means no
reduction in volume for the bank.
Next table shows functions associated to each switch:
Setting Volume levels
A
Decrement value of parameter selected
B
Increment value of parameter selected
C
Select previous parameter (attenuator o booster)
D
Select next parameter (attenuator o booster)

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
16
4.2.6. General Settings
In this menu you can configure next options:
•Switches functions
•Control Change Toggle Commands values
•General options
Next table shows functions associated to each switch:
General Settings
A
Go to switches functions settings
B
Go to Control Change Toggle Commands Values Settings
C
Go to General Options settings

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
17
4.2.7. Switches function settings
Vlt1 pedal lets you configure the behaviour of the switches of all the control options available for the switches and combinations of
them. There are 4 actions that can be configured related to the type of press:
•Simple press
•Hold press
•After Hold press
•Combined switches
Next table shows functions associated to each switch:
Switch
Simple press
Hold press
After Hold Press
Combined switches
A
BTNA
BTNA.HOLD
BTNA.RLS
BTNAB
B
BTNB
BTNB.HOLD
BTNB.RLS
BTNBC
C
BTNC
BTNC.HOLD
BTNC.RLS
BTNCD
D
BTND
BTND.HOLD
BTND.RLS
BTNDE
E
BTNE
BTNE.HOLD
BTNE.RLS
BTNEF
F
BTNF
BTNF.HOLD
BTNF.RLS
BTNFG
G
BTNG
BTNG.HOLD
BTNG.RLS
BTNGH
H
BTNH
BTNH.HOLD
BTNH.RLS

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
18
Next table shows available behaviours:
Behaviour
Description
None
No function set
Go Bank
Load the bank
Bank Up
Next Bank
Bank Down
Previous Bank
Edit Bank
Edit current selected Bank
Song Down
Previous song
Song Up
Song next
Tap Tempo
Set tap tempo
Toggle Expression
Select next Midi command assigned to the expression pedal
BT Toggle
Activate / Deactivate Bluetooth
JAM
Activate / Deactivate Jam Mode
Tuner
Activate tuner mode (Only compatible Midi Devices)
Loop i
Activate / Deactivate loop i
Toggle Cci
Send Control Change Toggle Command (1 to 16)

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
19
Some features are not supported with pressing type, function and event. Next table shows compatible features:
Press type
Function
Compatible Events
Not Compatible Events
Simple Press
Combined switches
Go Bank
BANK 1ST
BANK 2ND
LONG PRESS
AFTER LONG
EXPRESSION
Long Press
After Long Press
Go Bank
BANK 1ST
BANK 2ND
EXPRESSION
LONG PRESS
AFTER LONG
Simple Press
Combined switches
Long Press
After Long Press
Bank Down
Bank Up
BANK 1ST
EXPRESSION
BANK 2ND
LONG PRESS
AFTER LONG

Dsh4 – User Manual
Ver. 1.0 (Dsh4_Deep_Purple.hex)
20
Next table shows default factory settings defined:
Press type
Function
Press type
Function
BTNA
Go Bank
BTNA.RLS
None
BTNB
Go Bank
BTNB.RLS
None
BTNC
Go Bank
BTNC.RLS
None
BTND
Go Bank
BTND.RLS
None
BTNE
Go Bank
BTNE.RLS
None
BTNF
Go Bank
BTNF.RLS
None
BTNG
Go Bank
BTNG.RLS
None
BTNH
Go Bank
BTNH.RLS
None
BTNA.HOLD
None
BTNAB
Song Down
BTNB.HOLD
None
BTNBC
Song Up
BTNC.HOLD
None
BTNCD
Tuner
BTND.HOLD
None
BTNDE
JAM
BTNE.HOLD
None
BTNEF
Toggle Expression
BTNF.HOLD
None
BTNFG
BT Toggle
BTNG.HOLD
None
BTNGH
Edit Bank
BTNH.HOLD
None
