JONATHAN Y JYL7451A User manual

WARNING
WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.
WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT
BREAKER BEFORE INSTALLATION.
INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR
OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.
CARE AND MAINTENANCE
Model#: JYL7451A
Product Dimensions: 13''WX13"L X 6"H
To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe
the surface of the fixture.
To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing
the fuse at the fuse box. Next, use a dry or slighly damperned clean clorth (use clean water, never a solvent) to wipe the
interior surface of the fixture.
Do not use any cleaners with chemical, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.
NOTICE& IMPORTANT SAFETY INSTRUCTIONS
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below for safe
use and installation
*The external flexible cable or cord of this lamp cannot be replaced
If the cord is damaged, the lamp shall be destroyed
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY PIECE DESCRIPTION PICTURE QUANTITY
Amounting
bracket 1X G Screwed Ball 2X
B machine screw 2X I bulb 2X
C ground screw 1X J machine screw 3X
D Machine Screw 2X K Frame 1X
E wire connector 3X L Glass 6X
F canopy 1X M Glass 1X
1/2

PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 20 minutes.

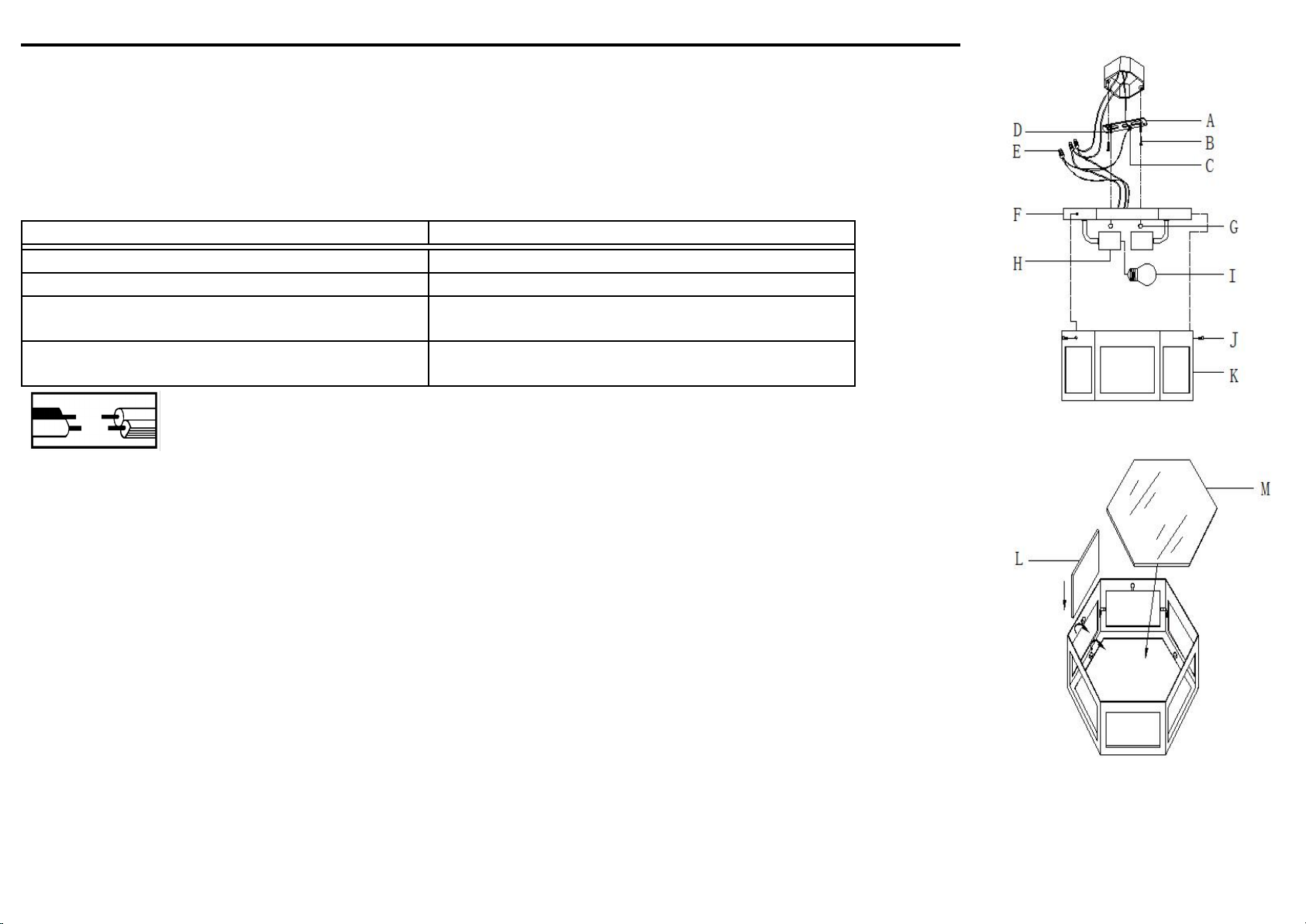

1. Put the glass(L) (M)on frame(K) and secure the glass by press clips
2. Fix the mounting bracket(A) to the outlet box with machine screw(B).
3. Make wire connections, with wire connectors(E), following the reference chart listed below.
Connect, Hot, Black or Red Outlet Supply Wire to:
Connect, Neutral, White Outlet Supply Wire to:
Black
White
* Parallel Cord (round & smooth)
* Parallel Cord (square & ridged)
Clear, Brown, Gold or Black without Tracer (colored stripes)
Clear, Brown, Gold or Black with Tracer (colored stripes)
Insulated Wire (not green) with copper metal conductor
Insulated Wire (not green) with Silver metal conductor.
*Note: When parallel wire ( SPT I & SPT II ) is used. The neutral wire is square shaped
and ridged and the hot wire will be round in shape and smooth. ( See Illustration on left. )
Grounding Instructions:
a) For installation in the United States: Wrap ground wire from outlet box around green
ground screw(B) on mounting bracket, no less than 2" from wire end. Tighten ground screw. If
fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector.
b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire
around green grounding screw on mounting bracket. Tighten ground screw.
4. Orient the ceiling canopy(F) so that the machine screw(D) protruding from the mounting bracket go into
the holes in the canopy, then secure it with the screwed ball(G).
5. Install bulbs(I). Be sure to use light bulb(s) with wattage no greater than specified on this
fixture. Always make sure that electrical current is turned off before changing bulbs.
6.Fix the frame(K) with canopy(F) by machine screw (J).
PLEASE USE ON/OFF TYPE"A" BULB MAX 40-WATT OR CFL BULB MAX 13-WATT OR LED BULB 9-
WATT
THERE ARE 2PCS LED 4-WATT BULB IN THE BOX
ENJOY YOUR LAMP
2/2
