Jonix JONIX UP IN User manual

JONIXup in
MADE IN ITALY
USE AND MAINTENANCE MANUAL
SANITIZING
AND AIR PURIFICATION DEVICE ACTIVE
Rev. 00

2
JONIX up in
These instructions are the translation of the italian original ones. No liability is taken for translations into other languages that
do not conform to the original meaning. JONIX srl reserves every right concerning this manual, including the right to make
any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden to
reproduce in full or in part this manual without JONIX srl’s consent.

3
JONIX up in
1 - GENERAL INFORMATION 5
1.1 - CE PLATE AND SERIAL NUMBER 5
1.2 - RESPONSIBILITY 5
1.3 - GENERAL SAFETY INDICATIONS, SYMBOLS AND DEFINITIONS 6
1.3.1 - General safety information 6
1.3.2 Symbols 6
1.3.3 - Definitions 7
2 - WARNINGS AND GENERAL PROHIBITIONS 8

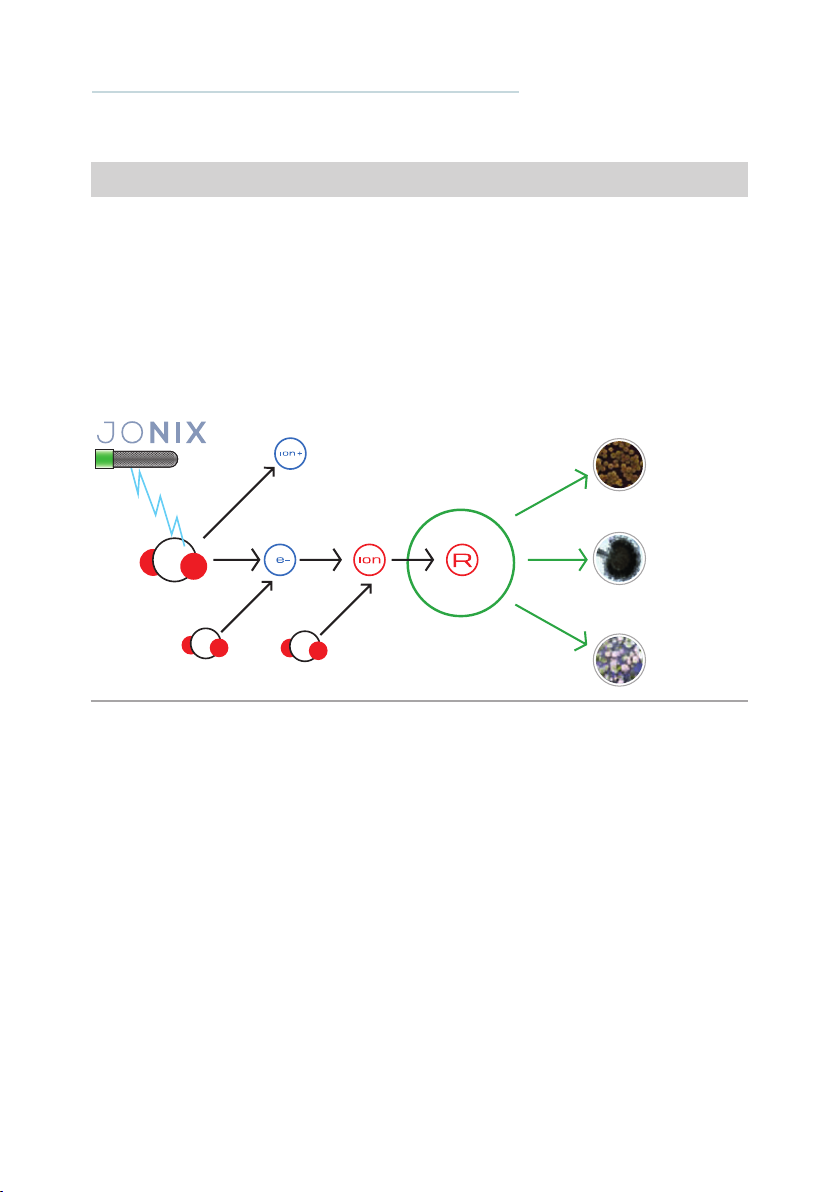

3 - THE OPERATING SYSTEM 11

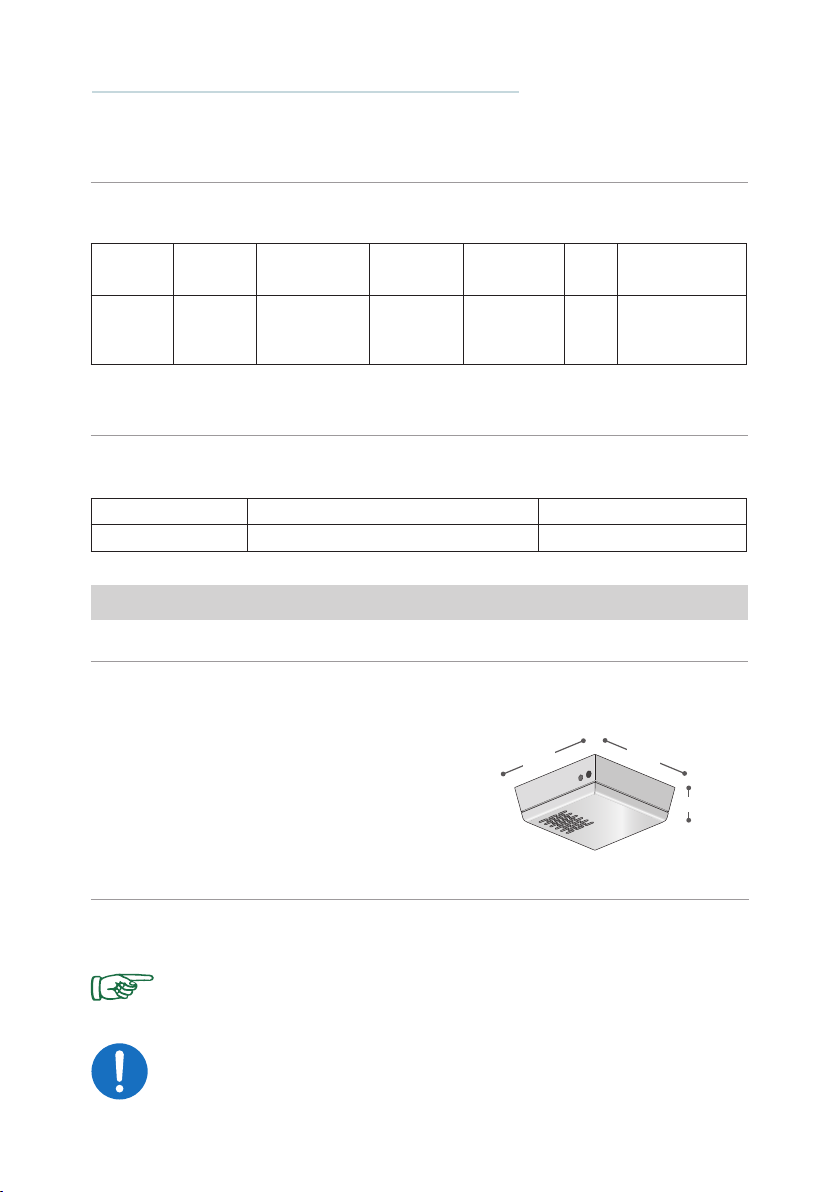

4 - TECHNICAL DATA JONIX up in 12

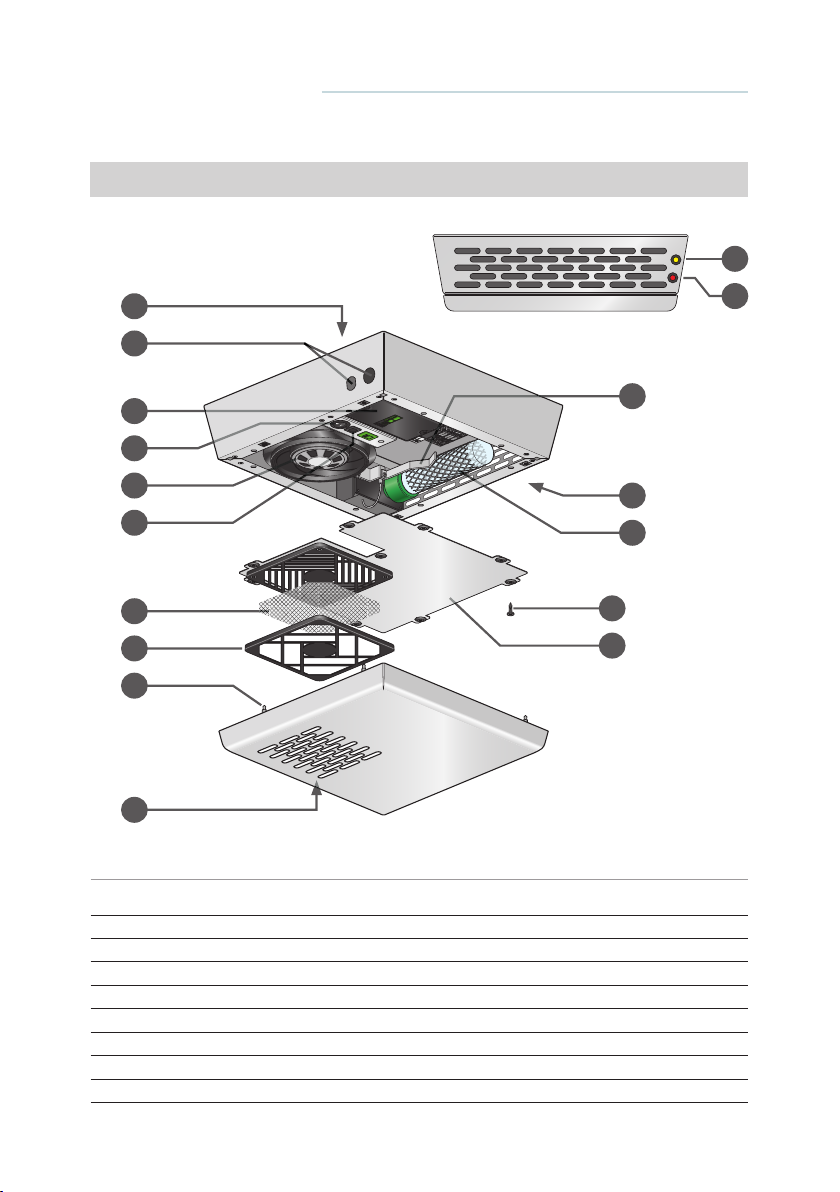

4.1 - COMPONENTS DESCRIPTION JONIX up in 12
4.1.1 - Technical characteristics JONIX up in 13
4.2 SPARE PARTS AVAILABLE ON ORDER 13
5 - RECEPTION, TRANSPORT AND STORAGE 13
5.1 - PACKAGING 13
5.2 - HANDLING AND TRANSPORT 13
5.3 - INSPECTION UPON RECEPTION 14
5.4 - STORAGE 14
6 - INSTALLATION AND COMMISSIONING 14
6.1 - SAFETY INSTRUCTIONS 14
6.2 - GETTING STARTED 16
6.3 - CHOOSING THE INSTALLATION SITE 17
6.3.1 - Position of the operator 18
6.4 - ELECTRICAL CONNECTIONS 19
6.5 - ELECTRIC POWER SUPPLY 19
6.6 - INSTALLING THE DEVICE 20
6.6.1 - Type of fixing 23
6.7 - USING THE DEVICE 24
6.8 - FIRST START CHECKS 25
7 - SPECIFIC APPLICATION FOR LIFTS AND LIFTING EQUIPMENT 25
8 - MANAGEMENT OF JONIX up in AND OPERATING LOGIC 28
8.1 - ELECTRONIC BOARD INPUT/OUTPUT 28
8.2 - MANAGED COMPONENTS, OPERATING LOGIC AND DEFAULT SETTINGS 29
8.2.1 - ON-OFF switch (power supply selector switch) 29
8.2.2 - Alarm reset button 29
8.2.3 - External alarm input I5 29
8.2.4 - Fan 29
8.2.5 - Ionizer function 30
8.2.6 - Default settings 31
8.3 - ALARM SIGNAL 31
TABLE OF CONTENTS

4
JONIX up in
9 - DISPLAY EVO optional 32
9.1 - DESCRIPTION OF THE OPERATION KEYS 32
9.1.1 - Main screen 33
9.1.2 - Display hours of operation of the ionizing tube 33
9.1.3 - Adjustment menu 34
10 - MAINTENANCE 35
10.1 - WARNINGS 35
10.2 - ROUTINE MAINTENANCE 35
10.2.1 - Cleaning ionizing tubes 36
10.2.2 - Cleaning the Filter 40
10.2.3 - External cleaning of the device 43
10.2.4 - Replacing the ionizing tube 43
10.3 - SPECIAL MAINTENANCE 47
11 - OPERATIONAL CHECK AND TROUBLESHOOTING (DIAGNOSTICS) 48
11.1 - DIAGNOSTICS 48
11.2 - GENERAL DIAGNOSTIC PROVISIONS 48
12 - DISPOSAL 49
NOTES 49
WARRANTY CONDITIONS 50
DECLARATION OF CE CONFORMITY 51
ANNEXES 52
Thank you purchasing the JONIX up in device.
This manual contains the information and anything deemed necessary for the transport,
installation, use and maintenance of the active sanitizing and air purification device JONIX up in.
Improper installation of the device and/or failure to comply with the instructions in this manual,
may void the warranty that the Manufacturer issues for its products.
The Manufacturer is not liable for any direct and/or indirect damage caused by incorrect installation
or damage caused by units installed by inexperienced and/or unauthorised staff. At the time of
purchase, check that the device is intact and complete.
The Manufacturer declines any liability in case of personal injury or property damage resulting
from any improper use of the device or from the failure to observe the use and safety instructions
specified in this manual. In any such case, any warranty claim will be void.
Any complaints must be submitted in writing within 8 days of receiving the goods.
For more information, manual downloads or video tutorials please visit www.jonixair.com.

5
JONIX up in
Model70JONIXUPIN
Serial number 000000000000
Power Supply 230V / ~1 / 50/60Hz
Full load ampere (A) 0,3 A
ManufacturerJONIX S.R.L.
Viale Spagna, 31/33 35020 Tribano (PD)
Product name JONIX UP IN
Year of production 2020
1.2 RESPONSIBILITY
Failure to comply with the instructions contained in this Operation and Maintenance Manual
releases the Manufacturer from any liability. For any data not included or not deducible from the
following pages it is recommended to consult the Manufacturer directly.
JONIX srl
Viale Spagna 31/33 35020 Tribano - PD - Italy http://www.jonixair.com
In particular, if the maintenance of the device is carried out in a manner that does not comply with
the instructions provided, or in any case in such a way as to compromise its integrity or modify
its characteristics, JONIX srl will be relieved of any responsibility regarding the safety of people,
things, animals and the faulty operation of the devices.
The device described in this manual
is provided with a nameplate
identifying it and the Manufacturer.
IMPORTANT WARNING
The JONIX up in device is designed and made to sanitise the air in residential and
industrial processing environments that are incompatible with toxic and flammable
gases. It is therefore strictly forbidden to use the device in environments where the
air is mixed with and/or altered by other gaseous compounds and/or solid particles.
Using the device for purposes other than those intended and that do not comply
with those described in this manual will immediately relieve Manufacturer and its
distributors from any direct and/or indirect liability.
1 - GENERAL INFORMATION
1.1 CE PLATE AND SERIAL NUMBER

6
JONIX up in
OBLIGATION TO USE PROTECTIVE GLOVES
Use adequate hand protection in addition to other personal protective equipment
suitable for the place and the operations to be carried out.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
The crossed-out bin symbol on the label on the appliance indicates that this product
complies with the regulations on waste electrical and electronic equipment. The
abandonment of the equipment in the environment or its unauthorised disposal is
punishable by law.
HIGH VOLTAGE HAZARD!
Do not open or remove any doors or protections before disconnecting the voltage
supply.
OBLIGATION: This symbol draws attention to a specific obligation or action to be
implemented with obligation.
FORBIDDEN: This symbol refers to operations that must be avoided under any
circumstances, and hence forbidden.
WARNING: It refers to integrations or suggestions concerning the proper use of the
device.
HAZARD: It refers to dangerous situations that may result from the use of the device, in
order to ensure personal safety.
1.3.2 Symbols
Please pay utmost attention to the following symbols and their meaning. They emphasise specific
information, such as:
1.3.1 General safety instructions
Any intervention, of whatever nature, on the device must be carried out by prior and careful
reading of this manual in all its parts, with particular reference to SAFETY.
It is essential, therefore, that the machine is used in accordance with its intended use and with
this manual. This manual has been drawn up to provide the necessary information for personnel
dedicated to the use and maintenance of the device, until its sale or disposal. It must therefore
always be available to the staff who, before carrying out any operation on the device, must read
and assimilate all the information contained therein.
1.3 GENERAL SAFETY INSTRUCTIONS, SYMBOLS AND DEFINITIONS

7
JONIX up in
1.3.3 Definitions
Below are the definitions of the main terms used in the user manual.
MANUFACTURER
Individual or juridical person who designs and/or manufactures the device and is responsible
for its conformity for the purpose of placing it on the market under his own name or trademark.
SUPPLIER
Any professional operator in the marketing chain.
USER
Person, organisation or company who or which has purchased or rented the device and is going
to use it for the intended purposes.
USER/OPERATOR
Individual who has been authorised by the user to operate the device.
QUALIFIED STAFF
Individuals who, on the basis of their professional training, experience, knowledge of relevant
regulations and accident prevention regulations, are able to assess the work entrusted to them
and recognize and avoid any hazards.
AUTHORIZED PERSONNEL
Specialised personnel, assigned by the user to carry out certain tasks.
HAZARD
Source of possible injury or damage to health and safety.
RISK
Combination of probability and severity of possible injury or damage to health and safety in a
hazardous situation.
DANGEROUS ZONE
Any area within and/or close to a machine in which a person is exposed to a risk.
PROTECTIONS
Safety measures consisting of the use of specific technical means (guards and safety devices) to
protect users, users and operators from hazards.
REPAIR
Element of a machine used specifically to provide protection by means of a physical barrier;
depending on its construction, it may be called a headphone, cover, screen, door, fence, casing,
segregation, etc.
PROTECTIVE DEVICE
Device (other than a guard) that eliminates or reduces the risk; it can be used alone or associated
with a guard.

8
JONIX up in
READ THE INSTRUCTIONS BEFORE ANY OPERATION
Before starting any operation, it is mandatory to read this manual and apply all its
instructions. The competent person in charge is obliged, according to the regulations
in force, to carefully read ALL the contents of this User and Maintenance Manual
and to have it read by the maintenance technicians in charge, for the parts that are
their responsibility.
2 - WARNINGS AND GENERAL PROHIBITIONS
It is the user's responsibility to ensure that, if this document is modified by the
Manufacturer, only the updated versions of the Manual are actually present at the
points of use.
Repair or maintenance work must be carried out by personnel authorised by
JONIX srl or by qualified personnel in accordance with this user and maintenance
manual. Do not alter or tamper with the device as it can lead to hazards and the
manufacturer shall not be liable for any damage caused.
This Use and Maintenance Manual is an integral part of the device and must
therefore be kept with care and must ALWAYS accompany the device even if it is
transferred to another owner or user or transferred to another facility. In case of
damage or loss, request another copy from JONIX srl or download the document
from www.jonixair.com.
ROUTINE MAINTENANCE
Type of maintenance interventions during the life cycle, suitable for:
- maintain the original integrity of the goods;
- maintain or restore the efficiency of the goods;
- contain the normal degradation of use;
- ensure the useful life of the goods;
- cope with accidental events.
SPECIAL MAINTENANCE
Type of non-recurring and high cost interventions, compared to the replacement value of the
goods and the annual cost of routine maintenance of the same.
NON THERMAL PLASMA GENERATOR NTP (Non Thermal Plasma) or IONIZING TUBE
Electric field generator that transforms gas into plasma with high chemical oxidation power able
to oxidize and break down pollutants, bacteria, moulds, viruses and odours.

9
JONIX up in
It is forbidden to open the access panels to the internal parts of the unit without
removing the power supply and making sure that the unit cannot be accidentally
powered.
Do not dispose of or leave the packaging material within reach of children because
it can be potentially dangerous.
It is forbidden to spray or throw water or other liquids directly inside the device,
even in case of fire.
It is forbidden to get on and/or sit on the device. It is forbidden to place objects,
animals or people on the device.
Do not pull, detach or twist the electrical wires coming out of the device, even when
it is disconnected from the mains.
It is forbidden to modify the safety and/or adjustment devices.
This device is not a toy, make sure it is placed out of the reach of children and take
precautions so that children do not play with the device.
Any maintenance or cleaning operation before disconnecting the device from the
power supply is prohibited.
Do not touch the device if you are barefoot and with parts of the body that are wet
or damp.
This device is not intended for use by people with reduced physical, mental or
sensory abilities or lack of experience and knowledge.
Any liability of JONIX srl is excluded for damage caused to persons, animals
or property, whether due to transport, installation, adjustment, maintenance,
decommissioning or misuse.
The transport, handling, installation, commissioning and decommissioning of
this product must only be performed in accordance with the requirements and
instructions specified in this manual.
Please note that the use of products that require electricity involves the observance of some
crucial safety rules such as:

10
JONIX up in
Pictogram 1 Pictogram 2 Pictogram 3 Pictogram 4 Pictogram 5
ELECTRICAL
VOLTAGE HAZARD
OBLIGATION TO
READ THE
INSTRUCTION
MANUAL
OBLIGATION TO
DISCONNECT
VOLTAGE BEFORE
MAINTENANCE
MOVING PARTS
HAZARD
EARTHING
OBLIGATION
2.1 SAFETY SIGNS
Check the condition of the safety pictograms periodically and replace them if necessary. The
safety signs on the machine are as follows:

11
JONIX up in
H2O, O3, VOC
M
I
C
R
O
B
I
C
I
D
E
A
C
T
I
O
N
free radical
OH, HO2, HO2- •
MOULDS AND
YEASTS
FUNGI
BACTERIA
negative ion stable
(O, O2, O3)
gas molecule
(O2, O3, NO, NO2)
neutral molecule
(O2, CO2, H2O)
Saccharomyces
Cerevisiae
Aspergillus
Niger
Staphilococcus
Aureus
free electron
electricalfield
< 3000W
3 - THE OPERATING SYSTEM
The JONIX up in device:
• constantly reduces and eliminates bacterial loads in the air and on indoor surfaces;
• constantly decomposes volatile organic compounds (VOCs);
• it eliminates odours;
• is suitable for environments that need to reduce air contamination.
The sanitizing activity of JONIX up in is compatible with the presence of people and animals.
The device JONIX up in has been specifically designed to be placed inside elevators, but,
due to its compact shape and its sanitizing action, it can be used in many other rooms with
reduced dimensions such as changing rooms, bathrooms, closets, waiting rooms of medical and
veterinary offices, cold rooms, food processing and packaging rooms, etc..
This sanitizing device, exploiting the physical phenomenon of ionization, promotes the controlled
formation of particular electrically charged species in the air through an electrostatic field. The
latter simulates a natural process that normally occurs through solar radiation, mechanically or
by other physical phenomena.
The particular ionic species produced are proven to be particularly effective as sanitizing agents
in air and on surfaces, moreover they are scientifically and historically proven to be beneficial on
people, especially the negatively electrically charged species (i.e. those derived from single or
small groups of molecules receiving an electron).

12
JONIX up in
Fig. 1
4.1 COMPONENTS DESCRIPTION JONIX up in
01 Led signalling device in operation (yellow led) 10 Fan
02 Alarm and/or maintenance signalling led (red led) 11 ON/OFF switch (I=ON, 0=OFF)
03 Room air inlet 12 ALARM RESET button
04 Ionized air outlet 13 External cover fixing pins (n°4)
05 Ceiling or wall fixing slots (n°3) 14 Closing plate
06 Cable glands for power supply and signal 15 Screws for closing plate fixing (n°9)
07 Ionizing tube 16 AISI 304 stainless steel filter
08 Ionizing tube grounding bracket 17 External cover
09 Electronic connection board 18 Filter cover
4 - TECHNICAL DATA
13
15
16
10 04
09
01
05
08
03
14
18
12 07
11
02
06

13
JONIX up in
300 300
93
4,5 kg
Fig. 2
The technical characteristics and relevant data are shown on the nameplate together with the
serial number identifying the device.
The carrier is responsible for securing the load on the means of transport.
JONIX srl declines any responsibility in case of damage caused by poorly
executed loads by the carrier.
To handle the device, use appropriate means, in good condition and suitable
capacity, depending on the weight, as required by Directive 89/391/EEC and
subsequent amendments.
5 - RECEPTION, TRANSPORT AND STORAGE
(*): Default settings.
The technical characteristics and relevant data are shown on the nameplate together with the
serial number identifying the device.
4.2 Spare parts available on order
4.1.1 Technical features JONIX up in
Code Description Notes
70CONDITION175 175 IONIZING TUBE REPLACEMENT KIT No. 1 ionizing tube of 175
Model Code
product Power supply Max absorbed current [A]
Dimensions
L x P x A [mm]
Weight
[kg]
(*) Flow rate
treated air [m3/h]
JONIX
up in JX03000055 230 V / ~1 / 50Hz 0.29 300 x 300 x 93 4.5
V1 = 35
V2 = 60
V3 = 90
Unless otherwise agreed in writing in advance, no other material or goods shall be placed on top
of the devices.
5.2 HANDLING AND TRANSPORT
The JONIX up in is shipped in special protective packaging that must be kept intact until
installation. The materials that were not installed for technical requirements are supplied with
suitable
enclosure secured to the inside or outside of the device itself.
The package includes:
- JONIX up in.
- No.1 Ionizing tube
- Operating and maintenance manual.
5.1 PACKAGING

14
JONIX up in
Please take great care while unloading and positioning the devices, to prevent
damaging the casing or components. Always make sure that the load is stable.
Avoid uncontrolled rotations. Lifting assistance must, if necessary, be carried out
with rods, levers, grappling hooks without ever using hands alone.
During lifting and/or transport and/or handling operations, provide for appropriate
signalling and confinement of the dangerous zone, signalling the prohibition of
access to the dangerous zone by unauthorised personnel.
• The device must be installed in strict accordance with the instructions contained in this
manual.
• The installation must be carried out by specialised personnel.
• During installation operations, use suitable and accident prevention clothing: gloves, accident
prevention shoes in accordance with EU Regulation 2016/425 and the provisions of the site
safety plan, the company's risk assessment document or other safety document relating to the
installation site.
6.1 SAFETY INSTRUCTIONS
The Manufacturer disclaims any liability for failure to comply with the safety and
prevention standards as described below.
The Manufacturer also disclaims any liability for damage caused by improper use
of devices and/or alterations carried out without prior authorisation.
6 - INSTALLATION AND COMMISSIONING
In case of prolonged storage before installation, the device must be protected from
dust, weather and kept away from heat and vibration. Do not allow the device to
come into contact with corrosive substances.
JONIX srl declines all liability for damage due to poor handling, transport and storage.
5.4 STORAGE
Any type of complaint must be sent in writing within eight days from receiving the
goods.
When you receive the device please check all its parts, in order to make sure that it has not been
damaged during transport.
Any damage must be reported to the carrier, by filling in the relevant section on the delivery note
and specifying the type of damage.
5.3 INSPECTION UPON RECEPTION

15
JONIX up in
• While performing installation, operate in full safety and in a clean environment clear of
obstructions.
• During each phase of use and/or maintenance it is forbidden to operate wearing loose or
dangling clothes, long loose hair, jewellery, chains and anything that could be a danger of
entanglement.
• Before switching the device on check the integrity of the various components and of the
electrical mains to which it is connected, making sure that it is fitted with a circuit breaker
upstream of the power line.
• Before putting the device into operation, check that it has been connected to an effective
earthing system.
• Do not service or clean the device without first unplugging it from the mains.
• Worn or damaged parts must only be repaired or replaced by qualified staff and by following
the instructions given in this manual.
• Spare parts must meet the requirements defined by the Manufacturer.
• Do not insert objects of any kind into the device, as coming into contact with live parts or
electrical terminals may cause fires or electric shocks. In case of maintenance, check that you
have removed all tools and objects before closing the panels and restarting the device.
• Comply with the laws in force in the country in which the device is installed, regarding the use
and disposal of the packaging and products used for cleaning and servicing the device; you
should also observe the recommendations given by the manufacturers of such products.
• In the event of decommissioning or disposing of the MIC device, follow the anti-pollution
regulations set out by the country in which the device is installed.
• Use only the power supply indicated on the nameplate. If you are not sure about the type of
power supply available, ask your local retailer or electricity provider for assistance.
• Do not spill water or other liquids on the device.
• Place the device so that the power cable cannot be stepped on and/or does not cause tripping
• Do not connect the device to power supply lines connected to any other electric utilities or
devices.
• Do not touch the inside of the device, unless otherwise specified in the instructions contained
in this manual.
• Never force the components when installing or performing maintenance operations: although
it is built with high strength materials, the parts of the device can be damaged if handled
incorrectly.
• Do not try to perform maintenance work on the device, except where specified in this manual.
Opening or removing the outer casing may expose you to dangerous live parts or may involve
other risks. All maintenance work must be carried out by authorised staff, except where
specified in this manual.
• Do not tamper with or modify the device.
• Do not perform maintenance or other operations in low light and visibility conditions.

16
JONIX up in
• Carry the device in its packaging as close to the installation site as possible.
• Do not rest weights or tools on the device, or place it on an unstable surface.
• Check that the various components of the device are fully intact.
• Check that the documentation and any accessories for installation are contained in
the package.
6.2 GETTING STARTED
ATTENTION! During installation, check that the fixing holes made in walls and/
or ceilings do not interfere with electrical cables, pipes and other components of
existing systems and equipment.
ATTENTION!
Any use other than that specified herein shall be deemed to be incorrect
.
• Do not modify the functional and performance components of the device.
• Do not tamper with the safety devices.
• Do not use the machine after maintenance without making sure it is safe. Check that all
components are correctly restored before restarting it.
• Do not remove or make illegible the safety, hazard, and mandatory signs on the device.
• Do not use water or liquids to put out a fire.
• Do not allow unauthorized personnel to access the internal parts of the device.
• The device has slots and openings for ventilation, do not obstruct or cover them, even partially.
• Always leave the necessary space for ventilation in front of cracks and openings, as indicated
in this manual.
• Disconnect the device from the power supply and contact the Manufacturer or a dealer for
service when you fall into any of the following cases:
- the internal parts of the device have come into contact with water or other liquids of any
kind;
- A malfunction persists despite all the installation and/or maintenance procedures having
been performed properly.
- The power supply cable is damaged or worn.
IMPORTANT: The installer and the user, when using the JONIX up in device, must
take into account and solve all the other types of risk associated with the system.
For example, risks arising from foreign bodies getting into the device or risks due
to dangerous flammable or toxic gases at high temperature.

17
JONIX up in
800 mm
20 mm
20 mm 20 mm
Fig. 3

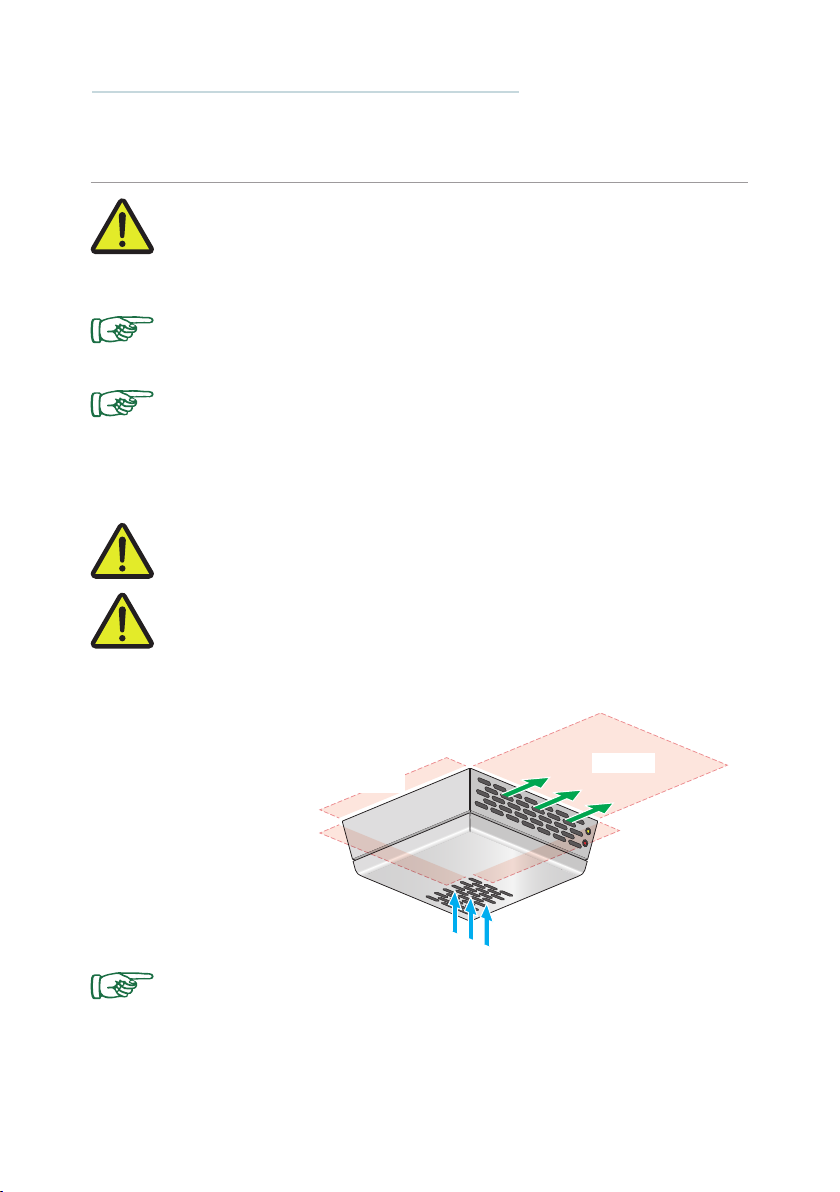

The JONIX up in device has been specifically designed to be placed inside lifts
and lifting systems, for this type of applications, in addition to all the general
prescriptions, please refer also to chapter 7 "SPECIFIC APPLICATION FOR LIFTS
AND LIFTING SYSTEMS".
Provide a clearance of at
least 800 mm
near the ambient air intake
and the delivery grid
of the ionized flow
and 20 mm
for the other sides.
Use suitable devices for lifting and unpacking the device.
Provide adequate technical space to guarantee the installation and ordinary and extraordinary
maintenance operations.
• Check that the fixing surface is able to support the weight of the device.
• The device is not equipped with its own lighting, check that the ambient lighting is sufficient,
especially for maintenance operations.
• Do not place the device outside.
The device must not be installed in an explosive environment due to the presence
of electrical and electronic equipment not specially designed.
Do not place the device in environments where there are flammable gases, acidic,
aggressive and corrosive substances that could damage it.
The environment in which the device is placed must have the following characteristics:
- air temperature between 0°C and 40°C;
- relative air humidity below 80%.
• Do not put the device in places where there are flammable gases, acidic, aggressive
and corrosive substances that can damage the various components beyond repair.
• Provide a minimum clearance, in order to install the device and carry out routine
and special maintenance.
6.3 CHOOSING THE INSTALLATION SITE

18
JONIX up in
Fig. 4BFig. 4A
Position of the operator for switching on, switching off and maintenance operations.
in front of the device
if placed on the wall
under the device
if placed on the ceiling
During operation of the unit, the presence of the operator in the vicinity of the device is not
required. For start-up, shutdown and maintenance, the operator's position must access the
external cover as shown in the figure.
6.3.1 Position of the operator

19
JONIX up in
Power cables are NOT supplied with the device.
6.5 ELECTRIC POWER SUPPLY
The JONIX up in device is equipped with a dedicated line at the electronic board. Specialized
and authorized personnel of the user must pass a power cable of suitable section composed of
F, N and T inside the unit and connect it to a thermal-magnetic circuit breaker as shown in the
attached wiring diagram.
ATTENTION!
It is recommended to check that the energy delivered is stable. Otherwise a voltage
stabilizer must be installed upstream.
ATTENTION!
Provide the connection to the network with a cable of suitable section composed
of F, N and T.
ATTENTION!
Electrical connections must be carried out by qualified and authorized personnel.
ATTENTION! BEFORE STARTING ANY OPERATION, MAKE SURE THAT THE GENERAL
POWER SUPPLY LINE IS DISCONNECTED AND THAT THE DEVICE CANNOT BE
ACCIDENTALLY POWERED!
6.4 ELECTRICAL CONNECTIONS
• The electrical mains of the JONIX up in device must be used for the device only, there must
be no other devices connected to the same power line. Do not use adapters, power strips and/
or extension cords.
• Make the connection with cables of suitable section in relation to the power input and in
compliance with the regulations in force.
•The installer must see to it to assemble the device as close to the power disconnector as
possible, according to standards in force and as far as necessary to protect the electrical
parts.
• Connect the device to an effective earthing outlet.
• The electrical connections must be carried out following the instructions provided in this
manual.
• Make sure that voltage and frequency of the electric line correspond to those provided on
the name plate.
ATTENTION!
Using a power supply that does not meet the requirements of the device may result
in damage to the device or some of its parts.
Before making any connections, ALWAYS make sure the mains voltage complies
with what is shown on the plate.

20
JONIX up in
06
Fig. 06: The external cover is fixed with
interlocking pins.
Pull by grasping the cover sideways to
remove it.
Fig. 5
ATTENTION!
Choose the fixing system suitable for the type of ceiling or wall also considering the
weight and shape of the device.
Carefully check the stability of the device and the tightness of the supporting ceiling
or wall after installation.
The fixing system and/or fixing screws are NOT included in the scope of delivery of the JONIX
up in. Use stainless steel fastening systems and screws.

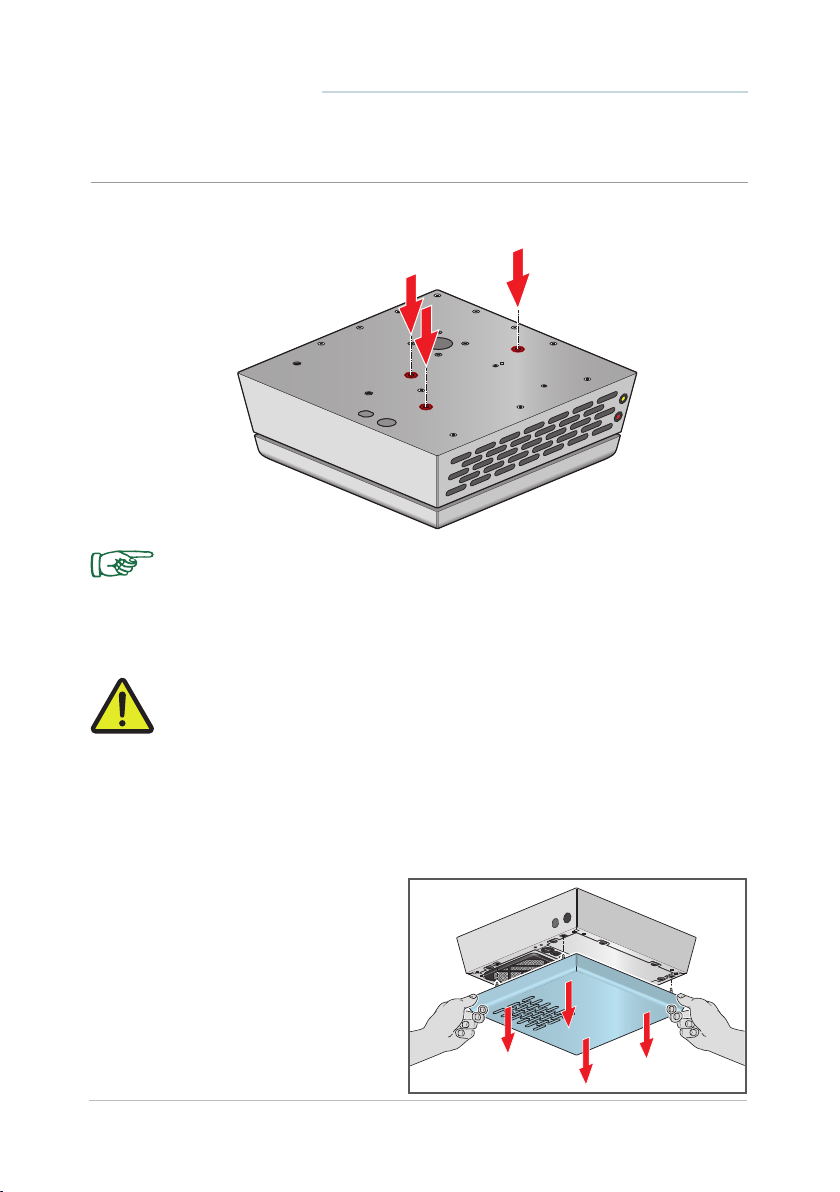

The JONIX up in device has been designed to be fixed directly to the ceiling or wall through the
appropriate fixing holes located on the support plate.
6.6 INSTALLING THE DEVICE
Before installation:
•make sure that there is enough space to allow air flow;
•make sure that there is enough space for maintenance;
•make sure that there are no existing sub-services, installations and equipment
that could be damaged by the fixing holes of the device.
