JooVuu X User manual

1
JooVuu X Manual
Welcome!
Congratulations on your JooVuu X camera and welcome to the JooVuu family. This
complete manual will give you indepth knowledge of the camera specifications,
features, and app.
Remember to check us out on:
Facebook.com/JooVuu
Twitter.com/JooVuu
Instagram.com/JooVuuX
YouTube.com/JooVuu
Important:
MicroSD cards MUST be Class 10
45mb/s or faster. Problems can
occur with slower cards. You can
purchase compatible cards from
www.JooVuu-X.com or any JooVuu X
reseller.
Vital Information
The JooVuu X WiFi password is 1234567890 by default. This can be changed in
the settings.
The WiFi will be turned off on the camera automatically after 2 minutes of
inactivity and no commands being sent. This is normal and cannot be altered.
The microSD once inserted into the camera needs to be formatted. Please do
this immediately. You can find how to do this below.

2
Important Information
-Only use Sandisk, Samsung, Transcend, Kingston, Toshiba or other known branded
microSD cards.
-The microSD card MUST be class 10 45mb/s or faster.
-The camera MUST have the microSD card in the camera to connect the app and
camera.
-The camera’s default wifi password is 1234567890
-You must format the microSD card inside the camera before operation
-Please leave the camera to charge 1hour before installing it in your car. The JooVuu
X can be charged through a USB wall plug or your PC.
If you have any problems please contact your vendor or on our
forums at www.joovuu.com/community

3
Contents
Important Information...............................................................................................................2
Features & Specifications...........................................................................................................4
Hardware ...............................................................................................................................4
Firmware ................................................................................................................................4
All Features: ...........................................................................................................................5
Available Resolutions:............................................................................................................6
LED Key.......................................................................................................................................7
Operation (Camera) ...................................................................................................................8
Inserting the microSD card into the JooVuu X.......................................................................8
Turning on the JooVuu X........................................................................................................9
Changing Mode ......................................................................................................................9
Stop and Start Record ............................................................................................................9
Turn On/Off WiFi....................................................................................................................9
Formatting the microSD card.................................................................................................9
Operation (App) .......................................................................................................................11
Formatting the MicroSD card ..............................................................................................11
App breakdown....................................................................................................................12
Main Settings .......................................................................................................................13
Mode Settings ......................................................................................................................14
Timed Mode.........................................................................................................................14
Wide Dynamic Range ...........................................................................................................15
Video Bit Rates.....................................................................................................................15
Live Stream...........................................................................................................................16
Gallery ..................................................................................................................................17
Technical information ..............................................................................................................18
Help & Questions? ...................................................................................................................18

4
Hardware:
Ambarella A7LA75
7G Lens F2
155 degree lens
OVI sensor
G-Sensor
Stereo microphone
Mini USB
Compatible with a battery and a super capacitor
.H264 codec (.MOV format)
Clicking on buttons
Features & Specifications
Beeping for certain functions (can be turned
off)
128gb microSD support
Standard tripod hole mount
-15 to +60c working temperature
GPS enabled (extra)
Manual button for video file lock.
TV Out
Micro HDMI
CE & ROHS certified.
Firmware:
2 Modes + Photo Mode
iOS and Android App
PC Program
Normal & Booster Bitrates
Electronic Image Stabilization
Choose your FOV from 155 to 80 degrees
180 Degree lens rotation
Timed Mode –allowing optimal video capture without
changing settings
White balance & exposure settings
Automatic and manual formatting of the microSD card
extending the camera and cards life further

5
All Features:
Auto-record with power on
Loop recording
Clip recording (1min, 3min, 5min, 10min, continuous) clips
Seamless loop recording
Motion detection (choose sensitivity and length of recording)
HDMI out
G-Sensor (auto lock function will be enabled by default). Different sensitivities:
oHigh, medium, low, off.
Language: English
Date/time stamp
Driving stamp (MPH, KPH, car plate)
JPEG photos
Burst Photo Mode –take 5 photos per second, take 10 photos per second
(something similar to this).
Timelapse (1s,2,3,5,10,20,30,60s, customer specified amount of time)
Recording LED (different coloured lights for different Modes etc)
Webcam Mode
Photo Mode (different picture qualities and sizes can be chosen)
Power on delay and power off delay (this should be about 3-5 seconds)
Mode Start (which Mode the camera starts in)
2 User configurable Modes
Recording indicator
Artificial light frequency
Format card function
Time date set up
Automatic time update
Gallery –download and upload videos, view with GPS data on map

6
Available Resolutions:
All available resolutions are posted here and will be updated here and on the website:
-2560x1080P 30FPS (21:9)
-2304x1296P 30FPS (16:9)
-1920x1080P 60FPS
-1920x1080P 45FPS
-1920x1080P 30FPS (HDR)
-1920x1080P 30FPS
-1280x720P 60FPS
-1280x720 30FPS

7
LED Indicator Key
Blinks = steady rhythm of the LED going on and off
Flashes = Very quick blinking and the stops (less than 1 second in total)
Flickers = Barely see the blinking which lasts less than 0.5 seconds
Function/Feature
WiFi LED
Top LED
Back LED
Beep Noise
LED Colour:
Blue
Red &
Green
Red &
Green
------
Turn JooVuu X on (it
then goes to standby that
has a different LED
sequence)
Off
Flickers red
Flickers red
Off
Camera turns off
Off
Flashes red
three times
Flashes red
three times
Off
WiFi on
Solid blue
(As long as WiFi
is on)
n/a
N/a
n/a
Wifi off
Off
n/a
n/a
n/a
Change Mode
Off
Blinks green:
Blinks once for
Mode 1.
Blinks twice for
Mode 2.
Blinks three
times for photo
Mode (Mode 3).
Blinks green:
Blinks once for
Mode 1
Blinks twice for
Mode 2
Blinks three
times for photo
Mode (Mode 3)
Beep sounds
according to the
Mode you are
ENTERING.
Mode 1 = 1 beep
Mode 2 = 2
beeps
Photo Mode = 3
beeps
Record
Off
Red (Blinks
continuously
until recording
stops)
Red (Blinks
continuously
until recording
stops)
Yes -0.2
seconds (when
user stops
recording beeps
again)
Charging
Solid blue
Solid red
Solid red
Off
Finished charging
Solid blue
Off
Off
Off
Card Full
Off
Solid red
Solid red
Yes –0.5
second
Card Error/firmware
error
Blinking blue
Solid red
Solid red
Yes –1 second
Standby (when camera
is turned on) but no
action is taken.
Off
Blinking green
Blinking green
Off
Updating Firmware
Blinking blue
Blinking red
Blinking red
No
Firmware Updated
Successfully (once
updated goes into
standby configuration)
Flashes blue 3
times
Off
Off
No

8
Operation (Camera)
Key:
1. Micro-HDMI port
2. Back recording LED
3. Vent & microphone point
4. Mini-USB port
5. On/Off button
6. Reset button
7. MicroSD slot
8. Mode/WiFi button
9. Record button
10. Recording/standby LED
11. WiFi LED
Inserting the microSD card into the JooVuu X
1) Insert a microSD, microSDHC™ or microSDXC™ card into the card slot
with label facing the floor if the buttons on the JooVuu X are facing
upwards. Insert the card with the narrowest part of the card going into the
camera.
The card should be class 10 45mbs or higher, as any lower may cause

9
issues and not allow the camera to operate to its full capacity. The JooVuu X
supports cards from 8gb to 128gb.
Turning on the JooVuu X
1) Make sure the JooVuu X is plugged into a car, computer, or USB wall plug.
2) The camera should turn on automatically when plugged in.
3) To turn the camera off, simply press the on/off button for 3 seconds and then
release. The LEDs will flash and then turn off.
4) To turn on, press the power button for 3 seconds and then release. The LEDS will
flash and then the standby LED (green colour) will flash.
Changing Mode
1) Make sure the camera is on
2) Simply press the Mode button. The LEDs will change and a beep will occur –this is
normal.
3) The sequence is for when the Mode button is pressed to change Mode. The
sequence of Modes is:
Mode 1 - > Mode 2 -> photo Mode (Mode 3). Pressing the Mode button again will
take you back to Mode 1.
4) The sequence is:
a. JooVuu X is in Mode 1, two LED flashes, 2 beeps
b. JooVuu X is in Mode 2, three LED flashes, 3 beeps
c. JooVuu X is in Photo Mode, 1 LED flash, 1 beep
Stop and Start Record
1) When in Mode 1 or Mode 2, simply press the record button. The recording LED will
blink red continuously.
2) To stop recording press the record button again. The recording LED will return to
green blinking as it is in now in standby.
3) When in Photo Mode, press the record button to take a photo.
Turn On/Off WiFi
1) Make sure the camera is on
2) Make sure a microSD card is inserted.
3) Press and hold the Mode button for 4 seconds then release.
4) The WiFi LED should turn solid blue.
5) To turn off, press and hold the Mode button for 4 seconds and then release.
6) It may take about 2-3 seconds but the WiFi LED will turn off.
Formatting the microSD card
1) The camera is off

10
2) Insert microSD card into the camera
3) Press down M button for 3 seconds
4) Press the power button
5) Top LED should flash red –this means the card has been formatted
successfully.

11
Operation (App)
The app allows full control over the JooVuu X from changing settings, to formatting the
microSD card, to viewing the photos. This section takes you through each option.
Formatting the MicroSD card
1) Connect the camera to your smartphone or tablet (outlined in step 4)
2) Insert the microSD card into the JooVuu X
3) Turn camera on
4) Load the JooVuu X App
5) Once the app is loaded, press the JooVuu logo on the main page.
6) Press ‘FORMAT MICROSD CARD’
7) Top LED should flash red –this means the card has been formatted
successfully.
8) A message will also appear saying ‘Format succesfull'

12

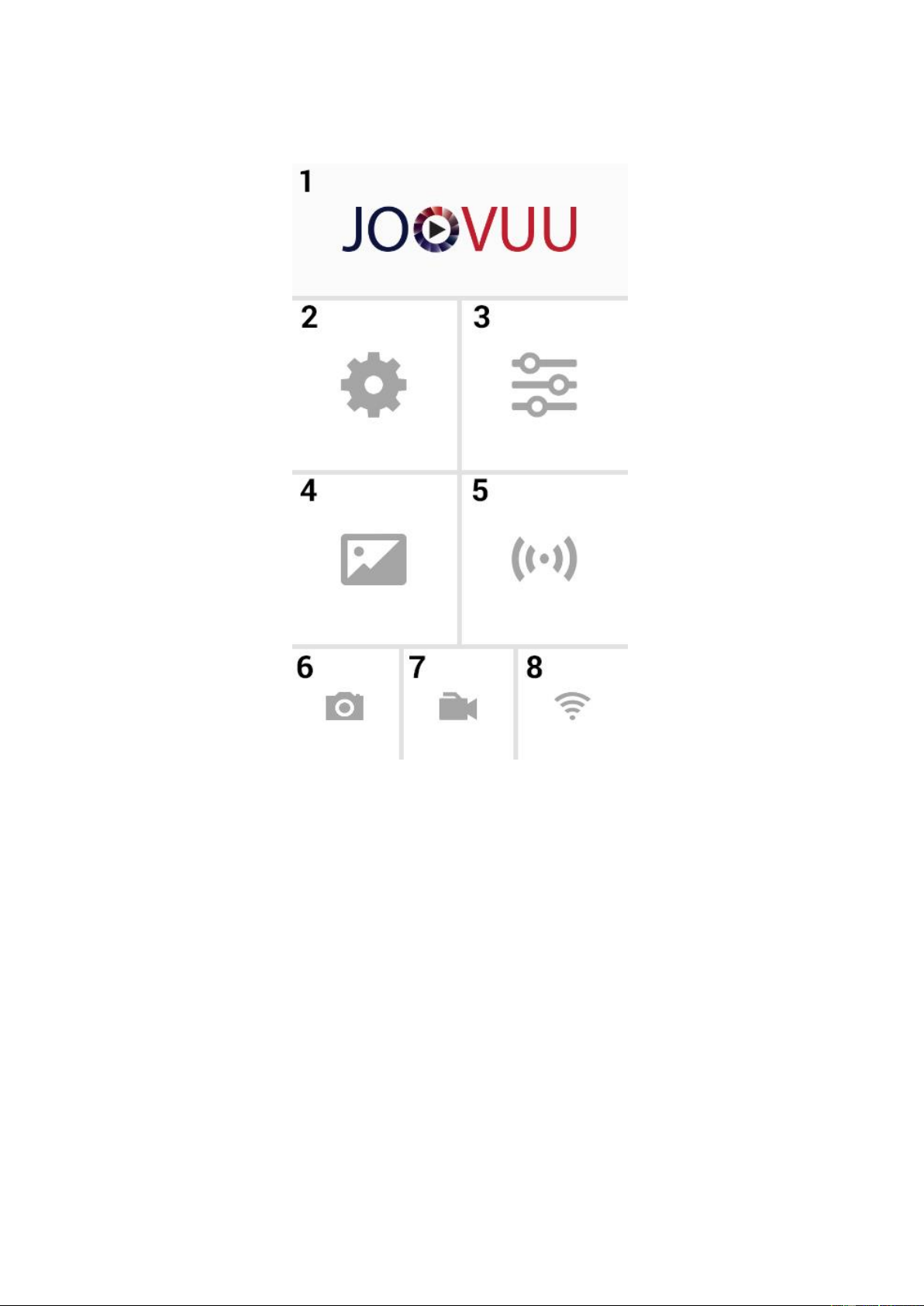

App breakdown
1) JooVuu logo –click on this to get to reset, format, and white balance screens
2) Main settings –these settings are global, and will be applied to all Modes
3) Mode settings –these settings are specific to that Mode
4) Gallery –you can watch, download, upload, and delete files here
5) Live streaming screen –you can see what the camera sees in real-time
6) Instant photo –pressing this button takes a photo instantly
7) Instant record –pressing this button starts recording in Mode 1 instantly
8) Connect to camera –connect to your JooVuu X on this screen.

13

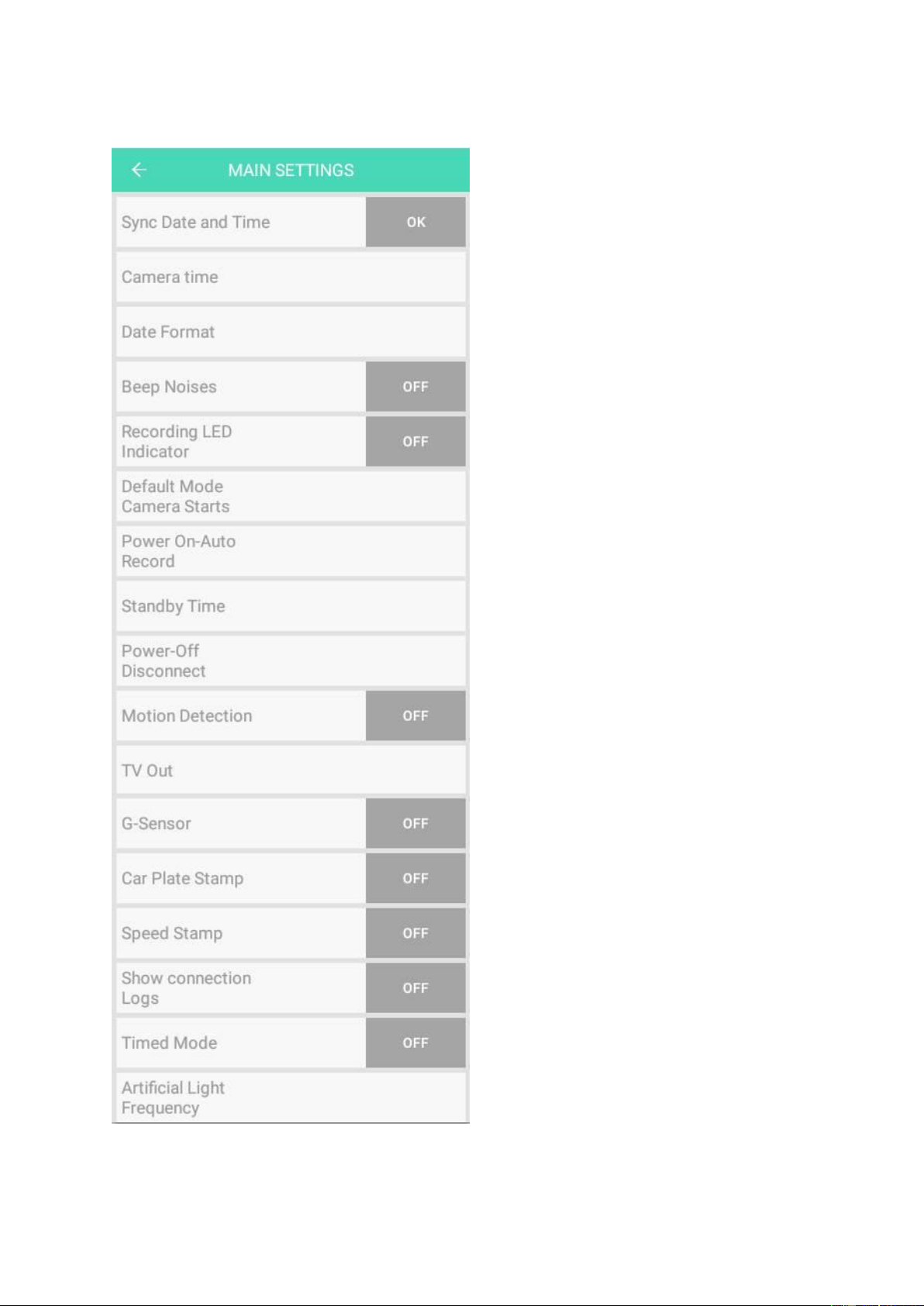

Main Settings
This option allows you to sync your date and
time with your phone
You can either sync or enter the time to be
displayed on the camera here.
Select the format in which the date is
displayed
Select if the camera makes audible beeps
Select if you want the JooVuu X to use its
LEDs
Select Mode 1 or 2 for the camera to start
Auto-start with power or only when
recording button is pressed
How long the camera is in standby before
shutdown
How quickly the camera shuts down.
Enable or disable motion detection.
PAL or NTSC format
This feature locks files when the sensor
registers an impact.
Enter your car registration plate
When used with a GPS cable, choose
whether to display the speed or not
This is for app errors and should remain
off.
Stop and start different Modes at different
times.*
50hz or 60hz.

14
Mode Settings
Change between, Mode 1, Mode 2, and
photo Mode.
Pick the resolution for a chosen mode.
See HDR below.
Enable or disable audio recording
Display time stamp on the video
‘Flip’ the image. If hanging the camera
upside down, this should be turned on.
Once the card is full the camera will
overwrite the first file and so forth
High, medium, low*
Wide Dynamic Range increases the
depth of colours captured.
From 155 degrees (widest) to 80
degrees (narrowest)
A photo is taken at the specified time
interval and compiled into a video.
*Please read below for more detail on the given function
Timed Mode
Timed Mode, is a Mode that allows you to set specific times for Mode 1 and Mode 2 to
record. For instance, you can have Mode 2 as a ‘night time’ Mode, which has a lower frame
rate and HDR enabled. You could then specify in the Timed Mode section when you wanted
to start Mode 2. For instance, if you want it so that if you are driving at 8pm it automatically
switches into Mode 2 or starts in Mode 2. You would enter the start time as 20:00. If you
wanted it so Mode 1 started or activated at 6am if you are driving or the car is turned on,
you would enter the end time at 0600.

15
Wide Dynamic Range
Wide Dynamic Range (WDR) is a function of the camera designed to produce clearer, more
actionable images and/or video in circumstances where back light and intense illumination
can vary excessively, especially when both very bright and very dark areas are
simultaneously present in the camera’s field-of-view
High Dynamic Range
High dynamic range is where a picture is taken at 2 or more exposure levels and combined
into one image. For video this works where the image sensor takes ‘two’frames for each
frame. One at a low exposure and one at a high exposure. This means that the dark areas
are far lighter, and the lighter areas are far more realistic. In turn giving you a clearer and
better image.
Video Bit Rates
Video bit rates, refer to the amount of data written per second to the microSD card. The
JooVuu X’s bit rates are:
High = 30mbs
Medium = 25mbs
Low=20mbs
The higher the bit rate, the more detail that is written to the microSD card and as such
provides a clearer image especially when zooming in. However, higher bitrates cause larger
files and as such less data can be stored. The default for the JooVuu X is set at ‘Medium’ as
this strikes the best balance between quality and recording time for your microSD card.

16
Live Stream
The Live Stream function enables you to see what the JooVuu X sees. The range is about
10m (depending on the environment).
1 2 3 4 5
1. Advanced Settings –this
screen allows you to control
the: Exposure, contrast,
sharpness and white balance
settings.
2. Instantly take a photo
3. Instantly record with what
mode is selected.
4. Mode settings –go straight
to mode settings.
5. Display important
information from the mode
that is selected in live
streaming,

17
Gallery
The gallery is where you can view all of your recordings and photos. You can stream them
to your device of choice or download them to enjoy them in full HD quality. You can delete
photos and videos as well as upload them to popular websites.
Display either videos, photos, or all.
Sort by date, length, or by size.
Play videos & open photos here.

18
Technical information
-The camera has been tested in environments that have been -26c and +44c. The
camera may work in hotter and colder temperatures but we have not tested this yet.
This point will be updated if and when we get more information regarding operating
temperatures.
-The camera can use ANY standard 5pin mini USB cable for power and data transfer.
-JooVuu is a UK registered business and owns JooVuu X
-By reading this manual you agree to give us your soul and happiness.
Help & Questions?
-If you need ANY help please ask your reseller
-You can also ask us at www.joovuu-x.com
-You can visit the forums at www.joovuu.com/community and search the forums for
the most up to date advice
-You can search the video FAQ section at www.joovuu-x.com/faq
