1. INTRODUCTION
The MM5D91-00 is the presence detection sensor module which integrates 60GHz
mmWave technology. The module simplifies the implementation of mmWave sensors in
the band of 61.0 to 61.5GHz, and it includes the ARM Cortex-M4F based processor
system, 1Tx 3Rx antenna and onboard regulator. This presence detection sensor module
targets low power and high resolution presence detection in smart home, office, security
and diverse applications.
Based on the MM5D91-00 Radar sensor module, the MM5D91E00 evaluation board is
built to demonstrate the function of presence detection of the 60 GHz radar sensor with
its sophisticated radar presence detection algorithms.
TOP side Bottom side

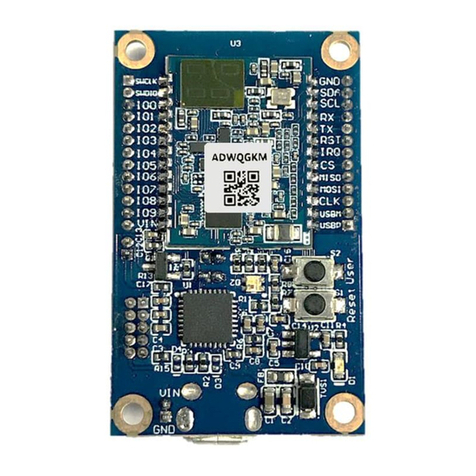

Figure 1-1. MM5D91E00 mmWave Radar Evaluation Kit
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Doc No: MM5D91E00-UG-D01
Copyright ©JORJIN TECHNOLOGIES INC. 2020
http://www.jorjin.com.tw
CONFIDENTIAL
Page 3
2. HARDWARE DESCRIPTION
The following figure and table describe physical sections of the board.
Figure 2-1. Hardware description of Evaluation Kit
Table 2-1. Evaluation Kit component descriptions list
Region
Description
A
Jorjin mmWave Radar sensor module.
B
Radar sensor module reset switch.
C
Red LED light when the evaluation kit is power on.
D
LED of radar detect status:
- Green color : No presence.
- Red color : Presence detected.
E
Interface setting: Turn up of left two / Turn down of right two.
Please keep the setting always.
F
Micro USB connector. Connected to PC (config tool) or power bank to demo.
B
A
C
D
E
F
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Doc No: MM5D91E00-UG-D01
Copyright ©JORJIN TECHNOLOGIES INC. 2020
http://www.jorjin.com.tw
CONFIDENTIAL
Page 4
3. CONFIGURABILITY
⚫Easy Configuration UART port for the end user to change parameters
⚫Standard mode: Detection range, Sensitivity, Reset etc.
⚫The detection range, sensitivity and status settings are stored in the flash and
remain set after power reboot.
If the OS is win7 or lower , please find the USB driver as the link.
Figure 3-1. Radar module connect to PC
Figure 3-2. Radar Module Configuration software
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Doc No: MM5D91E00-UG-D01
Copyright ©JORJIN TECHNOLOGIES INC. 2020
http://www.jorjin.com.tw
CONFIDENTIAL
Page 5
4. SCHEMATIC DIAGRAMS
Figure 4-1. Pin assignment of P1 and P2
Figure 4-2. LED indication for presence detection
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Doc No: MM5D91E00-UG-D01
Copyright ©JORJIN TECHNOLOGIES INC. 2020
http://www.jorjin.com.tw
CONFIDENTIAL
Page 6
Figure 4-3. UART to USB Conversion
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Doc No: MM5D91E00-UG-D01
Copyright ©JORJIN TECHNOLOGIES INC. 2020
http://www.jorjin.com.tw
CONFIDENTIAL
Page 7
5. DIMENSION

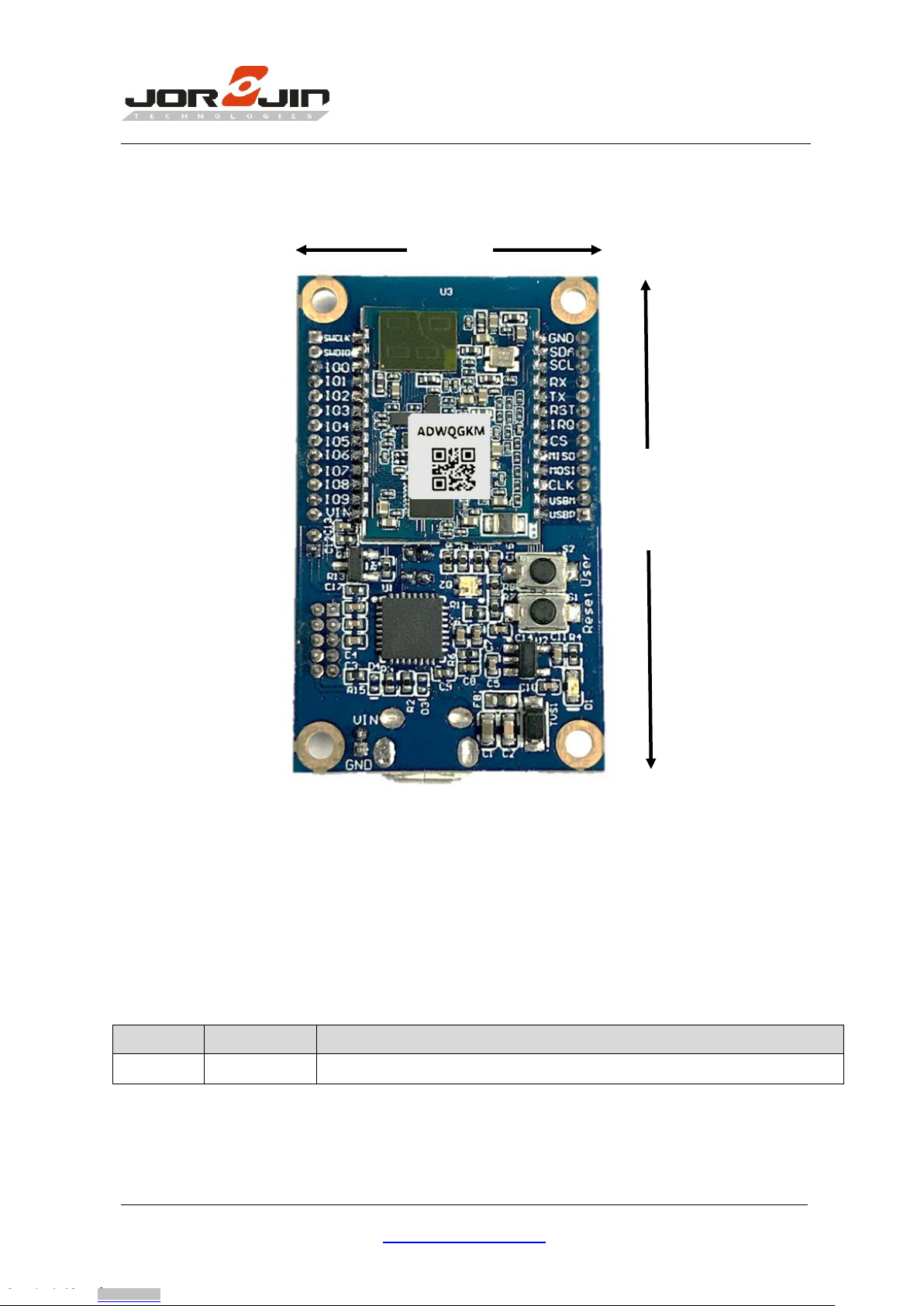

Figure 5-1. MM5D91E00 Board Dimension
6. HISTORY CHANGE
Revision
Date
Description
Draft 0.1
2020-07-21
Draft version.
26 mm
42.2 mm
Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
