Judo PROMI-PLUS JPM+ 3/4 User manual

Installation and operating instructions
JUDO PROMI-PLUS
Domestic water station ¾" - 1¼"
Valid for: EU countries and Switzerland
Language: English
Read before use and store!

Queries, orders, customer service
JUDO Wasseraufbereitung GmbH
Postfach 380
D-71351 Winnenden
Email: [email protected] • judo.eu
Office address:
JUDO Wasseraufbereitung GmbH
Hohreuschstraße 39 - 41
D-71364 Winnenden
Trademarks:
Trademarks used in this document are the
protected and registered trademarks of the
owners.
© JUDO Wasseraufbereitung GmbH
D-71364 Winnenden
All rights reserved.
Reprinting, even in excerpt form, is only
permitted with special approval.
Dear customers,
Thank you for the confidence you have
shown in us by purchasing this prod-
uct. You have purchased a state-of-the-
art device. It has been carefully checked
prior to delivery. Nevertheless, if diffi-
culties occur, please contact the closest
customer service (see chapter Customer
service).
These installation and operating instruc-
tions are intended for both installers, who
are in charge of installing, maintaining or
repairing the device, and for the operators
of the device.
2 JUDO JPM+ 1702272 • 2020/07

Contents
Contents
1 Safety......................................... 4
1.1 Intended use.............................. 4
1.2 Application limits......................... 4
1.3 Safety instructions...................... 4
1.4 Symbols used............................. 6
1.5 Units used.................................. 6
2 Product information................. 6
2.1 Scope of supply.......................... 6
2.2 Function description................... 6
2.3 Materials used............................ 7
2.4 Approval marks.......................... 8
3 Installation................................. 8
3.1 Conditions................................... 8
3.2 Installation of the rotary flange
fitting........................................... 9
3.3 Installation of the device............. 9
3.4 Draining of the backwash water. 10
3.5 Commissioning........................... 11
4 Operation................................... 11
4.1 Setting the downstream pres-
sure............................................. 11
4.2 Cleaning of the sieve insert
(backwashing)............................ 11
4.3 Conversions, changes................ 13
4.4 Maintenance, repair, spare parts 13
4.5 Temporary removal of the
device......................................... 14
5 Fault........................................... 15
6 Servicing................................... 16
6.1 Cleaning..................................... 16
6.2 Warranty and maintenance........ 16
7 Technical data.......................... 17
7.1 Installation dimensions............... 18
7.2 Accessories................................ 18

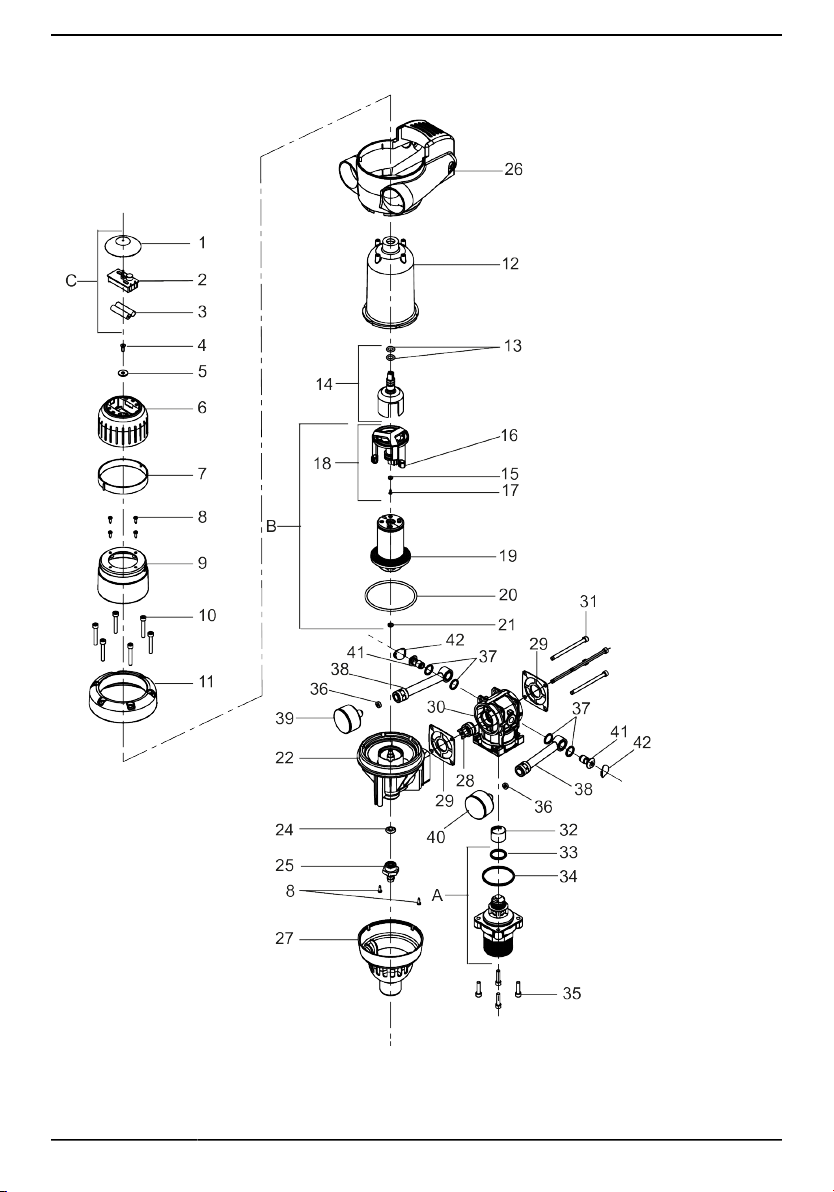

7.3 Spare parts................................. 19
8 Disposal..................................... 22
9 Maintenance log....................... 23
10 Customer service..................... 24
1702272 • 2020/07 JUDO JPM+ 3

Safety
1 Safety
These operating instructions must always
be available at the place of use of the
device.
1.1 Intended use
The device is for the
•Filtration
•Pressure reduction
•Backflow prevention
of drinking water in domestic water pip-
ing and for residential, commercial and
industrial use. It removes coarse and fine-
grained particles from the drinking water,
which are larger or equal to the mesh size
of the filter, in order to prevent
•pipe damage caused by corrosion
•malfunctions of fittings or control and
regulating devices caused by foreign
bodies.
The device can be installed in all commer-
cially available drinking water pipes. Both
installation and use of the device are sub-
ject to the applicable national regulations.
INFO_NO_HEADER
Particles that are smaller than the
mesh size of the filter supplied and
materials causing cloudiness cannot
be filtered out of the water.
1.2 Application limits
1.2.1 Water quality
The water to be filtered must comply with
the European Drinking Water Directive
(98/83/EC). Before using the device with
water that does not comply with this Direc-
tive, it is essential to consult the manufac-
turer.
1.2.2 Water pressure
CAUTION
The water pressure must not exceed
16 bar input pressure. The device
must not be installed if the mains
pressure is above 16 bar (even for a
short time)!
Nominal pressure PN 16
Operating pressure 1.5 bar - 16 bar
Downstream pres-
sure
1.5 bar - 6 bar
Factory setting:
4 bar
The water pressure must not fall below
1.5 bar as otherwise backwashing can be
impaired!
INFO_NO_HEADER
Starting at an operating pressure
of 10 bar, increased wear can be
expected!
1.2.3 Water and ambient tempera-
ture
The filter is suitable for use in cold drinking
water up to a maximum water and ambient
temperature of 30 °C.
1.3 Safety instructions
1.3.1 Electrical danger
ELECTRO_NO_HEADER
Risk of electric shock
No electrical wiring or equipment that is
not splash-proof may run or be stored
below the device. Electrical devices/
equipment located in the vicinity of the
device must be splash-proof or comply
with the legal regulations for wet rooms.
4 JUDO JPM+ 1702272 • 2020/07

Safety
1.3.2 Warning of property damage
WARNING
Risk of water damage or damage
to property
The device may only be installed by
qualified technical personnel.
The installation room must be dry and
free from frost.
The ambient temperature must not
exceed 30 °C! In higher temperatures
or direct sunlight, material damage may
occur up to and including breakage of
device parts.
An adequately sized wastewater connec-
tion (e.g. floor drain) in compliance with
DIN 1986 must be provided.
In order to ensure safe drinking water
hygiene, a free discharge of the waste-
water acc. to DIN EN 1717 must be
ensured.
The pipe must be able to safely sup-
port the device (weight: see chapter 7).
If necessary, the pipes must be provided
with additional fastenings or support.
If no bypass valve is installed, a shut-
off valve must be installed upstream and
downstream of the unit in order to inter-
rupt the water supply during installation,
maintenance, repair or malfunction of
the device.
Install the device in a vertical position
(± 5°); the connection for waste water
from backwashing must be directed
downwards. Otherwise, water may
escape and cause water damage.
For the installation of the device in
domestic water piping, only use the sup-
plied built-in rotary flange (see chapter
3.2).
The flange surface of the rotary flange
fitting must be upright!
The rotary flange fitting must be fitted so
that it is free from mechanical stress or
strain. Otherwise mechanical damage to
the pipe or the rotary flange fitting up to
and including breaks can result.

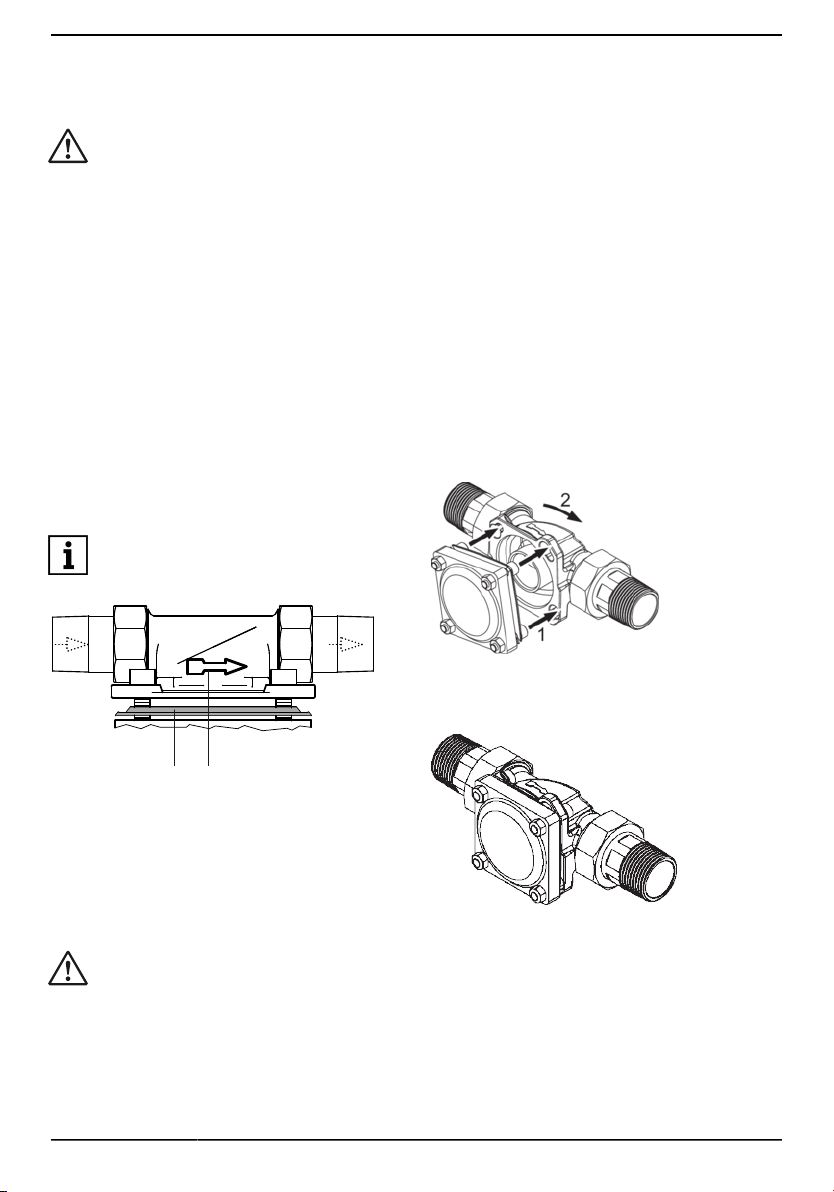

For proper sealing the profile of the pro-
file flange seal must point towards the
rotary flange fitting (see Figure 2).
Only operate the device in a technically
faultless condition:
•Check for damage prior to installa-
tion.
•Immediately have any malfunctions
in operation rectified by qualified
technical personnel.
Persons who, due to their physical, sen-
sory or mental abilities or their inexperi-
ence or lack of knowledge, are unable to
operate the device safely may not oper-
ate it without supervision or instruction
from a responsible person.
Regular backwashing of the device is
required to ensure safe drinking water
hygiene (see chapter 4.2.1).
Before carrying out a backwash, ensure
that the wastewater connection is func-
tional.
At the end of the backwashing process,
turn the handwheel until it engages so
that no more backwash water escapes.
Otherwise, water may constantly escape
and cause water damage.
Do not use household cleaning agents
to clean the outside of the device, but
only use clear water to avoid embrittle-
ment of the plastic.
The device may only be repaired by
qualified technical personnel.
Only use original spare parts for repairs.
Before performing work on the device
that goes beyond pure operational use,
the device must be depressurised! If
this is ignored, the result may be uncon-
1702272 • 2020/07 JUDO JPM+ 5

Safety
trolled escape of water resulting in water
damage to the building/home.
If the device is removed due to an inter-
ruption of operation:
•Protect the flange surfaces against
damage to ensure proper sealing.
•Protect the device from dirt so as
not to impair drinking water hygiene.
•Store the device in a frost-free place
to prevent damage caused by freez-
ing water and leakage.
Unauthorised conversions and changes
are forbidden for safety reasons. These
can impair the functioning of the device,
leading to leaks and, in the worse case
scenario, to bursting of the device.
1.4 Symbols used
The safety instructions contained in these
operating instructions are labelled with the
following symbols:
Indication of existing dangers
Warning of electric voltage
Torques specified by the manufac-
turer
User tips and other information
Instructions attached directly to the device,
e.g.:
•Direction of flow (arrow)
•Type label
•Cleaning information
must be observed and maintained in legible
condition.
1.5 Units used
Unit Conversion
bar 1 bar = 105 Pa = 0.1 N/mm2
¾" DN 20
1" DN 25
1¼" DN 32
2 Product information
2.1 Scope of supply
•Domestic water station, pre-assembled
•Built-in rotary flange
•2 batteries for the electronic backwash
reminder (size AAA)
•Installation and operating instructions
2.2 Function description
Unfiltered water flows into the device
through the rotary flange. A coarse filter
prevents large dirt particles from reaching
the fine filter. The water flows from the out-
side to the inside through a cylindrical sieve
insert. Dirt particles remain on the sieve
fabric of the sieve insert. The adhering
residues are visible from outside through
the transparent filter bowl.
The filtered water continues to flow into
the pressure reducer. The set downstream
pressure can be read at the downstream
pressure gauge.
Subsequently the filtered water exits the
device again via the rotary flange fitting.
6 JUDO JPM+ 1702272 • 2020/07

Product information

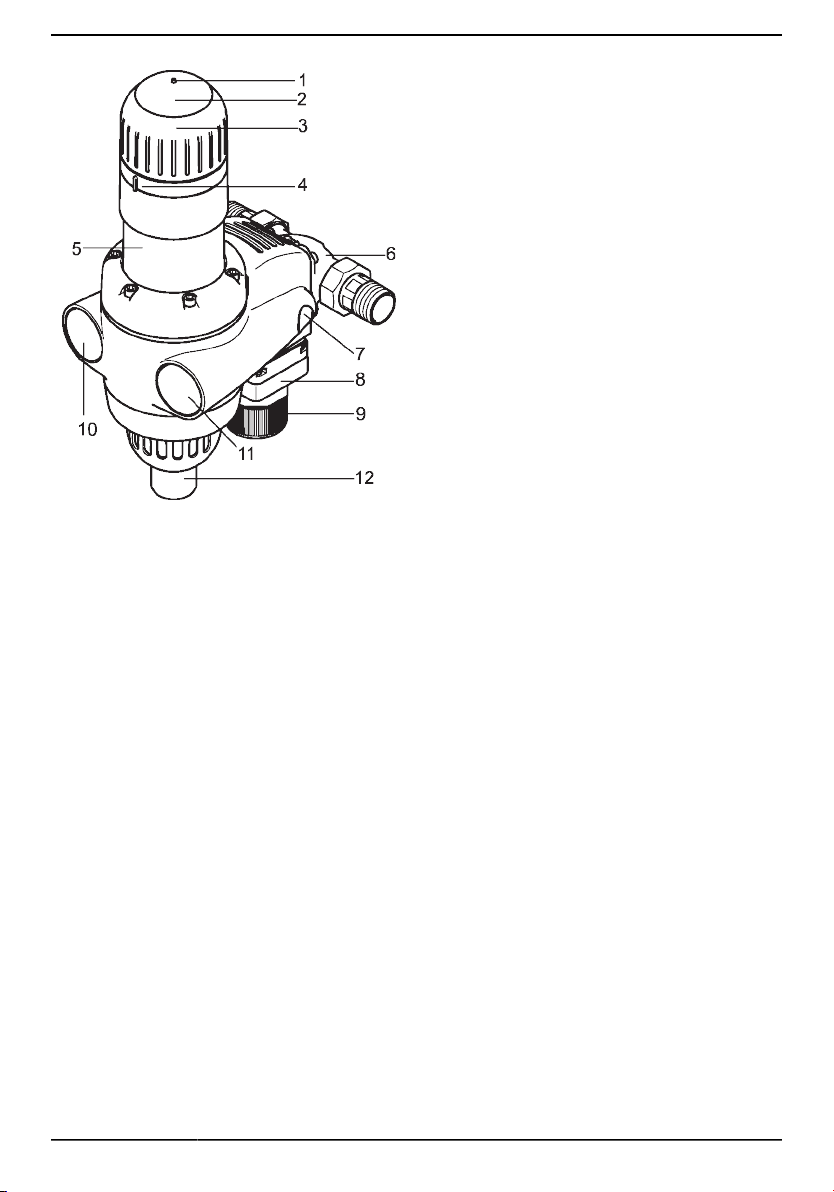

Fig. 1: Functional description
1 Reset button for beep as reminder that backwashing is due
2 Handwheel cover over battery compartment
3 Handwheel for backwashing
4 Adjusting ring for marking the next backwash date
5 Transparent filter bowl
6 Rotary flange fitting
7 Screw cover (check screw for backflow preventer on the side of the upstream pres-
sure gauge)
8 Pressure reducer
9 Handwheel of the pressure reducer
10 Inlet pressure gauge
11 Outlet pressure gauge
12 Outlet backwash water
2.3 Materials used
The materials used are resistant to the
physical, chemical and corrosive loads
expected to be encountered in drinking
water. They meet the requirements speci-
fied in the following standards:
•DIN EN 13443-1
•DIN 19628
•DIN 50930-6
•DIN EN 1567
All materials of components in contact with
drinking water are hygienically and phys-
iologically harmless and fulfill the require-
ments and directives of the Umweltbunde-
samt (UBA). Plastics fulfil the requirements
of DIN EN 16421.
1702272 • 2020/07 JUDO JPM+ 7

Product information
2.4 Approval marks
The device complies with the technical
regulations for drinking water installation
according to DIN EN 806ff. and the national
supplement DIN 1988ff. as well as DIN EN
1717.
It has been tested and certified by the
DVGW (Deutsche Vereinigung des Gas-
und Wasserfaches e. V. - Technisch-wis-
senschaftlicher Verein) in accordance with
the requirements
• of the DIN EN 13959 for backflow pre-
venters
• of the DIN EN 1567 (pressure range
PN 16) for pressure reducers
• of the DIN EN 13443-1 and
DIN 19628 for mechanically active fil-
ters.
The device bears the DIN-DVGW mark as
proof of certification.
INFO_NO_HEADER
Only devices with a standard sieve
mesh width of 0.1 mm carry the
DIN DVGW test mark. Devices with
the available special mesh widths
0.03 mm, 0.32 mm and 0.5 mm
are not part of the test according to
DIN EN 13443-1 and DIN 19628 and
are therefore not permitted to wear
the approval mark.
3 Installation
CAUTION
The device may only be installed
by qualified technical personnel.
Installation of the device upstream of the
domestic water meter is forbidden.
3.1 Conditions
CAUTION
Risk of property damage or water
damage!
The pipe must be able to safely
support the device (weight: see
chapter 7). If necessary, the pipes
must be provided with additional
fastenings or support.
To ensure convenient operation and main-
tenance of the device, always adhere to the
specified clearances in chapter 3.4.1).
3.1.1 Requirements for the place of
installation
CAUTION
The installation room must be dry
and free from frost.
The ambient temperature must not
exceed 30 °C! In higher temper-
atures or direct sunlight, mater-
ial damage may occur up to and
including breakage of device
parts.
An adequately sized waste water
connection (e.g. floor drain) in
compliance with DIN 1986 must be
provided.
8 JUDO JPM+ 1702272 • 2020/07

Installation
3.2 Installation of the rotary
flange fitting
CAUTION
The flange surface of the rotary
flange fitting must be upright!
The rotary flange fitting must
be fitted so that it is free from
mechanical stress or strain. Oth-
erwise mechanical damage to the
pipe or the rotary flange fitting up
to and including breaks can result.
The built-in rotary flange serves as a con-
necting element between the domestic
water installation and the device. It is suit-
able both for horizontal and vertical pipes.
Attention: Install the built-in rotary flange
in the flow direction! This is indicated by an
arrow integral with the casting.
INFO_NO_HEADER
If the installation is twisted, a func-
tioning of the device is not possible.
1 2
Fig. 2: Rotary flange fitting
1 Profile flange seal
2 Flow direction arrow
3.3 Installation of the device
CAUTION
If no bypass valve is installed, a
shut-off valve must be installed
upstream and downstream of the
unit in order to interrupt the water
supply during installation, mainte-
nance, repair or malfunction of the
device.
Install the device in a vertical
position (± 5°); the connection
for waste water from backwash-
ing must be directed downwards.
Otherwise, water may escape and
cause water damage.
For the installation of the device
in domestic water piping, only use
the supplied built-in rotary flange
(see chapter 3.2).
The flange surface of the rotary
flange fitting must be upright!
For proper sealing the profile of
the profile flange seal must point
towards the rotary flange fitting
(see Figure 2: Rotary flange fitting,
page 9).
Fig. 3: Attach and engage appliance
1 Insert screws
2 Turn clockwise to engage screws
Fig. 4: Connection of appliance
engaged
Do not undo the screws of the device!
1. Insert the heads of the four flange
screws through the bayonet holes on
the rotary flange fitting (see Figure 3).
1702272 • 2020/07 JUDO JPM+ 9

Installation
2. Turn the device in clockwise direc-
tion up to the stop (see Figure 3 and
Figure 4).
3. Tighten the four flange screws.
UNIT
Select the tightening torque (approx.
4 Nm) so that the seal is effective
and the device is not damaged or
strained!
3.4 Draining of the backwash
water
CAUTION
An adequately sized waste water
connection (e.g. floor drain) in
compliance with DIN 1986 must be
provided.
In order to ensure safe drink-
ing water hygiene, a free dis-
charge of the waste water acc. to
DIN EN 1717 must be ensured.
The drain must be large enough so that all
of the wastewater can be drained simulta-
neously.
If a wastewater connection directly beneath
the device is not possible, the backwash
water can be drained away via a hose or a
pipe that is connected from the backwash-
ing water valve over a few meters to the
closest wastewater connection. The dimen-
sioning of this pipe must correspond to the
backwashing water valve.
If a bucket is used to drain off the back-
wash water:
•Attention: If the mains pressure
is high, water may spray out of the
bucket. Protect objects near the bucket
from water damage!
•Carry out the backwashing quickly and
finish the backwashing process as
soon as the bucket is half full. Other-
wise the bucket could overflow.

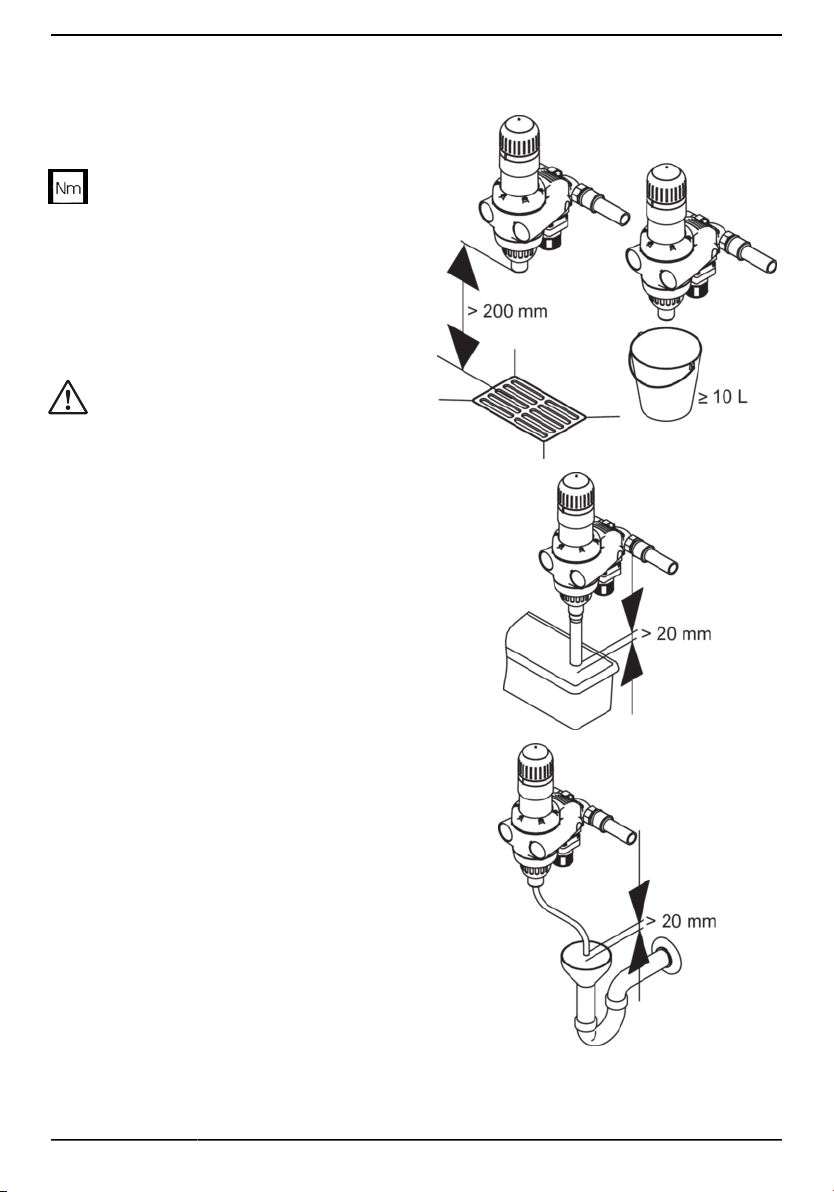

3.4.1 Drainage options for the
backwash water
10 JUDO JPM+ 1702272 • 2020/07

Installation
3.5 Commissioning
Prior to initial commissioning (or to com-
missioning after maintenance work) fill the
installed device with water and vent:
1. Open the upstream shut-off valve to
fill the device with water. The device is
now under mains pressure.
2. Attention: Carry out a backwashing
immediately so that the trapped air can
escape (see chapter 4.2.3)! This pre-
vents damage to the installation by
water hammer pressure surges.
After backwashing, the device is vented
and ready for operation.
3.5.1 Insert batteries
The backwash reminder alarm requires two
1,5 V Micro batteries.
How to insert the supplied batteries:
1. Lift the handwheel lid.
2. Insert the two batteries into the battery
compartment.
3. Replace the handwheel lid.
4. Test the functionality of the batteries py
pressing the Reset-button:
°clearly audible beep: batteries are
powerful.
°no beep or only weakly audible:
capacity of the batteries exhausted
or insufficient.
4 Operation
4.1 Setting the downstream pres-
sure
To compensate for pressure fluctuations
and to protect the downstream installation,
the downstream pressure can be regulated
via the pressure reducer. The factory pre-
set downstream pressure of 4 bar can be
changed to a value between 1.5 bar and
6 bar depending on the upstream pressure:
1. Undo the countersunk screw on the
handwheel of the pressure reducer.
2. Turn the handwheel clockwise
(= pressure increase), or turn counter-
clockwise (= pressure reduction).
3. Open a drawing point behind the
device for a short time. This results
in a pressure relief and the set down-
stream pressure can be read off from
the downstream pressure gauge.
4. When the desired downstream pres-
sure has been reached, retighten the
countersunk screw on the pressure
reducer handwheel to prevent auto-
matic adjustment of the downstream
pressure.
4.2 Cleaning of the sieve insert
(backwashing)
A regular cleaning process is necessary to
remove the residues from the sieve fabric
of the device. This process is called back-
washing.
Suction pipes are provided for backwash-
ing, which rotate around the sieve fabric
of the fine filter. The backwashing valve
opens on the bottom side of the device.
By reversing the water flow from inside to
outside, deposits on the sieve fabric are
carried away and rinsed out with the back-
wash water. The suction pipes also clean
the inside of the transparent filter bowl with
wiper lips during their movement.
1702272 • 2020/07 JUDO JPM+ 11

Operation
The degree of contamination and cleaning
process can be observed from the outside.
INFO_NO_HEADER
The device is backwashed with
filtered water. The filtered water
supply of the domestic installation
remains intact during the backwash-
ing process. No dirty water can reach
the pure water side during the back-
washing.
4.2.1 Backwashing interval
If cleaning is not performed soon enough,
the result may be damage to the sieve
insert. Large quantities of filtered particles
can deform the sieve fabric and in extreme
case lead to tearing of the sieve fabric.
In addition, larger deposit quantities can
impair the backwashing function mechani-
cally.
According to DIN EN 13443-1 backwashing
the device is required at the latest every six
months.
The manufacturer recommends a back-
washing:
•at least every 2 months
•if the water pressure drops
•if the filter is visibly dirty
Experience has shown that new installa-
tions in the early stages of installation lead
to increased dirt deposits. In this case, a
more frequent backwashing is necessary.
4.2.2 Due date of backwashing
Every two months, a beep reminds you that
the backwashing is due.
To switch off the beep, press the reset but-
ton on the handwheel cover.
By pressing the button, the time interval
of 2 months is restarted.
The signal is just an additional reminder
of the necessary backwashing. Indepen-
dant from this signal, the backwashing
interval indicated in chapter 4.2.1 must be
observed.
Check backwash reminder alarm
Press the reset button for at least 3 sec-
onds:
•Beep: the backwash reminder alarm
works. The batteries still have enough
capacity.
•No beep: replace the batteries by new
leak-proof batteries.
This battery test has no influence on the
backwashing interval.
Replace batteries of the backwash
reminder alarm
1. Remove the handwheel cover.
2. Replace the batteries in the battery
compartment by new ones of the same
type (AAA or LR03).
3. Refit the handwheel cover.
4. Press the reset button on the hand-
wheel cover for at least 3 seconds. The
time interval of two months is restarted.
Attention: do not dispose of used batter-
ies with the household waste, but in accor-
dance with the local waste disposal regula-
tions.
12 JUDO JPM+ 1702272 • 2020/07

Operation
4.2.3 Backwashing
WARNING
Persons who, due to their phys-
ical, sensory or mental abilities
or their inexperience or lack of
knowledge, are unable to operate
the device safely may not operate
it without supervision or instruc-
tion from a responsible person.
Before carrying out a backwash,
ensure that the wastewater con-
nection is functional.
At the end of the backwashing
process, turn the handwheel until
it engages so that no more back-
wash water escapes. Otherwise,
water may constantly escape and
cause water damage.
1. Turn handwheel counter-clockwise up
to stop. Backwashing water escapes.
2. Turn handwheel clockwise up to stop.
Ensure that no water escapes.
The backwashing process is completed
(see chapter 4.2).
4.3 Conversions, changes
WARNING
Unauthorised conversions and
changes are forbidden for safety
reasons. These can impair the
functioning of the device, leading
to leaks and, in the worse case
scenario, to bursting of the device.
4.4 Maintenance, repair,
spare parts
WARNING
The device may only be repaired
by qualified technical personnel.
Only use original spare parts for
repairs.
Before performing work on the
device that goes beyond pure
operational use, the device
must be depressurised! If this is
ignored, the result may be uncon-
trolled egress of water result-
ing in water damage to the build-
ing/home.
4.4.1 Checking the backflow pre-
venter
WARNING
A defective backflow preventer
must be replaced immediately.
The backflow preventer may only
be replaced by trained technical
personnel.
The testing screw at the inlet pressure
gauge is used to check the function of the
backflow preventer.
1. Close the stopcock or shut-off valve
upstream of the device.
2. Remove the cover of the testing screw
at the inlet pressure gauge (water
inlet).
3. Unscrew the testing screw with an allen
key.
After a few seconds, no more water
may escape from the pressure
gauge connection.
4. Screw in the testing screw again.
Attention: set and screw in the
screw straight so as not to damage
the plastic thread.
5. Reassemble the cover of the testing
screw.
6. Open the stopcock or shut-off valve
upstream of the domestic water station
again.
1702272 • 2020/07 JUDO JPM+ 13

Operation
4.5 Temporary removal of the
device
WARNING
If the device is removed due to an
interruption of operation:
•Protect the flange surfaces
against damage to ensure proper
sealing.
•Protect the device from dirt so
as not to impair drinking water
hygiene.
•Store the device in a frost-free
place to prevent damage caused
by freezing water and leakage.
When recommissioning the device, proceed
as with a new installation.
14 JUDO JPM+ 1702272 • 2020/07

Fault
5 Fault
Fault Possible cause Remedy
Backwash
valve is not fully
closed.
Backwash water
continues run-
ning.
Dirt in backwash
valve.
Repeat backwashing and then turn the handwheel
fully home to the stop.
Water flow
decreases.
Sieve clogged. Perform backwashing.
There are leaks
in the filter bowl.
Damaged seals. Inform the installer or the closest customer service
point.
Filter bowl
becomes
clouded.
Hairline cracks
on the filter
bowl.
Filter bowl was
exposed to high
temperatures or
solvents.
•Inform the installer or the closest customer ser-
vice point.
•If water escapes, close shut-off valves. Have the
filter bowl replaced immediately.
Inadmissi-
ble pressure
increase due to
process water
heating.
Check the safety relief valve of the warm water boiler.
Inform the installer or the closest customer service
point.
The down-
stream pressure
increases slowly
at zero flow.
Wear of the
pressure
reducer car-
tridge.
Have a new pressure reducer cartridge installed.
Table 1: Troubleshooting
1702272 • 2020/07 JUDO JPM+ 15

Servicing
6 Servicing
6.1 Cleaning
CAUTION
Do not use household cleaning
agents to clean the outside of the
device, but only use clear water to
avoid embrittlement of the plastic.
6.2 Warranty and maintenance
Prerequisite for obtaining the statutory war-
ranty claim is regular backwashing (see
chapter 4.2). The DIN EN 13443-1 pre-
scribes that the backwashing must take
place every six months. JUDO however
recommends to comply with the information
in chapter 4.2.1 Backwashing interval.
Furthermore, the set outlet pressure must
be checked annually on the outlet pressure
gauge, both at zero flow and at peak flow
(large withdrawal). If necessary, the setting
of the outlet pressure must be readjusted.
To ensure the process operates success-
fully as long as possible, regular inspec-
tion and routine servicing of the device are
essential. Where home automation is con-
cerned, this is governed by DIN EN 806-5.
We recommend the conclusion of a main-
tenance contract, which is the best way
to ensure a good operating function, even
beyond the warranty period. The skilled
tradesmen or the factory customer service
are suitable partners for regular mainte-
nance work and the supply of consumables
and wear materials as well as for possible
repairs.
16 JUDO JPM+ 1702272 • 2020/07

Technical data
7 Technical data
Domestic water station JUDO PROMI-PLUS ¾" - 1¼" JPM+ ¾" - 1¼"
The water to be filtered must comply with the European Drinking Water Directive.
Information about: JPM+ ¾" JPM+ 1" JPM+ 1¼"
Pipe connection ¾" 1" 1¼"
Backwashing volume flow1) 0.3 L/s 0.3 L/s 0.3 L/s
Nominal pressure PN 16 PN 16 PN 16
Operating pressure 1.5 - 16 bar 1.5 - 16 bar 1.5 - 16 bar
Rated flow acc. to
DIN EN 1567 2.3 m³/h 3.6 m³/h 5.8 m³/h
Settable downstream pressure 1.5 bar - 6 bar 1.5 bar - 6 bar 1.5 bar - 6 bar
Factory setting of downstream
pressure 4 bar 4 bar 4 bar
Mesh size sieve insert2) 100 µm
0.1 mm
100 µm
0.1 mm
100 µm
0.1 mm
Water temperature and ambient
temperature max. 30 °C max. 30 °C max. 30 °C
Threaded connection according to DIN EN 10226-1
Weight 4.2 kg 4.3 kg 4.7 kg
Order no. 8170200 8170201 8170202
1) Applies to a fully opened backwashing valve and 2 - 3 bar mains pressure.
2) Standard sieve mesh size
Available special sieve mesh sizes (30 µm / 0.03 mm, 320 µm / 0.32 mm and 500 µm
/ 0.5 mm) for the industrial use are not part of the testing acc. to DIN EN 13443-1 and
DIN 19628 and therefore can not bear the DIN-DVGW mark.
1702272 • 2020/07 JUDO JPM+ 17

Technical data
7.1 Installation dimensions
Fig. 5: Installation dimensions
JPM+ ¾" JPM+ 1" JPM+ 1¼"
A180 195 230
B176 176 176
C280 280 280
D165 165 165
E227 227 232
F162 162 167
G40 40 40
Table 2: Dimensions without unit in mm
A Installation length
B Width of the device
C Height above the pipe middle
D Height below the pipe middle
E Installation depth up to the pipe middle
F Waste water connection up to the pipe
middle
G Waste water nominal diameter
7.2 Accessories
•JUDO Expansion QUICKSET JQR
(order no. 8250041) for series connec-
tion of two devices, e.g. filter and water
treatment plant
•JUDO Bypass valve JQX (order no.
8735210)
•JUDO ECO-SAFE leak protection
(order no. 8140010)
18 JUDO JPM+ 1702272 • 2020/07

Technical data
7.3 Spare parts
1702272 • 2020/07 JUDO JPM+ 19

Technical data
Item Designation Pcs Order
No.
AU1)/
Pcs
A Wear parts set “Pressure reducer cartridge“ **** 1 2150026 105
-- Wear parts set “Gaskets” ****
(consisting of pos. 13, 15, 16, 17, 20, 21, 24, 29, 36, 37)
1 2010335 42
B Wear parts set “Sieve 0.1 mm, suction pipe and gaskets” ***
(consisting of pos. 18, 19, 20, 21)
1 2020819 159
B Wear parts set “Sieve 0.1 mm, suction pipe and gaskets” ***
(consisting of pos. 18, 19, 20, 21) - not for DE -
1 2021359 166
C Spare parts set “Backwash reminder alarm“
(consisting of pos. 1, 2, 3)
1 2010495 49
1 Handwheel lid 1
2 Backwash reminder alarm 1
3 Battery 1,5 V Typ AAA (set with 2 pcs) 1 2060347 8
4 Countersunk screw M5×12 1
5 Disc A 6,4 1
6 Memo handwheel 1
7 Setting ring 1
8 Sheet metal screw 3,5×13 6
9 Top of housing printed ¾" 1
9 Top of housing, printed 1" 1
9 Top of housing, printed 1¼" 1
10 Cylinder screw M6×40 6
11 Flange ring 1
12 Filter bowl 1 2010424 149
13 O-ring 10×3 2
14 Driver 1 2010146 53
15 Suction pipe gasket 1
16 Nozzle 3
17 Sheet metal screw 2,9×9,5 1
18 Suction pipe, complete 1
19 Sieve insert 1
20 O-ring 90×4 1
Table 3: List of spare parts JPM+ ¾" - 1¼"
20 JUDO JPM+ 1702272 • 2020/07
