Jupiter Avionics JA23-001 User manual

Rev
B Page i
JA23-001
Speaker Amplifier
Installation and Operating Manual
Rev A
Jupiter Avionics Corporation
1959 Kirschner Road
Kelowna BC
Canada V1Y 4N7
Tel: [phone]
Toll-Free: 1 855 478 2232
www.jupiteravionics.com

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page ii
Copyright 2017 Jupiter Avionics Corp.
All rights reserved
Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express use
of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this copyright
notice. Any unauthorized commercial distribution of this manual is strictly prohibited. Except as described above, no part
of this manual may be reproduced, copied, transmitted, disseminated, downloaded, or stored in any storage medium for
any purpose without the express prior written consent of JAC.
RECORD OF REVISIONS
Revision
Rev Date
Description
ECR
A
Initial release, Serial number 1001 and higher.
3562
Prepared:
MPB
Checked:
Approved:
IMPORTANT:
Information in this document is subject to change without notice.
To confirm the current revision status of this manual, visit the JAC website:
www.jupiteravionics.com
Nov 2017
INVALID! INVALID!
JAC
SRM
12-14-17 JAC
KDV
12-14-17

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page iii
Table of Contents
SECTION 1 - DESCRIPTION ................................................................................................................................................. 1
1.1 System Overview ....................................................................................................................................................1
1.2 Features Overview..................................................................................................................................................1
1.3 Inputs and Outputs..................................................................................................................................................1
1.3.1 Inputs...............................................................................................................................................................1
1.3.2 Outputs............................................................................................................................................................1
1.4 Specifications..........................................................................................................................................................2
1.4.1 Electrical Specifications...................................................................................................................................2
1.4.2 Mechanical Specifications...............................................................................................................................3
1.4.3 Environmental Specifications..........................................................................................................................3
SECTION 2 – INSTALLATION............................................................................................................................................... 4
2.1 Introduction..............................................................................................................................................................4
2.2 Continued Airworthiness .........................................................................................................................................4
2.3Unpacking and Inspecting Equipment.....................................................................................................................4
2.3.1 Warranty..............................................................................................................................................................4
2.4 Installation Procedures............................................................................................................................................4
2.4.1 Installation Limitations.........................................................................................................................................4
2.4.2 Cabling and Wiring..............................................................................................................................................4
2.4.3 Mechanical Installation........................................................................................................................................5
2.4.4 Post Installation Checks......................................................................................................................................5
2.5 Speaker Operation..................................................................................................................................................5
2.6 Installation Kit..........................................................................................................................................................6
2.6.1 Recommended Crimp Tools ...........................................................................................................................6
2.7 Installation Drawings...............................................................................................................................................6
SECTION 3 – OPERATION.................................................................................................................................................... 7
3.1 Introduction..............................................................................................................................................................7
3.2 Controls...................................................................................................................................................................7
3.2.1 Speaker Push To Talk.....................................................................................................................................7
3.2.2 Optional Speaker Mute Switch........................................................................................................................7
3.2.3 Optional Volume Level Potentiometer.............................................................................................................7
Appendix A - Installation Drawings...................................................................................................................................A1
A1 Introduction............................................................................................................................................................A1
A2 Installation Drawings.............................................................................................................................................A1
Appendix B - Installation Documents ...............................................................................................................................B1
B1 Airworthiness Approval .........................................................................................................................................B2
B2 Instructions for Continued Airworthiness ..............................................................................................................B2

Rev A Page 1
JA23-001 Speaker Amplifier
SECTION 1 - DESCRIPTION
1.1 System Overview
The JA23-001 speaker Amplifier is an integrated speaker amplifier which allows the user to monitor receive audio
without a headset.
1.2 Features Overview
The JA23-001 provides a single speaker with up to 10 Watts output.
The JA23-001 supports speaker impedances of 3.2, 4, 8 and 16 Ohm and greater.
The JA23-001 supports three Differential audio inputs.
The JA23-001 supports one single ended microphone input with Mic bias.
The JA23-001 supports a speaker mute and Push-to-talk input.
The JA23-001 supports an external speaker level control.
1.3 Inputs and Outputs
Refer to the JA23-001 connector maps for the mating connector designators and pin assignments for the
input and output signals.
1.3.1 Inputs
Name
Qty
Type
1
1
1
3
SPEAKER MIC HI/LO
POWER INPUT
SPEAKER PTT
SPEAKER INPUT 1 to3HI/LO
SPEAKER LEVEL & MUTE HI/LO 1
Audio signal
Power supply, 28 Vdc
Control signal active low
Audio signal
Analog control signal
1.3.2 Outputs
Name
Qty
Type
SPEAKER OUTPUT HI/LO
1
Audio signal

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page 2
1.4 Specifications
1.4.1 Electrical Specifications
Power Input
Primary nominal voltage 28 Vdc
Maximum voltage 32.2 Vdc
Minimum voltage 22.0Vdc
Emergency voltage 18.0 Vdc
POWER INPUT 'off' voltage ≤ 15.0 Vdc
Input current at Emergency voltage ≤ 1.0 A
1.4.1.1 Audio Performance
Rated Input Level
SPEAKER INPUT audio rated input level 1.00 Vrms ±10%
SPEAKER MIC input level 250 mVrms ±10%
Rated Output Level
6.3 Vrms ±10%
≤ 3dB from 300 to 6000 Hz
SPEAKER OUTPUT rated output level
Audio Frequency Response
Audio output audio frequency response
Distortion Characteristics
Audio output distortion at rated power ≤ 10%
Audio output distortion at 10% of rated power ≤ 3%
Input Impedance
SPEAKER MIC input Impedance 150 Ω±10%
SPEAKER INPUT Impedance 1000 Ω±10%
Output Load
≥3.2 ΩSPEAKER load impedance
Input to Output Crosstalk and Bleed-through Level
Input to Output crosstalk ≤ 55 dB
Input to Input Crosstalk Level
Input to Input crosstalk
Audio Noise Level without Signal
Noise level below the rated output
1.4.1.2 Audio Performance, Other
SPEAKER MIC inputs designed for MIC type
Microphone input bias voltage
Microphone input circuitry type
SPEAKER INPUT audio input circuitry type
≤ 60 dB
≥ 60 dB
amplified dynamic/electret
12 Vdc ± 10%
single ended
differential

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page 3
1.4.1.3
≤+3 Vdc
0.1 to 10 mA
internal pull-up resistor
1.4.1.4
Discrete Signals
Active low control input, active signal level Active
low control input, active signal level sources Active
low control input signals have
Speaker Level and Mute
Level and Mute Control SPEAKER OUTPUT
Resistor between pins 6 and 14 ≥ 1 kΩ, 0 dB = rated output
Resistor between pins 6 and 14 ≤ 10 Ω-32 ± 3 dB of rated output
Pin 6 is shorted to power ground ≤-60 dB of rated output
1.4.2 Mechanical Specifications
Height 1.38 in [35.1 mm] max
Depth not including connectors 6.30 in [160.0 mm] max
Width 2.60 in [66.0 mm] max
Weight 0.68 lbs [0.31 kg] max
Material brushed aluminum with clear
conversion coating
Connector (Speaker) J1 One 15-pin D-Sub male V5 locking
Mounting 4 x 10-32 fasteners
Bonding ≤2.5 mΩ
Installation kit part number INST-JA23
1.4.3 Environmental Specifications
The JA23-001 Speaker Amplifier has been tested to the environmental conditions listed below.
Temperature:
Operating -45 to +70°C
Ground Survival -55 to +85°C
Altitude 50,000 ft
Shock, Crash Safety 6 g, 20 g for 11 ms

Rev A Page 4
JA23-001 Speaker Amplifier
SECTION 2 – INSTALLATION
2.1 Introduction
This section contains unpacking and inspection procedures, installation information, and post-installation checks.
2.2 Continued Airworthiness
Maintenance of the JA23-001 is on condition only. Scheduled inspection and/or periodic maintenance of this unit is
not required.
2.3 Unpacking and Inspecting Equipment
Unpack the equipment carefully. Check for shipping damage and report any problems to the relevant carrier. Confirm
that the Authorized Release Certificate or Certificate of Conformance is included. Complete the on-line warranty card
from the Jupiter Avionics Corporation (JAC) website - www.jupiteravionics.com/warrantyregistration
2.3.1 Warranty
This product manufactured by JAC is warranted to be free of defects in workmanship or performance for 2 years from
the date of installation by an approved JAC dealer or agency. This warranty covers the cost of all materials and labour
to repair or replace the unit, but does not include the cost of transporting the defective unit to and from JAC or its
designated warranty repair centre, or of removing and replacing the defective unit in the aircraft. This warranty does
not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.
THIS WARRANTY IS VOID IF THE PRODUCT IS NOT INSTALLED BY AN AUTHORIZED JAC DEALER. If the on-
line warranty card is not completed, the product will be warranted from the date of manufacture.
Contact JAC for return authorization, and for any questions regarding this warranty and how it applies to your unit(s).
JAC is the final arbiter concerning warranty issues.
2.4 Installation Procedures
WARNING: Loud noise can cause hearing damage. Set the headset volume to minimum before
conducting tests, and slowly increase the volume to a comfortable listening level.
CAUTION: The power input circuitry of the unit may be damaged if the installation does not conform to the
wiring instructions in this manual.
2.4.1 Installation Limitations
Those installing the JA23, on or in a specific type or class of aircraft, must determine that the aircraft installation
conditions meet standards. The JA23 may be installed only by following the applicable airworthiness requirements.
2.4.2 Cabling and Wiring
All wire shall be selected in accordance with the original aircraft manufacturer’s maintenance instructions, or AC43.13-
1B Change 1, Paragraphs 11-76 through 11-78. Unshielded wire types shall qualify to MIL-W-22759 as specified in
AC43.13-1B Change 1, Paragraphs 11-85, 11-86, and listed in Table 11-11. For shielded wire applications, use Tefzel
MIL-C-27500 shielded wire with tag ring or equivalent (for shield terminations) to make the most compact and easily
terminated interconnect. Follow the Connector Map in Appendix A of this manual.

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page 5
Allow 3” from the end of the shielded wiring to the shield termination to allow the connector hood to be easily installed.

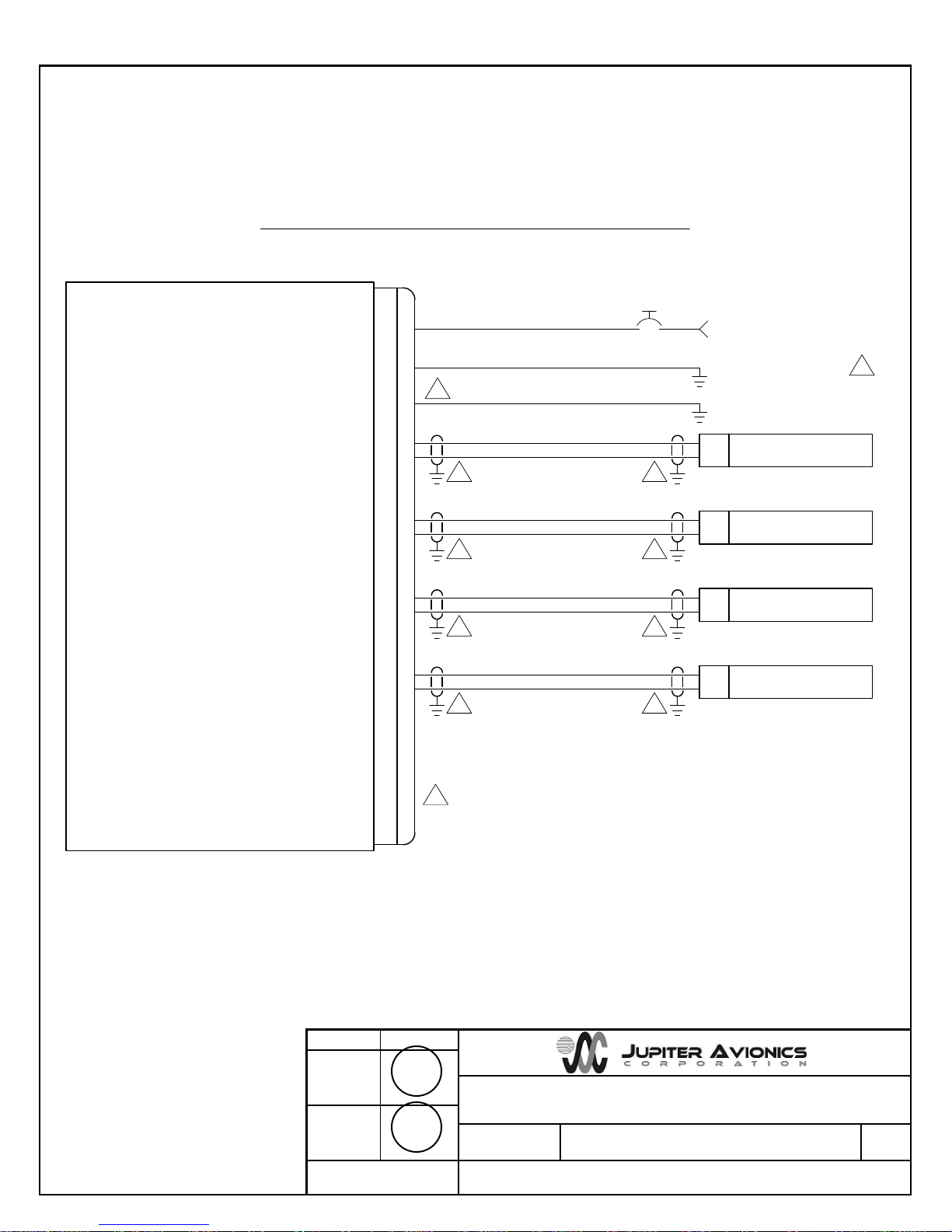

Refer to the Interconnect drawing in Appendix A of this manual for shield termination details. Note that this unit has a
‘clamshell’ hood that is installed after the wiring is complete.
Maintain wire segregation and route wiring in accordance with the original aircraft manufacturer’s maintenance
instructions.
Unless otherwise noted, all wiring shall be a minimum of 24 AWG, except power and ground lines, which shall be a
minimum of 22 AWG. Refer to the Interconnect drawing for additional specifications. Check that the ground
connection is clean and well secured, and that it shares no path with any electrically noisy aircraft accessories such
as blowers, turn-and-bank instruments, or similar loads.
2.4.3 Mechanical Installation
The JA23-001 can be mounted in any attitude and location with sufficient clearance for the connector and wiring
harness. It requires no direct cooling.
2.4.4 Post Installation Checks
2.4.4.1 Voltage/Resistance checks.
Do not attach this unit until the following conditions are met:
a) Check P1 pin 1for +28 Vdc relative to ground.
b) Check P1 pin 9for continuity to ground (less than 0.5 Ω).
c) Check P1 pins 6 and 14 for continuity to ground (less than 0.5 Ω) when relevant switch is closed (if
connected).
d) Check all pins for shorts to ground or adjacent pins.
2.4.4.2 Configuration
There are no configurable settings on the JA23-001.
2.4.4.3 Power on Checks.
Power up the aircraft’s systems and confirm normal operation of allfunctions of the JA23. Refer to section 2.5 and
section 3.2 for alloperating functions.
When all performance checks are satisfied, complete the necessary regulatory documentation before releasing the
aircraft for service. Refer toAppendix B.
2.5 Equipment Function
When the SPEAKER PTT input is active, the sum of the SPEAKER INPUTS and SPEAKER MIC is routed to the
SPEAKER OUTPUT.
When the SPEAKER LEVEL AND MUTE HI input is grounded, the SPEAKER OUTPUT is muted.
When the SPEAKER LEVEL AND MUTE HI input is connected to the SPEAKER LEVEL AND MUTE LO via an
external control, the SPEAKER OUTPUT level is adjusted by the external speaker level control.

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page 6
2.6 Installation Kit
The kit required to install this unit is not included with the unit.
The installation kit (Part # INST-JA23) consists of the following:
Quantity Description JAC Part #
1 TAG ring 3/8 in I/D CON-5500-0375
1 D-Sub 15-pin crimp socket connector assembly CON-3420-0015
1 3/4" Inside Diameter - Black, Heat Shrink Tube WIR-HTSK-0750
1 I k Ohm Panel pot POT-1RV6-1K00
1 VOL Knob KNB-1100-VOL
1 Label LAB-PLAS-0154
2.6.1 Recommended Crimp Tools
Standard D-Sub Crimp Tool Chart
Tool Type
Hand crimping tool
Positioner
Insertion/extractor tool
POSITRONIC
9507-0-0-0
9502-5-0-0
4711-2-0-0
DANIELS
AFM 8
K13-1
91067-2
MIL-SPEC
M22520/2-01
M22520/2-08
M81969/1-02
2.7 Installation Drawings
The drawings and documents required for Installation can be found in Appendix A of this manual.

Rev A Page 7
JA23-001 Speaker Amplifier
SECTION 3 – OPERATION
3.1 Introduction
This section contains the operating instructions for the JA23-001.
3.2 Controls
Note: The JA23-001 has no integral operator controls. Confirm details of the speaker system with your
installing agency.
3.2.1 Speaker Push To Talk
The JA23-001 can be provided with an external Speaker PTT switch that will allow speaker operation when grounded.
3.2.2 Optional Speaker Mute Switch
The JA23-001 can be provided with an external Speaker Mute Switch that will mute the speaker when grounded.
3.2.3 Optional Volume Level Potentiometer
The JA23-001 can be provided with an external pot that can be used to control the speaker volume level.
.

Rev A Page A1
JA23-001 Speaker Amplifier
Installation and Operating Manual
Appendix A - Installation Drawings
A1 Introduction
The drawings necessary for installation and troubleshooting of the JA23-001 Speaker Amplifier are in this Appendix,
as listed below.
A2 Installation Drawings
DOCUMENT Rev
JA23-001 Connector Map A
JA23-001 Interconnect A
JA23-001 Mechanical Installation A

JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Speaker Amplifier

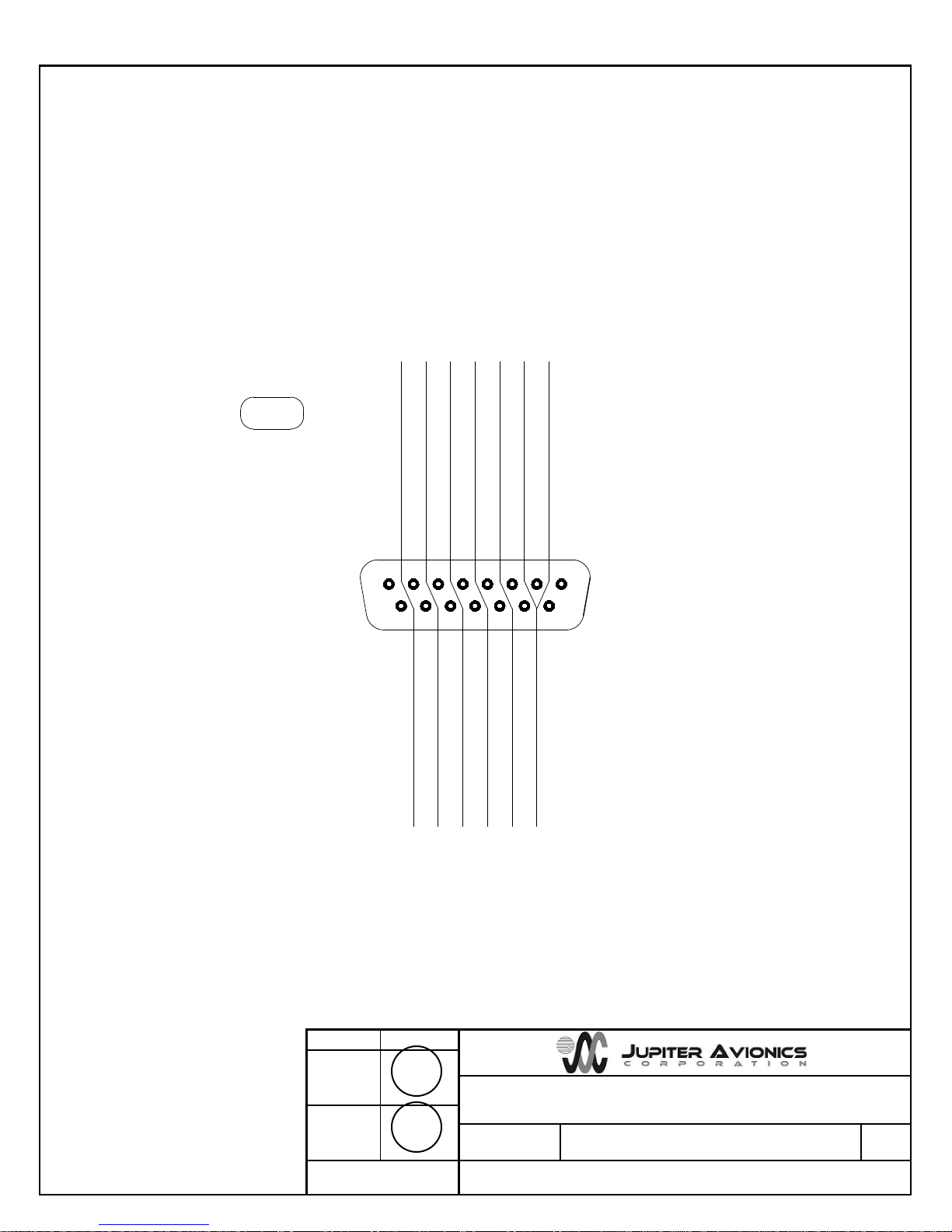

P1 Connector Map
JA23-001 1/1
JA23-001 Connector Map Rev A.dwg
TAT
VIEW IS FROM REAR OF MATING CONNECTOR
P1
15 PIN FEMALE DMIN
MATING CONNECTOR
1 2 3 4 5
9 10 11 12
POWER INPUT SPEAKER INPUT 1 HI SPEAKER INPUT 2 HI SPEAKER INPUT 3 HI
POWER GROUND SPEAKER INPUT 1 LO SPEAKER INPUT 2 LO SPEAKER INPUT 3 LO
6 7 8
14 1513
SPEAKER OUTPUT HI SPEAKER MIC HI SPEAKER LEVEL AND MUTE HI SPEAKER PTT
SPEAKER MIC LO SPEAKER LEVEL AND MUTE LO SPEAKER OUTPUT LO
SPEAKER CONNECTOR
JAC
CPM
10-19-17
JAC
KDV
10-20-17

JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Speaker Amplifier
Interconnect Notes
JA23-001 1/3
JA23-001 Interconnect Rev B.dwg
TAT/CPM
JA23-001 INTERCONNECT WIRING NOTES
NOTES
ALL WIRE SIZE SHOULD BE 24 AWG MIN UNLESS OTHERWISE SPECIFIED. UNSHIELDED
WIRE SHOULD BE SELECTED PER FAA AC43.13-1B CHANGE 1 PARA 11-76 TO 11-78. WIRE
TYPES SHOULD BE IN ACCORDANCE WITH MIL-W-22759 AS DESCRIBED IN FAA AC43.13-1B
CHANGE 1 PARA 11-85 AND 11-86 AND LISTED IN TABLE 11-11 OR 11-12. ALL SHIELDED
CABLE SHOULD BE IN ACCORDANCE WITH MIL-DTL-27500 (REVISION H OR LATER).
CONNECTION TO AIRFRAME GROUND SHOULD BE MADE WITH 20 AWG WIRE. LENGTH NOT
TO EXCEED 3 FT (0.91 M).
CABLE SHIELDS AT THE JA23 CONNECTOR END SHOULD BE TERMINATED TO AIRFRAME
GROUND USING THE TAG RING SUPPLIED IN THE INSTALLATION KIT OR EQUIVALENT.
SPEAKER PTT MUST BE GROUNDED TO ALLOW SPEAKER OPERATION.
SPEAKER LEVEL CAN BE ADJUSTED BY PLACING A RESISTOR BETWEEN PINS 6 & 14.
OPEN CIRCUIT OR 1K Ohm = FULL RATED OUTPUT POWER
<10 Ohm = -32 dB FROM RATED OUTPUT POWER
2
1.
3
4
5
JAC
SRM
12-11-17
JAC
KDV
12-11-17

SPEAKER MIC HI
SPEAKER MIC LO PA MIC OUTPUT
5
13
JA23-001 J1 P1 15 PIN FEMALE DMIN
MATING CONNECTOR
AIRFRAME GROUND
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Speaker Amplifier
J1 Interconnect
JA23-001 2/3
JA23-001 Interconnect Rev B.dwg
TAT/CPM
+28 VDC POWER
1.5A
POWER INPUT 1
POWER GROUND 9 2
AUDIO CONTROLLER
3 2
20 AWG
20 AWG
SPEAKER PTT 7
MIC
LO
PTT
SPEAKER LEVEL AND MUTE HI
SPEAKER LEVEL AND MUTE LO
6
14 3 2 SPEAKER LEVEL CONTROL
1K OHM POT
PANEL MOUNT
P/O INST-JA23
SPEAKER OUTPUT HI
SPEAKER OUTPUT LO 8
15 3 2
SPEAKER
3.2 TO 16 OHMS
20 AWG
CW
CCW
OPTIONAL SPEAKER MUTE SWITCH
SPEAKER INPUT 1 HI
SPEAKER INPUT 2 LO
2
11
SPEAKER INPUT 2 HI 3
SPEAKER INPUT 1 LO
SPEAKER INPUT 3 HI
10
4
SPEAKER INPUT 3 LO 12
4
5
N/C
N/C
N/C
N/C
N/C
N/C
JAC
SRM
12-11-17
JAC
KDV
12-11-17

JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Speaker Amplifier
Optional Audio Summing Amplifier
JA23-001 3/3
JA23-001 Interconnect Rev B.dwg
TAT/CPM
SPEAKER INPUT 1 HI 2
SPEAKER INPUT 1 LO 10
8
15 AUDIO INPUT
AUDIO CONTROLLER
AUDIO SOURCE
AUDIO 1
SPEAKER OUTPUT HI
SPEAKER OUTPUT LO
OPTIONAL CONFIGURATION AUDIO SUMMING AMPLIFIER
3 2
3 2
SPEAKER INPUT 2 HI 3
SPEAKER INPUT 2 LO 11 AUDIO SOURCE
AUDIO 2
3 2
SPEAKER INPUT 3 HI 4
SPEAKER INPUT 3 LO 12 AUDIO SOURCE
AUDIO 3
3 2
SPEAKER MIC HI
SPEAKER LEVEL AND MUTE HI
5
6
JA23-001 J1 P1 15 PIN FEMALE DMIN
MATING CONNECTOR
AIRFRAME GROUND
+28 VDC POWER
1.5A
POWER INPUT 1
POWER GROUND 9 2
20 AWG
20 AWG
SPEAKER MIC LO
SPEAKER LEVEL AND MUTE LO
13
14
SPEAKER PTT 7 4
5
N/C
N/C
JAC
SRM
12-11-17
JAC
KDV
12-11-17

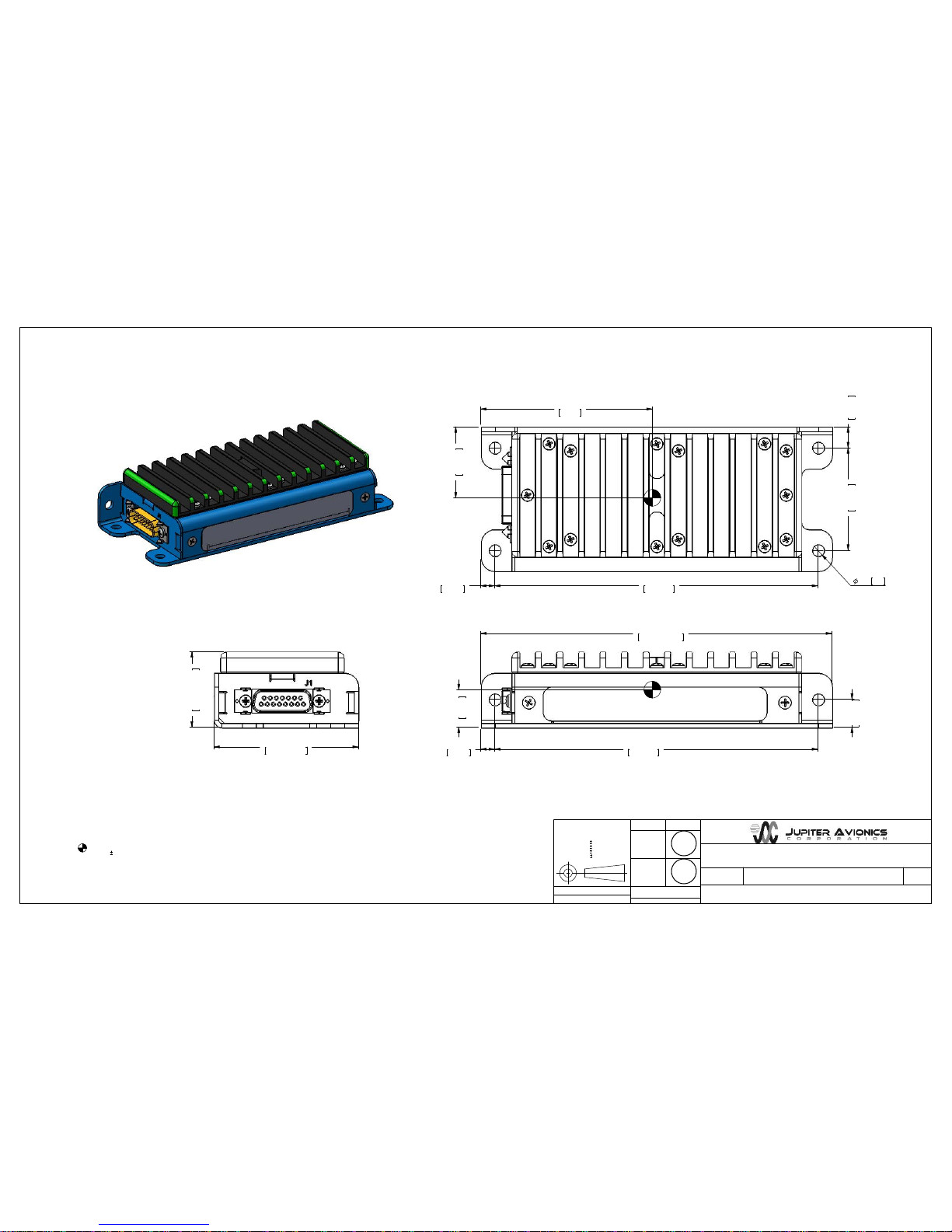

CENTER OF GRAVITY
WEIGHT: 0.68 lbs [0.31 kg] MAX.
0.03in [0.8mm]
0.67in
17mm
1.27in
32.3mm
3.07in
78mm
146.7mm
5.78in
12.7mm
0.50in
0.25in
6.4mm
6.30in MAX
160.0mm MAX
6.4mm
0.25in
46.5mm
1.83in 0.38in
9.5mm
146.7mm
5.78in 0.21 5.4
2.60in MAX
66.0mm MAX
1.38in MAX
35.1mm MAX
CONFIDENTIAL & PROPRIETARY
0.5 DEG
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEB REV B.DRWDOT JA23-001 Mechanical Installation Rev A.SLDDRW
DOC. NO.
1/1
SHEET
JA23-001
PART NO.
TITLE
DRAWING NOT TO SCALE
TO JUPITER AVIONICS CORP.
APPROVED
CHECKED
TATPREPARED
N/AN/A
MATERIAL:
FINISH:
NCAGE CODE
L00N3
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005
ANGLES: Speaker Amplifier
JAC
CPM
10-23-17
JAC
KDV
10-24-17

Rev A Page B1
JA23-001 Speaker Amplifier
Installation and Operating Manual
Appendix B - Installation Documents

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page B2
B1 Airworthiness Approval
Airworthiness approval of the JA23-001 Speaker Amplifier may require completion of a TCCA Major Modification
Report per CAR STD (AWM) 571 Appendix L, or a FAA Form 337. The sample wording for a description of the work
is provided to assist the Installing Agency in preparing Instructions for Continued Airworthiness (ICA) when replacing
an existing speaker amplifier with a Jupiter Avionics JA23-001 Speaker Amplifier. This sample may be modified
appropriately for new installations. It is the installer’s responsibility to determine the applicability of the method used.
Installations performed outside Canada must follow the applicable aviation authority’s regulations.
Sample Wording:
Removed the existing [model] speaker amplifier and replaced with a Jupiter Avionics JA23-001 Speaker Amplifier in
[aircraft location].
Installed inaccordance with the JA23-001 Installation Manual, Revision [ ], and AC 43.13-2, Chapters 2, and 3.
The JA23-001 interfaces with existing aircraft systems per the Installation Manual instructions.
The JA23-001 Installation Manual provides detailed installation instructions and wiring diagrams (Section 2, and
Appendices A and B).
Power is supplied to the JA23-001 through an existing [ ]-Amp circuit breaker that was previously used bythe original
speaker amplifier.The net electrical load is unchanged.
Aircraft equipment list, weights and balance amended. Compass compensation checked and found to conform to
applicable regulations.
B2 Instructions for Continued Airworthiness
Maintenance of the JA23-001 Speaker Amplifier is “on condition” only. Refer to the JA23-001 Maintenance Manual.
Periodic maintenance of the JA23-001 is not required.
The following sample Instructions for Continued Airworthiness (ICA) provides assistance in preparing ICA for the
Jupiter Avionics JA23-001 unit installation as part of a Type Certificate (TC) or Supplemental Type Certificate (STC)
project to comply with CAR STD (AWM) 523/527/525/529.1529 or FAR 23/25/27/29.1529 “Instructions for Continued
Airworthiness”.
Items that may vary by aircraft make and model are shown in brackets (“[ ]”) and should be filled in as appropriate.
Some of the checklist items do not apply, in which case they should be marked “N/A” (Not Applicable).
Instructions for Continued Airworthiness, Jupiter Avionics JA23-001 Speaker
Amplifier in an [Aircraft Make and Model]
1. Introduction
[Aircraft that has been altered: Registration number, Make, Model and Serial Number]
Content, Scope, Purpose and Arrangement: This document identifies the Instructions for Continued
Airworthiness for a Jupiter Avionics JA23-001 installed in an [aircraft make and model].
Applicability: Applies to a Jupiter Avionics JA23-001 installed in an [aircraft make and model].
Definitions/Abbreviations: None, N/A.
Precautions: None, N/A.
Units of Measurement: None, N/A.
Referenced Publications: JA23-001 Installation and Operating Manual
JA23-001 Maintenance Manual
STC/TC # [applicable STC/TC number for the specific aircraft installation]
Distribution: This document should be a permanent aircraft record.

JA23-001 Speaker Amplifier
Installation and Operating Manual
Rev A Page B3
2. Description of the System/Alteration
Jupiter Avionics JA23-001 Speaker Amplifier with interface to external transceivers and [include other
equipment/systems as appropriate]. Refer to Appendix A of this manual for interconnect information. Refer to
aircraft manufacturer approved interconnect for actual installation.
3. Control, Operation Information
N/A
4. Servicing Information
N/A
5. Maintenance Instructions
Maintenance of the JA23-001 is ‘on condition’ only. Periodic maintenance is not required. Refer to the
JA23-001 Maintenance Manual.
6. Troubleshooting Information
Refer to the JA23-001 Maintenance Manual.
7. Removal and Replacement Information
Refer to Section 2 of this manual - the JA23-001 Installation and Operating Manual. If the unit is removed and
reinstalled, a functional check of the equipment should be conducted.
8. Diagrams
Refer to Appendix A of this manual - the JA23-001 Installation and Operating Manual - for installation drawings
and interconnect examples.
9. Special Inspection Requirements
N/A
10. Application of Protective Treatments
N/A
11. Data: Relative to Structural Fasteners
JA23-001 and appropriate mounting hardware installation, removal and replacement should be in accordance
with applicable provisions of AC 43.13-1B and AC 43.13-2A.
12. Special Tools
N/A
13. This Section is for Commuter Category Aircraft Only
A. Electrical loads: Refer to Section 1 of the JA23-001 Installation and Operating Manual.
B. Methods of balancing flight controls: N/A.
C.Identification of primary and secondary structures: N/A.
D.Special repair methods applicable to the airplane: N/A.
14. Overhaul Period
No additional overhaul time limitations.
15. Airworthiness Limitation Section
N/A
