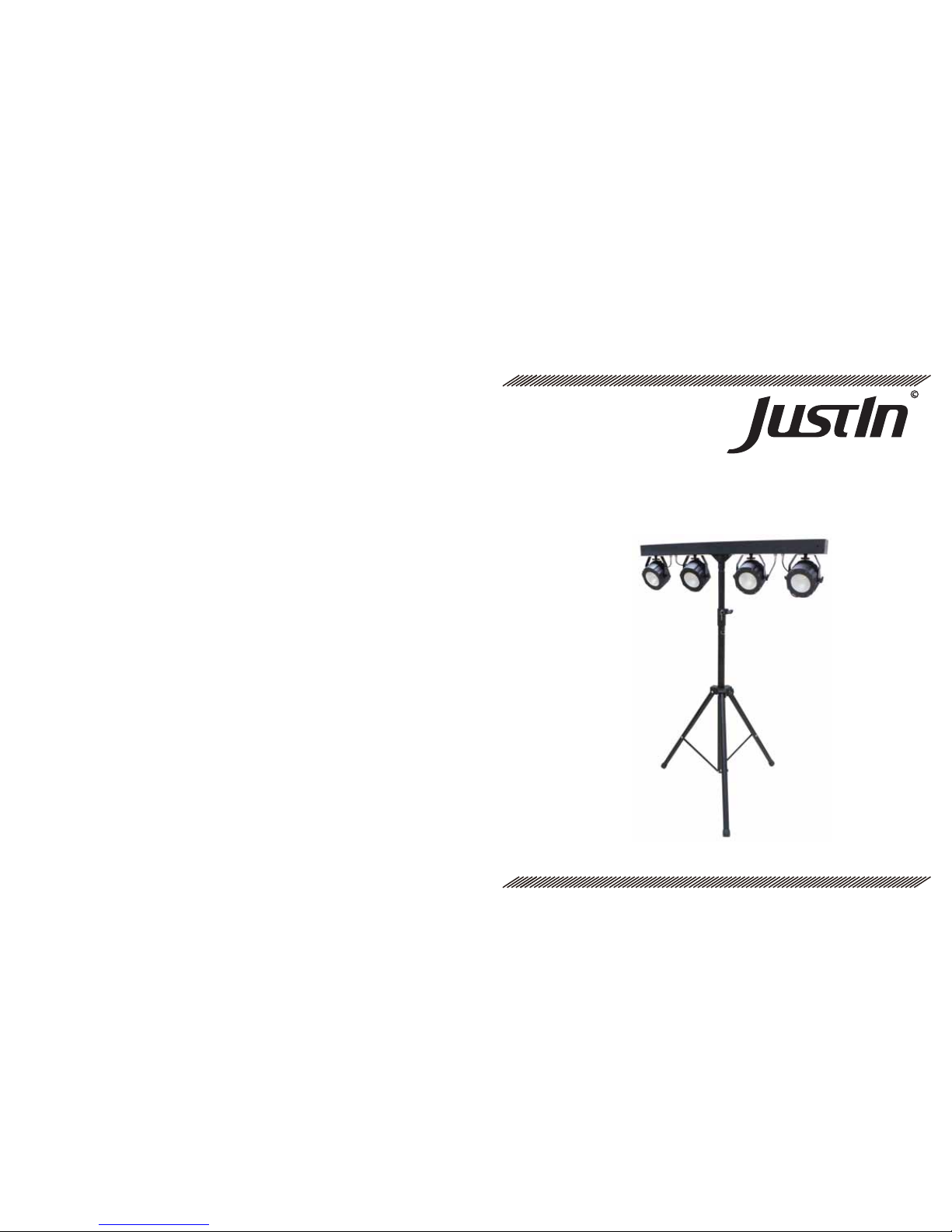

Justin JM-LED Bright Strike 4 User manual

AH006E
Please read carefully before use
User manual
JM-LED Bright Strike 4

Unpacking: Thank you for purchasing the AH006E. Every AH006E has been tested and
shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your fixture for any damage and be sure all equipment necessary to operate the
unit has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not
return this unit to your dealer without contacting customer support first.
Introduction: The AH006E has five DMX mode, The fixture can operate in three different
operating modes; DMX contorl, sound-active, or in a Master/Slave configuration. For best
results use fog or special effects smoke to enhance the beams projections.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit
to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light source
at all times!
Place the AH006A stand on solid flat
ground. Set the AH006A with 35mm
flange on top of stand . Adjust the stand
height and tighten all fixing screws .
Additionally fix screws with safety bolts.
Move LED PARs in direction you need
and fix them with screws. Before you
switch on power please crosscheck that all
connections have been made properly.
1 6

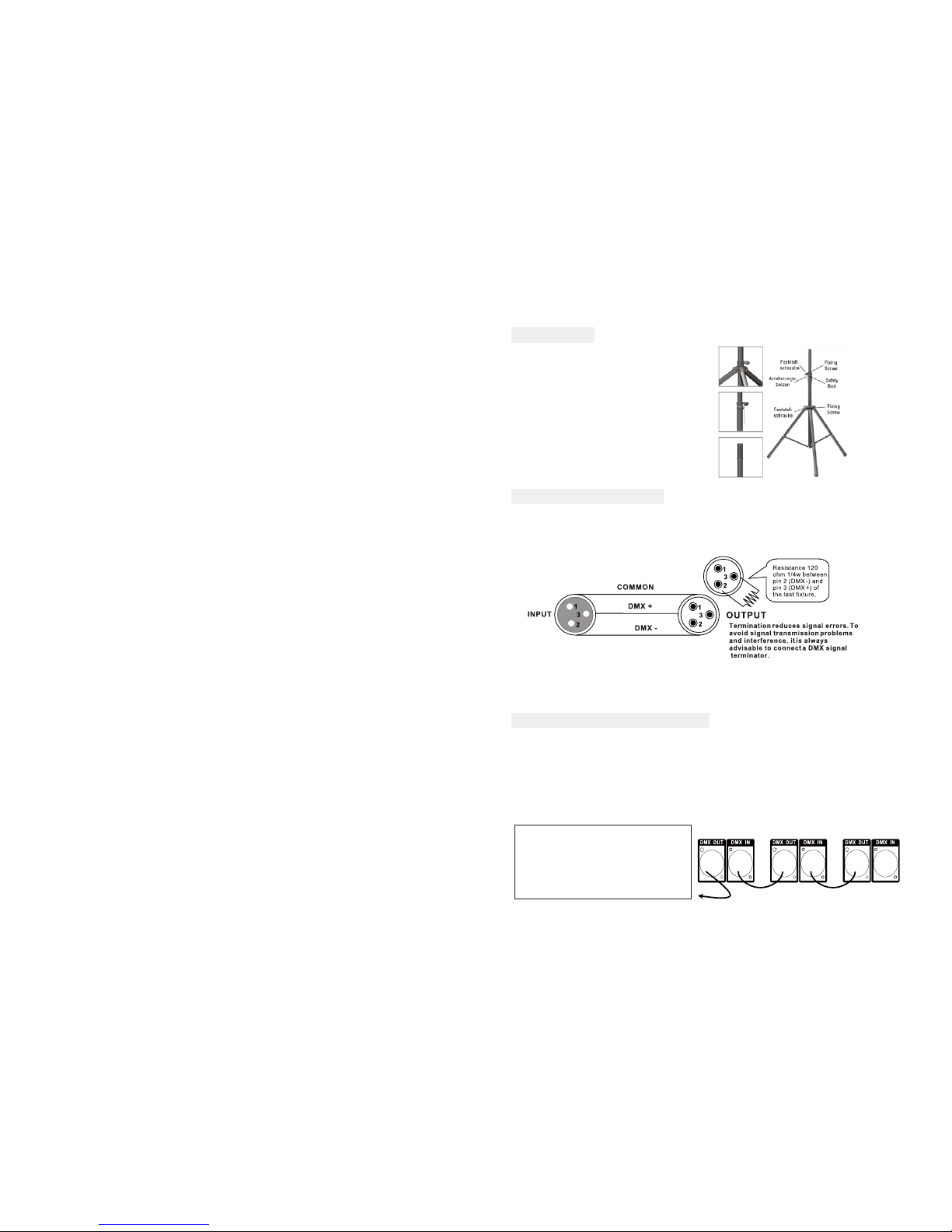

Installation
CABLE CONNECTORS
Master/Slave Fixture Linking
Cabling must havea male XLR connector on one end and a female XLR connector on
the other end.
caution:Do not allow contact between the common and the fixture’s chassis ground. Grounding the
common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm
meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or
each other.
DMX connector configuration
Often, the setup for Master Slave and Standalone
operation requires that the first fixture in the chain be
initialized for this purpose via either settings in the
control or DIP-switches. Secondarily. the fixtures that
follow may also require a slave setting. Please consult
the “Operating instructions” section in this manual for
complete instructions for this type of setup and
configuration
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3
pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female)
3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin
connector. Then,proceed to connect from the output as stated above to the input of the
following fixture and soon.
Slave Slave Master
BS-4. BS-4
BS-4
BS-4
BS-4

Unpacking: Thank you for purchasing the AH006E. Every AH006E has been tested and
shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your fixture for any damage and be sure all equipment necessary to operate the
unit has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not
return this unit to your dealer without contacting customer support first.
Introduction: The AH006E has five DMX mode, The fixture can operate in three different
operating modes; DMX contorl, sound-active, or in a Master/Slave configuration. For best
results use fog or special effects smoke to enhance the beams projections.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit
to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light source
at all times!
Place the AH006A stand on solid flat
ground. Set the AH006A with 35mm
flange on top of stand . Adjust the stand
height and tighten all fixing screws .
Additionally fix screws with safety bolts.
Move LED PARs in direction you need
and fix them with screws. Before you
switch on power please crosscheck that all
connections have been made properly.
1 6
Installation
CABLE CONNECTORS
Master/Slave Fixture Linking
Cabling must havea male XLR connector on one end and a female XLR connector on
the other end.
caution:Do not allow contact between the common and the fixture’s chassis ground. Grounding the
common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm
meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or
each other.
DMX connector configuration
Often, the setup for Master Slave and Standalone
operation requires that the first fixture in the chain be
initialized for this purpose via either settings in the
control or DIP-switches. Secondarily. the fixtures that
follow may also require a slave setting. Please consult
the “Operating instructions” section in this manual for
complete instructions for this type of setup and
configuration
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3
pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female)
3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin
connector. Then,proceed to connect from the output as stated above to the input of the
following fixture and soon.
Slave Slave Master
channel
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
value
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 239
240 --- 255
function
pot 1 red (0% --- 100%)
pot 1 green (0% --- 100%)
pot 1 blue (0% --- 100%)
pot 2 red (0% --- 100%)
pot 2 green (0% --- 100%)
pot 2 blue (0% --- 100%)
pot 3 red (0% --- 100%)
pot 3 green (0% --- 100%)
pot 3 blue (0% --- 100%)
pot 4 red (0% --- 100%)
pot 4 green (0% --- 100%)
pot 4 blue (0% --- 100%)
Strobe (Ch1-12)
Auto mode speed (Ch14)
Auto mode
Sound mode
channel
CH1
CH2
CH3
CH4
CH5
value
0 --- 255
0 --- 255
0 --- 255
0 --- 255
0 --- 239
240 --- 255
function
Red
Green
Blue
Strobe (Ch1-3)
Auto mode speed (Ch5)
Auto mode
Sound mode
DMX Mode 1:5CH
DMX Mode 1:14CH
● Voltage: 100V- 240V,50/60Hz
● LEDs: 4*30W RGB LED
● Effect: Chasing and wash effect
● DMX Channels: 5 & 14 DMX Channel Modes
● Power Consumption: 120W
● NET Weight: 18.5Kgs
● Gross Weight: 21.3Kg
● Dimensions: 1140 x 95 x 272mm
Please Note: Specifications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
Model: AH006E
Features of AH006E
● RGB Color Mixing
● Color Strobe Effect
● LED Chases (Adjustable Speeds)
● Built in Microphone
● DMX-512 protocol
● Five DMX Modes
● 3 Operating Modes - Sound Active, Auto Mode, or DMX Control
● DMX-512 Protocol Compatible
● Digital Display for Address and Function Setting
25

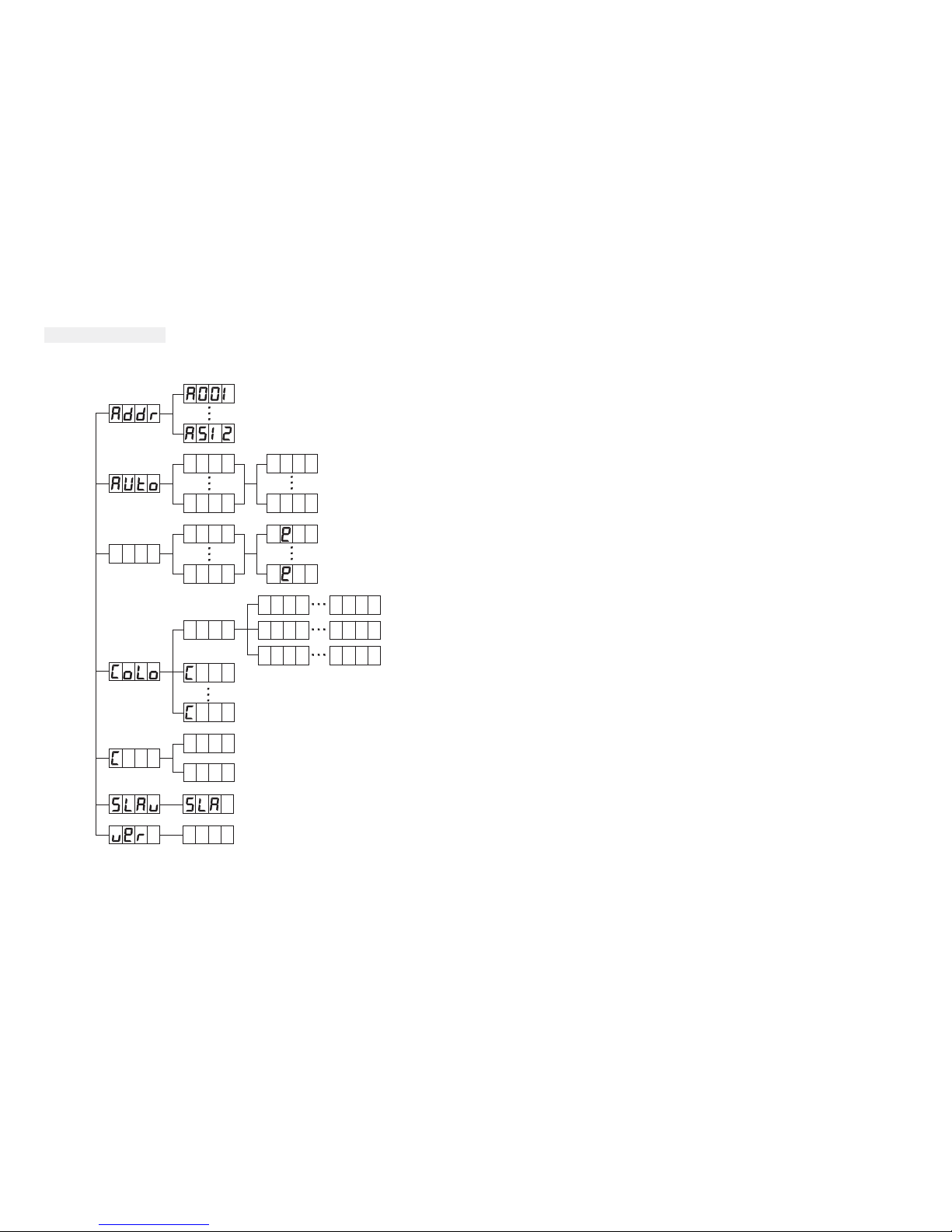

DMX control mode Features of Bright Strike 4
Model Bright Strike 4

On Board System
R000
G000
B000
R255
SOU7
SOU 1
AUT6
AUT 1 SP 1
SP Q
S 0
S Q
SOUD
G255
B255
ATF
10
OL1
OLQ
5[H
14[H
HND
Addr - DMX Address Setting via control board
1. Tap the MENU button and UP button or DOWN button until “Addr” is displayed, press ENTER.
2. “Axxx” will now be displayed, “x” represents the displayed address. Press the UP or DOWN buttons
to find your desired address.
Auto -This menu will let you select your desired auto mode
1. Tap the MENU button and UP button or DOWN button until “Auto” is displayed, press ENTER.
2. “Autx” will now be displayed, You can confirm six modes by UP or DOWN for auto mode.
Soun - This menu will let you select your desired sound mode
1. Tap the MENU button until “Soun” is displayed, press ENTER.
2. “Soux” will now be displayed, you can confirm seven modes by UP or DOWN for sound mode.
Colo - This menu will let you select your desired colour mode
1. Tap the MENU button and UP button or DOWN button until “CoLo” is displayed, press ENTER.
2. Either “CoL X”, “X” representing a number between 1-9 or “AtF” will be displayed. Press the
UP or DOWN buttons to select either a static color or “AtF” mode. If you select a static color press
ENTER and it will be confirmed. “AtF” Make your own color by mixing and adjusting the red, blue and
green manually. Select “AtF”, press ENTER,“Rxxx” “Gxxx” or “Bxxx” will be displayed. then you can
adjust it between 0-255, press ENTER ,you can select other color by UP or DOWN to adjust it.
Chnd- This menu will let you select the channel
1. Tap the MENU button until “Chnd ” is displayed, press ENTER.
2.Press UP or DOWN to select the channel
SLav- This menu will let you select your desired Master/slave mode
1. Tap the MENU button until “SLav” is displayed, press ENTER.
2. “Sla ” will now be displayed, Slave mode is confirmed. It will be slaved by auto mode sound mode
and chase mode
uer-This will display the software version
1. Press the UP or DOWN button until "uer" is dispalyed, press ENTER.
2. The software version will be displayed.
43
