Justin Micro Strike User manual

AH057
Please read carefully before use
User manual
Micro Strike

Unpacking: Thank you for purchasing the AH057. Every AH057 has been tested and
shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully
inspect your fixture for any damage and be sure all equipment necessary to operate the
unit has arrived intact. In the event damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Please do not
return this unit to your dealer without contacting customer support first.
Introduction: The AH057 is one DMX mode. The fixture can operate in three different
operating modes; DMX contorl, sound-active, or in a Master/Slave configuration. The
AH057 comes with several built in programs that can be used, while operating as a
dimmer unit or when used in multiples linked in a master/slave configuration. For best
results use fog or special effects smoke to enhance the beams projections.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit
to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light
source at all times!
1 6
● Light Source: 3*R, 3*G, 3*B, 3*W 1Watt LEDs
● Beam Angle:25°
● Life Time：80000-100,000 hours
● Dimming 0-100%with regulated constant color control
● Strobe: 10 Flashed per second (any color)
● Operation Mode：DMX 512,Manual,sound,internal program
● DMX control: 4/7 DMX mode
● Control panel: Digital 4 characters alphanumeric
● Input voltage: AC100-240V, 50-60HZ (Power supply switch)
● Max Power:12W
● Maximum Ambient Temperature：40℃
● G.W:1.0kg
Please Note: Specifications and improvements in the design of this unit and
this manual are subject to change without any prior written notice.
Model: AE022-5K
Features of AE022-5KDMX control mode
● Color Strobe Effect
● Color Mix Effect
● LED Chases (Adjustable Speeds)
● Electronic Dimming 0-100%
● Built in Microphone
● DMX-512 protocol
● 3 Operating Modes - Sound Active, Maser/Slave Mode, and DMX Control
● DMX-512 Protocol Compatible
● Digital Display for Address and Function Setting
25
Channel
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
Value
0--255
0--255
0--255
0--255
0--255
0--255
0-15
16-31
32-47
48-63
64-79
80-95
96-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-239
240-255
Function
Master dimmer (0%--100%)
Red (0%--100%)
Green (0%--100%)
Blue (0%--100%)
White (0%--100%)
Adjust Strode when CH 6<16, adjust speed when CH 6>95
Dimmer
Color mixing plus change 1
Color mixing plus change 2
Color mixing plus change 3
Color mixing plus change 4
Color mixing plus change 5
Color sync strobe
Color fade
Color sync
Colors mixing & change then Shuter closing
down-dimming plus color change
Up-dimming plus color change
Color Up-dimming then down-dimming
Color mix change
Run sound mode 1
Run sound mode 2
Channel
CH 1
CH 2
CH 3
CH 4
Value
0--255
0--255
0--255
0--255
Function
Red (0%--100%)
Green (0%--100%)
Blue (0%--100%)
White (0%--100%)
JM-MS. JM-MS
JM-MS
JM-MS

● Light Source: 3*R, 3*G, 3*B, 3*W 1Watt LEDs
● Beam Angle:25°
● Life Time：80000-100,000 hours
● Dimming 0-100%with regulated constant color control
● Strobe: 10 Flashed per second (any color)
● Operation Mode：DMX 512,Manual,sound,internal program
● DMX control: 4/7 DMX mode
● Control panel: Digital 4 characters alphanumeric
● Input voltage: AC100-240V, 50-60HZ (Power supply switch)
● Max Power:12W
● Maximum Ambient Temperature：40℃
● G.W:1.0kg
Please Note: Specifications and improvements in the design of this unit and
this manual are subject to change without any prior written notice.
Model: AE022-5K
Features of AE022-5KDMX control mode
● Color Strobe Effect
● Color Mix Effect
● LED Chases (Adjustable Speeds)
● Electronic Dimming 0-100%
● Built in Microphone
● DMX-512 protocol
● 3 Operating Modes - Sound Active, Maser/Slave Mode, and DMX Control
● DMX-512 Protocol Compatible
● Digital Display for Address and Function Setting
25
Channel
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
Value
0--255
0--255
0--255
0--255
0--255
0--255
0-15
16-31
32-47
48-63
64-79
80-95
96-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-239
240-255
Function
Master dimmer (0%--100%)
Red (0%--100%)
Green (0%--100%)
Blue (0%--100%)
White (0%--100%)
Adjust Strode when CH 6<16, adjust speed when CH 6>95
Dimmer
Color mixing plus change 1
Color mixing plus change 2
Color mixing plus change 3
Color mixing plus change 4
Color mixing plus change 5
Color sync strobe
Color fade
Color sync
Colors mixing & change then Shuter closing
down-dimming plus color change
Up-dimming plus color change
Color Up-dimming then down-dimming
Color mix change
Run sound mode 1
Run sound mode 2
Channel
CH 1
CH 2
CH 3
CH 4
Value
0--255
0--255
0--255
0--255
Function
Red (0%--100%)
Green (0%--100%)
Blue (0%--100%)
White (0%--100%)
Features Micro Strike
Model Micro Strike

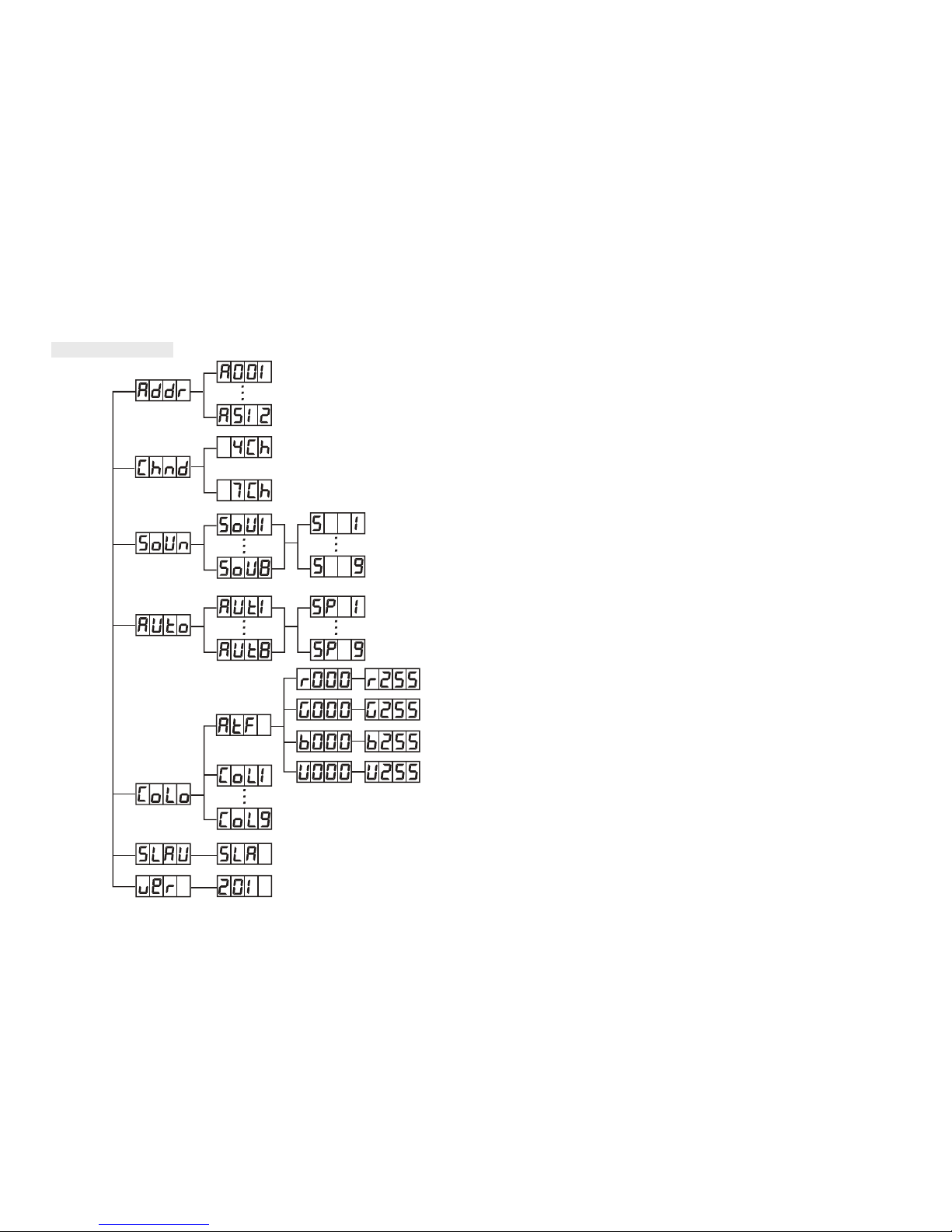

Addr - DMX Address Setting via control board
1. Tap the MENU button and UP button or DOWN button until “Addr” is displayed, press ENTER.
2. “Axxx” will now be displayed, “x” represents the displayed address. Press the UP or DOWN buttons
to find your desired address.
Chnd - This menu will let you select your desired DMX Channel mode.
1. Tap the MENU button and UP button or DOWN button until “Chnd” is displayed, then press
ENTER.
2. “X Ch” now is displayed, “X” represents the displayed DMX channel mode. Press the UP or DOWN
buttons to find your desired Channel mode.
Soun - This menu will let you select your desired sound mode
1. Tap the MENU button until “Soun” is displayed, press ENTER.
2. “Soux” will now be displayed, you can confirm eight modes by UP or DOWN for sound mode.
Auto -This menu will let you select your desired auto mode
1. Tap the MENU button and UP button or DOWN button until “Auto” is displayed, press ENTER.
2. “Autx” will now be displayed, You can confirm eight modes by UP or DOWN for auto mode.
Colo - This menu will let you select your desired sound mode
1. Tap the MENU button and UP button or DOWN button until “CoLo” is displayed, press ENTER.
2. .Either “CoL X”, “X” representing a number between 1-9 or “AtF” will be displayed. Press the
UP or DOWN buttons to select either a static color or “AtF” mode. If you select a static color press
ENTER and it will be confirmed. “AtF” Make your own color by mixing and adjusting the red, blue and
green manually. Select “AtF”, press ENTER,“Rxxx” “Gxxx” or “Bxxx” will be displayed. then you can
adjust it between 0-255, press ENTER ,you can select other color by UP or DOWN to adjust it.
SLav- This menu will let you select your desired Master/slave mode
1. Tap the MENU button until “SLav” is displayed, press ENTER.
2. “Sla ” will now be displayed, Slave mode is confirmed. It will be slaved by auto mode sound mode
and chase mode
uer-This will display the software version
1. Press the UP or DOWN button until "uer" is dispalyed, press ENTER.
2. The software version will be displayed.
On Board System
3 4
Distributed by Just Music GmbH
PO Box 024676, 10128 Berlin/Germany
