JVC Everio GZ-EX255 Operating and maintenance manual

Basic User Guide
CAMCORDER
GZ-EX255 D
.
Basic User Guide
(this manual)
Stylus pen
CD-ROM AV Cable
USB Cable
(Type A - Mini Type B)
Battery Pack
BN-VG114E
Power Cord AC Adapter
AC-V10M
Verifying the Accessories

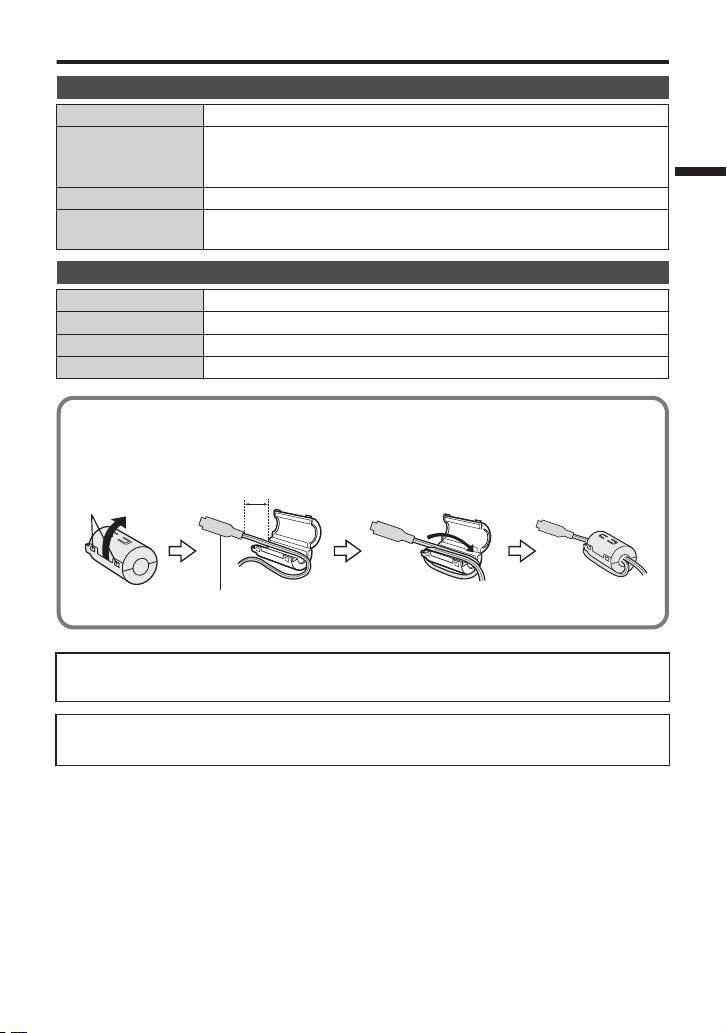

Core Filter
(for AV Cable)
Core Filter
(for USB Cable)
Complies with
IDA Standards
DB102150
LYT2453-001A-M
Dear Customers
Thank you for purchasing this JVC product.
Before use, please read the Safety Precautions
and Cautions on p. 2 and p. 16 to ensure
safe use of this product.
EN
.Detailed User Guide
For more details on operating this product, please refer to the
“Detailed User Guide” at the following website.
o
http://manual3.jvckenwood.com/index.html/

Safety Precautions
.
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm or more on
both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping
or splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
CAUTIONS:
•
Be sure to use the supplied AC adapter.
Do not use the supplied AC adapter with other
devices.
•
NOTES:
•The rating plate and safety caution are on the
bottom and/or the back of the main unit.
•The serial number plate is on the battery pack
mount.
•The rating information and safety caution of the
AC adapter are on its upper and lower sides.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
CAUTIONS:
•If you notice smoke or a peculiar smell coming
from this unit or AC Adapter, shut it down and
unplug it immediately. Continue using the unit or
AC Adapter under these conditions could lead to
fire or electric shock. Contact your JVC dealer.
Do not attempt to repair the malfunction yourself.
•To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified personnel.
•When you are not using the AC adapter for a
long period of time, it is recommended that you
disconnect the power cord from AC outlet.
•In certain areas, use the conversion plug
depending on the type of your AC wall outlet.
WARNING:
The battery pack, this unit with battery installed,
and the remote control with battery installed
should not be exposed to excessive heat such as
direct sunlight, fire or the like.
Caution on Replaceable lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Panasonic, Sanyo, Sony or
Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
•Dispose of used battery promptly.
•Keep away from children.
•
Do not disassemble and do not dispose of in fire.
CAUTION:
To avoid electric shock
or damage to the
unit, first firmly insert
the small end of the
power cord into the
AC Adapter until it is
no longer wobbly, and
then plug the larger
end of the power cord into an AC outlet.
CAUTION:
The mains plug shall remain readily operable.
•Remove the mains plug immediately if this unit
functions abnormally.
Make a backup of important recorded data
JVC will not be responsible for any lost data.
It is recommended to copy your important recorded
data to a disc or other recording media for storage
once every 3 months.
2

.
Remember that this unit is intended for
private consumer use only.
Any commercial use without proper permission
is prohibited. (Even if you record an event such
as a show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Trademarks
• AVCHD and AVCHD logo are trademarks of
Panasonic Corporation and Sony Corporation.
• HDMI is a trademark of HDMI
Licensing, LLC.
• Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
• Windows®is either registered trademark or
trademark of Microsoft Corporation in the
United States and/or other countries.
• Macintosh is a registered trademark of Apple Inc.
• iMovie and iPhoto are trademarks of Apple Inc.,
registered in the U.S. and other countries.
• YouTube™ and the YouTube logo are
trademarks and/or registered trademarks of
Google Inc.
•
Intel, Intel Core, and Pentium are trademarks or
registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
•
Wi-Fi, Wi-Fi logo, Wi-Fi CERTIFIED, Wi-Fi
CERTIFIED logo, WPA, and WPA2 are trademarks
or registered trademarks of Wi-Fi Alliance.
•
Other product and company names included in
this instruction manual are trademarks and/or
registered trademarks of their respective holders.
•
Marks such as ™ and ® have been omitted in this
manual.
Do not point the lens directly into the sun. This
can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also
a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to this unit and to the user.
Carrying or holding this unit by the LCD monitor
can result in dropping the unit, or in a malfunction.
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious damage
to the unit.
CAUTION!
Connecting cables (Audio/Video, etc.) to this unit
and leaving it on top of the TV is not recommended,
as tripping on the cables will cause the unit to fall,
resulting in damage.
If this symbol is shown, it is only valid
in the European Union.
•
•
-
-
-
-
•
Be sure to keep it out of reach of young children.
It may be swallowed accidentally.
Do not place the stylus pen within the reach of
young children.
Doing so may cause blindness or other
damages to the eye.
Do not poke your eye with the stylus pen.
Scratches and damages caused by using stylus
pens besides the supplied one cannot be
guaranteed.
Be sure to use the supplied stylus pen.
Stylus Pen
3

Contents
Safety Precautions ................................. 2
Names of Parts and Functions ............... 4
Getting Started
Grip Adjustment ..................................... 5
Charging the Battery Pack ..................... 5
Inserting an SD Card .............................. 6
Using the Icon Buttons/Thumbnails ........ 6
Clock Setting .......................................... 7
Video Quality .......................................... 7
Recording
Video Recording .................................... 8
Still Image Recording ............................. 9
Playback

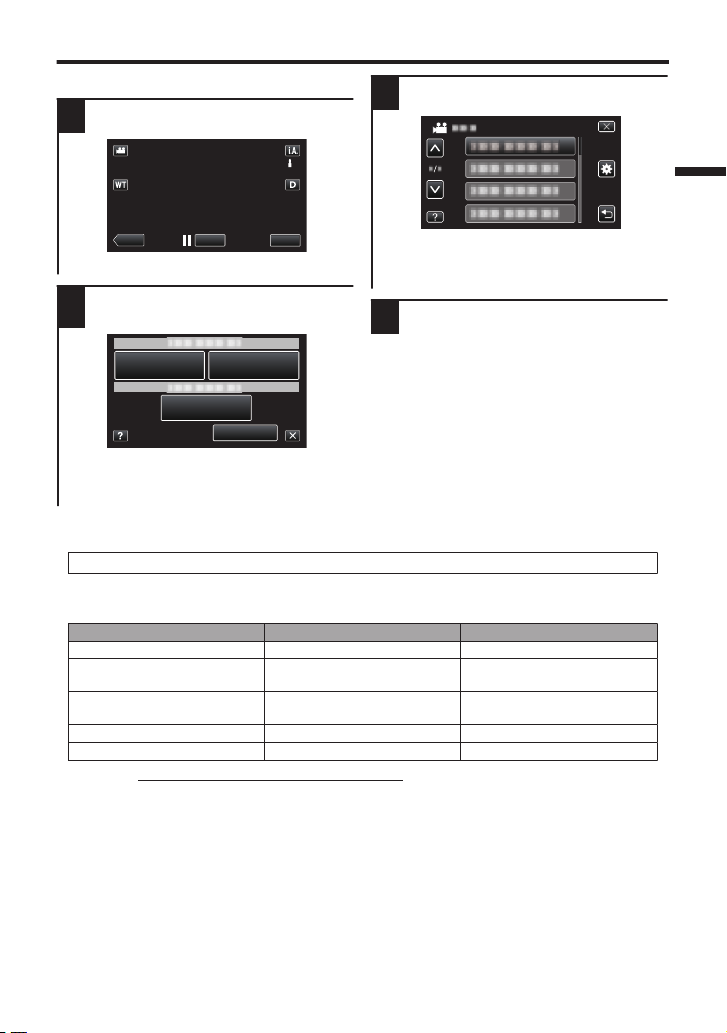

Playing Back/Deleting Files on this Unit .. 10

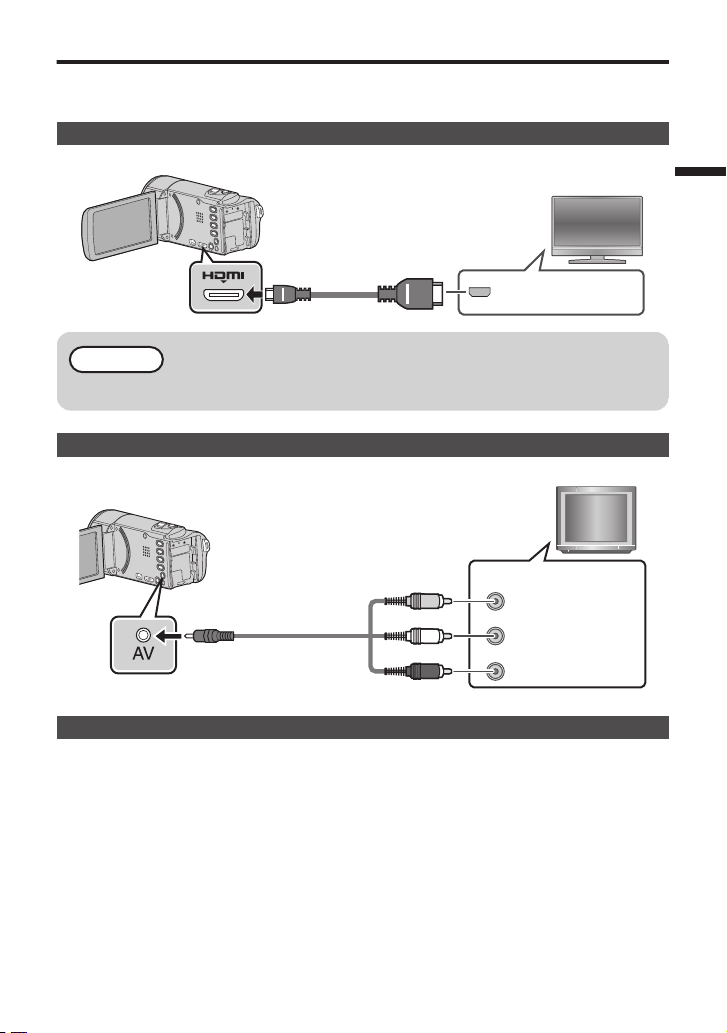

Playing Back on TV .............................. 11
Copying

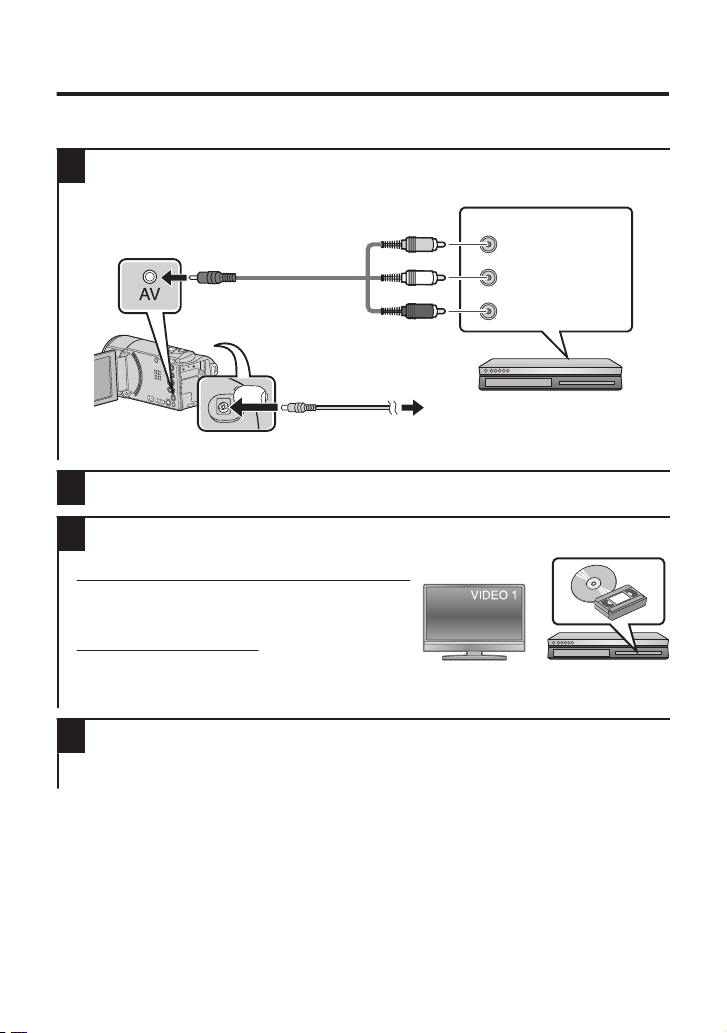

Dubbing Files by Connecting to a DVD
Recorder or VHS .................................. 12
Further Information
Changing Menu Settings ...................... 13
Troubleshooting ................................... 14
Cautions ............................................... 16
Recordable Time/Number of Images ... 18
Specifications ....................................... 19
Names of Parts and Functions
.
D
J
BC
E
F
G
H
A
K IL
ALight
BZoom/Volume Lever (p. 8, 10)
CSNAPSHOT (Still Image Recording)
Button (p. 9)
DSTART/STOP (Video Recording)
Button (p. 8)
EA/B (Video/Still Image) Button
Switches between video and still image
modes.
FSILENT Button
Ga (Image Stabilizer) Button
HINFO (Information) Button
Recording : Displays the remaining
time (for video only) and
battery power.
Playback : Displays file information
such as recording date.
IAV Connector
JM (Power) Button
Press and hold to turn the power on/off
while the LCD monitor is opened.
KHDMI Mini Connector
LUSB Connector
4

Grip Adjustment
.
Close the lever
Adjust the length
of the belt
Open the lever on
the strap lock
Charging the Battery Pack
.
(Base)
To detach the battery pack
Charging finished:
Goes out
Charging in progress:
Blinks
Charging Lamp
Plug in the power.
(110 V to 240 V)
AC Adapter
To AC Outlet
Cover
Connect the DC
connector.
Mark
Align the top of the battery
with the mark on this unit,
and slide in until the battery
clicks into place.
The battery pack is not
charged at the time of
purchase.
Attach the battery pack.
CAUTION
Be sure to use JVC battery packs.
0If you use any other battery packs besides JVC battery packs, safety and
performance cannot be guaranteed.
0Charging time: Approx. 2 h 30 m (using supplied battery pack)
0
The charging time is when the unit is used at 25°C. If the battery pack is charged
outside the room temperature range of 10°C to 35°C, charging may take a longer
time or it may not start. The recordable and playable time may also be shortened
under some usage conditions such as at low temperature.
0You can record or play back videos while the AC adapter is connected. (Battery
charging cannot be performed during recording or playback.)
Remove the battery when the unit is to be used for a long time. Performance
of the battery may drop if it is left attached to the unit.
5

Inserting an SD Card
By default, it is set to “BUILT-IN MEMORY”.
To record to the card, it is necessary to perform media settings. (Refer to the Detailed User
Guide.) When no card is available, set media settings to “BUILT-IN MEMORY” for recording.
.
Turn off the power of this unit before
inserting or removing a card.
(Base)
Label
Insert an SD card.
Open the cover.
Close the LCD monitor.
oTo remove the card
Push the card inward once, then pull it out straight.
NOTE
Operations are confirmed on the following SD cards.
Manufacturer Panasonic, TOSHIBA, SanDisk
Video AClass 4 or higher compatible SD card (2 GB)/
Class 4 or higher compatible SDHC card (4 GB to 32 GB)/
Class 4 or higher compatible SDXC card (48 GB to 64 GB)
(When recording with video quality “UXP”, Class 6 or higher
is recommended.)
Still Image BSD card (256 MB to 2 GB) / SDHC card (4 GB to 32 GB) /
SDXC card (48 GB to 64 GB)
0Using SD cards (including SDHC/SDXC cards) other than those specified
above may result in recording failure or data loss.
0
This unit is not guaranteed to operate with all SD cards, even when using the ones
specified above. Some SD cards may not work due to specification changes, etc.
0To protect the data, do not touch the terminals of the SD card.
0When using an SDXC card, check its compatibility with the OS of your computer
by referring to the Detailed User Guide.
0
When “SEAMLESS RECORDING” in the menu is set to “ON”, recordings can still be made to the
SD card without stopping when the remaining recording time on the built-in memory runs out.
(For details on “SEAMLESS RECORDING”, refer to the Detailed User Guide.)
Using the Icon Buttons/Thumbnails
A Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection.
B Drag the thumbnails on the touch screen to search for the desired file.
.
≪REC
0:01:23 0:12:34
Index ScreenPlayback ScreenRecording Screen
MENU
≪PLAY REC
0:01:23 0:12:34
MENU
≪REC
6

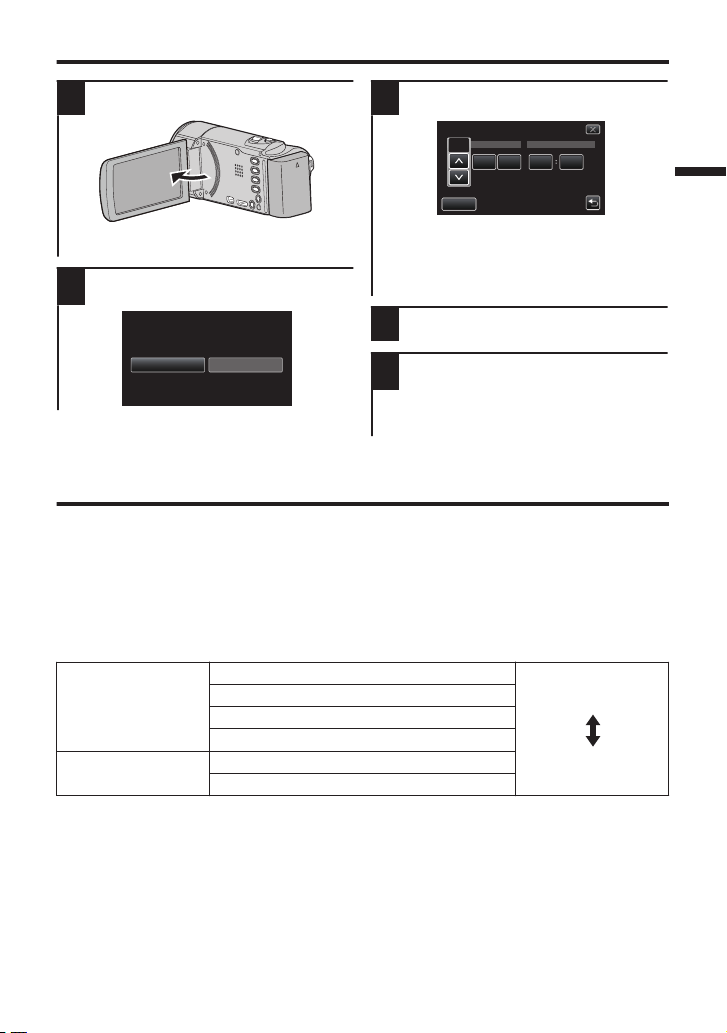

Clock Setting
1Open the LCD monitor.
.
0The unit turns on. When the LCD
monitor is closed, the unit turns off.
2Tap “YES” when “SET DATE/TIME!”
is displayed.
.
NO
YES
SET DATE/TIME!
3Set the date and time.
.
201211000
TIMEDATE
CLOCK SETTING
1
SET
0
When the year, month, day, hour, or minute
item is tapped, “∧” and “∨” will be displayed.
Tap “∧” or “∨” to adjust the value.
0
Repeat this step to input the year, month, day,
hour, and minute.
4
After setting the date and time, tap “SET”.
5Select the region where you live and
tap “SAVE”.
0The city name and time difference are
displayed.
0Tap “<” or “>” to select the city name.
Video Quality
This unit can perform recording in both high and standard definition.
By default, it is set to high definition (XP).
oTo change the setting
ATap “MENU”.
BTap “VIDEO QUALITY”.
CTap the desired video quality.
High Definition UXP Higher video quality
XP
.
SP
EP
Standard Definition SSW
SEW More recording time
* For the approximate video recording time, refer to p. 18.
7

Video Recording
You can record without worrying about the setting details by using the Intelligent Auto mode. Settings
such as exposure and focus will be adjusted automatically to suit the shooting conditions.
0
In case of specific shooting scenes such as person etc., its icon is displayed on the screen.
Before recording an important scene, it is recommended to conduct a trial recording.
.
H
P
A
C
A
(Wide angle)
Zooming
Open the
lens cover.
Check if the recording
mode is CIntelligent Auto.
Start recording.
Press again to stop.
(Telephoto)
If the mode is HManual, tap
Hon the touch screen, then
tap Pto switch.
If the mode is Bstill image,
tap Bon the touch screen,
then tap Ato switch.
Check if the recording
mode is Avideo.
0The mode can also be switched between video and still image by pressing the A/B
button on this unit.
0
You can also tap 6 on the touch screen to record. To stop recording, tap 7 .
In addition, you can also tap D to zoom.
oIndications during video recording
.
MENU
≪PLAY REC
0:00:00 [0:54]
Image Stabilizer
Scene Counter
Battery Indicator
Remaining Recording Time
Video Quality Recording Media
NOTE
0The estimated recording time of the supplied battery pack is approximately 1
hour 5 minutes.
0Do not remove the battery pack, AC adapter, or SD card when the access lamp
is lighted. The recorded data may become unreadable.
0This unit turns itself off automatically to conserve power when it is not operated
for 5 minutes. (only when using the battery pack)
0The angle of view may change when the image stabilizer is turned on or off.
8

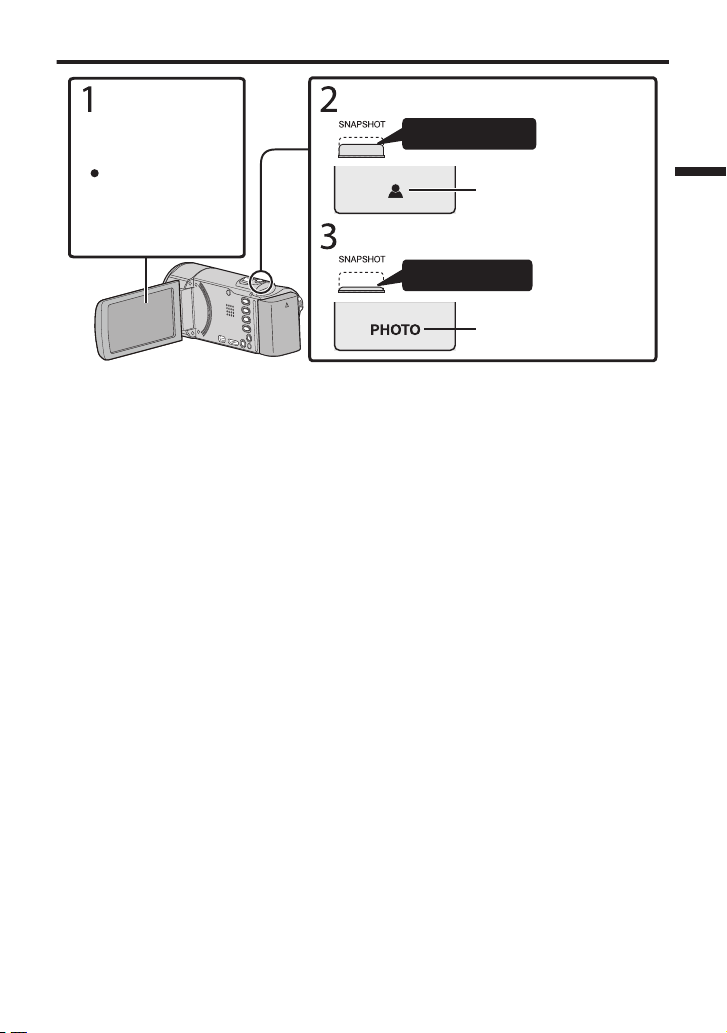

Still Image Recording
.
Press halfway
If the mode is A
video, tap Aon the
touch screen, then
tap Bto switch.
Check if the
recording mode
is Bstill image.
Set the focus on the subject.
Press fully
Lights up in green when
focused
Lights up during still
image recording
Take a still image.
0
You can also tap Q on the touch screen to record. However, focus cannot be set by pressing halfway.
9

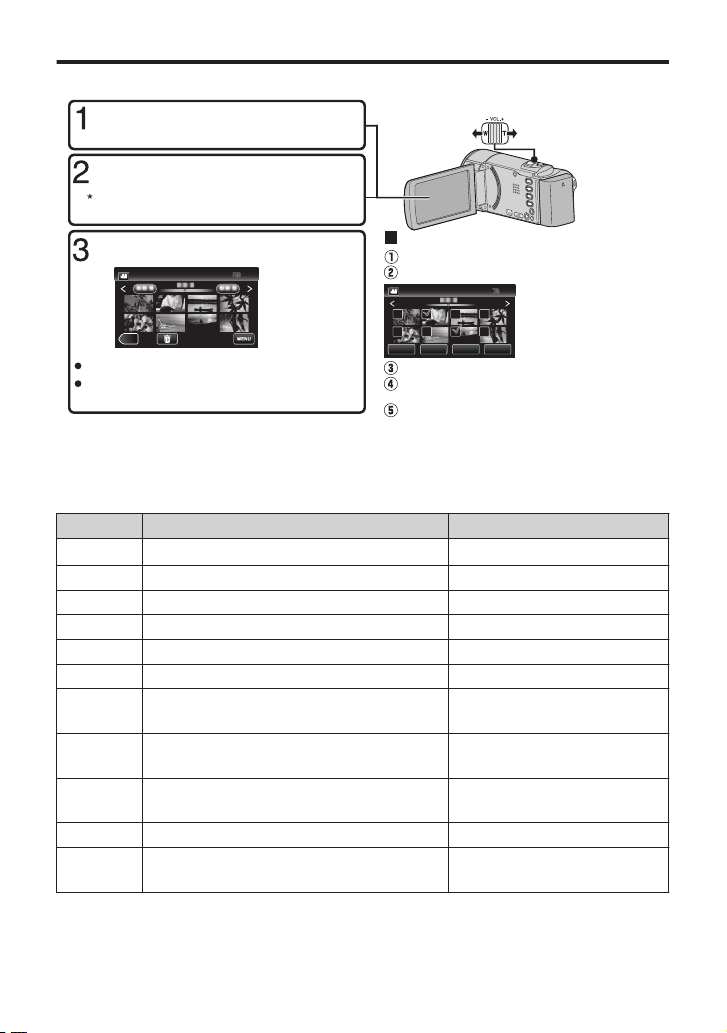

Playing Back/Deleting Files on this Unit
Select and play back the recorded videos or still images from an index screen (thumbnail display).
.
≪REC
A delete mark appears on
the selected file. To remove
the delete mark, tap again.
Ta p Fon the touch screen to select
the playback mode.
Ta p Eto return to the recording mode.
Tap on the file to play back.
Ta p eto pause playback.
Ta p uto return to the video index screen.
Volume adjustment during playback
Turn down the
volume
Turn up the volume
To delete unwanted files
Ta p A.
Tap on the files to delete.
Tap “EXECUTE” when the confirmation
message appears.
Tap “OK”.
Ta p Aor Bto select the video or still
image mode.
DELETE
SEL ALL REL ALL SET QUIT
Tap “SET”.
oTo capture a still image during playback
Pause the playback and press the SNAPSHOT button.
oUsable operation buttons during playback
During video playback During still image playback
d / ePlayback/pause Start/pause slideshow
uStop (returns to index screen) Stop (returns to index screen)
gAdvances to the next video Advances to the next still image
h
Returns to the beginning of the scene Returns to the previous still image
iForward search -
jReverse search -
kForward slow-motion / Press and hold to
start slow playback -
lReverse slow-motion / Press and hold to
start reverse slow playback -
R- Rotates 90 degrees
counterclockwise
S- Rotates 90 degrees clockwise
T-
Continuous playback of images
taken by continuous shooting
0
The buttons disappear after approximately 5 seconds. Tap on the screen to display the buttons again.
10

Playing Back on TV
Preparation:
0Turn off both camera and TV.
To connect using the HDMI mini connector
When connecting to a 1080p compatible TV, set “HDMI OUTPUT” to “AUTO”.
.
HDMI Connector
Input
TV
HDMI Cable
(Optional)
To HDMI Mini
Connector
NOTE
0Use a High Speed HDMI mini cable.
To connect using the AV connector
Change the settings in “VIDEO OUTPUT” according to the connection.
.
Red
White
Ye l l o w
TV
Audio Input (R)
Audio Input (L)
Video Input
Video Input
AV Cable (Provided)
To AV Connector
Playback Operation
After the connection with TV is completed
ATurn on the camera and the TV.
0This unit powers on automatically when the AC adapter is connected.
BSelect the TV input switch.
CStart playback on the camera.
11

Dubbing Files by Connecting to a DVD
Recorder or VHS
You can dub videos in standard quality by connecting to a DVD recorder or VHS.
Refer also to the instruction manuals of the TV, DVD recorder, VHS, etc.
1Connect to a DVD/VHS recorder.
0Disconnect the power supply to turn off the camera.
.
Audio Input (R)
Audio Input (L)
Video Input
Video Input
Red
White
Ye l l o w
To DC Connector
To AC Outlet
(110 V to 240 V)
AC Adapter
AV Cable (Provided)
To AV Connector
DVD/VHS Recorder
0Reconnect the power supply to turn on the camera.
2Tap F to select the playback mode.
3Prepare to record.
Preparation on TV and DVD/VHS recorder
0Switch to a compatible external input.
0Insert a DVD-R or video tape.
Preparation on this unit
0Set “VIDEO OUTPUT” in the “COMMON” menu
to the aspect ratio (“4:3” or “16:9”) of the
connecting TV.
4Start recording.
0Start playback on this unit (p. 10) and press the record button on the recorder.
0After playback is complete, stop the recording.
12

Changing Menu Settings
Select an item from the menu list on the menu screen.
1Tap “MENU”.
.
REC
≪PLAY
MENU
0The shortcut menu appears.
2Tap the desired item in the shortcut
menu.
.
MENU
0If “MENU” is tapped, go to step 3.
0If an item other than “MENU” is tapped,
go to step 4.
3Tap the desired menu.
.
0To adjust settings in the “COMMON”
menu, tap “Q”.
0Tap “∧” or “∨” to scroll the screen.
4Tap the desired setting.
oTo exit the screen
Tap “L” (quit).
oTo return to the previous screen
Tap “J” (return).
.
Customer Support Information
Use of this software is authorized according to the terms of the software license.
Pixela (for inquires regarding the provided software)
Region Language Phone #
USA and Canada English [phone] (toll-free)
Europe (UK, Germany, France,
and Spain) English/German/French/Spanish [phone] (toll-free)
Other Countries in Europe English/German/French/Spanish [phone]
Asia (Philippines) English [phone]
nihCanihC ese 10800-163-0014 (toll-free)
Homepage: http://www.pixela.co.jp/oem/jvc/mediabrowser/e/
Please check our website for latest information and downloading.
13

Troubleshooting
If you encounter problems with this unit, check the following before requesting service.
1 Refer to “Trouble” below.
2 Refer to the “Troubleshooting” section in the “Detailed User Guide”.
If you have difficulties operating the unit, refer to the detailed descriptions in the
“Detailed User Guide”.
0http://manual3.jvckenwood.com/index.html/
3 This unit is a microcomputer-controlled device. Electrostatic discharge, external
noise and interference (from a TV, a radio, etc.) might prevent it from functioning
properly.
In such a case, reset the unit.
ATurn off the power. (Close the LCD monitor.)
BRemove the AC adapter and battery pack from this unit, reattach them,
open the LCD monitor and this unit powers on automatically.
4 If the above do not solve the problem, consult your nearest JVC dealer or JVC
service center.
Trouble
Trouble Action Page
Power
POWER/CHARGE
lamp starts blinking
when the monitor is
closed.
0The battery pack is being charged. 5
Recording
Recording cannot be
performed.
0Check the A / B button. 8
0Set to the recording mode by tapping
the E button. 10
Recording stops
automatically.
0Turn off this unit, wait for a while, and
turn it on again. (This unit stops
automatically to protect the circuit
when the temperature rises.)
-
0Recording stops automatically after
12 hours of continuous recording. -
Unable to record
properly in the
Intelligent Auto mode.
0When there are multiple light sources
and depending on the shooting
conditions, exposure and focus may
not be adjusted correctly in the
Intelligent Auto mode. In this case,
adjust the settings manually.
-
Playback
Sound or video is
interrupted.
0Sometimes playback is interrupted at
the connecting section between two
scenes. This is not a malfunction.
-
14

Other problems
The lamp does not flash
during battery pack
charging.
0Check the remaining battery power.
(When the battery pack is fully
charged, the lamp does not flash.)
5
0When charging in either a hot or cold
environment, ensure that battery is
being charged within the permitted
temperature range. (Otherwise,
charging may stop to protect the
battery pack.)
5
This unit heats up. 0This is not a malfunction. (This unit
may become warm when used for a
long time.)
-
Warning Indications
Warning Indications Action Page
Warning Indications
RECORDING FAILURE
0Turn off and on this unit again. -
0If the above does not solve the
problem, back up your files and
execute “FORMAT BUILT-IN MEM.”
or “FORMAT SD CARD” in the
“COMMON” menu. (All data will be
deleted.)
-
DATA RECORDED FILE IS
TOO SMALL TO BE SAVED
0When time-lapse recording is
stopped with the recorded time less
than “0:00:00:14”, the video will not
be saved.
-
ERROR IN BUILT-IN
MEMORY!/MEMORY
CARD ERROR!
0Turn off and on this unit again. -
0Remove the AC adapter and battery
pack, then remove and re-insert the
SD card.
-
0Remove any dirt from the SD card
terminals. -
0If the above does not solve the
problem, back up your files and
execute “FORMAT BUILT-IN MEM.”
or “FORMAT SD CARD” in the
“COMMON” menu. (All data will be
deleted.)
-
15

Cautions
.
Troubleshooting Recording Medium
•
•
Be sure to follow the guidelines below
to prevent corruption or damage to your
recorded data.
•Do not bend or drop the recording medium,
When formatting or erasing data using
the camcorder, only the file administration
information is changed. The data is not
completely erased from the recording medium.
If you want to completely erase all of the data,
we recommend either using commercially
available software that is specially designed for
that purpose, or by physically destroying the
camcorder with a hammer etc.
or subject it to strong pressure, jolts or
vibrations.
•
Do not splash the recording medium with water.
•Do not use, replace, or store the recording
medium in locations that are exposed to
strong static electricity or electrical noise.
•Do not turn off the camcorder power or
remove the battery or AC adapter during
shooting, playback, or when otherwise
accessing the recording medium.
•Do not bring the recording medium near
objects that have a strong magnetic field or
that emit strong electromagnetic waves.
•Do not store the recording medium in locations
with high temperature or high humidity.
•Do not touch the metal parts.
LCD Monitor
•To prevent damage to the LCD monitor, DO
NOT
... push it strongly or apply any shocks.
... place the camcorder with LCD monitor on the
bottom.
•To prolong service life
... avoid rubbing it with coarse cloth.
Battery Pack
The supplied battery pack is a
lithium-ion battery. Before using
the supplied battery pack or an
optional battery pack, be sure
to read the following cautions:
•To avoid hazards
... do not burn.
... do not short-circuit the terminals. Keep it away
from metallic objects when not in use. When
transporting, carry the battery in a plastic bag.
... do not modify or disassemble.
... do not expose the battery to temperatures
exceeding 60°C, as this may cause the battery
to overheat, explode or catch fire.
... use only specified chargers.
•To prevent damage and prolong service life
... do not subject to unnecessary shock.
... charge within the temperature range of 10°C
to 35°C. Cooler temperatures require longer
charging time, or in some cases stop charging
at all. Warmer temperatures prevent complete
charging, or in some cases stop charging at all.
... store in a cool, dry place. Extended exposure
to high temperatures will increase natural
discharge and shorten service life.
Terminals
keep a 30% battery level ( ) if the battery pack is
not to be used for a long period of time. In addition,
fully charge and then fully discharge the battery
pack every 6 months, then continue to store it at
a 30% battery level ( ).
...
... remove from charger or powered unit when not
in use, as some machines use current even
when switched off.
... do not drop or subject to strong impact.
16

.
Main Unit
•For safety, DO NOT
... open the camcorder’s chassis.
... disassemble or modify the unit.
... allow infl ammables, water or metallic objects to
enter the unit.
... remove the battery pack or disconnect the
power supply while the power is on.
... leave the battery pack attached when the
camcorder is not in use.
... place naked fl ame sources, such as lighted
candles, on the apparatus.
... expose the apparatus to dripping or splashing.
... leave dust or metal objects adhered to the
power plug or an AC wall outlet.
... insert any objects in the camcorder.
•Avoid using the unit
... in places subject to excessive humidity or dust.
... in places subject to soot or steam such as near
a cooking stove.
... in places subject to excessive shock or vibration.
... near a television set.
... near appliances generating strong magnetic
or electric fields (speakers, broadcasting
antennas, etc.).
... in places subject to extremely high (over 40°C)
or extremely low (under 0°C) temperatures.
•DO NOT leave the unit
... in places of over 50°C.
... in places where humidity is extremely low
(below 35%) or extremely high (above 80%).
... in direct sunlight.
... in a closed car in summer.
... near a heater.
... in high places such as on a TV. Leaving the unit
in high places while a cable is connected may
result in a malfunction if the cable is caught and
the unit falls onto the floor.
While the LCD monitor screen has more than
99.99% effective pixels, 0.01% of the pixels
may be bright spots (red, blue, green) or dark
spots. This is not a malfunction. The spots will
not be recorded.
•To protect the unit, DO NOT
... allow it to become wet.
... drop the unit or strike it against hard objects.
... subject it to shock or excessive vibration during
transportation.
... keep the lens directed at extremely bright
objects for long periods.
... expose the lens to direct sunlight.
... swing it excessively when using the hand strap.
... swing the soft camcorder case excessively
when the camcorder is inside it.
... store the camcorder in a dusty or sandy area.
•To prevent the unit from dropping,
•Fasten the grip belt securely.
•When using the camcorder with a tripod,
attach the camcorder to the tripod securely.
If the camcorder drops, you may be injured and
the camcorder may be damaged.
When a child uses the unit, there must be
parental guidance.
17

Recordable Time/Number of Images
You can check the video recording time by pressing the INFO button.
Approximate Video Recording Time
Quality
Built-in
Memory SDHC/SDXC Card
16 GB 4 GB 8 GB 16 GB 32 GB 48 GB 64 GB
UXP 1 h 20 m 20 m 40 m 1 h 20 m 2 h 50 m 4 h 10 m 5 h 40 m
XP 1 h 50 m 30 m 1 h 2 h 4 h 6 h 8 h 10 m
SP 2 h 40 m 40 m 1 h 20 m 2 h 50 m 5 h 50 m 8 h 30 m 11 h 30 m
EP 6 h 40 m 1 h 40 m 3 h 30 m 7 h 10 m 14 h 40 m 21 h 30 m 28 h 50 m
SSW 5 h 10 m 1 h 20 m 2 h 40 m 5 h 30 m 11 h 20 m 16 h 40 m 22 h 20 m
SEW 10 h 40 m 2 h 50 m 5 h 40 m 11 h 30 m 23 h 30 m 34 h 30 m 46 h 10 m
0The approximate recording time is only a guide. The actual recording time may shorten
depending on the shooting environment.
Approximate Number of Still Images (Unit: Number of Shots)
Image Size Built-in
Memory SDHC/SDXC Card
16 GB 4 GB 8 GB 16 GB 32 GB
1920X1080 (2M) (16:9) 9999 3100 6500 9999 9999
1440X1080 (1.5M) (4:3) 9999 4200 8500 9999 9999
640X480 (0.3M) (4:3) 9999 9999 9999 9999 9999
Approximate Recording Time (Using Battery)
Battery Pack Charging Time Continuous
Recording Time Actual Recording Time
BN-VG114E (Supplied) 2 h 30 m 2 h 1 h 5 m
BN-VG121E 3 h 30 m 3 h 5 m 1 h 40 m
0The battery pack is not charged at the time of purchase.
0The above are values when “LIGHT” is set to “OFF” and “MONITOR BRIGHTNESS” is
set to “3” (standard).
0Recording time may differ depending on the shooting environment and usage.
18

Specifications
Camera
Power supply Using AC adapter: DC 5.2 V, Using battery pack: DC 3.5 V - 3.6 V
Power consumption 2.3 W(when “LIGHT” is set to “OFF” and “MONITOR
BRIGHTNESS” is set to “3” (standard))
Rated Current Consumption: 1A
Dimensions 50.5 mm x 55 mm x 116 mm (W x H x D: excluding grip belt)
Mass Approx. 195 g (camera only),
Approx. 235 g (including supplied battery pack)
AC Adapter (AC-V10M)
Power supply AC 110 V to 240 V, 50 Hz/60 Hz
Output DC 5.2 V, 1.0 A
Dimensions 83 mm x 28 mm x 40 mm (W x H x D: excluding cord and AC plug)
Mass Approx. 77 g
oAttaching the Core Filter
Attach the core filter to the AV Cable and USB Cable as shown in the illustration. The
core filter reduces interference when this unit is connected to other devices.
.
3 cm
To be connected to this unit
Release the
stopper.
Wind once (for AV Cable)
Wind twice (for USB Cable)
The specifications and appearance of this product are subject to changes for
further improvement without prior notice.
For more information, please refer to the Detailed User Guide.
http://manual3.jvckenwood.com/index.html/
19

.
TRA
REGISTERED No : ER0079985/12
DEALER No : DA0077455/11
*LYT2453-001A-M*
©2012 JVC KENWOOD Corporation AG 0212ZAR-SW-VM
