SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.86772
2003/5
DIGITAL HD VIDEO CAMERA
8677220035GR-HD1US
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
GR-HD1US [M3D8L3]

1-2 (No.86772)
SPECIFICATION
Camcorder
AC Power Adapter/Charger
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without
notice.
For General Power supply DC 6.3 V (Using AC Power Adapter/Charger)
DC 7.2 V (Using battery pack)
Power consumption LCD monitor off, viewfinder on Approx. 6.8 W (DV)/8.0 W (HD, SD)
LCD monitor on, viewfinder off Approx. 8.5 W (DV)/9.7 W (HD, SD)
Dimensions (W x H x D) 114.5 mm ×99 mm ×271.5 mm
(4-9/16" ×3-15/16" ×10-3/4")
(with the LCD monitor closed and the viewfinder pushed
back in)
Weight Approx. 1270 g (2.8 lbs)
(without cassette, memory card and battery)
Approx. 1490 g (3.3 lbs)
(incl. cassette, memory card and battery)
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 35% to 80%
Storage temperature -20°C to 50°C (-4°F to 122°F)
Pickup 1/3" CCD
Lens F 1.8, f = 5.2 mm to 52 mm, 10:1 power zoom lens
Filter diameter Ø52 mm
LCD monitor 3.5" diagonally measured, LCD panel/TFT active matrix
system
Viewfinder Electronic viewfinder with 0.44" color LCD
Speaker Monaural
For Digital
Video Camera Signal format NTSC standard
Cassette Mini DV cassette
Tape speed SP: 18.8 mm/s
LP: 12.5 mm/s
Maximum recording time
(using 80 min. cassette) SP: 80 min. LP: 120 min.
For Digital Still
Camera Storage media SD Memory Card/MultiMediaCard
Compression system JPEG (compatible)
File size 2 modes (1280 ×960 pixels/640 ×480 pixels)
Picture quality 2 modes (FINE/STANDARD)
For Connectors S/AV S-Video input Y: 0.8 V to 1.2 V (p-p), 75Ω, analog
C: 0.2 V to 0.4 V (p-p), 75Ω, analog
S-Video output Y: 1.0 V (p-p), 75Ω, analog
C: 0.29 V (p-p), 75Ω, analog
Video input Y: 0.8 V to 1.2 V (p-p), 75Ω, analog
Video output Y: 1.0 V (p-p), 75Ω, analog
Audio input 300 mV (rms), 50 kΩ, analog, stereo
Audio output 300 mV (rms), 1 kΩ, analog, stereo
Headphone output Stereo
Microphone input Stereo
i.LINK Input/output 4-pin, IEEE 1394 compliant
USB 5-pin
Y/Pb/Pr output Y: 1.0 V (p-p), 75Ω, analog
Pb: 0.7 V (p-p), 75Ω, analog
Pr: 0.7 V (p-p), 75Ω, analog
For General Power requirement U.S.A. and Canada AC 120 Vd, 60 Hz
Other countries AC 110 V to 240 Vd, 50 Hz/60 Hz
Power consumption 23W
Output Charge DC 7.2 V, 1.2 A
VTR DC 6.3 V, 1.8 A

(No.86772)1-3
SECTION 1
PRECAUTIONS

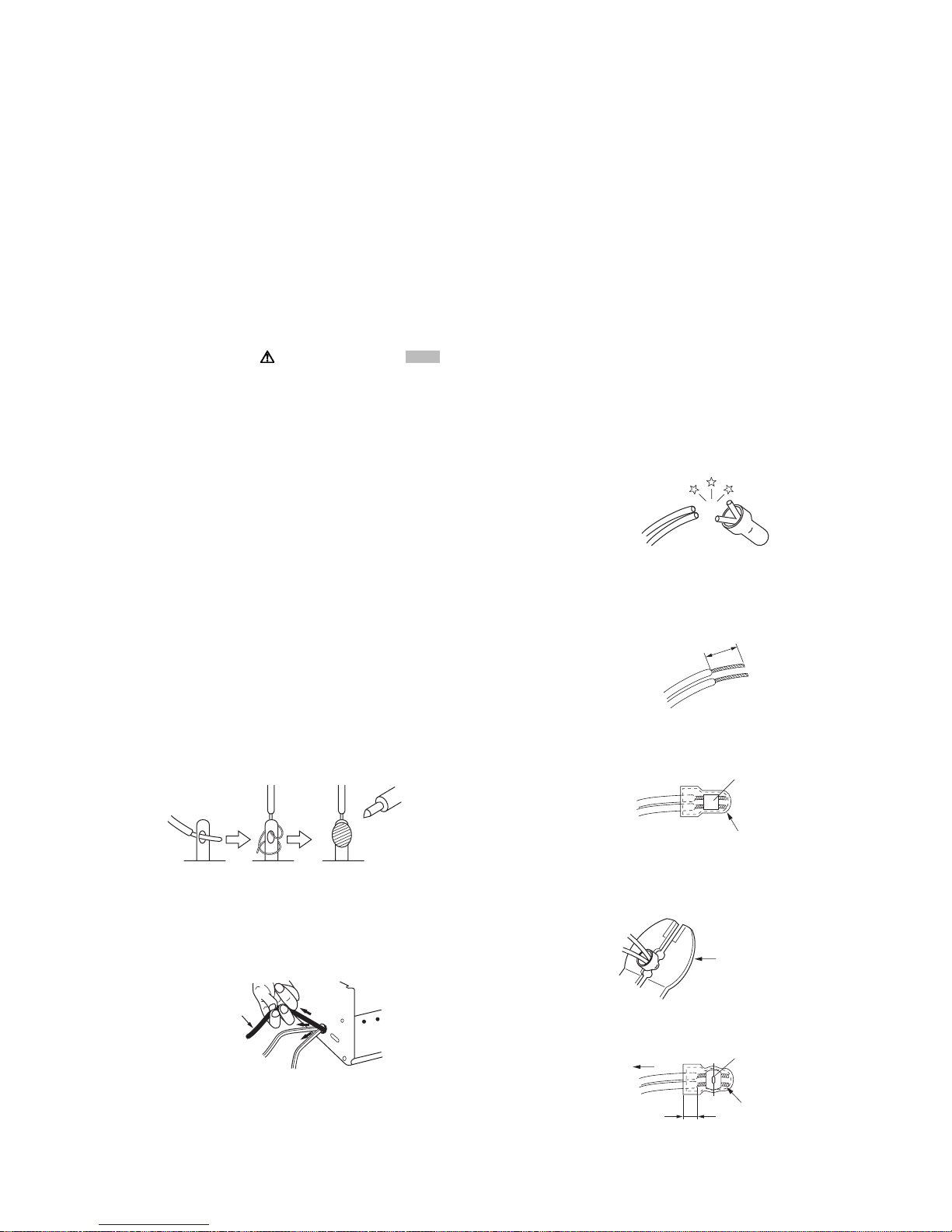

1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
•Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Fig.1-1-5
d) AsshowninFig.1-1-6, use thecrimpingtoolto crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleev
e
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.86772)

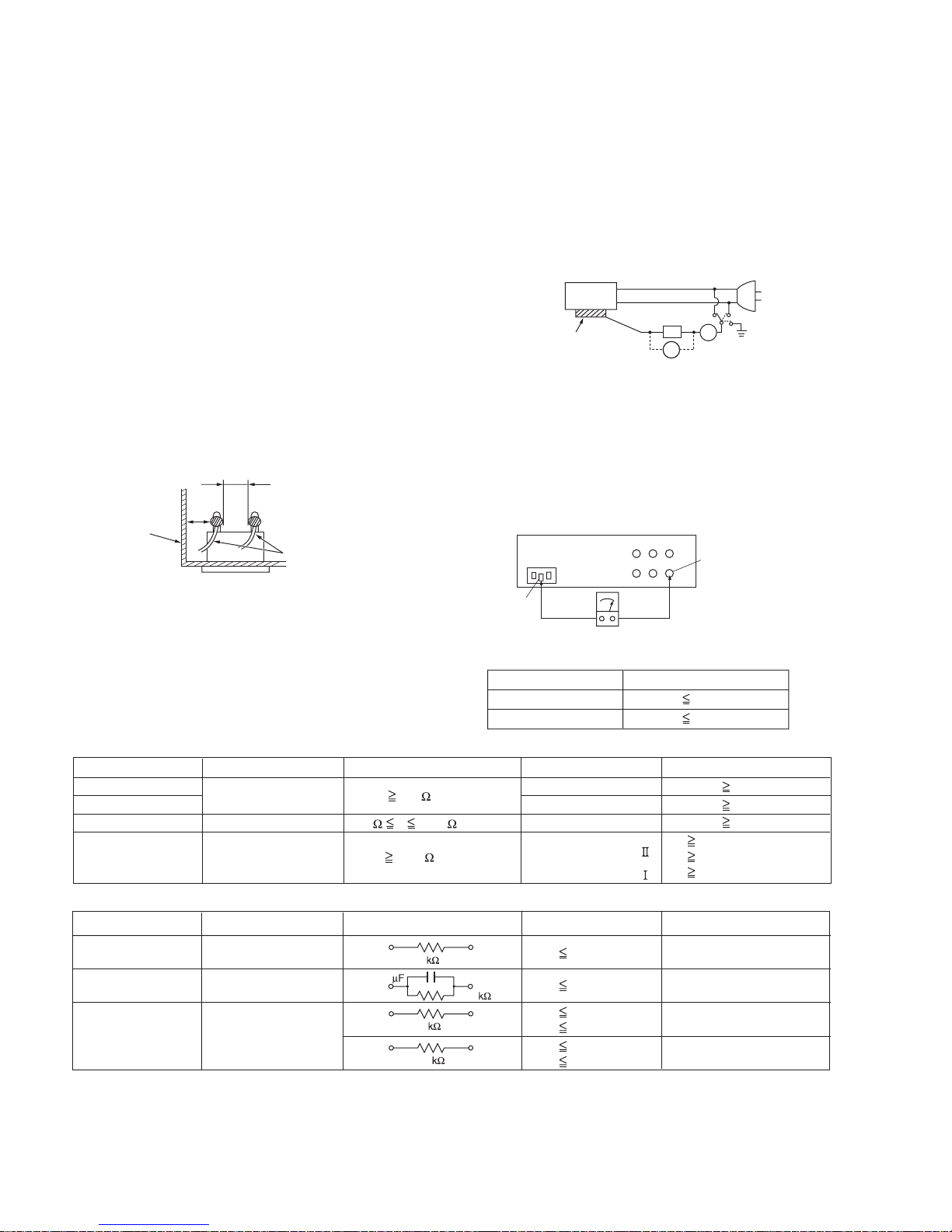

1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify
compliance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater
between power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks,
earphone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm
specified clearance distance (d), (d') between soldered
terminals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed
accessible parts (RF terminals, antenna terminals, video
and audio input and output terminals, microphone jacks,
earphone jacks, etc.).
Measuring Method : (Power ON)Insert load Z between
earth ground/power cord plug prongs and externally
exposed accessible parts. Use an AC voltmeter to
measure across both terminals of load Z. See Fig.1-1-9
and following Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
Chassis Power cord
primary wire
d'
d
ab
c
VA
Externally
exposed
accessible part
Z
Exposed accessible part
Grounding Specifications
AC inlet
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
Earth pin
MIlli ohm meter
AC Line Voltage Region
Japan
Europe & Australia
R 1 M /500 V DC
USA & Canada 1 M R 12 M /500 V DC
R 10 M /500 V DC
Insulation Resistance (R)Dielectric Strength ClearanceDistance (d), (d')
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
(Class )
(Class )
AC 3 kV 1 minute
AC 1.5 kV 1 minute
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d' 8 mm (Power cord)
d' 6 mm (Primary wire)
d 4 mm
AC Line Voltage Region
Japan
Europe & Australia
USA & Canada
Load Z Leakage Current (i) a, b, c
100 V
110 to 130 V
110 to 130 V
220 to 240 V
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
1
1.5
2
50
0.15

(No.86772)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

1-6 (No.86772)
SECTION 3
DISASSEMBLY
3.1 BEFORE ASSEMBLY AND DISASSEMBLY
3.1.1 Precautions
• Be sure to disconnect the power supply unit prior to mounting
and soldering of parts.
• Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
• When connecting/disconnecting wires, pay enough attention
not to damage the connectors.
• When inserting the flat wire to the connector, pay attention to
the direction of the flat wire.
• Be careful in removing the parts to which some spacer or
shield is attached for reinforcement or insulation.
• When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
• Tighten screws properly during the procedures. Unless
specified otherwise, tighten screws at a torque of 0.118N·m
(1.2kgf·cm). However, 0.118N·m (1.2kgf·cm) is a value at the
time of production. At the time of service, perform the
procedure at a torque 10% less than 0.118N·m (1.2kgf·cm).
(See "SERVICE NOTE" as for tightening torque.)
3.1.2 Destination of connectors
3.1.3 Disconnection of connectors (Wires)
Fig.2-1-1
3.1.4 Tools required for disassembly and assembly
Fig.2-1-2
•Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC replacement jig
To be used for replacement of IC.
•Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS
3.2.1 Assembly and disassembly
When reassembling, perform the step(s) in reverse order.
(∗1) Order of steps in Procedure
When reassembling, preform the step(s) in the reverseorder.
These numbers are also used as the identification (location)
No. of parts Figures.
(∗2) Part to be removed or installed.
(∗3) Fig. No. showing Procedure or Part Location.
C = CABINET
(∗4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
S = Screw
L = Lock, Release, Hook
SD = Solder
CN = Connector
[Example]
• 4 (S1a) = Remove four S1a screws.
• 3 (L1a) = Disengage three L1a hooks.
• 2 (SD1a) = Unsolder two SD1a points.
• CN1a = Remove a CN1a connector.
(∗5) Adjustment information for installation.
CN2a
CN2b
MAIN CN101
MAIN CN103
40
2
CONN. No. PIN No.CONNECTOR
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: The connector of the side to remove
: Wire: Flat wire : Board to board (B-B)
MONI/BW CN761
MIC CN762
B-B Connector
B-B Connector
B-B Connector
· Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector.
FPC Connector
Wire
· Pull both ends of the connector in the arrow
direction, remove the lock and disconnect the flat
wire.
FPC Connector
Lock
Wire
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
Cleaning cloth
KSMM-01
Torque driver
YTU94088
Bit
YTU94088-003
Chip IC replacement jig
PTS40844-2
Tweezers
P-895
( 4) ( 5)( 2) ( 3)( 1)
TOP COVER ASSEMBLY
UPPER ASSEMBLY
(Inc. VF ASSEMBLY,
SPEAKER/MONITOR)
VF ASSEMBLY
Fig.C1
Fig.C2-1
Fig.C2-2
S1,2(L1)
S2a,2(S2b),3(S2c)
2(S2d),S2e,S2c
L2,CN2a,b
2(S8),L8,CN8a
-
-
NOTE 8a
NOTE 8b
[1]
[2]
[8]
STEP
No. PART NOTE
Fig.
No. POINT

(No.86772)1-7

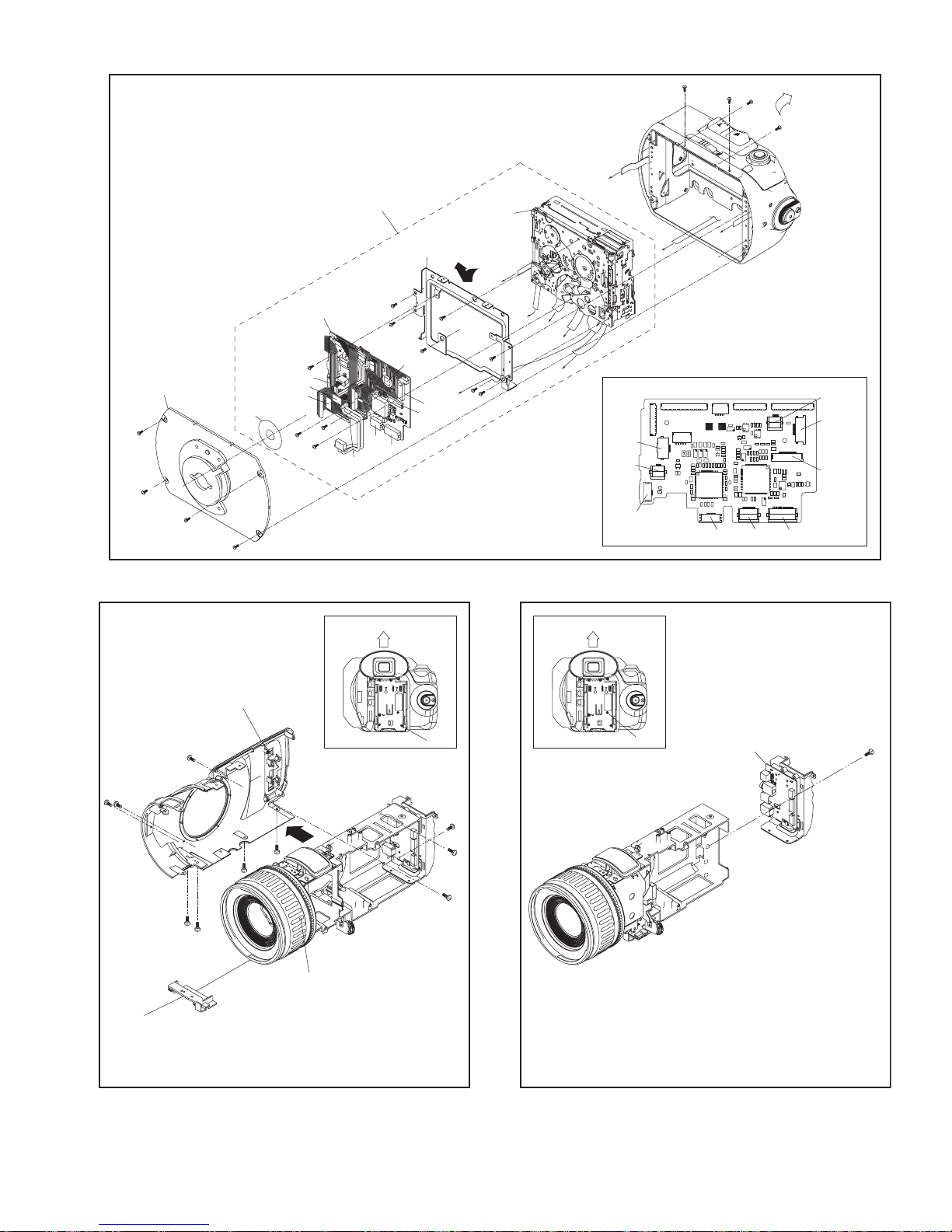

3.2.2 ASSEMBLY/DISASSEMBLY OF CABINET PARTS AND ELECTRICAL PARTS
zDisassembly procedure NOTE4:
This part is attached by using double-side adhesive tape.
In removing the tape, be careful not to damage the reverse
side of the ornament.
NOTE6a:
A screw NO. 21 is beside the tripod base/guide knob hole on
the FRAME ASSEMBLY.
NOTE6b:
After removing the UPPER ASSEMBLY, electrical parts and
board assembly are not covered with anything. Take care
not to damage parts, especially WB sensor and Exposure
Adjustment Wheel.
NOTE6c:
In attaching the UPPER ASSEMBLY, put the lever of the OP
BLOCK ASSEMBLY (MAIN FRAME) in the slot of the
BRACKET (SLIDE) ASSEMBLY.
Note6d:
In attaching the UPPER ASSEMBLY, be careful about the
FPC and the position of D4 BOARD ASSEMBLY.
Note7a:
Since the VF ASSEMBLY is inserted in a narrow space be-
tween a part and another part, be careful not to damage or
deform the bracket in removing the VF ASSEMBLY.
Note7b:
For the disassembly procedure of [7] VF ASSEMBLY, see
“3.2.3 DISASSEMBLY/ASSEMBLY OF [7] VF ASSEMBLY”
NOTE9a:
Remove the two screws (No.46 and 47), and remove the
heatsink. In removing the heatsink, peel the shield so that
the heatsink is easy to be removed.
NOTE9b:
Since the heatsink is stuck to the IC on the DIGITAL BOARD
ASSSEMBLY, be careful not to damage the parts in remov-
ing the heatsink.
NOTE10:
In removing the DIGITAL BOARD ASSEMBLY, first discon-
nect some of the connectors, and remove the screws, and
then disconnect the rest of the connectors. Then, remove
the DIGITAL BOARD ASSEMBLY.
Be careful not to damage the B-B connector since B-B con-
nector is connected on the backside of the DIGITAL BOARD
ASSEMBLY.
NOTE11:
Remove the screws, and remove the FPC while removing
the ANALOG BOARD ASSEMBLY since CN212 is on the
backside of the ANALOG BOARD ASSEMBLY.
NOTE12:
In removing the GRIP ASSEMBLY, be careful not to cut or
damage FPC and wires.
NOTE13:
In removing the LOWER CASE ASSEMBLY, remove the
holder (SD) together with the LOWER CASE ASSEMBLY.
NOTE15:
In removing the BOTTOM BOARD ASSEMBLY, first re-
move the FPC connected to the BOTTOM BOARD ASSEM-
BLY since it is attached to the frame. Then, remove the
screws, and remove the BOTTOM BOARD ASSEMBLY.
STEP
No. PART NOTE
Fig.
No. POINT
[1]
[2]
[3]
[4]
[5]
[6]
[21]
[22]
[7]
[8]
[9]
[10]
[11]
[12]
[23]
/[24]
[23]
[24]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
/[25]
[20]
SHOE
TOP COVER ASSEMBLY
HOLDER(SHOE)
ORNAMENT
SD COVER ASSEMBLY
UPPER ASSEMBLY
MON/OPE BOARD
ASSEMBLY
MONITOR
ASSEMBLY
VF ASSEMBLY
D4 BOARD ASSEMBLY
HEAT SINK
DIGITAL BOARD ASSEMBLY
ANALOG BOARD ASSEMBLY
GRIP ASSEMBLY
PREMDA BOARD ASSEMBLY
/MECHANISM ASSEMBLY
PREMDA BOARD ASSEMBLY
MECHANISM ASSEMBLY
LOWER CASE ASSEMBLY
REAR ASSEMBLY
BOTTOM BOARD ASSEMBLY
MIC ASSEMBLY
FRONT ASSEMBLY
MIC/WB BOARD ASSEMBLY
OP BLOCK ASSEMBLY
/CCD BOARD ASSEMBLY
GYRO BOARD ASSEMBLY
3(S1)
3(S2a),(S2b),(L2a),(L2b)
2(S3),2(L3)
-
(S5a),(S5b)
JACK COVER,2(S6a),(S6b)
3(S6c),4(S6d),CN6a,b
CN21a,b,c,2(S21)
SPEAKER BRACKET
8(S21),SHIELD,SPEAKER
KNOB(SLIDE)1,2
2(S22a),(S22b),(L22a),
HINGE CASE(U),(S22b),(L22b),
HINGE CASE(L),3(S22c)
(S7a),2(S7b)
CN8
4(S9a),2(S9b),SHIELD(D.PWB)
CN10a,b,c,d,e,(S10),CN10f,g,h
CN11a,b,c,d,e,f,g,h,3(S11),CN11j,k,m
4(S12)
2(S23a),4(S23b),CN23a,b,c
ROTARY GRIP ASSEMBLY
CN23d,e,f,g,h,j,2(S23a),4(S23c),
2(S23d),2(S23c)
3(S24),BRACKET(MECHA)ASSEMBLY
3(S13a),2(S13b),2(S13a),(S13c)
(S13a),(S13d),(L13),HOLDER(SD)
(S14)
2(S15)
2(S16),CN16
CN17a,b,2(S17),2(L17a)
L17b,2(L17c),L17d
2(S18),2(L18)
4(S19)
2(S20),2(L20)
Fig.C1
Fig.C2
Fig.C3-1
Fig.C3-2
Fig.C4
Fig.C5
Fig.C6
Fig.C7
Fig.C8
Fig.C9-1
Fig.C9-2
Fig.C10
Fig.C11
Fig.C12
Fig.C13
Fig.C14
Fig.C15
Fig.C16
Fig.C17
-
-
-
NOTE4
-
NOTE6a
b,c,d
NOTE21a,b
NOTE22a,b
NOTE7a,b
-
NOTE9a,b
NOTE10
NOTE11
NOTE12
NOTE23a,b
NOTE24
-
NOTE13
-
NOTE15
-
NOTE17
NOTE18
NOTE19a,b,c
NOTE20

1-8 (No.86772)
NOTE17:
In removing the FRONT ASSEMBLY, a lens part of the OP
BLOCK ASSEMBLY is not covered with anything. Be careful
not to damage the lens.
NOTE18:
In removing the MIC/WB BOARD ASSEMBLY, first remove
the FPC connected to the MIC/WB BOARD ASSEMBLY
since it is attached to the frame. Then, remove the screws,
and remove the MIC/WB BOARD ASSEMBLY.
NOTE19a:
In removing the OP BLOCK ASSEMBLY/CCD BASE AS-
SEMBLY, be careful not to damage or cut the FPC, wires,
and lens part.
NOTE19b:
In attaching the OP BLOCK ASSEMBLY/CCD BASE AS-
SEMBLY, be careful not to damage or cut the FPC and
wires.
NOTE19c:

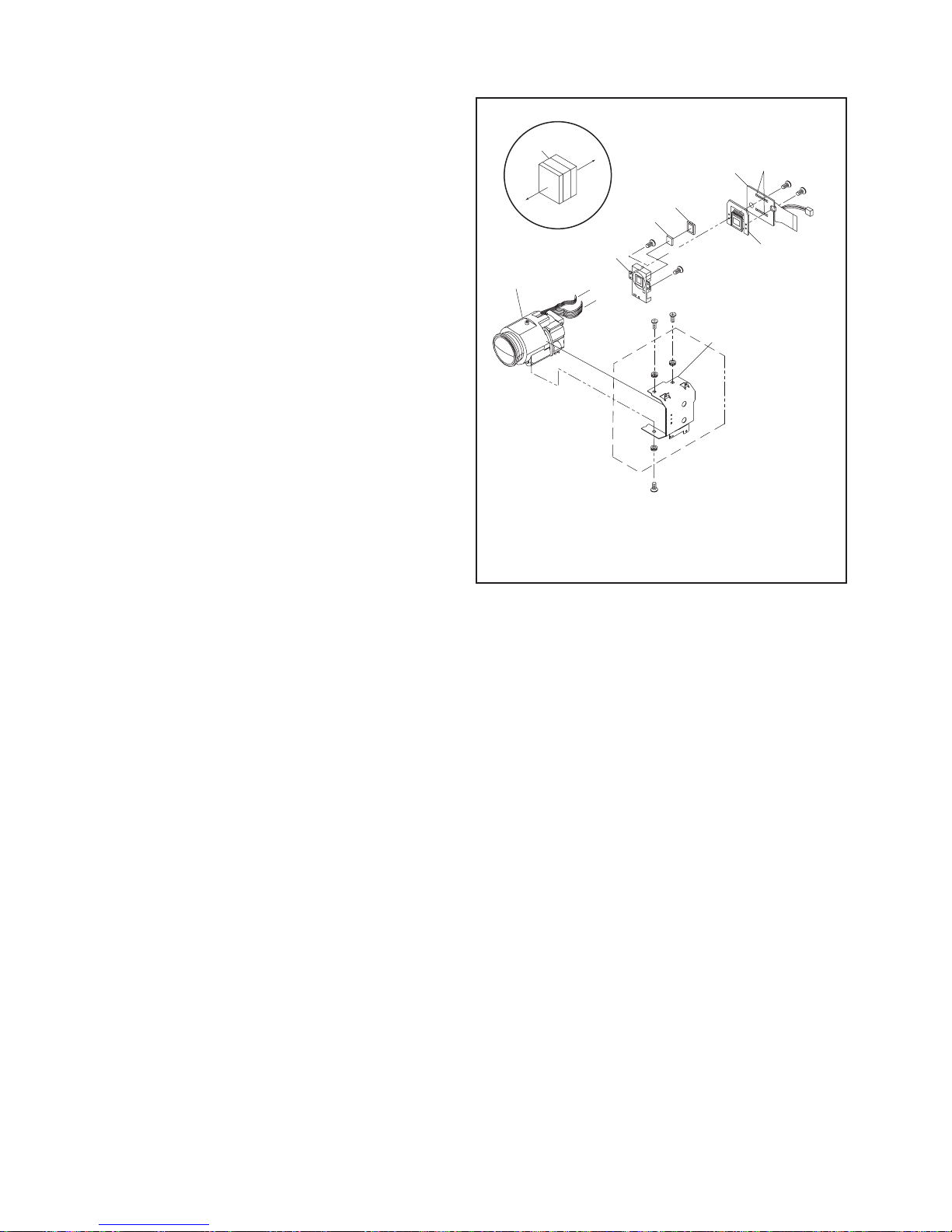

As for the assembly/disassembly procedures of [19] OP
BLOCK ASSEMBLY /[25] CCD BOARD ASSEMBLY, see
“3.2.5 ASSEMBLY/DISASSEMBLY OF [19] OP BLOCK
ASSMBLY/[25] CCD BOARD ASSEMBLY”.
NOTE20:
Handle the parts on the GYRO BOARD ASSEMBLY careful-
ly since they are easy to be broken.
NOTE21a:
In removing the MON/OPE BOARD ASSEMBLY, be careful
not to damage the shields attached inside the UPPER AS-
SEMBLY.
NOTE21b:
In removing the MON/OPE BOARD ASSEMBLY, be careful
in handling the knobs (SLIDE) 1 and 2 since they are also
removed.
In attaching the MON/OPE BOARD ASSEMBLY, be careful
about the position of switch.
Note22a:
In removing the MONITOR ASSSEMBLY, fold the hold plate
inside the UPPER ASSEMBLY in an inner direction.
Note22b:

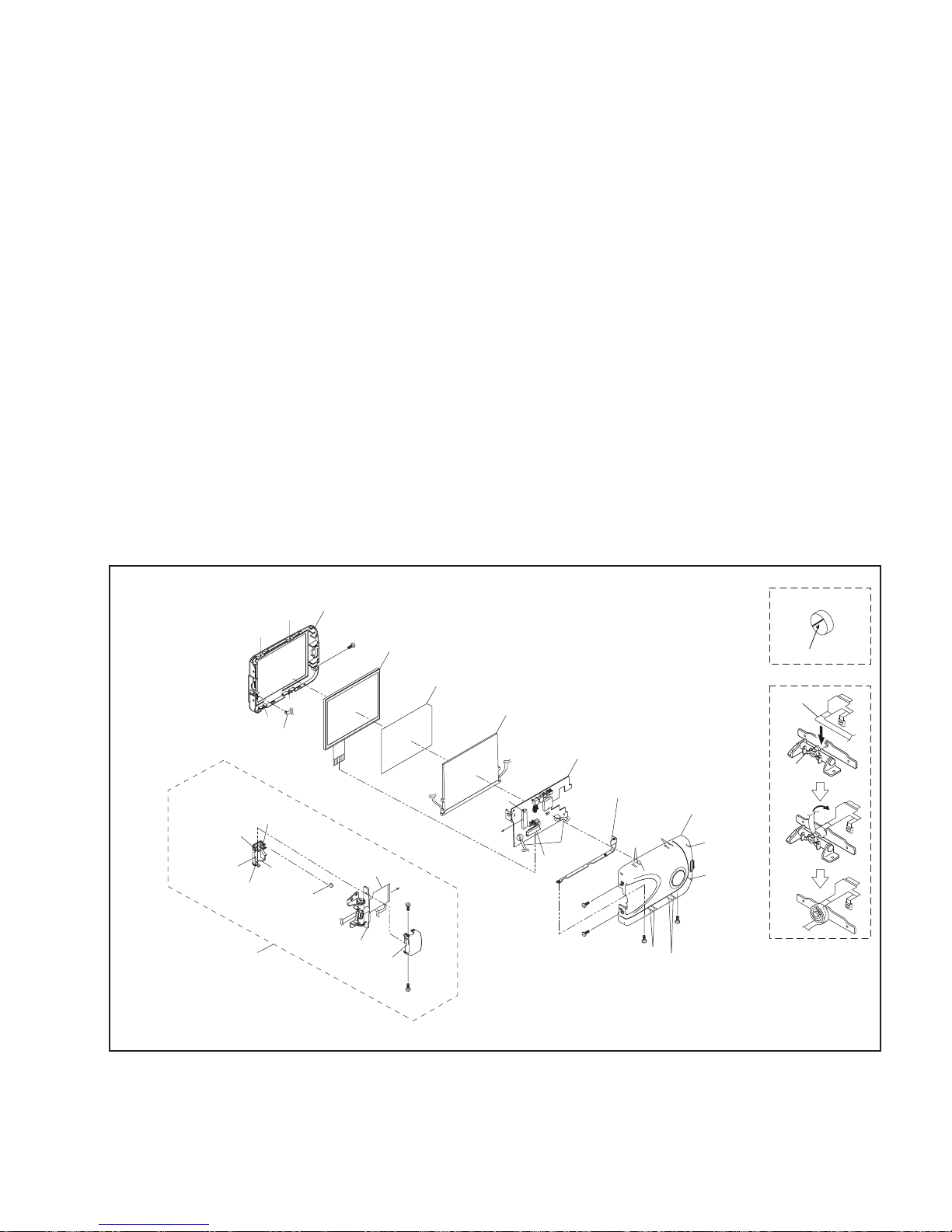

For the disassembly procedure of [22] MONITOR ASSEM-
BLY, see “3.2.4 DISASSEMBLY/ASSEMBLY OF [22] MON-
ITOR ASSEMBLY”.
NOTE23a/24
First remove the PREMDA ASSEMBLY together with the
MECHANISM ASSEMBLY inside the GRIP ASSEMBLY,
and then remove the PREMDA ASSEMBLY from the
MECHANISM ASSEMBLY.
NOTE23b:
In removing the ROTARY GRIP ASSEMBLY, disconnect
the wires in the order from short wire to long wire.
zDestination of connectors
CONN.
No.
CONNECTOR PIN
No.
CN6a MON/OPE CN303 VF BL CN703 22
CN6b ANALOG CN209 MON/OPE CN301 51
CN8 DIGITAL CN105 D4 CN806 14
CN10a DIGITAL CN102 CCD - 24
CN10b DIGITAL CN103 CCD - 2
CN10c DIGITAL CN104 BOTTOM CN801 18
CN10d DIGITAL CN106 PREMDA CN411 6
CN10e DIGITAL CN109 REAR CN602 16
CN10f DIGITAL CN108 ANALOG CN208 6
CN10g ANALOG CN201 CONNECT CN502 150
CN10h DIGITAL CN107 PREMDA CN410 22
CN11a ANALOG CN205 GYRO CN804 10
CN11b ANALOG CN202 OP BLOCK - 26
CN11c ANALOG CN207 MIC/WB CN902 6
CN11d ANALOG CN210 PREMDA CN412 5
CN11e ANALOG CN206 MIC/WB CN901 10
CN11f ANALOG CN203 OP BLOCK - 12
CN11g ANALOG CN215 REAR CN603 8
CN11h ANALOG CN214 REAR CN601 6
CN11j ANALOG CN213 PREMDA CN415 14
CN11k ANALOG CN211 PREMDA CN414 20
CN11m ANALOG CN212 PREMDA CN413 15
CN16 MIC - MIC/WB CN903 4
CN17a M.ZOOM RING - MIC/WB CN905 6
CN17b M.FOCUS RING - MIC/WB CN904 6
CN21a MON/OPE CN302 MON BL CN701 39
CN21b MON/OPE CN304 SW CN805 6
CN21c MON/OPE CN305 SPEAKER - 2
CN23a PREMDA CN401
POWER OPERATION - 11
CN23b PREMDA CN409 ZOOM UNIT - 6
CN23c PREMDA CN408 EJECT CN803 8
CN23d PREMDA CN406 SENSOR - 16
CN23e PREMDA CN405 CAPSTAN MOTOR - 18
CN23f PREMDA CN404 DRUM MOTOR - 11
CN23g PREMDA CN402 HEAD - 8
CN23h PREMDA CN403 LOADING MOTOR - 6
CN23j PREMDA CN407
ROTARY ENCODER - 6

(No.86772)1-9
Fig.C1 Fig.C2
Fig.C3-1
∗
3
(S1)
6
(S2a)
5
(S2a)
7
(S2b)
4
(S2a)
L2a
∗
2
(S1)
∗
1
(S1) [1]
[2]
L2b
∗0.248N · m (2.5kgf · cm)
54
∗0.248N · m (2.5kgf · cm)
[3]
[4]
∗
9
(S3)
L3
∗
8
(S3)
NOTE4
17
(S6c)
10
(S5a)
21
(S6d)
15
(S6c)
11
(S5b)
18
(S6d)
19
(S6d)
20
(S6d)
14
(S6b)
∗
13
(S6a)
∗
12
(S6a)
L2a
CN6a
CN6b
NOTE6b
NOTE6a
NOTE6d
JACK COVER
NOTE6c
16
(S6c)
17 11
10
<SCREW LOCATION>
<NOTE6c>
2018
21
19
[6]
[5]
MAIN FRAME
BKT (SLIDE)
ASSEMBLY
∗0.248N · m (2.5kgf · cm)
16

1-10 (No.)
Fig.C3-2
Fig.C4 Fig.C5
∗0.078N · m (0.8kgf · cm)
∗∗0.248N · m (2.5kgf · cm)
[22]
∗
34
(S22b)
∗
35
(S22b)
∗∗
36
(S22c)
∗∗
37
(S22c)
∗∗
38
(S22c)
∗
22
(S21)
∗
24
(S21)
∗
29
(S21) ∗
26
(S21)
∗
25
(S21)
∗
27
(S21)
∗
33
(S22a)
∗
32
(S22a)
∗
28
(S21)
∗
30
(S21)
∗
31
(S21)
∗
23
(S21)
HINGE CASE(L)
HINGE CASE(U)
L22a
L22b
NOTE22b
NOTE21b
NOTE21b
NOTE22a
SPEAKER BRACKET
SHIELD
NOTE21a
SHIELD
MON/OPE
BOARD ASSEMBLY
HOLD PLATE
SPEAKER NOTE21a
CN21a
CN21b
CN21c
KNOB (SLIDE)1
KNOB (SLIDE)2
NOTE7a
NOTE7b
∗
41
(S7b)
∗
40
(S7b)
39
(S7a)
∗0.098N · m (1.0kgf · cm)
[7]
41 40
[8]
CN8

(No.86772)1-11
Fig.C6
Fig.C7
[9]
45
(S9a)
43
(S9a)
44
(S9a)
42
(S9a)
46
(S9b)
47
(S9b)
NOTE9b
NOTE9a
NOTE9b
SHIELD
(D.PWB)
[10]
<CONNECTOR LOCATION>
48
(S10)
CN10a
CN10h
CN10c
CN10d
CN10e
CN10f
CN10b
CN10a
CN10h
CN10c
CN10d
CN10g
NOTE10
CN10f
CN10b
CN10e
<WIRE CONNECTION>
<ANALOG-DIGITAL>
CN10f
<REAR-DIGITAL>
CN10e
<ANALOG-DIGITAL>
CN10g(BACK SIDE)
<WIRE CONNECTION>
<PREMDA-DIGITAL>
CN10h
<BOTTOM-DIGITAL>
CN10c
<CCD-DIGITAL>
CN10b
<PREMDA-DIGITAL>
CN10d
<CCD-DIGITAL>
CN10a

1-12 (No.86772)
Fig.C8
Fig.C9-1
[11]
<CONNECTOR LOCATION>
1
6
16
150
150
75
75
1
76
76
1
51
51
50
50
2
1
6
1
9
1
20
20
1
14
14
1
25
25
1
8
CN11f
CN11e CN11c
CN11j
CN11b
CN11h
CN11g
CN11d
CN11m
CN11k
CN11a
CN11a
CN11b
CN11j
CN11f
CN11d
CN11m
CN11k
CN11g
CN11c
CN11e
CN11h
50
(S11)
49
(S11)
51
(S11)
NOTE11
<WIRE CONNECTION> <WIRE CONNECTION> <WIRE CONNECTION>
<ANALOG-REAR>
CN11h
<OP-ANALOG>
CN11f
<MIC/WB-ANALOG>
CN11c
<PREMDA-ANALOG>
CN11d
<GYRO-ANALOG>
CN11a
<MIC/WB-ANALOG>
CN11e
<PREMDA-ANALOG>
CN11d
<PREMDA-ANALOG>
CN11k
<PREMDA-ANALOG>
CN11m(BACK SIDE)
<PREMDA-ANALOG>
CN11j
<ANALOG-REAR>
CN11g <OP-ANALOG>
CN11b
∗0.198N · m (2.0kgf · cm)
[12]
∗
54
(S12)
∗
52
(S12)
∗
53
(S12)
∗
55
(S12)
NOTE12

(No.86772)1-13
Fig.C9-2
Fig.C10 Fig.C11
<CONNECTOR LOCATION>
CN23c
CN23j
CN23h
CN23e
CN23d
CN23a
CN23b
CN23fCN23g
[23]/[24]
[23]
[24]
∗
57
(S23a)
CN23a
CN23b
CN23c
∗∗
69
(S23d)
∗65
(S23c)
∗
66
(S23c)
∗
72
(S24)
∗
73
(S24)
∗
67
(S23c)
∗
74
(S24)
CN23d
CN23f
CN23e
CN23g
CN23j
CN23h
∗
64
(S23c)
∗∗
68
(S23d)
∗
70
(S23c)
∗
71
(S23c) CN23f
CN23g
CN23h
CN23j
CN23c
CN23e
CN23b
CN23d
CN23a
60
(S23b)
59
(S23b)
61
(S23b)
58
(S23b)
∗
63
(S23a)
∗
62
(S23a) ∗
56
(S23a)
ROTARY GRIP ASSEMBLY
PREMDA BOARD
ASSEMBLY
BRACKET (MECHA)
ASSEMBLY
MECHANISM
ASSEMBLY
SPACER
(GR,WIRE)
NOTE23b
NOTE23a,24
∗0.078N · m (0.8kgf · cm)
∗∗0.069N · m (0.7kgf · cm)
NOTE13
HOLDER(SD)
∗
77
(S13a)
∗
78
(S13b)
∗
79
(S13b)
∗
83
(S13a) ∗
75
(S13a)
∗
84
(S13d)
∗
76
(S13a)
82
(S13c)
∗
81
(S13a)
L13
∗
80
(S13a)
∗
[13]
∗0.098N · m (1.0kgf · cm)
84
∗
85
(S14)
[14]
∗0.098N · m (1.0kgf · cm)
85

1-14 (No.86772)
Fig.C12
Fig.C13
Fig.C14
Fig.C15
NOTE15
86
(S15)
87
(S15)
[15]
∗
88
(S16)
CN16
∗
89
(S16)
∗0.059N · m (0.6kgf · cm)
[16]
NOTE17
91
(S17)
L17a
L17b
L17d
L17c
CN17aCN17b
90
(S17)
[17]
NOTE18
[18]
93
(S18)
92
(S18)
L18

(No.86772)1-15
Fig.C16
Fig.C17
NOTE19b
NOTE19a,c
[19]
[25]
96
(S19)
94
(S19)
95
(S19)
97
(S19)
[20]
98
(S20)
99
(S20)
L20 NOTE20

1-16 (No.86772)
3.2.3 DISASSEMBLY/ASSEMBLY OF [7] VF ASSEMBLY
zDisassembly of VF ASSEMBLY
(1) Remove the two screws (1 and 2), and remove the EYE
CUP.
(2) Remove the four screws (3-6), and make the SWITCH
BOARD ASSEMBLY (PUSH SWITCH) and FPC AS-
SEMBLY (VF) move easily.
(3) Remove the four screws (7-10), and remove the FPC
ASSEMBLY (VF) from the HOLDER ASSEMBLY (VF)
while lifting the VF CASE (TOP COVER and BOTTOM
COVER ASSEMBLY) upwards.
NOTE7a:
During the procedure, be careful not to damage or cut
the FPC ASSEMBLY (VF) since it is attached to the
HOLDER ASSEMBLY (VF).
(4) Remove the two screws (11 and 12), and remove the
TOP COVER.
(5) Remove the whole LCD UNIT from the BOTTOM COV-
ER ASSEMBLY.
(6) Remove one screw (13), and remove the LEVER
(LENS), HOLDER (LENS) ASSSEMBLY, LINK (LENS),
and SPACER B.
NOTE7b:
When attaching the VF ASSEMBLY, confirm that the
HOLDER (LENS) ASSEMBLY slides properly.
Fig.3-2-3
∗0.069N · m (0.7kgf · cm)
∗∗0.078N · m (0.8kgf · cm)
∗∗∗0.059N · m (0.6kgf · cm)
∗∗
12
(S7f)
∗∗
11
(S7f)
∗∗∗
13
(S7g)
∗
2
(S7c)
∗
1
(S7c)
∗∗
10
(S7f)
∗∗
8
(S7e)
∗∗
7
(S7e)
∗∗
9
(S7f)
∗∗
3
(S7c)
∗∗
4
(S7d)
6
(S7d)
∗∗
5
(S7d)
SPACER B
LINK
(LENS)
LEVER (LENS)
BOTTOM COVER ASSEMBLY
NOTE7b
HOLDER (LENS)
ASSEMBLY
EYE CUP
TOP COVER
LCD UNIT
FPC ASSEMBLY (VF)
HOLDER (VF) ASSEMBLY
SWITCH
BOARD
ASSEMBLY
NOTE7a

(No.86772)1-17
3.2.4 DISASSEMBLY/ASSEMBLY OF [22] MONITOR ASSEMBLY
zCAUTION
(1) Be careful in handling the LCD module, especially not to
damage or soil the monitor screen.If it is soiled with fin-
gerprints, etc., gently clean it with chamois or the clean-
ing cloth.
(2) Since the BACKLIGHT is soldered to the ASSEMBLY
BOARD, the BACKLIGHT should not be separated from
the ASSEMBLY BOARD except when replacing the
BACKLIGHT.
zDisassembly procedure of MONITOR ASSEMBLY
(1) While removing the four screws (1-4) in numerical order
and disengaging the six hooks (L22a-L22f) in alphabeti-
cal order, remove the MONITOR COVER ASSY.
(2) Remove the SENSOR BOARD ASSEMBLY from the
MONITOR CASE ASSEMBLY.
(3) Unlock one connector (CN22a), and then disconnect the
FPC and remove the HINGE ASSEMBLY while lifting the
HINGE ASSEMBLY/FPC ASSEMBLY upwards.
(4) Remove the BRACKET (MONITOR).
(5) Disconnect the FPC of the LCD MODULE from one con-
nector (CN22b).
(6) Remove one screw (5), and remove the MON BL
BOARD ASSEMBLY together with the BACKLIGHT.
(7) Remove the D BEF SHEET.
(8) While disengaging the four hooks (L22g-L22k) in alpha-
betical order, remove the LCD MODULE.
zDisassembly procedure of HINGE ASSEMBLY/FPC AS-
SEMBLY
(1) While removing the two screws (6 and 7) and disengag-
ing the four hooks (L22m-L22p) in alphabetical order, re-
move the HINGE COVER (U)
(2) Remove the HINGE COVER (L),
NOTE22a:
Be careful not to lose the magnet.
When attaching magnet, be careful about the attach-
ment direction.
(3) Remove the FPC ASSEBLY from the HINGE ASSEM-
BLY.
NOTE22b:
When attaching the FPC ASSEMBLY, wind the FPC
around the HINGE ASSEMBLY 3.5 times. Be careful
not to cut or damage the FPC.
Fig.3-2-4
1
(S22d)
L22b
L22f
L22c
L22a
L22b
L22d
4
(S22e)
6
(S22d)
a
a
HINGE COVER(L)
MONITOR COVER ASSEMBLY
MARKING
HINGE
ASSEMBLY
BRACKET
(MONITOR)
MONI BL BOARD ASSEMBLY
BACK LIGHT
D BEF SHEET
LCD MODULE
MONITOR CASE ASSEMBLY
MAGNET
NOTE22a
SENSOR BOARD
ASSEMBLY
HINGE COVER(U)
HINGE ASSEMBLY
FPC ASSEMBLY
(MONI)
HINGE ASSEMBLY
/FPC ASSEMBLY (MONI)
NOTE22b
7
(S22d)
5
(S22a)
L22h
L22g
L22n
L22p
L22m
L22o
L22j
L22k
3
(S22e)
CN22b
SD22
CN22a
2
(S22d)
NOTE22b
NOTE22a
FPC
∗
∗0.198N.m (2.0kgf.cm)
∗∗0.098N.m (1.0kgf.cm)
∗∗∗0.078N.m (0.8kgf.cm)
∗
∗∗∗
∗∗∗
∗∗

1-18 (No.86772)
3.2.5 ASSEMBLY/DISASSEMBLY OF [19] OP BLOCK ASSMBLY/[25] CCD BOARD ASSEMBLY
zCAUTIONS
(1) Be careful in handling the CCD image sensor, OP LPF,
and lens etc., especially not to damage or soil their sur-
face.
If it is soiled with fingerprints, etc., gently clean it with
chamois or the cleaning cloth.
(2) When the CCD image sensor is shipped from the factory,
there are protection seals applied onto the transparent
glass. Leave the protector as it is, and take it off just be-
fore assembling the CCD image sensor to the OP block.
zDisassembly procedure of OP BLOCK ASSEMBLY/CCD
BOARD ASSEMBLY
(1) Remove the three screws (1-3), and remove the OP
BRACKET ASSEMBLY.
(2) Unsolder the sixteen soldered parts (SD19) on the CCD
BOARD ASSEMBLY, and remove the CCD BOARD AS-
SEMBLY.
(3) Remove the two screws (4 and 5), and remove the CCD
BASE ASSEMBLY.
NOTE19a
In removing the CCD BASE ASSEMBLY, be careful in
handling a sheet and OP LPF since a sheet or OP LPF
is removed together with the CCD BASE ASSEMBLY.
NOTE19b
In replacing the CCD image sensor, donÅft remove
the CCD image sensor from the CCD BASE ASSEM-
BLY. Instead, replace the whole CCD BASE ASSEM-
BLY.
(4) Remove the sheet and OP LPF.
(5) Remove the two screws (6 and 7), and remove the MAIN
FRAME ASSEMBLY.
NOTE19c
When attaching OP LPF to the OP BLOCK ASSEM-
BLY, be careful about the attachment direction.
Fig.3-2-5
∗0.147N · m (1.5kgf · cm)
∗
3
(S19a)
6
(S19b)
4
(S19b)
SD19
7
(S19b)
5
(S19b)
∗
1
(S19a)
∗
2
(S19a)
NOTE19a,b
CCD BOARD ASSEMBLY
SHEET
OP LPF
OP
SIDE
CCD
SIDE
OP LPF
NOTE19c
MAIN FRAME
OP BLOCK ASSEMBLY
OP BRACKET ASSEMBLY
CCD BASE ASSEMBLY

(No.86772)1-19
SECTION 4
ADJUSTMENT
4.1 PREPARATION
4.1.1 Precaution
Camera system and deck system of this model are specially
adjusted by using PC.
However, if parts such as the following are replaced, an
adjustment is required. The adjustment must be performed in a
Service Center equipped with the concerned facilities.
• OP BLOCK ASSEMBLY
• EEP ROM (IC1003 of DIGITAL board)
In the event of malfunction with electrical circuits, first find a
defective portion with the aid of proper test instruments as shown
in the following electrical adjustment procedure, and then
commence necessary repair/ replacement/adjustment.
• In observing chip TP, use IC clips, etc. to avoid any stress.
Prior to replacement of chip parts (especially IC), remove the
solder completely to prevent peeling of the pattern.
• Use a patch cord if necessary. As for a patch cord, see the
BOARD INTERCONNECTIONS.
• Since connectors are fragile, carefully handle them in
disconnecting and connecting the FPC.
4.1.2 REQUIRED TEST EQUIPMENT
• Personal computer (for Windows)
• Color TV monitor
• Oscilloscope (dual-trace type, observable 100MHz or higher
frequency). The one observable 300 MHz or higher frequency
is recommended.
• Digital voltmeter
• DC power supply or AC adapter
• Frequency counter (with threshold level adjuster)
4.1.3 TOOLS REQUIRED FOR ADJUSTMENT
Service Support System
YTU94057-72
INF Adjustment Lens
YTU92001B
INF Adjustment Lens Holder
YTU94087
Camera Stand
YTU93079
Light box Assembly
YTU93096A
Gray Scale Chart
YTU94133A
Color Bar Chart
YTU94133C
Communication Cable
YTU93107A
PC Cable
QAM0099-002
Alignment Tape
MC-1
Jig Connector Cable
YTU93082C
Torque Driver
YTU94088
Bit
YTU94088-003
Chip IC Replacement Jig
PTS40844-2
Tweezers
P-895
Cleaning Cloth
KSMM-01
Guide Driver (Hexagonal)
D-770-1.27

1-20 (No.86772)
•Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC replacement jig
To be used for adjustment of the camera system.
•Cleaning cloth
Recommended the Cleaning cloth to wipe down the video
heads, mechanism (tape transport system), optical lens sur-
face.
•Guide driver (Hexagonal)
To be used to turn the guide roller to adjustment of the linarity
of playback envelope.
•INF adjustment lens
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•INF lens holder
To be used together with the Camera stand for operating the
Videocamera in the stripped-down condition such as the sta-
tus without the exterior parts or for using commodities that are
not yet conformable to the interchangeable ring. For the usage
of the INF lens holder, refer to the Service Bulletin No. YA-SB-
10035.
•Camera stand
To be used together with the INF adjustment lens holder. For
the usage of the Camera stand, refer to the Service Bulletin
No. YA-SB-10035.
•Light box assembly
To be used for adjustment of the camera system. For the
usage of the Light box assembly, refer to the Service Bulletin
No. YA-SB-10035.
•Gray scale chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Color bar chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Alignment tape
To be used for check and adjustment of interchangeability of
the mechanism.
•PC cable
Tobeused to connect theVideocameraanda personal computer
with each other when a personal computer issued for adjustment.
•Communication cable
Connect the Communication cable between the PC cable and
Jig connector cable when performing a PC adjustment.
•Service support system
To be used for adjustment with a personal computer. Software
can be downloaded also from JS-net.
•Jig connector cable
Connected to CN110 of the main board and used for electrical
adjustment, etc.
4.2 JIG CONNECTOR CABLE CONNECTION
Connection procedure
Jig connector diagrams
TO JLIP_RX
TO JLIP_TX
TO GND
TO ENV_OUT
TO HID1
MENU
RS232C
COM PORT
SERVICE SUPPORT SYSTEM
PC CABLE
FOR
COMMUNICATION CABLE
COMMUNICATION CABLE
COMMUNICATION CABLEJIG CONNECTOR OSCILLOSCOPEJIG CONNECTOR
PERSONAL COMPUTER
COVER
(JIG)
JIG CONNECTOR CABLE
JIG CONNECTOR
(CN110)
ADJUST
SCREW
SCREW
WHITE
RED
BLACK
GUIDE ROLLER (SUP)
GUIDE ROLLER (TU)
1 2 3 4 5 6 7 8 9
10 11 12 13 14
JIG BOARD ASSEMBLY(14PIN)
JIG CONNECTORCABLE(YTU93082C)
VPPD JLIP_TX GND HID1 PB CLK ENV_OUT MAIN VCO ATFI FS_PLL Flashwrt IF_TX CJIG_RST SRV_TX NC
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
JIG BOARD ASSEMBLY(15PIN)
TDI TDO TMS TCK TRST SPA SBE GND DISCRI DRST AL_3VSYS SRV_RX RX_DSC TX_DSC JLIP_RX
