SERVICE MANUAL
COPYRIGHT© 2008 Victor Company of Japan, Limited No.YF227<Rev.001>
2008/2
HARD DISK CAMCORDER
YF227<Rev.001>20082SERVICE MANUALEVERIO G
GZ-MG330HEK,GZ-MG330HER,
GZ-MG330HEX, GZ-MG330HEZ,
GZ-MG335HEK,GZ-MG335HER,
GZ-MG335HEX, GZ-MG335HEZ,
GZ-MG340HEX, GZ-MG365HEK,
GZ-MG365HER, GZ-MG365HEX,
GZ-MG365HEZ
COPYRIGHT© 2008 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
GZ-MG365HEXM, GZ-MG365HEZM [M8E308]
GZ-MG335HEXM, GZ-MG335HEZM [M8E304]
GZ-MG335HEKM, GZ-MG335HERM
GZ-MG330HEZM, GZ-MG340HEXM [M8E302]
GZ-MG330HEKM, GZ-MG330HERM, GZ-MG330HEXM,
GZ-MG365HEKM, GZ-MG365HERM

1-2 (No.YF227<Rev.001>)
SPECIFICATION
Camcorder
AC Adapter
Remote Control
Design and specifications subject to change without notice.
* GZ-MG330 model does not include the remote control.
For General Power supply DC 11 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption Approx. 2.7 W*
* When the LED light is off and the monitor backlight is set to [STANDARD] mode.
Dimensions (W ×H ×D) 133 mm ×68 mm ×54 mm
Weight Approx. 315 g (incl. grip belt)
Approx. 360 g (incl. battery and grip belt)
Operating temperature 0°C to 40°C
Operating humidity 35% to 80%
Storage temperature -20°C to 50°C
Pickup 1/6" (800,000 pixels) CCD
Lens F 1.8 to 4.0, f = 2.2 mm to 77 mm, 35:1 power zoom lens
Filter diameter Ø30.5 mm
LCD monitor 2.7" diagonally measured, LCD panel/TFT active matrix system
Speaker Monaural
LED Light Within 1.5 m (recommended shooting distance)
For Video/Audio Format SD-VIDEO
Recording/Playback
format
Video MPEG-2
Audio Dolby Digital (2 ch)
Signal format PAL standard
Recording mode (video) ULTRA FINE: 720 ×576 pixels, 8.5 Mbps (VBR)
FINE: 720 ×576 pixels, 5.5 Mbps (VBR)
NORMAL: 720 ×576 pixels, 4.2 Mbps (VBR)
ECONOMY: 352 ×288 pixels, 1.5 Mbps (VBR)
Recording mode (audio) ULTRA FINE: 48 kHz, 384 kbps
FINE: 48 kHz, 384 kbps
NORMAL: 48 kHz, 256 kbps
ECONOMY: 48 kHz, 128 kbps
For Still image Format JPEG
Image size 1 mode (640 ×480)
Picture quality 2 modes (FINE/STANDARD)
For connectors USB Camera mini USB type A and B, USB 2.0 compliant
Everio dock mini USB type B, USB 2.0 compliant
Power requirement AC 110 V to 240 V, 50 Hz/60 Hz
Output DC 11 V, 1 A
Power supply DC 3 V
Battery life Approx. 1 year (depending on the frequency of use)
Operating distance Within 5 m
Operating temperature 0°C to 40°C
Dimensions (W ×H ×D) 42 mm ×14.5 mm ×91 mm
Weight Approx. 30 g (incl. battery)

(No.YF227<Rev.001>)1-3
SECTION 1
PRECAUTIONS
1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
•Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.YF227<Rev.001>)
1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify
compliance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater
between power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks,
earphone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm
specified clearance distance (d), (d') between soldered
terminals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed
accessible parts (RF terminals, antenna terminals, video
and audio input and output terminals, microphone jacks,
earphone jacks, etc.).
Measuring Method : (Power ON)Insert load Z between
earth ground/power cord plug prongs and externally
exposed accessible parts. Use an AC voltmeter to
measure across both terminals of load Z. See Fig.1-1-9
and following Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
Chassis
Power cord
primary wire
d'
d
ab
c
V
A
Externally
exposed
accessible part
Z
Exposed accessible part
Grounding Specifications
AC inlet
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
Earth pin
MIlli ohm meter
AC Line Voltage Region
Japan
Europe & Australia
R 1 M /500 V DC
USA & Canada 1 M R 12 M /500 V DC
R 10 M /500 V DC
Insulation Resistance (R)Dielectric Strength Clearance Distance (d), (d')
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
(Class )
(Class )
AC 3 kV 1 minute
AC 1.5 kV 1 minute
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d' 8 m m (Power cord)
d' 6 m m (Primary wire)
d 4 m m
AC Line Voltage Region
Japan
Europe & Australia
USA & Canada
Load Z Leakage Current (i) a, b, c
100 V
110 to 130 V
110 to 130 V
220 to 240 V
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
1
1.5
2
50
0.15

(No.YF227<Rev.001>)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 DIFFERENCE LIST
The following table indicate main different points between models GZ-MG330HEK, GZ-MG330HER, GZ-MG330HEX,
GZ-MG330HEZ, GZ-MG335HEK, GZ-MG335HER, GZ-MG335HEX, GZ-MG335HEZ, GZ-MG340HEX, GZ-MG365HEK,
GZ-MG365HER, GZ-MG365HEX, and GZ-MG365HEZ.
2.2 REPLACING HDD
NOTE1) After HDD replacement, format the HDD first.
When the power is turned on after the HDD replacement, the
below "Warning screen" is displayed.
Be sure to format the HDD following the messages.
Be sure to turn off the power once after the formatting.
If the HDD recording is started without being turned off the
power, normal recording cannot be performed although the re-
cording will start.
NOTE2)
The picture title data needs to be written in the HDD.
Download the data and writing procedure from JS-NET.
Note that the picture title is a thumbnail image used in Creating
Playlist including Titles and saved in the space where users
cannot see.
< "Warning screen">
MODEL NAME GZ-MG330HEK GZ-MG330HER GZ-MG330HEX GZ-MG330HEZ GZ-MG335HEK
HDD 30GB 30GB 30GB 30GB 30GB
LEDLIGHTNONONONOYES
EVERIO DOCK NO NO NO NO YES(CU-VC4U)
AC-ADAPTER AP-V14E AP-V17E AP-V17E AP-V17E AP-V14E
AC CORD YES(BS) NO NO NO YES(BS)
REMOTE CONTROL UNIT NO NO NO NO YES(RM-V751US)
MODEL NAME GZ-MG335HER GZ-MG335HEX GZ-MG335HEZ GZ-MG340HEX GZ-MG365HEK
HDD 30GB 30GB 30GB 40GB 60GB
LED LIGHT YES YES YES NO YES
EVERIO DOCK YES(CU-VC4U) YES(CU-VC4U) YES(CU-VC4U) NO YES(CU-VC4U)
AC-ADAPTER AP-V17E AP-V17E AP-V17E AP-V17E AP-V14E
AC CORD NO NO NO NO YES(BS)
REMOTE CONTROL UNIT YES(RM-V751US) YES(RM-V751US) YES(RM-V751US) YES(RM-V751US) YES(RM-V751US)
MODEL NAME GZ-MG365HER GZ-MG365HEX GZ-MG365HEZ
HDD 60GB 60GB 60GB
LED LIGHT YES YES YES
EVERIO DOCK YES(CU-VC4U) YES(CU-VC4U) YES(CU-VC4U)
AC-ADAPTER AP-V17E AP-V17E AP-V17E
AC CORD NO NO NO
REMOTE CONTROL UNIT YES(RM-V751US) YES(RM-V751US) YES(RM-V751US)
0''&61(14/#6*#4&&+5-&4+8'
&1;179#0661(14/#6!
#..&#6#9+..$''4#5'&
㪜㪯㪜㪚㪬㪫㪜
㪚㪘㪥㪚㪜㪣
㪪㪜㪣㪜㪚㪫 㪪㪜㪫

1-6 (No.YF227<Rev.001>)
2.3 SERVICE FOR EVERIO DOCK (CU-VD4)
2.3.1 Service repair parts
This unit mainly consists of CABINET PARTS and two BOARD
ASSYS.
The main service repair parts are as follows.
For details of service repair parts, please refer to the parts list.
• CABINET PARTS
• BOARD ASSYS
(CDL JACK BOARD ASSY & CDL CN BOARD ASSY)
• Some electrical parts
2.3.2 Disassembly
1. Removing the TOP CASE (Refer to Fig.2-3-1)
Remove the 4 screws (1-4), and then remove the TOP CASE.
2. Removing the HOLDER (Refer to Fig.2-3-2)
Take out the CDL CN BOARD ASSY from the BOTTOM
CASE.
Pull out the HOLDER from the connector by releasing the 4
hooks holding the HOLDER one by one.
Note) During the procedure, be careful in handling the
SPRING.
3. Removing the SPRING (Refer to Fig.2-3-3)
Release the CDL CN BOARD ASSY as shown in the figure,
and take out the SPRING from the BOTTOM CASE.
4. Removing the CDL CN BOARD ASSY/ CDL JACK BOARD
ASSY (Refer to Fig.2-3-4)
Release the lock of CN2, and remove the CDL CN BOARD
ASSY while pulling out the FPC.
Release one hook, and remove the CDL JACK BOARD ASSY.

(No.YF227<Rev.001>)1-7

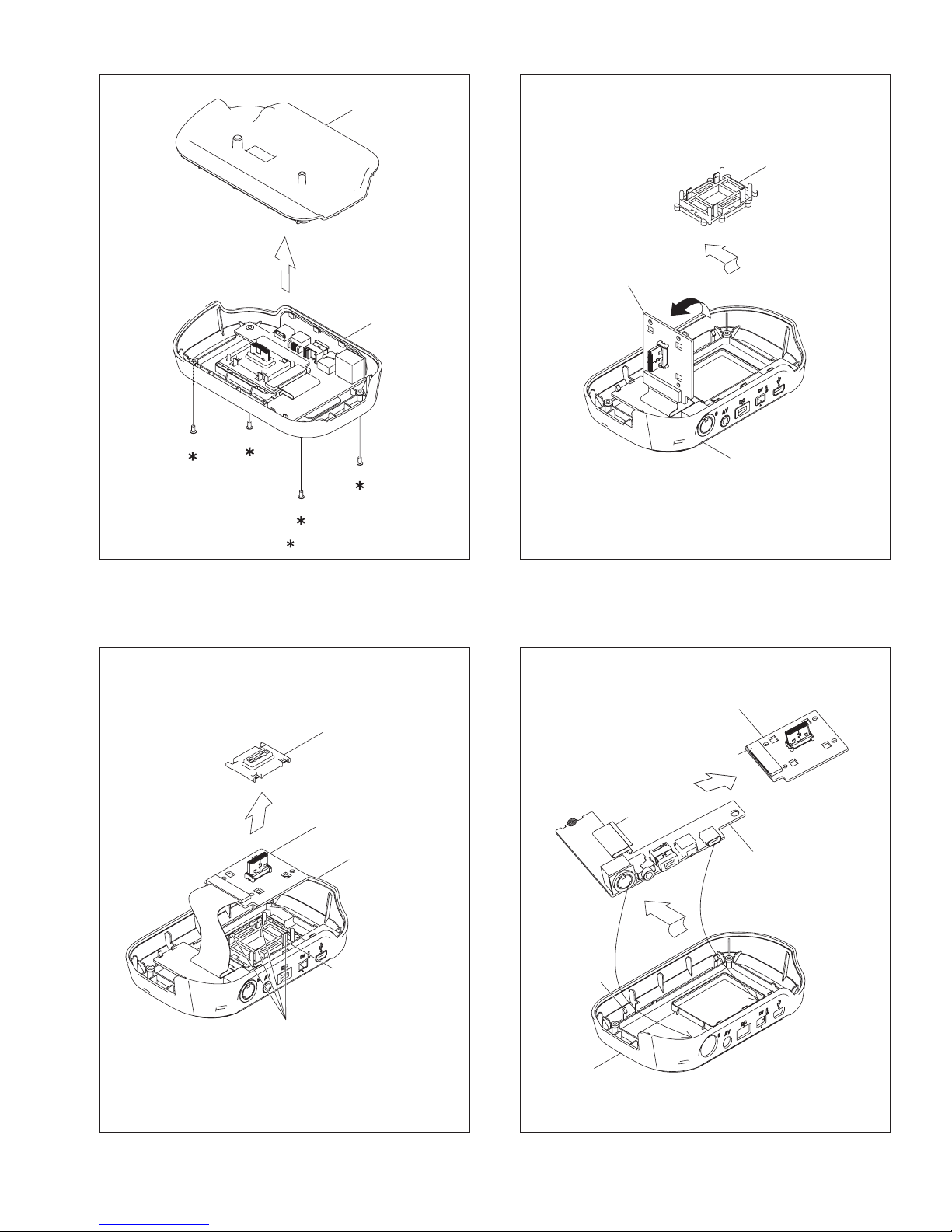

Fig.2-3-1
Fig.2-3-2
Fig.2-3-3
Fig.2-3-4
0.069N࡮m (0.7kgf࡮cm)
2
3
4
1
BOTTOM CASE
TOP CASE
HOLDER
CDL CN BOARD ASSY
BOTTOM CASE
SPRING
HOOK
CDL CN BOARD ASSY
BOTTOM CASE
SPRING
CDL JACK BOARD ASSY
CDL CN BOARD ASSY
BOTTOM CASE
HOOK
FPC
CN2

1-8 (No.YF227<Rev.001>)
SECTION 3
DISASSEMBLY
3.1 BEFORE ASSEMBLY AND DISASSEMBLY
3.1.1 Precautions
• Be sure to disconnect the power supply unit prior to mounting
and soldering of parts.
• Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
• When connecting/disconnecting wires, pay enough attention
not to damage the connectors.
• When inserting the flat wire to the connector, pay attention to
the direction of the flat wire.
• Be careful in removing the parts to which some spacer or
shield is attached for reinforcement or insulation.
• When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
• Tighten screws properly during the procedures. Unless
otherwise specified, tighten screws at a torque of 0.088N·m
(0.9kgf·cm). However, as this is a required value at the time of
production, use the value as a measuring stick when
proceeding repair services. (See "SERVICE NOTE" as for
tightening torque.)
3.1.2 Destination of connectors

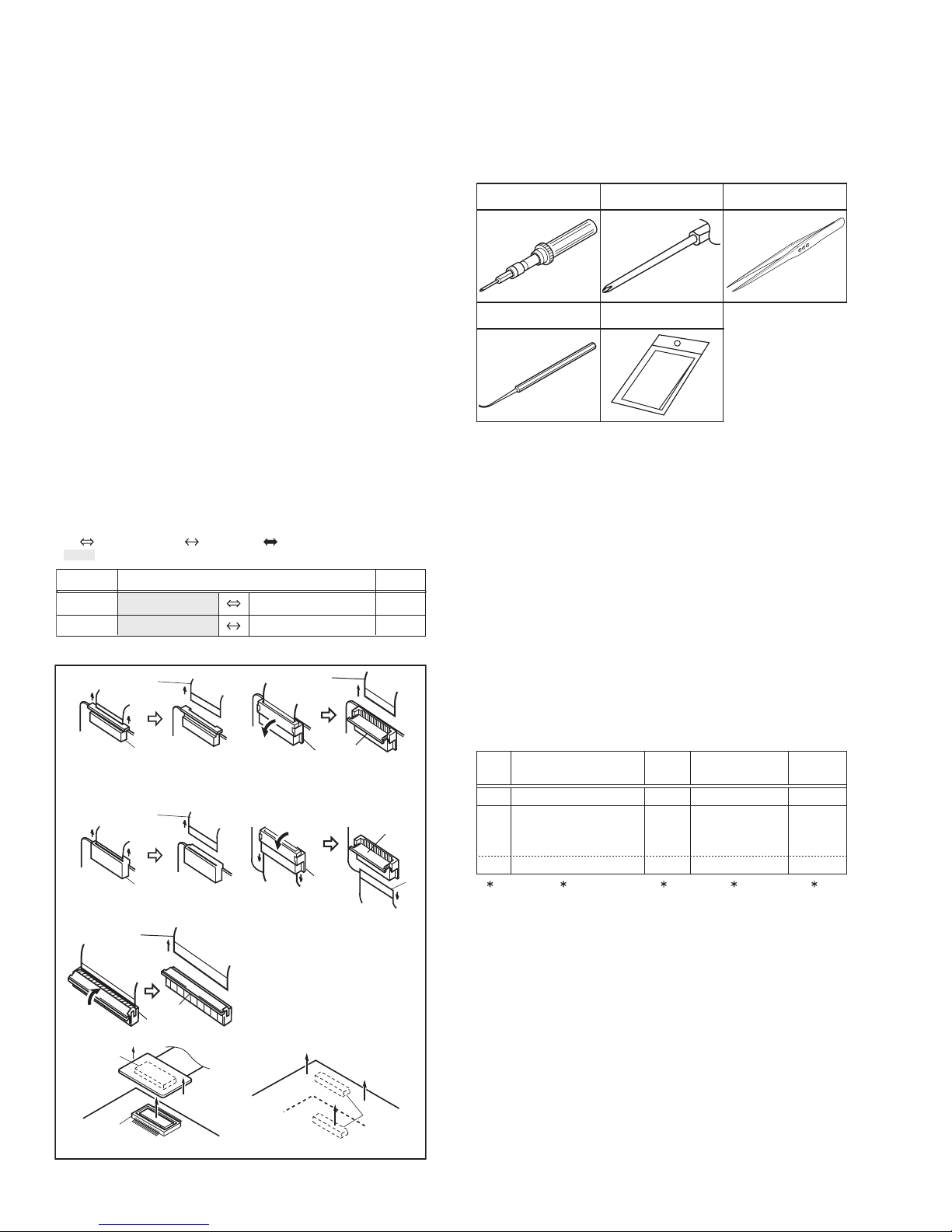

3.1.3 Disconnection of connectors (Wires)
Fig.3-1-1
3.1.4 Tools required for disassembly and assembly
Fig.3-1-2
•Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC replacement jig
To be used for replacement of IC.
•Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS
3.2.1 Assembly and disassembly
When reassembling, perform the step(s) in reverse order.
(∗1) Order of steps in Procedure
When reassembling, preform the step(s) in the reverseorder.
These numbers are also used as the identification (location)
No. of parts Figures.
(∗2) Part to be removed or installed.
(∗3) Fig. No. showing Procedure or Part Location.
(∗4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
S = Screw L = Lock, Release, Hook
SD = Solder CN = Connector
[Example]
• 4 (S1a) = Remove 4 S1a screws.
• 3 (L1a) = Disengage 3 L1a hooks.
• 2 (SD1a) = Unsolder 2 SD1a points.
• CN1a = Remove a CN1a connector.
(∗5) Adjustment information for installation.
CN2a
CN2b
MAIN CN101
MAIN CN103
40
10
CONN. No. PIN No.CONNECTOR
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: The connector of the side to remove
: Wire: Flat wire : Board to board (B-B)
MONI BW CN761
MINI BW CN762
FPC Connector
Wire
FPC Connector
Wire
Wire
FPC Connector Lock
Wire
FPC Connector
Lock
Wire
FPC
Connector
Lock
B-B Connector
B-B Connector
B-B Connector
· Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector.
· Pull both ends of the connector in the arrow
direction, remove the lock and disconnect the flat
wire.
· Pull the both ends of the board in the direction of the
arrow, and remove the Connector. · Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
Cleaning cloth
KSMM-01
Torque driver
YTU94088
Bit
YTU94088-003
Chip IC replacement jig
PTS40844-2
Tweezers
P-895
( 4) ( 5)( 2) ( 3)( 1)
TOP COVER ASSY
UPPER ASSY
(Inc. VF ASSY,
SPEAKER/MONITOR)
E.VF UNIT(B/W)
C1
C2-1
C2-2
4(S1a), 3(L1a),CN1a
(S2a),2(S2b),3(S2c)
2(SD1a),
L2,CN2a,b
2(S8),L8,CN8a
-
-
NOTE 8
[1]
[2]
[8]
STEP
No. PART NOTE
Fig.
No. POINT

(No.YF227<Rev.001>)1-9
3.2.2 Assembly/Dissambly of cabinet parts and electrical parts
zDisassembly procedure
NOTE1:
When removing the BOTTOM COVER ASSY, open and pull
up the COVER (SD).
NOTE2a:
Pull out the GRIP BELT from the hook and leave it released
before removing the HDD COVER ASSY.
NOTE2b:
During the procedure, be careful not to damage the parts.
NOTE3:
When attaching, be careful not to pinch the parts.
NOTE5a:
During the procedure, be careful in handling the parts.
Pay special attention not to give any external shock to the
HDD.
NOTE5b:
When the HDD is replaced, be sure to refer to Replacing
HDD in "SECTION2 SPECIFIC SERVICE INSTRUCTIONS"
for the procedure after HDD replacement.
NOTE5c:
Be careful as the RUBBER SPACERS on both sides are
easily come off when the HDD is removed from the main
unit.
NOTE5d:
When connecting the FPC to the connector, insert the FPC
straight into the connector. When locking the connector, be
careful not to give so much load that it bends the board.
NOTE5e:
In this procedure, the FPC connected to the HDD connector
is not removed.
If the FPC is removed due to broken wire, be careful in at-
tachment direction.
Pay attention as wrong attachment could damage the HDD.
NOTE5f:
Be careful with the wiring.
NOTE7:
When removing the REAR COVER ASSY, remove the
ZOOM UNIT together with the REAR BOARD ASSY.
NOTE8:
When attaching, first adjust the AV jack position, and then
carefully adjust the DC jack position.
NOTE9:
During the procedure, be careful not to touch or damage the
battery terminal.
NOTE10a:
When removing, release the connector lock, and then pull
out the FPC together with the UPPER ASSY.
NOTE10b:
Please refer to Fig.3-2-13 and the following procedure for re-
moving the UPPER ASSY.
NOTE11a:
When attaching, be careful in handling the JACK COVER
(USB) ASSY.
NOTE11b:
When attaching, be careful with the wiring (MIC).
NOTE12:
When attaching, be careful with the wiring (MIC).
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
3-2-1
3-2-2
3-2-3
3-2-4
3-2-5
3-2-6
3-2-7
3-2-8
3-2-9
3-2-10
3-2-11
3-2-12
3-2-13
3-2-14-1
/3-2-14-2
3-2-15
NOTE1
NOTE2a,b
NOTE3
-
NOTE5a,b,c,d,e,f
-
NOTE7
NOTE8
NOTE9
NOTE10a,b
NOTE11a,b
NOTE12
NOTE13
NOTE14a,b
NOTE15a,b
NOTE16a,b
NOTE17
NOTE18
B.COVER ASSY
WINDOW(IR)
TOP COVER ASSY
HDD COVER ASSY
HDD
HDD CASE
REAR COVER ASSY
ZOOM UNIT
REAR BOARD ASSY
UPPER ASSY
FRONT ASSY
MIC
MAIN BOARD ASSY
OP BLOCK ASSY
ORNAMENT(TOP)
OPE BOARD ASSY
SPEAKER
MONITOR ASSY
3(S1),2(L1a), 3(L1b)
GRIP BELT,
S2,2(L2a),3(L2b),L2c
3(S3),JACK COVER(AV),
S3,3(L3a),3(L3b),3(L3c)
2(S4), L4a,b
CN5
5(S6),L6a,b
CN7a,b,3(S7),L7a,3(L7b)
2(S8), L8
L9a,2(L9b)
CN10, 2(S10), L10a,b
CN11,S11, L11a,b
S12, L12a, L12b, PLATE(MIC)
CN13a,b, 2(S13)
3(S14)
2(S15), L15a, 3(L15b)
CN16a,b, S16, 2(L16a),
2(L16b), 3(S16)
S17, L17a,b, 2(L17c), BKT(SPK)
S18a, L18a, 2(S18b), 2(L18b)
STEP
No. PART NAME Fig. No. POINT NOTE

1-10 (No.YF227<Rev.001>)
NOTE13:
Be careful with the wiring.
NOTE14a:
During the procedure, be careful in handling the parts.
NOTE14b:
Refer to 3.2.3 Assembly/Disambly of [14] OP BLOCK ASSY/
CCD BOARD ASSY .
NOTE15a:
During the procedure, turn the MONITOR ASSY 90°, so that
it does not interfere with the procedure.
NOTE15b:
During the procedure, be careful not to damage the parts.
NOTE16a:
When removing, remove the screw No.32 first to release the
FPC, and then pull out the FPC from the connector.
NOTE16b:
When attaching, be careful with the wiring.
NOTE17:
When attaching, be careful with the wiring.
NOTE18:
Refer to 3.2.4 Disassembly of [18] MONITOR ASSY.
zDestination of connectors
CN.
No.
PIN
No.
CONNECTOR
CN5 MAIN CN102 HDD - 40
CN7a MAIN CN104 ZOOM UNIT - 12
CN7b MAIN CN103 REAR
CN601 32
CN10 MAIN CN101 OPE CN401 30
CN11 MAIN CN107 MIC - 4
CN13a MAIN CN105 CCD CN5001 22
CN13b MAIN CN106 OP BLOCK - 25
CN16a OPE CN403 SPEAKER - 2
CN16b OPE CN402 MONITOR CN7601 22/23

(No.YF227<Rev.001>)1-11

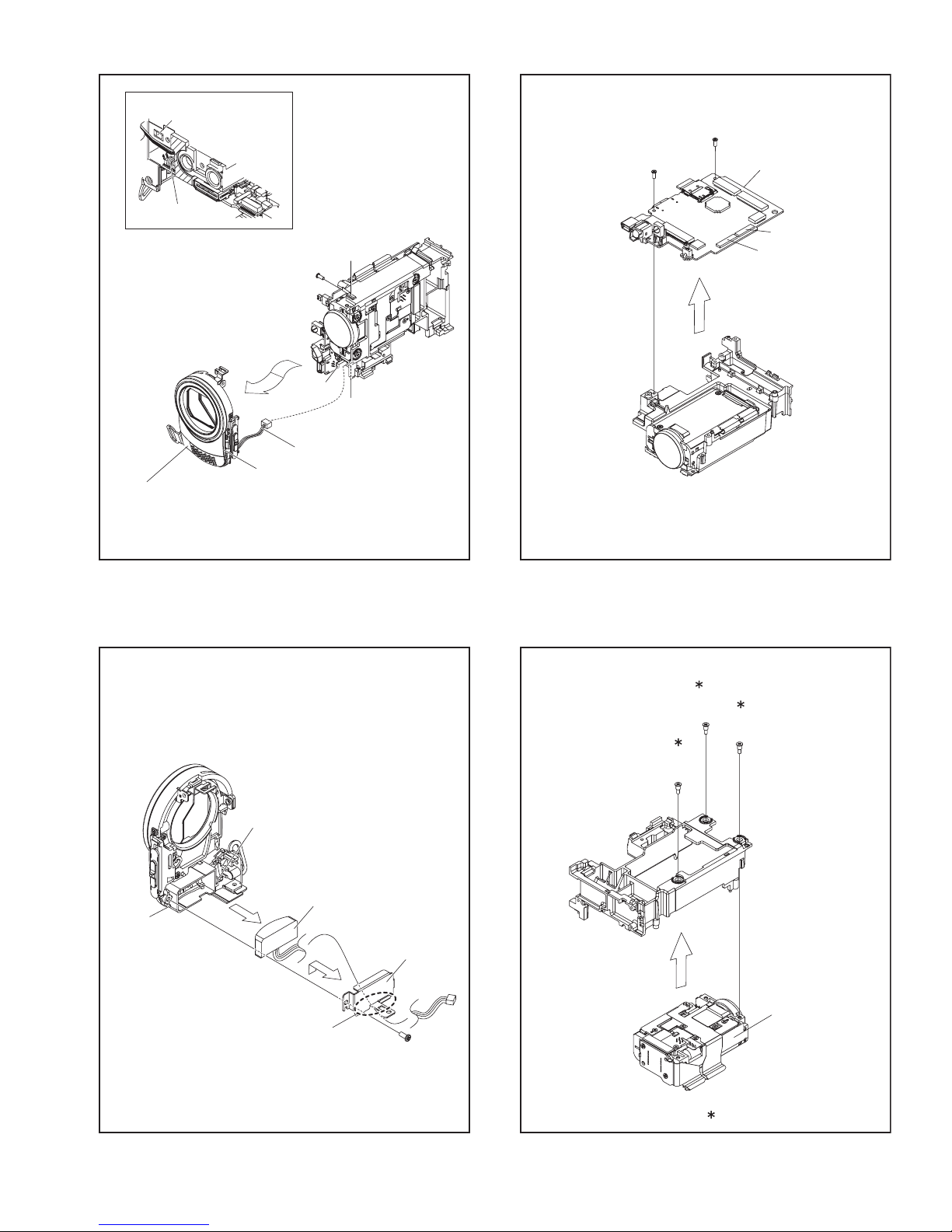

Fig.3-2-1
Fig.3-2-2
Fig.3-2-3
Fig.3-2-4
COVER(SD)
[1]
1
(S1)
2
(S1)
L1a
L1b
NOTE1
3
(S1)
GRIP BELT
HOOK
NOTE2a
NOTE2a
[2] L2b
L2a
L2c
4
(S2)
JACK COVER(AV)
L3a
L3c
L3b
7
(S3)
8
(S3)
6
(S3)
5
(S3)
[3]
NOTE3
L4a L4b
9
(S4)
10
(S4)
[4]

1-12 (No.YF227<Rev.001>)
Fig.3-2-5
Fig.3-2-6
Fig.3-2-7
Fig.3-2-8
<CROSS SECTION>
RUBBER SPACER
RUBBER SPACER
FPC
HDD
MAIN PWB STOPPER
NOTE5c
NOTE5f
FPC
CN5
NOTE5a,b
NOTE5e
NOTE5d
[5]
CONNECTOR
SHIELD
(HDD)
[6]
15
(S6)
13
(S6)
12
(S6)
14
(S6)
11
(S6)
L6b
L6a
[7]
[8] [9]
L7b
L7a
CN7b CN7a
L8
L9a
L9b
20
(S8)
16
(S7)
19
(S8)
18
(S7)
17
(S7)
NOTE7
NOTE8 NOTE9
[10]
L10a
CN10
CN10
L10b
21
(S10)
22
(S10)
FPC
NOTE10a
NOTE10b

(No.YF227<Rev.001>)1-13
Fig.3-2-9
Fig.3-2-10
Fig.3-2-11
Fig.3-2-12
WIRE(MIC)
WIRE(MIC)
JACK COVER(USB) ASSY
L11b
NOTE11a
NOTE11b
NOTE11b
[11]
L11a
L11b
CN11
23
(S11)
[12]
PLATE(MIC)
24
(S12)
L12a
L12b
NOTE12
NOTE13
CN13a
CN13b
25
(S13)
26
(S13)
[13]
0.118N࡮m (1.2kgf࡮cm)
29
(S14)
27
(S14)
28
(S14)
[14]
NOTE14a,b

1-14 (No.YF227<Rev.001>)

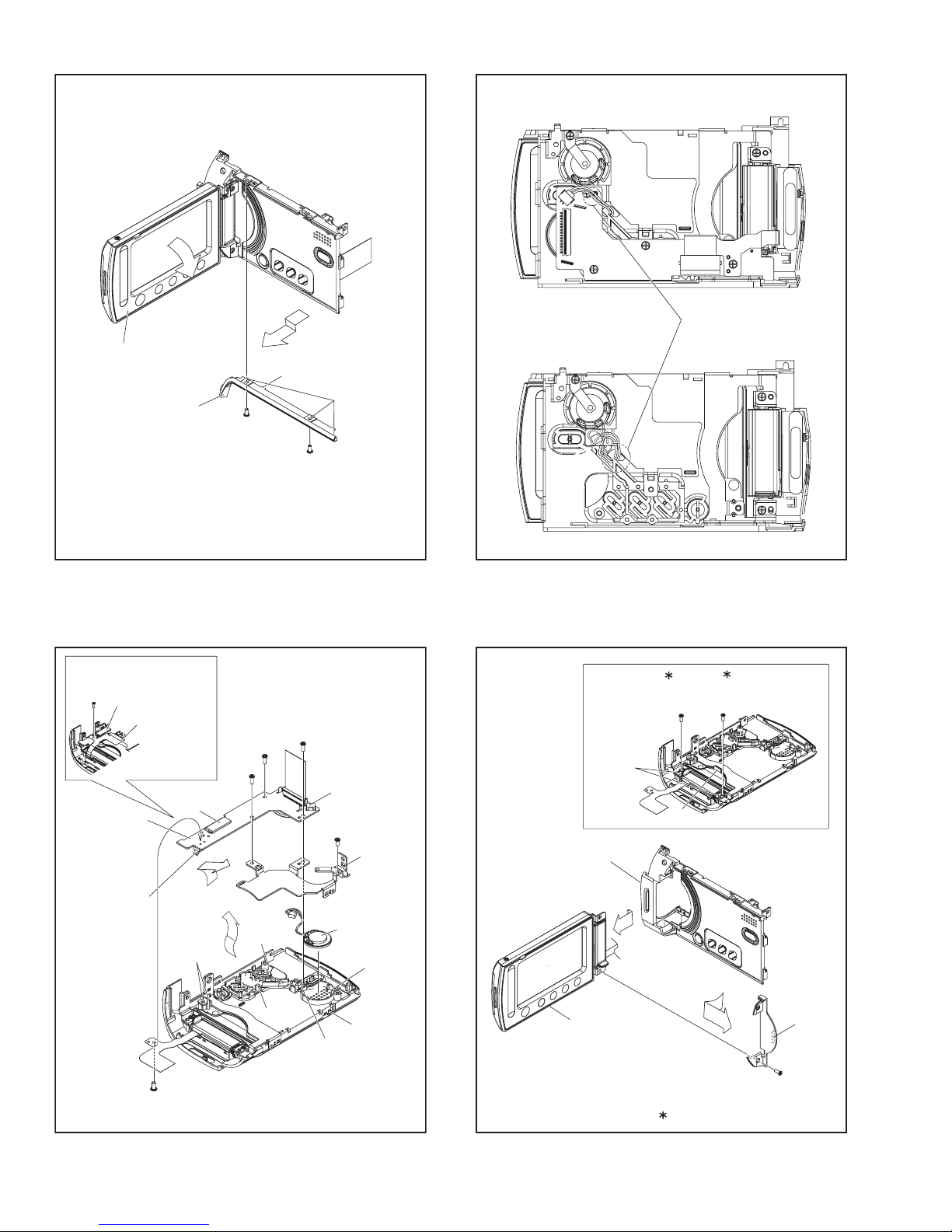

Fig.3-2-13
Fig.3-2-14-1
Fig.3-2-14-2
Fig.3-2-15
[15]
L15a
L15b
30
(S15)
31
(S15)
NOTE15b
NOTE15a
MONITOR ASSY
NOTE16b
NOTE16a
NOTE17
OPE PWB
ASSY
[16]
[17]
L17a
L16a
L17b
L16b
L16b,L17c
L17c
FPC
BKT(SPK)
(MONITOR)
CN16b
CN16a
CN16b
32
(S16)
35
(S16)
33
(S16)
34
(S16)
36
(S17)
SW
(LCD_OPEN)
32
(S16)
NOTE16b
NOTE17
WIRE(SPEAKER)
0.196N࡮m (2.0kgf࡮cm)
[18]
UPPER CASE ASSY
NOTE18
38
(S18b)
37
(S18a)
39
(S18b)
L18a
L18b
L18a

(No.YF227<Rev.001>)1-15
3.2.3 Assembly/Disambly of [14] OP BLOCK ASSY/CCD BOARD ASSY
zPrecautions
(1) Be careful in handling the CCD IMAGE SENSOR, OPTI-
CAL LPF and the LENS components.
Pay special attention to the surfaces to protect them from
stains, dust, or scratches.
If the surfaces are soiled with finger prints or other stains,
wipe them off with silicon paper, clean chamois leather,
or recommended cleaning cloth.
(2) The CCD IMAGE SENSOR may have been shipped with
a protective sheet attached to the transmitting glass.
When replacing the CCD IMAGE SENSOR, do not peel
off this sheet from the new part until immediately before
it is mounted in the OP BLOCK ASSY.
zDisassembly of OP BLOCK ASSY / CCD BOARD ASSY
(1) Unsolder the 20 soldered points (SD14a) of the CCD
BOARD ASSY.
(2) Remove the 2 screws (1,2), and then remove the CCD
BOARD ASSY,SHIELD(CCD) and the CCD BASE AS-
SY.
NOTE14a:
When removing the CCD BASE ASSY, be careful in
handling as the CCD IMAGE SENSOR may be re-
moved together with the SHEET and the OP LPF at-
tached.
NOTE14b:
Replace the CCD IMAGE SENSOR as a CCD BASE
ASSY, not as a single part replacement.
(3) Remove the SHEET and OP LPF.
zAssembly of OP BLOCK ASSY / CCD BOARD ASSY
(1) Set the OP LPF first, and then the SHEET to the OP
BLOCK ASSY.
NOTE14c:
Be careful with the attachment direction of the OP
LPF.
(2) Attach the CCD BASE ASSY first, then the SHEET,
SHIELD(CCD) and the CCD BOARD ASSY so that the
SHEET stays in place, and then tighten with the 2 screws
(1,2).
(3) Solder the 20 points (SD14a) on the CCD BOARD AS-
SY.
zReplacement of service repair parts
The service repair parts for the OP BLOCK ASSY are as listed
below.
When replacing parts, be careful not to cut the FPCs or dam-
age any parts by soldering (excessive heat).
(1) FOCUS MOTOR UNIT
(2) ZOOM MOTOR UNIT
(3) AUTO IRIS UNIT
NOTE 14d:
The IRIS MOTOR UNIT includes the FPC ASSY and two
sensors.

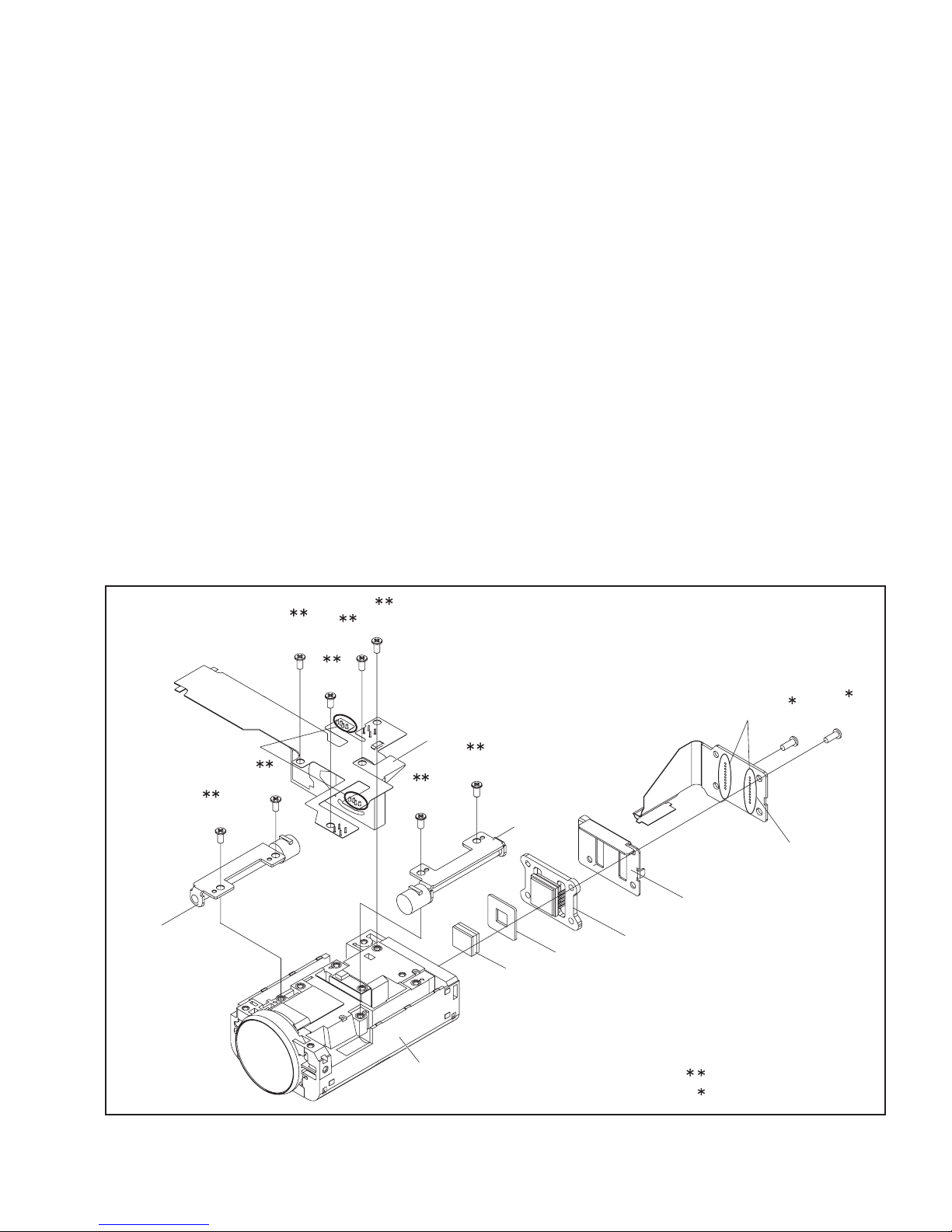

Fig.3-2-16
CCD BOARD ASSY
CCD BASE ASSY
OP BLOCK ASSY
ZOOM MOTOR
UNIT
AUTO IRIS UNIT
UNIT
FOCUS MOTOR
SHIELD(CCD)
SHEET
OP LPF
NOTE14a,c
NOTE14d
NOTE14a,b
5
(S14b)
8
(S14b)
9
(S14b)
1
(S14a)
2
(S14a)
6
(S14b) 4
(S14b)
3
(S14b)
SD14a
SD14b
7
(S14b)
10
(S14b)
0.147N࡮m (1.5kgf࡮cm)
0.078N࡮m (0.8kgf࡮cm)

1-16 (No.YF227<Rev.001>)
3.2.4 Disassembly of [18] MONITOR ASSY
zCAUTIONS
(1) During the procedure, be careful in handling the LCD
MODULE and other parts. Pay special attention not to
damage or stain the monitor screen.
If fingerprints are left on the screen, wipe them with clean
chamois leather or a cleaning cloth.
zRemoving MONITOR ASSY
(1) Remove the screw (1).
(2) Turn the HINGE UNIT ASSY 90°, and remove the 2
screws (2,3).
(3) Remove the MONI.COVER ASSY by removing the 7
hooks (L18a-g).
(4) Release the lock of the connector (CN18a), and remove
the HINGE UNIT by lifting it up.
NOTE18a:
During the procedure, be careful in handling the FPC.
(5) Release the lock of the connectors (CN18b,c), and pull
out the FPC.
(6) Remove the screw (4), and remove the MONITOR
BOARD ASSY .
NOTE18b:
During the procedure, be careful in handling the FPC.
(7) Remove the SHEET (M.REF), LIGHT GUIDE,
SHEET(M/DIFF), and the SHEET(BEF).
NOTE18c:
When attaching, insert one side of the SHEET (M/
DIFF) under the LCD CASE RIB.
NOTE18d:
When attaching, insert each tab on both sides of the
SHEET (M.REF) into the LCD CASE notch.
(8) Remove the LCD CASE, SPACER(LCD), LCD MOD-
ULE, SPACER(LCD) and the LCD BKT ASSY.
NOTE18e:
During the procedure, handle the five parts (LCD
CASE, SPACER(LCD), LCD MODULE, SPAC-
ER(LCD) and the LCD BKT ASSY) together.
NOTE18f:
The SENSOR BOARD ASSY is originally affixed to the
MONI.CASE ASSY using jigs and they have struc-
tures difficult to replace.
If replacement is required, please refer to the NOTE
and follow the operation procedure.
z
Assembly/Disambly of MONITOR ASSY/SENSOR BOARD ASSY
Operation procedure
• Removing the part which is to be reused
(1) Remove the SENSOR BOARD ASSY from the MO-
NI.CASE ASSY by gradually peeling off from the HINGE
ASSY side.
NOTE18g:
During the procedure, be careful not to break or de-
form the parts or warp the SENSOR BOARD.
(2) Completely peel off the remaining tape pieces of the D.
FACE TAPE left on the part to be reused (MONI.CASE
ASSY or SENSOR BOARD ASSY).
NOTE18h:
Make sure that there are no D. FACE TAPE pieces or
foreign substances left on the surfaces. If necessary,
clean the surfaces using alcohol etc.
• Affixing the D. FACE TAPE to the SENSOR BOARD
(1) Affix the D. FACE TAPE to the SENSOR BOARD ASSY.
NOTE18j:
Securely fix the D. FACE TAPE, and then affix the
SENSOR BOARD ASSY to the D. FACE TAPE by ad-
justing the four frames of the SENSOR BOARD ASSY
to the frame of the D. FACE TAPE. Evenly press over
the paper backing of each long / short side of the L
shape.
(2) Peel off the paper backing.
NOTE18k:
When removing the paper backing, check that there
are no foreign substances or air bubbles on the tape.
If there are foreign substances etc., completely re-
move them and continue the affixing procedure.
• Affixing the SENSOR BOARD ASSY to the MONI. CASE
(1) Affix the SENSOR BOARD ASSY to the MONI. CASE
NOTE18m:
When affixing, adjust the position of the long side of
the L shape to avoid misalignment, and then press
evenly.
Be sure to press hard for 10 seconds or more on each
long/ short side of the L shape for even adhesion.
During the procedure, be careful to prevent foreign
substances or air bubbles from entering.
(2) After the replacement, make sure that there are no bro-
ken or deformed parts or any abnormalities.
Use the service software for the operation check of the
touch sensor sensitivity.
Fig.3-2-17
SENSOR BOARD ASSY
D.FACE TAPE
DETACHMENT PAPER
D.FACE TAPE
SENSOR BOARD ASSY
NOTE18g,j,k
NOTE18j,k
NOTE18j,k

(No.YF227<Rev.001>)1-17
zRemoving HINGE UNIT ASSY
(1) Remove the screw (5), and remove the HINGE COV-
ER(U).
(2) Remove the HINGE COVER(L).
(3) Remove the MAGNET.
NOTE18n:
During the procedure, be careful in handling the FPC.
During the procedure, be careful in handling the MAG-
NET.
When attaching, set the N pole outside as shown in
the figure. Be careful when removing as there is no
marking.
NOTE18p:
During the procedure, be careful in handling the FPC.
NOTE18q:
The FPC, with its connection to the MONITOR
BOARD ASSY facing inward, is rolled around the axis
(shaft) of the HINGE UNIT ASSY rotation 2.5 rounds
(2.5times).

1-18 (No.YF227<Rev.001>)
Fig.3-2-18
SHEET(M.REF)
LIGHT GUIDE
SHEET(M/DIFF)
SHEET(BEF)1
LCD CASE RIB
LCD MODULE
SPACER(LCD)
(REINFORCED SIDE)
<MONI CASE SIDE>
<MONI COVER SIDE>
SPACER(LCD)
LCD BKT ASSY
LCD CASE
MONI CASE ASSY
MONI CASE ASSY
MONI COVER ASSY
MAGNET
FPC
HINGE COVER(L)
HINGE COVER(U) HINGE UNIT
ASSY
ASSYBOARD
MONITOR
ASSY
BOARDSENSOR
2
(S18b)
1
(S18a)
3
(S18b)
5
(S18b)
L18k
L18m
L18p
L18n
L18c
L18d
L18e
L18g
L18a
L18b
L18f
L18h
CN18a
CN18b
CN18c
CN18b
L18j
NOTE18e
NOTE18a
NOTE18c
NOTE18g,h,j NOTE18h,j
NOTE18b
NOTE18d
NOTE18d
NOTE18c
NOTE18d
NOTE18n
NOTE18p,q
4
(S18a)
0.118 N࡮m (1.2kgf࡮cm)

(No.YF227<Rev.001>)1-19
SECTION 4
ADJUSTMENT
4.1 PREPARATION
4.1.1 Precaution
Camera system and deck system of this model are specially
adjusted by using PC.
However, if parts such as the following are replaced, an
adjustment is required. The adjustment must be performed in a
Service Center equipped with the concerned facilities.
• EEP ROM (IC1005 of MAIN board)
• OP BLOCK ASSEMBLY
• MONITOR ASSEMBLY
In the event of malfunction with electrical circuits, first find a
defective portion with the aid of proper test instruments as shown
in the following electrical adjustment procedure, and then
commence necessary repair/ replacement/adjustment.
• In observing chip TP, use IC clips, etc. to avoid any stress.
Prior to replacement of chip parts (especially IC), remove the
solder completely to prevent peeling of the pattern.
• Use a patch cord if necessary. As for a patch cord, see the
BOARD INTERCONNECTIONS.
• Since connectors are fragile, carefully handle them in
disconnecting and connecting the FPC.
4.1.2 Required test equipment
• Personal computer (for Windows)
• Color TV monitor
• Oscilloscope (dual-trace type, observable 100MHz or higher
frequency). The one observable 300 MHz or higher frequency
is recommended.
• Digital voltmeter
• DC power supply or AC adapter
• Frequency counter (with threshold level adjuster)
4.1.3 Tools required for adjustment
•Torque Driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC Replacement Jig
To be used for adjustment of the camera system.
•Cleaning Cloth
Recommended the Cleaning cloth to wipe down the video
heads, mechanism (tape transport system), optical lens sur-
face.

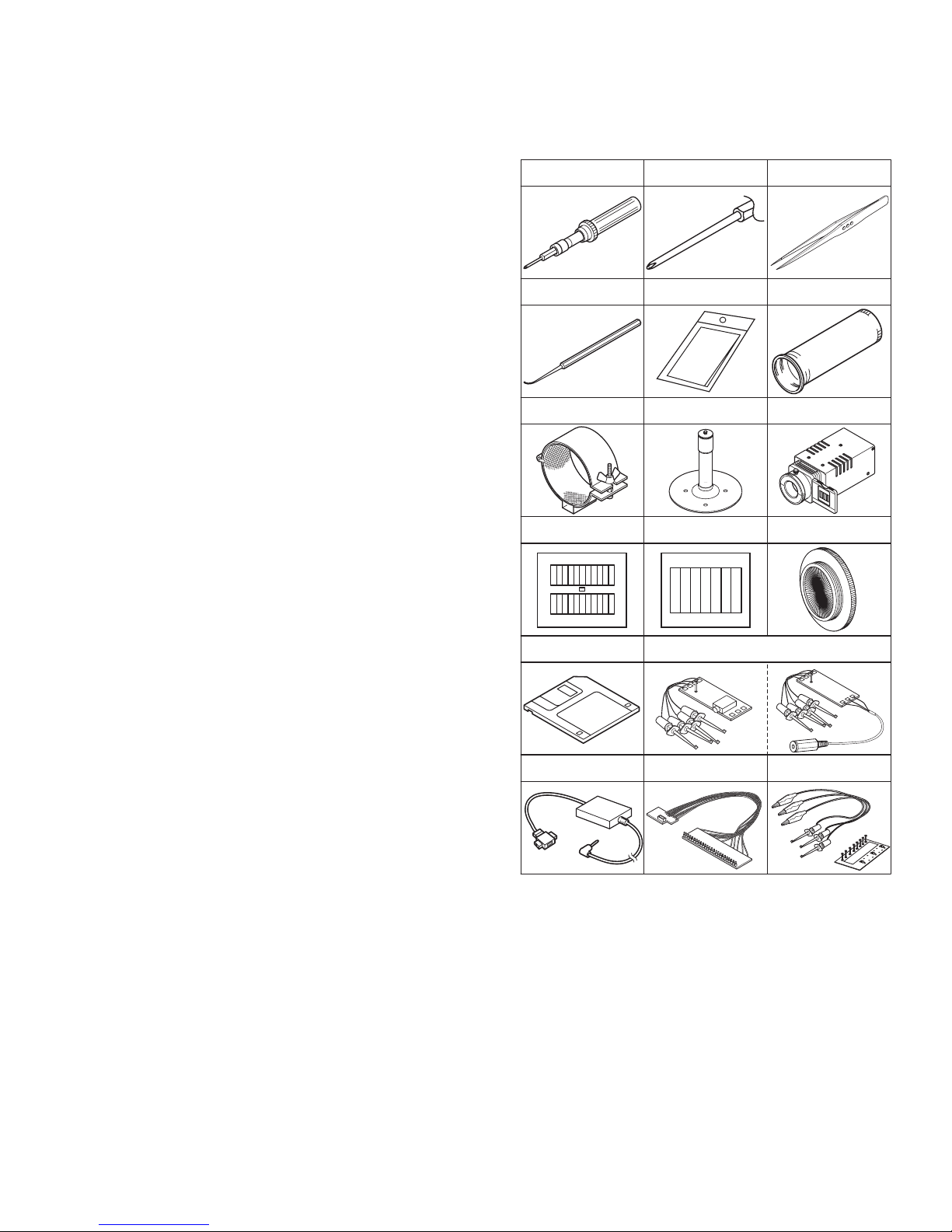

Torque Driver
YTU94088
Bit
YTU94088-003
Chip IC Replacement Jig
PTS40844-2
Tweezers
P-895
Cleaning Cloth
KSMM-01
Charing Battery Adjuatment Jig
YTU93112A
INF Adjustment Lens Holder
YTU94087
Mini Stand
YTU93108
Gray Scale Chart
YTU94133A
Color Bar Chart
YTU94133C
Focus Chart
YTU92001-018
PC Cable
QAM0099-005
Jig Connector Cable
YTU93106D
Communication Cable
YTU93111-1
Service Support System
YTU94057-109
INF Adjustment Lens
YTU92001B
Light Box Assembly
YTU93096B

1-20 (No.YF227<Rev.001>)
•INF Adjustment Lens
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•INF Adjustment Lens Holder
To be used together with the Camera stand for operating the
Videocamera in the stripped-down condition such as the sta-
tus without the exterior parts or for using commodities that are
not yet conformable to the interchangeable ring. For the usage
of the INF lens holder, refer to the Service Bulletin No. YA-SB-
10035.
•Mini Stand
To be used together with the INF adjustment lens holder. For
the usage of the Mini stand, refer to the Service Bulletin No.
YA-SB-10035.
•Light Box Assembly
To be used for adjustment of the camera system. For the
usage of the Light box assembly, refer to the Service Bulletin
No. YA-SB-10035.
•Gray Scale Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Color Bar Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Focus Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Service Support System
To be used for adjustment with a personal computer. Software
can be downloaded also from JS-net.
•Communication Cable
Connect the Communication cable between the PC cable and
Jig connector cable when performing a PC adjustment.
•PC Cable
To be used to connect the Videocamera and a personal computer
with each other when a personal computer issued for adjustment.
•Jig Connector Cable
Connected to JIG CONNECTOR of the main board and used
for electrical adjustment, etc.
•Charging Battery Adjustment Jig
This Jig is used for the adjustment of the camcorders that have
Main Body battery charging function.

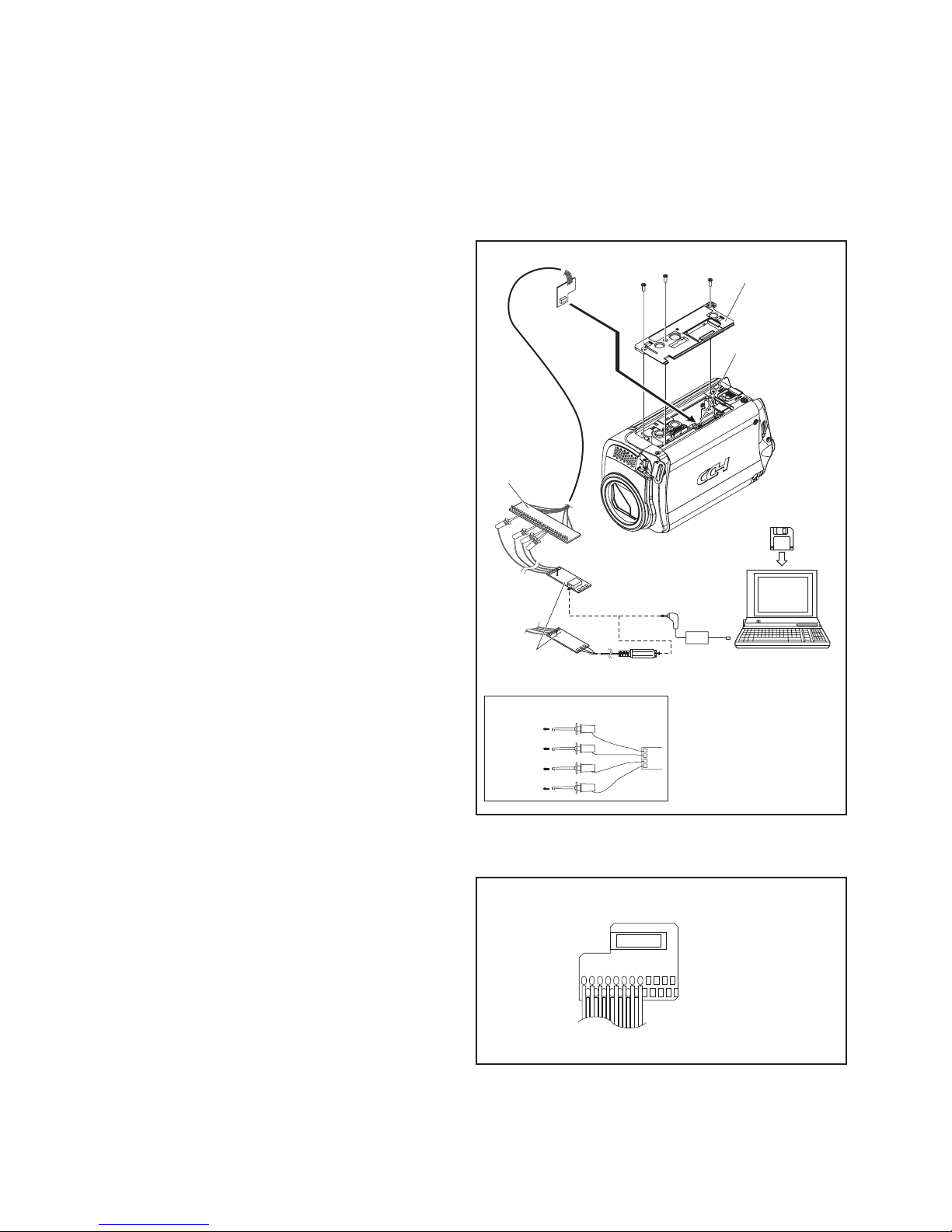

4.2 JIG CONNECTOR CABLE CONNECTION
Connection procedure
NOTE
•Be sure to turn the power “OFF”, when connecting the JIG
CONNECTOR CABLE.
If the JIG CONNECTOR CABLE is connected with the pow-
er “ON”, communication error may occur.
•Remove the 3 screws (1-3), and then remove the B.COV-
ER ASSY.
Fig.4-2-1
Fig.4-2-2
or
TO AL_2.8V
TO IF_RX
TO IF_TX
TO GND
BLUE
RED
WHITE
BLACK
PC CABLE
B.COVER ASSY
COMMUNICATION
CABLE
JIG CONNECTOR
CABLE
MENU
RS232C
COM PORT
SERVICE
SUPPORT
SYSTEM
COMMUNICATION
CABLE
JIG CONNECTOR
PERSONAL COMPUTER
JIG
CONNECTOR
123
JIG CONNECTOR CABLE [YTU93106D]
115
1630
