JVC JY-HD10 User manual

High-Definition
Digital Camcorder
JY-HD10
1080i/720p/NTSC Playback
720/30p HD Recording
1.18 Megapixel Progressive CCD
F1.8-1.9 Optical Zoom Lens
MPEG Edit Studio Pro LE
XLR x2 Audio Inputs
Rotating Grip
Records on MiniDV Tape
World’s first affordable
High Definition
Camcorder!

Multi-Format Compatibility
JVC technological innovation
provides HD performance in a
compact and cost-effective camera
The JY-HD10 is capable of 720/30p
HD recording on MiniDV tape.
To accommodate a variety of shooting
and playback requirements, it also
offers SD recording in MPEG-2 format
as well as NTSC recording in DV
format.
60 minutes of
HD/SD can be
recorded on a
60 MiniDV tape.
720/30p
HD
480/60p
SD
480/60i
DV
MPEG-2
Recording
DV Recording
JVC PROFESSIONAL

F1.8—F1.9 Optical
Zoom Lens Optical Image Stabilization
1.18 Megapixel
Progressive Scan CCD
This newly
developed
1/3” HD CCD
with
1,180,000
pixels offers
an improved
dynamic range as well as high sensitivity
and a high S/N ratio. By combining this
progressive scan HD CCD with our original
hybrid complementary-primary digital filter
and processing circuitry, color accuracy
and horizontal resolution are improved.
And our exclusive driving system (patent
pending) attained multi-format recording
capability.
The camera incorporates an optical image
stabilization lens shift system to allow HD
recording even at high zoom ratios.
Combined with our newly developed lens
servo circuit and camera-shake detection
algorithm, it provides effective full-time
stabilization for superior results when
shooting still
images as well as
video.
Developed for HD recording, this all glass
multi-element lens offers improved
peripheral resolution, brightness, and low
distortion. The 10x zoom lens offers full
range zooming with almost no variance in
brightness. And by use of multi-coated
lenses and a large lens hood, it enables
capture of virtually ghost-free HD images.
New ergonomic style for
the active professional.
Rotating Grip
Transition from a high to low angle
shot without removing your hand from
the grip or taking your eyes off the action.
Get HD footage where bulkier cameras
just can’t go.
Aluminum Frame
Rugged body with die-cast aluminum
center frame and magnesium coated
exterior (excluding grip).
Actual Size

MPEG Edit Studio™Pro LE (Windows®
XP compatible)
This professional NLE (Non-Linear Editing)
application is customized for the JY-HD10.
It allows HD and SD MPEG-2 files captured from
the JY-HD10 to be edited with frame accuracy.
And with audio dubbing, title transitions, and
sound monitoring while editing, it’s possible to
created polished videos on a PC. Converted
standard definition program stream MPEG-2 files
can be recorded on regular DVD.
HD Capture Utility
Basic tool for capturing HD and SD footage
from the JY-HD10 to a computer. After
editing, this utility can export the video to a
connected unit. (Real-time monitoring of
video being captured is not possible.)
Audio Converter 1.0
Lets you import common audio files such
as MP3, WAV, and WMA with full sound
mixing and editing support, for use in your
movie soundtrack in the MPEG-1 Audio
Layer 2 format used by MPEG Edit
Studio™ Pro LE.
ImageMixer DVD
With a variety of ready-made frames and
graphics, this application makes it easy to
author standard DVD Video discs viewable
on almost any DVD player from the videos
created using MPEG Edit Studio™ Pro LE.
(DVD authoring requires DVD burner
supported by PIXELA in addition to
compatible PC.)
This built-in function is an essential
guide to precision color matching and
adjustment.
The audio input level can be confirmed
at a glance, for precision monitoring.
Audio
Converter
Still
HD
Capture
Utility
HD
Capture
Utility
MPEG-2 TS
SD Memory Card
MPEG-2 TS
MPEG-2 PS
Mixer
DVD
JY-HD10 JY-HD10
MPEG
Edit Studio®
Pro1.0LE
i.LINK
i.LINK
i.LINK
i.LINK
Editing
Capture
Recording
D-VHS
DVD-R/RW

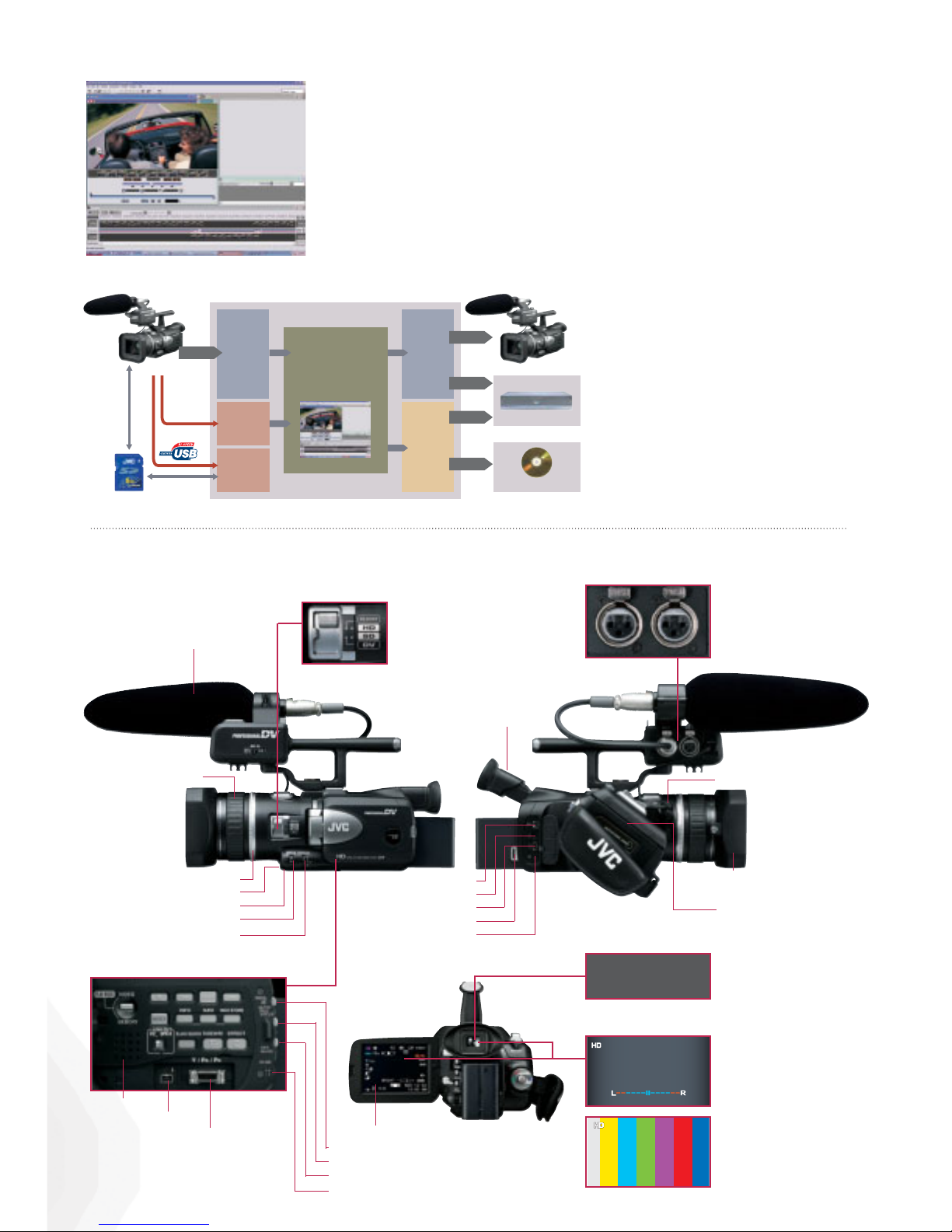

Bundled with high-performance editing and authoring software.
Designed to meet the special needs of demanding professionals.
180,000 pixel
Color Viewfinder
LCD Monitor/Viewfinder
High Resolution
Color Viewfinder
Program AE Button
200,000 Pixel LCD Monitor
Shutter Speed/Iris Control Button
Manual Zoom Ring
Mic Holder with XLR Audio
Inputs
Microphone Connector
Lens Hood
Cassette Loading in
Rotating Grip
Memory Card Slot
Backlight Compensation Button
Manual Focus Button
Exposure Adjustment Wheel
i.LINK IEEE 1394
Speaker
Component Output
Audio Level Indicator
Color Bar Generator
Manual Focus Ring
Recording
Mode Switch
S/AV Connector
Headphone Connector
Microphone
(Not included)
USB
Manual White Balance Button
Menu Wheel
180,000 pixel
The carrying handle is equipped with
dual XLR audio inputs. Input sensitivity:
–60dBs~–68dBs. (Mic input
unbalanced, non-adjustable,
non-powered)
For Shoulder Strap
DC Input Connector

HDTV
PC
D-VHS
Professional
Monitor
Component Input
(Y/PB/PR)
i.LINK
DV/MPEG-2
i.LINK
Component Input
(Y/PB/PR)S/VIDEO
S/VIDEO
NTSCTV
1080i
(up-converted from
480/60p, 720/30p)
720/60p
480/60p
480i
Recording Playback Audio
Recording format
HD
MPEG-2 TS(GOP=6)
SD
MPEG-2 TS(GOP=12)
DV
720/30p(16:9)1080/60i
720/60p
480/60p
480/60i*
1080/60i
480/60p
480/60i*
480/60p(16:9)
480/60i(4:3, 16:9)
720/30p
480/60p
480/60i
MPEG-1 Layer2
2ch (16bit) 48kHz
384kbps
MPEG-1 Layer2
2ch (16bit) 48kHz
384kbps
PCM
4ch (12bit) 32kHz
2ch (16bit) 48kHz
(44.1kHz playback only)
480/60i*
Recording mode Component Output i.LINK output

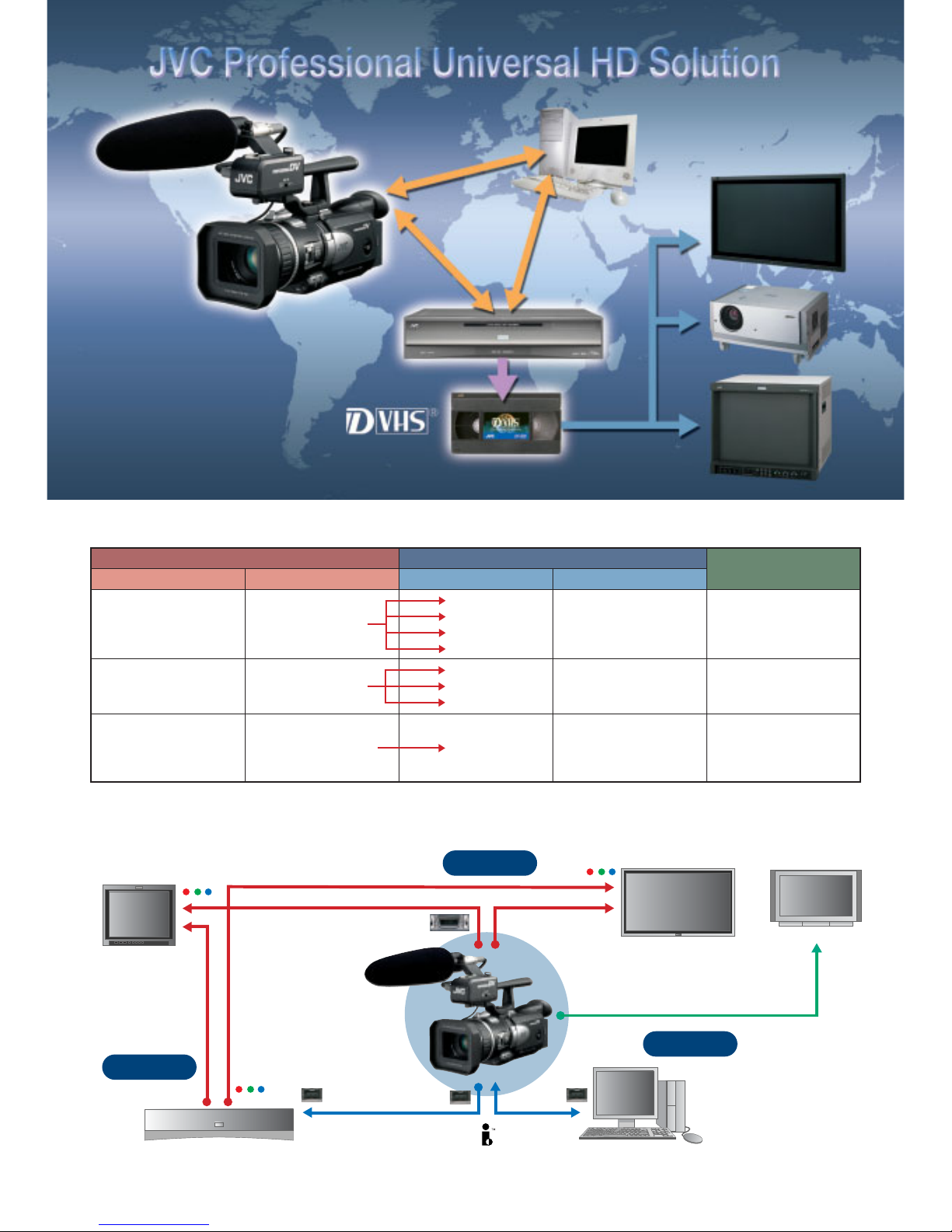

JY-HD10 Recording/Playback Capabilities
JY-HD10 Connectivity with Peripherals
*Also S-VIDEO and Composite output
Output
Dubbing Editing
●The camera’s E-E through image when outputting through the Component Output in HD mode
will be 480/60p only.
●The frame/field rate for 720/60p and 1080i analog output during HD playback will be 60.00 fps.
●By connecting via i.LINK to a D-VHS video deck with built-in MPEG-2 HD decoder, output of
1080/60i, 720/60p are possible, and the frame rate is converted to 59.94 fps.
●When outputting 480/60p, the frame/field rate will always be 59.94 fps regardless of the
recording mode or output terminal.
●Provided MPEG-2 compatible software
MPEG2 Edit Studio®Pro 1.0 LE
(Windows®XP compatible)
●Cables are sold separately. Please select
according to the type of TV or monitor
being used.
Shooting
Shooting Editing
Editing
Distribution
Analog HD
1080/60i
Displaying
Recording &
Archiving
Recording &
Archiving

Recording system Mini DV format, HD Digital VCR Conference’s Part 7 (DVB) and Part 8 (ATV) standards,
DVC-SD, DVCATV / DVB compliant
Digital / component Format i.LINK IEEE 1394 Component S / Composite
Video format recording / 1280720p / 30 fps 720p / 29.97
playback MPEG-2 HD 16:9
720480p / 60 fps 480p / 59.94
MPEG-2 SD 16:9
720480i / 30 fps 480i / 59.94 (16:9 is anamorphic “squeeze” only)
DV 4:3 or (16:9)
and DV 4:3 D.Wide 480i / 29.97 psf (Progressive segmented frame)
HD/SD bit rate 19.7 Mbps Transport Stream (MTRM Standard compatible with D-VHS)
Digital audio signal HD, SD mode MPEG-1 Layer2 16 bit Stereo, 384 kbps
recording; DV mode PCM 16 bit 2 channels or 12 bit 4 channels
Image sensor 1/3 inch Area of motion HD 16:9 1280659
1.18 million-pixel pictures SD 16:9 932480
progressive CCD (pixels) DV 16:9 932480
DV 4:3 D. Wide 941646
DV 4:3 699480
Effective area for still pictures 1280873
Lens F1.8—F1.9, when compared to a 35mm still camera:
f = 5.2mm ~ 40.3mm ~ 403mm in 16:9 HD mode,
52mm 55.0mm ~ 550mm in 16:9 SD mode and 16:9 DV Anamorphic mode
67.8mm ~ 678mm in 4:3 DV mode
47.7mm ~ 477mm in 4:3 DV D.Wide mode
37.1mm ~ 371mm in 4:3 Digital Still memory mode
Filter Diameter 52mm
Zoom magnification 10x optical zoom, SD/DV 40x and 200x digital zoom
Sensitivity F8, 2000 Lux (HD mode)
Monitor 3.5” color LCD monitor (200,000-pixel polycrystalline silicon LCD)
Viewfinder 0.44” color LCD viewfinder (180,000-pixel polycrystalline silicon LCD)
I/O connector i.LINK 4pin (IEEE1394 conforming) S400
Multipin Y/C: Input Y: 0.8V(p-p) ~1.2V(p-p-), 75ΩC: 0.2V(p-p) ~0.4V(p-p-), 75Ω
Output Y: 1.0V(p-p) 75ΩC: 0.29V(p-p) 75Ω
Composite: Input Y: 0.8V(p-p) ~1.2V(p-p-), 75ΩOutput Y: 1.0V(p-p) 75Ω
Audio: Stereo Input: 300mV (rms), 50kΩStereo Output: 300mV (rms), 1kΩ
Editing control
Headphone ø3.5mm Mini-plug
USB Mini-USB B-type (5 pin)
Component Analog Output Y: 1.0V(p-p) 75ΩPb: 0.7V(p-p), 75ΩPr: 0.7V(p-p), 75Ω
Audio Inputs XLR x 2 unbalanced (–60dBs~–68dBs)
DC JVC link cable
Dimensions (WHD) 4-9/163-15/1610-3/4 inches, 114.599271.5 mm
Including maximum protrusion, but with LCD closed and Viewfinder pushed in, not including Mic Holder
Weight Main unit alone: 2.8 lbs (1,270g) During shooting operation: 3.3 lbs (1,490g)
including Battery Pack, Mini DV Cassette, Memory card, not including Mic Holder
Operating temperature 0 to 40 degrees Centigrade (32 to 104 degrees Fahrenheit)
Operating humidity 35 to 80%
Storage temperature –20 to 50 degrees Centigrade (–4 to 122 degrees Fahrenheit)
Power source DC 6.3V (using AC Adapter), DC 7.2V (using Battery Pack)
Power consumption HD/SD mode 8.0W (using viewfinder), 9.7W (using LCD monitor) DV mode 6.8W (using viewfinder),
8.5W (using LCD monitor)
Continuous (Actual) recording time*1HD/SD mode DV mode
Using viewfinder BN-V416 1 hr. 15 min. (37 min.) 1hr. 30 min. (45 min.)
BN-V428 2 hr. 15 min. (1 hr. 8 min.) 2 hr. 50 min. (1 hr. 25 min.)
Using LCD monitor BN-V416 1 hr. 00 min. (30 min.) 1 hr. 10 min. (35 min.)
BN-V428 1 hr. 50 min. (55 min.) 2 hr. 10 min. (1 hr. 5 min.)
Still picture format JPEG compliant, DCF, Digital print order format
Picture capacity SD Memory Card (ex) MultiMediaCard (ex)
(Fine/Standard) 8MB ~ 64MB 8MB ~ 32MB
640480 (4:3)* 30/80 297/772 36/95 149/388
848480 (16:9)* 25/66 241/643 29/79 121/323
1280720 (16:9)* 10/26 99/257 12/31 49/129
1280960 (4:3) 7/20 74/193 9/23 37/97
q
werty
uio!0 !1
!2
!3
!4
!5
!6 !7 !8 !9 @0
DISTRIBUTED BY JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road, Wayne, N.J. 07470
TEL: [phone] FAX: [phone]
Internet Web Site http:/www.jvc.com/pro
E-mail: [email protected]
JVC CANADA INC.
21 Finchdene Square, Scarborough, Ontario M1X 1A7
TEL: [phone] FAX: [phone]
Internet Web Site http:/www.jvcpro.com/
Printed in Japan
ICN-0276
E. & O.E. Design and specifications subject to change without notice. Certain accessories may not be available in certain areas. All photographs and screenshots in this
catalogue are simulated. Microsoft®, Windows®and NetMeeting®are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries. Apple, Apple logo, Macintosh®and Mac are registered trademarks of Apple Computer, Inc. in the United States and/or other countries. All brand or product
names are trademarks and/or registered trademarks of their respective holders. Copyright © 2003, Victor Company of Japan, Limited (JVC). All Rights Reserved.
<Windows®>
• OS: Microsoft®Windows®XP Home Edition/
Professional (Pre-install version) • CPU: Intel®
Pentium®4 2GHz or above • RAM: 512MB or above for
DDR SDRAM or DRD RAM, 512MB or above when
taking video memory from RAM • Terminal: IEEE1394
(i.LINK) terminal and USB terminal (Standard
equipment) • Displays: 1024 x 768 or above • Video
memory: 32MB or above • Hard Disk: Ultra ATA/100
(7200rpm or above recommended) • Other: CD-ROM
drive (For installation) • When making DVD Video discs,
using ImageMixer DVD • Recordable DVD drive that
PIXELA Corporation supports is necessary.* • DVD-
RAM media cannot be supported by ImageMixer DVD.
*Information about compatible drives will be provided at the web
site of PIXELA Corporation, etc.
[When installing MPEG Edit Studio™ Pro 1.0 LE] HDD
unused space: Approx. 50MB or above necessary (Just
for installation)
[When installing ImageMixer DVD] HDD unused space:
Approx. 120MB or above necessary (Just for
installation)
<Macintosh>
This software is incompatible with Macintosh
*note: • May not work correctly depending on the PC
environment. • Microsoft®and Windows®are
registered trademarks of Microsoft Corporation in
U.S.A. and other countries. • Intel®, Pentium®are
registered trademarks of Intel Corporation. • MPEG
Edit Studio is a registered trademark of KDDI
Corporation. • Other listed corporations’ and products’
names are their owner’s trademarks or registered
trademarks.
JY-HD10 Provided Accessories
qAA-V40U, AC Power Adapter/Charger wDC Cord to
Charger from camera eRM-V717U, Remote Control Unit
rUSB Cable tComponent Video Cable yS/AV/Editing
Cable uBN-V428U, High Capacity Battery Pack 2800 mAh
iLens Cap oCD-ROM with software !0 Audio Cable x 2
for stereo microphone and headphone !1 Audio Extension
Cable !2 Editing Extension Cable !3 Cleaning Cassette
!4 8 MB SD Memory Card (Already inserted in the camcorder)
!5 Shoulder Strap !6 AAA (R03) Battery x 2 (for remote control
unit) !7 Core Filter x 7 for cables !8 RCA-BNC Adapter x 3
!9 Carrying Handle @0 Pro Pad (with XLR x 2)
● Lens Hood (Already attached to the camcorder)
*i.LINK denotes IEEE (Institute of Electronics and
Electronics Engineers) 1394-1995 and its extended
specifications.
i.LINK and i.LINK’s logo “ ” are trademarks of Sony
Corporation.
Specifications
480i / 29.97
(Anamorphic “squeeze”
or Letterbox depending
on component output)
480p / 59.94
480i / 29.97
Playback only:
720p / 60 fps HD only
1080i / 30 fps
*1Note…Continuous recording time, actual recording time, and number of still pictures are approximate.
*These sizes also recordable on tape.
