SERVICE MANUAL
COPYRIGHT © 2004 Victor Company of Japan, Limited No.YA104
2004/7
FLAT COLOUR TELEVISION
AV-29WX14 /G
AV-29WX14 /S
AV-29WX24 /L
AV-2954W /E
TABLE OF CONTENTS
1 PRECAUTION ......................................................................................................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ................................................................................................................... 1-4
3 DISASSEMBLY ....................................................................................................................................................... 1-8
4 ADJUSTMENT ...................................................................................................................................................... 1-14
5 TROUBLESHOOTING ........................................................................................................................................... 1-33
BASIC CHASSIS
CW

1-2 (No. YA104)
Dimentions (W x H x D) 81.2cm x 58.4cm x 51.8cm
Mass 41kg 43kg
TV RF System B, G, I, D, K, M
Colour System TV Mode PAL / SECAM / NTSC3.58 / NTSC 4.43
Video Mode PAL / SECAM / NTSC3.58 / NTSC4.43
Stereo System Playback A2(B/G) / NICAM(B/G,I,D/K)
Teletext system FLOF (Fastext), WST (World Standard Text)
Receiving Frequency VHF Low 46.25MHz ~ 140.25MHz (AS0 ~ S6)
VHF High 147.25MHz ~ 423.25MHz (S7 ~ S36)
UHF 431.25MHz ~ 863.25MHz (S37 ~ CHINA 57)
CATV Mid: X ~ Z, S1 ~ S10
Super: S11 ~ S20
Hyper: S21 ~ S41
Intermediate VIF 38.0MHz
Frequency SIF D/K: 31.5MHz (6.5MHz) D/K: 31.5MHz (6.5MHz) D/K: 31.5MHz (6.5MHz)
[NICAM: 32.15MHz I: 32.0MHz (6.0MHz) [NICAM: 32.15MHz
(5.85MHz)] B/G: 32.5MHz (5.5MHz) (5.85MHz)]
I: 32.0MHz (6.0MHz) M: 33.5MHz (4.5MHz) I: 32.0MHz (6.0MHz)
[NICAM: 31.45MHz [NICAM: 31.45MHz
(6.55MHz)] (6.55MHz)]
B/G: 32.5MHz (5.5MHz) B/G: 32.5MHz (5.5MHz)
[A2: 32.26MHz [A2: 32.26MHz
(5.74MHz)] (5.74MHz)]
[NICAM: 32.15MHz [NICAM: 32.15MHz
(5.85MHz) (5.85MHz)
M: 33.5MHz (4.5MHz) M: 33.5MHz (4.5MHz)
Colour Sub Carrier Frequency 4.43MHz (PAL), 4.40MHz / 4.25MHz (SECAM), 3.58MHz / 4.43MHz (NTSC)
Aerial Input Terminal 75 Ω unbalanced, coaxial
Power Input AC110V ~ AC240V, 50Hz / 60Hz
Power Consumption 166W (Max.) / 109 W (Avg.)
Picture Tube  A68LZU185X A68QCU770X52K
29-inch, aspect ratio 4:3, flat square face type, tinted
Visible size: 67.6cm (Diagonal) / 54.1cm x 40.6cm (H x V)
High Voltage 32kV -1.5kV / +1.0kV (at zero beam current)
Speaker 6.5cm x 13cm, oval type x 2
Audio Output 10W + 10W
Video / Audio Input S-Video [1] Mini-DIN 4pin
(1/2/3) Y : 1V (p-p), positive (negative sync provided), 75 Ω
C : 0.286V (p-p) (Burst signal), 75 Ω
Video [1/2/3] 1V (p-p), negative sync, 75 Ω , RCA pin jack x 3
Audio [1/2/3] 500mV (rms) (-4dBs), High impedance, RCA pin jack x 6
Component RCA pin jack x 3
Video [2] Y: 1V(p-p), positive (negative sync), 75 Ω
CB/CR : 0.7V(p-p), 75 Ω
Video / Audio Output Video 1V (p-p), 75 Ω , RCA pin jack x 1
Audio 500mV (rms) (-4dBs), Low inpedance (400Hz when modulated 100%), RCA pin jack x 2
Headphone 3.5mm stereo mini jack
Remote Control Unit RM-C1281-2H RM-C1280-2H
(AA/R06/UM-3 battery x 2) (AA/R06/UM-3 battery x 2)
SPECIFICATION
Items
Design & specifications are subject to change without notice.
Contents
AV-29WX14/G AV-29WX14/S AV-2954W/E
AV-29WX24/L

(No. YA104) 1-3
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should
be made to the original design unless authorized in writing
by the manufacturer. Replacement parts must be identical
to those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by () on the parts list in Service manual.
The use of a substitute replacement which does not have
the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual
may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND. Don't short between the LIVE
side GND and ISOLATED (NEUTRAL) side GND or EARTH
side GND and never measure the LIVE side GND and
ISOLATED (NEUTRAL) side GND or EARTH side GND at
the same time with a measuring apparatus (oscilloscope
etc.).
If above note will not be kept, a fuse or any parts will be
broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept
to a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence
of overheating should be replaced. Always use the
manufacturer's replacement components.
(9) Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output
terminals, Control knobs, metal cabinet, screw heads,
earphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand
a voltage of 3000V AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternative Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.).
Use an AC voltmeter having 1000 ohms per volt or
more sensitivity in the following manner. Connect a
1500Ω10W resistor paralleled by a 0.15µF AC-type
capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC
voltage across the resistor with the AC voltmeter. Move
the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds
to 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000Ω/V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500Ω10W
0.15µF AC-TYPE
GOOD EARTH GROUND
SECTION 1
PRECAUTION

1-4 (No. YA104)
2.1 FEATURES
•New chassis design enables use of an interactive on-screen control.
•Pure flat CRT produces fine textured picture in every detail.
•Wide range voltage (110V ~ 240V) for AC power input.
•With AUDIO/VIDEO/S-VIDEO/COMPONENT input terminals.
•I 2C bus control utilizes single chip ICs.
•By means of AUTO PROGRAM, the TV stations can be selected automatically and the TV channels can also be rearranged
automatically.
•Built-in DIGITAL ECO MODE (ECONOMY, ECOLOGY).
In accordance with the brightness in a room, the brightness and/or contrast of the picture can be adjusted automatically to
make the optimum picture which is easy on the eye.
•Built-in OFF TIMER & RETURN +.
2.2 MAIN DIFFERENCE LIST
2.3 FUNCTIONS
JREMOTE CONTROL UNIT
RM-C1281-2H
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOUND SYSTEM key
COLOUR SYSTEM key
FAVORITE CHANNEL keys
DISPLAY BACK key
MENU (OK) key
TEXT key
SOUND TURBO key
PICTURE MODE key
SOUND setting key
(Stereo/Bilingual Ι/Bilingual ΙΙ/Monaural)
OFF TIMER key
RETURN + key
CHANNEL (-/+) keys
MODE key
INDEX key
REVEAL key
Not used
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
STORE key
ECO key
POWER key
TV / VIDEO key
MENU (/, /) keys
MUTING key
Number keys
-/-- key
VOLUME (-/+) keys
SUBPAGE key
HOLD key
CANCEL key
SIZE key
BASS key
CINEMA SURROUND key
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
5
19
20
21
22
24
23
28
30
31
29
25
26
27
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Items AV-29WX14/G AV-29WX14/S AV-29WX24/L AV-2954W/E
MAIN PWB ASS’Y SCW-1012A-H2 SCW-1025A-H2 SCW-1068A-H2 SCW-1013A-H2
FRONT CABINET ASS’Y GG10189-002A-H ←GG10189-006A-H GG10189-011A-H
PICTURE TUBE A68LZU185X ←←A68QCU770X52K
POWER CORD QMPR340-165-K2 QMPR650-165-JC QMPR340-165-K2 ←

(No. YA104) 1-5
JFRONT PANEL CONTROLS
IN (VIDEO-3)
VR
MENU
OK
L/MONO
CHANNEL
VOLUME TV/VIDEO
EXIT
POWER
4
3
2
156 7 8910 11 12
1
2
3
4
5
6
7
8
9
10
11
12
HEADPHONE jack
IN (VIDEO-3) : VIDEO
IN (VIDEO-3) : AUDIO L/MONO
IN (VIDEO-3) : AUDIO R
MENU (OK) button
CHANNEL (-/+) buttons
VOLUME (-/+) buttons
TV/VIDEO EXIT buttons
Remote control sensor
ECO sensor
POWER lamp
MAIN POWER button
2
3
4
5
6
7
8
9
10
11
12
13
VIDEO-1 INPUT TERMINAL
S-VIDEO
VIDEO
AUDIO L/MONO
AUDIO R
COMPONENT (VIDEO-2) INPUT TERMINAL
Y/VIDEO
CB
CR
AUDIO L/MONO
AUDIO R
OUTPUT TERMINAL
VIDEO
AUDIO L
AUDIO R
Aerial input terminal
1
V
L
RR
L/MONO
Y
C
B
C R
/V
V
S
OVER
L
R
/MONO
OUTPUT
VIDEO-1 COMPONENT
(VIDEO-2)
INPUT
INPUT
7
4
3
212 13
1
9
5 6 10 118
JREAR TERMINAL

1-6 (No. YA104)
Pin no. Terminal name Port name I/O Remark
1 VssP2 VSSP2 - GND
2 VssC4 VSSC4 - GND
3 V1.8C4 VDDC4 I 1.8V (Digital)
4 V3.3A3 VDDA3(3.3V) I 3.3V
5 VrefP_Sdac VREF_POS_LSL I 3.3V (Positive)
6 VrefN_Sdac VREF_NEG_LSL+HPL - GND
7 VrefP_Sdac VREF_POS_LSR+HPR I 3.3V (Negative)
8 VrefN_Sdac VREF_NEG_HPL+HPR - GND
9 VrefP_Sdac VREF_POS_HPR I 3.3V (Positive)
10 XtalIn XTALIN I Crystal oscillator input (24.576 MHz)
11 XtalOut XTALOUT O Crystal oscillator input (24.576 MHz)
12 VssA1 VSSA1 - GND
13 NECK VGUARD/SWIO I V-guard input/ I/O switch
14 CONT DECDIG I Decoupling digital supply
15 V5P1 VP1 I +5V
16 Ph2 PH2LF - Phase-2 filter
17 Ph1 PH1LF - Phase-1 filter
18 Gnd1 GND1 - GND
19 SecPll SECPLL - SECAM PLL decoupling
20 Dec8G DECBG - Bandgap decoupling
21 EW EWD/AVL O East-West drive output or AVL capacitor
22 VDRB- VDRB O Vertical drive B output
23 VDRA+ VDRA O Vertical drive A output
24 Vif1 VIFIN1 I IF input 1
25 Vif2 VIFIN2 I IF input 2
26 Vsc VSC - Vertical sawtooth capacitor
27 Iref IREF I Reference current input
28 GndIF GNDIF - GND
29 Sif1 SIFIN1/DVBIN1 I SIF input 1
30 Sif2 SIFIN2/DVBIN2 I SIF input 2
31 AGC AGCOUT O Tuner AGC output
32 EHT EHTO I EHT/overvoltage protection input
33 Ssif/RefIn/Avl/RefOut
AVL/SWO/SSIF/REFO/REFIN
O Automatic Volume Levelling/ sound IF input / subcarrier
reference output / external reference signal input for I
signal mixer for DVB operation
34 L3 AUDIOIN5L I Audio-L3 input (left signal)
35 R5 AUDIOIN5R I Audio-R3 input (right signal)
36 L_OUT AUDOUTSL O Audio L output
37 R_OUT AUDOUTSR O Audio R output
38 DecsDem DECSDEM - Decoupling sound demodulator
39 QssO/AmO/AudeEm QSSO/AMOUT/AUDEEM O QSS intercarrier output / AM output / deemphasis / (front-
end audio out)
40 Gnd2 GND2 - GND
41 PllIf PLLIF - IF-PLL loop filter
42 SifAgc SIFAGC/DVBAGC - AGC sound IF
43 IfVo/FmRo/DvbO DVBO/IFVO/FMRO O Not used
44 NC DVBO/FMRO O Not used
45 V8AudioSwitches VCC8V I 8V
46 AgcSsif AGC2SIF - AGC capacitor second sound IF
47 V5P2 VP2 I 5V
48 V_OUT IFVO/SVO/CVBSI O Video output
49 L1 AUDIOIN4L I Audio-L1 input
50 R1 AUDIOIN4R I Audio-R1 input
51 V3 CVBS4/Y4 I Video V3
52 C4 C4 I Not used
53 Audio2InL AUDIOIN2L I Not used
54 Audio2InR AUDIOIN2R I Not used
55 V2/Y CVBS2/Y2 I Component Y/Video V2
56 L2 AUDIOIN3L I Audio L2 input (Left signal)
57 R2 AUDIOIN3R I Audio R2 input (right signal)
58 Y3/Cvbs CVBS3/Y3 I S-Video Y1
59 C1 C2/C3 I S-Video C1
60 AudioLsL AUDOUTLSL O Audio L output for audio power amplifier
61 AudioLsR AUDOUTLSR O Audio R output for audio power amplifier
62 HP_L AUDOUTHPL O Headphone L
63 HP_R AUDOUTHPR O Headphone R
64 CVBSO/PIP CVBSO/PIP O CVBS / PIP output
IC701 Pin Function List (1/2)

(No. YA104) 1-7
Pin no. Terminal name Port name I/O Remark
65 SVM SVM O Scan velocity modulation output
66 FbiSo FBISO/CSY I Flyback input/sandcastle output or composite H/V
timing output
67 Hout HOUT O Horizontal output
68 VssComb VSScomb - GND
69 V5Comb VDDcomb I 5V
70 Vin/R2/Pr VIN (R/PRIN2/CX) I PIP R input
71 Uin/B2/Pb UIN (B/PBIN2) I PIP B input
72 Yin/G2/Y YIN (G/YIN2/CVBS-YX) I PIP G input
73 Ysync YSYNC I Not used
74 Yout YOUT O Not used
75 Uout/INSSW2 UOUT (INSSW2) O RGB / YPBPR insertion input
76 NC VOUT (SWO1) O Not used
77 INSSW3 INSSW3 I YPBPR insertion input
78 R3/Pr R/PRIN3 I Component PR input (Video-2)
79 G3/Y G/YIN3 I Component Y input (Video-2)
80 B3/Pb B/PBIN3 I Component PB input (Video-2)
81 Gnd3 GND3 - GND
82 V5P3 VP3 I 5V
83 BCL BCLIN I Beam current limiter input
84 BLKIN BLKIN I Black current input
85 Rout RO O R output
86 Gout GO O G output
87 Bout BO O B output
88 V3.3A1 VDDA1 I 3.3V
89 RefAdN VREFAD-NEG - GND
90 V3.3RefAdP VREFAD_POS I 3.3V (Positive)
91 RefAd VREFAD I 3.3/2V
92 GndA GNDA - GND
93 V1.8A VDDA(1.8V) I 1.8V
94 V3.3A2 VDDA2(3.3) I 3.3V
95 VssADC VSSadc - GND
96 V1.8ADC VDDadc(1.8) I 1.8V
97 REMOTE INT0/P0.5 I Remote control input
98 PW_LED P1.0/INT1 I POWER LED control
99 P11/TO P1.1/T0 I POWER LED control
100 V1.8C2 VDDC2 I 1.8V
101 VssC2 VSSC2 - GND
102 COMPONENT-PIP P0.4/12SWS - Not used
103 COMB_SW_NT3.5/OTHER P0.3/12SCLK - Not used
104 VER_PROTECT P0.2/12SDO2 O XRAY PROTECT
105 S_REDUCE P0.1/12SDO1 O Sound control
106 P00/I2SDI1 P0.0/12SDI1/O O Not used
107 POWER P1.3/T1 O SUB POWER control
108 SCL1 P1.6/SCL I I2C BUS CLOCK
109 SDA1 P1.7/SDA I/O I2C BUS•@DATA
110 V3.3P VDDP(3.3V) I 3.3V
111 ROTATION P2.0/TPWM O ROTATION
112 3.58/OTHER P2.1/PWMO O 3.58 detection
113 A_MUTE P2.2/PWM1 O AUDIO MUTE
114 4.5/OTHER P2.3/PWM2 O 4.5 detection
115 PROT P3.0/ADC0 I PROTECT
116 ECO_IN P3.1/ADC1 I ECO INPUT
117 V1.8C1 VDDC1 I 1.8V (Digital)
118 DecV1V8 DECV1V8 I 1.8V
119 KEY_IN P3.2/ADC2 I KEY INPUT
120 VDO_DET P3.3/ADC3 I VDO DET IN
121 VSSC1+P1 VSSC/P - Digital GND
122 P24/PWM3 P24/PWM3 I SV DET IN
123 P25/PWM4 P25/PWM4 O GTVA_RESET
124 V1.8C3 VDDC3 I 1.8V (Digital)
125 VssC3 VSSC3 - GND
126 P12/Int2 P1.2/INT2 I External interrupt
127 SDA0 P1.4/RX I/O I2C BUS DATA (Memory)
128 SCL0 I I2C BUS CLOCK (Memory)
IC701 Pin Function List (2/2)

1-8 (No. YA104)
3.1 DISASSEMBLY PROCEDURE
3.1.1 REMOVING THE REAR COVER
•Unplug the power cord.
(1) Remove the 16 screws [A] as shown in Fig.1.
(2) Withdraw the REAR COVER toward you.
CAUTION:
When reinstalling the rear cover, carefully push it inward
after inserting the MAIN PWB into the REAR COVER groove.
3.1.2 REMOVING THE CHASSIS (CHASSIS BASE AND
CONTROL BASE)
•Remove the REAR COVER.
(1) Slightly raise the both sides of the CHASSIS by hand
and remove the 2 claws [B] under the CHASSIS from
the front cabinet as shown in Fig.1.
(2) Withdraw the CHASSIS backward.
(If necessary, take off the wire clamp, connectors etc.)
NOTE:
When conducting a check with power supplied, be sure to
confirm that the CRT earth wire is connected to the CRT
SOCKET PWB and the MAIN PWB.
3.1.3 REMOVING THE AV TERMINAL BOARD
•Remove the REAR COVER.
(1) Remove the 4 screws [C] as shown in Fig.1.
(2) When you pull out the AV TERMINAL BOARD in the
direction of arrow [D] as shown in Fig.1, it can be
removed.
3.1.4 REMOVING THE CONTROL BASE
•Remove the REAR COVER.
•Remove the CHASSIS.
(1) While pushing down the 2 claws [E] as shown in Fig.
2 and pull out the CONTROL BASE in the direction of
arrow [F] as shown in Fig. 2, the control base can be
removed.
(If necessary, take off the wire, connectors etc.)
3.1.5 REMOVING THE SPEAKER
•Remove the REAR COVER.
(1) Remove the 2 screws [G] as shown in Fig.1.
(2) Withdraw the SPEAKER backward.
(3) Follow the same steps when removing the other hand
SPEAKER.
3.1.6 CHECKING THE MAIN PW BOARD
•To check the back side of the MAIN PWB.
(1) Pull out the CHASSIS and CONTROL BASE. (Refer to
the procedure described in REMOVING THE
CHASSIS)
(2) Put the CHASSIS in upright position with the MAIN
PWB's solderside faced to the right. The FBT must be
positioned on top. (Viewed from the rear)
(3) Put the CONTROL PWBs in an appropriate position,
taking care not giving tension to the ribbon cables that
connect to the MAIN PWB.
CAUTIONS:
•Use insulating materials, if necessary, to avoid possible
electrical contacts between PWBs and expose terminals,
etc.
•Before turning on power, make sure that the CRT earth
wire and other connectors are properly connected.
•When repairing, connect the DEG. COIL to the DEG.
connector on the MAIN PWB.
3.1.7 WIRE CLAMPING AND CABLE TYING
(1) Be sure to clamp the wire.
(2) Never remove the cable tie used for tying the wires
together.
Should it be inadvertently removed, be sure to tie the
wires with a new cable tie.
SECTION 3
DISASSEMBLY

(No. YA104) 1-9
CRT
SOCKET PWB
FRONT CONTROL
PWB (1/2)
FRONT CONTROL PWB (2/2)
MAIN PWB
FBT
CHASSIS
BASE
CONTROL BASE
(×4)
(×16)
A
PICTURE TUBE
D
C
AV TERMINAL
BOARD
FRONT CABINET
CHASSIS
BASE
CONTROL BASE
[FRONT SIDE]
E
F
(X2)
G
SPEAKER
(X2)
G
SPEAKER
Fig.2
Fig.2
CLAW B
CLAW B
(under side)
(under side)
REAR COVER

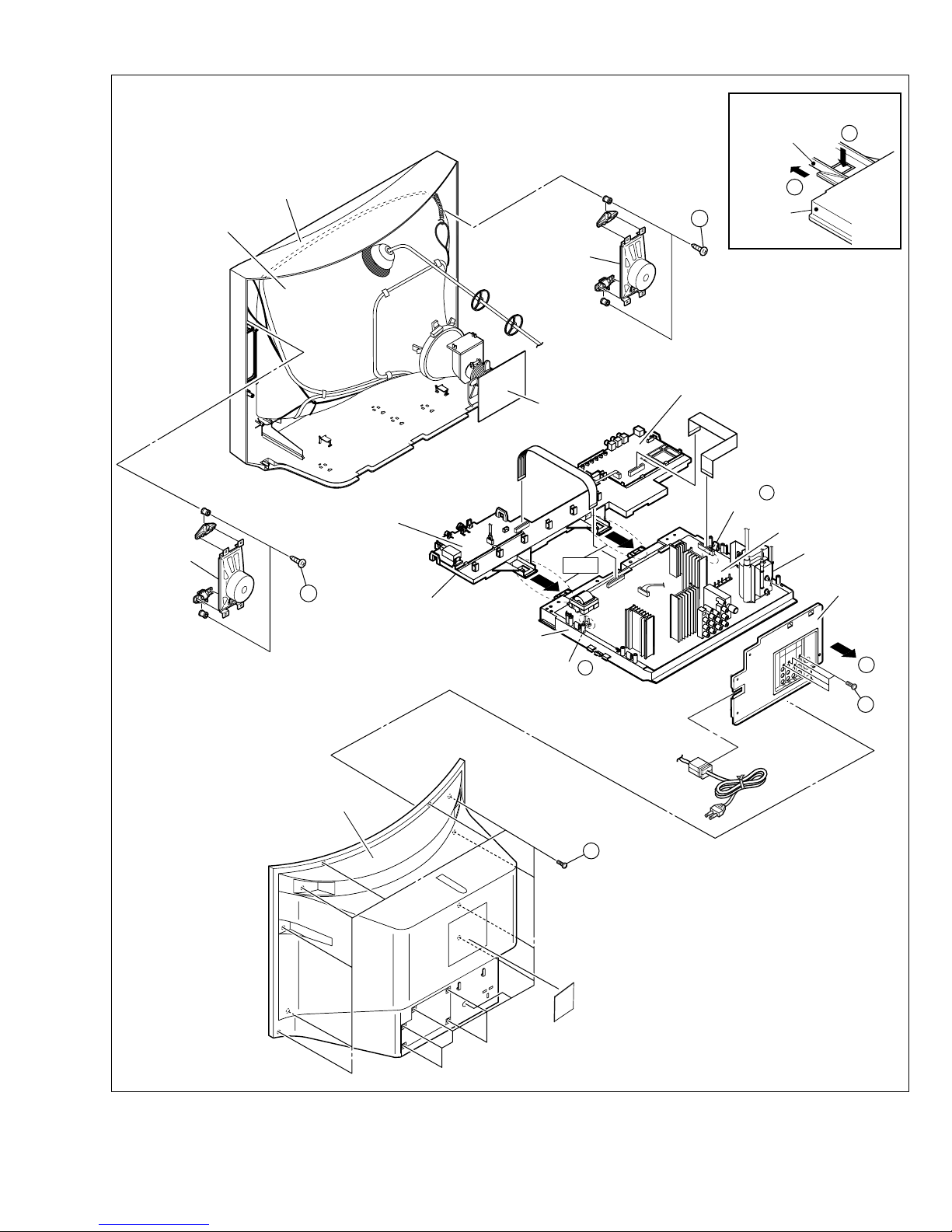

Fig. 1

1-10 (No. YA104)
3.2 REPLACEMENT OF MEMORY IC
3.2.1 MEMORY IC
This TV uses the following memory IC.
Memory IC: IC702 on MAIN PWB
The memory IC memorizes data for correctly operating the
video and deflection circuits. When replacing the memory
IC, be sure to use the same type IC written with the initial
values of data. In other words, use the specific IC listed in
“PRINTED WIRING BOARD PARTS LIST”. For its mounting
location, refer to “ADJUSTMENT LOCATIONS”.
3.2.2 PROCEDURE FOR REPLACING MEMORY IC
1. Power off
Switch the power off and unplug the power cord from
the wall outlet.
2. Replacing the memory IC
Replace the memory IC with new one. Be sure to use
the memory IC written with the initial data values.
3. Power on
Plug the power cord into the wall outlet and switch the
power on.
4. Check and setting of SYSTEM CONSTANT SET:
(1) Press the [DISPLAY] key and the [PICTURE MODE]
key on the remote control unit simultaneously.
The SERVICE MENU screen will be displayed.(See
Fig.1.)
(2) In the SERVICE MENU, press the [DISPLAY] key and
[PICTURE MODE] key simultaneously. Then, the
SYSTEM CONSTANT SET screen will be
displayed.(See Fig.2.)
(3) Check whether the setting values of the SYSTEM
CONSTANT SET are the same as those indicated
in Table1.
If the value is different, select the setting item with
the MENU []/[] key, and set the correct value
with the MENU
[] / [] key.
(4) Press the [DISPLAY] key twice to return to the normal
screen.
5. Receive channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels (channels preset).
6. User setting
Check the user setting values in Table 2 and Table 3. If
setting value is different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
7. Setting of SERVICE MENU
Verify the setting for each setting item in the SERVICE
MENU.(See Table 4.) If readjustment is necessary,
perform adjustment referring to “ADJUSTMENTS
PROCEDURE”.
1. IF
3. AUDIO
5. VSM W/B
7. PLUG & PLAY (OFF)
2. V/C
4. DEF
6. S TATUS
SERVICE MENU
1-7 : SELECT DISPLAY : EXIT
SERVICE MENU
******* **** ***** *****
**** **** *** ***
Fig. 1
MENU
MENU
MENU
DISPLAY / BACK
MENU OK
MENU
MODE
NAME OF REMOTE CONTROL KEYS
SYSTEM CONSTANT-1

: SEL  : OPE
COMB
TILT
: MULTI
YES
YES
TEXT NO
SUPER BASS NO
LANGUAGE ERAPF
SYSTEM CONSTANT SET 1
SYSTEM
DISP : EXIT
SYSTEM CONSTANT-2

: SEL  : OPE
BLUE BACK MUTE
PB
NO
ECO SENSOR YES
COLOUR AUTO YES
BILINGUAL NO
SYSTEM CONSTANT SET 2
SOUND
DISP : EXIT
SYSTEM CONSTANT-3

: SEL  : OPE
YES
SYSTEM CONSTANT SET 3
SURROUND
NOPICTURE BOOSTER
YESCOMPONENT
NOPIP
YESS INPUT
DISP : EXIT
Fig. 2

(No. YA104) 1-11
SYSTEM MULTI ←←←
COMB YES ←←←
TILT YES ←←←
SUPER BASS NO ←←←
TEXT NO ←SINGLE NO
E/R/A/P/F ←--- ---
LANGUAGE --- --- E/R/C/M/I ---
--- --- --- E/R/U
SOUND PB ←←STEREO
BILINGUAL NO ←←←
BLUE BACK MUTE NO YES NO ←
COLOUR AUTO YES ←NO ←
ECO SENSOR YES ←←←
SURROUND YES ←←←
PICTURE BOOSTER NO ←←←
COMPONENT YES ←←←
PIP NO ←←←
S INPUT YES ←←←
Table 1
3.2.3 FACTORY SHIPMENT SETTING VALUE
SETTING OF SYSTEM CONSTANT SET
Setting item Setting content
Setting value
AV-29WX14/G AV-29WX14/S AV-29WX24/L AV-2954W/E
YES NO
YES NO
YES NO
E/R/A/P/F
E/R/C/M/I E/C
SINGLE NO PAT
MULTI TRIPLE PAL THAI
E/R/U
YES NO
YES NO
YES NO
YES NO
STEREO PB MONO
YES NO
YES NO
YES NO
YES NO
YES NO

1-12 (No. YA104)
SETTING OF BASIC FUNCTIONS
SETTING OF MENU SCREEN
Table 2
Table 3
POWER Off
SUB POWER On
VOLUME 15
COLOR SYSTEM PAL
SOUND SYSTEM B/G
PICTURE MODE(VSM) BRIGHT
CINEMA SURROUND OFF
OFF TIMER OFF
STEREO MODE STEREO[AV-2954W/E]
CHANNEL POSITION PRESET1
Setting item Setting value
Setting item Setting value
INPUT TV
VNR AUTO
COMPRESS (16:9) OFF
PICTURE TILT 
AUTO SHUTOFF OFF
CHILD LOCK OFF
BLUE BACK ON
VIDEO-2 SET VIDEO
AUTO PROGRAM Refer to OPERATING INSTRUCTIONS
EDIT / MANUAL Refer to OPERATING INSTRUCTIONS
LANGUAGE ENG
TEXT LANGUAGE GROUP-3[AV-2954W/E]
TINT Centre
COLOUR Centre
BRIGHT Centre
CONT Maximum
SHARP Centre
BALANCE Centre
SOUND MODE DYNAMIC
SOUND TURBO OFF
AI VOLUME ON
FAVORITE CH RED PR01
FAVORITE CH GREEN PR02
FAVORITE CH YELLOW PR03
FAVORITE CH BLUE PR04
AI ECO SENSOR OFF
AI ECO DISPLAY ON
Setting item Setting value
1. IF 1. VCO
2. DELAY POINT
2. V/C 1.SCREEN
2. CUTOFF(B/G)
3. WDR(R/G/B)
4. BRIGHT(TV/VDO 1/2/3)
5. CONT(TV/VDO 1/2/3/TV 16:9/VDO 16:9)
6. COLOUR(TV/VDO 1/2/3/DVD)
7. TINT(TV/VDO 1/2/3)
8. SHARP
9. Y DELAY
10. TINT DVD
11. AMP T. SHARP
3. AUDIO 1. DCXO ADJ
[Do not adjust] 2. NICAM lower ERRLIM
3. NICAM upper ERRLIM
4. A2 ID THR
5. MENU EQUALIZER
4. DEF 1. V-SHIFT
2. V-SLOPE
3. V-SIZE
4. H-CENT
5. H-SIZE
6. TRAPEZ
7. EW-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S.CR
13. V-LIN
14. V-ZOOM
15. V-SCROLL
5. VSM W/B 1. BRIGHT
(BRIGHT/STANDARD/SOFT) 2. CONT
3. COLOUR
4. SHARP
5. HUE
(COOL/WARM/NORMAL) 1. R DRIVE
2. G DRIVE
3. B DRIVE
6. STATUS
[Display only]
7. PLUG & PLAY(ON)
[Display only]
[Do not adjust]
Table 4
SERVICE MENU SETTING ITEMS

(No. YA104) 1-13

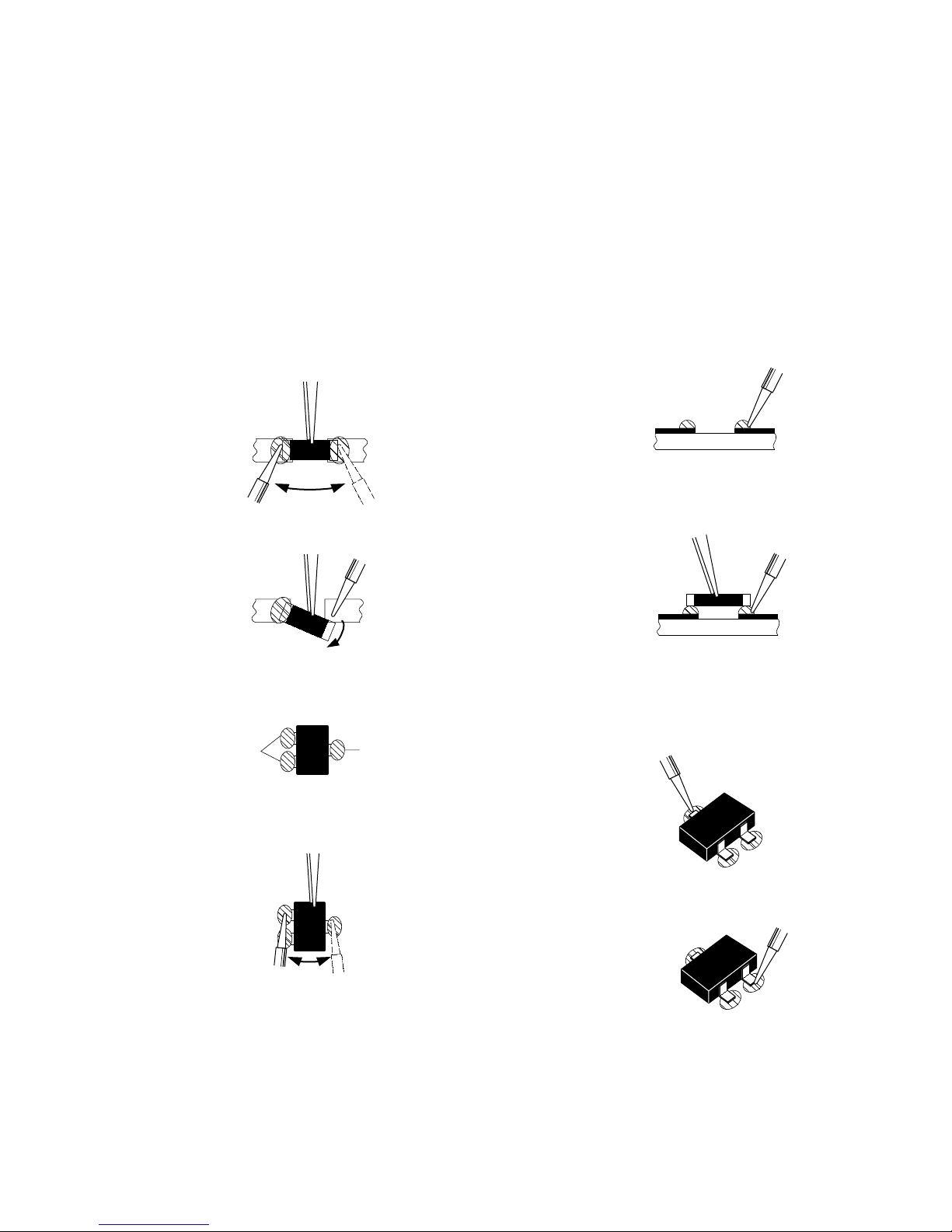

2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of
the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead A as indicated in the figure.
(4) Then solder leads B and C.
3.3.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
Note :
After removing the part, remove remaining solder from
the pattern.
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
SOLDER SOLDER
A
B
C
A
B
C

1-14 (No. YA104)
4.1 ADJUSTMENTPREPARATION
(1) You can make the necessary adjustments for this unit with either the remote control unit or with the adjustment
equipment and parts as given below.
(2) Adjustment with the remote control unit is made on the basis of the initial setting values, however, the new setting
values used for setting the screen to its optimum condition may differ from the initial settings.
(3) Make sure that AC power is turned on correctly.
(4) Turn on the power for the set and test equipment before use, and start the adjustment procedures after waiting at least 30
minutes.
(5) Unless otherwise specified, prepare the most suitable reception or input signal for adjustment.
(6) Never touch any adjustment parts, which are not specified in the list for this variable resistors, transformers, trimmer
capacitors, etc.
4.2 PRESETTINGBEFOREADJUSTMENT
Unless otherwise specified in the adjustment instructions, preset the following functions with the remote control unit.
Setting item Setting value
PICTURE MODE (VSM) BRIGHT
TINT, COLOUR, BRIGHT,SHARP Centre
CONT Maximum
VNR OFF
AI ECO SENSOR OFF
BALANCE Centre
SOUND TURBO OFF
CINEMA SURROUND OFF
COMPRESS 4:3
4.3 MEASURING INSTRUMENT AND FIXTURES
(1) DC voltmeter (or Digital voltmeter)
(2) Oscilloscope
(3) Signal generator (Pattern generator) [PAL/SECAM/NTSC]
(4) Remote control unit
4.4 ADJUSTMENT ITEMS
B1 VOLTAGE
FOCUS ADJUSTMENT
IF CIRCUIT ADJUSTMENTS
•IF VCO adjustment
•DELAY POINT (AGC TAKE-OVER) adjustment
VIDEO CIRCUIT ADJUSTMENTS
•WHITE BALANCE (Low light) adjustment
•WHITE BALANCE (High light) adjustment
•SUB BRIGHT adjustment
•SUB CONTRAST adjustment
•SUB COLOUR 1 adjustment
•SUB COLOUR 2 adjustment
•SUB TINT 1 adjustment
•SUB TINT 2 adjustment
AUDIO SETTING
User mode setting position
DEFLECTION CIRCUIT ADJUSTMENTS
•V.SLOPE adjustment
•V.POSITION adjustment
•V.HEIGHT adjustment
•H.POSITION adjustment
•H. WIDTH adjustment
•SIDE PIN adjustment
•TRAPEZIUM adjustment
•V.S-CURVE adjustment
•CORNER adjustment
•H. PARALLEL adjustment
•H.BOW adjustment
VSM PRESET SETTING
PURITY AND CONVERGENCE ADJUSTMENTS
•PURITY adjustment
•STATIC CONVERGENCE adjustment
•DYNAMIC CONVERGENCE adjustment
SECTION 4
ADJUSTMENT

(No. YA104) 1-15

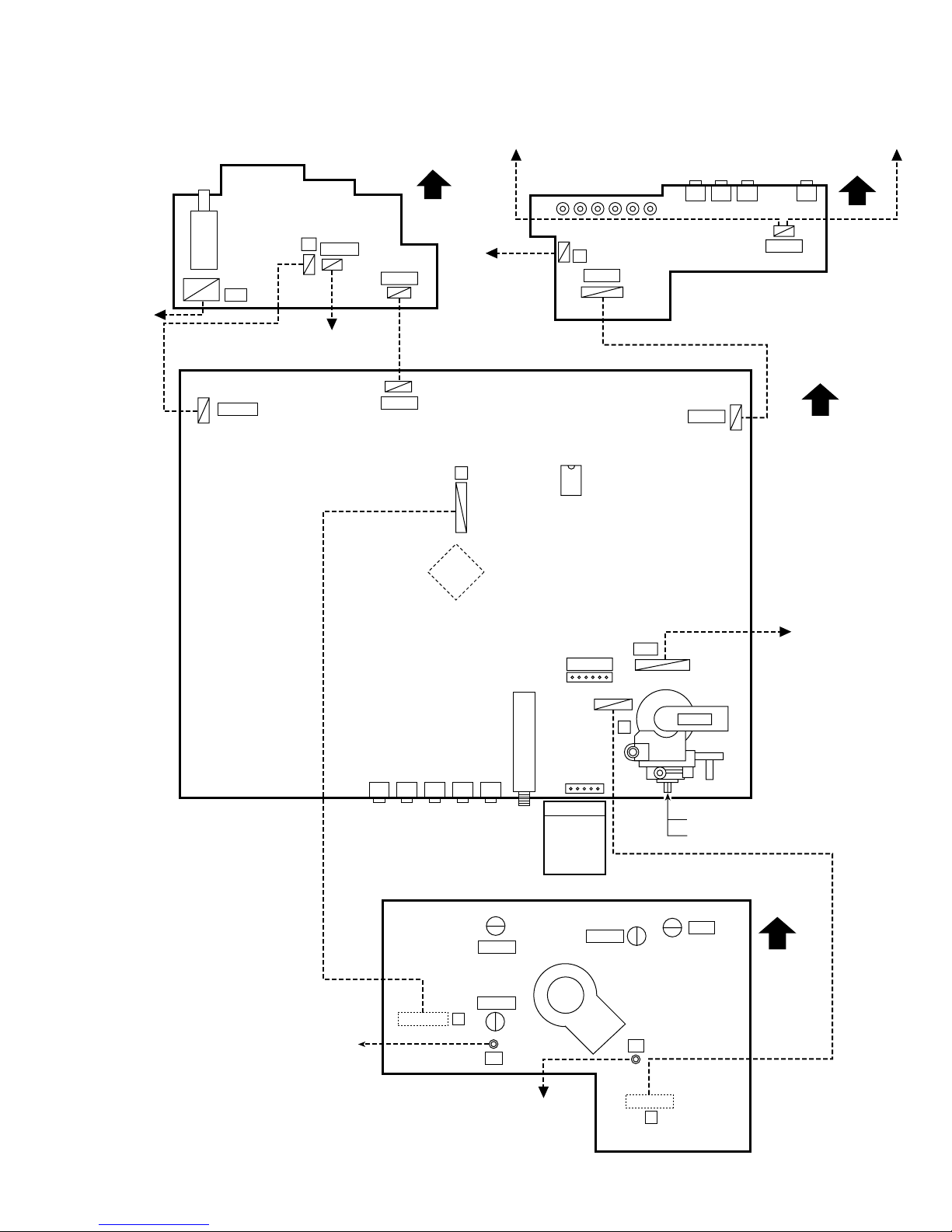

4.5 ADJUSTMENT LOCATIONS
E1
TOP
CRT EARTH
(BRAIDED ASS'Y)
CRT EARTH
(BRAIDED ASS'Y)
U
TP-47B
TP-47G
TP-47R
E2
HV
UPPER : FOCUS
IC702
CRT SOCKET PWB ASS’Y (SOLDER SIDE)
T
18
16
FRONT
FRONT
FRONT
POWER
CORD
SPEAKER (L)
DEG COIL
HVT
MAIN PWB ASS’Y
FRONT CONTROL PWB ASS’Y (1/2) FRONT CONTROL PWB ASS’Y (2/2)
J804 J803 J802
S804
S805
S806 S802
S803S801 J801
CN00S
CN002
CN001
CNDEG
PW
W
S901
1
8
16
LOWER : SCREEN
61
15
U
TU001
J804J801J805 J802 J803
IC701
CN001
CN00W CN002
T
TP-E
SPEAKER (R)
DEF YOKE
CNOOX
1. B1
2. NC
3. X-RAY2
4. X-RAY1
5. GND
R
ROTATION COIL
16
CN00C

1-16 (No. YA104)
4.6 BASIC OPERATION IN SERVICE MENU
Operate the SERVICE MENU with the remote control unit.
4.6.1 SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items
of settings:
1. IF For entering/adjusting the setting values (adjustment values) of the IF circuit.
2. V/C For entering/adjusting the setting values (adjustment values) of the VIDEO circuit.
3. AUDIO For entering/adjusting the setting values (adjustment values) of the AUDIO circuit.
4. DEF For entering/adjusting the setting values (adjustment values) of the DEFLECTION circuit.
5. VSM W/B For setting the values of STANDARD, SOFT, BRIGHT and COOL, NORMAL, WARM.
6. STATUS This is not used for service.
7.
PLUG & PLAY (ON) This is not used for service.
4.6.2 BASIC OPERATION IN SERVICE MENU
1. HOW TO ENTER SERVICE MEN
U
Press the [DISPLAY] key and the [PICTURE MODE] key on the remote control unit simultaneously.
The SERVICE MENU screen will be displayed. (See Fig. 1 on the next page.)
2. SELECTION OF SUB MENU SCREEN
Press one of the keys 1 to 6 on the remote control unit, and select the SUB MENU SCREEN from the SERVICE MENU. (See
Fig.1 on the next page.)
SERVICE MENU → SUB MENU
1. IF 5. VSM W/B
2. V/C 6. STATUS
3. AUDIO 7. PLUG & PLAY (ON)
4. DEF
3. METHOD OF SETTING
NOTES:
•Once the setting values are set, they are memorized automatically.
•It must not be adjusted without inputting a signal.
(1) 1. IF
[1.VCO ] : Under normal conditions, no adjustment is required.
(2) 2. V/C, 3. AUDIO and 4. DEF
[2.DELAY POINT ]
(a) [5] key Select 5. VSM W/B.
(b) MENU [OK] key Select preset items.
(c) MENU [  ]/[  ] key Adjust setting items.
(d) MENU [  ]/[  ] key Adjust the setting values of the setting items.
(e) [DISPLAY] key When this is pressed, you will return to the SERVICE MENU.
(a) [1] key Select 1. IF.
(b) [1] key Select 1. VCO.
(c) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.
(a) [1] key Select 1. IF.
(b) [2] key Select 2. DELAY POINT.
(c) MENU [  ]/[  ] key Adjust the setting value.
(d) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.
(a) [2] ~[4] keys Select one from 2. V/C and 3. AUDIO, 4. DEF.
(b) MENU [  ]/[  ] key Select setting items.
(c)
MENU [  ]/[  ] key Adjust the setting values of the setting items.
Use the number keys on the remote control unit for setting the WHITE BALANCE.
For the setting, refer to each item concerned.
(d) [DISPLAY] key When this is pressed, you will return to the SERVICE MENU.
(3) 5. VSM W/B
(4) 6. STATUS
This is for display only.
(5) 7. PLUG & PLAY (ON)
This is not used for service.
4. Release of SERVICE MENU
After completing the setting, return to the SERVICE MENU by pressing the [DISPLAY] key, then again press the [DISPLAY]
key to return to the normal screen.

(No. YA104) 1-17
1. IF
SERVICE MENU
1. VCO
2. DELAY POINT
IF SERVICE MENU VCO (CW)
*****
MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
DELAY POINT
AGC TAKEOVER
**
2. V/C
Setting item
1. SCREEN
2. CUTOFF (B/G)
3. WDR (R/G/B)
4. BRIGHT (TV/VDO1/2/3)
5. CONT (TV/VDO1/2/3/TV
16:9/VDO16:9)
6. COLOUR (TV/VDO1/2/3/
DVD)
7. TINT (TV/VDO1/2/3)
1. DCXO ADJ
2. NICAM lower ERRLIM
3. NICAM upper EERLIM
4. A2 ID THR
Setting item
8. SHARP (TV/VDO1/2/3)
9.
Y DELAY (TV/VDO1/2/3
/S-DVO))
10. TINT DVD
11. AMP T.SHARP
3. AUDIO
PAL
1. SCREEN HBC
WBC
BRI
**
**
**
V/C
000A
0002
0009
5. VSM W/B
1. BRIGHT
***
VSM PRESET BRIGHT
4. DEF
1. V-SHIFT
***
(
**
)
DEF FULL 50Hz
1. BRIGHT
2. CONT
3. COLOUR
4. SHARP
5.HUE
1. R-DRIVE
2. G-DRIVE
3. B-DRIVE
Setting item
4 : 3 / 16 : 9
1. V-SHIFT
2. V-SLOPE
3. V-SIZE
4. H-CENT
5. H-SIZE
6. TRAPEZ
7. EW-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S. CR
13. V-LIN
14. V-ZOOM
15. V-SCROLL
Setting item
1. IF
3. AUDIO
5. VSM W/B
7. PLUG & PLAY (OFF)
2. V/C
4. DEF
6. STATUS
SERVICE MENU
1-7 : SELECT DISPLAY : EXIT
******* **** ***** *****
**** **** *** ***
Fig. 1
6. STATUS
ECO EOF NOL VNR
COSMIC STATUS
STATUS 1. DCXO ADJ. =
***
NOT NICAM
AUDIO
*******
*******
*******
***********
** ** ** ** ** ** ** **
V/C STATUS
MENU EQUALIZER
DYNAMIC
MUSIC
NEWS
USER
Setting value (Hexadecimal)
Setting value
Sereen size
FULL
COMPRESS
4.6.3 SERVICE MENU FLOW CHART

1-18 (No. YA104)
4.7 ADJUSTMENT PROCEDURE
4.7.1 B1 VOLTAGE
Item Measuring
instrument Test point Adjustment part Description
B1 VOLTAGE
check
Signal
generator
DC voltmeter
B1 (pin 1)
GND (pin 5)
[CN00X
connector
in MAIN
PWB]
(1) Receive a black and white signal.
(2) Connect a DC voltmeter between B1 and GND (between
pins 1 and 5 of the connector CN00S).
(3) Make sure that the voltage is DC134.5V ± 2V.
FOCUS
adjustment
FOCUS VR
[In HVT]
Item Measuring
instrument Test point Adjustment part Description
4.7.2 FOCUS ADJUSTMENT
Signal
generator
Notes:
•Set PICTURE MODE (VSM) to “BRIGHT”.
[AV-29WX14/G, AV-29WX14/S, AV-29WX24/L only]
•The final adjustment of CONVERGENCE must be done
after the FOCUS adjustment. (CONVERGENCE is affected
by the FOCUS adjustment.)
If any aeviation in CONVERGENCE is found, PURITY must
be adjusted to restore the convergence.
(1) Receive a crosshatch signal.
(2) Adjust the FOCUS VR so that the vertical and horizontal
lines will be clear and in fine detail on the screen.
(3) Make sure that the picture is in focus even when the screen
gets darkened.
IF VCO
check
[1. IF]
1. VCO (CW)
Item Measuring
instrument Test point Adjustment part Description
4.7.3 IF CIRCUIT ADJUSTMENTS
Remote
control unit
Note:
•Under normal conditions, no adjustment is required.
(1) Receive a broadcast signal.
(2) Select 1. IF from the SERVICE MENU.
(3) Select 1. VCO.
(4) Check the characters colour of the JUST REFERENCE
displayed to yellow.
(5) Press the [DISPLAY] key three times to return to normal
screen.
DELAY POINT
(AGC
TAKE-OVER)
adjustment
[1. IF]
2. DELAY POINT
Remote
control unit
(1) Receive a black and white broadcast signal (colour off).
(2) Select 1. IF from the SERVICE MENU.
(3) Select 2. DELAY POINT.
(4) Adjust in order to eliminate any noise or beat from the
image. Any increase above the initial value produces the
noise and any decrease below it produces the beat.
(5) Press the [DISPLAY] key three times to return to the normal
screen.
(6) Turn to other channels and make sure that there are no
irregularities.
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
VCO (CW) .MHz
DISPLAY : EXIT
Receiving frequenc
y
YELLOW
Initial setting value
Adjustment item
NTSC 3.58 OTHERS
VHF UHF VHF UHF
2. DELAY POINT
(AGC TAKE-OVER) 30
30 30 30

(No. YA104) 1-19
4.7.4 VIDEO CIRCUIT ADJUSTMENTS
•The setting (adjustment) using the remote control unit is made on the basis of the initial setting values.
•The setting values which adjust the screen to the optimum condition can be different from the initial setting values.
•Do not change the initial setting values of the setting (adjustment) items not listed in “ADJUSTMENT PROCEDURE”.
•The initial setting values in parenthesis ( ) are fixed offset values, needing no further adjustment.
[AV-29WX14/G, AV-29WX14/S, AV-29WX24/L]
[AV-2954W/E]
1. SCREEN BRI 0 ~ 63 32 32 32 32 32 32
2. CUTOFF B 0 ~ 63(-32 ~ [phone] (-3) (-3)
G 0 ~ 63(-32 ~ +31) 7 7 7 7 (-5) (-5)
3. WDR R 0 ~ 63(-32 ~ [phone] (0) (0)
G 0 ~ 63(-32 ~ [phone] (0) (0)
B 0 ~ 63(-32 ~ [phone] (0) (0)
4. BRIGHT RF 0 ~ 63(-32 ~ [phone] --- ---
VIDEO1(COMPOSITE/S) (-32 ~ +31) (-1) (-1) (-1) (-1) --- ---
VIDEO2(COMPONENT) (-32 ~ +31) (0) (0) (0) (0) (0) (0)
VIDEO3(COMPOSITE) (-32 ~ +31) (0) (0) (0) (0) --- ---
5. CONT. RF 0 ~ 63 32 32 32 32 --- ---
VIDEO (-32 ~ +31) (+2) (+2) (+2) (+2) (+2) (+2)
RF 16:9 (-32 ~ +31) (0) (0) (0) (0) --- ---
VIDEO 16:9 (-32 ~ +31) --- --- --- --- --- ---
6. COLOUR RF 0 ~ 63(-32 ~ [phone] (-3) --- ---
VIDEO (-32 ~ +31) (-1) (0) (-3) (0) (+4) (-5)
7. TINT RF 0 ~ 63(-32 ~ +31) --- --- 27 (-4) --- ---
VIDEO (-32 ~ +31) --- --- (+4) ( +11) --- ---
8. SHARP RF 0 ~ 63 22 22 22 22 --- ---
VIDEO 0 ~ 63 35 35 35 35 15 15
9. Y DELAY RF 0 ~ 15 9 7 12 7 --- ---
VIDEO 0 ~ 15 7 7 7 7 --- ---
S-VIDEO 0 ~ 15 9 1 0 11 11 --- ---
10. TINT DVD RF, VIDEO, S-VIDEO 0 ~ 63 34 32 32 32 --- ---
COMPONENT (-32 ~ +31) --- --- --- --- (-2) (-2)
11. AMP T.SHARP RF, VIDEO 0 ~ 63 0 0 0 0 0 0
Initial setting value
Adjustment item Variable range
PAL SECAM NTSC3.58 NTSC4.43 COMPONENT(V-2)
525i 625i
1. SCREEN BRI 0 ~ 63 32 32 32 32 32 32
2. CUTOFF B 0 ~ 63(-32 ~ [phone] (-3) (-3)
G 0 ~ 63(-32 ~ +31) 7 7 7 7 (-5) (-5)
3. WDR R 0 ~ 63(-32 ~ [phone] (0) (0)
G 0 ~ 63(-32 ~ [phone] (0) (0)
B 0 ~ 63(-32 ~ [phone] (0) (0)
4. BRIGHT RF 0 ~ 63(-32 ~ [phone] --- ---
VIDEO1(COMPOSITE/S) (-32 ~ +31) (-1) (-1) (-1) (-1) --- ---
VIDEO2(COMPONENT) (-32 ~ +31) (0) (0) (0) (0) (0) (0)
VIDEO3(COMPOSITE) (-32 ~ +31) (0) (0) (0) (0) --- ---
5. CONT. RF 0 ~ 63 32 32 32 32 --- ---
VIDEO (-32 ~ +31) (+2) (+2) (+2) (+2) (+2) (+2)
RF 16:9 (-32 ~ +31) (0) (0) (0) (0) --- ---
VIDEO 16:9 (-32 ~ +31) --- --- --- --- --- ---
6. COLOUR RF 0 ~ 63(-32 ~ [phone] (-3) --- ---
VIDEO (-32 ~ +31) (-1) (0) (-3) (+3) (+6) (-4)
7. TINT RF 0 ~ 63(-32 ~ +31) --- --- 27 (-4) --- ---
VIDEO (-32 ~ +31) --- --- (+4) (+2) --- ---
8. SHARP RF 0 ~ 63 22 22 22 22 --- ---
VIDEO 0 ~ 63 35 35 35 35 15 15
9. Y DELAY RF 0 ~ 15 9 7 12 7 --- ---
VIDEO 0 ~ 15 7 7 7 7 --- ---
S-VIDEO 0 ~ 15 9 1 0 11 11 --- ---
10. TINT DVD RF, VIDEO, S-VIDEO 0 ~ 63 29 32 32 32 --- ---
COMPONENT (-32 ~ +31) --- --- --- --- (-2) (-2)
11. AMP T.SHARP RF, VIDEO 0 ~ 63 0 0 0 0 0 0
Initial setting value
Adjustment item Variable range
PAL SECAM NTSC3.58 NTSC4.43 COMPONENT(V-2)
525i 625i

1-20 (No. YA104)

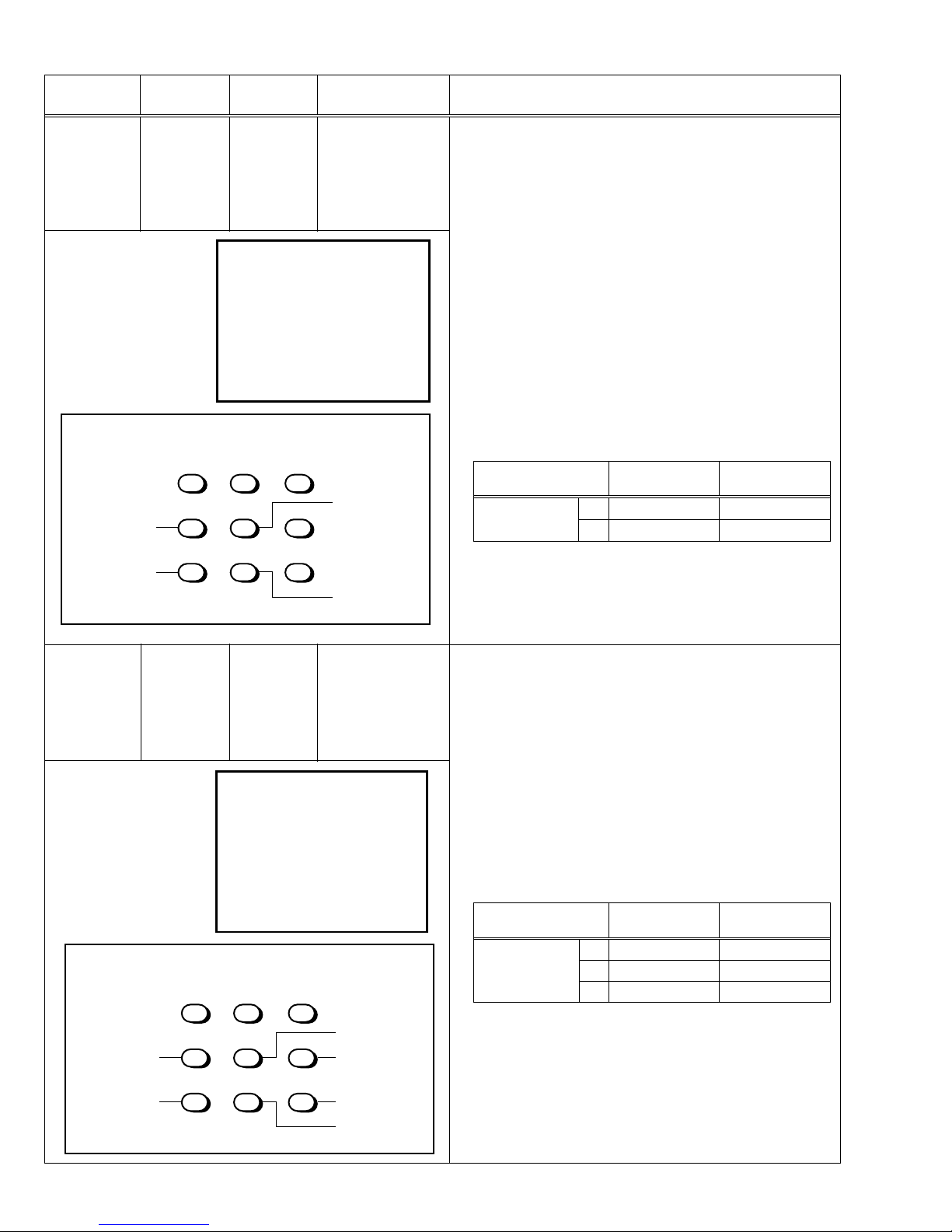

WHITE
BALANCE
(High light)
adjustment
Signal
generator
Remote
control unit
[2. V/C]
3.WDR (R)
3.WDR (G)
3.WDR (B)
Notes:
•Proceed to the following adjustment after having completed
the WHITE BALANCE (Low light) adjustment.
•Set PICTURE MODE (VSM) to “BRIGHT”.
(1) Receive a PAL black and white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select 3. WDR (R), (G) and (B).
(4) Set each value to initial setting value with the [4] to [9]
keys.
(5) Use the [4] to [9] keys to produce a white screen.
(6) Press the [DISPLAY] key twice to return to the normal
screen.
Adjustment Item Variable Initial setting
range value
R 0 ~ 63 32
3. WDR G 0 ~ 63 32
B 0 ~ 63 45
PAL
3. WDR (R)
(G)
**
**
(
**
)
(
**
)
(B)
**
(
**
)
V/C
G DRIVE (

)
12 3
4
789
56
R DRIVE (

) B DRIVE (

)
B DRIVE (

)
R DRIVE (

)
G DRIVE (

)
REMOTE CONTROL UNIT
Item Measuring
instrument Test point Adjustment part Description
WHITE
BALANCE
(Low light)
adjustment
[2. V/C]
2.CUTOFF (B)
2.CUTOFF (G)
SCREEN VR
[In HVT]
Note:
•Set PICTURE MODE (VSM) to “BRIGHT”.
(1) Receive a PAL black and white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select 2. CUTOFF (B) and (G).
(4) Set each value to initial setting value with the [4] / [7] keys
and [5] / [8] keys.
(5) Turn the SCREEN VR fully counterclockwise, then slowly
turn it clockwise to where a red, blue or green colour is
faintly visible.
(6) Use the [4] / [7] and [5] / [8] keys to adjust so that the
other 2 colours appear white.
(7) Turn the SCREEN VR to where the single horizontal line
glows faintly.
(8) Press the [2] key to return to 2. CUTOFF screen.
(9) Press the [DISPLAY] key twice to return to the normal
screen.
Adjustment Item Variable Initial setting
range value
2. CUTOFF B 0 ~ 63 11
G 0 ~ 63 7
PAL
2. CUTOFF (B)
(G)
**
**
(
**
)
(
**
)
V/C
Signal
generator
Remote
control unit
G CUTOFF (

)
12 3
4
789
56
B CUTOFF (

)
B CUTOFF (

)
G CUTOFF (

)
REMOTE CONTROL UNIT
