No.51873B
Nov. 2001
AV28R100EKS
1COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
AV28R100EKS/A
■OUTLINE
■CORRECTED ITEM
●Model name AV28100EKSL/A
●EXPLODED VIEW PARTS LIST (Page 6)
Parts No.
!
!!
!Ref.
No. AV-28WFR1EKS/A AV28R100EKSL/A
101 LC20265-011B-U LC20265-021B-U
113 LC300578-006A-U LC300578-007A-U
SERVICE MANUAL
COLOUR TELEVISION
BASIC CHASSIS
JK
Since some details of the AV28R100EKSL/A service manual (No.51873.Oct.2001)were incorrect.
We are informing you of these errors and of the new correct descriptions.
The following item for the AV28R100EKS/A model was changed partly from AV-28WFR1EKS/A
model. Therefore, this service manual describes only the items which differ from those of the AV-
28WFR1EKS/A service manual.
For details other than those described in this manual, please refer to the AV-28WFR1EKS/A
service manual (No.51695F Oct. 2001) .
This model is colour variant model of AV-28WFR1EKS/A.
Supplementary
Correct
AV28R100EKS/A
Correct
AV28R100EKS/A
Correct
LC20265-021A-U
Correct
LC30578-007A-U
Correct
LC30578-006A-U

28R10EKSAHU #999
4Printed in Japan
VP 0112
DP2059
DIFFERENCE LIST
●EXPLODED VIEW PARTS LIST (Page 6)
Parts No.
!
!!
!Ref.
No. AV-28WFR1EKS/A AV28R100EKS/A Parts Name
!2LC10717-002C-U LC10717-010C-U AV BOARD
9LC10664-002B-U LC10664-003B-U REAR COVER
11 LC20091-030A-U LC20091-051A-U RATING LABEL
15 LC40354-001C-C LC40354-003A-C JVC MARK
26 WJY0001-004A WJY0001-011A E-BRAIDED ASSY
27 CHGB0017-0B WJY0013-002A BRAIDED SUB ASSY
!100 LC10662-008C-U LC10662-017A-U FRONT CABI ASS’Y
101 LC20265-011B-U LC20265-021A-U (SERVICE)DOOR
103 LC30578-006A-U LC30578-007A-U (SERVICE)POWER KNOB
105 LC31109-005A-U LC31109-006A-U CONTROL SHEET
●PACKING PARTS LIST (Page 19) Parts No.
!
!!
!Ref.
No. AV-28WFR1EKS/A AV28R100EKS/A Parts Name
2LCT0623-001A-U LCT0623-001B-U INST BOOK
8AEM1002-A68-E AEM1002-B68-E PACKING CASE
9AEM1052-037-E AEM1052-083-E EURO LABEL
VICTOR COMPANY OF JAPAN, LIMITED
HOME AV NETWORK BUSINESS UNIT 12, 3-chome, Moriya-cho, Kanawa-ku, Yokohama, Kanagawa-prefecture, 221-8528, Japan

No.51695F
Oct. 2001
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
1COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
AV-28WFR1EKS/A
AV-28WFR1EK/A
AV-32WFR1EKS/A
The following items for A models were changed from those of the previous models. Therefore, this
service manual consists of the PARTS LIST only. For others, please use the service manual for previous
models service manual (No.51754, Jul 2000).
■
■■
■MODEL DIFFERENCE
A Models Previous Models
AV-28WFR1EKS/A
AV-28WFR1EK/A
AV-32WFR1EKS/A
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
■
■■
■HOW TO IDENTIFY MODEL
■
■■
■OUTLINE
SERVICE MANUAL
COLOUR TELEVISION
BASIC CHASSIS
JK
In line with the change of the production country, the CRT has been changed. As a result, some
parts have been changed.
Supplement
A suffix “A” is added to the serial No. after at the Rating label & Euro label, respectively.

No. 51695F
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
2
■
■■
■MAIN CHANGED ITEMS
●USING PW BOARD DIFFERENCE TABLE (28” Models)
Model
PWB A’SSY
AV-28WFR1EKS
AV-28WFR1EK AV-28WFR1EKS/A AV-28WFR1EK/A
MAIN PWB SJK-1904A-U2 SJK-1906A-U2
POWER & DEF PWB SJK-2504A-U2 SJK-2508A-H3
DOLBY PWB SJK0D501A-U2 SJK0D501A- H3
CRT SOCKET PWB SJK-3502A-U2 SJK-3503A- H3
FRONT CONT. PWB SJK-8504A-U2 SJK-8506A- H3
AV SEL. PWB SJK0S902A-U2 SJK0S905A- H3
●USING PW BOARD DIFFERENCE TABLE (32” Models)
Model
PWB A’SSY AV-32WFR1EKS AV-32WFR1EKS/A
MAIN PWB SJK-1903A-U2 SJK-1908A-U2
POWER & DEF PWB SJK-2503A-U2 SJK-2507A-H3
DOLBY PWB SJK0D501A-U2 SJK0D501A- H3
CRT SOCKET PWB SJK-3501A-U2 SJK-3504A- H3
FRONT CONT. PWB SJK-8503A-U2 SJK-8508A- H3
AV SEL. PWB SJK0S902A-U2 SJK0S907A- H3
●MAIN PARTS DIFFERENCE TABLE (28” Models)
Model AV-28WFR1EKS
AV-28WFR1EK AV-28WFR1EKS/A
AV-28WFR1EK/A
!REF.No. Parts No. Parts No.
PARTS NAME
!V01 W66ERF031X013 W66QDE891X923 CRT(ITC)
!L01 QQW0070-001 QQW0100-001 DEG COIL
!L03 CELD904-001 ROTATION COIL (Delete)
!T2551 QQH0065-002-I2 QQH0089-002-I2 FBT
●MAIN PARTS DIFFERENCE TABLE (32” Models)
Model AV-32WFT1EPG
AV-32WFT1EKS AV-32WFT1EPG/A
AV-32WFT1EKS/A
!REF.No. Parts No. Parts No. PARTS NAME
!V01 W76ERF031X013 W76EKW10X21 CRT(ITC)
!L01 QQW0066-001 QQW0105-001 DEG COIL
!L03 CELD904-001 ROTATION COIL (Delete)
!T2551 QQH0065-002-I2 QQH0094-002-I2 FBT

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
3
PARTS LIST
CAUTION
!The parts identified by the !symbol are important for the safety. Whenever replacing these parts, be sure to use specified ones to secure
the safety .
!The parts not indicated in this Parts List and those which are filled with lines in the Parts No. columns will not be supplied.
!P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS CAPACITORS
C R Carbon Resistor C CAP. Ceramic Capacitor
F R Fusible Resistor E CAP. Electrolytic Capacitor
P R Plate Resistor M CAP. Mylar Capacitor
V R Variable ResistorHV CAP. High Voltage Capacitor
HV R High Voltage Resistor MF CAP. Metalized Film Capacitor
MF R Metal Film Resistor MM CAP. Metalized Mylar Capacitor
MG R Metal Glazed Resistor MP CAP. Metalized Polystyrol Capacitor
MP R Metal Plate Resistor PP CAP. Polypropylene Capacitor
OM R Metal Oxide Film Resistor PS CAP.Polystyrol Capacitor
CMF R Coating Metal Film Resistor TF CAP. Thin Film Capacitor
UNF R Non-Flammable Resistor MPP CAP. Metalized Polypropylene Capacitor
CH V R Chip Variable Resistor TAN. CAP. Tantalum Capacitor
CH MG R Chip Metal Glazed Resistor CH C CAP. Chip Ceramic Capacitor
COMP. R Composition Resistor BP E CAP. Bi-Polar Electrolytic Capacitor
LPTC R Linear Positive Temperature Coefficient
Resistor CH AL E CAP. Chip Aluminum Electrolytic Capacitor
CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor
TOLERANCES
FGJKMNRHZP
±1% ±2% ±5% ±10% ±20% ±30% +30%
-10%
+50%
-10%
+80%
-20%
+100%
-0%

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
4
CONTENTS
!
!!
!USING PW BOARD & REMOTE CONTROL UNIT ････････････････････････････････････････････････････････････････ 5
!
!!
!REMOTE CONTROL UNIT PARTS LIST ･････････････････････････････････････････････････････････････････････････ 5
!
!!

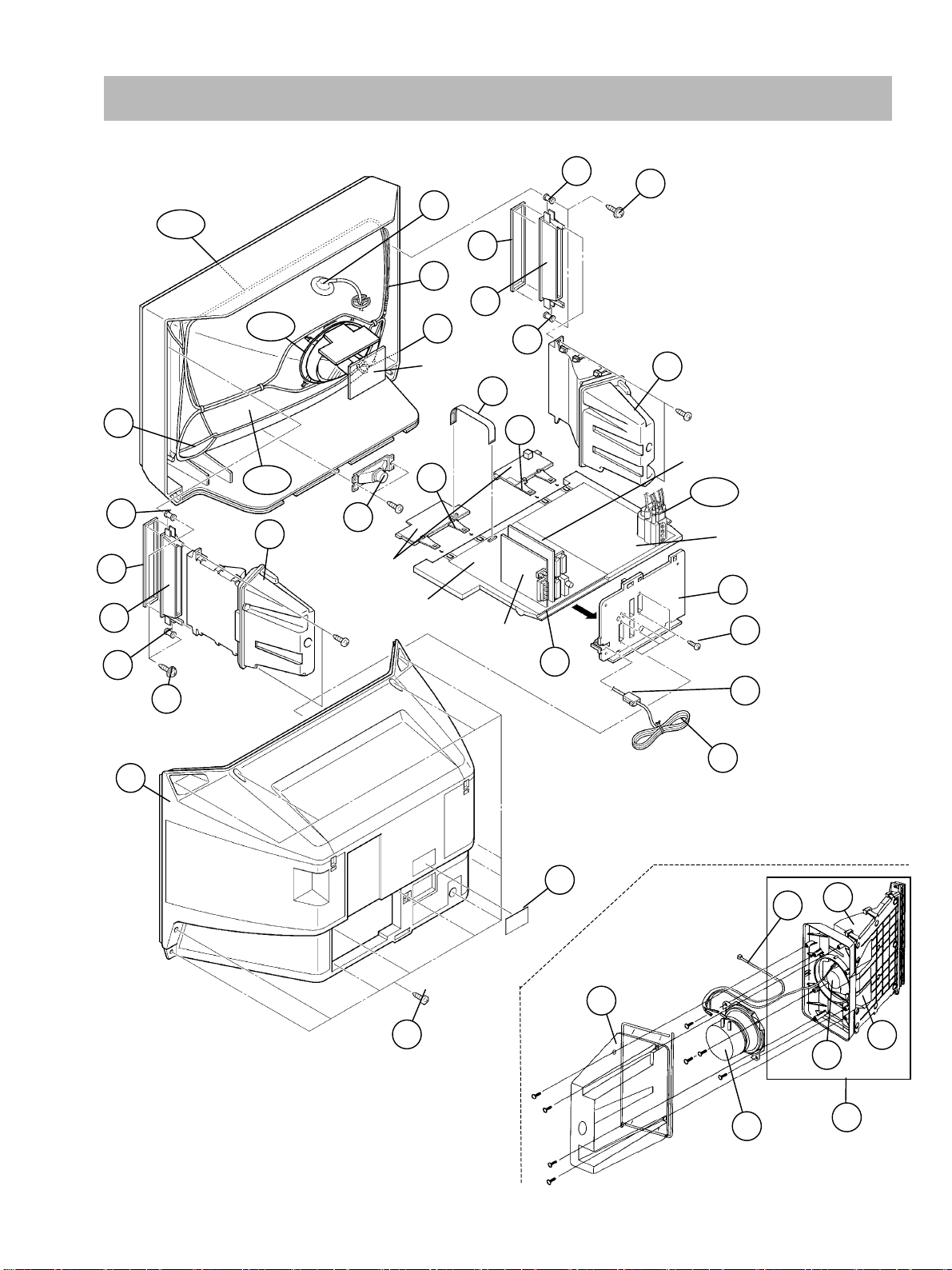

!EXPLODED VIEW PARTS LIST･･････････････････････････････････････････････････････････････････････････････････ 6
!
!!
!EXPLODED VIEW (Ⅰ
ⅠⅠ
Ⅰ)･･････････････････････････････････････････････････････････････････････････････････････････ 6
!
!!
!EXPLODED VIEW (Ⅱ
ⅡⅡ
Ⅱ)･･････････････････････････････････････････････････････････････････････････････････････････ 7
!
!!
!PRINTED WIRING BOARD PARTS LIST
"MAIN PW BOARD ASS'Y ･････････････････････････････････････････････････････････････････････････････････････ 8
"POWER & DEF PW BOARD ASS' Y･･････････････････････････････････････････････････････････････････････････ 11
"CRT SOCKET PW BOARD ASS’Y ･･･････････････････････････････････････････････････････････････････････････ 13
"FRONT CONTROL PW BOARD ASS'Y･･･････････････････････････････････････････････････････････････････････ 13
"DOLBY PW BOARD ASS'Y ･･････････････････････････････････････････････････････････････････････････････････ 14
"AV SEL. PW BOARD ASS'Y ･････････････････････････････････････････････････････････････････････････････････ 15
!PACKING ････････････････････････････････････････････････････････････････････････････････････････････････････ 18
!PACKING PARTS LIST ･･････････････････････････････････････････････････････････････････････････････････････ 19
!
!!
!EXPLODED VIEW PARTS LIST･････････････････････････････････････････････････････････････････････････････････ 20
!
!!
!EXPLODED VIEW (Ⅰ
ⅠⅠ
Ⅰ)･････････････････････････････････････････････････････････････････････････････････････････ 20
!
!!
!EXPLODED VIEW (Ⅱ
ⅡⅡ
Ⅱ)･････････････････････････････････････････････････････････････････････････････････････････ 21
!
!!
!PRINTED WIRING BOARD PARTS LIST
"MAIN PW BOARD ASS'Y ････････････････････････････････････････････････････････････････････････････････････ 22
"POWER & DEF PW BOARD ASS' Y･･････････････････････････････････････････････････････････････････････････ 25
"CRT SOCKET PW BOARD ASS’Y ･･･････････････････････････････････････････････････････････････････････････ 27
"FRONT CONTROL PW BOARD ASS'Y･･･････････････････････････････････････････････････････････････････････ 27
"DOLBY PW BOARD ASS'Y ･･････････････････････････････････････････････････････････････････････････････････ 28
"AV SEL. PW BOARD ASS'Y ･････････････････････････････････････････････････････････････････････････････････ 28
!PACKING ････････････････････････････････････････････････････････････････････････････････････････ BACK COVER
!PACKING PARTS LIST ･･････････････････････････････････････････････････････････････････････････ BACK COVER
AV-32WFR1EKS/A
AV-28WFR1EKS/A / AV-28WFR1EK/A
AV-28WFR1EKS/A / AV-28WFR1EK/A / AV-32WFR1EKS/A

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
AV-32WFR1EKS
5

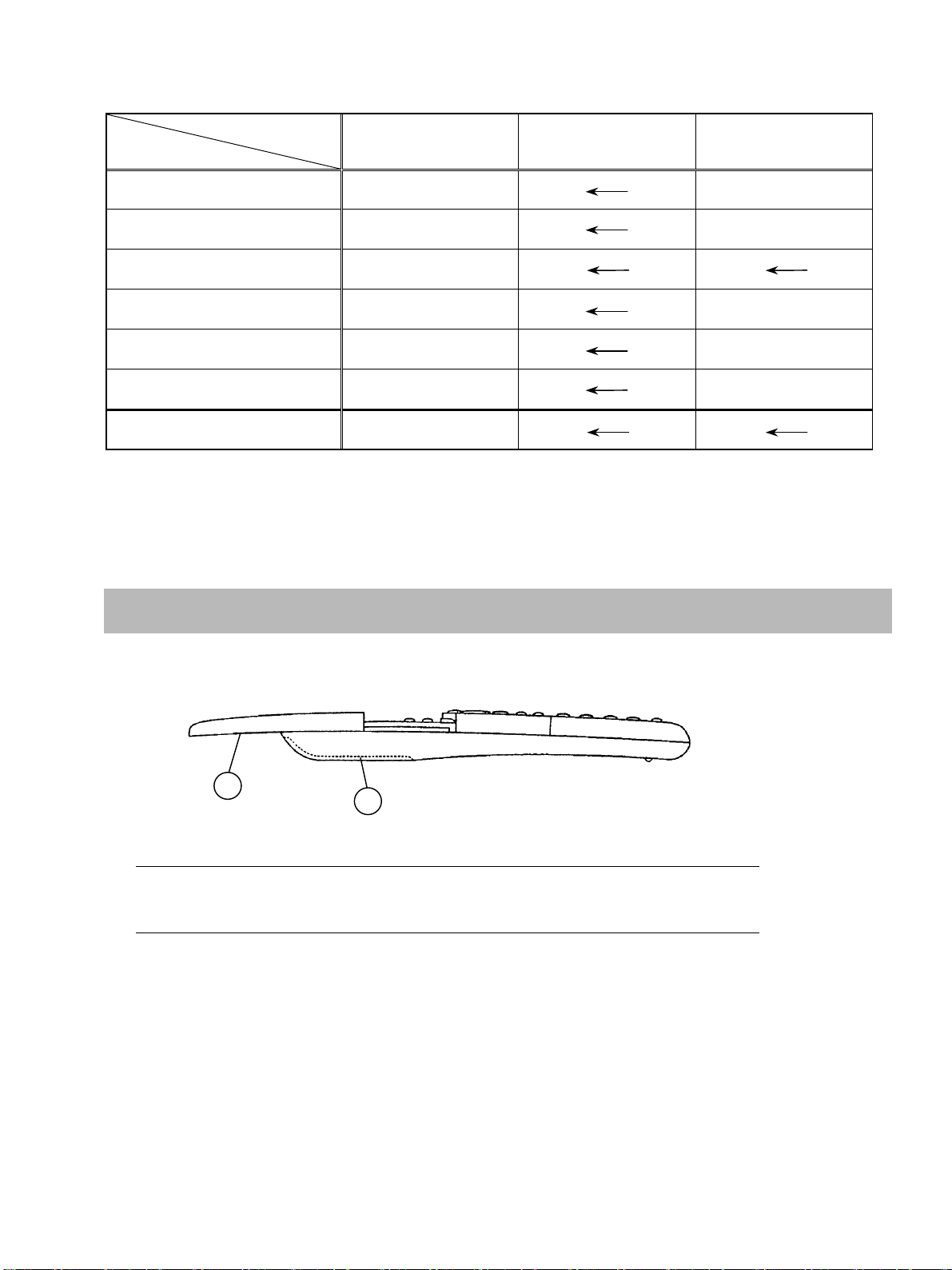

USING PW BOARD & REMOTE CONTROL UNIT
Model
PWB ASS'Y AV-28WFR1EKS/A AV-28WFR1EK/A AV-32WFR1EKS/A
MAIN PWB SJK-1906A-U2 SJK-1908A-U2
POWER & DEF PWB SJK-2508A-H3 SJK-2507A-H3
DOLBY PWB SJK0D501A-H3
CRT SOCKET PWB SJK-3503A-H3 SJK-3504A-H3
FRONT CONTROL PWB SJK-8506A-H3 SJK-8508A-H3
AV SEL. PWB SJK0S905A-H3 SJK0S907A-H3
REMOTE CONTROL UNIT RM-C52-1C
REMOTE CONTROL UNIT PARTS LIST [ RM-C52-1C ]
!Ref.No. Part No. Part Name Description
12AA027770 BATTERY COVER
2 2AA027763 SLIDE COVER
AV-28WFR1EKS/A / AV-28WFR1EK/A / AV-32WFR1EKS/A
1
2

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
6
EXPLODED VIEW PARTS LIST
!Ref.No. Part No. Part Name Description
!V01 W66QDE891X923 CRT(ITC) Inc. DY, PC MAGNET, WEDGE
!L01 QQW0100-001 DEG COIL
!T2551 QQH0089-002-I2 H.V. TRANSF (SERVICE)Within POWER & DEF PWB
!1 LC10716-002F-U CHASSIS BASE
!2 LC10717-002C-U AV BOARD [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
!2 LC10717-002D-U AV BOARD [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
3 QYSBSB3012M TAPPING SCREW (×5)For AV BOARD
!4 LC10380-003B-U CONTROL BASE L
!5 LC10380-004B-U CONTROL BASE R
!6 QNZ0369-003 ANODE WIRE
!7 CM46618-A01-E POWER CORD CLAMP
!8 QMPN130-185-JC POWER CORD
!
!!
!9
99
9 LC10664-00
LC10664-00LC10664-00
LC10664-002B
2B2B
2B-U
-U-U
-U REAR COVER
REAR COVERREAR COVER
REAR COVER [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
!
!!
!9
99
9 LC10664-00
LC10664-00LC10664-00
LC10664-001
11
1E-U
E-UE-U
E-U REAR COVER
REAR COVERREAR COVER
REAR COVER [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
10 QYSBSAG4016N TAPPING SCREW (×12)
!
!!
!11
1111
11 LC2009
LC2009LC2009
LC20091-030A-U
1-030A-U1-030A-U
1-030A-U RATING LABEL
RATING LABELRATING LABEL
RATING LABEL [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
!
!!
!11
1111
11 LC20091-029A-U
LC20091-029A-ULC20091-029A-U
LC20091-029A-U RATING LABEL
RATING LABELRATING LABEL
RATING LABEL [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
13 LC30579-001B-C REMOCON WINDOW
14 LC30580-001B-C L.E.D.LENS
15 LC40354-001C-C JVC MARK
16 CEBSF10P-05KJ6 SPEAKER (×2)SP01,SP02
17 LC10379-001A-U HORN ADAPTER (×2)
18 AEM4087-001-E BUSHING (×4)
19 CM12686-A01-E DOME BOX (×2)
20 LC40506-001A TAP SCREW (×4)For HORN ADAPTER
23 LC30820-001C SP SPACER (×4)
25 QAS0030-001 SPEAKER SP03
26 WJY0001-004A E-BRAIDED ASSY
27 CHGB0017-0B BRAIDED SUB ASSY (×2)
28 CHFD125-08BD FFC WIRE
!
!!
!100
100100
100 LC10662-008C-U
LC10662-008C-ULC10662-008C-U
LC10662-008C-U FRONT CABI ASSY
FRONT CABI ASSYFRONT CABI ASSY
FRONT CABI ASSY Inc.No.101
Inc.No.101Inc.No.101
Inc.No.101～
～～
～105
105105
105 [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
!
!!
!100
100100
100 LC10662-004D-U
LC10662-004D-ULC10662-004D-U
LC10662-004D-U FRONT CABI ASSY
FRONT CABI ASSYFRONT CABI ASSY
FRONT CABI ASSY Inc.No.101
Inc.No.101Inc.No.101
Inc.No.101～
～～
～105
105105
105 [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
101
101101
101 LC20265-0
LC20265-0LC20265-0
LC20265-011
1111
11B-U
B-UB-U
B-U DOOR
DOORDOOR
DOOR (SERVICE)
(SERVICE)(SERVICE)
(SERVICE) [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
101
101101
101 LC20265-007A-U
LC20265-007A-ULC20265-007A-U
LC20265-007A-U DOOR
DOORDOOR
DOOR (SERVICE)
(SERVICE)(SERVICE)
(SERVICE) [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
102 CM48229-00A-C DOOR LATCH
103
103103
103 LC30578-006A-
LC30578-006A-LC30578-006A-
LC30578-006A-U
UU
U POWER KNOB
POWER KNOBPOWER KNOB
POWER KNOB (SERVICE)
(SERVICE)(SERVICE)
(SERVICE) [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
103
103103
103 LC30578-004A-
LC30578-004A-LC30578-004A-
LC30578-004A-U
UU
U POWER KNOB
POWER KNOBPOWER KNOB
POWER KNOB (SERVICE)
(SERVICE)(SERVICE)
(SERVICE) [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
104 AEM3149-001-E SPRING
105
105105
105 LC31109-00
LC31109-00LC31109-00
LC31109-005
55
5A-U
A-UA-U
A-U CONTROL SHEET
CONTROL SHEETCONTROL SHEET
CONTROL SHEET [AV-28WFR1EKSA]
[AV-28WFR1EKSA][AV-28WFR1EKSA]
[AV-28WFR1EKSA]
105
105105
105 LC31109-004
LC31109-004LC31109-004
LC31109-004B
BB
B-U
-U-U
-U CONTROL SHEET
CONTROL SHEETCONTROL SHEET
CONTROL SHEET [AV-28WFR1EKA]
[AV-28WFR1EKA][AV-28WFR1EKA]
[AV-28WFR1EKA]
200 2528MXSP-1SWE DOME SPEAKER (×2)Inc.No.201～204
201 CM12463-D01-E HORN (×2)
202 CM12464-D01-E HORN PANEL (×2)
203 CHGS0057-AA SPEAKER WIRE (×2)
204 CEBSS03K-01KJ2 SPEAKER (×2)
EXPLODED VIEW (Ⅰ
ⅠⅠ
Ⅰ)
AV-28WFR1EKS/A / AV-28WFR1EK/A
13
14
15
100
!
101
102
103 104
105
FRONT CABINET

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
7
EXPLODED VIEW (Ⅱ
ⅡⅡ
Ⅱ)18
23
26
6
27
17
L01
!
L03
!
19
T2551
2
3
7
8
1
5
28
4
19
18
23
17
18
9
10
!
V01
!
!
!
!
!
!
FRONT
CONTROL PWB
MAIN PWB
CRT SOCKET
PWB
18
!
!
POWER & DEF PWB
!
(×5)
AV SEL. PWB
(×12)
20
20
AV-28WFR1EKS/A / AV-28WFR1EK/A
DOLBY PWB
11
!
16
19
25
200
201
202
SPEAKER
204
203
27

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
8
PRINTED WIRING BOARD PARTS LIST
MAIN PW BOARD ASS’Y (SJK-1906A-U2)
!Symbol No. Part No. Part Name Description
RESISTOR
R1001 NRSA02J-102X MG R 1k
Ω
1/10W J
R1004 NRSA02J-102X MG R 1k
Ω
1/10W J
R1005 NRSA02J-102X MG R 1k
Ω
1/10W J
R1006 NRSA02J-102X MG R 1k
Ω
1/10W J
R1007 NRSA02J-104X MG R 100k
Ω
1/10W J
R1008 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1301 NRSA02J-103X MG R 10k
Ω
1/10W J
R1302 NRSA02J-183X MG R 18k
Ω
1/10W J
R1303 NRSA02J-153X MG R 15k
Ω
1/10W J
R1304 QRG01GJ-121 OM R 120
Ω
1W J
R1305 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1306 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1307 NRSA02J-102X MG R 1k
Ω
1/10W J
R1308 NRSA02J-471X MG R 470
Ω
1/10W J
R1309 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1310-11 NRSA02J-391X MG R 390
Ω
1/10W J
R1312-13 NRSA02J-101X MG R 100
Ω
1/10W J
R1314 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1316 NRSA02J-224X MG R 220k
Ω
1/10W J
R1317 NRSA02J-101X MG R 100
Ω
1/10W J
R1318 NRSA02J-102X MG R 1k
Ω
1/10W J
R1319 NRSA02J-102X MG R 1k
Ω
1/10W J
R1320 NRSA02J-102X MG R 1k
Ω
1/10W J
R1321 NRSA02J-102X MG R 1k
Ω
1/10W J
R1327 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1328 NRSA02J-102X MG R 1k
Ω
1/10W J
R1329 NRSA02J-102X MG R 1k
Ω
1/10W J
R1330 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1331 NRSA02J-333X MG R 33k
Ω
1/10W J
R1332-33 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1335 NRSA02J-273X MG R 27k
Ω
1/10W J
R1336 NRSA02J-103X MG R 10k
Ω
1/10W J
R1337 NRSA02J-102X MG R 1k
Ω
1/10W J
R1338 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1339 NRSA02J-102X MG R 1k
Ω
1/10W J
R1340-41 NRSA02J-333X MG R 33k
Ω
1/10W J
R1342 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R1343 NRSA02J-272X MG R 2.7k
Ω
1/10W J
R1344 NRSA02J-471X MG R 470
Ω
1/10W J
R1345 NRSA02J-102X MG R 1k
Ω
1/10W J
R1346 NRSA02J-223X MG R 22k
Ω
1/10W J
R1401-02 NRSA02J-103X MG R 10k
Ω
1/10W J
R1403 NRSA02J-102X MG R 1k
Ω
1/10W J
R1404 NRSA02J-183X MG R 18k
Ω
1/10W J
R1405 NRSA02J-223X MG R 22k
Ω
1/10W J
R1409 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1411 NRVA02D-473X MF R 47k
Ω
1/10W D
R1413 NRVA02D-223X MF R 22k
Ω
1/10W D
R1414 NRVA02D-101X MF R 100
Ω
1/10W D
R1415 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1416 NRSA02J-101X MG R 100
Ω
1/10W J
R1417 NRSA02J-223X MG R 22k
Ω
1/10W J
R1418 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1419 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1420 NRSA02J-183X MG R 18k
Ω
1/10W J
R1501 NRSA02J-621X MG R 620
Ω
1/10W J
R1502 NRSA02J-103X MG R 10k
Ω
1/10W J
R1503 NRSA02J-104X MG R 100k
Ω
1/10W J
R1504 NRSA02J-822X MG R 8.2k
Ω
1/10W J
R1505-06 NRSA02J-221X MG R 220
Ω
1/10W J
R1507 NRSA02J-102X MG R 1k
Ω
1/10W J
R1508 NRSA02J-223X MG R 22k
Ω
1/10W J
R1509 NRSA02J-223X MG R 22k
Ω
1/10W J
R1511 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
!Symbol No. Part No. Part Name Description
RESISTOR
R1514 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1516 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1517 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1518 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1519 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1520 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R1551 QRK126J-100X C R 10
Ω
1/2W J
R1552 NRSA02J-124X MG R 120k
Ω
1/10W J
R1553 NRSA02J-683X MG R 68k
Ω
1/10W J
R1554 NRSA02J-333X MG R 33k
Ω
1/10W J
R1555 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1556 NRSA02J-154X MG R 150k
Ω
1/10W J
R1557-58 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1559 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1560 NRSA02J-104X MG R 100k
Ω
1/10W J
R1561 QRK126J-100X C R 10
Ω
1/2W J
R1571 NRSA02J-101X MG R 100
Ω
1/10W J
R1572 NRSA02J-133X MG R 13k
Ω
1/10W J
R1573 NRSA02J-821X MG R 820
Ω
1/10W J
R1633 NRSA02J-273X MG R 27k
Ω
1/10W J
R1634 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1638 NRSA02J-473X MG R 47k
Ω
1/10W J
R1641 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R1642-45 NRSA02J-104X MG R 100k
Ω
1/10W J
R1649 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1650 NRSA02J-104X MG R 100k
Ω
1/10W J
R1651 NRSA02J-223X MG R 22k
Ω
1/10W J
R1652 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1653 QRK126J-103X C R 10k
Ω
1/2W J
R1654 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1655 NRSA02J-223X MG R 22k
Ω
1/10W J
R1656 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1657 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1658 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R1659 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1660 QRK126J-2R2X C R 2.2
Ω
1/2W J
R1661 NRSA02J-103X MG R 10k
Ω
1/10W J
R1663 NRSA02J-561X MG R 560
Ω
1/10W J
R1664 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1665-66 NRSA02J-681X MG R 680
Ω
1/10W J
R1668 NRSA02J-223X MG R 22k
Ω
1/10W J
R1669 NRSA02J-223X MG R 22k
Ω
1/10W J
R1670 NRSA02J-681X MG R 680
Ω
1/10W J
R1672 NRSA02J-681X MG R 680
Ω
1/10W J
R1673 NRSA02J-223X MG R 22k
Ω
1/10W J
R1674 NRSA02J-223X MG R 22k
Ω
1/10W J
R1675 NRSA02J-103X MG R 10k
Ω
1/10W J
R1676 NRSA02J-563X MG R 56k
Ω
1/10W J
R1677-78 NRSA02J-273X MG R 27k
Ω
1/10W J
R1679 NRSA02J-103X MG R 10k
Ω
1/10W J
R1680 NRSA02J-563X MG R 56k
Ω
1/10W J
R1682 QRK126J-2R2X C R 2.2
Ω
1/2W J
R1683 QRK126J-2R2X C R 2.2
Ω
1/2W J
R1687 QRK126J-2R2X C R 2.2
Ω
1/2W J
R1688 QRK126J-2R2X C R 2.2
Ω
1/2W J
R1689 NRSA02J-473X MG R 47k
Ω
1/10W J
R1691 QRG01GJ-180 OM R 18
Ω
1W J
R1701 NRSA02J-221X MG R 220
Ω
1/10W J
R1702 NRSA02J-822X MG R 8.2k
Ω
1/10W J
R1703 NRSA02J-273X MG R 27k
Ω
1/10W J
R1704 NRSA02J-473X MG R 47k
Ω
1/10W J
R1705 NRSA02J-102X MG R 1k
Ω
1/10W J
R1706 NRSA02J-223X MG R 22k
Ω
1/10W J
R1707-12 NRSA02J-103X MG R 10k
Ω
1/10W J
AV-28WFR1EKS/A / AV-28WFR1EK/A

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
9
!Symbol No. Part No. Part Name Description
RESISTOR
R1713 NRSA02J-102X MG R 1k
Ω
1/10W J
R1714 NRSA02J-102X MG R 1k
Ω
1/10W J
R1716 NRSA02J-102X MG R 1k
Ω
1/10W J
R1717 NRSA02J-104X MG R 100k
Ω
1/10W J
R1718 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1719 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1720 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1721 NRSA02J-103X MG R 10k
Ω
1/10W J
R1722 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1723 NRSA02J-102X MG R 1k
Ω
1/10W J
R1724-28 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1729-31 NRSA02J-221X MG R 220
Ω
1/10W J
R1732 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R1733 NRSA02J-103X MG R 10k
Ω
1/10W J
R1734 NRSA02J-223X MG R 22k
Ω
1/10W J
R1736-39 NRSA02J-103X MG R 10k
Ω
1/10W J
R1740 NRSA02J-331X MG R 330
Ω
1/10W J
R1741 NRSA02J-102X MG R 1k
Ω
1/10W J
R1742 NRSA02J-102X MG R 1k
Ω
1/10W J
R1745-47 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1748-52 NRSA02J-221X MG R 220
Ω
1/10W J
R1753 NRSA02J-102X MG R 1k
Ω
1/10W J
R1754 NRSA02J-683X MG R 68k
Ω
1/10W J
R1755 NRSA02J-102X MG R 1k
Ω
1/10W J
R1756 NRSA02J-103X MG R 10k
Ω
1/10W J
R1758 NRSA02J-103X MG R 10k
Ω
1/10W J
R1759 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1760 NRSA02J-103X MG R 10k
Ω
1/10W J
R1762-63 NRSA02J-103X MG R 10k
Ω
1/10W J
R1764-66 NRSA02J-221X MG R 220
Ω
1/10W J
R1767 NRSA02J-103X MG R 10k
Ω
1/10W J
R1770 NRSA02J-272X MG R 2.7k
Ω
1/10W J
R1771-73 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1774-75 NRSA02J-333X MG R 33k
Ω
1/10W J
R1777-79 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1780 NRSA02J-102X MG R 1k
Ω
1/10W J
R1784 NRSA02J-223X MG R 22k
Ω
1/10W J
R1785 NRSA02J-223X MG R 22k
Ω
1/10W J
R1786 NRSA02J-473X MG R 47k
Ω
1/10W J
R1787 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1788 NRSA02J-272X MG R 2.7k
Ω
1/10W J
R1789 NRSA02J-473X MG R 47k
Ω
1/10W J
R1790 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R1801 NRSA02J-333X MG R 33k
Ω
1/10W J
R1802 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1804 NRSA02J-473X MG R 47k
Ω
1/10W J
R1805 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1806 NRSA02J-184X MG R 180k
Ω
1/10W J
R1834 NRSA02J-473X MG R 47k
Ω
1/10W J
R1835 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R1837 NRSA02J-102X MG R 1k
Ω
1/10W J
R1838 NRSA02J-393X MG R 39k
Ω
1/10W J
R1839 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1840 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R1841 NRSA02J-331X MG R 330
Ω
1/10W J
R1842 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1843 NRSA02J-332X MG R 3.3k
Ω
1/10W J
R1844 NRSA02J-392X MG R 3.9k
Ω
1/10W J
R1845 NRSA02J-272X MG R 2.7k
Ω
1/10W J
R1846 NRSA02J-103X MG R 10k
Ω
1/10W J
R1847-48 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1849 NRSA02J-823X MG R 82k
Ω
1/10W J
R1850 NRSA02J-102X MG R 1k
Ω
1/10W J
R1851 NRSA02J-102X MG R 1k
Ω
1/10W J
R1852 NRSA02J-102X MG R 1k
Ω
1/10W J
R1853 NRSA02J-102X MG R 1k
Ω
1/10W J
R1854 NRSA02J-102X MG R 1k
Ω
1/10W J
R1855 NRSA02J-102X MG R 1k
Ω
1/10W J
R1856 NRSA02J-102X MG R 1k
Ω
1/10W J
R1857 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R1858 NRSA02J-223X MG R 22k
Ω
1/10W J
R1859 NRSA02J-823X MG R 82k
Ω
1/10W J
!Symbol No. Part No. Part Name Description
RESISTOR
R1871 NRSA02J-102X MG R 1k
Ω
1/10W J
R1872-73 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R1874 NRSA02J-272X MG R 2.7k
Ω
1/10W J
R1875 NRSA02J-104X MG R 100k
Ω
1/10W J
R1876 NRSA02J-102X MG R 1k
Ω
1/10W J
R1877 NRSA02J-393X MG R 39k
Ω
1/10W J
R1878-80 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R1881-82 NRSA02J-331X MG R 330
Ω
1/10W J
R1883 NRSA02J-102X MG R 1k
Ω
1/10W J
R1884 NRSA02J-331X MG R 330
Ω
1/10W J
CAPACITOR
C1001 NCB21HK-222X C CAP. 2200pF 50V K
C1003 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1004 QETN1CM-108Z E CAP. 1000
µ
F 16V M
C1005 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1006 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1007 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1008 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1009 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1010 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1301 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1302 NCB21HK-823X CHIP CAP. 0.082
µ
F 50V K
C1303 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1304 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1305 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1306 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1307 QETN1CM-477Z E CAP. 470
µ
F 16V M
C1308 NDC21HJ-120X C CAP. 12pF 50V J
C1309 QETN1HM-475Z E CAP. 4.7
µ
F 50V M
C1310 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1311 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1312 NDC21HJ-680X C CAP. 68pF 50V J
C1313 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1314 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1315 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1319 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1320 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1321-23 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1324-26 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1327 QETN1HM-475Z E CAP. 4.7
µ
F 50V M
C1328 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1329 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1331 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1332 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1333 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1401 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1403-05 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1406 QFV71HJ-184Z MF CAP. 0.18
µ
F 50V J
C1407 QFV71HJ-824Z MF CAP. 0.82
µ
F 50V J
C1408 NCB21HK-153X C CAP. 0.015
µ
F 50V K
C1501 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1502-04 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1505 NCB21HK-332X C CAP. 3300pF 50V K
C1506 QETN1HM-335Z E CAP. 3.3
µ
F 50V M
C1507 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1508 QETN1CM-108Z E CAP. 1000
µ
F 16V M
C1509 NCB21HK-823X CHIP CAP. 0.082
µ
F 50V K
C1510-11 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1512 QTMN1HM-105Z E CAP. 1
µ
F 50V M
C1513 QETN1CM-228Z E CAP. 2200
µ
F 16V M
C1514 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1515 QFV71HJ-394Z MF CAP. 0.39
µ
F 50V J
C1516 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1551-52 NCB21EK-224X CHIP CAP. 0.22
µ
F 25V K
C1553 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1554-55 NCB21EK-224X CHIP CAP. 0.22
µ
F 25V K
C1571 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1605-06 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1622-23 QETN1CM-227Z E CAP. 220
µ
F 16V M
C1624-25 QETN1HM-105Z E CAP. 1
µ
F 50V M

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
10
!Symbol No. Part No. Part Name Description
CAPACITOR
C1626 QETN1HM-476Z E CAP. 47
µ
F 50V M
C1627 NDC21HJ-181X C CAP. 180pF 50V J
C1629 QETN1HM-476Z E CAP. 47
µ
F 50V M
C1630 NDC21HJ-181X C CAP. 180pF 50V J
C1631 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1632 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1633 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1635 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1636 QETN1HM-107Z E CAP. 100
µ
F 50V M
C1637 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1638-39 NCF21HZ-224X C CAP. 0.22
µ
F 50V Z
C1642 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1643 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1644-45 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1646 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1647 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1649 NDC21HJ-100X C CAP. 10pF 50V J
C1651 NDC21HJ-100X C CAP. 10pF 50V J
C1652-55 NCF21HZ-224X C CAP. 0.22
µ
F 50V Z
C1656 QETM1HM-228 E CAP. 2200
µ
F 50V M
C1657-58 QETM1EM-228 E CAP. 2200
µ
F 25V M
C1661-63 QETM1VM-108 E CAP. 1000
µ
F 35V M
C1664-67 QFV71HJ-684Z MF CAP. 0.68
µ
F 50V J
C1668 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1671 QETN1CM-107Z E CAP. 100
µ
F 16V M
C1672 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1673 QETN1CM-227Z E CAP. 220
µ
F 16V M
C1674 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
C1675 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1701 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C1703 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1704 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1705 QETN1AM-107Z E CAP. 100
µ
F 10V M
C1706 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1707 QETN1HM-474Z E CAP. 0.47
µ
F 50V M
C1708 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1709-10 NDC21HJ-120X C CAP. 12pF 50V J
C1711 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1712 NDC21HJ-151X C CAP. 150pF 50V J
C1713 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1714 NDC21HJ-561X C CAP. 560pF 50V J
C1716-17 QETN1HM-105Z E CAP. 1
µ
F 50V M
C1718 NCB21HK-333X C CAP. 0.033
µ
F 50V K
C1725 NCB21HK-102X C CAP. 1000pF 50V K
C1726 NDC21HJ-821X C CAP. 820pF 50V J
C1831 QENC1CM-476Z BP E CAP. 47
µ
F 16V M
C1832 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1833 NDC21HJ-221X C CAP. 220pF 50V J
C1834 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1835 NDC21HJ-220X C CAP. 22pF 50V J
C1836-38 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1839 QETN1HM-106Z E CAP. 10
µ
F 50V M
C1871 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1872 NCB21HK-223X C CAP. 0.022
µ
F 50V K
C1873 NDC21HJ-221X C CAP. 220pF 50V J
C1874-75 NDC21HJ-150X C CAP. 15pF 50V J
C1876 NCB21HK-102X C CAP. 1000pF 50V K
C1877 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1878 NCB21HK-102X C CAP. 1000pF 50V K
C1879 NDC21HJ-221X C CAP. 220pF 50V J
C1880 QETN1AM-477Z E CAP. 470
µ
F 10V M
C1881 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1882 QETN1EM-476Z E CAP. 47
µ
F 25V M
C1883 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1884-85 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C1886 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C1887-89 QETN1HM-106Z E CAP. 10
µ
F 50V M
!Symbol No. Part No. Part Name Description
COIL
L1001 QQL01BK-5R6Z COIL 5.6
µ
H K
L1002 QQL01BK-270Z COIL 27
µ
H K
L1301-02 QQL01BK-4R7Z COIL 4.7
µ
H K
L1305 QQL244K-4R7Z COIL 4.7
µ
H K
L1501 QQL244J-151Z PEAKING COIL
L1701 QQL01BK-4R7Z COIL 4.7
µ
H K
L1702 QQL01BK-3R9Z COIL 3.9
µ
H K
L1871 QQL01BK-4R7Z COIL 4.7
µ
H K
DIODE
D1301 MA3051/M/-X ZENER DIODE
D1302-04 MA111-X SI.DIODE
D1503 RB100A-T2 SI.DIODE
D1602 MA111-X SI.DIODE
D1604-07 MA111-X SI.DIODE
D1609-10 MA111-X SI.DIODE
D1611 MA704A-X SI.DIODE
D1615 MA3051-X ZENER DIODE
D1616 MA3062/M/-X ZENER DIODE
D1617-19 MA3330/L/-X ZENER DIODE
D1620-23 MA3270/H/-X ZENER DIODE
D1624-25 MA111-X SI.DIODE
D1627 MA111-X SI.DIODE
D1701 MA3068/M/-X ZENER DIODE
D1702 MA111-X SI.DIODE
D1704 MA111-X SI.DIODE
D1705 MA3036-X ZENER DIODE
D1706-08 MA111-X SI.DIODE
D1710 MA111-X SI.DIODE
D1831 MA3051/M/-X ZENER DIODE
TRANSISTOR
Q1301-02 2SA1037AK/QR/-X SI.TRANSISTOR
Q1309 2SC2412K/QR/-X SI.TRANSISTOR
Q1310 2SA1037AK/QR/-X SI.TRANSISTOR
Q1311 DTC124EKA-X DIGI.TRANSISTOR
Q1312 2SA1037AK/QR/-X SI.TRANSISTOR
Q1401 DTC124EKA-X DIGI.TRANSISTOR
Q1402 2SC2412K/QR/-X SI.TRANSISTOR
Q1604-06 2SA1037AK/QR/-X SI.TRANSISTOR
Q1607 DTC124EKA-X DIGI.TRANSISTOR
Q1611 DTC124EKA-X DIGI.TRANSISTOR
Q1613 2SA1037AK/QR/-X SI.TRANSISTOR
Q1614 2SC2412K/QR/-X SI.TRANSISTOR
Q1615-16 DTC323TK-X DIGI.TRANSISTOR
Q1701-04 2SC2412K/QR/-X SI.TRANSISTOR
Q1705-06 2SA1037AK/QR/-X SI.TRANSISTOR
Q1707 2SC2412K/QR/-X SI.TRANSISTOR
Q1708 2SA1037AK/QR/-X SI.TRANSISTOR
Q1709-10 2SC2412K/QR/-X SI.TRANSISTOR
Q1832-33 2SC2412K/QR/-X SI.TRANSISTOR
Q1834 2SA1037AK/QR/-X SI.TRANSISTOR
Q1835-37 2SC2412K/QR/-X SI.TRANSISTOR
Q1871 2SA1037AK/QR/-X SI.TRANSISTOR
Q1872 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC1301 TB1227CN I.C.(DIGI-OTHER)
IC1302 TC4053BP/N/ I.C.(DIGI-MOS)
IC1501 AN5441SA-W I.C.(MONO-ANA)
IC1551 LA6515 I.C.(MONO-ANA)
IC1601 TA8256BH I.C.(HYBRID)
IC1602-03 TDA2052V I.C.(MONO-ANA)
IC1604 BA4558F-X I.C.(MONO-ANA)
IC1607 BA05T I.C.(MONO-ANA)
IC1701 M37280MK-106SP I.C.
IC1702 AT24C16-32WFR1 I.C. (SERVICE)
IC1703 L78LR05E-MA I.C.(MONO-ANA)
IC1704 JLC1562BF-X I.C.(DIGI-MOS)
IC1831 JCC5035 I.C.(DIGI-MOS)
IC1832 MN1382/Q/-X I.C.(MONO-ANA)
IC1871 ET417 I.C.(M)
IC1872 ET206 I.C.(M)

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
11
!Symbol No. Part No. Part Name Description
OTHERS
K1001 CE41433-001Z BEADS CORE
K1004 CE41433-001Z BEADS CORE
K1307 CE41433-001Z BEADS CORE
K1872 QQL01BK-3R3Z COIL 3.3
µ
H K
LC1301 CE42142-222Z EMI FILTER
TU1001 QAU0189-002 TUNER
X1301 QAX0305-001Z CRYSTAL
X1701 CST8.00MTW CER.RESONATOR
X1831 QAX0624-001Z CER.RESONATOR
X1871 CE41257-001Z CRYSTAL
POWER & DEF PW BOARD ASS’Y (SJK-2508A-U2)
!Symbol No. Part No. Part Name Description
RESISTOR
R2401 QRE141J-682Y C R 6.8k
Ω
1/4W J
R2402 QRA14CF-6801Y MF R 6.8k
Ω
1/4W F
R2403 QRA14CF-3091Y MF R 3.09k
Ω
1/4W F
R2404-05 QRA14CF-8200Y MF R 820
Ω
1/4W F
R2406 QRE141J-103Y C R 10k
Ω
1/4W J
R2409 QRE141J-103Y C R 10k
Ω
1/4W J
R2410 QRE141J-102Y C R 1k
Ω
1/4W J
R2414 QRE121J-5R6Y C R 5.6
Ω
1/2W J
R2415 QRX01GJ-1R8 MF R 1.8
Ω
1W J
R2416 QRG01GJ-820 OM R 82
Ω
1W J
R2417 QRE121J-1R0Y C R 1.0
Ω
1/2W J
R2461 QRE141J-331Y C R 330
Ω
1/4W J
R2463 QRE121J-392Y C R 3.9k
Ω
1/2W J
R2464 QRE121J-562Y C R 5.6k
Ω
1/2W J
R2465 QRE121J-682Y C R 6.8k
Ω
1/2W J
R2466 QRE121J-102Y C R 1k
Ω
1/2W J
R2467 QRL039J-330 OM R 33
Ω
3W J
R2492 QRE141J-683Y C R 68k
Ω
1/4W J
R2493 QRE141J-224Y C R 220k
Ω
1/4W J
!R2494 QRZ9017-4R7 FR 4.7
Ω
1/4W J
R2495 QRE141J-103Y C R 10k
Ω
1/4W J
R2496 QRE141J-183Y C R 18k
Ω
1/4W J
R2497 QRE141J-153Y C R 15k
Ω
1/4W J
R2502 QRE141J-222Y C R 2.2k
Ω
1/4W J
R2503 QRE121J-152Y C R 1.5k
Ω
1/2W J
R2504 QRL039J- OM R 2.7k
Ω
3W J
R2505 QRL039J-332 OM R 3.3k
Ω
3W J
R2521 QRE121J-150Y C R 15
Ω
1/2W J
R2522 QRL039J-103 OM R 10k
Ω
3W J
R2523 QRE121J-471Y C R 470
Ω
1/2W J
!R2524 QRZ9017-4R7 FR 4.7
Ω
1/4W J
R2525 QRE141J-152Y C R 1.5k
Ω
1/4W J
R2541 QRE121J-103Y C R 10k
Ω
1/2W J
R2542 QRE121J-222Y C R 2.2k
Ω
1/2W J
R2543 QRE121J-124Y C R 120k
Ω
1/2W J
R2544 QRE121J-104Y C R 100k
Ω
1/2W J
R2545 QRE141J-123Y C R 12k
Ω
1/4W J
R2546 QRE121J-104Y C R 100k
Ω
1/2W J
R2547 QRE141J-123Y C R 12k
Ω
1/4W J
R2548 QRE121J-222Y C R 2.2k
Ω
1/2W J
R2551-52 QRT039J-1R5 MF R 1.5
Ω
3W J
R2553 QRF104K-5R6 UNF R 5.6k
Ω
10W K
!R2554 QRZ9022-R47 FR 0.47k
Ω
1W K
!R2555 QRZ9011-4R7 FR 4.7
Ω
1/2W J
R2561 QRL029J-220 OM R 22
Ω
2W J
R2562 QRE121J-123Y C R 12k
Ω
1/2W J
R2563 QRZ0056-103Z COMP.R 10k
Ω
R2591 QRE121J-123Y C R 12k
Ω
1/2W J
R2592 QRA14CF-1201Y MF R 1.2k
Ω
1/4W F
R2593 QRE141J-183Y C R 18k
Ω
1/4W J
!Symbol No. Part No. Part Name Description
RESISTOR
R2594 QRE141J-222Y C R 2.2k
Ω
1/4W J
!R2595 QRA14CF-1692Y MF R 16.9k
Ω
1/4W F
!R2596 QRA14CF-2401Y MF R 2.4k
Ω
1/4W F
R2597 QRE141J-273Y C R 27k
Ω
1/4W J
R2902 QRE121J-331Y C R 330
Ω
1/2W J
!R2903 QRF104K-3R9 UNF R 3.9k
Ω
10W J
R2904-05 QRE121J-474Y C R 470k
Ω
1/2W J
R2907-08 QRL039J-823 OM R 82k
Ω
3W J
R2909 QRG039J-683 OM R 68k
Ω
3W J
R2910 QRE121J-681Y C R 680
Ω
1/2W J
R2911 QRM059J-R15 MP R 0.15
Ω
5W J
R2912 QRT029J-2R2 MF R 2.2
Ω
2W J
!R2913 QRZ9017-100 FR 10
Ω
1/4W J
R2914 QRE121J-272Y C R 2.7k
Ω
1/2W J
R2918 QRE121J-332Y C R 3.3k
Ω
1/2W J
R2933 QRE141J-102Y C R 1k
Ω
1/4W J
R2935 QRE141J-473Y C R 47k
Ω
1/4W J
R2936 QRE141J-103Y C R 10k
Ω
1/4W J
R2938 QRE121J-102Y C R 1k
Ω
1/2W J
R2940 QRE121J-390Y C R 39
Ω
1/2W J
R2967 QRL039J-223 OM R 22k
Ω
3W J
R2976 QRL029J-100 OM R 10
Ω
2W J
!R2991 QRZ0057-825 C R 8.2M
Ω
1W J
CAPACITOR
C2401 QEHR1VM-227Z E CAP. 220
µ
F 35V M
C2402 QETM1VM-108 E CAP. 1000
µ
F 35V M
C2403 QFLC2AJ-683Z M CAP. 0.068
µ
F 100V J
C2404 QETN1HM-105Z E CAP. 1
µ
F 50V M
C2405 QFLC1HJ-472Z M CAP. 4700pF 50V J
C2406 QCZ0337-180Z C CAP. 18pF 2kV K
C2407 QFLC1HJ-102Z M CAP. 1000pF 50V J
C2408 QFV71HJ-334Z MF CAP. 0.33
µ
F 50V J
C2410 QFV71HJ-334Z MF CAP. 0.33
µ
F 50V J
C2411 QFLC2AJ-563Z M CAP. 0.056
µ
F 100V J
C2451 QFV71HJ-104Z MF CAP. 0.1
µ
F 50V J
C2461 QEZ0195-475Z E CAP. 4.7
µ
F 50V M
C2462 QETN1HM-106Z E CAP. 10
µ
F 50V M
C2463 QFLC1HJ-153Z M CAP. 0.015
µ
F 50V J
C2464 QFLC1HJ-333Z M CAP. 0.033
µ
F 50V J
C2491 QETN1HM-105Z E CAP. 1
µ
F 50V M
C2492 QETN1HM-106Z E CAP. 10
µ
F 50V M
C2502 QCB32HK-681Z C CAP. 680pF 500V K
C2503 QEHR2CM-105Z E CAP. 1
µ
F 160V M
!C2521 QFZ0196-282 MPP CAP 2800pF1.5KVH±3%
!C2522 QFZ0200-113 MPP CAP 0.011
µ
F1.5KVH±3%
!C2523 QFP32GJ-183 PP CAP. 0.015
µ
F 400V J
C2524 QFN32DK-563 M CAP. 0.056
µ
F 200V K
C2526 QFZ0197-304 MPP CAP 0.3
µ
F 250V J
C2527 QEHR2EM-475Z E CAP. 4.7
µ
F 250V M
C2529 QFN32DK-473 M CAP. 0.047
µ
F 200V K
C2530 QCB32HK-561Z C CAP. 560pF 500V K
C2531 QFLC1HJ-103Z M CAP. 0.01
µ
F 50V J
C2533 QCS32HJ-560Z C CAP. 56pF 500V J
C2542 QFZ0197-204 MPP CAP 0.2
µ
F 250V J
C2543 QFZ0197-184 MPP CAP 0.18
µ
F 250V J
C2551 QETN2EM-106 E CAP. 10
µ
F 250V M
C2552 QCB32HK-152Z C CAP. 1500pF 500V K
C2553 QEHR1EM-108Z E CAP. 1000
µ
F 25V M
C2554 QCB32HK-152Z C CAP. 1500pF 500V K
C2555 QEHR1EM-108Z E CAP. 1000
µ
F 25V M
C2560 QETM2CM-227 E CAP. 220
µ
F 160V M
C2561 QFLC1HJ-184Z M CAP. 0.068
µ
F 50V J
C2591 QETN1AM-107Z E CAP. 100
µ
F 10V M
C2592 QETN1EM-476Z E CAP. 47
µ
F 25V M
C2593 QETN2AM-106Z E CAP. 10
µ
F 100V M
C2594 QETN1AM-227Z E CAP. 220
µ
F 10V M
!C2901 QFZ9040-473 MF CAP. 0.047
µ
FAC275V M
!C2904 QCZ9054-472 C CAP. 4700pFAC250V Z
!C2905 QCZ9054-472 C CAP. 4700pFAC250V Z
!C2906 QCZ9054-472 C CAP. 4700pFAC250V Z
C2907 QEZ0199-227 E CAP. 220
µ
F 400V M

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
12
!Symbol No. Part No. Part Name Description
CAPACITOR
C2908 QCB32HK-103 C CAP. 0.01
µ
F 500V K
C2909 QCZ0122-391 C CAP. 390pF 2kV k
C2910 QCZ0122-102 C CAP. 1000pF 2kV k
C2912 QCB31HK-471Z C CAP. 470pF 50V K
C2913 QETN1HM-476Z E CAP. 47
µ
F 50V M
C2916 QETN1HM-107Z E CAP. 100
µ
F 50V M
C2918 QCB31HK-681Z C CAP. 680pF 50V K
C2933-34 QETN1HM-106Z E CAP. 10
µ
F 50V M
C2935 QETN1EM-227Z E CAP. 220
µ
F 25V M
C2951 QCZ0122-561 C CAP. 560pF 2kV k
C2952 QEZ0203-227 E CAP. 220
µ
F 160V M
C2953 QCB32HK-391Z C CAP. 390pF 500V K
C2954 QTMM1EM-228 E CAP. 2200
µ
F 25V M
C2955 QCB32HK-391Z C CAP. 390pF 500V K
C2956 QTMM1CM-228 E CAP. 2200
µ
F 16V M
C2958 QCB32HK-391Z C CAP. 390pF 500V K
C2959 QETM1VM-228 E CAP. 2200
µ
F 35V M
C2960 QCB32HK-221Z C CAP. 220pF 500V K
C2961 QETM1EM-338 E CAP. 3300
µ
F 25V M
C2962 QCB32HK-221Z C CAP. 220pF 500V K
C2963 QETM1EM-338 E CAP. 3300
µ
F 25V M
C2964 QFV71HJ-684Z MF CAP. 0.68
µ
F 50V J
C2968 QCZ0120-104Z C CAP. 0.1
µ
F 25V Z
C2969 QEHR1CM-477Z E CAP. 470
µ
F 16V M
C2970 QEHR1CM-107Z E CAP. 100
µ
F 16V M
C2971 QCZ0120-104Z C CAP. 0.1
µ
F 25V Z
C2972 QETN1CM-227Z E CAP. 220
µ
F 16V M
C2973 QETN1EM-476Z E CAP. 47
µ
F 25V M
C2974 QCZ0120-104Z C CAP. 0.1
µ
F 25V Z
C2975 QETN1AM-227Z E CAP. 220
µ
F 10V M
C2976 QETN1EM-476Z E CAP. 47
µ
F 25V M
C2979 QFV71HJ-104Z MF CAP. 0.1
µ
F 50V J
!C2991 QCZ9079-332 C CAP. 3300pFAC250V M
!C2992 QCZ9079-471 C CAP. 470pFAC250V K
TRANSFORMER
T2501 CE42034-002 H.DRIVE TRANSF.
!T2551 QQH0089-002-I2 H.V.TRANSF. (SERVICE)
T2561 QQR0898-001 DEF.TRANSF.
!T2901 QQS0065-001 SWITCH.TRANSF.
!T2921 QQT0303-001 POWER TRANSF.
COIL
L2461 QQLZ027-821 CHOKE COIL
L2521 QQLZ028-501 CHOKE COIL
L2522 QQR1106-001 LINEARITY COIL
L2561 QQLZ028-272 CHOKE COIL
L2901-02 QQL402K-100 COIL 10
µ
H K
!L2903 QQR0659-004 CHOKE COIL
L2951 QQLZ026-460 HEATER CHOKE
L2952 QQL26AK-820Z COIL 82
µ
H K
L2953-54 QQL26AM-5R6Z CHOKE COIL
DIODE
D2401 MTZJ75-T2 ZENER DIODE
D2402 1N4003-T2 SI.DIODE
D2451 BYD33D-T3 SI.DIODE
D2491 BYD33D-T3 SI.DIODE
D2492 MTZJ22B-T2 ZENER DIODE
D2493 1SS133-T2 SI.DIODE
D2494 1SS133-T2 SI.DIODE
D2521 RH3G-F1 SI.DIODE
D2522 BYW95B-20 SI.DIODE
D2523 BYD33G-T3 SI.DIODE
D2525 MTZJ9.1B-T2 ZENER DIODE
D2551 BYD33G-T3 SI.DIODE
D2553-54 BYW95B-20 SI.DIODE
D2591 MTZJ15B-T2 ZENER DIODE
D2592 MTZJ7.5B-T2 ZENER DIODE
D2593 BYD33D-T3 SI.DIODE
D2594 MTZJ7.5S-T2 ZENER DIODE
!D2901 D3SBA60 DIODE BRIDGE
D2902 BYD33M-T3 SI.DIODE
!Symbol No. Part No. Part Name Description
DIODE
D2904 BYD33D-T3 SI.DIODE
D2905 BYD33D-T3 SI.DIODE
D2909 1SS133-T2 SI.DIODE
D2911 MTZJ15B-T2 ZENER DIODE
D2913 MTZJ27B-T2 ZENER DIODE
D2931 1SS133-T2 SI.DIODE
D2934 MTZJ6.2B-T2 ZENER DIODE
D2935-38 1N4003-T2 SI.DIODE
D2939 1SS133-T2 SI.DIODE
D2951 RU4B-F1 SI.DIODE
D2953-54 BYW95B-20 SI.DIODE
D2955 FMX-G12S SI.DIODE
D2956-57 FMB-G16L SI.DIODE
D2958 1SR35-400A-T2 SI.DIODE
D2963 MTZJ3.9B-T2 ZENER DIODE
D2964 MTZJ33B-T2 ZENER DIODE
D2981 1SS133-T2 SI.DIODE
D2982 1SS133-T2 SI.DIODE
D2983 1SS133-T2 SI.DIODE
D2985 MTZJ7.5C-T2 ZENER DIODE
TRANSISTOR
Q2402 2SC1740S/QR/-T SI.TRANSISTOR
Q2461 2SD1408/OY/-LB SI.TRANSISTOR
Q2462-63 2SA933AS/QR/-T SI.TRANSISTOR
Q2501 BSN304-T F.E.T.
!Q2521 2SD2553-LB SI.TRANSISTOR H.OUT
Q2541-42 DTC124ESA-T DIGI.TRANSISTOR
Q2543 IRF620 F.E.T.
Q2544-45 2SK2459N-F54 F.E.T.
Q2546 DTC124ESA-T DIGI.TRANSISTOR
Q2591 2SA949/Y/Z1-T SI.TRANSISTOR
Q2592 DTC124ESA-T DIGI.TRANSISTOR
Q2593 2SC1740S/QR/-T SI.TRANSISTOR
Q2931-32 2SC1740S/QR/-T SI.TRANSISTOR
Q2933 2SC2655/Y/-T SI.TRANSISTOR
IC
IC2401 LA7841 I.C.(MONO-ANA)
!IC2901 STR-F6667B/F7 I.C.(HYBRID)
IC2951 SE140N I.C.(HYBRID)
IC2952 BA12T I.C.(MONO-ANA)
IC2953 BA17809T I.C.(MONO-ANA)
IC2954 BA05T I.C.(MONO-ANA)
OTHERS
!CP2953 ICP-N75-Y I.C.PROTECT
!CP2954 QMFZ034-4R0Z-J1 FUSE 4.0A
!CP2955 QMFZ034-4R0Z-J1 FUSE 4.0A
!CP2956 ICP-N10-Y I.C.PROTECT
!CP2957 ICP-N5-Y I.C.PROTECT
K2401 CE41433-001Z BEADS CORE
K2503-04 QQR0582-001Z BEADS CORE
K2901 QQR0679-001 FERRITE BEADS
K2904 QQR0679-001 FERRITE BEADS
K2951 QQR0872-001Y FERRITE BEADS
K2952 CE41433-001Z BEADS CORE
K2953 CE41433-001Z BEADS CORE
K2954 CE41433-001Z BEADS CORE
!PC2541 PC123F2 I.C.(PH.COUPLER)
!PC2542 PC123F2 I.C.(PH.COUPLER)
!PC2901 TLP721F(D4-GR) I.C.(PH.COUPLER)
!RY2931 QSK0099-001 RELAY
!TH2901 QAD0120-9R0 W.P.THERMISTOR

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
13
CRT SOCKET PW BOARD ASS’Y (SJK-3503A-H3)
!Symbol No. Part No. Part Name Description
RESISTOR
R3101-03 NRSA02J-101X MG R 100
Ω
1/10W J
R3107 NRSA02J-392X MG R 3.9k
Ω
1/10W J
R3108 NRSA02J-392X MG R 3.9k
Ω
1/10W J
R3109 NRSA02J-392X MG R 3.9k
Ω
1/10W J
R3110-12 NRSA02J-221X MG R 220
Ω
1/10W J
R3113-15 NRSA02J-470X MG R 47
Ω
1/10W J
R3116-18 QRL029J-153 OM R 15k
Ω
2W J
R3119-21 QRL029J-183 OM R 18k
Ω
2W J
R3125-27 QRZ0107-102Z C R 1k
Ω
1/2W K
R3130 QRG01GJ-101 OM R 100
Ω
1W J
R3135 QRZ0107-474Z C R 470k
Ω
1/2W K
R3136 QRE121J-474Y C R 470k
Ω
1/2W J
R3137 QRZ0107-102Z C R 1k
Ω
1/2W K
R3138 QRE121J-105Y C R 1M
Ω
1/2W J
R3151 NRSA02J-102X MG R 1k
Ω
1/10W J
R3152 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R3154 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R3303 NRSA02J-101X MG R 100
Ω
1/10W J
R3312 NRSA02J-153X MG R 15k
Ω
1/10W J
R3313 NRSA02J-152X MG R 1.5k
Ω
1/10W J
R3314 NRSA02J-331X MG R 330
Ω
1/10W J
R3315 NRSA02J-101X MG R 100
Ω
1/10W J
R3316 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R3317 NRSA02J-470X MG R 47
Ω
1/10W J
!R3318 QRJ146J-100X C R 10
Ω
1/4W J
R3319 NRSA02J-470X MG R 47
Ω
1/10W J
R3320 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R3321 NRSA02J-390X MG R 39
Ω
1/10W J
R3322 QRE121J-2R7Y C R 2.7
Ω
1/2W J
R3323-24 QRE121J-563Y C R 56k
Ω
1/2W J
R3325 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R3326 QRE121J-2R7Y C R 2.7
Ω
1/2W J
R3327 NRSA02J-390X MG R 39
Ω
1/10W J
R3328 NRSA02J-121X MG R 120
Ω
1/10W J
R3329 QRL029J-391 OM R 390
Ω
2W J
CAPACITOR
C3101-03 NDC21HJ-391X C CAP. 390pF 50V J
C3104 QETN1CM-107Z E CAP. 100
µ
F 16V M
C3105 QETN1EM-476Z E CAP. 47
µ
F 25V M
C3107 QETN1HM-106Z E CAP. 10
µ
F 50V M
C3113 QCZ0131-222 C CAP. 2200pF 2KV K
C3114 QETM2EM-336 E CAP. 33
µ
F 250V M
C3115 QETM2EM-106 E CAP. 10
µ
F 250V M
C3116 NDC21HJ-471X C CAP. 470pF 50V J
C3304 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C3305 QETN1HM-335Z E CAP. 3.3
µ
F 50V M
C3306 QETN1CM-107Z E CAP. 100
µ
F 16V M
C3307 NDC21HJ-5R0X C CAP. 5.0pF 50V J
C3308 QETN2CM-106Z E CAP. 10
µ
F 160V M
C3309 QCB32HK-472Z C CAP. 4700pF 500V K
C3310 QETN2CM-106Z E CAP. 10
µ
F 160V M
C3311 NCB21HK-821X C CAP. 820pF 50V K
C3312 QCB32HK-472Z C CAP. 4700pF 500V K
C3313 NCB21HK-561X C CAP. 560pF 50V K
C3314 QETN1CM-107Z E CAP. 100
µ
F 16V M
C3315 QCS32HJ-680Z C CAP. 68pF 500V J
C3316 QETN1CM-107Z E CAP. 100
µ
F 16V M
C3317 QETN1AM-337Z E CAP. 330
µ
F 10V M
COIL
L3301 QQL244J-391Z PEAKING COIL
DIODE
D3151 MA111-X SI.DIODE
D3152 MA3082/L/-X ZENER DIODE
D3153-55 MA111-X SI.DIODE
D3156 MA3047/H/-X ZENER DIODE
D3163 MA3150/M/-X ZENER DIODE
D3164 1SR35-400A-T2 SI.DIODE
D3302 RH1S-T3 SI.DIODE
D3303 RH1S-T3 SI.DIODE
!Symbol No. Part No. Part Name Description
TRANSISTOR
Q3101-03 2SC1740S/QR/-T SI.TRANSISTOR
Q3104-06 2SC4544-LB SI.TRANSISTOR
Q3151 2SA1037AK/QR/-X SI.TRANSISTOR
Q3152 2SC4682-T SI.TRANSISTOR
Q3304-05 2SC1740S/QR/-T SI.TRANSISTOR
Q3306 2SA933AS/QR/-T SI.TRANSISTOR
Q3307 2SA1837 SI.TRANSISTOR
Q3308 2SC4793 SI.TRANSISTOR
OTHERS
!FR3330 QRZ9021-561 FR 560
Ω
1W J
K3101 CE41433-001Z BEADS CORE
K3301-04 CE41492-001Z CHOKE COIL
!SK3001 CE42670-001 C.R.T.SOCKET
FRONT CONTROL PW BOARD ASS’Y
(SJK-8506A-H3)
!Symbol No. Part No. Part Name Description
RESISTOR
R8301 NRSA02J-750X MG R 75
Ω
1/10W J
R8801-02 NRSA02J-561X MG R 560
Ω
1/10W J
R8804 NRSA02J-102X MG R 1k
Ω
1/10W J
R8805 NRSA02J-102X MG R 1k
Ω
1/10W J
R8806 NRSA02J-102X MG R 1k
Ω
1/10W J
R8807-09 NRSA02J-103X MG R 10k
Ω
1/10W J
R8810-11 QRE121J-101Y C R 100
Ω
1/2W J
R8812 NRSA02J-102X MG R 1k
Ω
1/10W J
R8813 NRSA02J-102X MG R 1k
Ω
1/10W J
R8814 NRSA02J-103X MG R 10k
Ω
1/10W J
R8815-16 NRSA02J-471X MG R 470
Ω
1/10W J
R8851 NRSA02J-682X MG R 6.8k
Ω
1/10W J
R8861 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R8863 NRSA02J-472X MG R 4.7k
Ω
1/10W J
R8864 NRSA02J-222X MG R 2.2k
Ω
1/10W J
CAPACITOR
C8301-02 NCB21HK-472X C CAP. 4700pF 50V K
C8303 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
C8801-02 NCB21HK-104X CHIP CAP. 0.1
µ
F 50V K
C8803-04 QETN1HM-106Z E CAP. 10
µ
F 50V M
C8805 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C8851 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C8852 QETN1CM-107Z E CAP. 100
µ
F 16V M
C8861 QETN1HM-106Z E CAP. 10
µ
F 50V M
!C8901 QFZ9040-474 MF CAP 0.47
µ
FAC275V M
COIL
L8301 QQL211K-270Y COIL 27
µ
H K
L8302 QQR0716-001Z LEAD CORE
L8303 QQL211K-270Y COIL 27
µ
H K
L8801-02 QQL211K-5R6Y COIL 5.6
µ
H K
L8803 QQR0716-001Z LEAD CORE
DIODE
D8801 SPR-39MVWF L.E.D.
D8802 SLR-342YY-T16 L.E.D.(YLW)
D8803 SLR-342DU-T16 L.E.D.(ORG)
D8804 SLR-342MG-T16 L.E.D.(GRN)
D8805 MA111-X SI.DIODE
D8806-07 MA3150/M/-X ZENER DIODE
D8851 MA3068/M/-X ZENER DIODE
D8861 MA111-X SI.DIODE
D8862 P1241-04 C.D.S.

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
14
!Symbol No. Part No. Part Name Description
TRANSISTOR
Q8801-02 DTA124EKA-X DIGI.TRANSISTOR
Q8803 2SA1037AK/QR/-X SI.TRANSISTOR
Q8804 DTC124EKA-X DIGI.TRANSISTOR
Q8805 2SA1037AK/QR/-X SI.TRANSISTOR
Q8861 2SA1037AK/QR/-X SI.TRANSISTOR
IC
IC8851 GP1U281Q IFR DETECT UNIT
OTHERS
!F8901 QMF51D2-3R15J1 FUSE 3.15A
J8301 QNZ0453-001 AV JACK
J8801 QMS3004-C01 HEADPHONE JACK
!LF8901 QQR1095-001 LINE FILTER
!LF8902 QQR1095-001 LINE FILTER
S8801-03 QSW0619-003Z PUSH SWITCH VR △(UP) ▽(DOWN)
!S8901 QSW0824-001 PUSH SWITCH MAIN POWER
DOLBY PW BOARD ASS’Y (SJK0D501A-H3)
!Symbol No. Part No. Part Name Description
RESISTOR
R0101 NRSA02J-223X MG R 22k
Ω
1/10W J
R0102 NRSA02J-683X MG R 68k
Ω
1/10W J
R0103 NRSA02J-223X MG R 22k
Ω
1/10W J
R0104 NRSA02J-683X MG R 68k
Ω
1/10W J
R0105 NRSA02J-105X MG R 1M
Ω
1/10W J
R0106-09 NRSA02J-271X MG R 270
Ω
1/10W J
R0111 NRSA02J-102X MG R 1k
Ω
1/10W J
R0112 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0113 NRSA02J-102X MG R 1k
Ω
1/10W J
R0114 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0115 NRSA02J-102X MG R 1k
Ω
1/10W J
R0117 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0202 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0203 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0206 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0207 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0209 NRSA02J-123X MG R 12k
Ω
1/10W J
R0211 NRSA02J-123X MG R 12k
Ω
1/10W J
R0212 NRSA02J-103X MG R 10k
Ω
1/10W J
R0214-15 NRSA02J-104X MG R 100k
Ω
1/10W J
R0216 NRSA02J-103X MG R 10k
Ω
1/10W J
R0217 NRSA02J-123X MG R 12k
Ω
1/10W J
R0219 NRSA02J-123X MG R 12k
Ω
1/10W J
R0221 NRSA02J-104X MG R 100k
Ω
1/10W J
R0222 NRSA02J-103X MG R 10k
Ω
1/10W J
R0223 NRSA02J-153X MG R 15k
Ω
1/10W J
R0225 NRSA02J-273X MG R 27k
Ω
1/10W J
R0227 NRSA02J-104X MG R 100k
Ω
1/10W J
R0228 NRSA02J-153X MG R 15k
Ω
1/10W J
R0229 NRSA02J-273X MG R 27k
Ω
1/10W J
R0231 NRSA02J-103X MG R 10k
Ω
1/10W J
R0232 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R0301 NRSA02J-103X MG R 10k
Ω
1/10W J
R0401 NRSA02J-102X MG R 1k
Ω
1/10W J
R0402-03 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R0404 NRSA02J-102X MG R 1k
Ω
1/10W J
!Symbol No. Part No. Part Name Description
RESISTOR
R0431 NRSA02J-102X MG R 1k
Ω
1/10W J
R0432-33 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R0434 NRSA02J-102X MG R 1k
Ω
1/10W J
R0435 NRSA02J-101X MG R 100
Ω
1/10W J
R0436 NRSA02J-223X MG R 22k
Ω
1/10W J
R0437 NRSA02J-333X MG R 33k
Ω
1/10W J
R0438 NRSA02J-183X MG R 18k
Ω
1/10W J
R0439 NRSA02J-223X MG R 22k
Ω
1/10W J
R0440-41 NRSA02J-103X MG R 10k
Ω
1/10W J
R0446 NRSA02J-101X MG R 100
Ω
1/10W J
R0447 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0501 NRSA02J-273X MG R 27k
Ω
1/10W J
R0502 NRSA02J-153X MG R 15k
Ω
1/10W J
R0503 NRSA02J-103X MG R 10k
Ω
1/10W J
R0504 NRSA02J-104X MG R 100k
Ω
1/10W J
R0505 NRSA02J-153X MG R 15k
Ω
1/10W J
R0506 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R0507 NRSA02J-273X MG R 27k
Ω
1/10W J
R0508 NRSA02J-103X MG R 10k
Ω
1/10W J
R0509 NRSA02J-104X MG R 100k
Ω
1/10W J
R0510-11 NRSA02J-681X MG R 680
Ω
1/10W J
R0514 NRSA02J-104X MG R 100k
Ω
1/10W J
R0516-17 NRSA02J-103X MG R 10k
Ω
1/10W J
R0551 NRSA02J-223X MG R 22k
Ω
1/10W J
R0552 NRSA02J-183X MG R 18k
Ω
1/10W J
R0556 NRSA02J-223X MG R 22k
Ω
1/10W J
R0557 NRSA02J-183X MG R 18k
Ω
1/10W J
R0558 NRSA02J-103X MG R 10k
Ω
1/10W J
R0560 NRSA02J-103X MG R 10k
Ω
1/10W J
R0563 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0564 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0565 NRSA02J-103X MG R 10k
Ω
1/10W J
R0566 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0569 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0571 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0572 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
CAPACITOR
C0101 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0103 NDC21HJ-221X C CAP. 220pF 50V J
C0104 NEH71HM-475X E CAP. 4.7
µ
F 50V M
C0105 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0106-08 NEH71CM-476X E CAP. 47
µ
F 16V M
C0109 NEH71HM-475X E CAP. 4.7
µ
F 50V M
C0110 NDC21HJ-221X C CAP. 220pF 50V J
C0111-12 NDC21HJ-100X C CAP. 10pF 50V J
C0114-15 NEH71CM-476X E CAP. 47
µ
F 16V M
C0116 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0117-19 NEH71CM-476X E CAP. 47
µ
F 16V M
C0120 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0121-22 NEH71CM-476X E CAP. 47
µ
F 16V M
C0123 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0124-27 NDC21HJ-221X C CAP. 220pF 50V J
C0128 NEH71CM-476X E CAP. 47
µ
F 16V M
C0129-33 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0134 NEHE1CM-227X E CAP. 220
µ
F 16V M
C0135 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0137 NEHE1EM-107X E CAP. 100
µ
F 25V M
C0138 NEH71CM-476X E CAP. 47
µ
F 16V M
C0139 NEHE1CM-227X E CAP. 220
µ
F 16V M
C0142 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0144-45 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0146 NEHE1EM-107X E CAP. 100
µ
F 25V M
C0147 NCB21HK-102X C CAP. 1000pF 50V K
C0148-49 NCB21HK-222X C CAP. 2200pF 50V K
C0150 NEH71CM-106X E CAP. 10
µ
F 16V M
C0151 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0201-2 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
C0204-5 NRSA02J-0R0X MG R 0.0
Ω
1/10W J

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
15
!Symbol No. Part No. Part Name Description
CAPACITOR
C0208 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0209 NDC21HJ-470X C CAP. 47pF 50V J
C0212 NDC21HJ-470X C CAP. 47pF 50V J
C0213 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0214 NEHE1EM-107X E CAP. 1000
µ
F 25V M
C0217 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0218 NDC21HJ-470X C CAP. 47pF 50V J
C0219 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0220 NDC21HJ-470X C CAP. 47pF 50V J
C0223-24 NEH71CM-476X E CAP. 47
µ
F 16V M
C0301 NEH71CM-476X E CAP. 47
µ
F 16V M
C0401 NEH71EM-226X E CAP. 22
µ
F 25V M
C0402 NEH71CM-476X E CAP. 47
µ
F 16V M
C0403-04 NCB21HK-272X C CAP. 2700pF 50V K
C0405-06 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0407-10 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0431 NEH71EM-226X E CAP. 22
µ
F 25V M
C0432 NEHE1CM-227X E CAP. 220
µ
F 16V M
C0433-34 NCB21HK-272X C CAP. 2700pF 50V K
C0435 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0436-39 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0440-42 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0443 NCB21HK-821X C CAP. 820pF 50V K
C0444 NDC21HJ-470X C CAP. 47pF 50V J
C0445 NEH71CM-476X E CAP. 47
µ
F 16V M
C0446 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0501-02 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0503-04 NDC21HJ-100X C CAP. 10pF 50V J
C0505 NEH71CM-476X E CAP. 47
µ
F 16V M
C0506-07 NEH71HM-106X E CAP. 10
µ
F 50V M
C0508 NEH71CM-476X E CAP. 47
µ
F 16V M
C0551 NCB21HK-332X C CAP. 3300pF 50V K
C0552 NCB21HK-393X C CAP. 0.039
µ
F 50V K
C0554 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0555 NEH71CM-106X E CAP. 10
µ
F 16V M
C0556 NEH71CM-476X E CAP. 47
µ
F 16V M
C0557 NCF21EZ-104X C CAP. 0.1
µ
F 25V Z
C0558 NCB21HK-332X C CAP. 3300pF 50V K
C0559 NCB21HK-393X C CAP. 0.039
µ
F 50V K
C0560 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0562 NEH71CM-476X E CAP. 47
µ
F 16V M
C0563 NEH71CM-106X E CAP. 10
µ
F 16V M
C0566 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
C0567 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
C0701-02 NCB21HK-222X C CAP. 2200pF 50V K
COIL
L0101-04 NQL02BJ-4R7X COIL 4.7
µ
H
L0701-02 NQL02BJ-100X COIL 10
µ
H
DIODE
D0202 MA3062/M/-X ZENER DIODE
D0501-02 MA3150/M/-X ZENER DIODE
D0503 MA3062/M/-X ZENER DIODE
TRANSISTOR
Q0301 DTC124EKA-X DIGI.TRANSISTOR
Q0501 2SA1037AK/QR/-X SI.TRANSISTOR
Q0502-03 DTC323TK-X DIGI.TRANSISTOR
!Symbol No. Part No. Part Name Description
IC
IC0101 TC9471F I.C.(DIGI-MOS)
IC0102 MN1382/Q/-X I.C.(MONO-ANA)
IC0202-03 BA4558F-X I.C.(MONO-ANA)
IC0301 TC4052BF/N/-XE I.C.(DIGI-MOS)
IC0401 TDA7315D I.C.(DIGI-OTHER)
IC0431 TDA7315D I.C.(DIGI-OTHER)
IC0451 BA4558F-X I.C.(MONO-ANA)
IC0501 BA4558F-X I.C.(MONO-ANA)
IC0551 NJM2150AM-X I.C.(MONO-ANA)
OTHERS
J0001 QNN0294-001 PIN JACK
J0002 QNB0006-002 PUSH TERMINAL
X0101 NAX0288-001X CRYSTAL
AV SEL. PW BOARD ASS’Y (SJK0S905A-H3)
!Symbol No. Part No. Part Name Description
RESISTOR
R0101-08 NRSA02J-750X MG R 75
Ω
1/10W J
R0110 NRSA02J-823X MG R 82k
Ω
1/10W J
R0112 NRSA02J-823X MG R 82k
Ω
1/10W J
R0113 NRSA02J-750X MG R 75
Ω
1/10W J
R0114 NRSA02J-473X MG R 47k
Ω
1/10W J
!R0115 NRSA02J-223X MG R 22k
Ω
1/10W J
!R0116 NRSA02J-223X MG R 22k
Ω
1/10W J
R0117-18 NRSA02J-823X MG R 82k
Ω
1/10W J
R0119-20 NRSA02J-391X MG R 390
Ω
1/10W J
R0123 NRSA02J-104X MG R 100k
Ω
1/10W J
R0124-25 NRSA02J-101X MG R 100
Ω
1/10W J
R0126 NRSA02J-333X MG R 33k
Ω
1/10W J
R0127 NRSA02J-101X MG R 100
Ω
1/10W J
R0128 NRSA02J-103X MG R 10k
Ω
1/10W J
R0129 NRSA02J-823X MG R 82k
Ω
1/10W J
R0130 NRSA02J-473X MG R 47k
Ω
1/10W J
R0131 NRSA02J-273X MG R 27k
Ω
1/10W J
R0132 NRSA02J-153X MG R 15k
Ω
1/10W J
R0133 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0134 NRSA02J-333X MG R 33k
Ω
1/10W J
R0135 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0136-37 NRSA02J-333X MG R 33k
Ω
1/10W J
R0138 NRSA02J-473X MG R 47k
Ω
1/10W J
R0139 NRSA02J-823X MG R 82k
Ω
1/10W J
R0140 NRSA02J-103X MG R 10k
Ω
1/10W J
R0141 NRSA02J-153X MG R 15k
Ω
1/10W J
!R0142 NRSA02J-223X MG R 22k
Ω
1/10W J
R0143 NRSA02J-473X MG R 47k
Ω
1/10W J
R0144 NRSA02J-273X MG R 27k
Ω
1/10W J
R0146 NRSA02J-391X MG R 390
Ω
1/10W J
R0148 NRSA02J-391X MG R 390
Ω
1/10W J
R0151 NRSA02J-104X MG R 100k
Ω
1/10W J
R0152 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0153 NRSA02J-333X MG R 33k
Ω
1/10W J
R0154 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0155 NRSA02J-333X MG R 33k
Ω
1/10W J
R0156-69 NRSA02J-101X MG R 100
Ω
1/10W J
R0170 NRSA02J-333X MG R 33k
Ω
1/10W J
R0171 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0172 NRSA02J-473X MG R 47k
Ω
1/10W J

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
16
!Symbol No. Part No. Part Name Description
RESISTOR
R0173 NRSA02J-823X MG R 82k
Ω
1/10W J
R0174 NRSA02J-103X MG R 10k
Ω
1/10W J
R0175 NRSA02J-153X MG R 15k
Ω
1/10W J
R0176 NRSA02J-473X MG R 47k
Ω
1/10W J
R0177 NRSA02J-273X MG R 27k
Ω
1/10W J
R0180-83 NRSA02J-101X MG R 100
Ω
1/10W J
R0184 NRSA02J-333X MG R 33k
Ω
1/10W J
R0185 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0186 NRSA02J-333X MG R 33k
Ω
1/10W J
R0188 NRSA02J-101X MG R 100
Ω
1/10W J
R0189-90 NRSA02J-221X MG R 220
Ω
1/10W J
R0191-92 NRSA02J-562X MG R 5.6k
Ω
1/10W J
!R0193 NRSA02J-102X MG R 1k
Ω
1/10W J
!R0194 NRSA02J-102X MG R 1k
Ω
1/10W J
R0195 QRG01GJ-101 OM R 100
Ω
1W J
!R0197 QRK126J-181X C R 180
Ω
1/2W J
R0198 NRSA02J-750X MG R 75
Ω
1/10W J
R0199 NRSA02J-101X MG R 100
Ω
1/10W J
!R0202 QRK126J-151X C R 150
Ω
1/2W J
R0203-05 NRSA02J-750X MG R 75
Ω
1/10W J
R0207 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0208 NRSA02J-333X MG R 33k
Ω
1/10W J
R0209 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0210 NRSA02J-333X MG R 33k
Ω
1/10W J
R0211-12 NRSA02J-103X MG R 10k
Ω
1/10W J
R0301 NRSA02J-103X MG R 10k
Ω
1/10W J
R0302 NRSA02J-562X MG R 5.6k
Ω
1/10W J
R0303-04 NRSA02J-222X MG R 2.2k
Ω
1/10W J
R0305 NRSA02J-103X MG R 10k
Ω
1/10W J
R0309 NRSA02J-562X MG R 5.6k
Ω
1/10W J
!R0310 NRSA02J-392X MG R 3.9k
Ω
1/10W J
R0313 NRSA02J-101X MG R 100
Ω
1/10W J
R0314 NRSA02J-473X MG R 47k
Ω
1/10W J
!R0315 NRSA02J-102X MG R 1k
Ω
1/10W J
R0316 NRSA02J-122X MG R 1.2k
Ω
1/10W J
R0317 NRSA02J-273X MG R 27k
Ω
1/10W J
!R0318 NRSA02J-102X MG R 1k
Ω
1/10W J
!R0319 NRSA02J-102X MG R 1k
Ω
1/10W J
R0320 NRSA02J-473X MG R 47k
Ω
1/10W J
R0321 NRSA02J-101X MG R 100
Ω
1/10W J
R0322 NRSA02J-273X MG R 27k
Ω
1/10W J
R0323 NRSA02J-122X MG R 1.2k
Ω
1/10W J
!R0324 NRSA02J-102X MG R 1k
Ω
1/10W J
!R0325 NRSA02J-682X MG R 6.8k
Ω
1/10W J
!R0603 NRSA02J-102X MG R 1k
Ω
1/10W J
R0606 QRG01GJ-181 OM R 180
Ω
1W J
R0607 NRSA02J-123X MG R 12k
Ω
1/10W J
R0608 NRSA02J-181X MG R 180
Ω
1/10W J
R0609 NRSA02J-123X MG R 12k
Ω
1/10W J
R0610 NRSA02J-561X MG R 560
Ω
1/10W J
!R0628 NRSA02J-0R0X MG R 0.0
Ω
1/10W J
R0629-30 NRSA02J-101X MG R 100
Ω
1/10W J
CAPACITOR
C0101 NCB21HK-152X C CAP. 1500pF 50V K
C0102 QETN1CM-477Z E CAP. 470
µ
F 16V M
C0103-05 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0106-09 NCB21HK-152X C CAP. 1500pF 50V K
C0110 QETN1CM-477Z E CAP. 470
µ
F 16V M
C0111-15 NCB21HK-152X C CAP. 1500pF 50V K
C0116-17 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0118 NCB21HK-102X C CAP. 1000pF 50V K
C0119 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0120 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0121 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0122 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0123 NCB21HK-102X C CAP. 1000pF 50V K
C0124-25 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0126 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0127 QETN1HM-106Z E CAP. 10
µ
F 50V M
!Symbol No. Part No. Part Name Description
CAPACITOR
C0128 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0129 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0130 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0131 NCB21HK-102X C CAP. 1000pF 50V K
C0132 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0133 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0136 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0137 QENC1EM-106Z BP E CAP. 10
µ
F 25V M
C0139 QENC1EM-106Z BP E CAP. 10
µ
F 25V M
C0140 QETN1CM-107Z E CAP. 100
µ
F 16V M
C0141 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0142 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0143 QENC1EM-106Z BP E CAP. 10
µ
F 25V M
C0144 NCF21CZ-105X C CAP. 1
µ
F 16V Z
C0145-46 QETN1CM-107Z E CAP. 100
µ
F 16V M
C0147 QETN1CM-477Z E CAP. 470
µ
F 16V M
C0149 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0150-51 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0152-53 QETN1HM-105Z E CAP. 1
µ
F 50V M
C0154-55 NDC21HJ-680X C CAP. 68pF 50V J
C0156 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0157-58 NDC21HJ-680X C CAP. 68pF 50V J
C0159 NDC21HJ-561X C CAP. 560pF 50V J
C0301 NDC21HJ-271X C CAP. 270pF 50V J
C0306-07 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0308 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0310-11 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0312 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0313 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0610 NDC21HJ-821X C CAP. 820pF 50V J
C0611-12 NDC21HJ-470X C CAP. 47pF 50V J
C0614 NDC21HJ-180X C CAP. 18pF 50V J
C0616 QETN1CM-107Z E CAP. 100
µ
F 16V M
C0617 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0618 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0619 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0620 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0623 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0624 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0629 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0630-31 NCB21HK-102X C CAP. 1000pF 50V K
C0632 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0633 QETN1HM-106Z E CAP. 10
µ
F 50V M
C0634-35 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0636 NDC21HJ-2R0X C CAP. 2.0pF 50V J
C0642 NDC21HJ-2R0X C CAP. 2.0pF 50V J
C0645 NCB21HK-103X C CAP. 0.01
µ
F 50V K
C0646 NCB21EK-104X C CAP. 0.1
µ
F 25V K
C0647 QETN1CM-107Z E CAP. 100
µ
F 16V M
C0648 NCB21EK-104X C CAP. 0.1
µ
F 25V K
COIL
L0114 QQR0716-001Z LEAD CORE
L0301 QQL01BK-221Z PEAKING COIL
L0601 QQL01BK-220Z PEAKING COIL
L0602 QQL01BK-180Z COIL 18
µ
H K
L0605 QQL01BK-4R7Z COIL 4.7
µ
H K
DIODE
D0101-13 MA3120/M/-X ZENER DIODE
D0601 RD8.2E/B2/-T2 ZENER DIODE
TRANSISTOR
Q0101 DTC323TK-X DIGI.TRANSISTOR
Q0102 2SA1037AK/QR/-X SI.TRANSISTOR
Q0103 DTC323TK-X DIGI.TRANSISTOR
Q0104-07 2SC2412K/QR/-X SI.TRANSISTOR
Q0108 2SA1037AK/QR/-X SI.TRANSISTOR
Q0109-10 DTC323TK-X DIGI.TRANSISTOR
Q0111-12 2SC2412K/QR/-X SI.TRANSISTOR
Q0116 2SA933AS/QR/-T SI.TRANSISTOR

No.51695F
AV-28WFR1EKS
AV-28WFR1EK
17
!Symbol No. Part No. Part Name Description
TRANSISTOR
Q0118 2SC1740S/QR/-T SI.TRANSISTOR
Q0119-20 2SC2412K/QR/-X SI.TRANSISTOR
Q0301 2SA1037AK/QR/-X SI.TRANSISTOR
Q0302-03 DTC124EKA-X DIGI.TRANSISTOR
Q0304-05 2SA1037AK/QR/-X SI.TRANSISTOR
Q0306 2SC2412K/QR/-X SI.TRANSISTOR
Q0307 2SA1037AK/QR/-X SI.TRANSISTOR
Q0308 2SC2412K/QR/-X SI.TRANSISTOR
Q0601 2SC2412K/QR/-X SI.TRANSISTOR
IC
IC0101 CXA2089Q-X I.C.(MONO-ANA)
IC0302 TDA9181T/N1-X I.C.(MONO-ANA)
IC0603 MSP3415D-QG-B3X I.C.(MONO-ANA)
OTHERS
CN0006 QGB1505K1-50 CONNECTOR
J0001 QNZ0465-001 PIN CONNECTOR
J0002 QNZ0463-001 PIN CONNECTOR
K0101-04 CE42681-001Y BEADS CORE
!K0301 CE41433-001Z BEADS CORE
!K0601 CE41433-001Z BEADS CORE
LC0101-02 CE42482-103Y EMI FILTER
LC0601-02 CE42482-103Y EMI FILTER
X0601 CE42546-001Z CRYSTAL

No. 51695F
AV-28WFR1EKS
AV-28WFR1EK
18
PACKING
1
7
7
8
6
5
2 3
!
9
4
AV-28WFR1EKS/A / AV-28WFR1EK/A
10
