JVC AV-32WP2EN User manual

AV-32WP2EN
AV-32WP2EP
JVC
ERVICE MANUA
epee
AV-32WP2EN
e AV-32WP2EP
CONTENTS
@ SPECIFICATIONS ----- esc e etter teeter eee nent e reece nee e ene seeneeneeeseneeee
™@ SAFETY PRECAUTIONS --+<- cert tert etter eee erence eens ee enn eeenenseneeee
@ SPECIFIC SERVICE INSTRUCTIONS
m DISASSEMBLY PROCEDURE -------+*+*rrert es: PrTrree Tre ree eee ee
@ SERVICE ADJUSTMENTS <««ccc ctr ett terete cece ete ene eeneeeennecessscanee |
M MAIN PARTS LIST: --<ctr rece tcc tet te eee eee e ence ee eeeeseneceenrsssarssaaes 2G
3k STANDARD CIRCUIT DIAGRAM <--es secretes etter erent tne e ere t eee e ene enees Qaf
oN OH & BD
No. 51237
COPYRIGHT © 1997 VICTOR COMPANY OF JAPAN, LTD. Aug. 1997

AV-32WP2EN
AV-32WP2EP
SPECIFICATIONS
Dimensions (WxHxD) 805mm x 550mm x 550mm
Mass 54.8kg
TV RF System CCIR(B/G,I,L) EN MODEL:B/G ONLY
Colour System PAL / SECAM / NTSC( Only in EXT mode )
Stereo System A2/NICAM
Teletext System TOP/FLOF
Receiving Frequency
VHF | 47MHz~ 470MHz
UHF | 470MHz~862MHz
Intermediate Frequency
VIF Carrier | 38.9MHz( B/G,I,L ) EN MODEL:B/G ONLY
SIF Carrier | 33.4( 5.SMHz ),33.5(6.0MHz) EN MODEL: 5.5MHz ONLY
Colour Sub Carrier Freq.
PAL | 4.43MHz
SECAM | 4.0625MHz / 4.25MHz
NTSC | 3.58MHz / 4.43MHz
Power Input AC 220V~240V , 50Hz
Power Consumption 266W( Max ) /161W( Avg )
Picture Tube Visible size : 76cm, Measured diagonally
High Voltage 31.0Kv +1kV (at Zero beam current)
-1.5kV
Speaker 10cm round (82) x2
Audio Output 20W + 20W
EXT-1/EXT-2/EXT-3 21-pin Euro connector( SCART socket )
(Input/Output)
EXT4(Input) Video | 1Vp-p 75Q( RCA pin jack )
Audio(U/R) | SoomVrms( -4dBs ), High Impedance ( RCA pin jack )
Aerial Input Term 75 Q unbalanced, Coaxial
Headphone jack Stereo mini jack (¢3.5mm )
Remote Control Unit RM-C791
AAA( RO3 ) dry battery x 2
Design & specification are subject to change without notice.
%* Manufactured under license from Dolby Laboratories Licensing Corporation.
“Dolby” and the double-D symbol [][] are trademarks of Dolby Laboratories Licensing Corporation.
2 No.51237

AV-32WP2EN
AV-32WP2EP

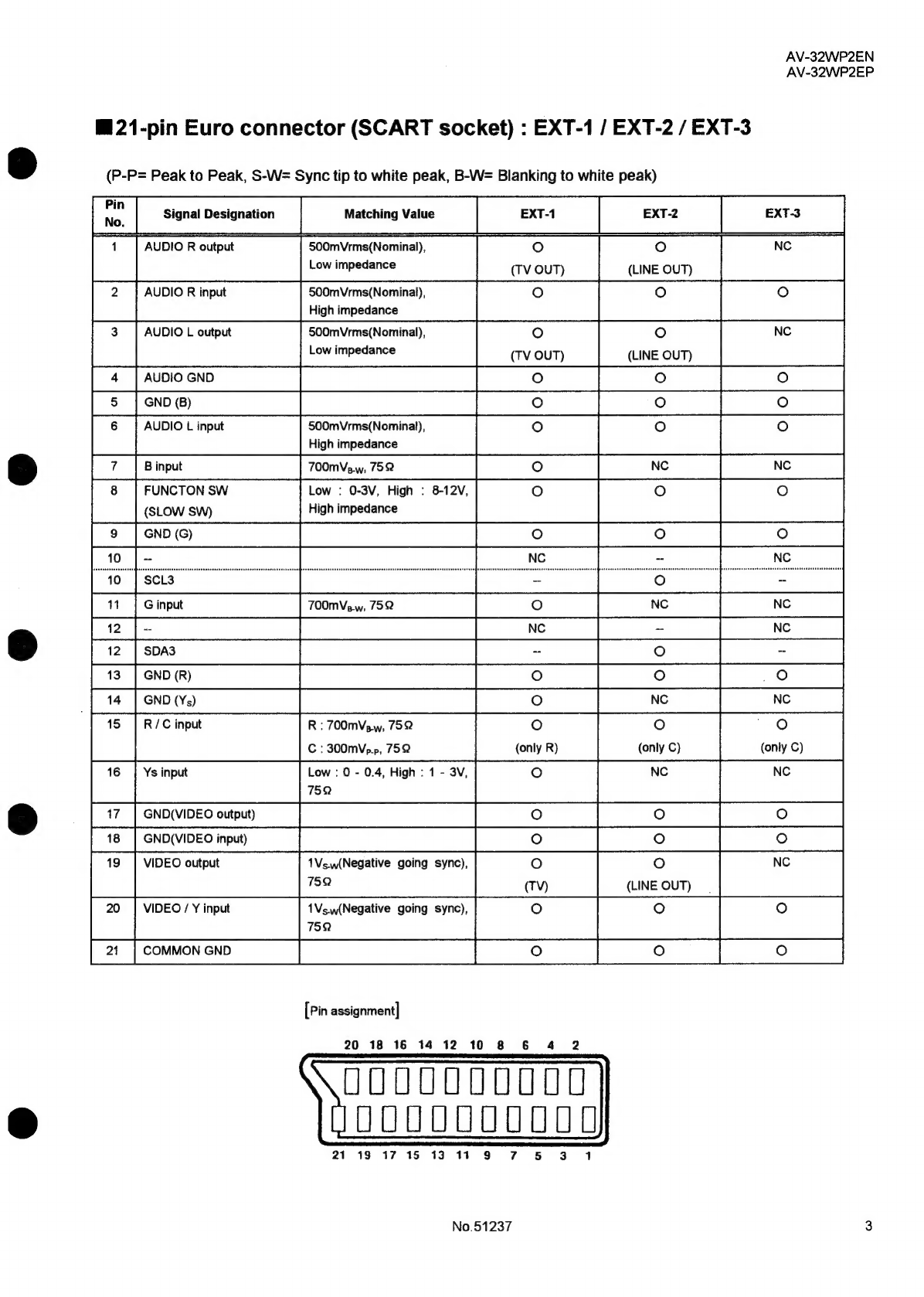

@ 21-pin Euro connector (SCART socket) : EXT-1 / EXT-2 / EXT-3
(P-P= Peak to Peak, S-W= Sync tip to white peak, B-W= Blanking to white peak)
[| sowvcimmn [weave [oes [ea [oe
AUDIO R output S00mVrms(Nominal), Oo Oo NC
res mipeganece (TV OUT) (LINE OUT)
2 AUDIO R input 500mVrms(Nominal),
High impedance
AUDIO L output 500mVrms(Nominal), oO
Poe mEerence (TV OUT) (LINE OUT)
2
a
eetiet rermeme |
High impedance
Froomvew.76@ ——+| =O —*
iese Oi]
wo
FUNCTON SW Low : 0-3V, High : 8-12V,
(SLOW
SW)
High
impedance
Oo
cn
- NC
oO
0m
Sa
Fn
Se
Sa
Ea eee
NC
NC
14 [6ND
O
NC
Cc
NC
NC
R/C input R : 700mVew, 752 O oO
C : 300MVp.p, 752 {only R) (only C) (only C)
Ys input Low : 0 - 0.4, High : 1 - 3V,
75Q
7 | GND(VIDEO output)
re Se
VIDEO output 1Vsw(Negative going sync), Oo Oo N
7SQ (TV) (LINE OUT)
7 ‘ ~ so aA oe kee ee
75Q
nN
=
[Pin assignment]
20 18 16 14 12 10 8 6 4 2
UOUUUOUUUU
WOUUOUUUUUUO
21°19 17 15 13°14 9 7 5
No.51237 3

AV-32WP2EN
AV-32WP2EP

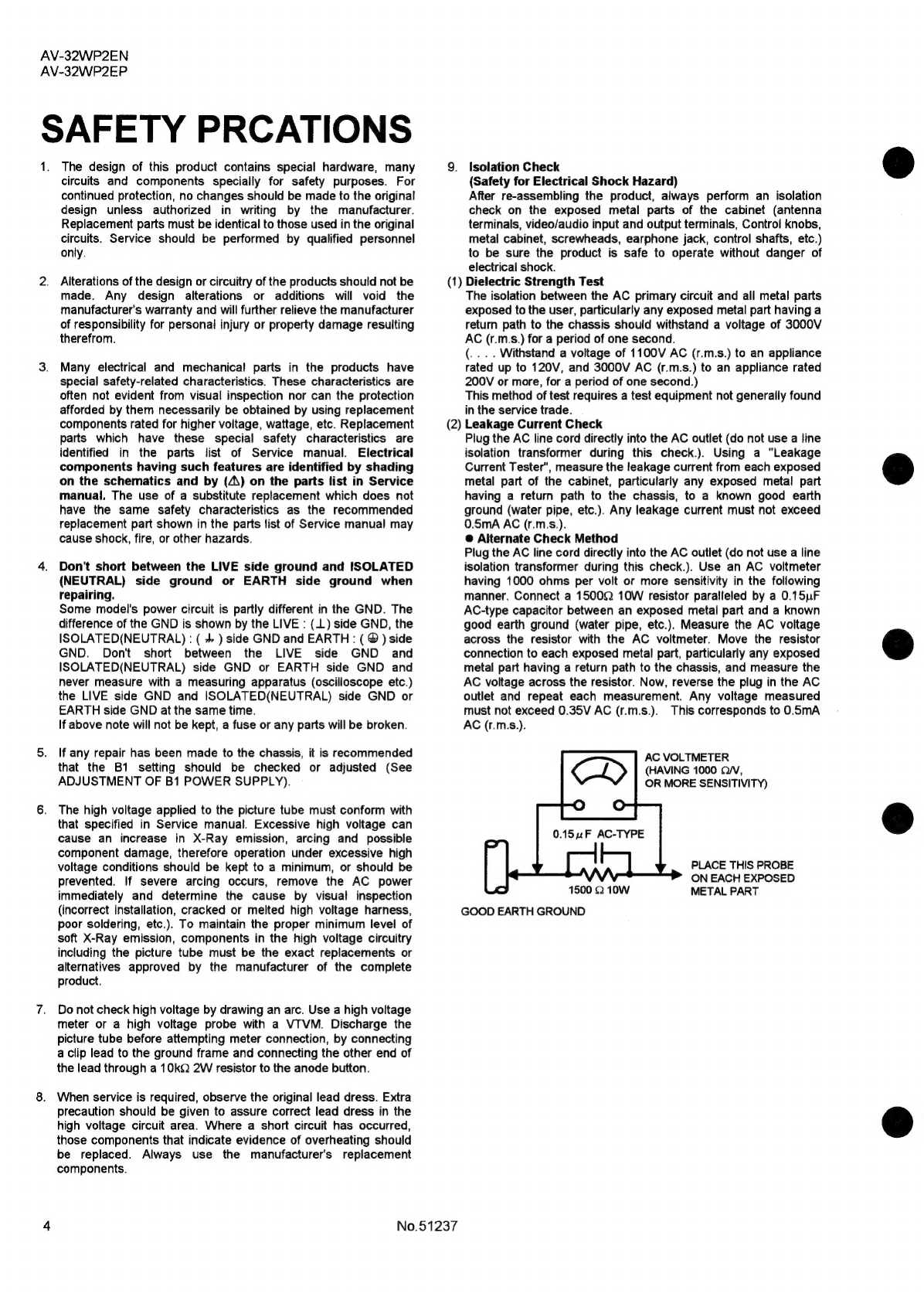

scouted PRCATIONS
The design of this product contains special hardware, many
circuits and components speciaily for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using replacement
components rated for higher voitage, wattage, etc. Replacement
parts which have these special safety characteristics are
identified in the parts list of Service manual. Electrical
components having such features are identified by shading
on the schematics and by (A\) on the parts list in Service
manual. The use of a substitute replacement which does not
have the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual may
cause shock, fire, or other hazards.
Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : (.L) side GND, the
ISOLATED(NEUTRAL) : ( + ) side GND and EARTH : ( @ ) side
GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never measure with a measuring apparatus (oscilloscope etc.)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above note will not be kept, a fuse or any parts will be broken.
If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screwheads, earphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 3000V
AC (r.m.s.) for a period of one second.
(.... Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally found
in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground (water pipe, etc.). Any leakage current must not exceed
0.5mA AC (r.m.s.).
@ Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Use an AC voltmeter
having 1000 ohms per volt or more sensitivity in the following
manner. Connect a 15002 10W resistor paralleled by a 0.15uF
AC-type capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connection to each exposed metal part, particularly any exposed
metal part having a return path to the chassis, and measure the
AC voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.35V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 2/V,
OR MORE SENSITIVITY)
voltage conditions should be kept to a minimum, or should be PLACE THIS PROBE
prevented. If severe arcing occurs, remove the AC power ON EACH EXPOSED
1500 Q 10W METAL PART
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip lead to the ground frame and connecting the other end of
the lead through a 10kQ 2W resistor to the anode button.
When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the
high voltage circuit area. Where a short circuit has occurred,
those components that indicate evidence of overheating should
be replaced. Always use the manufacturer's replacement
components.
No.51237
GOOD EARTH GROUND

AV-32WP2EN
AV-32WP2EP

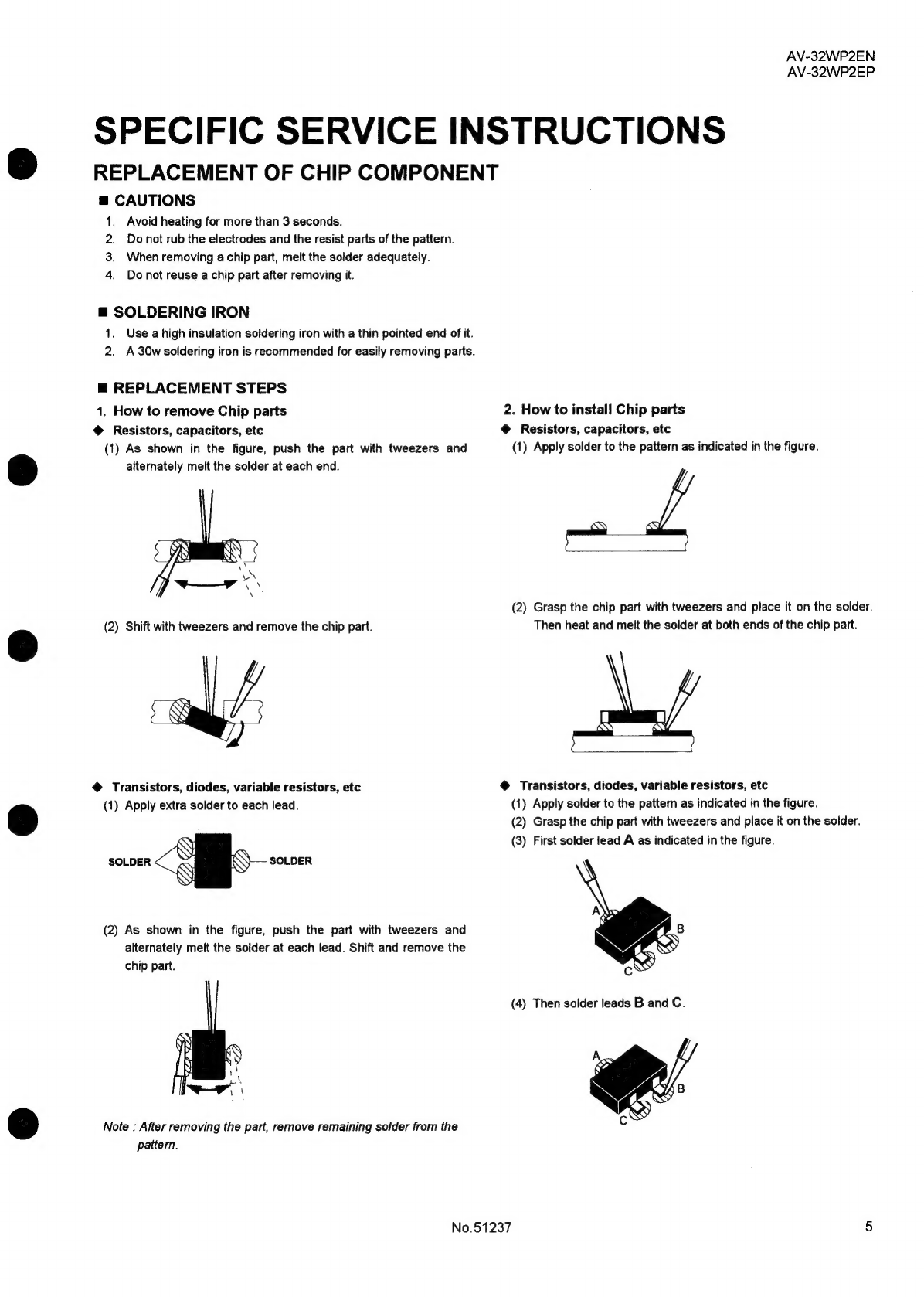

REPLACEMENT OF CHIP COMPONENT
@ CAUTIONS
1. Avoid heating for more than 3 seconds.
2. Do not rub the electrodes and the resist parts of the pattern.
3. When removing a chip part, melt the solder adequately.
4. Donot reuse a chip part after removing it.
@ SOLDERING IRON
1. Use a high insulation soldering iron with a thin pointed end of it.
2. A 30w soldering iron is recommended for easily removing parts.
@ REPLACEMENT STEPS
1. How to remove Chip parts 2. How to instal! Chip parts
@ Resistors, capacitors, etc @ Resistors, capacitors, etc
(1) As shown in the figure, push the part with tweezers and (1) Apply solder to the pattern as indicated in the figure.
alternately melt the solder at each end.
_f
(2) Grasp the chip part with tweezers and place it on the solder.
(2) Shift with tweezers and remove the chip part. Then heat and melt the solder at both ends of the chip part.
@ Transistors, diodes, variable resistors, etc @ Transistors, diodes, variable resistors, etc
(1) Apply extra solder to each lead. (1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the solder.
(3) First solder lead A as indicated in the figure.
A
B
Cc
(4) Then solder leads B and C.
A
B
Cc
No.51237 5
SOLDER SOLDER
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove the
chip part.
Note : After removing the part, remove remaining solder from the
pattern.

AV-32WP2EN
AV-32WP2EP
FEATURES
@ By preference, users can select the picture size from
PANORAMIC, REGULAR, FULL, 14:9 ZOOM, 16:9 ZOOM, 16:9
ZOOM SUB TITLE modes. When the TV unit received WSS
picture signal, the picture can be changed to 16:9 ZOOM mode
automatically.
@ The TELETEXT SYSTEM has a built-in TOP and FLOF system.
@ Thanks to the newly employed DSP control micro computer,
users can select 3D-PHONIC, and enjoy Surround effect at each
mode.
© Because this TV unit corresponds to multiplex broadcast, users
can enjoy music programs and sporting events with live realism.
In addition, BILINGUAL programs can be heard in their original
language.
@ In accordance with the brightness in a room, the brightness
and/or contrast of the picture can be adjusted automatically to
make the optimum picture which is easy on the eye.
@ Users can make VTR dubbing of picture and sound by controlling
the AV selector to select an optional source at the EXT-2 output
shown in figure.
DISASSEMBLY PROCEDURE
REMOVING THE REAR COVER
1. Unplug the power cord.
2. Remove the 13 screws marked “A” as shown in the Fig. 1.
3. Withdraw the rear cover toward you.
REMOVING THE CHASSIS
@ After removing the rear cover.
1. Slightly raise the both sides of the chassis by hand and remove
the two claws under the both sides of the chassis from the front
cabinet.
2. Withdraw the chassis backward.
(If necessary, take off the wire clamp, connectors etc.)
REMOVING THE AV TERMINAL BOARD
@ After removing the rear cover.
1. Remove the 6 screws marked “B” as shown in the Fig. 1.
2. While raising the claw marked “C” , remove the top of the AV
TERMINAL BOARD slightly in the direction of arrow “D” as
shown in Fig. 2.
REMOVING THE SPEAKER BOX
@ After removing the rear cover.
1, Remove the 2 screws marked “E” as shown in Fig. 1.
2. Follow the same steps when removing the other hand speaker
box.
NOTE: When removing the screws marked “E” of the speaker
box, remove the lower side screw first, and then remove
the upper screw.
CHECKING THE PW BOARD
To check the back side of the PW Board.
1) Pull out the chassis. (Refer to REMOVING THE CHASSIS).
2) Erect the chassis vertically so that you can easily check the
back side of the PW Board.
[CAUTION]
@ When erecting the chassis, be careful so that there will be no
contacting with other PW Board.
@ Before turning on power, make sure that the wire connector is
properly connected.
@ When conducting a check with power supplied, be sure to confirm
that the CRT EARTH WIRE (BRAIDED ASS’ Y) is connected to
the CRT SOCKET PW board.
WIRE CLAMPING AND CABLE TYING
1. Besure to clamp the wire.
2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with
a new cable tie.
6 No.51237.

AV-32WP2EN
AV-32WP2EP

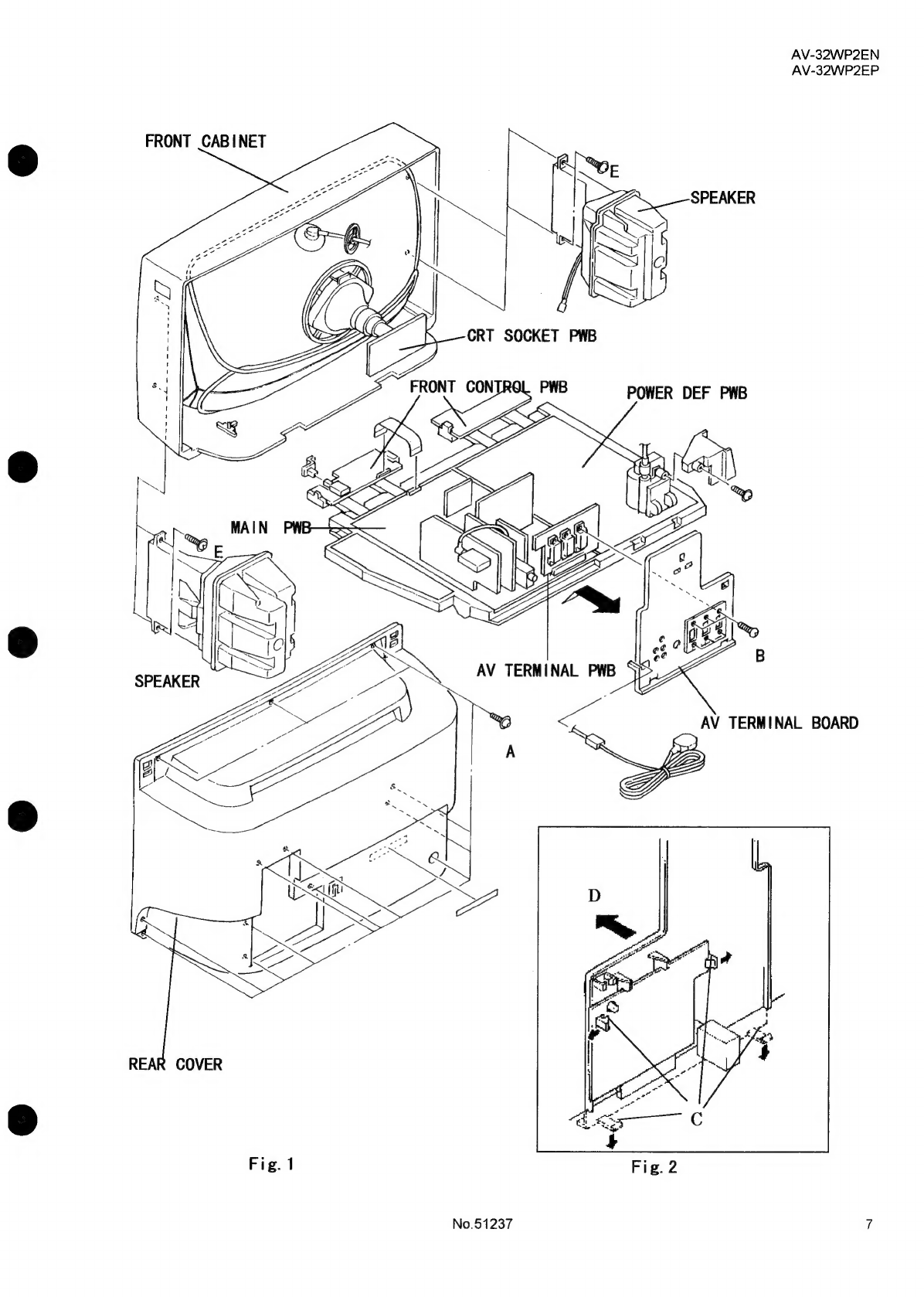

FRONT CABINET
REAR COVER
Fig. 1
No.51237 7

AV-32WP2EN
AV-32WP2EP
REMOVING THE CRT
*Replacement of the CRT should be performed by 2 or more
persons.
» After removing the cover, chassis etc..,
1. Putting the CRT change table on soft cloth, the CRT change table
should also be covered with such soft cloth (shown in Fig.3). mae i: HY APPROX.
2. While keeping the surface of CRT down, mount the TV set on the Gi x Y
CRT change table balanced will as shown in Fig.4.
3. Remove 4 screws marked by arrows with a box type screw driver as
shown in Fig.4.
» Since the cabinet will drop when screws have been removed, be
sure to support the cabinet with hands.
4. After 4 screws have been removed, put the cabinet slowly on cloth
(At this time, be carefully so as not to damage the front surface of the
cabinet) shown in Fig.5.
» The CRT should be assembled according to the opposite sequence
of its dismounting steps.
* The CRT change table should preferably be smaller that the CRT
surface, and its height be about 35cm.
CRT CHANGE TABLE
COATING OF SILICON GREASE FOR ELECTRICAL
INSULATION ON THE CRT ANODE CAP SECTION.
» Subsequent to replacement of the CRT and HV transformer or repair
of the anode cap, etc. by dismounting them, be sure to coat silicon
grease for electrical insulation as shown in Fig.6.
Wipe around the anode button with clean and dry cloth. (Fig.6)
Coat silicon grease on the section around the anode button. At this
time, take care so that any silicon greases dose not stick to the
anode button. (Fig.7)
* Silicon grease product No. KS - 650N
CRT
Anode
button
Approx.
Silicon
grease
20mm
(Do
not
should
be
coated
coat
grease
on
by
S5mm
or
more
this
section
from
the
outside
diameter of
anode cap.
rf
Anode
button
Silicon
grease
(No
sticking
of
?
Coating
position
coating silicon grease) of silicon grease
Anode cap
Fig. 6 Fig. 7
8 J0.51237

REPLACEMENT OF MEMORY ICs
1. Memory ICs
This TV use memory ICs (EEP-ROM IC). In the memory ICs, there are
memorized data for correctly operating the video and deflection circuits.
When replacing memory ICs, be sure to use [Cs written with the initial
values of data.
2. Procedure for replacing memory ICs
PROCEDURE
Power off
Switch the power off and unplug the power code from the outlet.
Replace ICs.
Be sure to use memory ICs written with the initial data values.
Power on
Plug the power code into the outlet and switch the power on.
(4) Check and set SYSTEM CONSTANT SET:
1) Press the INFORMATION key and the MUTE key of the REMOTE
CONTROL UNIT simultaneously. .
2) The SERVICE MENU screen of Fig. 1 will be displayed.
3) While the SERVICE MENU is displayed, press the INFORMATION
key and MUTE key simultaneously, and the SYSTEM CONSTANT
SET screen of Fig. 2 will be displayed.
Check the setting values of the SYSTEM CONSTANT SET of
Table 1. If the value is different, select the setting item with the
FUNCTION UP/DOWN key, and set the correct value with the
FUNCTION -/+ key.
Press the MENU key to memorize the setting value.
Press the INFORMATION key twice, and return to the normal
screen.
(5) Setting of receive channels
Set the receive channel.
For setting, refer to the OPERATING INSTRUCTIONS.
User settings
Check the user setting values of Table 2, and if setting value is
different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
Setting of SERVICE MENU
Verify the setting items of the SERVICE MENU of Tabie 3, and reset
where necessary.
For setting, refer to the SERVICE ADJUSTMENTS.
No.51237
AV-32WP2EN
AV-32WP2EP
SERVICE MENU
SERVICE MENU
1. 1F 2. VIC
3. AUDIO 4. DEF
5. VSM PRESET 6. VPS
7. PIP
8. AUTO PROGRAM (OFF)
4-8: SELECT @: exit
Fig.1
SYSTEM CONSTANT SET
SYSTEM CONSTANT SET
SOFT VER.=(V*.**"*)
COUNTRY ‘EP
INCH 32
MODEL ‘wP2
-+ (x): STORE @: Exit
JVC MB WIDE VOO
M3720 7MF~XXXSP
Fig.2
[AV-32WP2EN]
NAME OF REMOTE CONTROL KEY
INFORMATION
MENU
FUNCTION UP/DOWN
FUNCTION -/+

AV-32WP2EN
AV-32WP2EP

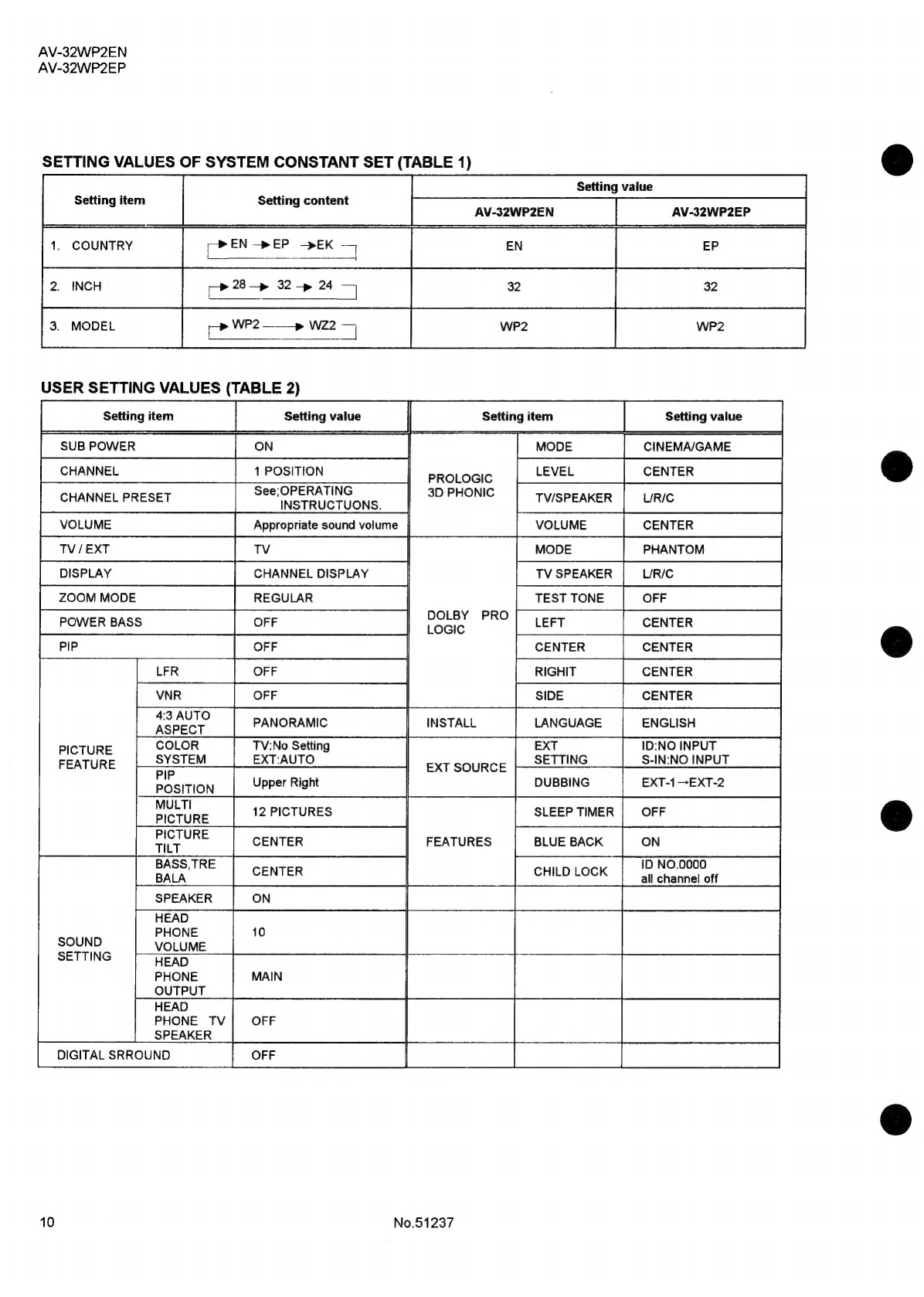

SETTING VALUES OF SYSTEM CONSTANT SET (TABLE 1)
Setting item Setting content
COUNTRY > EN—»EP —»>EK
\
1.
2. INCH —p> 28» 32 -—p 24 —
3. MODEL > WP2 —--_» WZ2 —
USER SETTING VALUES (TABLE 2)
SUB POWER
CHANNEL 1 POSITION
See;OPERATING
EOUNE LP Eees INSTRUCTUONS.
VOLUME Appropriate sound volume |
DISPLAY CHANNEL DISPLAY
PROLOGIC
3D PHONIC
TV SPEAKER
ZOOM MODE REGULAR | TEST TONE
| DOLBY PRO
we or [soe | cenren
4:3 AUTO |
Aes PANORAMIC | INSTALL LANGUAGE ENGLISH
COLOR
TV:No
Setting
ID:NO
INPUT
FEATURE SYSTEM EXT:AUTO | SETTING S-IN:NO INPUT
EXT SOURCE
DUBBING EXT-1—-EXT-2
1D NO.0000
SHIED LOK all channel off
Posmion | UeperRant |
morure | ‘2rerures |
mor
ae
SPEAKER
HEAD
PHONE |
SOUND VOLUME
SETTING
FEATURES
MAIN |
HEAD
PHONE TV OFF
SPEAKER
DIGITAL SRROUND OFF
10 No.51237

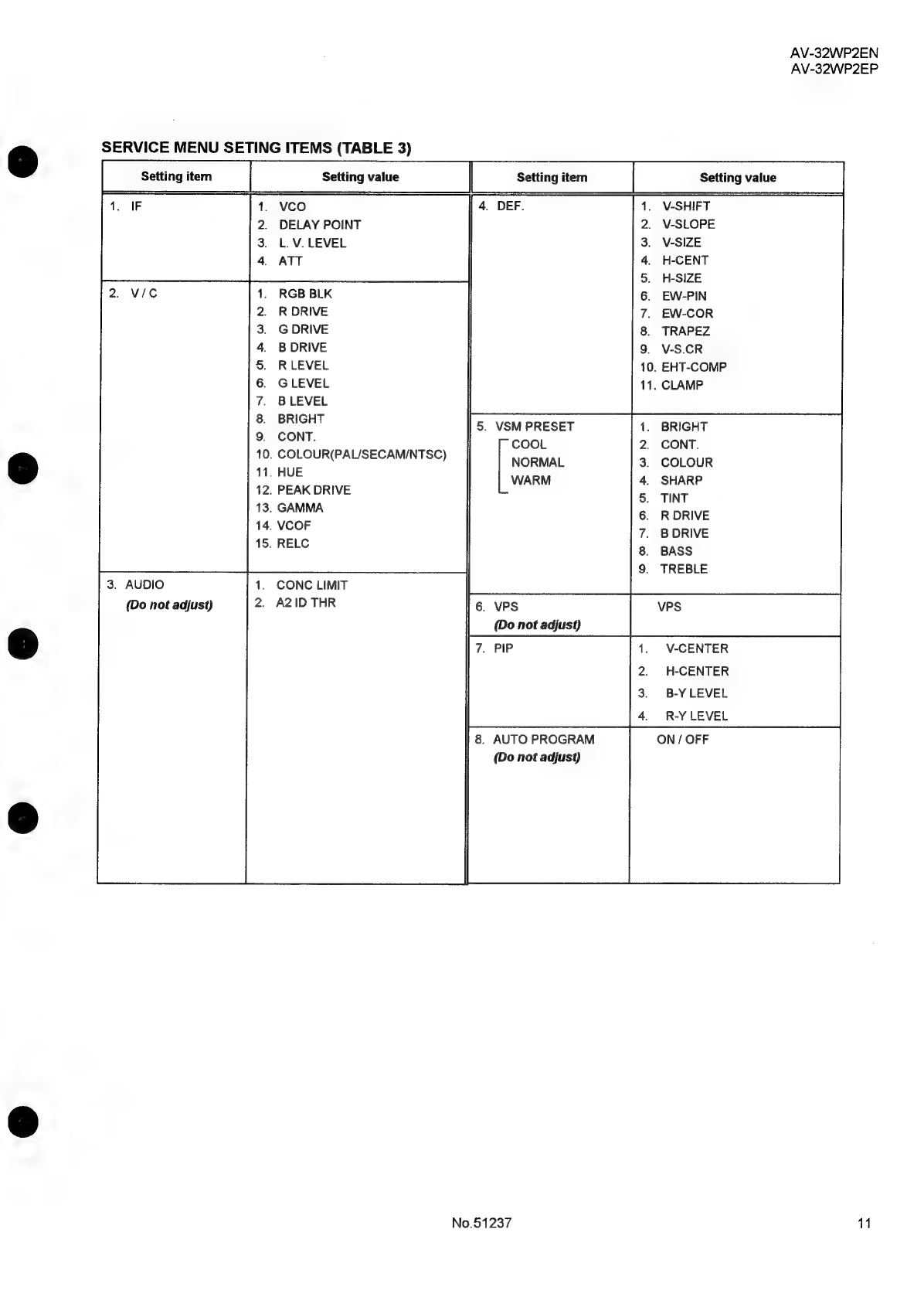

SERVICE MENU SETING ITEMS (TABLE 3)
3. AUDIO
(Do not adjus))
Setting value
ONOAARWD >
. COLOUR(PAL/SECAM/NTSC)
. HUE
. PEAK DRIVE
. GAMMA
. VCOF
. RELC
vco
DELAY POINT
L.V. LEVEL
ATT
RGB BLK
R DRIVE
G DRIVE
B DRIVE
R LEVEL
G LEVEL
B LEVEL
BRIGHT
CONT.
5. VSM PRESET
COOL
NORMAL
WARM
CONC LIMIT
A2 1D THR
7. PIP
8. AUTO PROGRAM
(Do not adjust)
No.51237
AV-32WP2EN
AV-32WP2EP
Setting value
. V-SHIFT
V-SLOPE
V-SIZE
4. H-CENT
H-SIZE
EW-PIN
EW-COR
TRAPEZ
9. V-S.CR
10. EHT-COMP
11. CLAMP
BRIGHT
CONT.
COLOUR
SHARP
TINT
R DRIVE
B DRIVE
BASS
TREBLE
1.
2.
3.
4.
5.
6.
7.
8.
9.
6. VPS VPS
(Do not adjusf)
V-CENTER
H-CENTER
B-Y LEVEL
R-Y LEVEL
ON / OFF
11

AV-32WP2EN
AV-32WP2EP

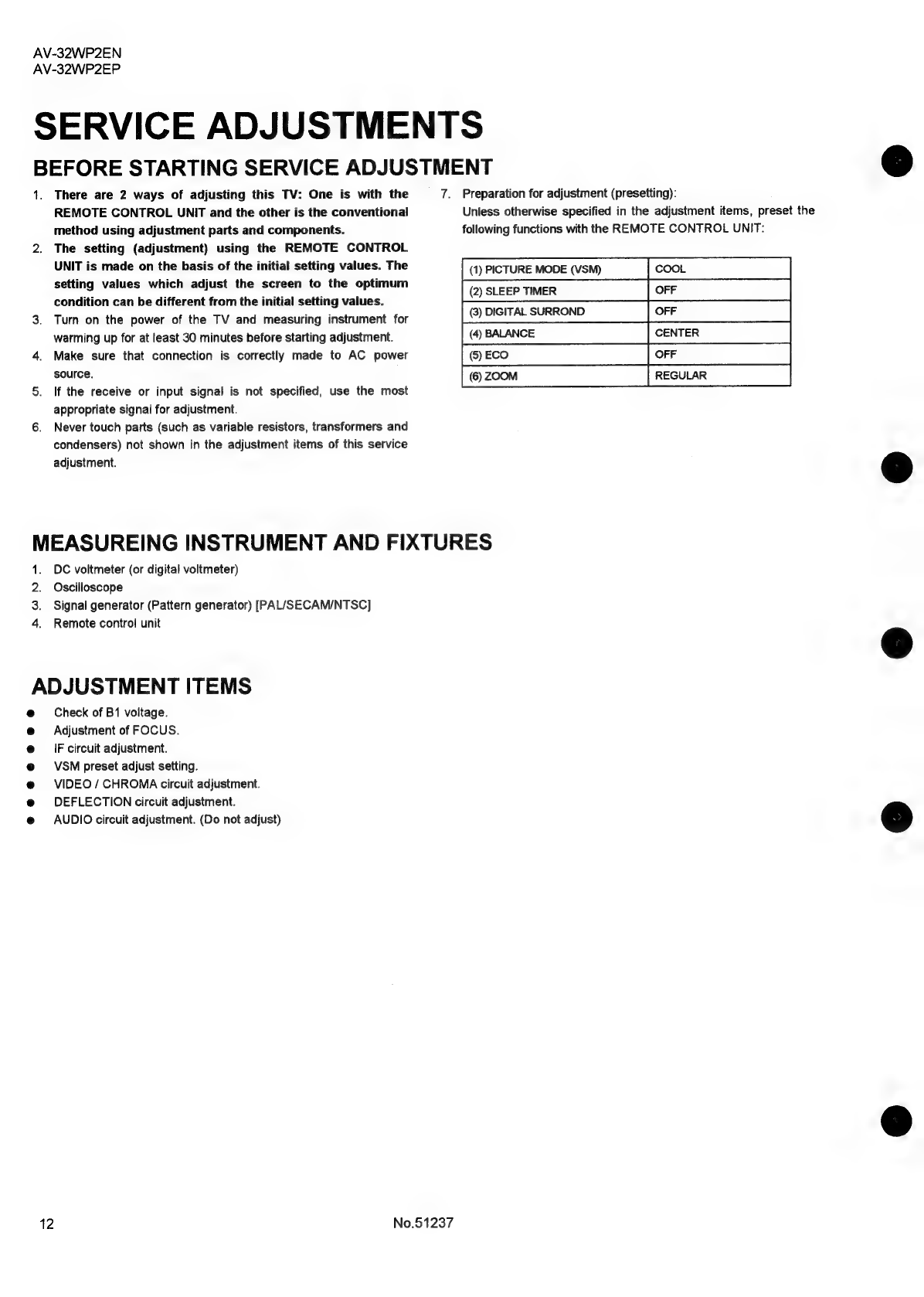

SERVICE ADJUSTMENTS
BEFORE STARTING SERVICE ADJUSTMENT
1.
There are 2 ways of adjusting this TV: One is with the
REMOTE CONTROL UNIT and the other is the conventional
method using adjustment parts and components.
The setting (adjustment) using the REMOTE CONTROL
UNIT is made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting values.
Turn on the power of the TV and measuring instrument for
warming up for at least 30 minutes before starting adjustment.
Make sure that connection is correctly made to AC power
source.
If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
Never touch parts (such as variable resistors, transformers and
condensers) not shown in the adjustment items of this service
adjustment.
7. Preparation for adjustment (presetting):
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT:
(1) PICTURE MODE (VSM)
(2) SLEEP TIMER
(3) DIGITAL SURROND
(4) BALANCE
(5) ECO
(6) ZOOM
CENTER
REGULAR
MEASUREING INSTRUMENT AND FIXTURES
BROAN
DC voltmeter (or digital voltmeter)
Oscilloscope
Signal generator (Pattern generator) [PAL/SECAM/NTSC]
Remote control unit
ADJUSTMENT ITEMS
12
Check of B1 voltage.
Adjustment of FOCUS.
IF circuit adjustment.
VSM preset adjust setting.
VIDEO / CHROMA circuit adjustment.
DEFLECTION circuit adjustment.
AUDIO circuit adjustment. (Do not adjust)
No.51237

AV-32WP2EN
AV-32WP2EP
BASIC OPERATION OF SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings
(adjustments):
CGD Hi Fy | Sar a a a ee This mode adjusts the setting values of the IF circuit.
(2) 2.VIC verter reste tree cece This mode adjusts the setting values of the VIDEO / CHROMA circuit.
(3) 3.AUDIO +--+ --ee errr reer This mode adjusts the setting values of the multiplicity SOUND circuit.
(4) 4.DEF -- seer teeter rece This mode adjusts the setting values of the DEFLECTION circuit for each aspect mode given below.
PANORAMIC (50/60Hz2)
REGULAR (50/60Hz)
14:9 ZOOM (50/60Hz)
16:9 ZOOM (50/60Hz)
16:9 ZOOM SUBTITLE (50/60Hz)
FULL (50/60Hz)
(5) 5.VSM PRSET ---+---------> This mode adjusts the initial setting values of COOL,NOMAL and WARM.
(VSM : Video Status Memory)
(6) G.VPS creer rece ttr eters This mode shows the monitor of the VPS and PDC.(Do not adjust).
(VPS : Video Program System, PDC : Program Delivery Code)
(7) T.PIP+ sss cree ees e reece eee This mode adjusts the setting values of the PIP circuit.
(8) 8.AUTO PROGRAM :-:--:--- By turning the power switch on, you can get the state of AUTO PROGRAM. (Do not adjust)
BASIC OPERATION OF SERVICE MENU
(1) How to enter SERVICE MENU SERVICE MENU
Press the INFORMATION key and the MUTE key of the
SERVICE MENU
REMOTE CONTROL UNIT simultaneously, and the
SERVICE MENU screen of Fig. 1 will be displayed. are Sek
5. VSM PRESET 6. VPS
7. PIP
8. AUTO PROGRAM (OFF)
1-8: SELECT @: Exit
Fig.
(2) Selection of SUB MENU SCREEN
Press one of keys 1~7 of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN (See Fig. 3), form the
SERVICE MENU.
NEME OF REMOTE CONTOROL KEY
SERVICE MENU —> SUB MENU
4.1F
3. AUDIO
4. DEF.
6. VPS
7. PIP
FUNCTION UP/DOWN
FUNCTION -/+
Fig.2
8. AUTO PROGRAM
No.51237 13

AV-32WP2EN
SERVICE MENU
SERVICE MENU
2. VIC
4. DEF
5. VSM PRESETS. VPS
8. AUTO PROGRAM (OFF)
1-7 : SELECT@: Exit
AV-32WP2EP
4.1F
3. AUDIO
7PIP
SUB MENU 5. VSM PRESET
VSM PRESET NOR!
cooL mat
NORMAL
WARM 4.BRIGHT +0
1. BRIGHT
2. CONT. . : - Q.
a calous + Cox): STORE @: EXIT
4. SHARP
5. TINT
6. R DRIVE
7. G DRIVE
8. B DRIVE
9. BASS
10. TREBLE SUB MENU 6. VPS (Do not adjust)
VPS
VCO = 0000H
PDC 8/30/1=0404H
AUTO= 10001000
SUB= 01000000
@: Exit
SUB MENU 7. PIP
PIP 100Hz
1.V-CENTRE
1. V-CENTRE
2. H-CENTRI
3. B-Y LEVEL
4.R-Y LEVEL
14
- +x): sToRE @: EXIT
SUB MENU 8. AUTO PROGRAM
8. AUTO PROGRAM (OFF)
8. AUTO PROGRAM (ON)
SUB MENU 1. IF
IF
1. VCO
2. DELAY POINT
3. LV.LEVEL
4. ATT
1-4: SELECT@: EXIT
SUB MENU 2. VIC
vic [PAL
1.RGB BLK
- +@k]: STORE @: EXIT
SUB MENU 3. AUDIO (Do not adjust)
AUDIO
41. CONT LIMITOAH
C_.AD_ BITS =00000000
= + Gx} : STORE @: EXIT
SUB MENU 4. DEF
DEF FULL XXHz
1. V-SHIFT +01
(21)
= (ex): STORE @: EXIT
Fig. 3 SUB MENU SCREEN
No.51237
VCO (CW) #**. #* MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW
REFERENCE
TOO LOW
@:ExIT
DELAY POINT
AGC TAKE-OVER 32
- +k]: STORE @: EXIT
LV LEVEL
LV. LEVEL 16
- +k): STORE @: EXIT
ATT ON/OFF
ATTENUATOR ‘OFF
2 + ox}: STORE @: EXIT
1. RGB BLK 10.COLOUR
2.R DRIVE 11.HUE
3.G DRIVE 12.PEAK DRIVE
4.B DRIVE 13.GAMMA
5.R LEVEL 14.BCOF
6.G LEVEL 15.RELC
7. B LEVEL
8. BRIGHT
9. CONT
1. CONC LIMIT (Do not adjust)
2. A2 ID THR (Do not adjust)
1. V-SLOPE
2. V-SHIFT
3. V-SIZE
4. H-CENT
5. H-SIZE
6. EW-PIN
7. EW-COR
8. TRAPEZ
9. V-S.CR
10. EHT-COMP
11. CLAMP

AV-32WP2EN
AV-32WP2EP
(3) Method of Setting
1) Method of Setting 1.1F
[1. VCO]
oO) 1 Key S40 land WiSdes o Weer Biers faveavosanere re Cate Select 1.IF.
@ 1 Key Be bate lee ar-@. wile i hieiial'e. 6p Sane o eere 4 Select 1.VCO
@® The VCO (CW) screen will be displayed in yellow when the AFC voltage is at a certain level and in blue when it is at other levels.
@ INFORMATION Key ------+ +--+ As you press this twice, you will return to the SERVICE MENU.
[2. DELAY POINT]
oO 1 Key iB Sasa va 9. BoB Ces neice set awe, bi ane WR aye ee Select 1.1F.
@ 2 Key a5 wie cev bev anerwyey'gneve Bue Steyele dere ey a Select 2.DELAY POINT.
@ FUNCTION -/+ «++ e cece reer eens Set (adjust) the setting vaiues of the setting items.
@ MENU Key -ssrerse eter reer eee Memorize the set value.
(Before storing the setting values in memory, do not press the CH, TV, POWER ON/ OFF keys
- if you do, the values will not be stored in memory.)
G) INFORMATION Key -----+++++=> When this is pressed twice, you will return to the SERVICE MENU.
2) Method of setting 2.V/C, 3.AUDIO, 4.DEF, 5.VSM PRESET and 7.PIP.
QD 25 7 Keyrrrs reece ceeeeecees Select one from 2. V/C, 3. AUDIO, 4. DEF, 5. VSM PRESET and 7.PIP.
@ FUNCTION UP/DOUN Key -:---- Select setting items.
@ FUNCTION -/+ ores reece rere ee Set (adjust) the setting values of the setting items.
(When 1.RGB BLK of 2.V/C is selected, press the FUNCTION-/+ key, and the whole will
change to a black picture. Press the 2 key, and the screen will return to the original screen.)
@ MENU Key «++ s seer e eter eee es Memorize the setting value.
(Before storing the setting values in memory, do not press the CH, TV, POWER ON / OFF key -
if you do, the values will not be stored in memory.)
@ INFOMATION Key-+ +++ ++ +e+e e+: Return to the SERVICE MENU screen.
3) Method of setting 6.VPS and 8.AUTO PROGRAM.
G.VPS sect reset e cree eet eeeseecens This mode displayed monitor of VPS systems. Do not adjust
8.AUTO PROGRAM <irrerrrsee eee When the MAIN POWER is turned on with the state of AUTO PROGRAM ON, you get a mode
that initializes every existing set value including language selection. Because this mode is set
at the factory upon completion of the adjustment, you need not to use it for service. Do not
adjust in this mode.
(4) Release of SERVICE MENU
1) After compieting the setting, return to the SERVICE MENU, then again press the INFORMATION key.
No.51237 15

AV-32WP2EN
AV-32WP2EP
POWER SUPPLY CHECK
Measuring | test point Adjustment part
instrument
Check of B1 Signal TP-91(B1)
voltage generator TP-E
DC voltmeter | [X connector
in
POWER DEF
PWB]
. Receive a whole black signal.
2. Connect a DC voltmeter to TP-91(B1) and TP-E.
3. Make sure that the voltage is DC144.8+2.0V.
FOCUS ADJUSTMENT
Measuring
|
‘test
point
Adjustment
part
instrument
Adjustment of | Signal
1. By turning the black VR FOCUS 2, adjust the picture so that
the 5th vertical line from the left side of the cross-hatch picture
becomes thinnest.
2. By turning the red VR FOCUS 1, adjust the picture so that the
3rd horizontal line from the upper side of the cross-hatch
picture becomes uniform at the line center and its periphery.
3. Carry out adjustment by repeating the steps 2 and 3 above.
4. Make sure that when the screen is darkened, the lines remain
in good focus.
FOCUS 2
Focus 1
BLACK
FOCUS 2
FOCUS 1
SCREEN
16 No.51237

AV-32WP2EN
AV-32WP2EP
IF CIRCUIT ADJUSTMENT
Measuring | Test point Adjustment part Description
instrument
Adjustment of | Remote P. CW TRANSF. Do not make any adjustment unless the adjustment is out of
vco control unit (T050) way and you cannot get correct PICTURE.
(MAIN) P.L-VL CW TRIM C . Select 1.1F from the SERVICE MENU.
(C052) . Press 1 key and select 1.VCO.
[In IF PWB] . Select a receivable broadcast channel with the CHANNEL key.
. Turn the core of P. CW TRANSF. until the colour of the
characters TOO HIGH displayed on the screen changes from
VCO(CW) sek. MHZ “4 bus to_Yeflow. (Step 1)
TOOHIGH . Turn the core of P. CW TRANSF. until the colour of the
ABOVE REFERENCE characters TOO LOW changes from blue to Yellow. (Step 2)
Scag estes ai | . Then slowly turn back the core of P. CW TRANSF. until the
TOO LOW colour of the characters JUST REFFERENCE changes from
@ =x blue to Yellow. (Step 3)
. Inthe district SECAM L broadcast channel with the CHANNEL
key and adjust the P.L-VL CW TRIM. C in same manner as for
above step. And necessary, readjust P. CW. TRANSF.
. Press the INFORMATION key three times to return to normal
screen.
_ fe . Perform CHANNEL PRESET again, and make sure that each
Screen display broadcast is being received properly.
TOO HIGH
ABOVE REFERENCE a
JUST REFERENCE
BELOW REFERENCE | Blue
TOO LOW
Adjustment of | Remote DELAY POINT . Receive a black and white signal (colour off).
DELAY POINT | control unit (AGC TAKE-OVER) . Select 1.1F from the SERVICE MENU.
. Select 2.DELAY POINT by pressing the 2 key on the remote
control.
. Adjust the FUNCTION - or + key until video noise disappears.
Setting item Variable range Initial setting . Press the MENU key and memorize the set value.
(Adjustment item) value
. Turn to other channels and make sure that there are no
irregularities.
0~63
(AGC TAKE-OVER)
et
Adjustment of | Remote L, V LEVEL . Receive a coior bar signal.
L,V LEVEL control unit (SECAM-L,75% white)
(EP MODEL Oscilloscope . Connect the oscilloscope to EXT-1 PIN 19.
ONLY) . Select 1.IF from the service Menu.
. Select 3.L.V LEVEL by pressing the 3 key on the remote
control.
. Turn to other channels and make sure that there are no
irregularities.
No.51237 17

AV-32WP2EN
AV-32WP2EP
Measuring
|
test
point
|
Adjustment
part
Description
instrument
Adjustment of | Remote P. CW TRANSF. ®@ Do not make any adjustment unless the adjustment is out of
control unit (T7103) way and you cannot get correct PICTURE.
P.L-VL CW TRIM C . Select 1.IF from the SERVICE MENU.
(C122) . Press 1 key and select 1.VCO.
[In P&P PWB] . Press OK key and select “ VCO (CW) = SUB “.
Select a receivable broadcast channel with the CHANNEL key.
Turn the core of P. CW TRANSF. until the colour of the
characters TOO HIGH displayed on the screen changes from
blue to_ Yellow. (Step 1)
Turn the core of P. CW TRANSF. until the colour of the
characters TOO LOW changes from blue to Yellow. (Step 2)
Then slowly turn back the core of P. CW TRANSF. until the
colour of the characters JUST REFFERENCE changes from
blue to Yellow. (Step 3)
In the district SECAM L broadcast channel with the CHANNEL
key and adjust the P.L-VL CW TRIM. C in same manner as for
above step. And necessary, readjust P. CW. TRANSF.
Press the INFORMATION key three times to return to normal
screen.
. Perform CHANNEL PRESET again, and make sure that each
broadcast is being received properly.
Adjustment of | Remote NOISE VR . Set to 2 screen mode.
DELAY POINT | contro! unit (R137) . Receive black and white signal on the right screen.
Adjust the NOISE VR (R137) to eliminate noise from the right
screen.
18 No.51237

AV-32WP2EN
AV-32WP2EP
VSM PRESET SETTING
Measuring
|
Test
point
Adjustment
part
Description
instrument
. BRIGHT . Select COOL with the MENU key of the remote control unit.
VSM PRESET | control unit ‘i CONT. . Select 5.VSM PRESET from the SERVICE MENU.
3. COLOUR . Adjust the FUNCTION UP/DOWN and -/+ key to bring the set
4. SHARP values of 1.BRIGHT ~ 10.TREBLE to the values shown in the
§. HUE table.
-R DRIVE . Press the MENU key and memorize the set value.
- G DRIVE . Respectively select the VSM PRESET mode for REGULAR and
- B DRIVE WAR\M, and make similar adjustment as in 3 above.
. BASS . Press the MENU key and memorize the set value.
10. TREBLE Refer to OPERATING INSTRUCTIONS for the PICTURE
MODE.
VSM preset mode
COOL REGULAR
1. BRIGHT +0 +0 +0
SETTING VALUE
2. CONT.
3. COLOUR 2 ”" 2
SETTING VALUE
4. SHARP
SETTING VALUE
5. HUE
SETTING VALUE
“SETTING VALUE
7. G DRIVE
8.B DRIVE
9. BASS
10. TREBLE
SETTING VALUES OF VSM PRESET
No.51237 19

AV-32WP2EN
AV-32WP2EP

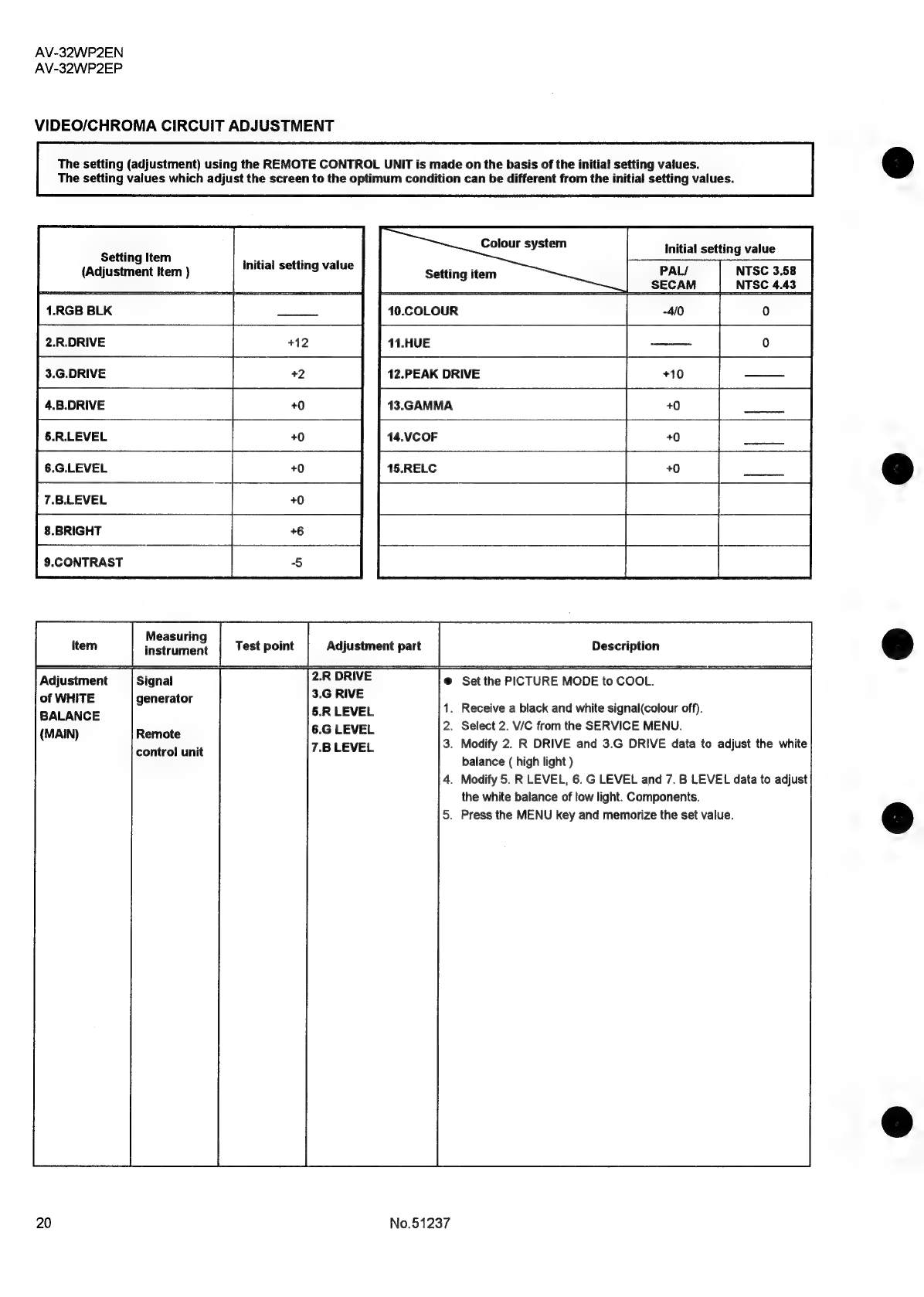

VIDEO/CHROMA CIRCUIT ADJUSTMENT
The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.
The setting values which adjust the screen to the optimum condition can be different from the initial setting values.
Setting Item
(Adjustment Item )
1.RGB BLK
2.R.DRIVE +12
3.G.DRIVE +2
4.B.DRIVE
+0
§.R.LEVEL +0
6.G.LEVEL
7.B.LEVEL
8.BRIGHT
9.CONTRAST
Adjustment Signal
of WHITE generator
BALANCE
(MAIN) Remote
control unit
20
3.G RIVE
§.R LEVEL
6.G LEVEL
7.B LEVEL
Initial setting value
PAL/ NTSC 3.58
i __|_ NTSC 4.43
12.PEAK DRIVE
13.GAMMA
14.VCOF
1§.RELC
Set the PICTURE MODE to COOL.
. Receive a black and white signal(colour off).
. Select 2. V/C from the SERVICE MENU.
. Modify 2. R DRIVE and 3.G DRIVE data to adjust the white
balance (high light )
. Modify 5. R LEVEL, 6. G LEVEL and 7. B LEVEL data to adjust
the white balance of low light. Components.
. Press the MENU key and memorize the set value.
No.51237
