KDC-BT720DAB
CD-RECEIVER
INSTRUCTION MANUAL
B5A-2101-00 (XN)© 2017 JVC KENWOOD Corporation
JS_KWD_KDC_BT720DAB_XN_C_4.indd 1JS_KWD_KDC_BT720DAB_XN_C_4.indd 1 8/25/2017 3:09:58 PM8/25/2017 3:09:58 PM
Autogoods “130”
130.com.ua

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
2ENGLISH
BEFORE USE
IMPORTANT
• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe
Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.
WARNING
• Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
•
Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
General:
•
Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.
• USB rating is indicated on the main unit. To view, detach the faceplate. ( 3)
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected
( 35) . Turn off the unit or change the source to STANDBY when parking at a low ceiling area.
How to read this manual
• Operations are explained mainly using buttons on the faceplate.
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.
CONTENTS
BEFORE USE 2
BASICS 3
GETTING STARTED 3
1 Cancel the demonstration
2 Set the clock and date
3 Set the initial settings
DIGITAL RADIO 6
ANALOG RADIO 8
CD/USB/iPod/ANDROID 10
AUX 12
Spotify 13
BLUETOOTH® 14
AUDIO SETTINGS 21
DISPLAY SETTINGS 24
TROUBLESHOOTING 25
REFERENCES 28
Maintenance
More information
SPECIFICATIONS 31
INSTALLATION/
CONNECTION 33
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 2JS_KWD_KDC_BT720DAB_XN_EN_5.indd 2 8/25/2017 3:22:14 PM8/25/2017 3:22:14 PM
Autogoods “130”
130.com.ua

ENGLISH 3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BASICS
To On the faceplate
Turn on the power Press .
• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
Select a source Press repeatedly.
Change the display information Press DISP repeatedly.
( 30)

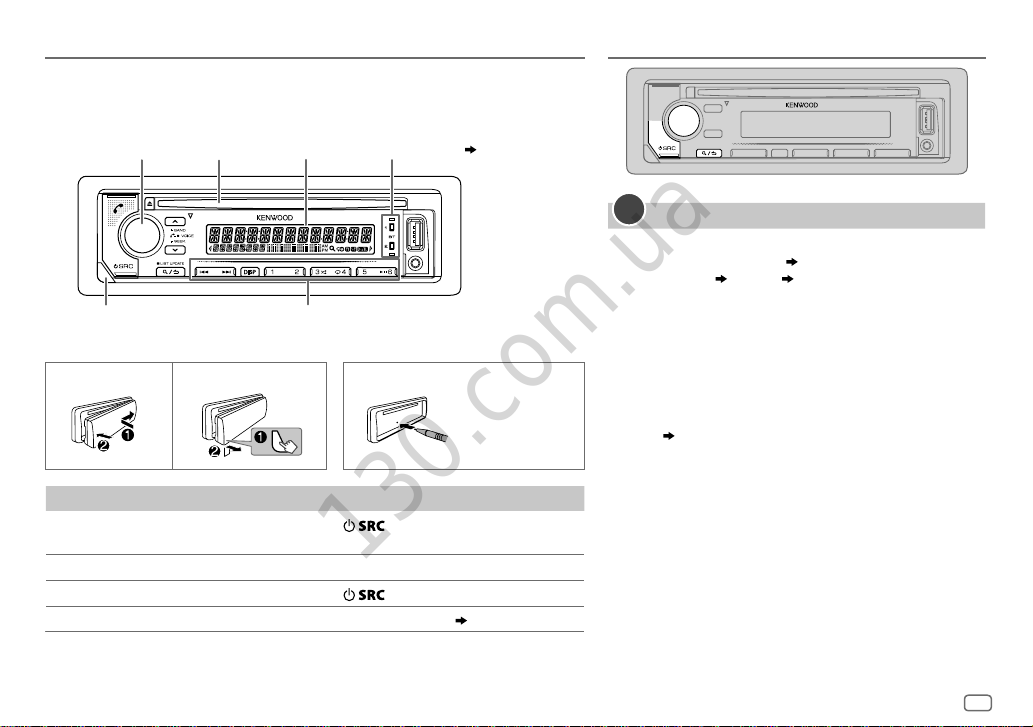

Faceplate
How to resetAttach Detach
Cancel the demonstration
When you turn on the power for the first time (or
[FACTORY RESET] is set to [YES] , 5 ), the display shows:
“CANCEL DEMO” “PRESS” “VOLUME KNOB”
1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
“DEMO OFF” appears.
Then, the display shows the selected crossover type:
“2-WAY X ’ OVER” or “3-WAY X ’ OVER”
• To change the crossover type, see “Change the crossover
type”.
( 5)
GETTING STARTED
1
Volume
knob
Detach
button
Display
window
Lights up when
Bluetooth connection
is established.
( 14)
Flashes when the unit enters
searching status.
Loading
slot
Reset the unit
within 5 seconds
after detaching
the faceplate.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 3JS_KWD_KDC_BT720DAB_XN_EN_5.indd 3 8/25/2017 3:22:15 PM8/25/2017 3:22:15 PM
Autogoods “130”
130.com.ua

4ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Set the clock and date
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select [CLOCK] , then press the knob.
To adjust the clock
3 Turn the volume knob to select [CLOCK ADJUST] , then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Hour Minute
5 Turn the volume knob to select [CLOCK FORMAT] , then press the knob.
6 Turn the volume knob to select [12H] or [24H] , then press the knob.
To set the date
7 Turn the volume knob to select [DATE FORMAT] , then press the knob.
8 Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY] , then press
the knob.
9 Turn the volume knob to select [DATE SET] , then press the knob.
10 Turn the volume knob to make the settings, then press the knob.
Day Month Year or Month Day Year
11 Press and hold to exit.
To return to the previous setting item, press .
Set the initial settings
1 Press repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION] .
3 Turn the volume knob to select an item (see the following table),
then press the knob.
4 Repeat step 3until the desired item is selected or activated.
5 Press and hold to exit.
To return to the previous setting item, press .
Default: XX
AUDIO CONTROL
SWITCH
PREOUT*
REAR / SUBWOOFER : Selects whether rear speakers or a subwoofer are
connected to the line out terminals on the rear (through an external
amplifier).
( 35)
DISPLAY
EASY MENU
When entering [FUNCTION] ...
ON : ZONE 1 illumination changes to white color. ;
OFF : ZONE 1 illumination remains as [COLOR SELECT] color. ( 25)
• ZONE 2 illumination changes to light blue color when you enter
[FUNCTION] , irregardless of the [EASY MENU] setting.
• Refer to the illustration on page 24 for zone identification.
TUNER SETTING
DAB ANT
POWER
ON : Supplies power to the DAB antenna. Selects when using the supplied
antenna. ;
OFF : Does not supply power. Selects when using passive
antenna without booster.
( 36)
PRESET TYPE NORMAL
:Memorizes one station for each preset button in each band
(FM1/FM2/FM3/AM/SW1/SW2/DB1/DB2/DB3).;
MIX :Memorizes one
station (digital radio or analog radio) for each preset button, regardless of
the selected band.
SYSTEM
KEY BEEP* ON
:Activates the keypress tone.; OFF :Deactivates.
TDF ALARM* ON :Activates the alarm if you forget to detach the faceplate when ACC is
set to OFF.;
OFF :Deactivates.
* Not applicable if 3-way crossover is selected.
3
GETTING STARTED
2
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 4JS_KWD_KDC_BT720DAB_XN_EN_5.indd 4 8/25/2017 3:22:15 PM8/25/2017 3:22:15 PM
Autogoods “130”
130.com.ua

ENGLISH 5
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GETTING STARTED
SOURCE SELECT
SPOTIFY SRC ON
:Enables SPOTIFY in source selection.; OFF :Disables. ( 13)
BUILT-IN AUX ON
:Enables AUX in source selection.; OFF :Disables. ( 12)
CD READ 1
:Automatically distinguishes between audio file disc and music CD.;
2 :Forces to play as a music CD. No sound can be heard if an audio file
disc is played.
F/W UPDATE
UPDATE SYSTEM/UPDATE DAB1/UPDATE DAB2
F/W UP xxxx
/
F/W UP xxxxx /
F/W UP Vxxx
YES :Starts upgrading the firmware.; NO :Cancels (upgrading is not
activated).
For details on how to update the firmware, visit
<www.kenwood.com/cs/ce/>.
FACTORY RESET YES :Resets the settings to default (except the stored station).;
NO :Cancels
CLOCK
CLOCK DISPLAY ON
:The clock time is shown on the display even when the unit is
turned off.;
OFF :Cancels.
Change the crossover type
1 Press repeatedly to enter STANDBY.
2 Press and hold number buttons 4and 5to enter crossover select.
The current crossover type appears.
3 Turn the volume knob to select “2WAY” or “3WAY”, then press the
knob.
4 Turn the volume knob to select “YES” or “NO”, then press the knob.
The selected crossover type appears.
• To cancel, press and hold .
• To adjust the selected crossover settings,
( 22 , 23) .
Caution
Select a crossover type according to how the speakers are connected.
( 35)
If you select a wrong type:
• The speakers may damage.
• The output sound level may be extremely high or low.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 5JS_KWD_KDC_BT720DAB_XN_EN_5.indd 5 8/25/2017 3:22:15 PM8/25/2017 3:22:15 PM
Autogoods “130”
130.com.ua

6ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

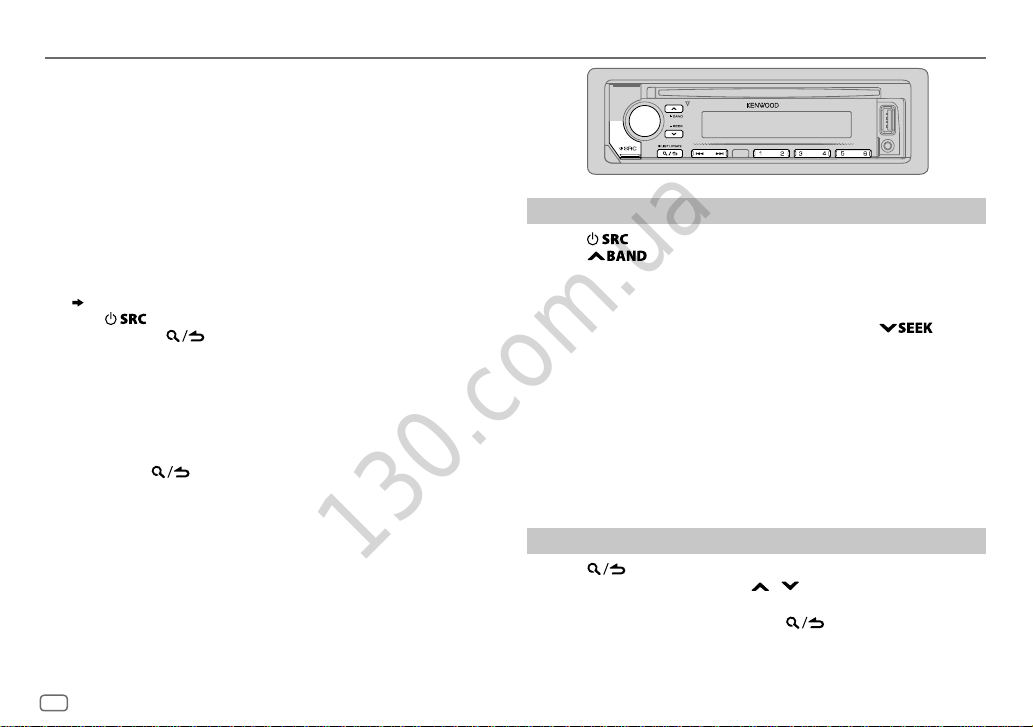

Search for an ensemble
1 Press repeatedly to select DIGITAL AUDIO.
2 Press repeatedly to select DB1/DB2/DB3.
3 Press and hold S/Tto search for an ensemble.
4 Press S/Tto select an ensemble, service or component to
listen.
• To change the searching method for S/T: Press
repeatedly.
AUTO1 : Press S/T: Select an ensemble, service or component.
Press and hold S/T: Automatically search for an
ensemble.
AUTO2 : Press S/T: Search for a preset station.
MANUAL : Press S/T: Select an ensemble, service or component.
Press and hold S/T: Manually search for an ensemble.
• To store a service: Press and hold one of the number buttons (1to6).
• To select a stored service: Press one of the number buttons (1to6).
Select a service
1 Press to enter Service Search mode.
2 Turn the volume knob or press / to select a service, then
press the knob.
To cancel the Service Search mode, press again.
DIGITAL RADIO
About DAB (Digital Audio Broadcasting)
DAB is one of the digital radio broadcasting systems available today. It
can deliver digital quality sound without any annoying interference or
signal distortion. Furthermore, it can carry text, pictures and data.
In contrast to FM broadcast, where each program is transmitted on its
own frequency, DAB combines several programs (called “services”) to
form one “ensemble.”
The “primary component” (main radio station) is sometimes accompanied
by a “secondary component” which can contain extra programs or other
information.
Preparation:
1 Connect the supplied DAB antenna to the DAB antenna jack.
( 35)
2 Press repeatedly to select DIGITAL AUDIO.
3 Press and hold (LISTUPDATE) to start the Service List
update.
“LIST UPDATE” appears and update starts. “UPDATED” appears when
update completes.
Updates take up to3 minutes. No interruption (such as traffic
information) is possible during updates.
• To cancel the Service List update:
Press and hold (LISTUPDATE) again.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 6JS_KWD_KDC_BT720DAB_XN_EN_5.indd 6 8/25/2017 3:22:15 PM8/25/2017 3:22:15 PM
Autogoods “130”
130.com.ua

ENGLISH 7
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
DIGITAL RADIO
Select a service by name
1 Press to enter Service Search mode.
2 Turn the volume knob quickly to enter Alphabet Search mode.
3 Turn the volume knob or press S/Tto select the character to
be searched for.
Press / to go to the previous/next page.
4 Press the volume knob to start searching.
5 Turn the volume knob to select a service, then press the knob.
To cancel the Alphabet Search mode, press again.
Other settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
TUNER SETTING
AF SET ON
:
While listening to DAB: Automatically switch to FM broadcasting the same
program if the DAB signal becomes weak. It will switch back to DAB sound
when the signal becomes strong again.
While listening to FM: Automatically switch to DIGITAL AUDIO source
broadcasting the same program (if available).;
OFF :Cancels.
TI ON :Allows the unit to temporarily switch to Traffic Information if available
(“TI” lights up).;
OFF :Cancels.
PTY SEARCH 1 Turn the volume knob to select the available Program Type ( 8) ,
then press the knob.
2 Turn the volume knob to select the PTY language ( ENGLISH / FRENCH /
GERMAN ), then press the knob.
3 Press S/T to start searching.
ASW SELECT TRAVEL , WARNINGS , NEWS , WEATHER , EVENT , SPECIAL , RAD INFO ,
SPORTS , FINANCE : Turn the volume knob to make a selection, then press
the knob.
“
*
” appears in front of the activated announcement type.
Automatically switch from any source to Digital radio ensembles
broadcasting an activated announcement type.
• Multiple announcement can be activated simultaneously.
• To deactivate, press the volume knob again (“
*
” goes off).
LIST UPDATE AUTO :Automatically update the DAB Service List when the power is
turned on.;
MANUAL :Updates the DAB Service List by pressing and
holding
(LIST UPDATE) .
PTY WATCH 1 Turn the volume knob to select the available Program Type, then press
.
The unit automatically switch from any source to Digital Radio
ensembles broadcasting the selected type of program.
Program Type : NEWS , AFFAIRS , INFO , SPORT , EDUCATE , DRAMA ,
CULTURE , SCIENCE , VARIED , POP  M (music), ROCK  M (music),
EASY  M (music), LIGHT  M (music), CLASSICS , OTHER  M (music),
WEATHER , FINANCE , CHILDREN , SOCIAL , RELIGION , PHONE IN ,
TRAVEL , LEISURE , JAZZ , COUNTRY , NATION  M (music), OLDIES ,
FOLK  M (music), DOCUMENT
OFF :Cancels.
2
Press the volume knob to enter PTY language selection.
3 Turn the volume knob to select the PTY language ( ENGLISH / FRENCH /
GERMAN ), then press the knob.
RELATED SERV ON :Enable Soft-Link function to switch to an alternative service which is
different audio program from the current audio program.;
OFF :Disable.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 7JS_KWD_KDC_BT720DAB_XN_EN_5.indd 7 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

8ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
DIGITAL RADIO
CLOCK
TIME SYNC ON
:Synchronizes the unit’s time to the Digital Radio signal station time.;
OFF :Cancels.
Available Program Type for [PTY SEARCH]
SPEECH
: NEWS , AFFAIRS , INFO (information), SPORT , EDUCATE , DRAMA ,
CULTURE , SCIENCE , VARIED , WEATHER , FINANCE , CHILDREN , SOCIAL ,
RELIGION , PHONE IN , TRAVEL , LEISURE , DOCUMENT
MUSIC
: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music),
CLASSICS , OTHER M (music), JAZZ , COUNTRY , NATION M (music),
OLDIES , FOLK M (music)
The unit will search for the Program Type categorized under
[SPEECH] or
[MUSIC] if selected.
• If the volume is adjusted during reception of traffic information,
announcement, alarm or news bulletin, the adjusted volume is
memorized automatically. It will be applied the next time traffic
information, announcement, alarm or news bulletin is turned on.

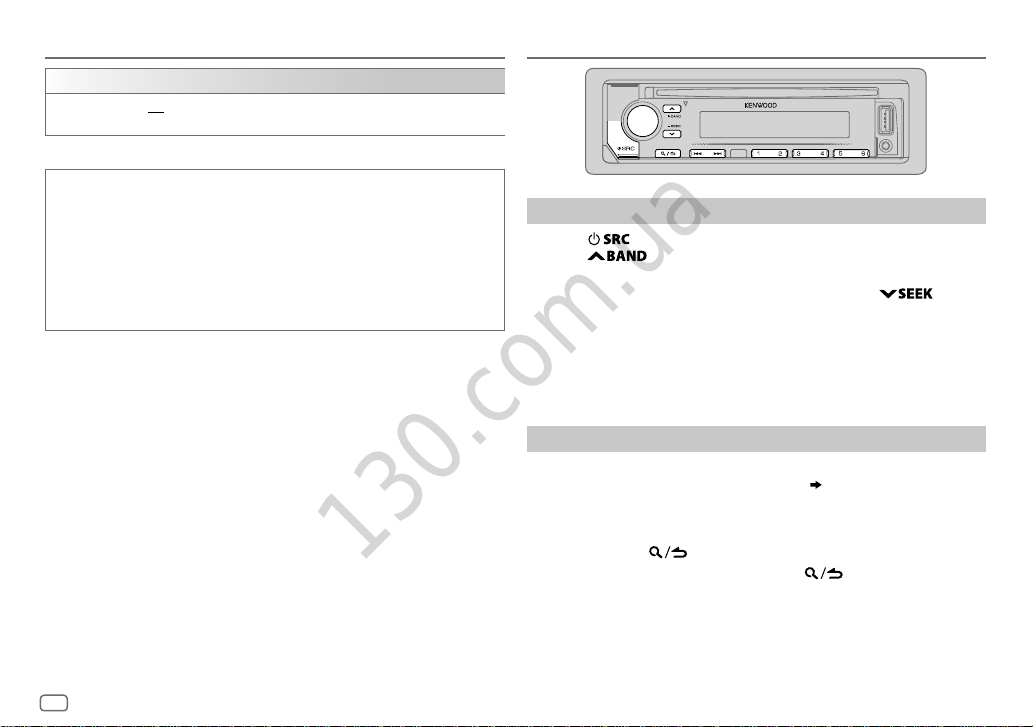

Search for a station
1 Press repeatedly to select RADIO.
2 Press repeatedly to select FM1/FM2/FM3/AM/SW1/SW2.
3 Press S/Tto search for a station.
• To change the searching method for S/T: Press
repeatedly.
AUTO1 : Automatically search for a station.
AUTO2 : Search for a preset station.
MANUAL : Manually search for a station.
• To store a station: Press and hold one of the number buttons (1to6).
• To select a stored station: Press one of the number buttons (1to6).
Other settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select an item ( 9) , then press the
knob.
3 Repeat step 2until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press .
ANALOG RADIO
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 8JS_KWD_KDC_BT720DAB_XN_EN_5.indd 8 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

ENGLISH 9
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Default: XX
TUNER SETTING
LOCAL SEEK ON
: Searches only AM/SW1/SW2 stations with good reception. ;
OFF : Cancels.
• Settings made are applicable only to the selected source/station. Once
you change the source/station, you need to make the settings again.
AUTO
MEMORY
YES :Automatically starts memorizing 6 stations with good reception.;
NO :Cancels.
• Selectable only if [NORMAL] is selected for [PRESET TYPE] . ( 4)
MONO SET ON
:Improves the FM reception, but the stereo effect may be lost.;
OFF :Cancels.
NEWS SET ON : The unit will temporarily switch to News Programme if available. ;
OFF :Cancels.
REGIONAL ON : Switches to another station only in the specific region using the “AF”
control.;
OFF :Cancels.
AF SET ON : Automatically searches for another station broadcasting the same
program in the same Radio Data System network with better reception
when the current reception is poor.;
OFF :Cancels.
TI
*
ON :Allows the unit to temporarily switch to Traffic Information if available
(“TI” lights up).;
OFF :Cancels.
*
[TI] in AM/SW1/SW2 band is for enabling traffic interruption to DIGITAL
AUDIO source only.
PTY SEARCH 1 Turn the volume knob to select the available Program Type (see the
following), then press the knob.
2 Turn the volume knob to select the PTY language ( ENGLISH / FRENCH /
GERMAN ), then press the knob.
3 Press S / T to start searching.
ANALOG RADIO
Available Program Type for [PTY SEARCH]
SPEECH
: NEWS , AFFAIRS , INFO (information), SPORT , EDUCATE , DRAMA ,
CULTURE , SCIENCE , VARIED , WEATHER , FINANCE , CHILDREN , SOCIAL ,
RELIGION , PHONE IN , TRAVEL , LEISURE , DOCUMENT
MUSIC
: POP M (music), ROCK M (music), EASY M (music), LIGHT M (music),
CLASSICS , OTHER M (music), JAZZ , COUNTRY , NATION M (music),
OLDIES , FOLK M (music)
The unit will search for the Program Type categorized under [SPEECH] or
[MUSIC] if selected.
•
[MONO SET] / [NEWS SET] / [REGIONAL] / [AF SET] / [PTY SEARCH] is selectable only
when the band is FM1/FM2/FM3.
• If the volume is adjusted during reception of traffic information, alarm
or news bulletin, the adjusted volume is memorized automatically. It
will be applied the next time traffic information, alarm or news bulletin
is turned on.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 9JS_KWD_KDC_BT720DAB_XN_EN_5.indd 9 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

10 ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

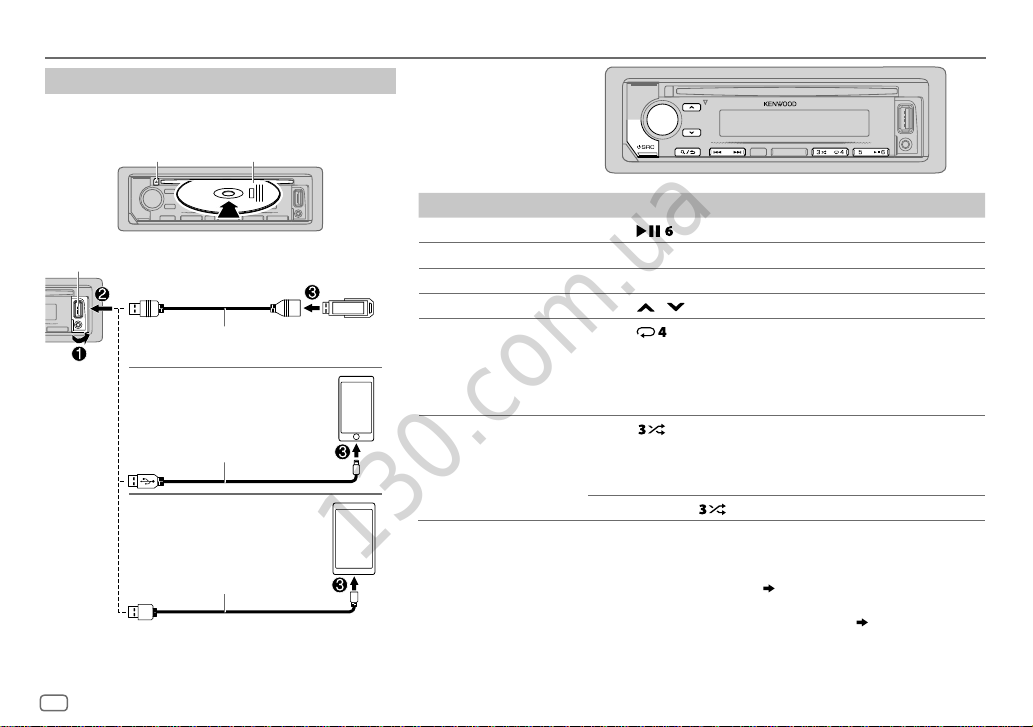

CD/USB/iPod/ANDROID
Start playback
The source changes automatically and playback starts.
CD
*1
KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
*2
Do not leave the cable inside the car when not using.
To On the faceplate
Playback/pause Press .
Reverse/Fast-forward*4Press and hold S/T.
Select a track/file Press S/T.
Select a folder*5Press / .
Repeat play*6Press repeatedly.
TRACK REPEAT / ALL REPEAT : Audio CD
FILE REPEAT / FOLDER REPEAT / ALL REPEAT : MP3/WMA/AAC/WAV/
FLAC file
FILE REPEAT / FOLDER REPEAT / REPEAT OFF : iPod or ANDROID
Random play*6Press repeatedly.
DISC RANDOM / RANDOM OFF : Audio CD
FOLDER RANDOM / RANDOM OFF : MP3/WMA/AAC/WAV/FLAC file,
iPod or ANDROID
Press and hold to select
ALL RANDOM .*7
* 3
When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the
instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application
on your Android device before connecting. For more information, visit <www.kenwood.com/cs/ce/>.
*4
For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 11)
*5
For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.
*6
For iPod/ANDROID: Applicable only when [MODE OFF] / [BROWSE MODE] is selected. ( 11)
*7
For CD: Only for MP3/WMA/AAC files.
Label side M Eject disc
CA-U1EX (max.: 500mA)
(optional accessory)
USB cable
*2
(commercially available)
KCA-iP102/KCA-iP103 (optional
accessory)
*1
or accessory of the
iPod/iPhone
*2
USB
iPod/iPhone
ANDROID*3
USB input terminal
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 10JS_KWD_KDC_BT720DAB_XN_EN_5.indd 10 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

ENGLISH 11
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CD/USB/iPod/ANDROID
Select control mode
While in iPod USB source, press 5repeatedly.
MODE ON : Control iPod using the iPod itself. However, you can still play/
pause, file skip, fast-forward or reverse from this unit.
MODE OFF : Control iPod from this unit.
While in ANDROID source, press 5 repeatedly.
BROWSE MODE : Control Android device from this unit via KENWOOD
MUSIC PLAY application installed in the Android device.
HAND MODE : Control Android device using the Android device itself via
other media player applications installed in the Android
device. However, you can still play/pause and file skip from
this unit.
Select music drive
While in USB source, press 5 repeatedly.
Stored songs in the following drive will be played back.
• Selected internal or external memory of a smartphone (Mass Storage
Class).
• Selected drive of a multiple drives device.
Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo
While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the
iPod/iPhone to the USB input terminal of the unit.
• The unit will output the sound from these applications.
Select a file from a folder/list
For iPod/ANDROID, applicable only when [MODE OFF] / [BROWSE MODE] is
selected.
1 Press .
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.
Quick Search (applicable only for CD, USB and ANDROID source)
If you have many files, you can search through them quickly.
Turn the volume knob quickly to browse through the list quickly.
Skip Search (applicable only for iPod USB and ANDROID source)
Press S/Tto search at a preset skip search ratio.
( 12, [SKIP SEARCH])
• Pressing and holding S/Tsearches at a 10 % ratio.
Alphabet search (applicable only for iPod USB and ANDROID source)
You can search for a file according to the first character.
For iPod USB source
1 Turn the volume knob quickly to enter character search.
2 Turn the volume knob to select the character.
• Select “
*” to search for a character other than AtoZ, 0to9.
3 Press S/Tto move to the entry position.
• You can enter up to 3characters.
4 Press the volume knob to start searching.
For ANDROID source
1 Press / to enter character search.
2 Turn the volume knob to select the character.
^A^: Upper case letters (A to Z)
_A_: Lower case letters (a to z)
-0-: Numbers (0 to 9)
***: Character other than AtoZ, 0to9
3 Press the volume knob to start searching.
• To return to the root folder/first file/top menu, press 5.
(Not applicable for
BT AUDIO source.)
• To return to the previous setting item, press .
• To cancel, press and hold .
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 11JS_KWD_KDC_BT720DAB_XN_EN_5.indd 11 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

12 ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CD/USB/iPod/ANDROID
Settings to use KENWOOD Remote application
KENWOOD Remote application is designed to control the KENWOOD car
receiver’s operations from the iPhone/iPod (via USB input terminal).
Preparation:
Install the latest version of KENWOOD Remote application on your device
before connecting. For more information, visit
<www.kenwood.com/cs/ce/>.
You can make the settings in the same way as connection via Bluetooth.
( 19, 20)
Other settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
USB
MUSIC DRIVE DRIVE CHANGE
:The next drive ( [DRIVE 1] to [DRIVE 4] ) is selected
automatically and playback starts.
Repeat steps
1 to 3 to select the following drives.
SKIP SEARCH 0.5% / 1% / 5% / 10% : While listening to iPod USB or ANDROID source, selects
the skip search ratio over the total files.
Preparation:
Select
[ON] for [BUILT-IN AUX] for [SOURCE SELECT] . ( 5)

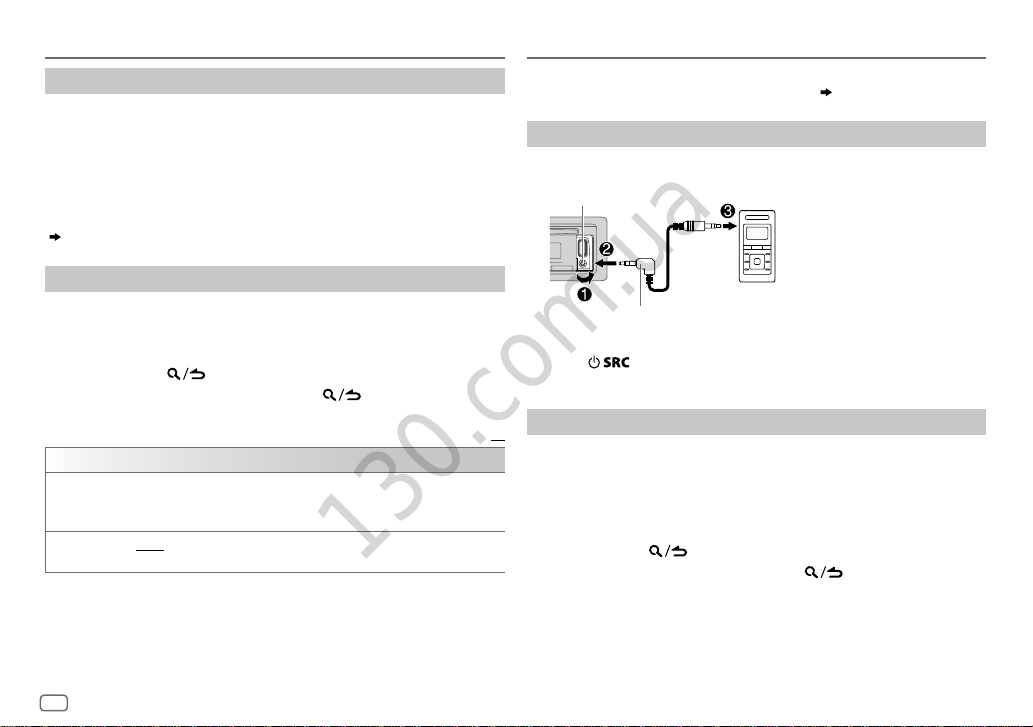

Start listening
1 Connect a portable audio player (commercially available).
2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.
Set the AUX name
While listening to a portable audio player connected to the unit...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select [SYSTEM] , then press the knob.
3 Turn the volume knob to select [AUX NAME SET] , then press the knob.
4 Turn the volume knob to select an item, then press the knob.
AUX (default)/ DVD / PORTABLE / GAME / VIDEO / TV
5 Press and hold to exit.
To return to the previous setting item, press .
AUX
Auxiliary input jack
Portable audio
player
3.5mm stereo mini plug with “L” shaped connector
(commercially available)
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 12JS_KWD_KDC_BT720DAB_XN_EN_5.indd 12 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

ENGLISH 13
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Spotify
Preparation:
Install the latest version of the Spotify application on your device (iPhone/
iPod touch), then create an account and log in to Spotify.
• Select
[ON] for [SPOTIFY SRC] in [SOURCE SELECT] . ( 5)

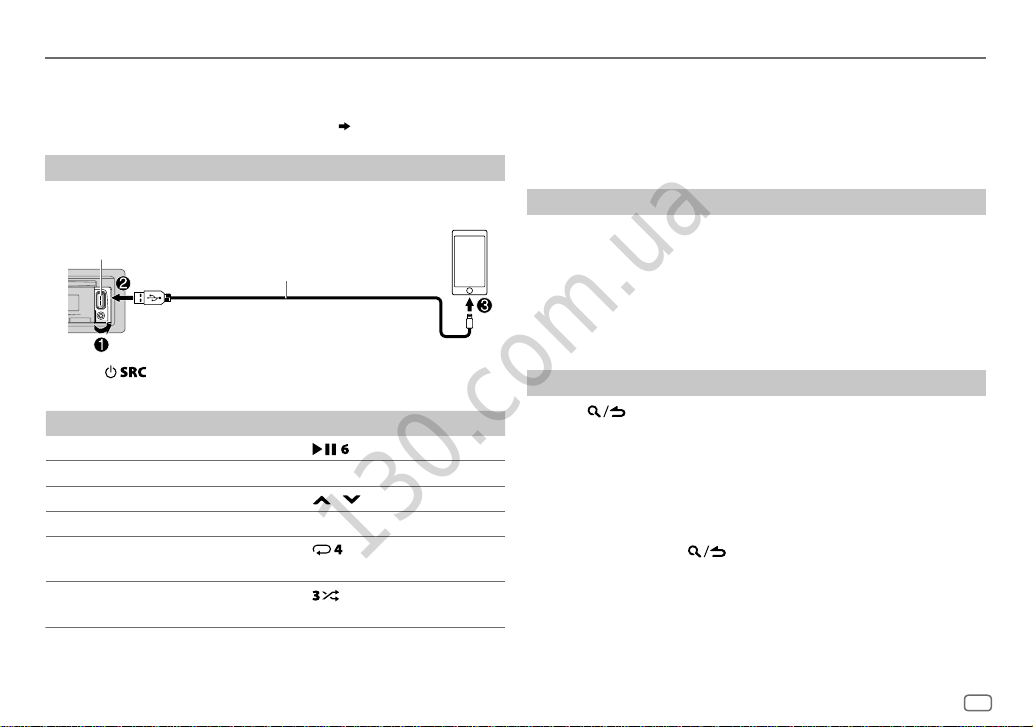

Start listening
1 Open the Spotify application on your device.
2 Connect your device to the USB input terminal.
3 Press repeatedly to select SPOTIFY.
Broadcast starts automatically.
To On the faceplate
Playback/pause Press .
Skip a track Press S*4/T.
Thumbs up or thumbs down*3Press / .
Start radio Press and hold 5.
Repeat play*5Press repeatedly.
REPEAT ALL / REPEAT ONE*
4/
REPEAT OFF
Random play*5Press repeatedly.*4
SHUFFLE ON/SHUFFLE OFF
USB input terminal KCA-iP102/KCA-iP103 (optional accessory)
*1
or accessory of the iPod/iPhone
*2
*1
KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
*2
Do not leave the cable inside the car when not using.
*3
This feature is available for tracks in Radio only. If thumbs down is selected, the current
track is skipped.
*4
Available for premium account users only.
*5
Available for tracks in Playlists only.
Save favorite song information
While listening to the Radio on Spotify...
Press and hold the volume knob.
“SAVED” appears and the information is stored to “Your Music” or “Your
Library” on your Spotify account.
To unsave, repeat the same procedure.
“REMOVED” appears and the information is removed from “Your Music”
or “Your Library” on your Spotify account.
Search for a song or station
1 Press .
2 Turn the volume knob to select a list type, then press the knob.
The list types displayed differ depending on the information sent
from Spotify.
3 Turn the volume knob to select the desired song or station.
4 Press the volume knob to confirm.
You can browse through the list quickly by turning the volume knob
quickly.
To cancel, press and hold .
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 13JS_KWD_KDC_BT720DAB_XN_EN_5.indd 13 8/25/2017 3:22:16 PM8/25/2017 3:22:16 PM
Autogoods “130”
130.com.ua

14 ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH — Connection
Supported Bluetooth profiles
– Hands-Free Profile (HFP)
– Advanced Audio Distribution Profile (A2DP)
– Audio/Video Remote Control Profile (AVRCP)
– Serial Port Profile (SPP)
– Phonebook Access Profile (PBAP)
Supported Bluetooth codecs
– Sub Band Codec (SBC)
– Advanced Audio Coding (AAC)

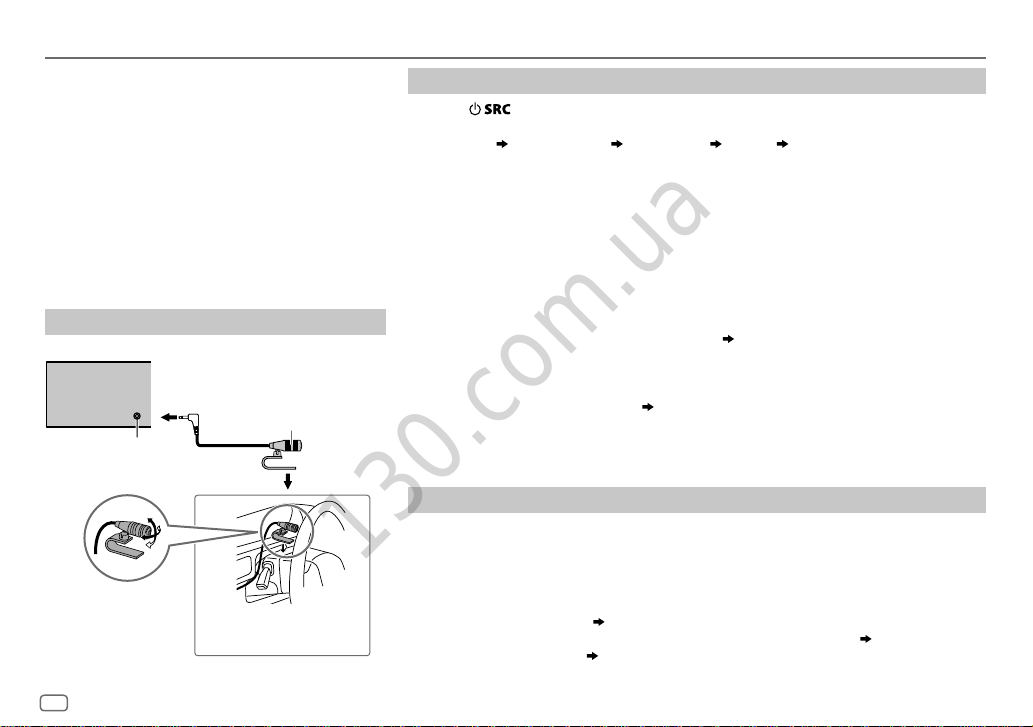

Connect the microphone
BLUETOOTH®
Microphone
(supplied)
Rear panel
Microphone input jack
Secure using cord clamps
(not supplied) if necessary.
Adjust the
microphone angle
Pair and connect a Bluetooth device for the first time
1 Press to turn on the unit.
2 Search and select this unit model name (KDC-BT7**DAB) on the Bluetooth device.
“PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” appears on
the display.
• For some Bluetooth devices, you may need to enter the Personal Identification Number
(PIN) code immediately after searching.
3 Press the volume knob to start pairing.
“PAIRING OK” appears when pairing is completed.
Once pairing is completed, Bluetooth connection is established automatically.
“BT1” and/or “BT2” indicator on the faceplate lights up.
• This unit supports Secure Simple Pairing (SSP).
• Up to five devices can be registered (paired) in total.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even
if you reset the unit. To delete the paired device,
18, [DEVICE DELETE] .
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected
at any time.
However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and
switch between these five devices.
( 19)
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect
the device to the unit manually.
• Refer to the instruction manual of the Bluetooth device for more information.
Auto Pairing
When you connect iPhone/iPod touch/Android device to the USB input terminal, pairing
request (via Bluetooth) is automatically activated.
Press the volume knob to pair once you have confirmed the device name.
Automatic pairing request is activated only if:
– Bluetooth function of the connected device is turned on.
–
[AUTO PAIRING] is set to [ON] . ( 18)
– KENWOOD MUSIC PLAY application is installed on the Android device ( 10) and
[BROWSE MODE] is selected. ( 11)
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 14JS_KWD_KDC_BT720DAB_XN_EN_5.indd 14 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua

ENGLISH 15
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®

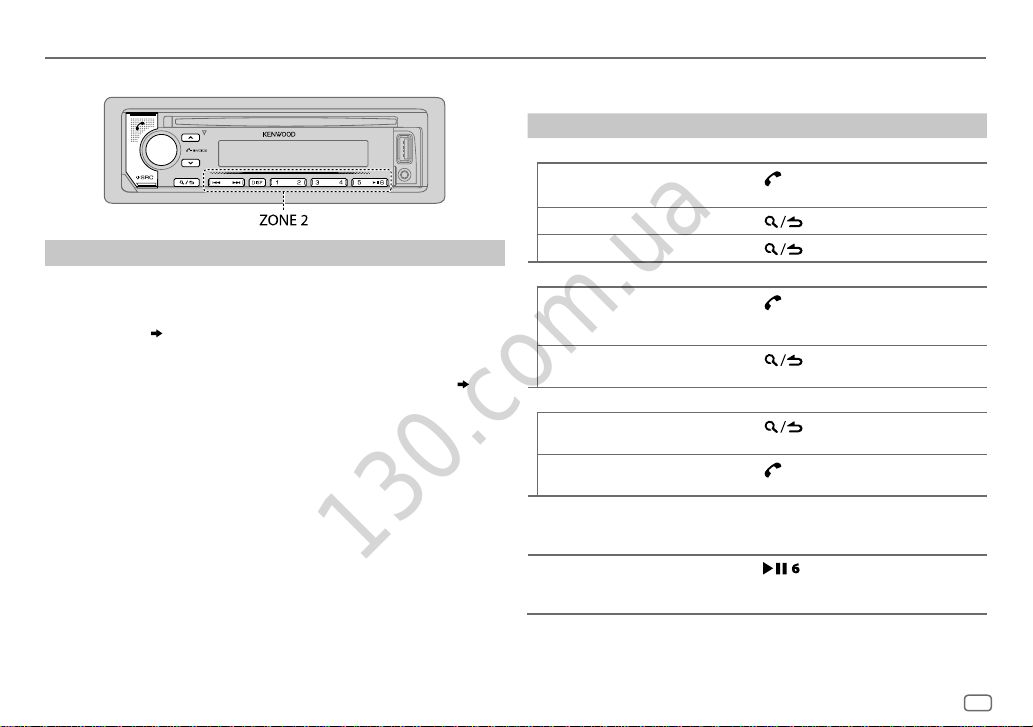

BLUETOOTH — Mobile phone
Receive a call
When there is an incoming call:
• ZONE 2 illuminates in green color and flashes.
• The unit answers the call automatically if
[AUTO ANSWER] is set to a
selected time.
( 16)
During a call:
• ZONE 1 illuminates according to the settings made for
[DISPLAY] ( 25)
and ZONE 2 illuminates in green color.
• If you turn off the unit or detach the faceplate, the Bluetooth
connection is disconnected.
The following operations may differ or not available depending on the
connected phone.
To On the faceplate
First incoming call...
Answer a call Press or the volume knob or one of
the number buttons (1to 6).
Reject a call Press .
End a call Press .
While talking on the first incoming call...
Answer another
incoming call and hold
the current call
Press .
Reject another incoming
call
Press .
While having two active calls...
End current call and
activate held call
Press .
Swap between the
current call and held call
Press .
Adjust the phone volume
[00] to [35] (Default: [15] )
Turn the volume knob during a call.
• This adjustment will not affect the
volume of the other sources.
Switch between hands-free
and private talk modes
Press during a call.
• Operations may vary according to the
connected Bluetooth device.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 15JS_KWD_KDC_BT720DAB_XN_EN_5.indd 15 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua

16 ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
Improve the voice quality
While talking on the phone...
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
MIC GAIN LEVEL –10 to LEVEL +10 ( LEVEL –4 ): The sensitivity of the
microphone increases as the number increased.
NR LEVEL LEVEL –5 to LEVEL +5 ( LEVEL 0 ):Adjust the noise reduction level until
the least noise is being heard during a phone conversation.
ECHO CANCEL LEVEL –5 to LEVEL +5 ( LEVEL 0 ):Adjust the echo cancellation delay
time until the least echo is being heard during a phone conversation.
Make the settings for receiving a call
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
Default: XX
SETTINGS
AUTO ANSWER 1
to 30 :The unit answers incoming call automatically in the selected time
(in seconds).;
OFF :Cancels.
BATT/SIGNAL* AUTO :Shows the strength of the battery and signal when the unit detects
a Bluetooth device and the Bluetooth device is connected.;
OFF :Cancels.
* Functionality depends on the type of the phone used.
Make a call
You can make a call from the call history, phonebook, or dialing the
number. Call by voice is also possible if your mobile phone has the
feature.
1 Press to enter Bluetooth mode.
“(First device name)” appears.
• If two Bluetooth phones are connected, press again to switch to
another phone.
“(Second device name)” appears.
2 Turn the volume knob to select an item (see the following table),
then press the knob.
3 Repeat step 2until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press .
CALL HISTORY (Applicable only if the phone supports PBAP.)
1 Press the volume knob to select a name or a phone number.
• “INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part
of the display to indicate the previous call status.
• Press
DISP to change the display category (NUMBER or NAME).
• “NO DATA” appears if there is no recorded call history.
2 Press the volume knob to call.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 16JS_KWD_KDC_BT720DAB_XN_EN_5.indd 16 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua

ENGLISH 17
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
PHONE BOOK (Applicable only if the phone supports PBAP.)
1 Turn the volume knob quickly to enter alphabet search mode (if the
phonebook contains many contacts).
The first menu (ABCDEFGHIJK) appears.
• To go to the other menu (LMNOPQRSTUV or WXYZ1
* ), press
/ .
• To select the desired first letter, turn the volume knob or press
S/T , then press the knob.
Select “1” to search with numbers and select “
* ” to search with
symbols.
2 Turn the volume knob to select a name, then press the knob.
3 Turn the volume knob to select a phone number, then press the knob
to call.
• The phonebook of the connected phone is automatically transferred to
the unit when pairing.
• Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL.
• This unit can display only non-accent letters. (Accent letters such as “Ú”
is shown as “U”.)
NUMBER DIAL 1 Turn the volume knob to select a number (0 to 9) or character
(, #, +).
2 Press S/T to move the entry position.
Repeat steps
1 and 2 until you finish entering the phone number.
3 Press the volume knob to call.
VOICE Speak the name of the contact you want to call or the voice command to
control the phone functions.
( Make a call using voice recognition)
BATT LOW
/ MID / FULL
*
:Shows the strength of the battery.
NO SIGNAL / LOW / MID / MAX
*
:Shows the strength of the current received signal.
* Functionality depends on the type of the phone used.
Make a call using voice recognition
1 Press and hold to activate the voice recognition of the
connected phone.
2 Speak the name of the contact you want to call or the voice
command to control the phone functions.
• Supported Voice Recognition features vary for each phone. Refer to the
instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of
iPhone.
Settings in memory
Store a contact in memory
You can store up to 6 contacts into the number buttons (1to 6).
1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY] , [PHONE BOOK] , or
[NUMBER DIAL] , then press the knob.
3 Turn the volume knob to select a contact or enter a phone number.
If a contact is selected, press the volume knob to show the phone
number.
4 Press and hold one of the number buttons (1to 6).
“STORED” appears when the contact is stored.
To erase a contact from the preset memory, select
[NUMBER DIAL] in step 2
and store a blank number.
Make a call from memory
1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1to 6).
3 Press the volume knob to call.
“NO MEMORY” appears if there is no contacts stored.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 17JS_KWD_KDC_BT720DAB_XN_EN_5.indd 17 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua

18 ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BLUETOOTH®
Other settings
1 Press the volume knob to enter
[FUNCTION] .
2 Turn the volume knob to select an item (see the following table), then press the
knob.
3 Repeat step 2until the desired item is selected/activated or follow the
instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press .
Default:
XX
BT MODE
PHONE SELECT
Selects the phone or audio device to connect or disconnect.
“
* ” appears in front of the device name when connected.
“” appears in front of the current playback audio device.
• You can only connect a maximum of two Bluetooth phones and one Bluetooth audio
device at any time.
AUDIO SELECT
DEVICE DELETE
1 Turn the volume knob to select a device to delete, then press the knob.
2 Turn the volume knob to select [YES] or [NO] , then press the knob.
PIN CODE EDIT
(0000)
Changes the PIN code (up to 6 digits).
1 Turn the volume knob to select a number.
2 Press S / T to move the entry position.
Repeat steps
1 and 2 until you finish entering the PIN code.
3 Press the volume knob to confirm.
RECONNECT ON :The unit automatically reconnect when the last connected Bluetooth device is within
range.;
OFF :Cancels.
AUTO PAIRING ON :The unit automatically pair supported Bluetooth device (iPhone/iPod touch/Android
device) when it is connected through USB input terminal.Depending on the operating
system of the connected device, this function may not work. ;
OFF :Cancels.
INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;
NO :Cancels.
Bluetooth test mode
You can check the connectivity of the supported profile
between the Bluetooth device and the unit.
• Make sure there is no Bluetooth device paired.
1 Press and hold .
“PLEASE PAIR YOUR PHONE PIN 0000” appears.
2 Search and select this unit model name
(KDC-BT7**DAB) on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.
“TESTING” flashes on the display.
The connectivity result (OK or NG) appears after the test.
PAIRING: Pairing status
HF CNT: Hands-Free Profile (HFP) compatibility
AUD CNT: Advanced Audio Distribution Profile (A2DP)
compatibility
PB DL: Phonebook Access profile (PBAP) compatibility
To cancel test mode, press and hold to turn off the
unit.
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 18JS_KWD_KDC_BT720DAB_XN_EN_5.indd 18 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua

ENGLISH 19
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

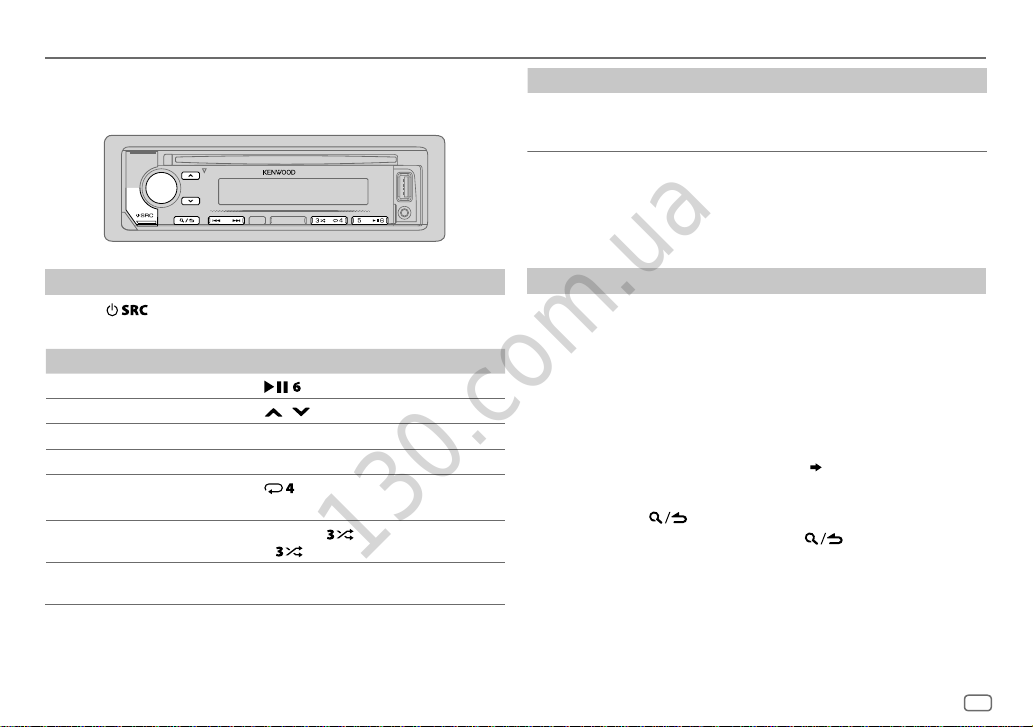

BLUETOOTH — Audio
While in BT AUDIO source, you can connect to five Bluetooth audio
devices and switch between these five devices.
Audio player via Bluetooth
1 Press repeatedly to select BTAUDIO.
2 Operate the Bluetooth audio player to start playback.
To On the faceplate
Playback/pause Press .
Select group or folder Press / .
Reverse/Forward skip Press S/T.
Reverse/Fast-forward Press and hold S/T.
Repeat play Press repeatedly.
ALL REPEAT , FILE REPEAT , REPEAT OFF
Random play Press and hold to select ALL RANDOM .
• Press to select
RANDOM OFF .
Select a file from a
folder/list
Refer to “Select a file from a folder/list” on
page 11.
BLUETOOTH®
To On the faceplate
Switch between
connected Bluetooth
audio devices
Press 5.*
*
Pressing the “Play” key on the connected device itself also causes switching of sound output
from the device.
Operations and display indications may differ according to their
availability on the connected device.
Settings to use KENWOOD Remote application
KENWOOD Remote application is designed to control the KENWOOD
car receiver’s operations from the iPhone/iPod (via Bluetooth or via USB
input terminal) or Android smartphone (via Bluetooth).
Preparation:
Install the latest version of KENWOOD Remote application on your device
before connecting. For more information, visit
<www.kenwood.com/cs/ce/>.
1 Press the volume knob to enter [FUNCTION] .
2 Turn the volume knob to select an item ( 20) , then press the
knob.
3 Repeat step 2until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press .
JS_KWD_KDC_BT720DAB_XN_EN_5.indd 19JS_KWD_KDC_BT720DAB_XN_EN_5.indd 19 8/25/2017 3:22:17 PM8/25/2017 3:22:17 PM
Autogoods “130”
130.com.ua
