BEFORE USEBEFORE USE
IMPORTANT
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual. Please keep the
manual in a safe and accessible place for future
reference.
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
How to read this manual:
• Illustrations of KW-V620BT Region 3 are mainly used for explanation. The displays and panels shown in
this manual are examples used to provide clear explanations of the operations. For this reason, they may
be different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the remote controller (RM-RK258), see page50.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Settings> menu. (Page48)
• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available
from <http://www.jvc.net/cs/car/>.
2016KW-VMidM.indb22016KW-VMidM.indb2 2016/01/1310:132016/01/1310:13

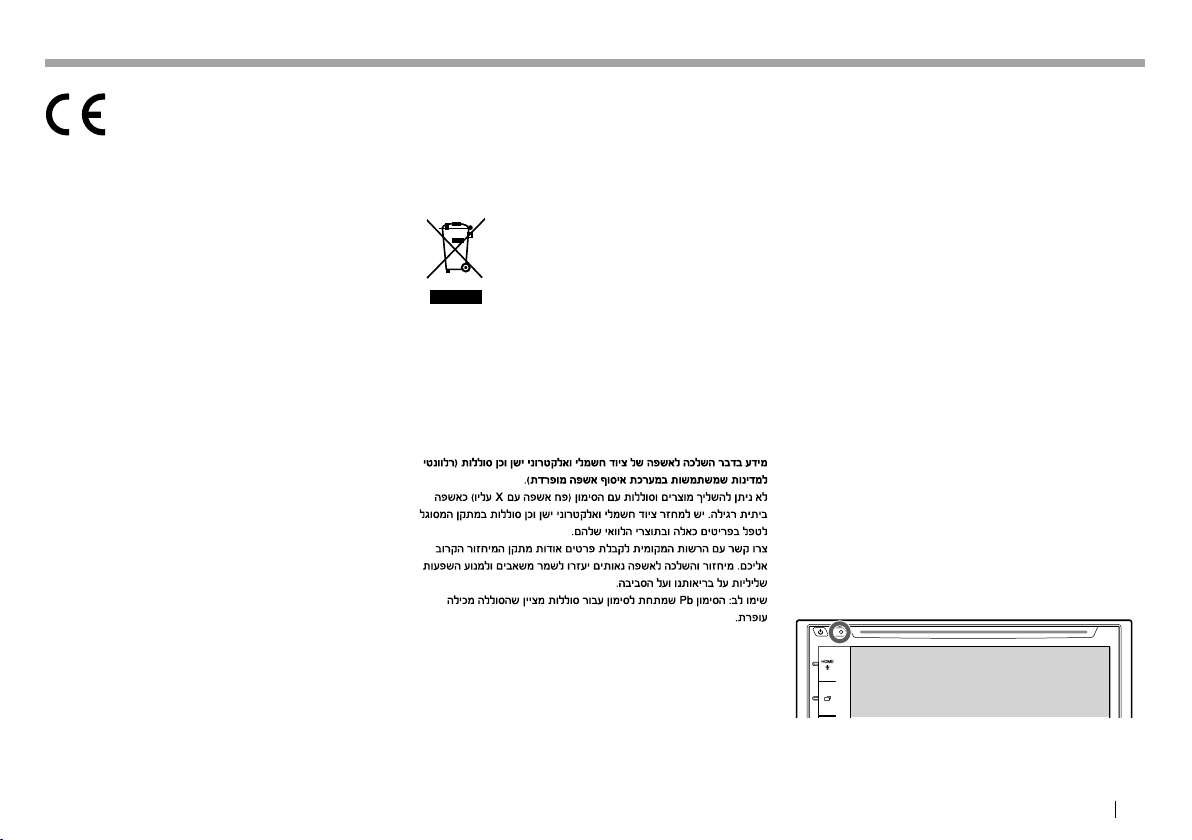

ENGLISH 3
For KW-V620BTM
Declaration of Conformity with regard to the
EMC Directive
Declaration of Conformity with regard to the
R&TTE Directive 1999/5/EC
Declaration of Conformity with regard to the
RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, Japan
EU Representative:
JVC Technical Services Europe GmbH
Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel,
Germany
English
Hereby, JVC KENWOOD declares that this unit
“KW-V620BTM” is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Türkçe
Bu vesileyle JVC KENWOOD, “KW-V620BTM”
ünitesinin,1999/5/EC Direktifinin başlıca
gereksinimleri ve diğer ilgili hükümleri ile uyumlu
olduğunu beyan eder.
For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan
Atik Elektrikli ve Elektronik Eşyalarin Kontrolü
Yönetmeliğe uygun olarak üretilmiştir.
Eski Elektrik ve Elektronik Ekipmanların İmha
Edilmesi Hakkında Bilgi (ayrı atık toplama
sistemlerini kullanan ülkeleri için uygulanabilir)
Sembollü (üzerinde çarpı işareti olan çöp
kutusu) ürünler ev atıkları olarak atılamaz.
Eski elektrik ve elektronik ekipmanlar,
bu ürünleri ve ürün atıklarını
geri dönüştürebilecek bir tesiste
değerlendirilmelidir. Yaşadığınız bölgeye
en yakın geri dönüşüm tesisinin yerini
öğrenmek için yerel makamlara müracaat
edin. Uygun geri dönüşüm ve atık imha
yöntemi sağlığımız ve çevremiz üzerindeki
zararlı etkileri önlerken kaynakların
korunmasına da yardımcı olacaktır.
For Israel
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
❏How to reset your unit
If the unit fails to operate properly, press the reset
button.
BEFORE USEBEFORE USE
2016KW-VMidM.indb32016KW-VMidM.indb3 2016/01/1310:132016/01/1310:13

4
INITIAL SETTINGSINITIAL SETTINGS
Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the
<Settings> screen. (Page46)
1Perform the initial settings.

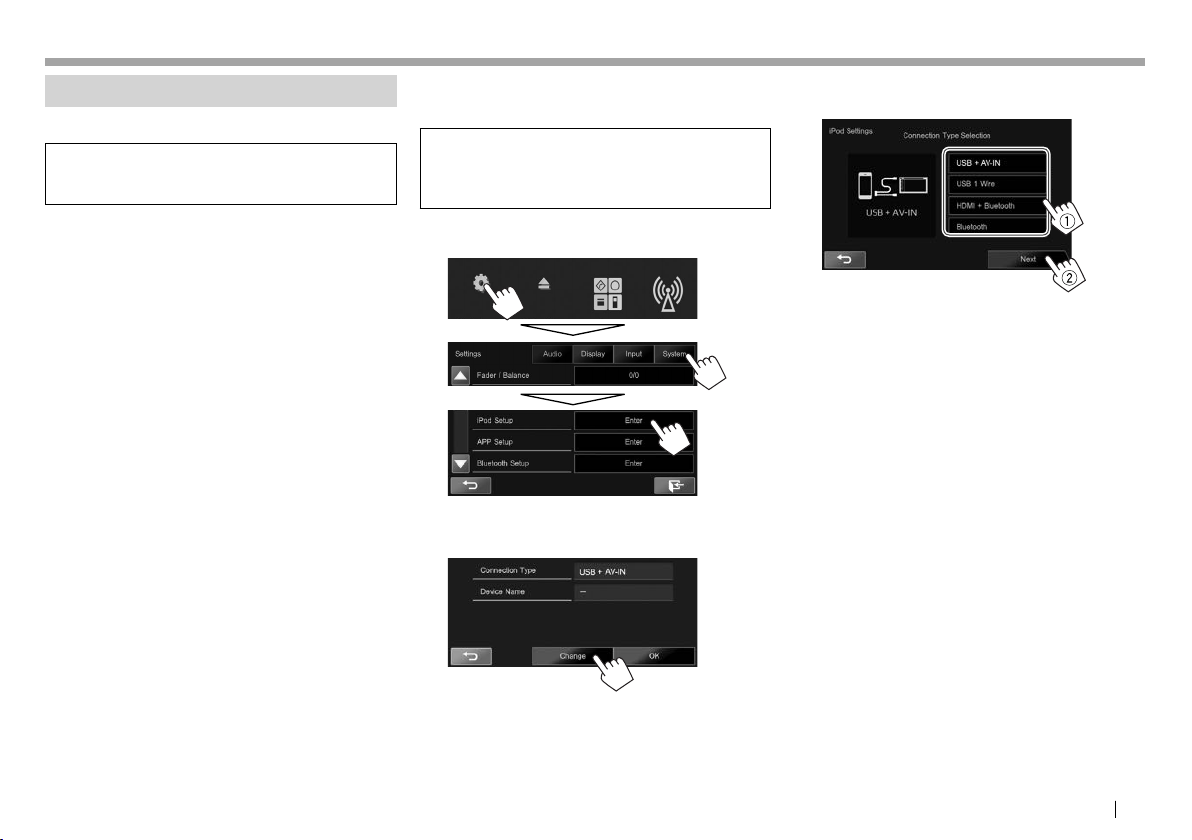

<Language>
(Page48)
Select the text language
used for on-screen
information.
• Set <GUI Language>
to display the operation
buttons and menu
items in the selected
language ([Local]) or
English.
<R-CAM Interrupt>
(Page48)
Select [ON] when
connecting the rear view
camera.
<User Customize>
(Page43)
Change the display
design.
<Demonstration>
(Page47)
Activate or deactivate the
display demonstration.
2Finish the procedure.
The Home screen is displayed.
• [AV Off] is selected initially. Select the
playback source. (Page 8)
Calendar/Clock settings
1Display the Home screen.
On the monitor panel:
2Display the <Settings> screen.
3Display the <Calendar Setting> screen.
4Select the time display format (1), then set
the calendar and the clock time (2).
• Press [Set] to set the second to “00”.
5Finish the procedure.
• Date is displayed on the Home screen when the
Home screen design below is selected on the
<User Customize> screen. (Page43)
2016KW-VMidM.indb42016KW-VMidM.indb4 2016/01/1310:132016/01/1310:13

ENGLISH 5
BASICSBASICS
Component names and functions
VCaution on the volume setting:
Digital devices produce very little noise compared
with other sources. Lower the volume before
playing these digital sources to avoid damaging
the speakers by sudden increase of the output
level.

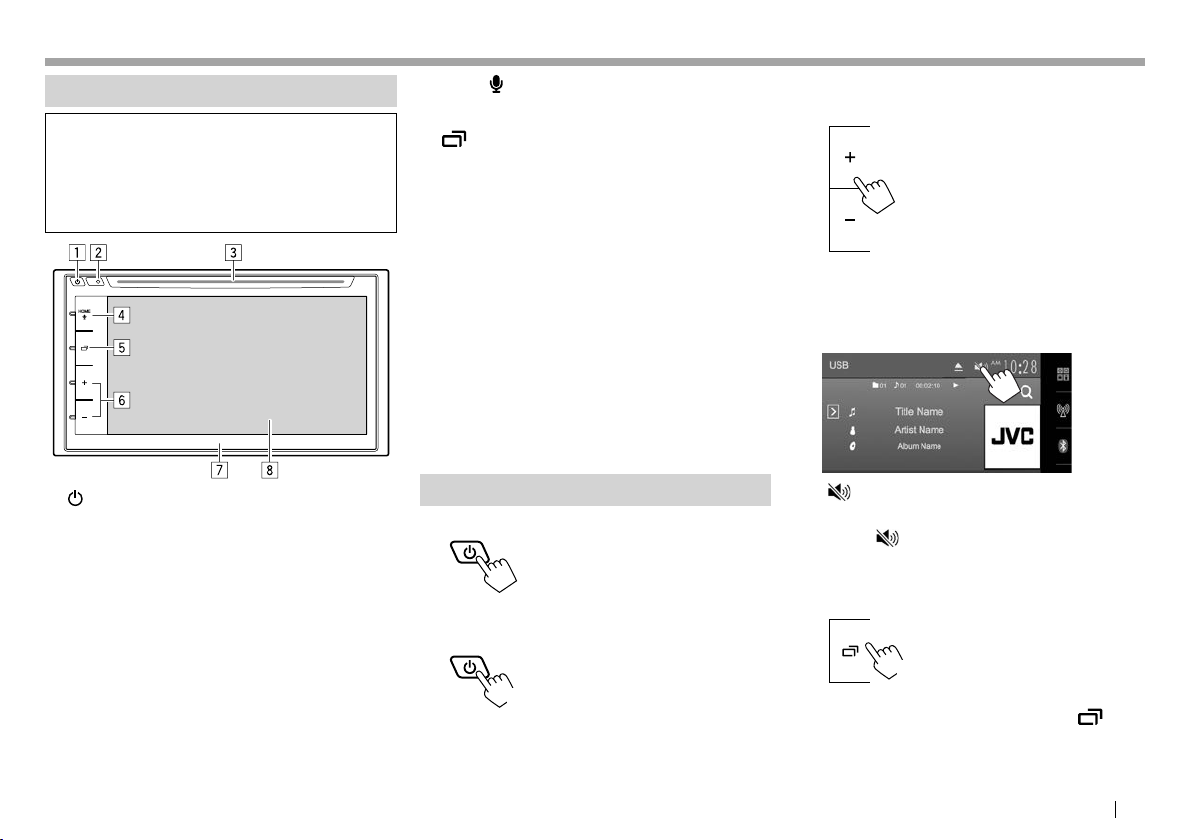

1button
• Turns on the power. (Press) (See the right
column.)
• Turns off the power. (Hold) (See the right
column.)
• Pops up the short-cut menu when pressed on
the control screen. (Press)(Page 9)
2Reset button
Resets the unit. (Page 3)
3Loading slot
4HOME/ button
• Displays the Home screen. (Press) (Page 7)
• Activates the voice dialing. (Hold) (Page 35)
5button
• Switches the screen. (Press)
– For KW-V620BT: The screen switched
between the current source and the App
screen from the connected iPod touch/
iPhone/Android. (Press) (Page 20)
– For KW-V620BTM: The screen switched to
depends on the <DISP Key> setting in the
<Navigation> screen (Page28).
• Turns off the screen. (Hold) (See the right
column.)
• Turns on the screen. (Hold) (See the right
column.)
6Volume +/– button
Adjusts the audio volume. (See the right column.)
7Monitor panel
8Screen (touch panel)
Common operations
❏Turning on the power
❏Turning off the power
(Hold)
❏Adjusting the volume
To adjust the volume (00 to 35)
Press + to increase, and press −to decrease.
• Holding + increases the volume continuously to
level 15.
To attenuate the sound
The [ ] button becomes blue.
To cancel the attenuation: Press the same button
again. (The [ ] button becomes white.)
❏Turning off the screen
On the monitor panel:
(Hold)
To turn on the screen: Press and the hold , or
touch the display.
2016KW-VMidM.indb52016KW-VMidM.indb5 2016/01/1310:132016/01/1310:13
