König KNVMA3444 User manual

KNVMA3444
4-to-4 port HDMI™ matrix
4x HDMI™ input - 4x HDMI™ output
Video
IP & RS232 instruction

2

3
1) First install the le: AXR2E_Conguration_Utility_Setup_32bit_v10200.exe
2) Connect the compute to the matrix’s LAN interface with a CAT5e/6 cable, then turn on the matrix.
3) Open AXR2E congurator
4) DHCP should be opened if matrix connects directly to the computer.
Click DHCP Server
Start / End IP address: Fill in the distributed IP in DHCP.
Server IP address: current IP address. Note that the computer IP can not be obtained automatically if connect directly to matrix.
gateway/subnet/domain name server: default values or user-dened are available
Press Start button to start DHCP
5) Restart the matrix power supply and below IP address of matrix will be shown.
KNVMA3444
4 - to - 4 port matrix IP control:

4
6) If the matrix is connected by router repeater device, such as router which open the DHCP, please ignore Step 3 and Step 4.
7) Switch to Device Management, press the Search button to nd the device.
8) It will be shown in the list if the device has been found.
9) After device selected, pressing the Web Browser button to start build-in browser. Or select the Use External Browser button to open from external browser.
10) Enter username and password, the default are both admin.
11) After entering the browser interface, the function introductions are as below: (logout: exit browser, Reboot: restart matrix)

5
Switch: channel change
EDID: EDID settings

6
Basic Settings: Network settings
Security: Change Username/Password settings

7
KNVMA3434
4 - to - 4 port Matrix RS232 control:

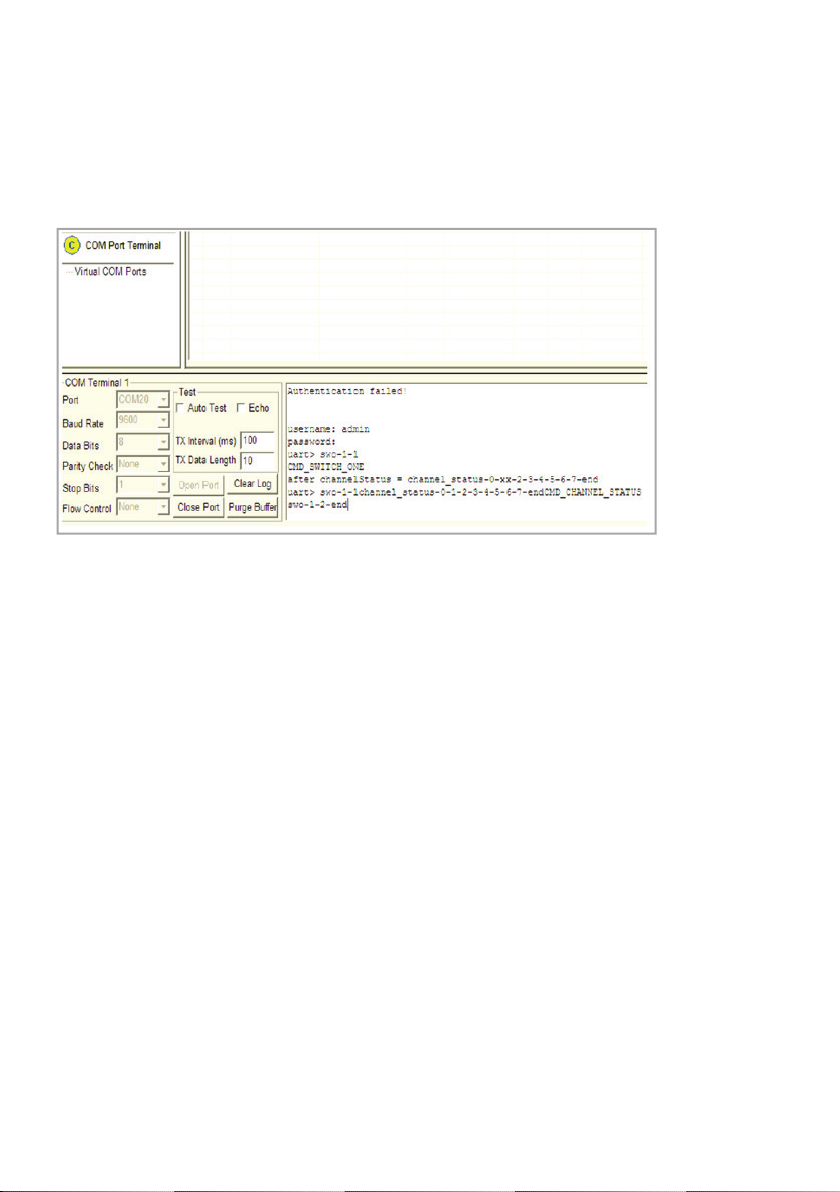

Operate matrix by RS232 port and switch to Com Port Terminal.
After serial parameter set, click Open Port.
RS232 instruction (help: inquiry all instructions description)
1) Enter Username and Password (Username: admin) (Password: admin)
2) Channel switching instruction: swo-x-y-end, x stands for output, starting from 0. Y stands for input, starting from 0.
3) EDID changing instruction: edo-x-y:z-end, x stands for output, starting from 0. y stands for EDID selection mode, the range is from 0 to 7, when x is from 0 to 6, no need to
consider what z is.
