Küppersbusch cafe profi EKV 6600.0 User manual

café profi
Operating instructions

2
Dear Küppersbusch Customer,
Thank you for deciding to buy one of our products. Your appliance meets high standards, and
operation is simple. Even so, take your time when reading these operating instructions. By do-
ing so, you will become familiar with your appliance for optimum and trouble-free utilization.
Please note the safety instructions.
Modifications
Text, illustrations and data are consistent with the technical status of the appliance at the time
when these operating instructions went to press. The manufacturers reserve the right to make

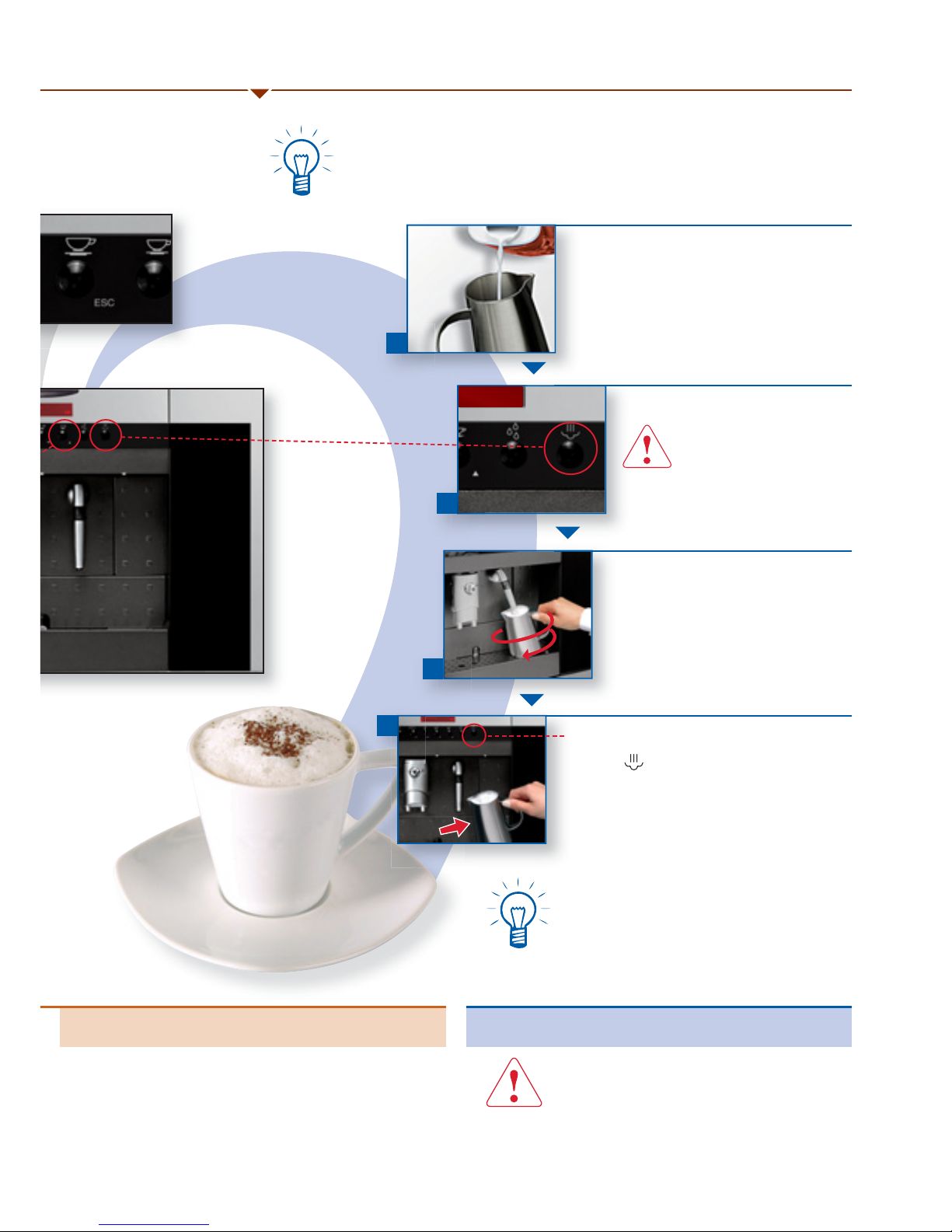

modifications in accordance with further developments.
Symbols used
Identifies all instructions that are important to safety.
Failure to observe these instructions can lead to injury, damage to the device or
to the system!
Ñ
Denotes steps that must be taken in sequence
n Denotes a listing
Denotes useful tips
Scope
These operating instructions apply to the following model:
Variations in the model are referred to in the text.
Model ID code
EKV6600.0 702406

3
Contents
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of appliance 6
Operating- and display elements . . . . . . . . . . . . . . 6
Operating panel. . . . . . . . . . . . . . . . . . . . . . . . . 6
Behind the operating panel . . . . . . . . . . . . . . . . . 7
Behind the service door . . . . . . . . . . . . . . . . . . . . 7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Initial Operation 8
Water hardness . . . . . . . . . . . . . . . . . . . . . . . . . 8
Filling the water tank . . . . . . . . . . . . . . . . . . . . . . 8
Filling coffee beans . . . . . . . . . . . . . . . . . . . . . . . 8
Switching on the appliance . . . . . . . . . . . . . . . . . 9
Venting the system. . . . . . . . . . . . . . . . . . . . . . . . 9
User Settings/Programming 10
Preparing coffee 12
AromaControl . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Small coffee . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cappuccino . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Drawing hot water/steam 14
Care and maintenance 15
Water tank/Bean container . . . . . . . . . . . . . . . . . 15
Drip tray/Coffee-grounds container . . . . . . . . . . . . 15
Coffee spout . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Nozzle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Brewing group . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Descaling 17
Cleaning cycle 19
Rectifying faults yourself 20
Technical specifications 21
Disposal 22
Küppersbusch Customer Service 23

4
Safety instructions
The appliance is designed in accordance with acknowledged rules applicable
to engineering and the relevant safety regulations. To prevent damage and
accidents however, proper handling of the appliance is a precondition. Please
observe these operating instructions. They must be kept safely and passed on
to future owners.
Emergency n
Immediately remove plug from the mains or switch off the mains fuse.
Appliance nIndoors.
may be used
nFor preparing coffee, Small coffee, hot water, for frothing milk and for
exclusively
steam-heating drinks.
nFor household purposes.
Never use nFor other purposes other than those described above, otherwise danger
the appliance may result.
Installation nUse the appliance only after it has been fitted in.
nThe appliance may only be fitted in accordance with separate
installation instructions and by qualified personnel and connected to
the mains.
nBefore using the appliance for the first time, please read the chapter
«Initial Operation».
Mains connection n The appliance may be connected only to a suitable socket.
nMains voltage must be in accordance with the details indicated on the
type plate of the appliance.
nRecommendation: connect appliance via an RCD.

5
Safety instructions
Dangers nThe appliance must not be used by children and persons not trained
in the use of the appliance.
nThe appliance is dangerous to children. Keep children away from the
appliance. Switch off the appliance when unattended.
nKeep packaging material out of the reach of children.
nDo not point the steam-/hot water nozzle at yourself or others
(danger of scalding).
nDo not insert any objects into the openings of the appliance.
(Danger! High voltage!).
n
As far as it is accessible, do not touch plug with wet hands or pull plug from
the socket by the cable.
n Caution: you may scald yourself if you come into contact with hot water,
steam or the nozzle.
nDo not remove the drip tray during preparation, otherwise you may
scald yourself with hot drinks.
Defects n
Do not use appliance if it is faulty or faults are suspected, e.g. if appliance has
been dropped.
nRepairs should be carried out only by Customer Service or authorised
specialist personnel.
nDo not use appliance if mains cable is defective. Have mains cable
replaced only by customer service. (Danger: high voltage.)
n
Switch off appliance before opening service door. Danger of scalding!
Cleaning/ n Before cleaning, remove mains plug if possible and allow appliance to cool.
Descaling nDo not spray down appliance with water.
n
Do not dry parts of the appliance in the oven or in the microwave oven.
Before prolonged nEmpty water tank and bean container.
periods out of use
nEmpty and clean drip tray and coffee-grounds container.
nSwitch off appliance.
Spares nIn the interests of safety, use only original spares and accessories.
Fire n
In the event of fire, use only carbon dioxide (CO2) to extinguish flames.

6
Description of appliance
Operating- and display elements
Operating panel (can be folded out)
Rod handle
Operating panel (can be folded out)
AromaControl
Nozzle
Coffee spout
Service door
Drip tray
Coffee-grounds container
Drip mesh
Display
«Drip tray»
Descale
Programming, Standby,
User Settings
«Large coffee»
«Coffee»
«Small coffee»
«Hot water»
«Steam»
To open panel, press rod handle
Plain text display
SELECT PRODUCT
READY FOR USE

7
Description of appliance

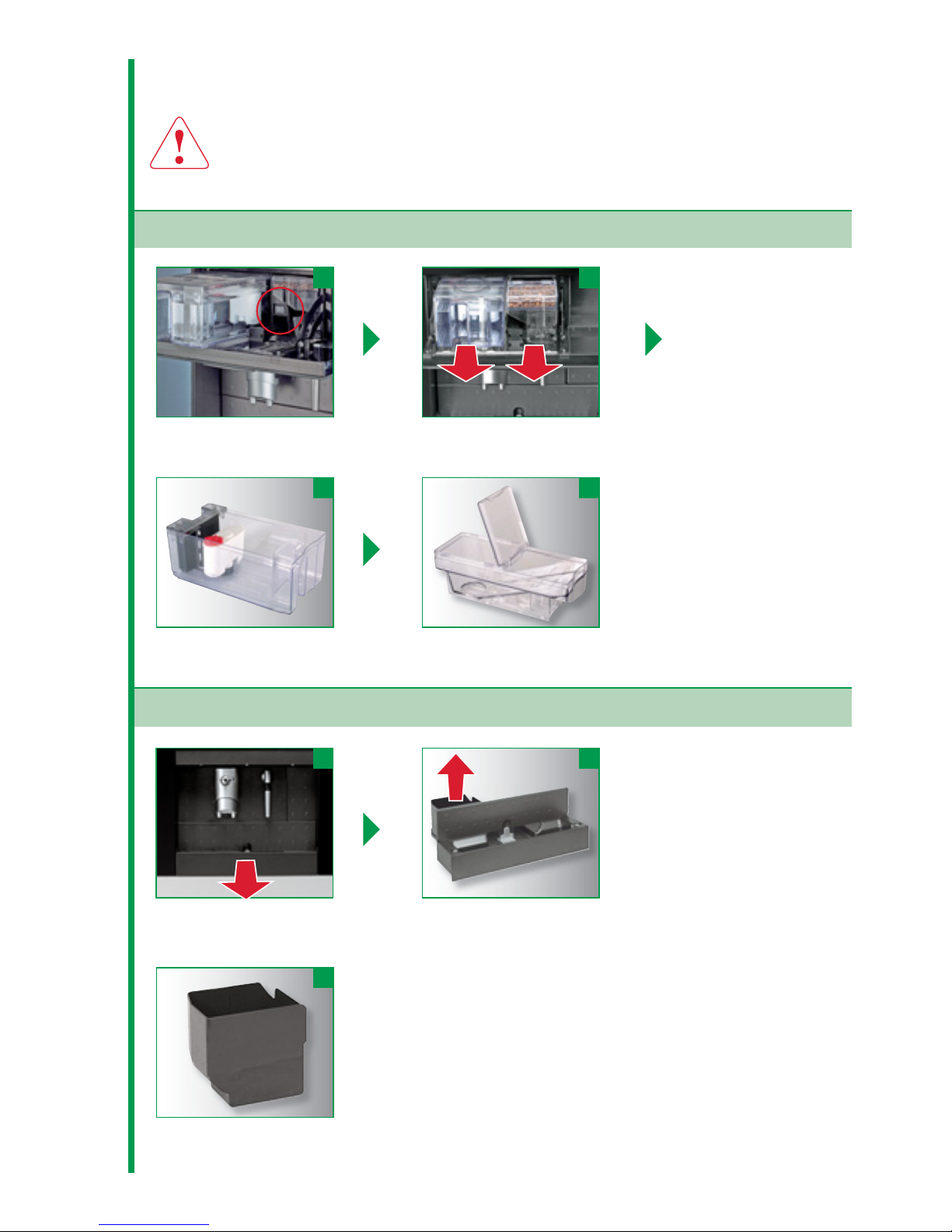

Behind the operating panel
Behind the service door
Accessories
Water tank
Bean container
Brewing group
Grinder setting
Key Brush Drip guard Water filter Water-hardness
test strip
Coffee-oil
solvent
Main switch
Further accessories required can be obtained from Customer Services.

1 2 3
4
1 2 3
8
Initial Operation
Filling the water tank
Filling coffee beans
Ñ
Open operating panel by
pressing on rod handle
Ñ Remove water tank
Ñ Insert water filter
according to instructions
in package
Ñ Fill with fresh water
(max. 1.7 l)
Ñ Insert water tank
The appliance can also be used without a water
filter, though this requires more frequent desca-
ling. Using the water filter improves the quality of
the coffee, and places less strain on the parts of
the appliance.
Ñ
To program water filter, see User Settings/
Programming.
Ñ Remove bean container Ñ Fill with coffee beans
(max. 300 g)
Ñ Insert bean container
Range/User settings
Degree of hardness 1 Degree of hardness 2 Degree of hardness 3 Degree of hardness 4
Water-hardness test strip
corresponds to German degree of hardness [˚dH]
0–7 7–14 14–21 above 21
corresponds to French degree of hardness [˚fH] 0–12.5 12.5–25 25–37.5 above 37.5
Water hardness
To test for water hardness: hold strip under water for one second. Take a reading after 1
minute. To set water hardness, see User Settings/Programming.

1 2
12
3
9
Initial Operation
Switching on the appliance
Venting the system
Ñ Switch on appliance at
main switch
Ñ Close operating panel. «Vent»
appears on plain text display
Ñ Place a tall vessel
under nozzle
Ñ Tap key and draw hot water until a steady
jet of water is produced
Ñ Tap key again to interrupt flow of hot
water. «Select product» and «Ready for
operation» appear on the plain text display
SELECT PRODUCT
READY FOR USE
HOT WATER
Ñ
For language settings, see User Settings/Programming.

2 31
10
User Settings/Programming
Start P Function Settings
Cancel by pressing «ESC» Select Confirm Select Confirm Cancel
Standby
The appliance switches over to energy-saving mode.
STANDBY
Water filter
Make this setting only when inserting water filter for the first time. Important: reset after
each change of filter!
WATERFILTER ON - OFF - RESET
Water hardness
The appliance should be adapted to the degree of water hardness (see Descaling).
WATER HARDNESS HARDNESS 1 - … 2 - … 3 - … 4
Illumination
On-off switching of illumination.
ILLUMINATION ON - OFF
Contrast
Adjusting contrast for the plain text display.
CONTRAST 10 20 30 40 50 60 70 80 90 100
Language
Selecting language for plain text display.
The following languages can be selected: German, French, English, Spanish and Dutch.
LANGUAGE Deutsch - FRANCAIS - …
Rinsing
Circuit is automatically cleaned upon switching on.
Coffee is prepared using fresh water.
RINSING ON - OFF
Temperature
Selecting the temperature for preparing coffee.
TEMPERATURE LOW - MEDIUM - HIGH
The *symbol blinking on the plain text display denotes the user setting
selected.
or
ÑÑÑ

1 2 3
11
User Settings/Programming
Start P Function Settings
Pre-brewing
The coffee is moisturized first of all. This is the best way of bringing out the taste.
If setting is «large», the coffee is pre-brewed for 4 seconds.
PREBREWING... ON - OFF - LARGE
Total coffee
The total number of coffee portions served is displayed.
TOTAL COFFEES
Timer
Selection of duration according to which the appliance is set to «Standby» (can be preset 3 hours).
TIMER STANDBY AFTER X:XX
Automatic switch CLOCK
CLOCK - CLOCK TIME - ON/OFF TIME
Cleaning cycle
The cleaning cycle is for degreasing the brewing group.
RINSING CYCLE
Factory settings
Reinstate all settings existing at time of delivery.
FACTORY SETTINGS NO - YES
Aroma of Small coffee
Selecting the amount of ground coffee for Small coffee.
AROMA SMALL COFFEE MILD - LEGER - STRONG
Aroma of coffee
Selecting the amount of ground coffee for coffee.
AROMA COFFEE MILD - LEGER - STRONG
Aroma of large coffee
Selecting the amount of ground coffee for large coffee.
AROMA LARGE COFFEE MILD - LEGER - STRONG
Cancel by pressing «ESC» Select Confirm Select Confirm Cancel
or
Setting whether or not on-off switching times are activated.
CLOCK ON - OFF
Schaltuhr
Setting of clock time.
CLOCK TIME XX:XX
Setting of on-off switching times.
ON/OFF TIME ON XX:XX
Schaltuhr
Setting whether or not clock time is displayed.
SHOW CLOCK TIME ON - OFF
OFF XX:XX
ÑÑÑ

1 SMALL COFFEE
A
B
C
12
Preparing coffee
Hot water and steam can scald! Point nozzle at drip tray!
Place 1 or 2 cups below spout
Ñ
Preheat cups
Ñ
For large cups: push coffee
spout up
Start preparation
Ñ
Tap required key:
■1 cup = once
■2 cups = twice
AromaControl
Strength of coffee is adjustable
on continuously sliding scale.
Small coffee
Settings
Small coffee
Standby
Can be cancelled
by tapping key
Amount to be filled Grinder setting
Ñ
Place cup below spout
Ñ
Hold down key until the
required quantity is reached.
■The quantity remains stored in the
memory
CoarseFine
Mild coffee Strong coffee
No coffee beans
should be in the grinder
when changing the
grinder setting

STEAM
A
B
C
D
13
Cappuccino
After starting the steam operation, some condensed water will be
produced at first.
Cappuccino
Amount for grinding Cleaning the nozzle
This can be selected before preparation, see User
Settings/Programming.
■Aroma of Small coffee
■Aroma of coffee
■Aroma of large coffee
Clean nozzle immediately after use with a damp
cloth
Caution: hot part. There is a danger of
burning yourself!
For cappuccino, pour coffee directly
into the milk froth.
Put the milk into a suitable
vessel.
■Cold milk froths better
■Fill vessel no more than one third
Start steam
Ñ
Point nozzle at drip tray
Caution: steam spray!
Frothing the milk
Ñ
Rotate vessel when frothing the
milk
Ñ
Stop the steam by tapping
key
Ñ
Remove vessel
Ñ
Prepare coffee
As soon as there is enough froth

HOT WATER
14
Drawing hot water/steam
Hot water
Steam
Danger: hot water and steam can scald.
Point nozzle at drip tray.
Ñ
Place cup under nozzle
Drawing hot water
Ñ
Tap key
Ñ
Tap key
Starting the steam
Ñ
Tap key
Ñ
Warm the drink by rotating
vessel
Ñ
Place cup under nozzle
After steam function has started, some
condensed water is produced at first.
As soon as the required temperature is
reached
Ñ
Tap key
As soon as the required quantity has been
reached
a
b
c
a
b
c

1 2
3 4
1 2
3
15
Care and maintenance
Water tank/Bean container
Drip tray/Strainer
Clean appliance, brewing group and accessories weekly without detergent
under the tap. Never wash appliance parts in the dishwasher, and never dry
them in the oven or in the microwave.
Ñ
Switch off appliance
Ñ
Remove tank/container
Ñ
Clean tank
(including strainers)
Ñ
Empty/Clean the bean container
Ñ
Remove drip tray
Ñ
Remove coffee-grounds container
Ñ
Clean coffee-grounds container

1 2 3
1 2
16
Care and maintenance
Brewing group
Ñ
Push top button and pull
coffee spout forwards.
Clean without detergent
under the tap.
Ñ
Push coffee spout onto
holder until it rests in.
Ñ
Pull lower part of nozzle
downwards
Ñ
Clean under the tap without detergent
Coffee spout
Ñ
Push drip guard to
AromaControl position
Ñ
Remove drip tray
Ñ
Open service door (pushbut
ton behind cover).
Ñ
Press PUSH
and pull brewing group forwards
Ñ
Insert key, turn anti-clockwise and
remove the top strainer.
Ñ
Clean/dry everything
Do not press PUSH
when assembling
Ñ
Reassemble strainer
and brewing group in
reverse sequence.
Ñ
Close service door of
brewing group.
Nozzle
Ñ
Push back coffee spout, push
drip guard to AromaControl
position.
Ñ
Open service door (push
button is behind cover).
Ñ
Remove drip tray
Proceed with care when using
the key.

DESCALING
YES
MACHINE IS
DESCALING
1 2
4
3
65
17
Descaling Whenever plain text display shows DESCALE or as required.
Under no circumstances use vinegar, as appliance will otherwise be damaged.
Use commercially available descaling agents that are suitable for this appliance.
For descaling, use the «appliance descaling agent» designed solely for this appliance. This
will provide you with professional and protective descaling. For straightforward ordering of the
«appliance descaling agent», please use the prepaid ordering card. If the appliance is switched
off during descaling, then descaling will continue after the appliance is switched on again.
Descaling lasts approx. 30 minutes.
Ñ
Remove water filter
Ñ
Add descaling agent in accordance with
manufacturer‘s instructions.
Reinsert water tank
Ñ
Place large vessel below
spout
Ñ
Hold down key for 5 seconds
Tap key ,
YES select
Tap key ,
this starts the descaling
Rinsing intervals are at
1-minute intervals until
message
RINSE MACHINE
PRESS WATER KEY
is displayed. For further
information, see «Rinsing».
ÑÑ
Preparation
Starting descaling
Suitable descaling agents

78
9 10
11 12
18
Descaling
Rinsing
Finishing descaling
Ñ
Thoroughly rinse water
tank
Ñ
Press key ,
Rinsing begins
Ñ
Fill with fresh water
press key to cancel and
continue the procedure
Rinsing is complete as
soon as the plain text
display indicates
RINSING FINISHED
PRESS WATER KEY
Ñ
Press key
Ñ
Thoroughly rinse water
tank
Ñ
Put back water filter
Ñ
Fill with fresh water
Ñ
Draw hot water until a steady
jet of water is produced
Ñ
Insert water tank
Ñ
Press key . Venting begins
Ñ
Push key to finish
RINSE MACHINE
PRESS WATER KEY

12 3
45 6
19
Cleaning cycle
Ñ
Add coffee-oil solvent
to the brewing group
Ñ
Insert brewing group
Ñ
Fill water tank
Ñ
Insert water tank
STANDBY
RINSING
Ñ
Tap key
RINSING CYCLE
FACTORY SETTINGS
Ñ
Select
RINSING CYCLE
by tapping key
RINSING CYCLE
Ñ
Confirm by tapping key
Ñ
Approx. 8.5 dl water is
pumped off in approx. 7
minutes.
Ñ
Place vessel below coffee
spout
Before starting cleaning cycle, empty drip tray and have a spare vessel handy. Large
amounts of water will be produced (approx. 8.5 dl), therefore watch vessel closely.
Clean your appliance every fortnight or after every 250 cups to ensure
trouble-free operation.
Once started, a cleaning cycle cannot be interrupted.
For optimum cleaning, we recommend the coffee-oil solvent manufactured by Sae-
co. This can be obtained from our Customer Service or through specialist dealers.
If other products are used, damage may result, for which no
responsibility can be accepted.

20
Rectifying faults yourself
■Brewing group cannot be
removed for cleaning
■Heating up takes a long
time
■No hot water or steam
produced
■Coffee is not hot enough
■No illumination
■ Coffee produced is too little,
or none is produced at all
■Appliance does not switch
on
see
Page
Ñ
Turn on main switch 9
Ñ
Check power connection
Ñ
Check fuse in interior installation of building
Ñ
Preheat cups with hot water 14
Ñ
Set brewing temperature correctly 10
Problem Remedy
Ñ
Switch off appliance! 16
Ñ
Clean nozzle
Ñ
Descale appliance 17
Ñ
Close service door
Ñ Switch on appliance (brewing group is initialised)
Ñ
Check grinder setting and AromaControl 12
Ñ
Switch on main switch 9
Ñ
Adjust illumination 10
STANDBY
DESCALING
FILL WATERTANK
COFFEE BEANS EMPTY
DREGDRAWER FULL
Ñ
Tap key
Ñ
Descale appliance
Ñ
Fill water tank with fresh drinking water
Ñ
Fill bean container
Ñ
Open service door, empty coffee-grounds container, appliance is reset.
The main switch must be turned on. Coffee-grounds con-
tainer must be removed for at least 5 seconds. Appliance
will be reset only if message «Empty coffee-grounds
container» appears on the plain text display.
■Brewing group cannot be
reinstalled after cleaning
Ñ
Press PUSH so that locking/unlocking
lever rests in
Adjust illumination Remedy
