Safety instructions
Delivery
Immediately check the packaging and
dishwasher for any damage which may
have been caused in transit. Do not use
a damaged appliance, but consult your
supplier.
Please dispose of packaging material
properly:
The corrugated cardboard consists
mainly of waste paper.
The polystyrene moulded parts
have been foamed without any
CFCs.
The polyethylene film (PE) consists
partly of secondary raw material.
The wooden frames (if fitted) are
made of residual wood and are
untreated.
The hoops (if fitted) consist of
polypropylene (PP).
Installation
Install and connect the appliance
according to the installation and
assembly instructions.
The dishwasher must NOT be
connected to the power supply during
installation.
Ensure that the protective conductor
system of the domestic electricity
supply has been installed correctly.
Electrical connection conditions must
correspond with the specifications on
the rating plate of the dishwasher.
If the dishwasher is to be installed
in a high-sided unit, ensure that the unit
is attached properly and also at the
rear.
Built-under and built-in appliances
should always be installed under a
continuous work surface which is
attached to the adjacent cupboards, in
order to ensure that the appliance is
entirely stable.
After the appliance has been installed,
the mains plug should still be easily
accessible.
Not on all models:
The plastic housing on the water input
contains an electrically operated valve.
The connecting wires are inside the
inlet hose. Do not cut through this hose
and do not immerse the plastic housing
in water.
Warning
For safety reasons, if the appliance is not
fitted in a recess, thereby making a side
wall accessible, the door hinge area
should be covered at the side.
(Risk of injury)
Covers are available as optional
accessories from customer services or
specialist stores.

en
5
In daily use
Warning
Knives and other utensils with sharp points
must be placed in the baskets either flat or
with the points downwards.
Use the dishwasher only in the
household and only for its designed
purpose, i.e. for washing domestic
dishes.
Do not lean or sit on the open door.
The appliance could tip.
The water in the appliance is not
drinking water.
Do not add any solvents to the washing
chamber. Danger of explosion!
Open the door carefully when the
programme is still running. Water could
spray out of the appliance.
To prevent injuries, e.g. caused by
stumbling, open the dishwasher only
briefly in order to load and unload the
dishwasher.
Read and observe the safety
information and instructions for use on
the packaging for cleaning and rinsing
agents.
Children in the household
Do not let infants play or operate the
dishwasher.
Keep cleaning and rinsing agents out of
the reach of infants.
Keep infants away from the open
dishwasher. It could contain residue of
the cleaning agent.
If a fault occurs
Repairs or other work on the
dishwasher should only be carried out
by a qualified specialist.
The dishwasher must be disconnected
from the electricity supply before any
repairs or other work are started. Pull
the mains plug out of the wall socket or
switch off at the fuse box. Grasp the
plug to remove it from the socket; do
not tug on the cable. Turn the water off
at the tap.
When disposing of old
appliances
Appliances that have reached the end
of their service life should be rendered
inoperable in order to exclude the
possibility of subsequent accidents. Pull
the mains plug out of the wall socket,
cut through the connecting cable and
disable the door lock.
Take the appliance to a designated
waste disposal centre.
Warning
Children could get locked in the appliance
(risk of suffocation) or get stuck in other
positions.
Therefore: Remove the mains plug, cut the
mains wire and set aside. Damage the
door lock so that the door can no longer
be closed.

en
6
Getting to know your
appliance
Diagrams of the control panel and the
interior of the appliance can be found
in the envelope at the front.
Individual positions are referred to in
the text.
Control panel
1Main switch
2Door handle
3Button for UPPER RACK washing
function *
4PROGRAMME END indicator
5LOW SALT indicator
6LOW RINSE-AID indicator
7“Check water supply” indicator
8Programme buttons
* on applicable models
Appliance interior
20 Upper basket with 2-tiered cup rack
21 Additional cutlery basket for the top
basket *
22 Upper spray arm
23 Lower spray arm
24 Container for special salt with level
indicator *
25 Filters
26 Cutlery basket
27 Lower basket
28 Lock for detergent dispenser
29 Container for rinse-aid, with level
indicator
30 Detergent compartment
31 Nameplate
* not on all models
You will need to purchase the
following before using the
dishwasher for the first time:
– special salt for use in dishwashers
– detergent
– rinse-aid
Only use products, which are suitable for
dishwashers.

en
7
Water softener
In order to rinse dishes and glasses
satisfactorily, the dishwasher requires soft
water, i.e. containing little or no lime,
otherwise water stains will be left behind
on crockery and glasses, etc.
If the tap water exceeds a certain level of
hardness, it must be softened, i.e.
decalcified, so that it can be used in the
dishwasher.
This is achieved by adding a special salt
to the water softener inside the
dishwasher.
The water softener, that is the required
amount of salt, is set up according to how
hard the tap water is.
Setting up the water softener
Determine the level of hardness of your
tap water. Your local water company or
service agent can help you with this.
Identify setting from the following water
hardness table.
Hold down the programme button B
and switch on the main switch 1,
then release the buttons.
The display 5flashes and buttons
Aand Billuminate.
(Hardness value 2 was set at the
factory).
To change the setting: Press
programme button B.
Each depression of the button
increases the set value by one (0–3).
If buttons A, Band Cilluminate,
the maximum hardness value has been
reached.
If the hardness value is now increased
again, the illuminated buttons go out
and the hardness value is set to 0 (no
buttons illuminated).
Switch off the mains switch 1.
The set value is stored in the appliance.
Approx. 4 litres of water are required for
regenerating the water softening system.
The overall water consumption per load
can therefore be increased by between 0
and a maximum of 4 litres according to the
water hardness setting.
Water hardness table
dh Clarke mmol/
l
fH ABC
0–6
17–21
7–16
22–35
0
2
1
3
Reset
0–11
30–37
12–29
38–60
0–8
21–26
9–20
27–44
0–1,1
3,0–3,7
1,2–2,9
3,8–6,2

en
8
Filling the special salt
container
How the salt works
While washing is taking place, salt is
automatically rinsed out of the salt
container into the water softener where it
dissolves the lime in the water.
The dissolved lime is pumped out of the
dishwasher. The water softening system is
then ready for the next load.
This process of regeneration can only
function when the salt is dissolved in
water.
Unscrew the lid on the salt container 24 .
Before you use the dishwasher for the first
time, pour approx. 1 litre of water into the
salt container.
Use the enclosed salt filler.
Refill with salt (do not use edible salt)
until the salt dispenser is full (max. 1.5 kg).
When the salt dispenser is being refilled,
water is displaced and drains away.
Therefore always refill the salt dispenser
immediately before switching on the
dishwasher (to prevent corrosion). As a
result, the overflowing salt solution will be
immediately diluted and rinsed out. Then
remove salt residue from the filler area and
screw on the dispenser cover, ensuring
that it is not fitted askew.
*not included with all models
The LOW SALT indicator 5on the front
panel will light up initially but will extinguish
again after a short period when the salt
solution has become sufficiently
concentrated.
If the switch is set to ”0”, it is
not necessary to add any salt,
as none is consumed while the
dishwasher is operating. If the
switch is set between ”1” and
”3”, then salt must be added.
Do not pour detergent into the
container for special salt. This
would destroy the water
softener.
LOW SALT indicator
Salt should be added as soon as the LOW
SALT indicator 5in the fascia panel
illuminates. For models that do not have
an indicator in the fascia panel, salt should
be added as soon as the coloured dot in
the lid on the salt container 24 is no
longer visible.
Depending on the washing frequency and
the hardness setting, the regeneration salt
may not have to be topped up for several
months.

en
9
Filling the rinse-aid
container
The purpose of a rinse-aid is to prevent
the formation of water marks on tableware
and utensils, and to ensure that glasses
are clean and sparkling. The rinse-aid is
consumed during the washing process.
Fold back the lid on the rinse-aid
container 29 .
To open the lid, press the mark (1 ) on
the rinse-aid lid and simultaneously lift
the lid off the lug (2 ).
1
2
Pour the rinse-aid into the filler hole
until the level indicator turns dark.
Close the lid, ensuring that you hear it
snap closed.
Use only rinse aid for domestic
dishwashers. Spilt rinse aid may result in
excessive foam formation in the next rinse
cycle. Therefore, remove any spilt rinse
aid with a cloth.
Adjusting the amount of
rinse-aid
The amount of rinse-aid added to the
water can be varied by adjusting the
stepless control. The rinse-aid control has
been set to ”4” in the factory.
Do not alter the setting of the rinse-aid
control unless streaks (turn knob towards
”–”) or water marks (turn knob towards ”+”)
are left on the dishes.
29
rinse–aid control
LOW RINSE–AID indicator
As long as the LOW RINSE-AID indicator
on the front panel 6or on the
dispenser 29 is dark, there is sufficient
rinse-aid in the dishwasher.
LOW RINSE-AID indicator

en
10
Not suitable for
the dishwasher
The following should not be
cleaned in the dishwasher:
Wooden cutlery and utensils – these
will leach out and become unsightly;
even the utilised stickers are not
suitable for the temperatures which
occur.
Sensitive ornamental glasses, craft
utensil and vases, special antique
or irretrievable utensils. These
ornaments are not dishwasher-proof.
Plastic parts sensitive to hot water.
Copper and tin utensils.
Utensils which are soiled with ash, wax,
lubricating grease or ink.
Absorbent materials such as sponges
and cloths.
Aluminium and silver parts have
a tendency to discolour and fade during
the wash cycle. Even some types of glass
(e.g. crystal glass objects) may turn cloudy
after many wash cycles.
Recommendation:
In future buy utensils which are identified
as dishwasher-proof.
Damage to glassware and other
dishes
Possible causes:
type of glass or manufacturing process
chemical composition of detergent
water temperature and duration of
dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that
have been marked ’dishwasher–proof’
by the manufacturer.
Use a mild detergent that is described
as ’kind to dishes’. If necessary, seek
further information from detergent
manufacturers.
Select a programme with as low a
temperature and as short a duration as
possible.
To prevent damage, take glass and
cutlery out of the dishwasher as soon
as possible after the programme has
ended.
Washing contents of UPPER
RACK only
* not on all models
If you only have a small number of dishes
to wash, put them all into the upper rack
and press the UPPER RACK button. This
saves energy and water. If you select the
UPPER RACK function, the lower rack
must be empty. Add a reduced amount of
detergent compared to that which is
recommended for a full load.

en
11
Arranging crockery, glasses,
etc. in the dishwasher
Loading the dishwasher
Scrape off any large amounts of
left-over food. It is not necessary to
rinse the dishes under running water.
Place objects in the dishwasher in such
a way that
items such as cups, glasses,
pots/pans, etc. are stood upside
down,
curved items, or those with
recesses, should be at a slant so
that water can run off,
they are stacked securely and
cannot tip over,
they do not prevent the spray arms
from rotating while washing takes
place.
Very small items should not be washed in
the dishwasher as they could easily fall out
of the baskets.
Removing the dishes
To prevent water dripping from the top
basket onto the dishes in the lower basket,
we recommend that you empty the lower
basket first and then the top basket.

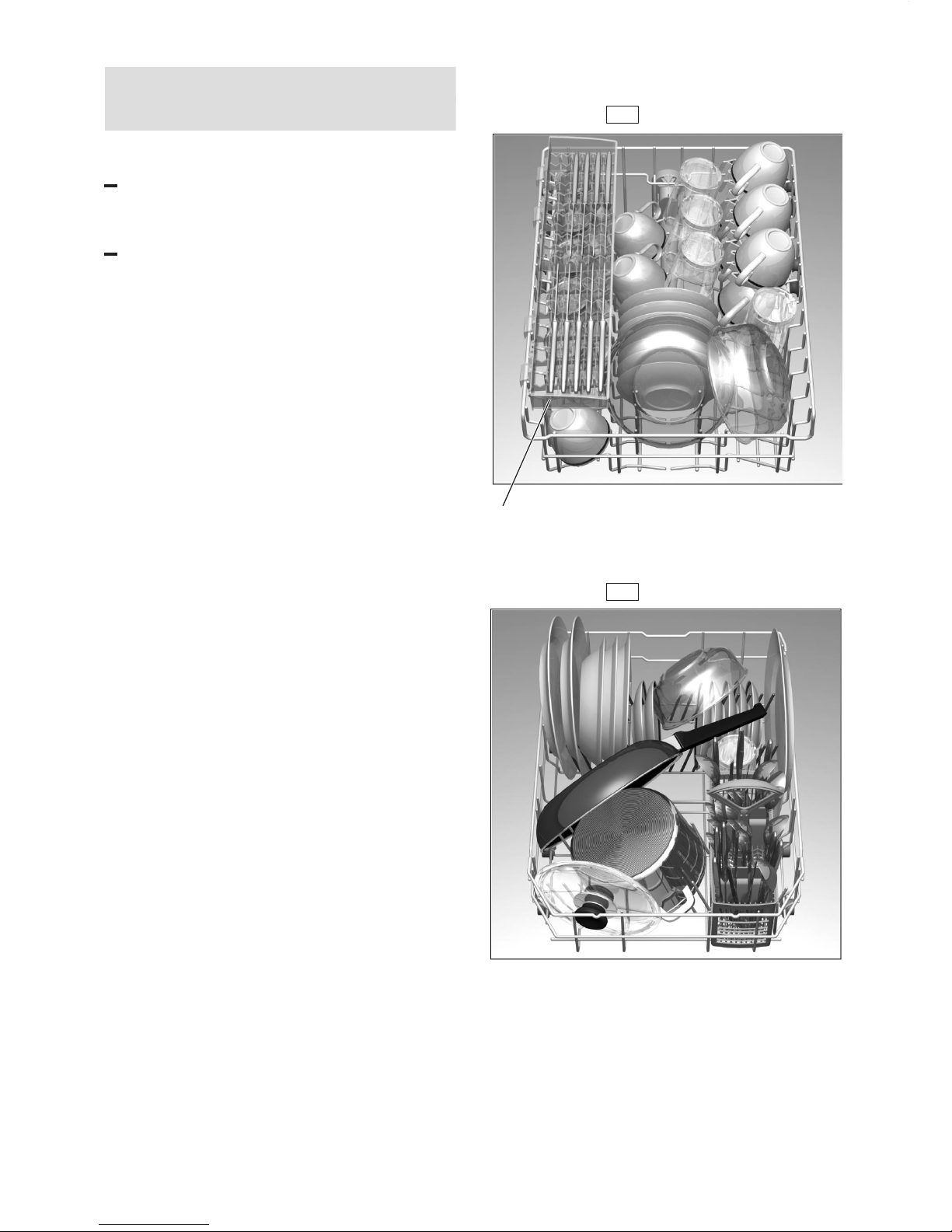

Cups and glasses
Upper basket 20
*not included with all models
Pots and pans
Lower basket 27

en
12
Cutlery
Cutlery should be placed in the
dishwasher always unsorted and with the
eating surface pointing downwards. The
spray jet is then better able to reach the
individual parts.
To prevent injuries, place long, pointed
accessories and knives on the étagère
(some models) or on the knife shelf
(available as an accessory).

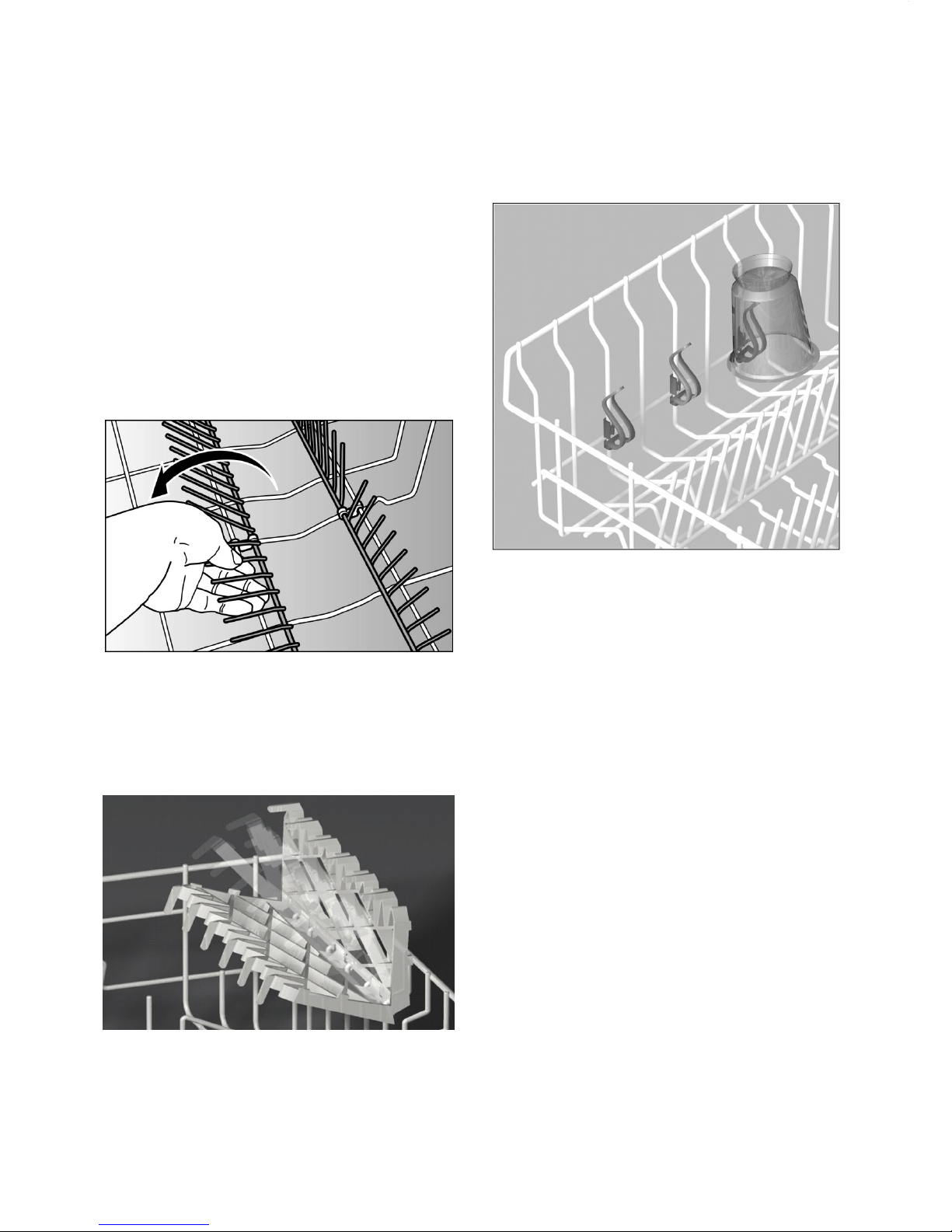

Folding spikes *
* on applicable models
To improve stacking of pots and pans, the
spikes can be folded down.
Shelf *
* not on all models
Lean tall glasses and those with long
stems against the shelf – not against other
items to be washed.
Place glasses, cups and small bowls on
the additional cup rack. The additional cup
rack can be swivelled in or out as required.
Small accessories holder*
* some models
Light-weight plastic accessories, e.g. cups,
lids, etc. can be held securely in the small
accessories holder.

en
13
Adjusting position of basket *
* not on all models
The top basket can be inserted on either
its upper or lower rollers, according to
requirement. This enables more height to
be gained for bigger dishes in either the
top or bottom basket.
Top basket with side levers
(Rackmatic)
Pull out the top basket.
To lower the basket, press in
succession the two levers on the left
and right sides of the basket. Always
take hold of the side of the basket on
the upper edge, otherwise the basket
will not drop smoothly (and may
damage the utensils).

en
14
To raise the basket, take hold of the
basket on the upper edge and pull
upwards.
Before you re-insert the basket, ensure
that it is at the same height on both
sides. Otherwise, the appliance door
cannot be closed and the upper spray
arm will not connect to the water circuit.

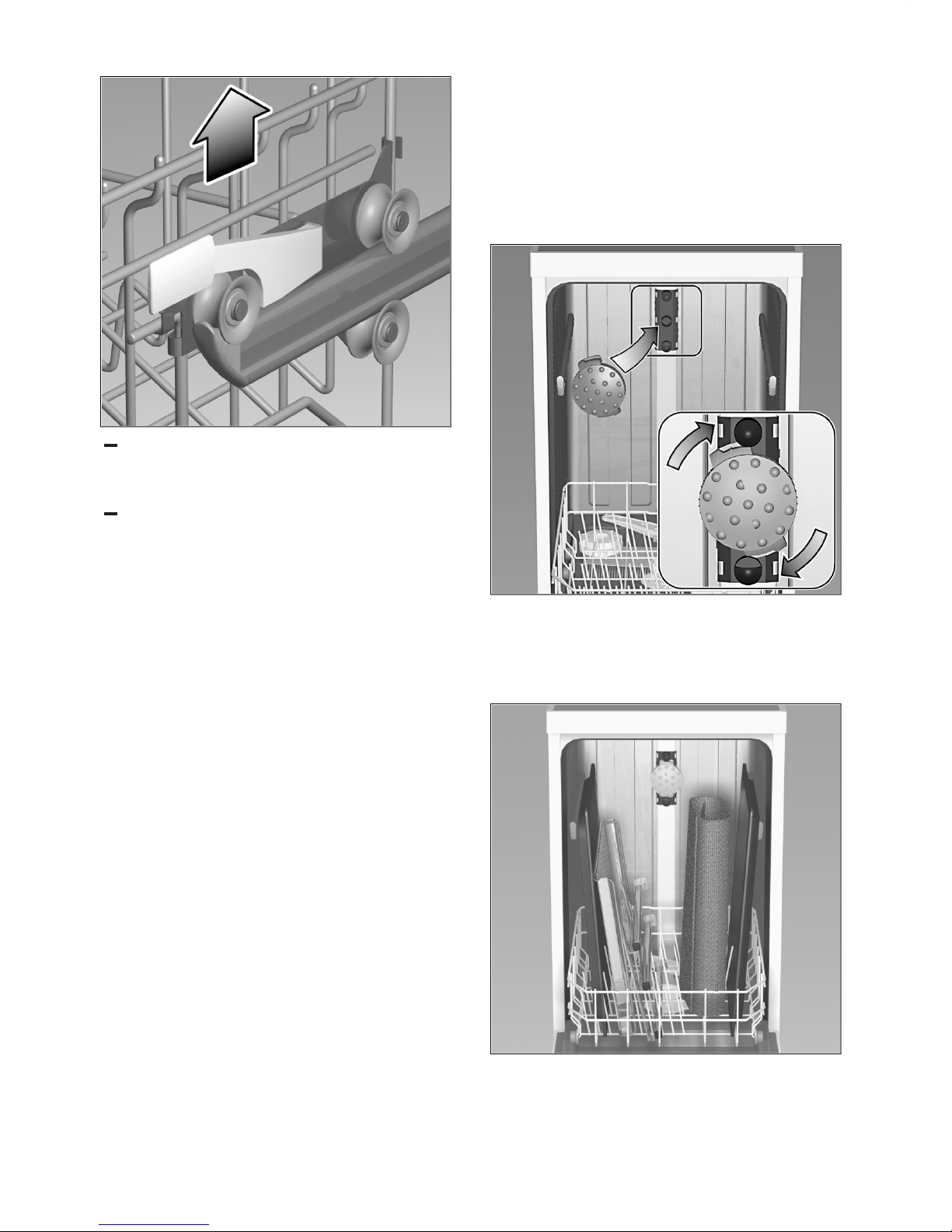

Baking sheet spray head *
* some models
You can clean large baking sheets or
grilles with the baking sheet spray head.
To do this, remove the top basket and
insert the spray head as illustrated in the
diagram.
To ensure that the spray jet can reach all
parts, arrange the baking sheets as
illustrated
(max. 2 baking sheets and 2 grilles).

en
15
Detergents
Information about detergents
You can use any brand of liquid or powder
detergent, as well as tablets, that have
been specifically designed for use in
domestic dishwashers. (Do not use normal
washing-up liquid!)
Nowadays there are three types of
dishwasher detergent available:
1. those containing phosphates and
chlorine,
2. those containing phosphates but no
chlorine,
3. those containing neither phosphates
nor chlorine.
When a phosphate-free detergent is used
in conjunction with hard water, there is a
greater possibility that white marks will be
left behind on crockery and glasses, etc.
These can be avoided by pouring an
increased amount of detergent into the
dispenser.
Chlorine-free detergents have a reduced
bleaching effect. This can mean that tea
stains are not completely removed or
plastic items become discoloured.
This can be resolved by:
selecting a higher temperature
programme, or
increasing the amount of detergent,
or
using a detergent that contains
chlorine.
Check the label on the detergent
packaging to determine whether a
particular product is suitable for use with
silverware.
If you have any further questions, we
recommend that you contact the customer
advice departments of the various
detergent manufacturers.
Detergent compartment with
measuring marks
The side of the detergent compartment is
marked with lines to help you determine
how much powder to add.
The capacity of the detergent container is
15 ml up to the bottom line and 25 ml up to
the middle line. When the compartment is
full it contains 40 ml.
40 ml
25 ml
15 ml
If the detergent dispenser 30 is still
closed, press the lock 28 to open the
detergent dispenser.
Adding detergent
Fill the dispenser 30 with detergent.
Please observe the manufacturer’s
instructions printed on the detergent
packaging when determining the
correct dosage.
Important
Due to the different solvency properties of
the detergent tablets supplied by various
manufacturers, the cleaning efficiency of
the detergent may not be fully utilised by
short programmes. It is recommended to
use washing powder for these
programmes.
If using the “Intensive” programme
(some models), also pour approx.
10–15 ml of detergent onto
the appliance door. If using tablets,
also place a tablet on the appliance
door.

en
16
Reduce costs!
If your dishes are only
moderately dirty, you may be
able to use less detergent than
recommended.

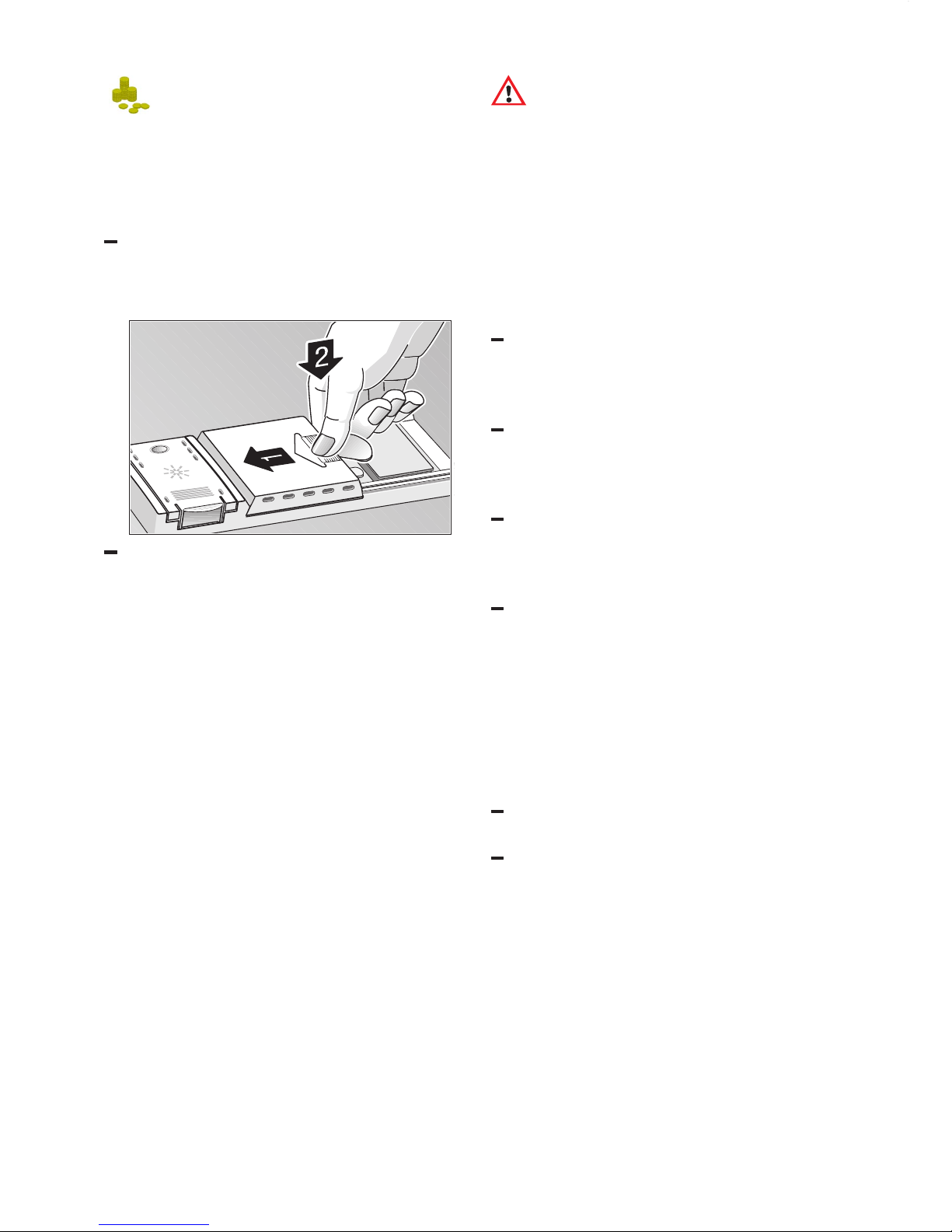

Close the lid on the detergent
compartment.
Press down the lid (1) until it clicks
shut (2).
If you are using detergent in tablet form,
read the manufacturer’s
recommendations on the packaging in
order to
determine where the tablets should be
placed inside the dishwasher (e.g. in
cutlery basket, detergent compartment,
etc.).
Make sure that the lid on the detergent
compartment is closed, even if you are
using tablets.
CAUTION
IMPORTANT NOTE
ON THE USE OF
COMBINED CLEANING
PRODUCTS
Please note the following when using
”combined cleaning products” which
eliminate the need for a rinsing agent or
salt, for example:
Some products with a built-in rinsing
agent are only used to their full effect in
certain programmes.
This type of product does not generally
produce the desired effect with
automatic programmes.
Products which eliminate the need for
regeneration salt can only be used
within a certain water hardness range.
If you wish to use these combined
products, please read the instructions
carefully and heed any notes on the
packaging.
Contact the manufacturer of the cleaning
agent if you have any questions,
particularly if:
the crockery is very wet once the
programme has finished.
limescale deposits are formed.
Any problems which arise as a direct
result of the use of these products are not
covered by our warranty.

en
17
Programme overview
This overview lists the max. possible number of programmes. The programmes supplied with your
appliance are indicated on the fascia.
Type of crockery
e.g.china,
pots/pans,
cutlery,
glasses,
etc.
Type of food
remains
Amount of
food remains
Condition of
food remains
Wash
programme
Programme
sequence
Non-
delicate Mixed
Soups, casseroles,
sauces, potatoes,
pasta, rice, eggs,
roast or fried food
Soups, potatoes,
pasta, rice, eggs,
roast or fried food
Coffee, cakes,
milk, sausage,
cold drinks,
salads
a lot a little very little
stuck on hard loosely attached
Normal
65°
Intensive
70°Eco
50°Quick
35°Pre-rinse
Drying
Rinse-aid
70°
Second
rinse
First rinse
Wash
65°
Pre-rinse
Main rinse
Rinse-aid
55°
Wash
35°
Rinse off if
the dishes
have been
stacked for
several
days in the
dishwasher
prior to
washing.
Pre-rinse
Rinse-aid
70°
Drying
Drying
Main rinse
Rinse-aid
65°
Wash
50°
Pre-rinse
Third
rinse
Pre-rinse
50°
Wash
70°
First rinse
Second
rinse
Programme selection
The most appropriate programme can be
identified by comparing the type of
crockery, cutlery, etc., as well as the
amount and condition of food remains,
with the details contained in the
programme overview.
You will find the appropriate programme
information in the introduction.

en
18
Washing dishes
Reduce costs!
If only a small number of
dishes have been loaded into
the dishwasher, selecting a
programme that operates at
the next lowest temperature
will usually suffice.
Programme specifications
The programme specifications can be
found in the summary of instructions.
Programme specifications refer to normal
conditions. Greater deviations may occur
due to:
varying amounts of dishes
water supply temperature
water pipe pressure
ambient temperature
mains voltage tolerances
and the tolerances specific
to the appliance (e.g. temperature,
amount of water, etc.)
The water consumption values refer
to a set water hardness value of 2.
Switching the dishwasher ON
Turn on the tap.
Set main switch 1to ON.
Indicators light up according to the last
programme that was selected.
This same programme will run again if
no other programme button 8is
pressed
For appliances with top basket feature:
If only the top basket is loaded, press
the top-basket button 3.
Close door.
The programme starts automatically.
Optical indicator during
operation *
* With some models
During the rinse programme a light point
appears on the floor below the device’s
door. Only open the dishwasher door
when the light point has disappeared.
In the case of built-in dishwashers with
flush front the light point will not be visible.
End of programme
The programme has come to an end when
the PROGRAMME END indicator 4and
the indicator for the selected programme
are both lit up.
Apart from this, the end of the programme
is indicated by a buzzer. This function can
be changed as follows:–
Hold down the function button Cand
switch on the main switch 1.
Function button Cflashes.
Each depression of function button C
changes the buzzer in 4 stages (from
off to loud).
Switch off the main switch 1.
The setting is stored.

en
19
Switching the dishwasher OFF
Several minutes after the programme has
ended:
Open the door when the programme
has ended.
Set main switch 1to OFF.
Turn the water tap off.
(Does not apply when Aqua-Stop unit
has been fitted)
Remove dishes, etc. when they have
cooled down.
Programme interruption
Carefully open the door, it could happen
that water splashes out of the
appliance. Only open completely when
the spray arm no longer turns.
If the programme is already in “drying”
mode, an acoustic signal reminds you
to close the appliance door or to abort
the programme.
Switch OFF the main switch 1.
Indicator light goes out. The programme
remains stored.
If warm water is connected or if the
machine is already heated up and the
appliance door has been opened, leave
the door slightly ajar, then close it,
otherwise the appliance door can jump
open through the expansion.
In order to continue the programme
flow, switch the main switch ON again
and close the door.
Cancel programme (Reset)
Only when the master switch is ON.
Press the Aand Cprogramme
buttons simultaneously and hold them
pressed for approx. 3 sec.
The programme continues for approx.
1 min.
The PROGRAMME END indicator and
the indicator for the programme that
has just been terminated light up.
Set main switch 1to OFF.
Close the detergent compartment 30 .
To restart the dishwasher, set main switch
1to ON again and select desired
programme.
Changing the programme
It is possible to change the programme
selection after you have switched the
dishwasher on, provided that you have not
yet closed the door.
If it is necessary to change the programme
after this, the programme cycle that has
already begun (e.g. washing) will still carry
on to the end.

en
20
Maintenance and care
A regular inspection and maintenance
of your machine will help to prevent faults.
This saves time and prevents problems.
Therefore you should occasionally have
a careful look inside your dishwasher.
Overall condition
of the machine
Check spray arm for grease and
limescale deposits.
If you find such deposits:
Fill the detergent dispenser with
detergent, start the appliance without
utensils in the programme which has
the highest wash temperature.
Clean the appliance with detergents/
appliance cleaners which are particularly
suitable for use with dishwashers.
Regularly wipe the door seal with
a damp cloth to remove deposits.
Never use a steam cleaner to clean your
dishwasher. The manufacturer is not liable
for any consequential damage.
Attention!
Never use other chlorinated household
detergents! Health hazard!
Dishwasher salt
Check the LOW SALT indicator 5or
24 . Top up with salt, if required.
Rinse-aid
Check the LOW RINSE-AID indicator
6on the front panel or the level
indicator on the rinse-aid container
29 . Top up with rinse-aid, if required.
Filters
The filters 25 prevent large particles of
food in the water from reaching the pump.
These particles may occasionally block
the filters.
When the appliance has finished
washing, check the filters for particles
of food and, if required, clean.
After undoing the coarse micro-filter, the
filter unit can be removed. Remove any
particles of food and rinse the filters
under running water.
Insert the filter unit and tighten the
coarse micro-filter.

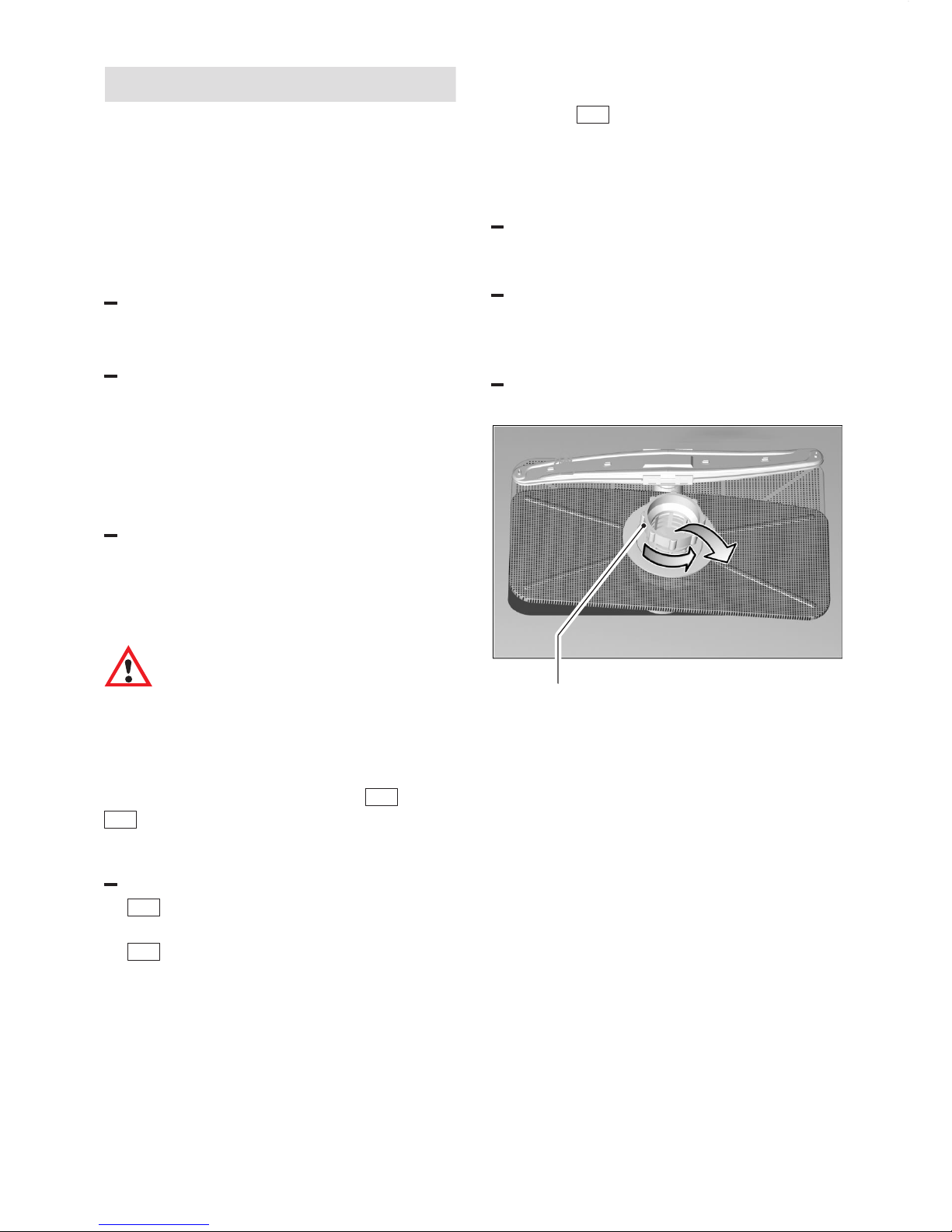

Coarse/microfilter
