Küppersbusch IGV 645.2 User manual

12
CONDITIONS OF GUARANTEE
The conditions of guarantee applicable for
this product are subject to those published
by the representative in the relevant
country.
Details regarding same may be obtained
from the dealer from whom the appliance
was purchased. For claims under guarantee
the sales receipt must be produced.

13
INSTRUCTIONS FOR USE
BEFORE USING THE DISHWASHER/
CONNECTIONS
ELECTRICAL CONNECTION
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO FILL THE SALT CONTAINER
HOW TO FILL THE RINSE AID DISPENSER
HOW TO FILL THE DETERGENT DISPENSER
CARE AND MAINTENANCE

14
BEFORE USING THE DISHWASHER/
CONNECTIONS
1. Removing the packaging and controls:
After unpacking, make sure that the dishwasher
is undamaged and that the door closes correctly.
If in doubt, contact a qualified technician or your
local retailer.
• Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous.
•This dishwasher has been factory tested to ensure
it functions correctly.
Such testing may leave slight water marks that will
disappear with the first wash.
2. Water and electrical connections:
All water and electrical connections must be
carried out by a qualified technician in compliance
with the manufacturer's instructions (refer to the
enclosed installation booklet) and current local
safety regulations.
The appliance must only be used in the household
for the prescribed uses.
Do not use the dishwasher if it has been damaged
in transit. Consult your local retailer or our
After-Sales Service.
(Refer to the separate installation
instructions booklet)
3. Water inlet and drain:
• Observeanyspecialregulationsissuedbyyourlocal
Water Board. Water supply pressure: 0,3 - 10 bar.
• Make sure the inlet and drain hoses are kink-free
and are not crushed.
• If the hose length is not sufficient, please contact
your local dealer or our After-Sales Service.
• The inlet hose must be securely clamped to the
water tap to prevent leaks.
• The inlet water temperature varies according to
the model installed. Inlet hose marked “25°C Max”:
maximum temperature 25°C.
All other models: maximum temperature 60° C.
• When installing the appliance, make sure the drain
water discharges correctly (if necessary, remove
the wire gauze from the sink siphon).
• Fix the drain hose to the spigot with a clamp to
prevent it from coming off during operation.
For appliances with water-stop system only: If the
water connections are made correctly, the water-
stop system safeguards your home against damage
caused by flooding.
4. Electrical connection:
• Closely adhere to local Electricity Board
regulations.
• Voltage information is shown on the rating plate
mounted inside the door on the right hand side.
• The appliance must be earthed as prescribed by
law.
• Do not use extension leads or multiple adapters.
• Before carrying out maintenance, disconnect the
mains plug.
•Ifnecessary,thepower cablemay be replacedwith
one the same obtained from our After-Sales
Service. The power cable must onlybe replacedby
a qualified technician.
Warning for models provided with LCD
display:
The mains plug must be positioned in an easily
accessible place.
•For Austria: iftheapparatusisseriesconnectedto
a fault current switch, this must be sensitive to the
pulsating current.

15
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed

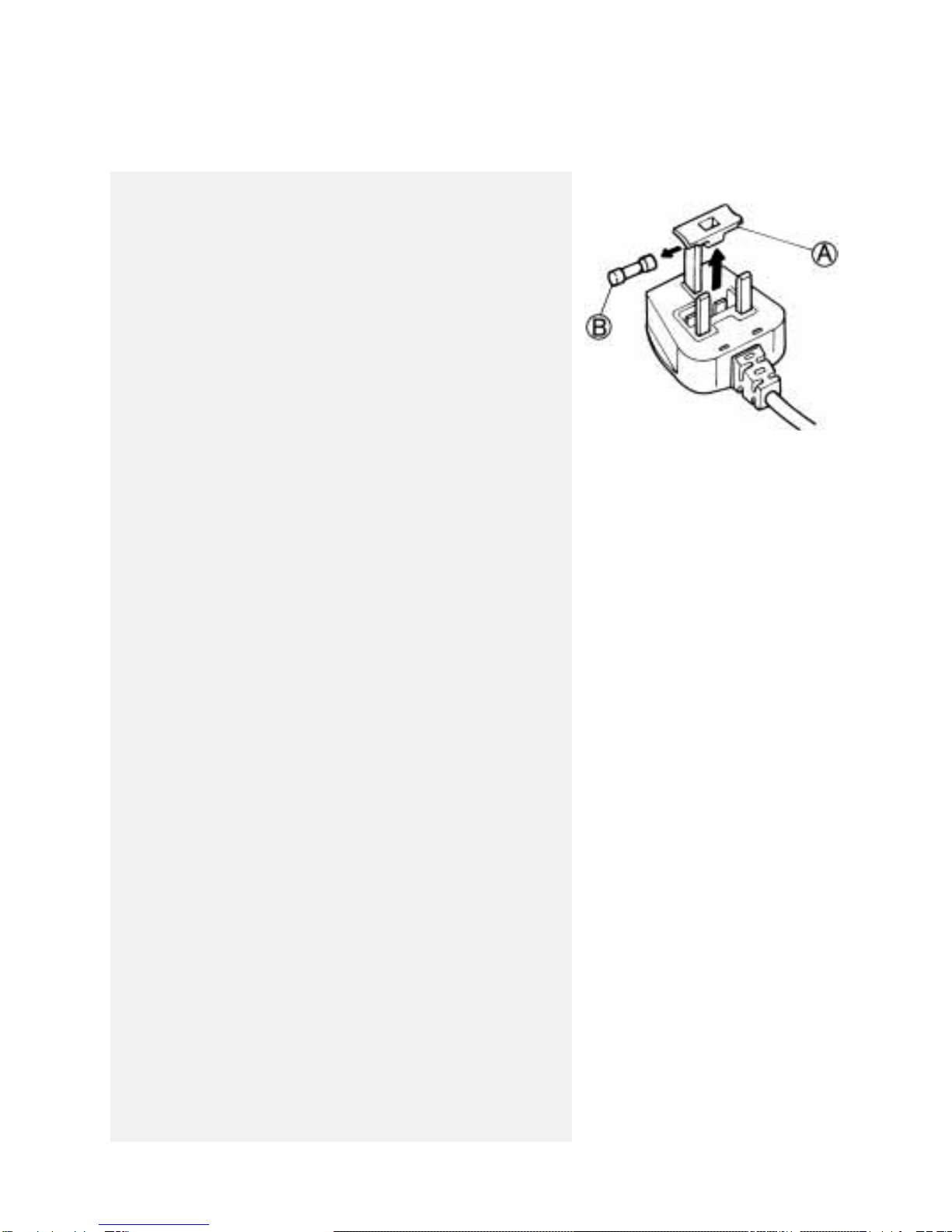

Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1.Remove the fuse cover (A) and fuse (B).
2.Fit replacement 13A fuse into fuse cover.
3.Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correctreplacementare identified by the colour insert orthe colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.

16
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1. Packing:
The packing box may be fully recycled as
confirmed by the recycling symbol.
2. Energy and water saving tips:
• Do not rinse crockery under running water.
• Always fully load the dishwasher before switching
on or set the wash programme to half load/
Multizone (if available) if one rack only is loaded.
• If ecological energy sources are available such as
solar panel heating, heat pumps or centralised
heatingsystems,theappliancemaybeconnectedto
thehot watermainsuptoamaximumtemperature
of 60° C. Make sure the water inlet hose is of the
correcttype.Refertothe“Connections”chapterin
these user instructions.
3. Disposal:
The appliance is built from reusable materials.
If you decide to scrap the dishwasher, it must be
disposed of in compliance with local waste disposal
laws. Before scrapping, cut off the power cable so
that the appliance cannot be connected to the
mains.
•To prevent situations of potential danger to
children (e.g. danger of suffocation), break the lock
of the door so that it can no longer be closed.
4. Child safety:
• Children must not be allowed to play with the
dishwasher.
• Store the detergent, rinse aid and salt in a dry place
out of the reach of children.
5. Safety warnings:
•The open dishwasher door can only support the
weight of the loaded rack when pulled out. Do not
rest objects on the open door or sit or stand on it:
the appliance may topple over!
•Do not use solvents inside the dishwasher: risk of
explosion!
•Before cleaning or carrying out maintenance,
switch off the appliance, disconnect the mains plug
and turn off the water tap.
•Ifafaultoccurs,switchofftheapplianceandturnoff
the water tap.
•On completion of the programme switch off the
dishwasher and turn off the water tap.
•Repairsandtechnicalmodificationsmustbecarried
out exclusively by a qualified technician.
•The water in the dishwasher is not potable.
•Do not store inflammable liquids near the
dishwasher.
•Do not operate the appliance in the open air.
6. Resistance to frost
If the appliance is placed in surroundings exposed
to the risk of frost, it must be drained completely.
Turn off the water tap, remove the flexible inlet
and outlet hoses, and let all the water run out.
7. For appliances with water stop system:
The water inlet hose and plastic casing contain
electrical components. Do not therefore cut the
hose or immerse the plastic casing in water.
If the hose is damaged switch off the appliance
immediately.
8. The appliance must be used at temperatures
between 5°C and 45°C.
EC Declaration of conformity
This appliance has been designed, constructed and
distributed in compliance with the safety
requirements of EC Directives:
• 73/23/EC
• 89/336/EC
• 93/68/EC
Load capacity:
12 place settings.

17

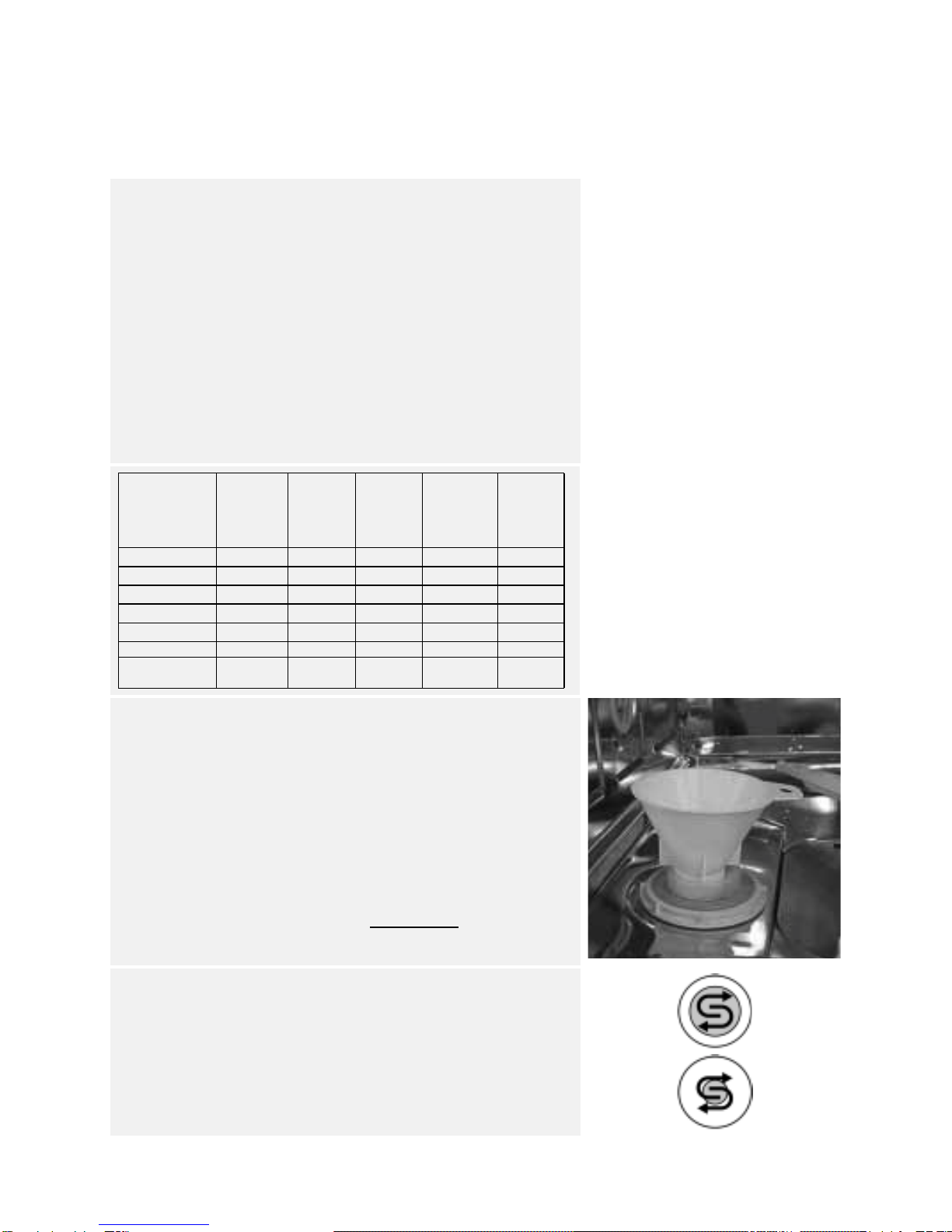

HOW TO FILL THE SALT CONTAINER
From a water hardness category of 1-2 (medium), before using the
dishwasherforthe first time, fillthesalt container withregenerationsalt
(to find out the hardness level of water in your area, contact your local
Water Board or check the last bill you received).
If the water hardness level does not correspond to position 3 on the
selector (factory setting) or if the water hardness level changes:
Set the water hardness level:
setting must be carried out according to the following table:
•Switch on the appliance (consult the quick reference guide).
•Select program 2.
•Press the Start button for at least 5 seconds until the Start indicator
lamp flashes.
•TheStartindicatorlampflashesinrelationtothewaterhardnessset
(table, flashing frequency).
•With each successive touch of the Start button the setting increases
and when it reaches 7 it returns to 1 again.
•Switch off the appliance (consult the quick reference guide).
The selected setting is now memorized.
Hardness
level German degrees
°dH
French
degrees
°fH
mmol/l Clarke
scale or
English
degrees
°eH
Setting
Flashing
frequency
(1x-7x)
1 soft 0 - 5 0 - 9 0 - 0.9 0 - 6.3 1x
1 - 2 medium 6 - 10 10 - 18 1.0 - 1.8 7 - 12.6 2x
2 average 11 - 15 19 - 27 1.9 - 2.7 13.3 - 18.9 3x
3 medium-hard 16 - 21 28 - 37 2.8 - 3.7 19.6 - 25.9 4x
4 hard 22 - 28 38 - 50 3.8 - 5.0 26.6 - 35 5x
4 very hard 29 - 35 51 - 63 5.1 - 6.3 35.7 - 44.1 6x
4 extremely
hard 36 - 60 64 - 107 6.4 - 10.7 44.8 - 74.9 7x If the water hardness level falls within
category 1 (soft), no salt is required.
How to fill the salt container
Warning: Only use regeneration salts for use in domestic
dishwashers!
Do not fill the salt container with unsuitable substances, such as detergent,
as this will cause irreparable damageto the water softener system.
1. Remove the lower rack.
2. Unscrew the cap by turning it counter-clockwise.
3. When first using the dishwasher: fill the salt container to the rim with
water.
4. Fill the salt container to the rim with salt (using the filler provided)
(when filling for the first time use min. 1.5 kg and max. 2 kg) and
stir with a spoon handle.
5. Screw the cap back on by turning it clockwise.
6. Fit the lower rack.
7. If regeneration salt is to be added, immediately start a wash
programme (rinsing alone is not sufficient) in order to eliminate
any residual saline solution straight away and avoid corrosion.
Salt level indicator
The dishwasher is equipped with an electric or visual salt level
indicator (depending on the model installed).
Electric indicator
The salt level indicator lamp on the control panel lights up when the
salt container is empty.
Visual indicator
The float is clearly visible in the cap window when the salt container is full.
The float lowers and is no longer visible when the salt container is empty.

18

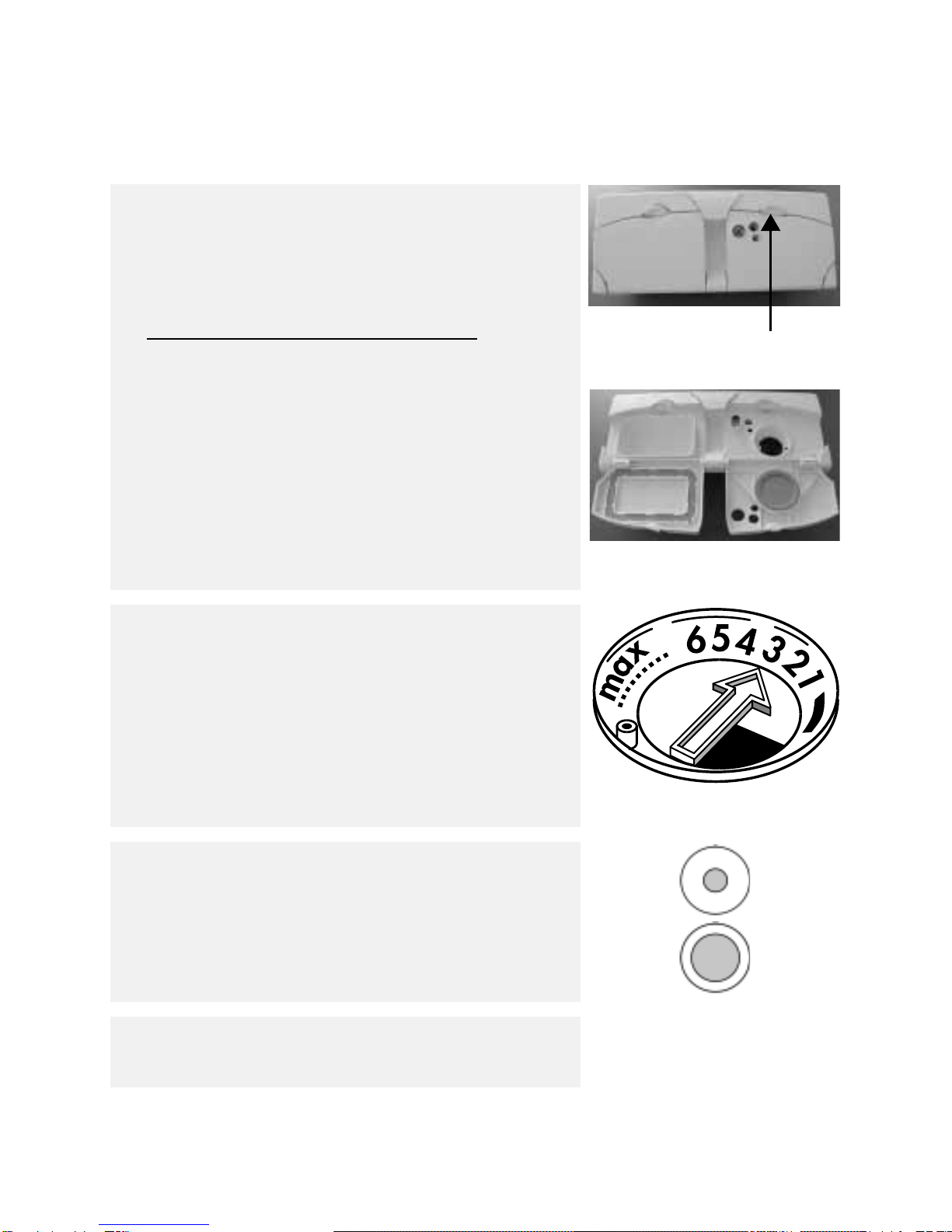

HOW TO FILL THE RINSE AID DISPENSER
The rinse aid facilitates drying and prevents the formation of unsightly
spots and streaks on crockery. Before using the dishwasher for the
firsttime, filltherinseaiddispenser.Onlyuserinseaidsrecommended
for use in domestic dishwashers.
1. Press button Ato open the cover (see drawing).
2. Fill the dispenser with rinse aid up to the dotted line
(about 100 ml maximum).
Immediately wipe away any rinse aid spilt accidentally! This prevents
the formation of excess suds which mayspoil washing results.
3. Close the cover.
Thereafter, regularly check the rinse aid level.
How to adjust the rinse aid dosage regulator:
Factory setting: Position 4.
If you are not satisfied with washing or drying results, change the rinse
aid dosage setting.
1. Press button Ato open the cover (see drawing).
2. If crockery is prone to whitish streaks: reduce the dosage by
turning the dial to a lower setting (1-3) using a coin or the like.
If crockery is not perfectly dry: increase the dosage by turning the
dial to a higher setting (5-6).
3. Close the cover.
Rinse aid level indicator:
Visual indicator:
light add rinse aid
dark sufficient rinse aid.
Electric indicator (if provided):
The indicator lamp on the control panel lights up when more rinse aid
needs to be added.
A

19

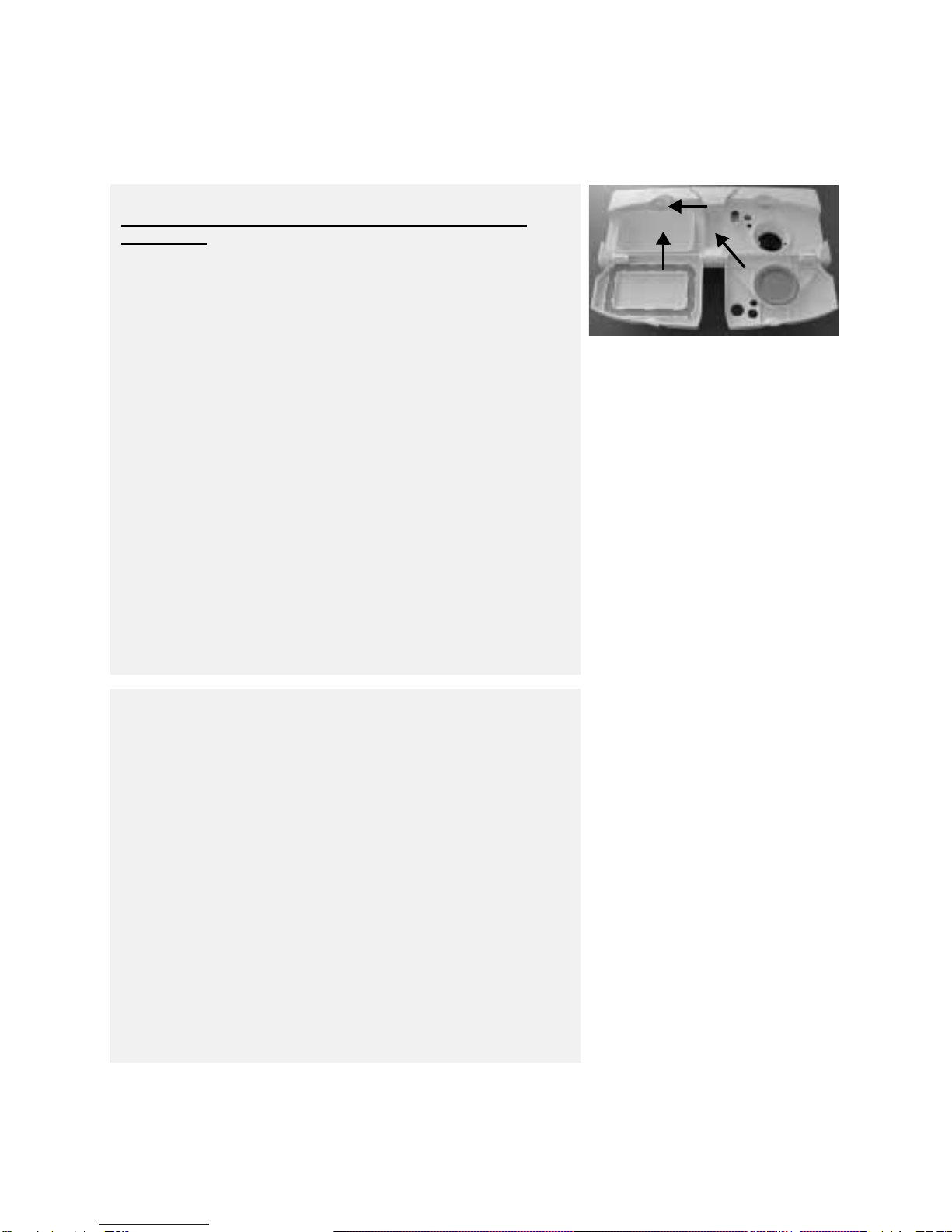

HOW TO FILL THE DETERGENT DISPENSER
Only use detergents recommended for use in domestic dishwashers.
Only fill the detergent dispenser prior to starting a wash
programme (see the Quick Reference Guide).
1. Press button Cto open the cover.
2. How to fill the detergent dispenser.
•Programmes with pre-rinse:
-Powder and/or liquid detergent:
pour two thirds of the recommended dosage into the
compartment (A);
pour one third into the compartment (B).
-Tablets:
place a tablet in the compartment (A) and/or follow the
directions on the detergent pack.
•Programmes without pre-rinse:
-Powder and/or liquid detergent, tablets:
pour the entire recommended dosage into the compartment
(A).
•For programmes with additional “Half load/Multizone” function
selected (if provided):
-When using powder or liquid detergent the dosage can be
reduced by 1/3.
3. Close the cover.
Detergent
Use good quality liquid or powder dishwasher detergents and/or
tablets (do not use hand dishwashing detergents).
In order to safeguard the environment, follow the manufacturer's
directionsforuse.Donotusemore than the amountofdetergentthat
is recommended. Observe the manufacturer's safety warnings.
Keep these products out of reach of children.
If you use detergents in tablet form, follow the manufacturer's
directions for use.
If you use multi-action dishwasher detergents that incorporate rinse
aid and regeneration salt, follow the directions below:
•products that incorporate the rinse aid enhance the detergent
action only with some programs.
•products that do not require using regeneration salt may be
used only in areas with specific water hardness level.
Read the product user instructions carefully. If in doubt, contact the
detergent manufacturer.
The guarantee is not applicable if faults are caused by the use of these
products.
AB
C

20
CARE AND MAINTENANCE
Before cleaning or carrying out maintenance, switch off the appliance,
disconnect the mains plug and turn off the water tap.
Cleaning the outside of the appliance:
To clean the outside of the appliance, use a neutral detergent and a
damp cloth. Clean the control panel with a damp cloth only.
Do not use abrasive detergents.
Cleaning the inside of the dishwasher:
Regularly wipe the door seal and inside of the door with a damp cloth
to remove any food residue.
Upper spray arm:
1. Slacken the fixing nut (A) (by turning it counter-clockwise) and
detach the spray arm (B) by pulling it down).
2. Rinse the nozzles.
3. To remount the spray arm, align it and then tighten the fixing nut
(by turning it clockwise),paying attention not to bend it.
The fixing nut must be tightened until it clicks!
Make sure the spray arm rotates freely.
Lower spray arm:
1. Slacken the fixing nut (C) (by turning it counter-clockwise) and
detach the spray arm (D) by pulling it upwards.
2. Rinse the nozzles.
3. To remount the spray arm, align it and then tighten the fixing nut
(by turning it clockwise), paying attention not to bend it.
The fixing nut must be tightened until it clicks!
Make sure the spray arm rotates freely.
A
B
D
C

21
CARE AND MAINTENANCE

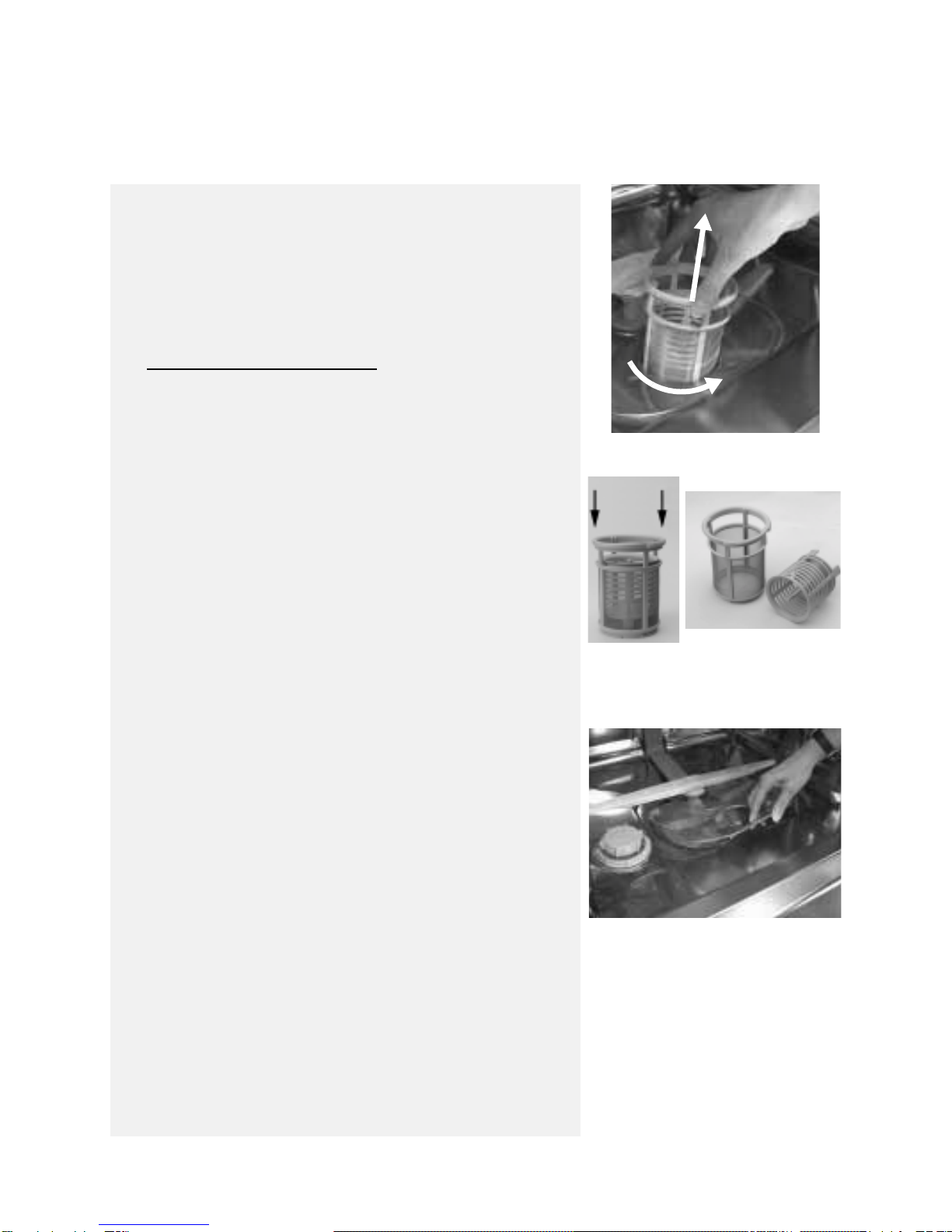

Cleaning the filters:
1. Rotate the microfilter counter-clockwise (in the direction of the
arrow “0”) and extract it (E).
2. Place the microfilter/wide-mesh central filter unit on a flat surface
and push the handle of the microfilter (F).
Extract the wide-mesh filter by pushing it forward (G).
3. Remove the fine-mesh filter (H).
4. Clean all filters under running water, paying attention not to bend
the fine-mesh filter. Check that no impurities are left inside the
dishwasher!
5. Remounting:
Insert the wide-mesh filter in the microfilter (click should be
heard!) Insert the fine-mesh filter. The filter must be fitted
under both tongues.
Insert the microfilter/wide-mesh central filter unit and turn
clockwise to lock (in the direction of arrow “1”), until the dashed
lines on the microfilter and fine-mesh filter are aligned.
The filter unit must be correctly assembled to ensure good
wash results!
H
E
G
F

KUP/II/FD/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Press the ON button.
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash
only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system
only.
Mechanical indicator D. Electric indicator
on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the button until the desired programme lights up.
If necessary (and if provided)
the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button.
All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Open the door,
switch on the appliance
How to fill the
detergent dispenser ABC
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select options
Press the Start button
“Change programme”
PresstheSTARTbutton for2sec. until
theStartindicatorlampswitchesoff;
Select another programme and
press the START button again.
Turn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks

KUP/III/GB

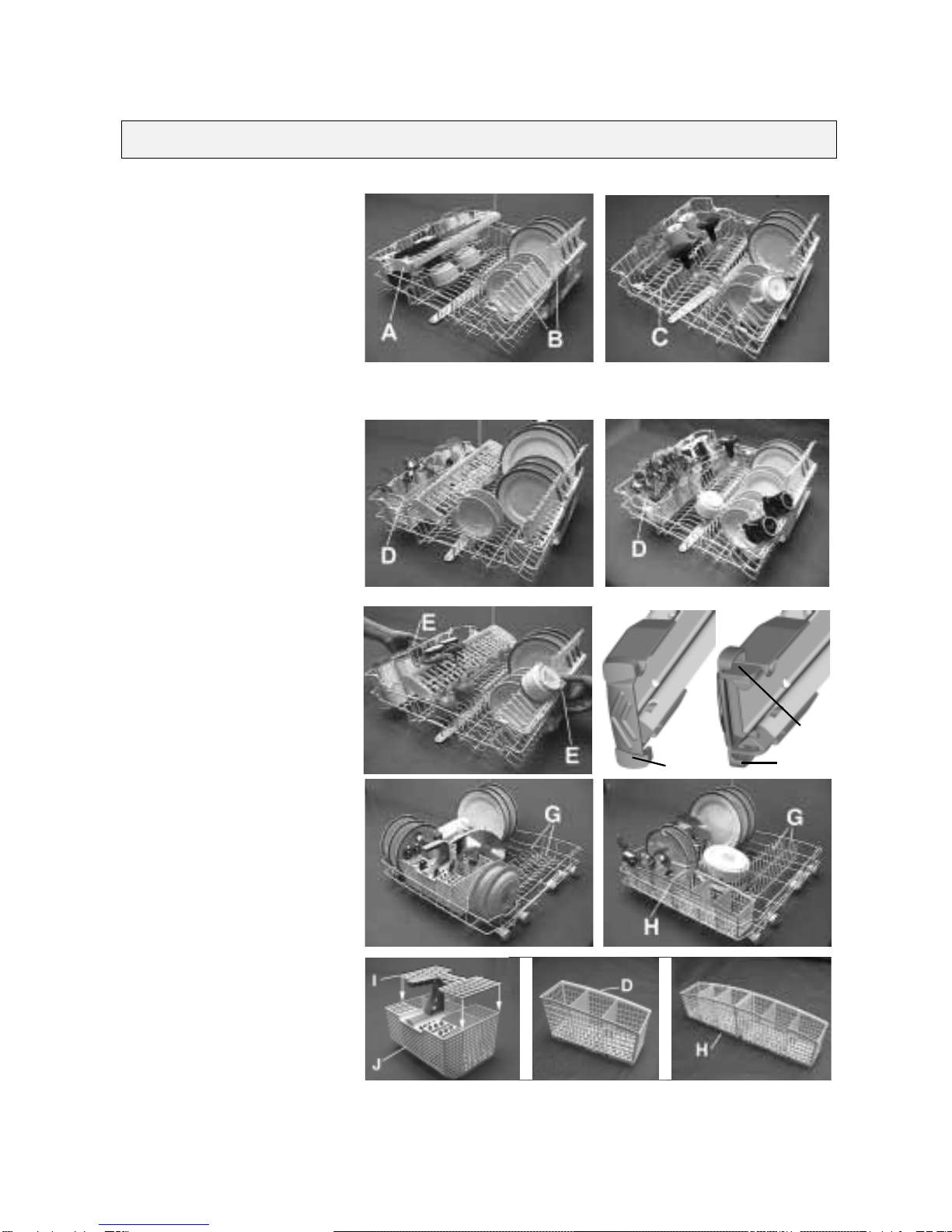

Dishwasher loading instructions and racks provided
Upper rack: depending on the model
Multi-purpose support (A): 1)
Depending on the position, for long-
handles utensils, cups and glasses. May
be used in three different positions.
Crockery holders (B):
Depending ontheposition,for example
plates, cups and long-stemmed glasses.
Revolving glass support (C): 2)
Depending ontheposition,for example
small or long-stemmed glasses.
Long-handled utensils (e.g.
carving forks, knives) must be
arranged with the sharp end
facing in towards the appliance.
Half Load:
Load the upper rack only.
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment
(also when loaded):
•Lower adjustment: pull out the
two rack handles outwards (E)
and lower the rack.
•Upper adjustment: pull the two
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide retainers (F) on
the right and left and remove the top
rack.
When the upper rack is in place the
retainers must always be closed.
Lower rack:
Depending on the modelwithfixedor
tilting plate holders (G).
Half Load:
Load the lower rack only.
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models are provided with a grid
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D), if provided, for
appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.
Spare parts which are sold separately:
1) Multi-purpose support (A) - N. AMH 369 series.
2) Revolving glass support (C) - N. WGH 1000 series.
FF
Retainer
closed Retainer
open

KUP/IV/GB
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working • No water supply. •Openthetap.
• The appliance does not load
sufficient water. • Clean the water supply tap filter. • Ensure there are no kinks in the water hose.
• There is a power failure. • Insert the plug into the mains socket.
• Press the Start button.
•Closethedoor.
• Check the domestic circuit fuse.
• Starting the selected programme. • The programme can be set to “0” to start.
If crockery is not
perfectly dry • Insufficient rinse aid. •Increasedosage*.
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean • The water jet does not reach
the crockery. • Arrange crockery so that items do not touch each other. Load crockery upside down.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
Sandy or grainy residues • Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
Colour of plastic parts
faded • Tomato/carrot juice,... • Depending on the material, if necessary use a
detergent with a greater whitening power.
Deposits on crockery
•removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
•Streaksonglasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
•notremovable • Insufficient water softening,
calcium deposits. • Change water hardness setting, if necessary add salt *.
Opaque glasses/ glasses
not sparkling • Cannot be washed in the dishwasher. • Use suitable glasses.
Rust on cutlery • Not made of stainless steel. • Use suitable cutlery.
Identifying appliance
faults • The START indicator lamp flashes. • Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the START button for 2 seconds, until the
START indicator lamp switches off. Select a new
programme and press the Start button again.
• Indicator F... (if provided). • Call the After-Sales Service.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.

5019 696 93193
GB
IGV 645.2 Quick Reference Guide
Before using the dishwasher, read the user instructions!
KUP/I/FD/GB
(We reserve the right to make technical modifications)
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately
before starting a wash programme.
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions”;
3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or below
15°C - as well as water hardness and power supply
voltage, etc.
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Programme chart Detergent 2) Consumption 3)
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold Crockery to be washed later. - - 5.0 0.02 10
Quickwash 40°C Lightly soiled crockery with no dried-on
food. X - 13.0 0.70 30
Bio Normal 1) 50°C Normally soiled crockery. X X 16.0 1.05 130
Intensive 70°C Recommended programme for heavily
soiled crockery, especially suitable for
pans and saucepans. X X 17.0 1.90 125
