Küppersbusch IKE3270-2-2T User manual

Gebruiks-
aanwijzing
Koel-vries-
combinatie
User manual
Fridge-Freezer
Benutzer-
information
Kühl-Gefrier-
schrank
IKE3270-2-2T

CONTENTS
Safety instructions 20
Control panel 22
First use 24
Daily use 25
Helpful hints and tips 26
Care and cleaning 27
What to do if… 28
Technical data 29
Installation 29
Environmental concerns 35
Subject to change without notice.
SAFETY INSTRUCTIONS
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci-
dents, it is important to ensure that all peo-
ple using the appliance are thoroughly fa-
miliar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
Children and vulnerable people
safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un-
less they have been given supervision or
instruction concerning use of the appli-
ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from chil-
dren. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the con-
nection cable (as close to the appliance
as you can) and remove the door to pre-
vent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door or
lid, be sure to make that spring lock un-
usable before you discard the old appli-
ance. This will prevent it from becoming a
death trap for a child.
General safety
Warning!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household and similar applications such
as:
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in hotels,
motels and other residential type envi-
ronments;
– bed and breakfast type environments;
– catering and similar non-retail applica-
tions.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of re-
frigerating appliances, unless they are ap-
proved for this purpose by the manufac-
turer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is con-
tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be-
come damaged.
If the refrigerant circuit should become
damaged:
20

– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a short-
circuit, fire and/or electric shock.
Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel to avoid
hazard.
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6. You must not operate the appliance
without the lamp cover (if foreseen) of
interior lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra-
sions or frost/freezer burns.
• Avoid prolonged exposure of the appli-
ance to direct sunlight.
• Bulb lamps (if foreseen) used in this appli-
ance are special purpose lamps selected
for household appliances use only. They
are not suitable for household room illu-
mination.
Daily Use
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may ex-
plode.
• Do not place food products directly
against the air outlet on the rear wall. (If
the appliance is Frost Free)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accord-
ance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage rec-
ommendations should be strictly adhered
to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if con-
sumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appli-
ance and disconnect the mains plug from
the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrig-
erator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the ap-
pliance.
Installation
Important! For electrical connection
carefully follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possi-
ble damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven-
tilation follow the instructions relevant to
installation.
• Wherever possible the back of the prod-
uct should be against a wall to avoid
touching or catching warm parts (com-
pressor, condenser) to prevent possible
burn.
21

• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessi-
ble after the installation of the appliance.
• Connect to potable water supply only (If a
water connection is foreseen).
Service
• Any electrical work required to do the
servicing of the appliance should be car-
ried out by a qualified electrician or com-
petent person.
• This product must be serviced by an au-
thorized Service Centre, and only genu-
ine spare parts must be used.
Environment Protection
This appliance does not contain gasses
which could damage the ozone layer,
in either its refrigerant circuit or insula-
tion materials. The appliance shall not
be discarded together with the urban
refuse and rubbish. The insulation foam
contains flammable gases: the appli-
ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid dam-
aging the cooling unit, especially at the
rear near the heat exchanger. The ma-
terials used on this appliance marked
by the symbol are recyclable.
CONTROL PANEL
1 2
345678
1Appliance ON/OFF button
2Display
3Freezer Temperature warmer button
4Freezer Temperature colder button
5OK button
6Functions button
7Fridge Temperature warmer button
8Fridge Temperature colder button
It is possible to change predefined sound of
buttons to a loudly one by pressing togeth-
er Functions button and Temperature cold-
er button for some seconds. Change is re-
versible.
Display
Off
min
ABCDEF G
HIJ
A) Fridge compartment indicator
B) Fridge temperature indicator
C) Fridge off indicator
D) Intensive Cooling function
E) Holiday Function
F) Fast Freeze function
G) Freezer temperature indicator
H) Freezer compartment indicator
I) Alarm indicator
J) Child Lock function
22

Switching on
To switch on the appliance do these steps:
1. Connect the mains plug to the power
socket.
2. Press the ON/OFF button if the display
is off.
3. The alarm buzzer may sound after a
few seconds.
To reset the alarm refer to "Door open
alarm".
If “DEMO” appears on the Display, the
appliance is in demonstration mode: re-
fer to “Troubleshooting” paragraph.
4. The temperature indicators show the
set default temperature.
To select a different set temperature refer to
"Temperature regulation".
Switching off
To switch off the appliance do these steps:
1. Press the ON/OFF button for 5 sec-
onds.
2. The display switches off.
3. To disconnect the appliance from the
power disconnect the mains plug from
the power socket.
Switching off the fridge
To switch off the fridge:
1. Press the Functions button until the
corresponding icon appears.
The fridge Off indicator and the fridge
compartment indicator flash.
The fridge temperature indicator shows
dashes.
2. Press the OK button to confirm.
3. The fridge Off indicator is shown.
Switching on the fridge
To switch on the fridge:
1. Press the fridge temperature regulator.
Or:
1. Press the Functions button until the
corresponding icon appears.
The Fridge Off indicator flashes.
2. Press the OK button to confirm.
3. The fridge Off indicator goes off.
To select a different set temperature refer to
"Temperature regulation".
Temperature regulation
The set temperature of the fridge and of the
freezer may be adjusted by pressing the
temperature buttons
Set default temperature:
• + 5°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
The set temperature will be reached within
24 hours.
Important! After a power failure the set
temperature remains stored.
Child Lock function
To lock the buttons from unintentional oper-
ation select the Child Lock function.
To switch on the function:
1. Press the Functions button until the
corresponding icon appears.
2. The Child Lock indicator flashes.
3. Press the OK button to confirm.
The Child Lock indicator is shown.
To switch off the function:
1. Press the Functions button until the
Child Lock indicator flashes.
2. Press the OK button to confirm.
3. The Child Lock indicator goes off.
Intensive Cooling function
If you need to insert a large amount of
warm food, for example after doing the gro-
cery shopping, we suggest activating the
Intensive Cooling function to chill the prod-
ucts more rapidly and to avoid warming the
other food which is already in the refrigera-
tor.
To switch on the function:
1. Press the Functions button until the
corresponding icon appears.
The Intensive Cooling indicator flashes.
2. Press the OK button to confirm.
The Intensive Cooling indicator is
shown.
The Intensive Cooling function shuts off au-
tomatically after approximately 6 hours.
To switch off the function before its auto-
matic end:
1. Press the Functions button until the In-
tensive Cooling indicator flashes.
2. Press the OK button to confirm.
23

3. The Intensive Cooling indicator goes
off.
Important! The function switches off by
selecting a different fridge set temperature.
Holiday function
This function allows you to keep the refrig-
erator closed and empty during a long holi-
day period without the formation of bad
odours.
Important! The fridge compartment must
be empty with holiday function on.
To switch on the function:
1. Press the Functions button until the
corresponding icon appears.
The Holiday indicator flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK button to confirm.
The Holiday indicator is shown.
To switch off the function:
1. Press the Functions button until the
Holiday indicator flashes.
2. Press the OK button to confirm.
3. The Holiday indicator goes off.
Important! The function switches off by
selecting a different fridge set temperature.
Fast Freeze function
To switch on the function:
1. Press the Functions button until the
corresponding icon appears.
The Fast Freeze indicator flashes.
2. Press the OK button to confirm.
The Fast Freeze indicator is shown.
This function stops automatically after 52
hours.
To switch off the function before its auto-
matic end:
1. Press the Functions button until the
Fast Freeze indicator flashes.
2. Press the OK button to confirm.
3. The Fast Freeze indicator goes off.
Important! The function switches off by
selecting a different freezer set temperature.
High temperature alarm
An increase in the temperature in the freez-
er compartment (for example due to an ear-
lier power failure) is indicated by:
• flashing the alarm and freezer tempera-
ture indicators
• sounding of buzzer.
To reset the alarm:
1. Press any button.
2. The buzzer switches off.
3. The freezer temperature indicator
shows the highest temperature
reached for a few seconds. Then
shows again the set temperature.
4. The alarm indicator continue to flash
until the normal conditions are restored.
When the alarm has returned the alarm indi-
cator goes off.
Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored (door
closed), the alarm will stop.
During the alarm, the buzzer can be switch-
ed off by pressing any button.
FIRST USE
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accesso-
ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Important! Do not use detergents or abra-
sive powders, as these will damage the fin-
ish.
24

DAILY USE
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freezing function at least 24 hours before
placing the food to be frozen in the freezer
compartment.
Place the fresh food to be frozen in the bot-
tom compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate, a label located on the inside of the
fridge.
The freezing process lasts 24 hours: during
this period do not add other food to be fro-
zen.
After 24 hours, when the freezing process
is completed, deactivate the Fast Freezing
function (see "Fast Freezing function").
Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours.
Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, de-
pending on the time available for this opera-
tion.
Small pieces may even be cooked still fro-
zen, directly from the freezer: in this case,
cooking will take longer.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-cubes.
Fill these trays with water, then put them in
the freezer compartment.
Important! Do not use metallic instruments
to remove the trays from the freezer.
Cold accumulators
The freezer contains at least one cold accu-
mulator which increases storage time in the
event of a power cut or breakdown.
Movable shelves
The walls of the refrigerator are equipped
with a series of shelves support so that the
shelves can be positioned as desired.
Some shelves must be lifted up by the rear
edge to enable them to be removed.
Important! Do not move the glass shelf
above the vegetable drawer to ensure cor-
rect air circulation.
Positioning the door shelves
The model is equipped with a variable stor-
age box which is fitted under a door shelf
compartment and can be slide sideways.
25

For more thorough cleaning, the top and
bottom door shelves can be easily removed
and refitted in position
HELPFUL HINTS AND TIPS
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continu-
ously, causing frost or ice on the evapo-
rator. If this happens, set the Tempera-
ture Regulator toward warmer settings to
allow automatic defrosting and so a sav-
ing in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if it
has a strong flavour
•positionfoodsothat air can circulate
freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg-
etable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor-
oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigera-
tor.
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rat-
ing plate;
• the freezing process takes 24 hours. No
further food to be frozen should be add-
ed during this period;
• only freeze top quality, fresh and thor-
oughly cleaned, foodstuffs;
• prepare food in small portions to enable it
to be rapidly and completely frozen and
to make it possible subsequently to thaw
only the quantity required;
• wrap up the food in aluminium foil or pol-
ythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the lat-
ter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;
• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.
26

Hints for storage of frozen food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are trans-
ferred from the foodstore to the freezer in
the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly
and cannot be refrozen;
• do not exceed the storage period indica-
ted by the food manufacturer.
CARE AND CLEANING
Caution! Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains hydrocarbons
in its cooling unit; maintenance and re-
charging must therefore only be carried
out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will
damage the surface and leave a strong
odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve the
performance of the appliance and save
electricity consumption.
Important! Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
Defrosting the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a drain hole into a special con-
tainer at the back of the appliance, over the
motor compressor, where it evaporates.
It is important to periodically clean the de-
frost water drain hole in the middle of the
refrigerator compartment channel to pre-
vent the water overflowing and dripping on-
to the food inside.
Defrosting of the freezer
The freezer compartment of this model, on
the other hand, is a "no frost" type. This
means that there is no buildup of frost
when it is in operation, neither on the inter-
nal walls nor on the foods.
The absence of frost is due to the continu-
ous circulation of cold air inside the com-
27

partment, driven by an automatically con-
trolled fan.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
•disconnect the appliance from elec-
tricity supply
• remove all food
• defrost (if foreseen) and clean the appli-
ance and all accessories
• leave the door/doors ajar to prevent un-
pleasant smells.
If the cabinet will be kept on, ask some-
body to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
WHAT TO DO IF…
Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or compe-
tent person must do the troubleshoot-
ing that is not in this manual.
Important! There are some sounds during
normal use (compressor, refrigerant
circulation).
Problem Possible cause Solution
The appliance does not
operate. The lamp does
not operate.
The appliance is switched off. Switch on the appliance.
The mains plug is not connected
to the mains socket correctly. Connect the mains plug to the mains socket correctly.
The appliance has no power.
There is no voltage in the mains
socket.
Connect a different electrical ap-
pliance to the mains socket.
Contact a qualified electrician.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the lamp".
The compressor oper-
ates continually.
The temperature is not set cor-
rectly. Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
frequently. Do not keep the door open longer than necessary.
The product temperature is too
high. Let the product temperature de- crease to room temperature be-
fore storage.
The room temperature is too
high. Decrease the room temperature.
The buzzer sounds. The temperature in the freezer is
too high. Refer to "Excessive Temperature Alarm"
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting
process, frost defrosts on the
rear plate.
This is correct.
Water flows into the re-
frigerator.
The water outlet is clogged. Clean the water outlet.
Products prevent that water
flows into the water collector. Make sure that products do not touch the rear plate.
Water flows on the
ground.
The melting water outlet does
not flow in the evaporative tray
above the compressor.
Attach the melting water outlet to
the evaporative tray.
28

Problem Possible cause Solution
The temperature in the
appliance is too low.
The temperature regulator is not
set correctly. Set a higher temperature.
The temperature in the
appliance is too high.
The temperature regulator is not
set correctly. Set a lower temperature.
Many products are stored at the
same time. Store less products at the same time.
The temperature in the
refrigerator is too high.
There is no cold air circulation in
the appliance. Make sure that there is cold air circulation in the appliance.
The temperature in the
freezer is too high.
Products are too near to each
other. Store products so that there is cold air circulation.
Upper or lower square is
shown in the tempera-
ture display.
An error has occurred in meas-
uring the temperature Call your service representative (the cooling system will continue
to keep food products cold, but
temperature adjustment will not
be possible).
dEMo appears on the
Display.
The appliance is in demonstra-
tion mode (dEMo) Keep pressed approximately 10 sec. the OK button since a long
sound of buzzer is heard and the
Display shut off for a short while:
appliance start works regularly.
TECHNICAL DATA
Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time 21 h
Voltage 230-240 V
Frequency 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
INSTALLATION
Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.
Positioning
Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate of
the appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N+16°C to + 32°C
ST +16°C to + 38°C
T+16°C to + 43°C
29

Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup-
ply socket is not earthed, connect the appli-
ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not ob-
served.
This appliance complies with the E.E.C. Di-
rectives.

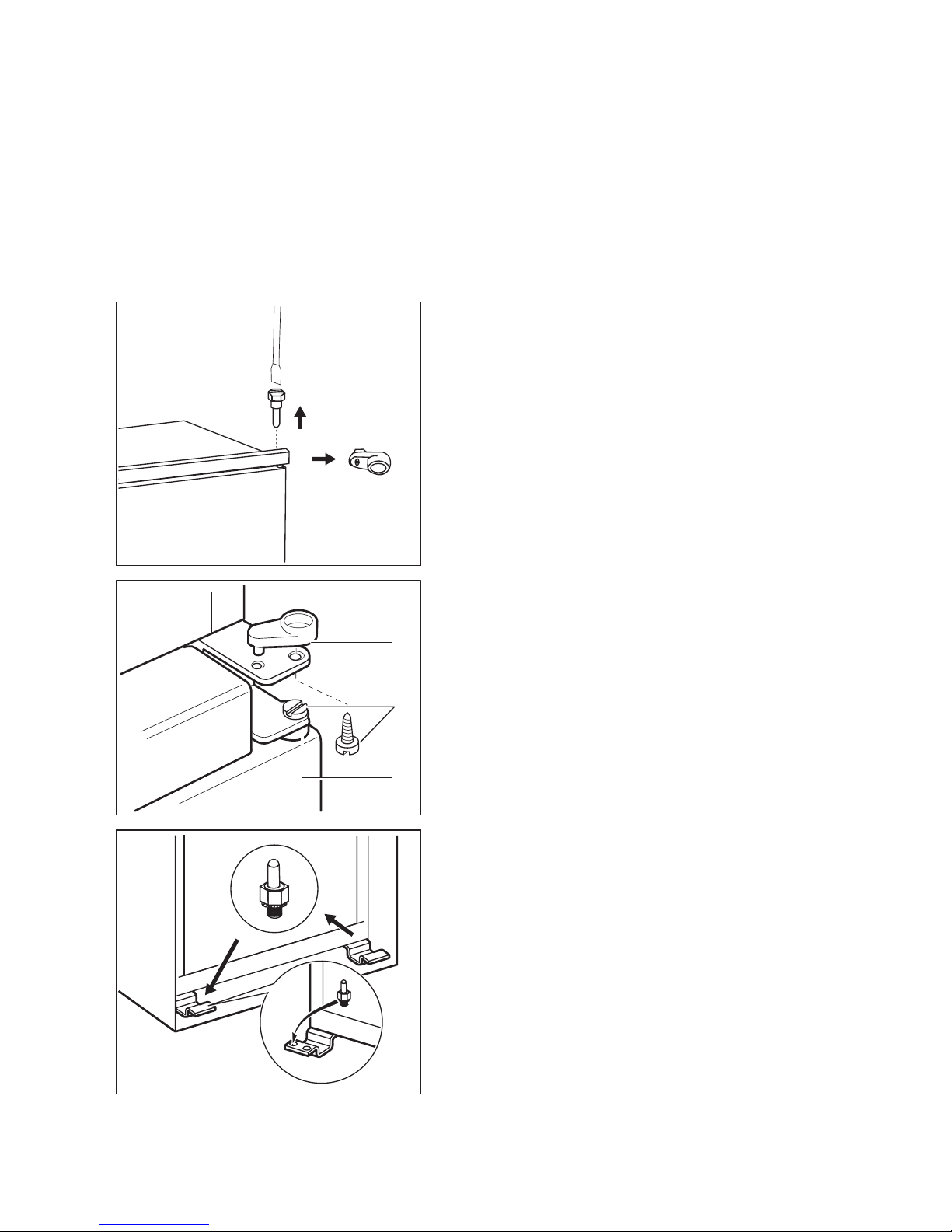

Door reversibility
The door of the appliance opens to the
right. If you want to open the door to the
left, do these steps before you install the
appliance:
• Loosen the upper pin and remove the
spacer.
• Remove the upper pin and the upper
door.
B
C
C
• Unscrew the pins (B) and spacers (C).
• Remove the lower door.
• Loosen the lower pin.
On the opposite side:
• Install the lower pin.
• Install the lower door.
• Refit the pins (B) and the spacers (C) on
the middle hinge on the opposite side.
• Install the upper door.
• Tighten the spacer and the upper pin.
30

Ventilation requirements
min.
200 cm2
50 - min. 200 cm2
The airflow behind the appliance must be
sufficient.
Installing the appliance
Caution! Make sure that the mains
cable can move freely.
Do these steps.
x
x

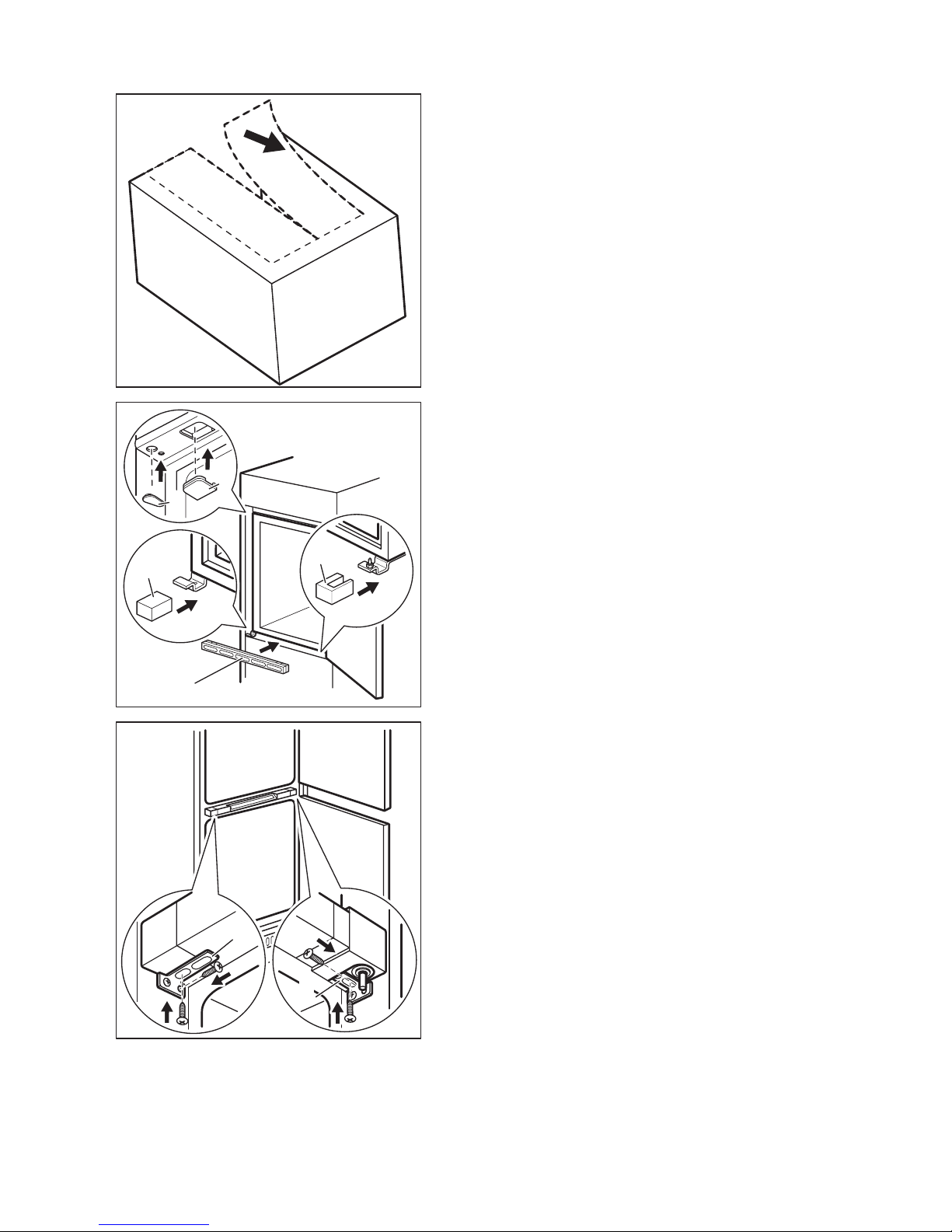

If necessary cut the adhesive sealing strip
and then apply it to the appliance as shown
in figure.
A1A
Drill the hinge cover A, as shown in figure.
Apply the covers A and A1 (in the accesso-
ries bag) in to the middle hinge.
31

1
2
Install the appliance in the niche.
Push the appliance in the direction of the ar-
row (1) until the upper gap cover stops
against the kitchen furniture.
Push the appliance in the direction of the ar-
row (2) against the cupboard on the oppo-
site side of the hinge.
4 mm
44 mm
Adjust the appliance in the niche.
Make sure that the distance between the ap-
pliance and the cupboard front-edge is 44
mm.
The lower hinge cover (in the accessories
bag) makes sure that the distance between
the appliance and the kitchen furniture is
correct.
Make sure that the clearance between the
appliance and the cupboard is 4 mm.
Open the door. Put the lower hinge cover in
position.
I
I
Attach the appliance to the niche with 4
screws.
32

Remove the correct part from the hinge cov-
er (E). Make sure to remove the part DX, in
the case of right hinge, SX in opposite case.
E
E
B
D
C
Attach the covers (C, D) to the lugs and the
hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
H
H
If the appliance must connect laterally to the
kitchen furniture door:
1. Slacken the screws in fixing brackets
(H).
2. Move the brackets (H).
3. Retighten the screws.
33

Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
Install the part (Ha) on the inner side of the
kitchen furniture.
Ha
Hc
Push the part (Hc) on the part (Ha).
Ha
Hb
8 mm
Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the fur-
niture door and mark the holes.
34

Ha
K
8 mm
Remove the brackets and mark a distance
of 8 mm from the outer edge of the door
where the nail must be fitted (K).
Hb
Place the small square on the guide again
and fix it with the screws supplied.
Align the kitchen furniture door and the ap-
pliance door by adjusting the part (Hb).
Hb
Hd
Press the part (Hd) on the part (Hb).
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
ENVIRONMENTAL CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
35

consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
36

55

222365981-A-122013
